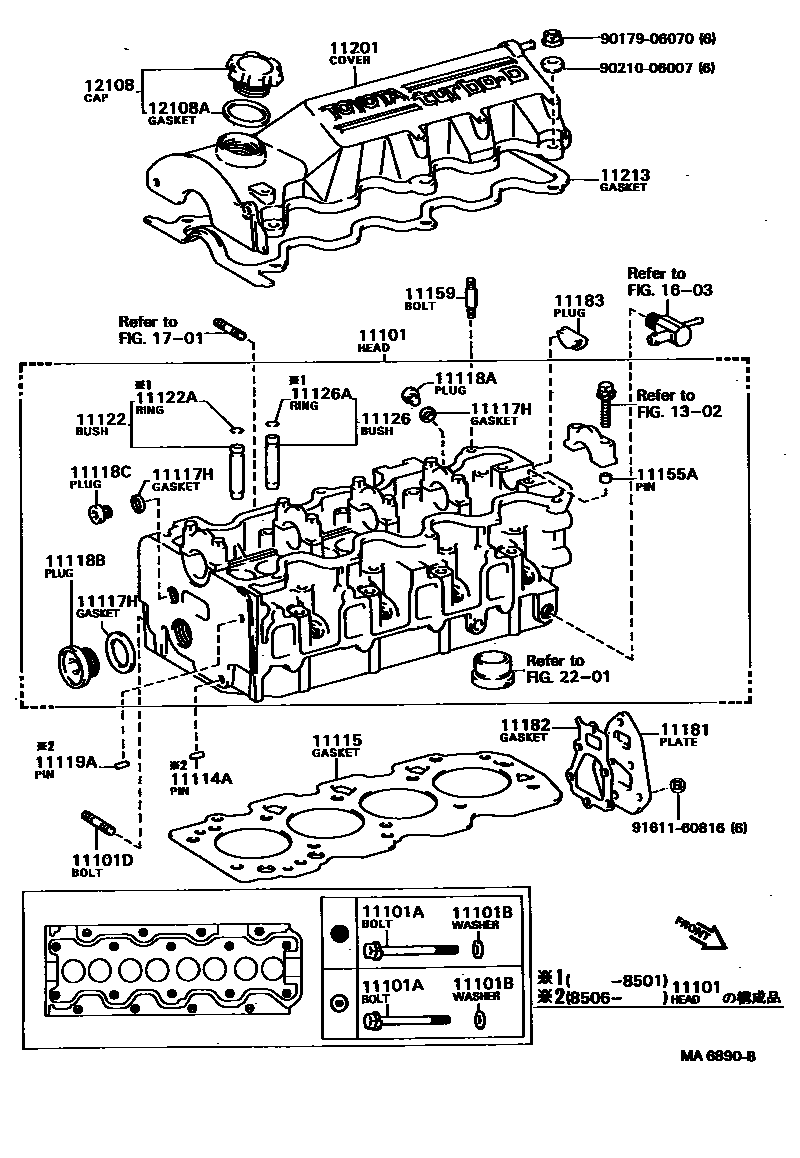

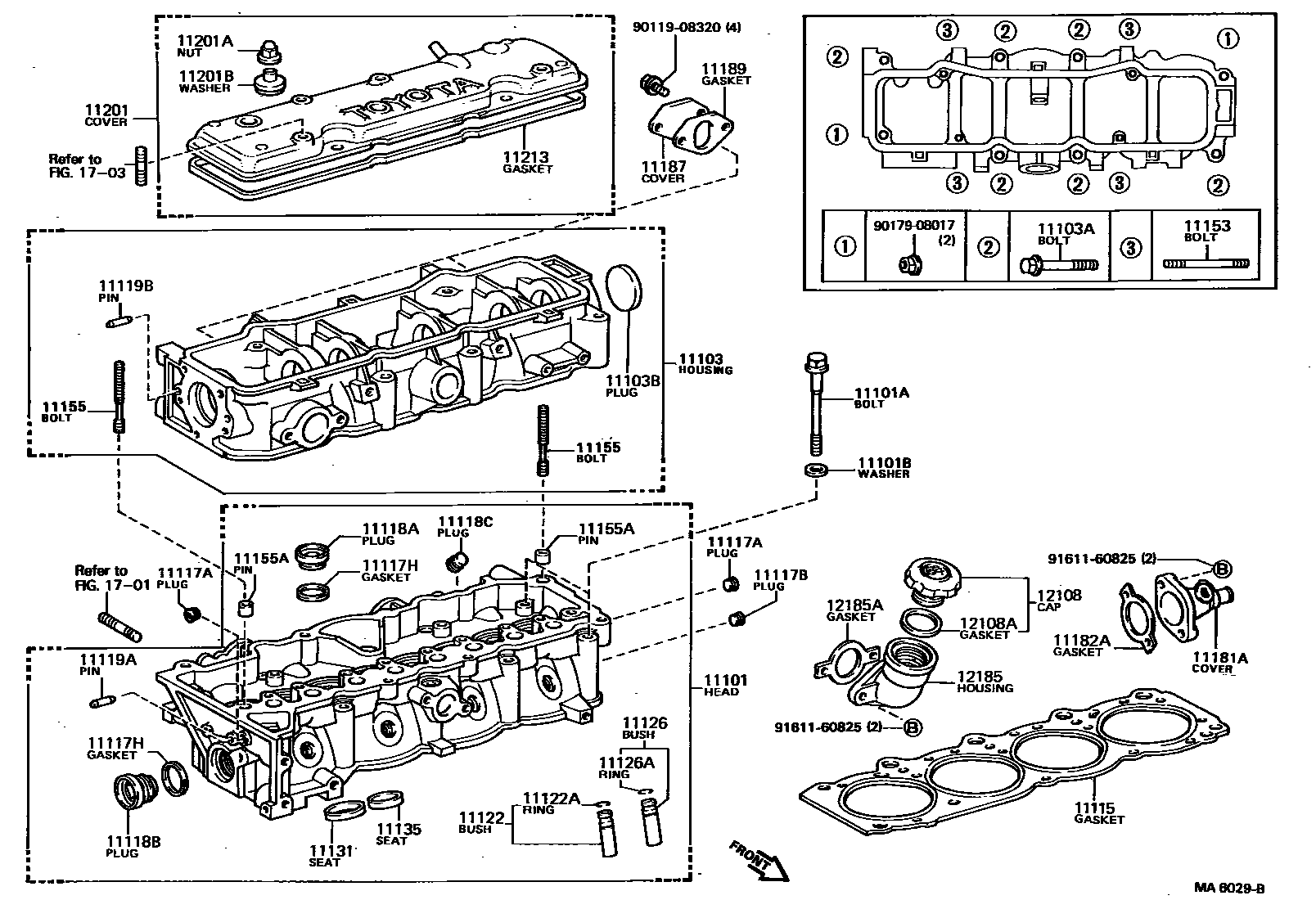

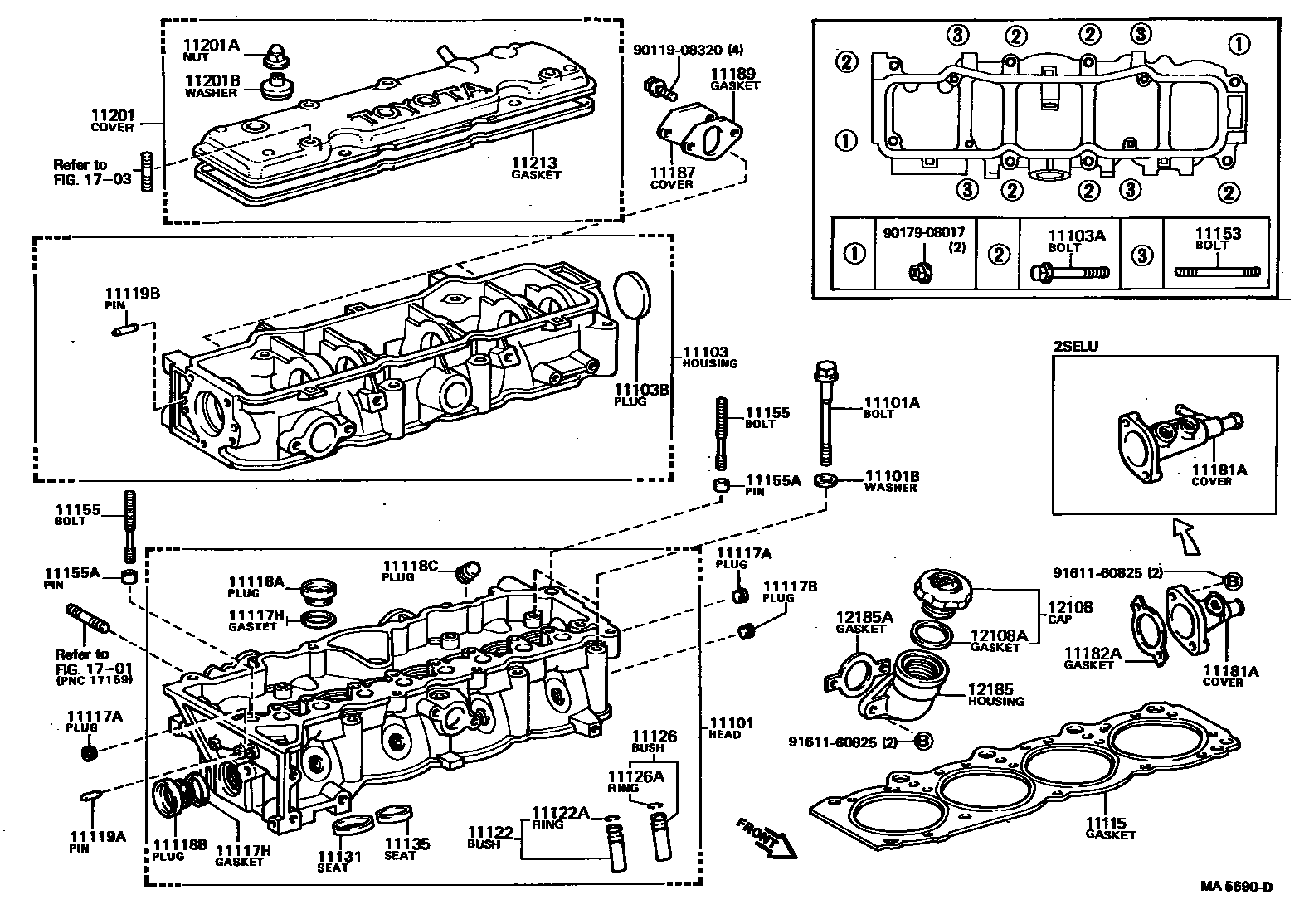

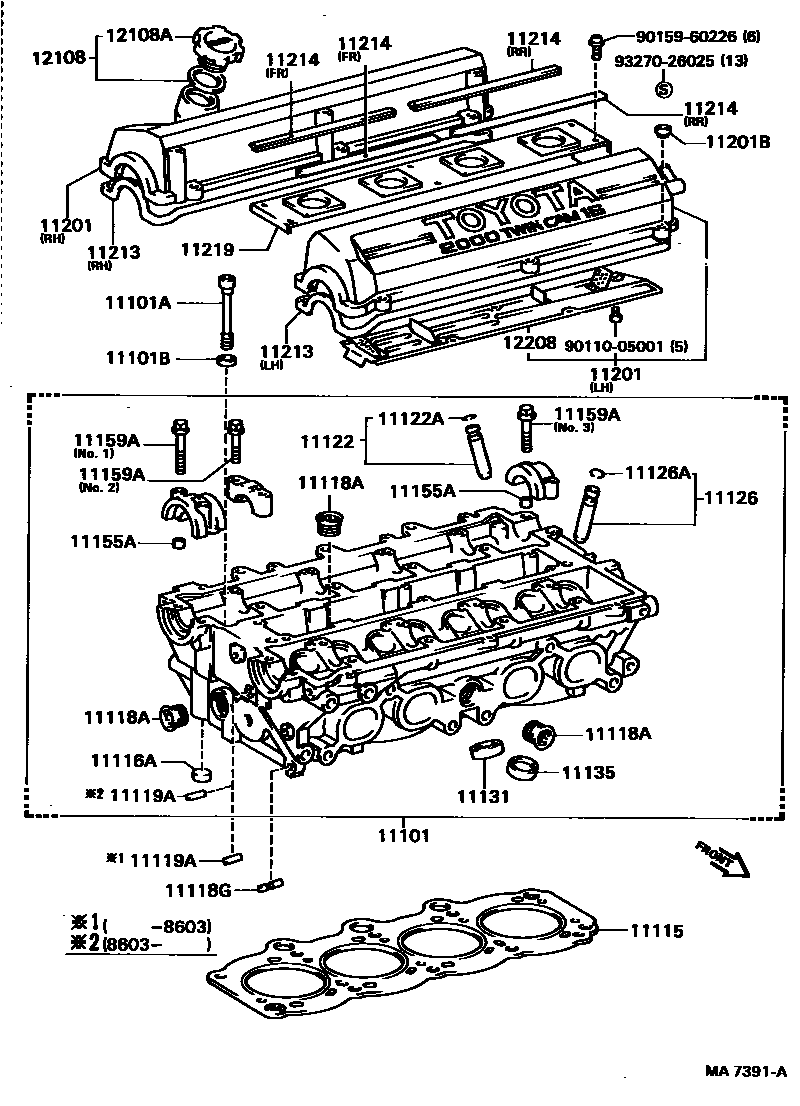

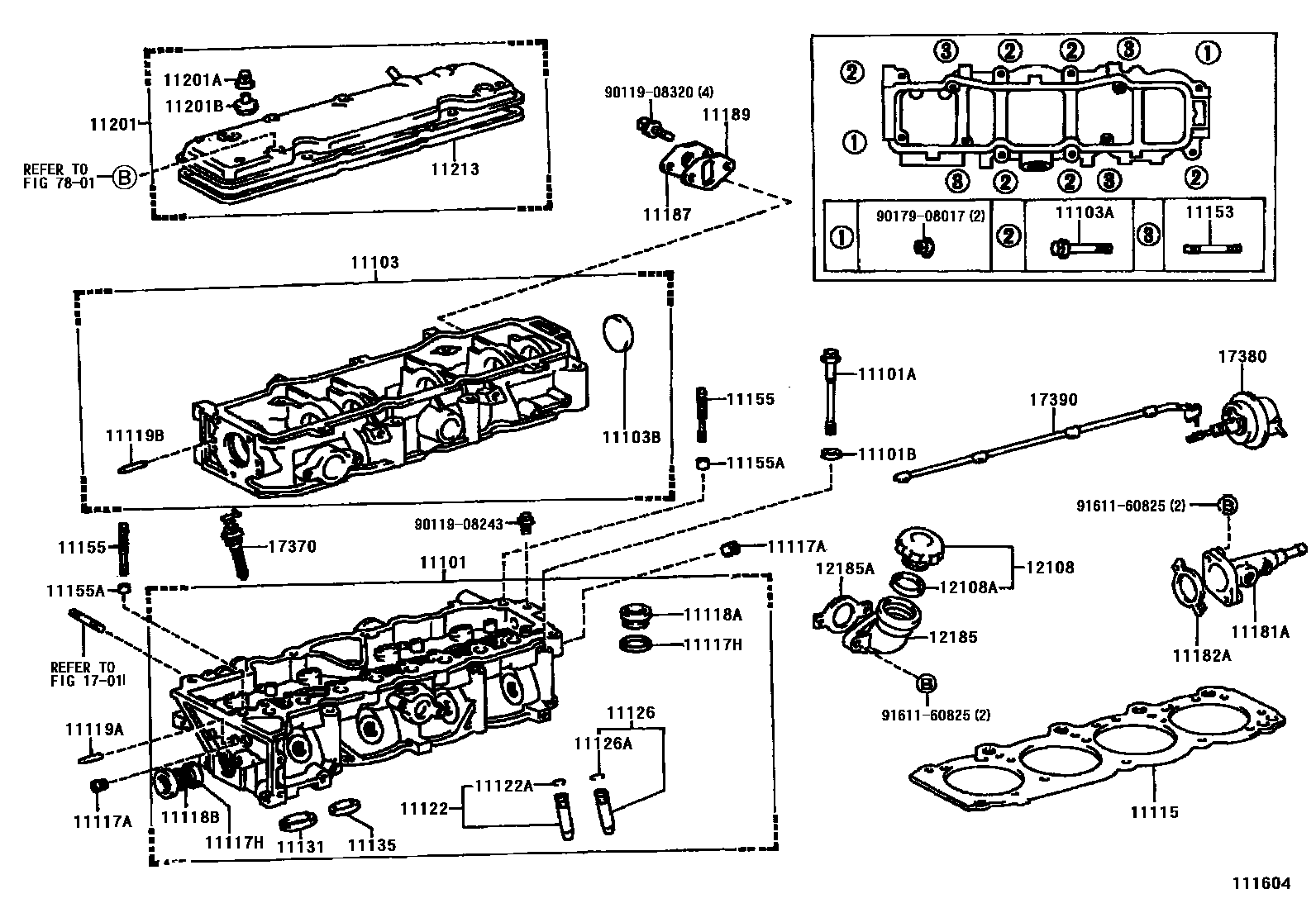

Toyota CAMRY Cylinder Head — Figure 1104
Toyota CAMRY EPC diagram 1104, Cylinder Head, with 5 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-63030 · 11101-64030 · 11101-64031 · 11101-64070 · 11101-69026 · 11101-69027 · 11101-69035 · 11101-88360 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-11011 · 90105-11012 · 90105-11018 · 90105-11019 · 90109-10048 · 90110-10006 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10050 · 90201-10344 · 90201-12222 |
| 11101D | Stud bolts (for water outlet) | 92122-60820 |
| 11103 | Camshaft housing sub-assembly | 11103-63900 · 11103-69015 · 11103-69016 · 11103-69025 |
| 11103A | Bolts (for camshaft housing assembly) | 91511-60865 |
| 11103B | No. 1 sealing plug (for cam housing) | 96411-45000 |
| 11114A | direct selling | 90250-06068 |
| 11115 | GASKET, CYLINDER HEAD | 11115-63010 · 11115-64050 · 11115-64070 · 11115-64080 · 11115-74010 · 11115-88360 · 11115-88361 · 11115-88362 |
| 11116A | No. 1 sealing plug | 96411-41800 |
| 11117A | No. 1 headed tapered thread plug | 90344-52013 |
| 11117B | No. 2 headed tapered thread plug | 90344-53011 |
| 11117H | Gasket (for coolant hole) | 90430-10204 · 90430-12005 · 90430-12010 · 90430-20004 · 90430-24246 · 90430-33133 |
| 11118A | No. 1 straight screw plug | 90341-10005 · 90341-20002 · 90341-27001 · 90341-27003 |
| 11118B | No. 2 straight screw plug | 90341-24090 · 90341-32070 |
| 11118C | No. 3 straight screw plug | 90340-18001 · 90341-12002 |
| 11118G | Slotted Spring Pin No. 1 | 90249-06052 |
| 11119A | No. 1 direct sales | 90250-06003 · 90250-06068 |
| 11119B | No. 2 direct sales | 90250-06003 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-63020 · 11122-64010 · 11122-88310 · 11123-63020 · 11123-64010 · 11123-88310 · 11126-24020 · 11127-24020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-10004 · 90520-12049 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-88310 · 11123-88310 · 11126-24020 · 11126-63020 · 11126-64010 · 11126-64020 · 11127-24020 · 11127-63020 · 11127-64010 · 11127-64020 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-10004 · 90520-12049 |
| 11131 | intake valve seat | 11131-63010 · 11131-74010 · 11132-63010 · 11132-74010 |
| 11135 | Exhaust valve seat | 11135-63010 · 11135-74010 · 11136-63010 · 11136-74010 |
| 11153 | Studs (for mounting camshaft housing to cylinder head cover) | 92122-40650 |
| 11155 | Studs (for mounting the cylinder head to the camshaft housing) | 90116-08150 |
| 11155A | PIN, RING W/HEAD | 90253-10004 · 90253-11021 · 90253-13017 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90116-06023 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07001 · 90119-07002 · 90119-07003 |
| 11181 | cylinder head rear plate | 11181-64010 |
| 11181A | cylinder head rear cover | 11108-63010 · 11108-63020 · 11108-74010 · 11181-63020 |
| 11182 | Rear cylinder head gasket | 11182-64010 |
| 11182A | Rear cylinder head cover gasket | 16341-63010 |
| 11183 | PLUG, SEMICIRCULAR | 11183-64010 |
| 11187 | Rear camshaft housing cover | 11187-63020 |
| 11189 | Camshaft housing rear cover gasket | 11117-63010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-64040 · 11201-64041 · 11201-69085 · 11202-88360 · 11211-88360 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06008 |
| 11201B | Gasket (for cylinder head cover) | 90210-07001 · 90210-08020 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-63010 · 11213-64020 · 11213-88360 · 11214-88360 |
| 11214 | No. 2 cylinder head cover gasket | 11229-88360 · 11239-88360 |
| 11219 | No. 3 cylinder head cover | 11219-74020 · 11219-88360 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13010 · 12180-13030 · 12180-70010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
| 12185 | Oil filler cap housing | 12185-63010 |
| 12185A | Oil filler cap gasket | 16341-63010 |
| 12208 | Ventilation baffle sub-assembly | 12208-88360 |
| 17370 | Vortex control valve assembly | 17370-15010 |
| 17380 | Eddy current control actuator assembly | 17380-63010 · 17380-63020 |
| 17390 | Eddy current control connecting rod assembly | 17390-63010 |
