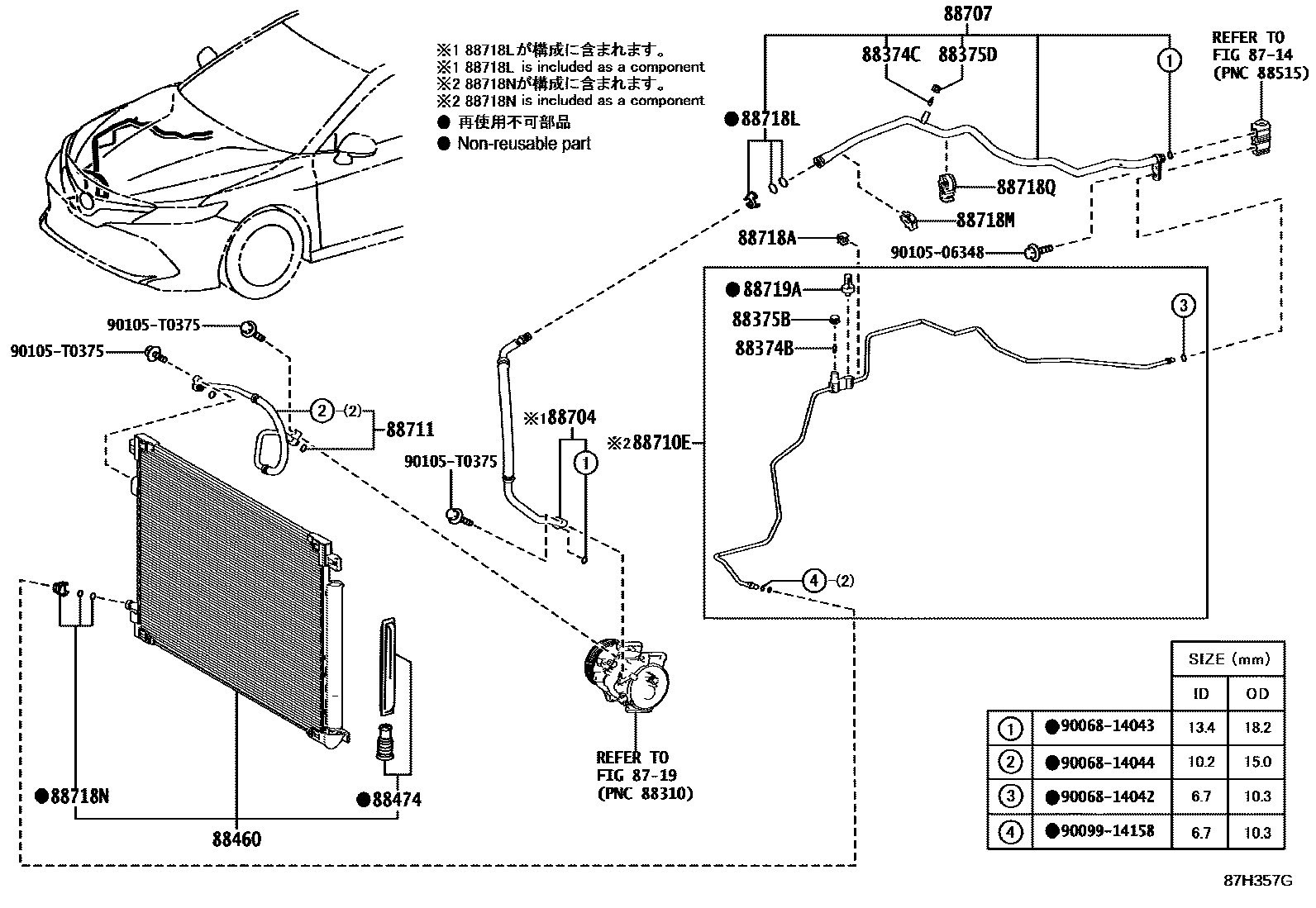

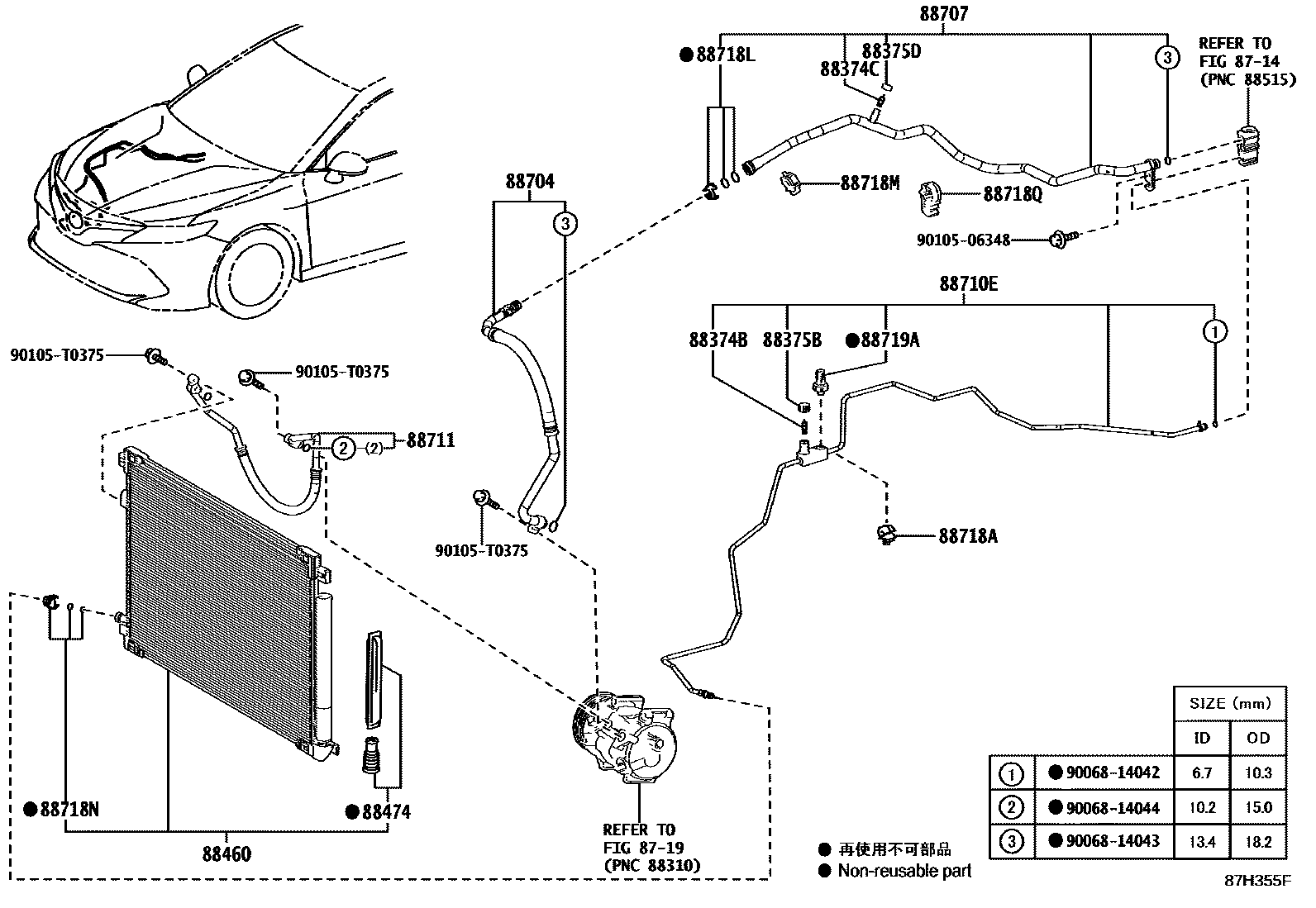

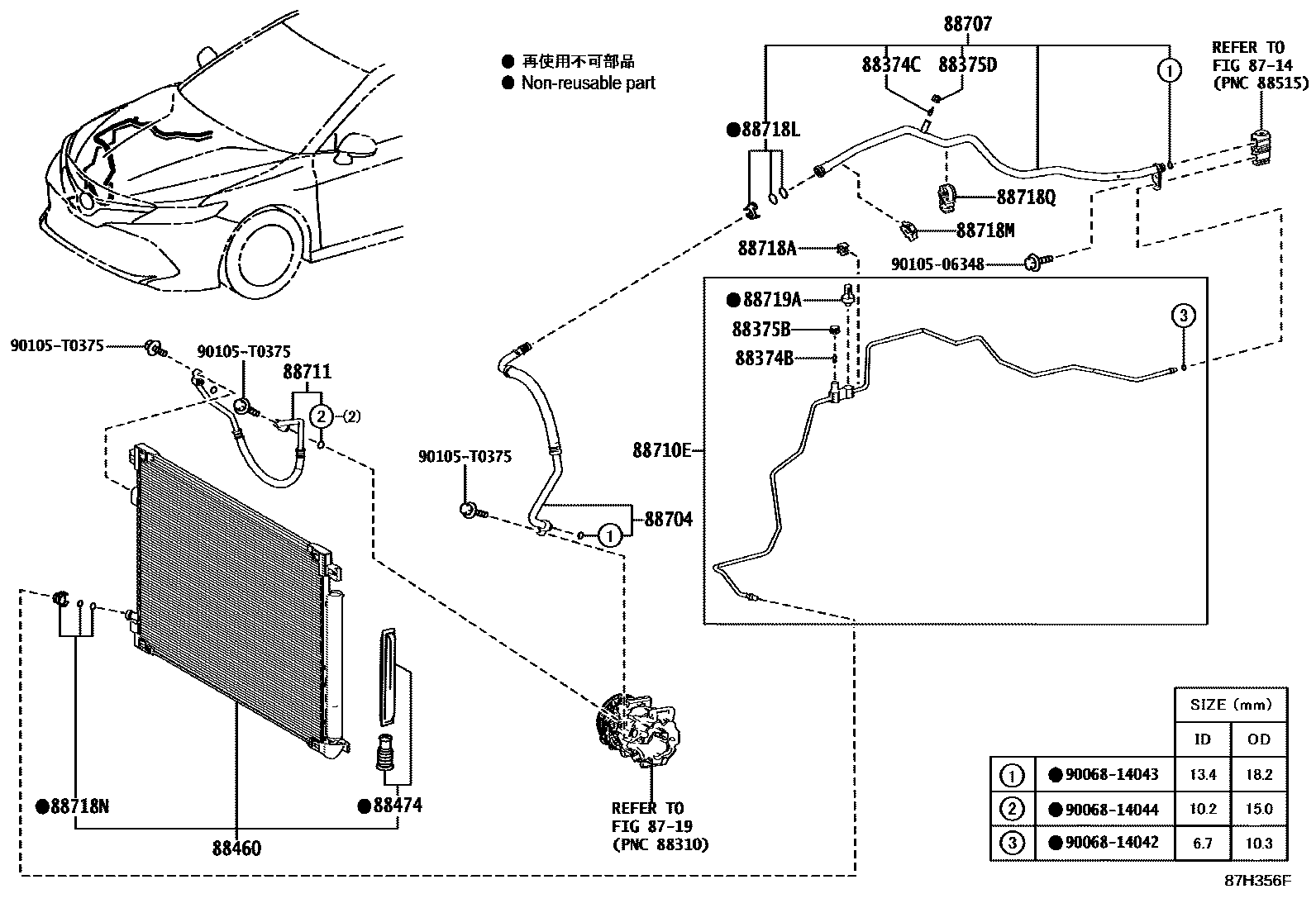

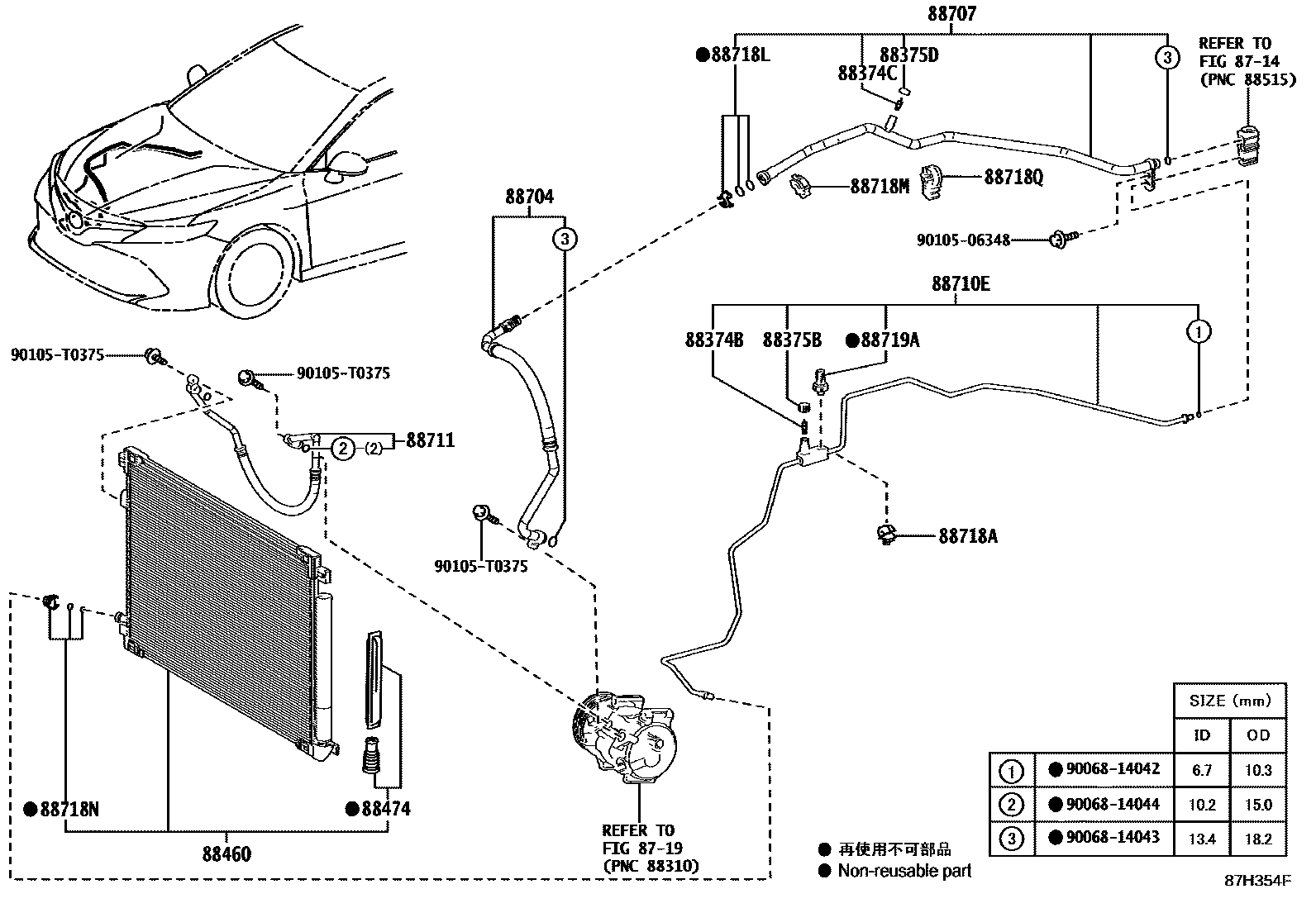

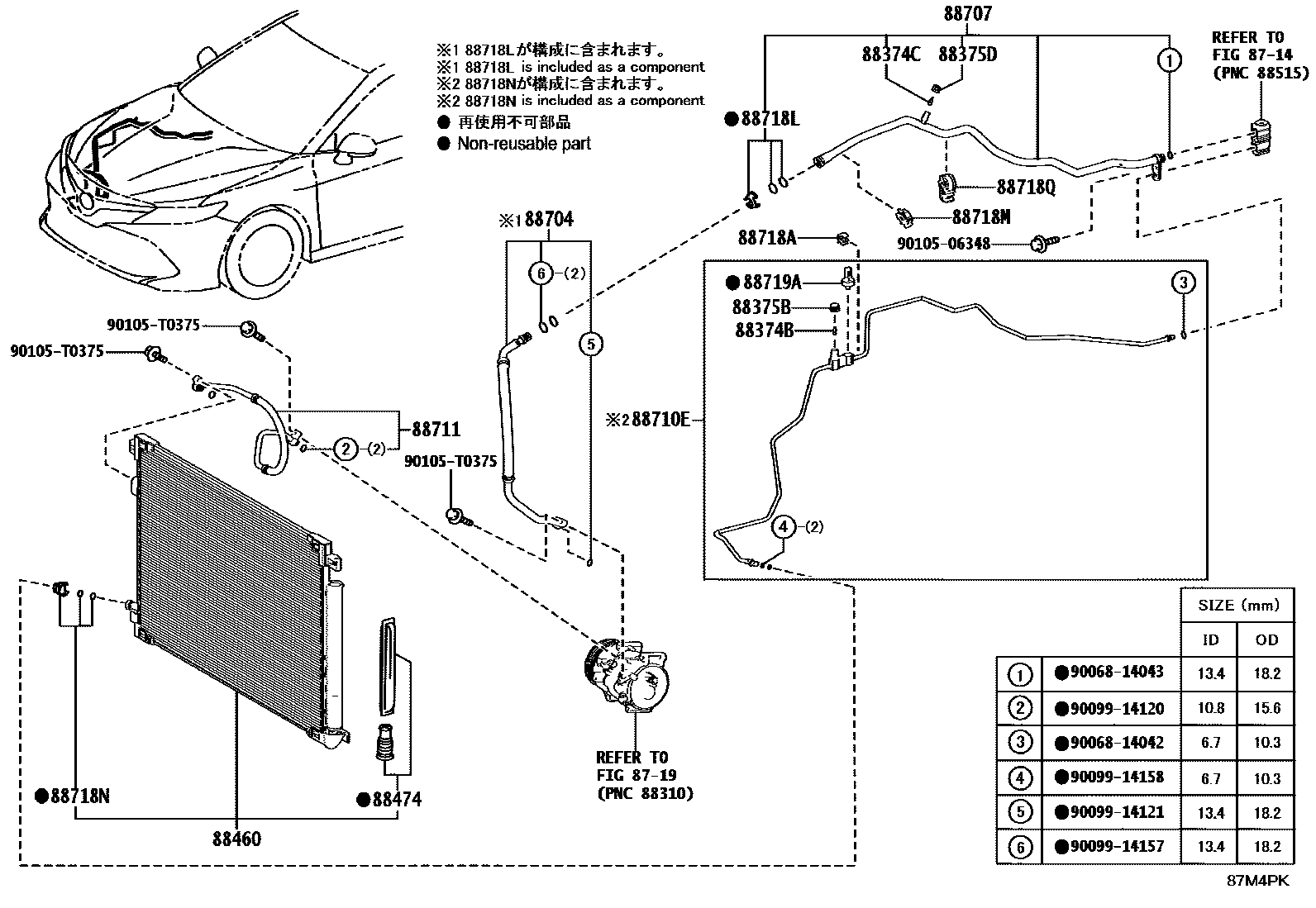

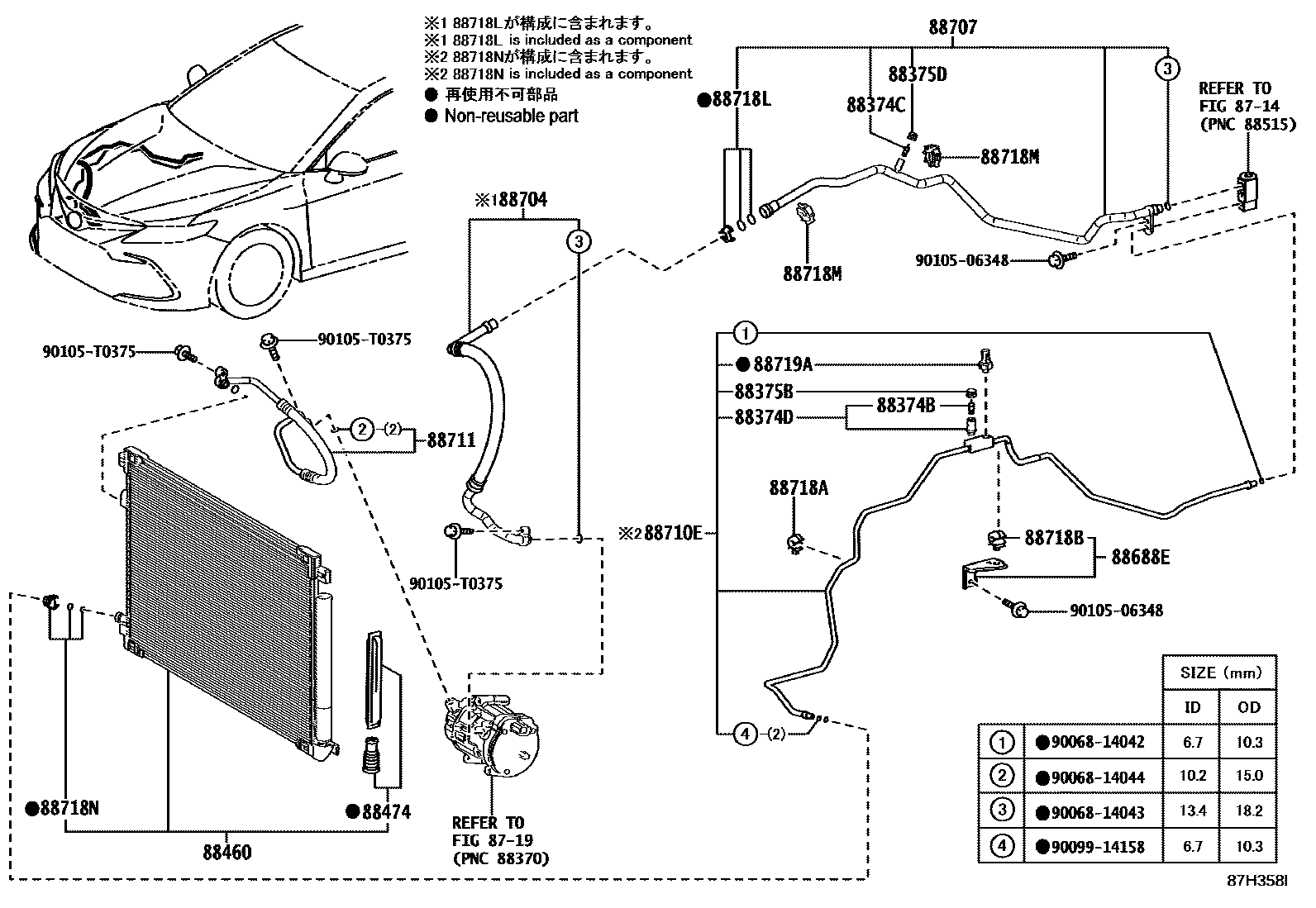

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-33070 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 884A0-06070 · 884A0-06080 |
| 88474 | cooler dryer | 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-06380 |
| 88704 | Oil suction hose sub-assembly | 88704-06420 · 88704-06510 · 88704-06520 · 88704-33661 · 88704-33662 · 88704-33671 |
| 88707 | Suction pipe sub-assembly | 88707-06280 · 88707-06290 · 88707-06330 · 88707-06350 · 88707-06400 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06150 · 88710-06570 · 88710-06580 · 88710-06620 · 88710-06670 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06640 · 88711-06670 · 88711-06680 · 88711-33361 · 88711-33362 · 88711-33371 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-33560 · 88718-58050 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-58050 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718M | Pipe clamp | 88718-42110 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88718Q | Pipe clamp | 88718-33490 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
