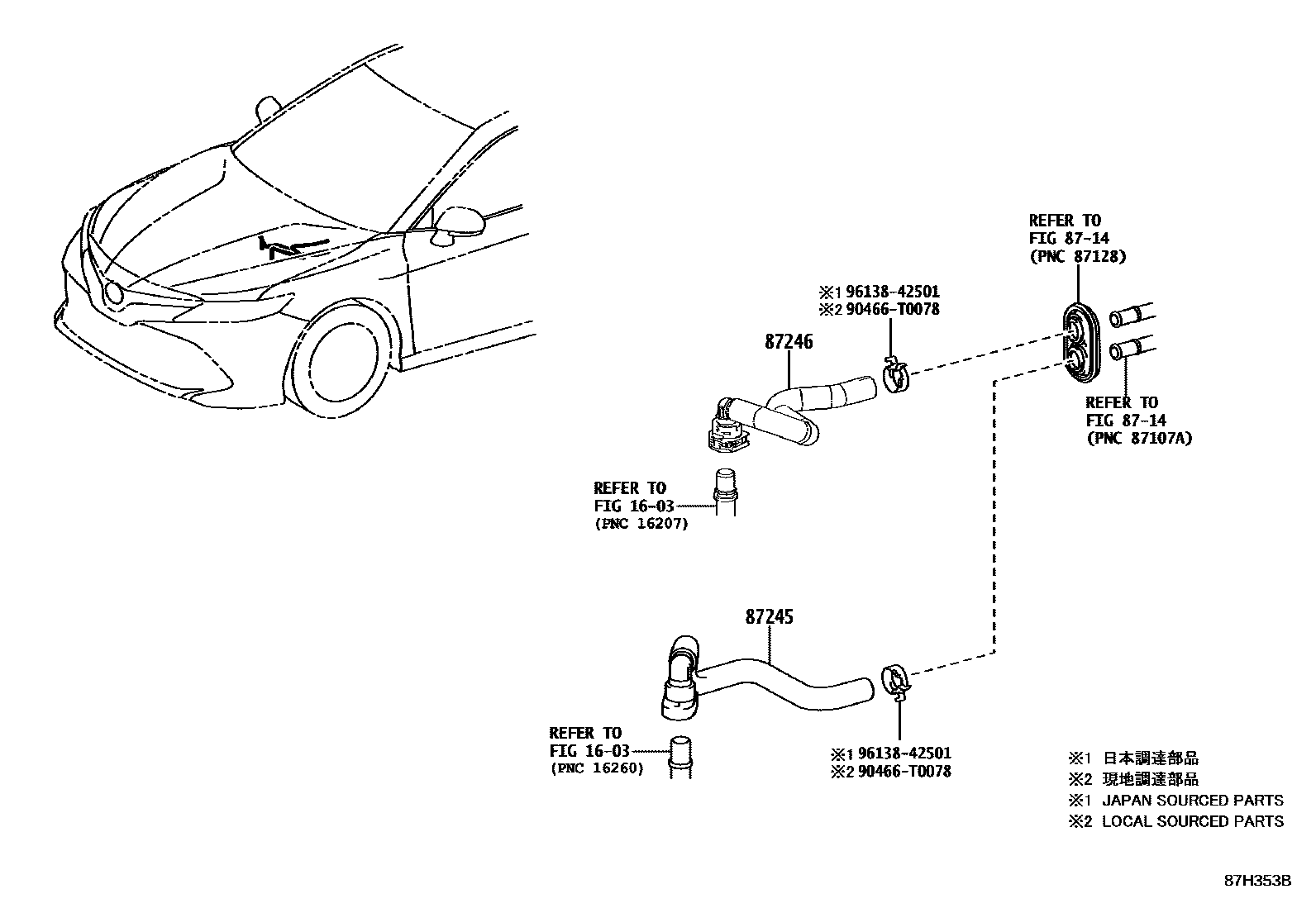

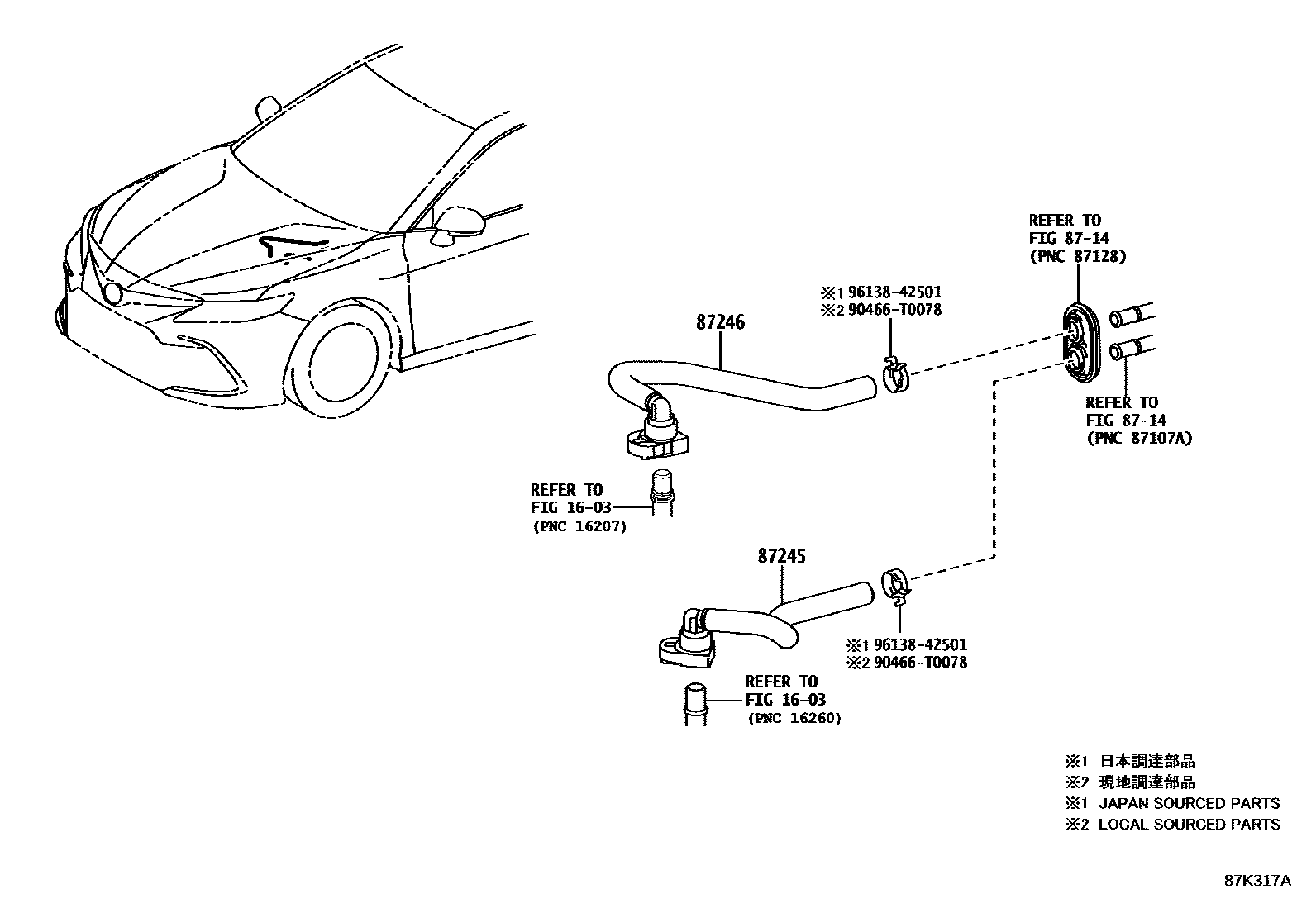

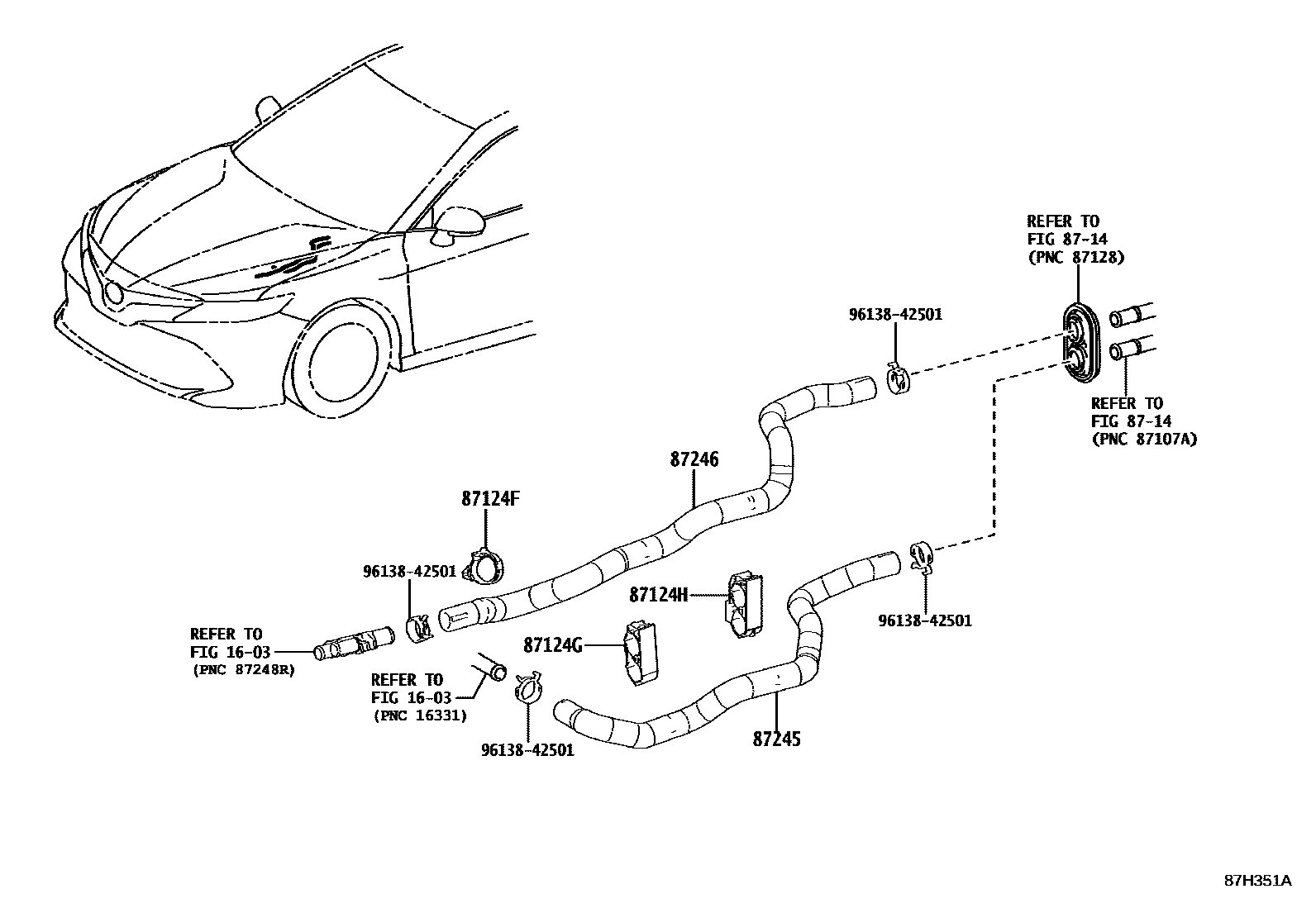

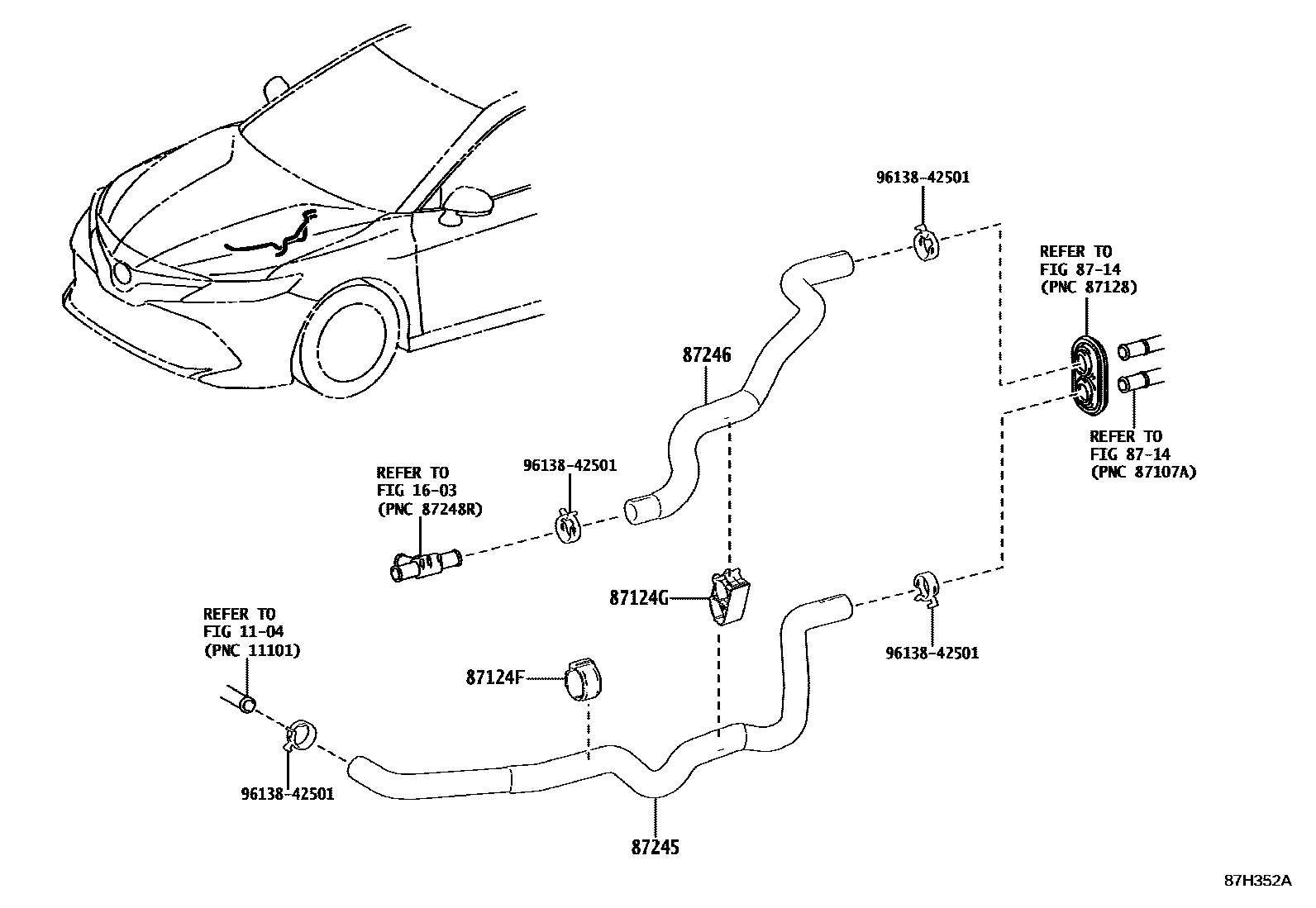

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124F | No. 1 heater hose clamp | 88718-33480 |
| 87124G | No. 2 heater hose clamp | 88718-33500 |
| 87124H | No. 3 heater hose clamp | 88718-33510 |
| 87245 | Heater water inlet hose | 87209-33070 · 87209-33140 · 87245-06E50 · 87245-06E90 |
| 87246 | Heater outlet hose | 87209-33080 · 87209-33151 · 87245-06E60 · 87245-06F00 |
