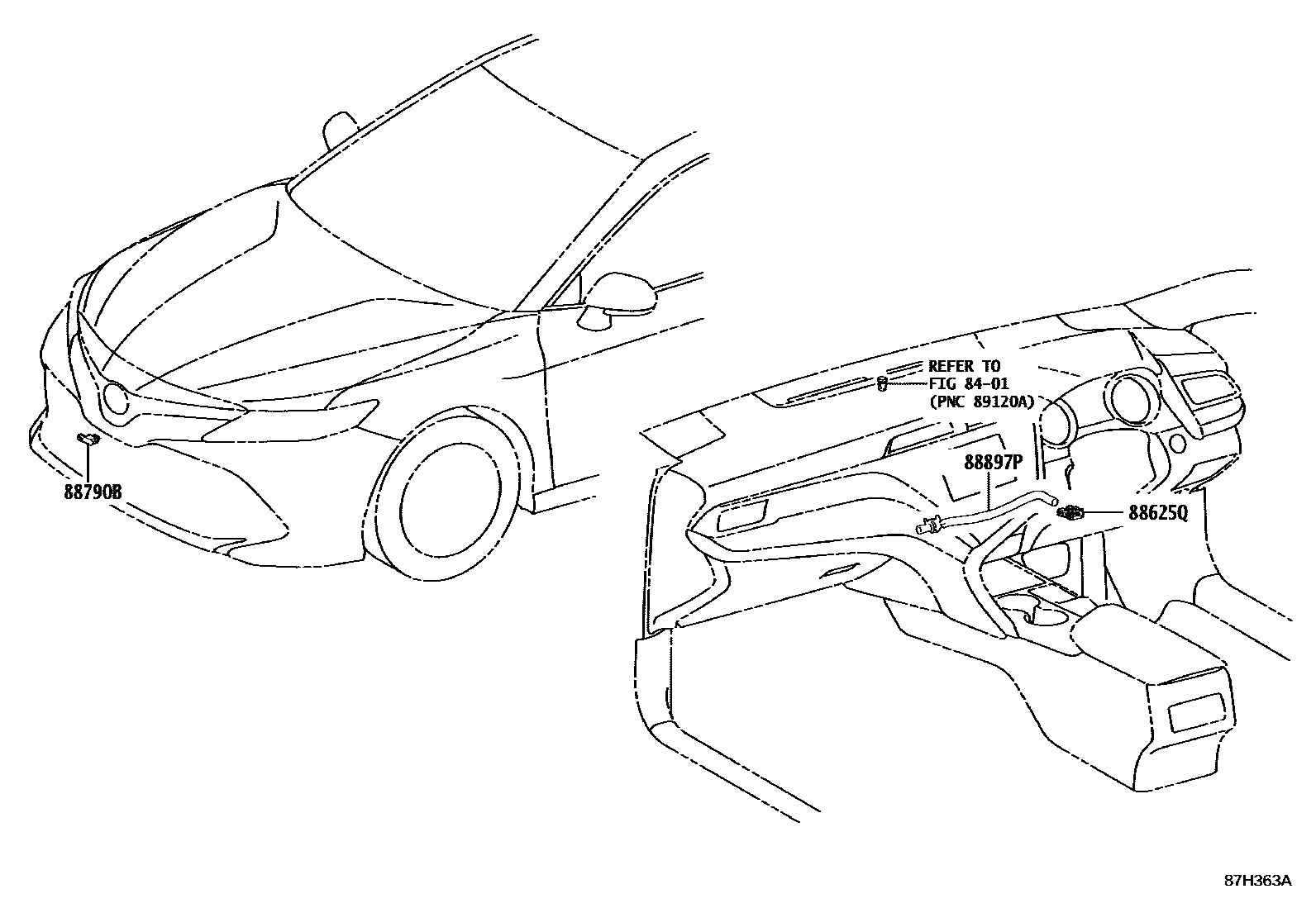

Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 11 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

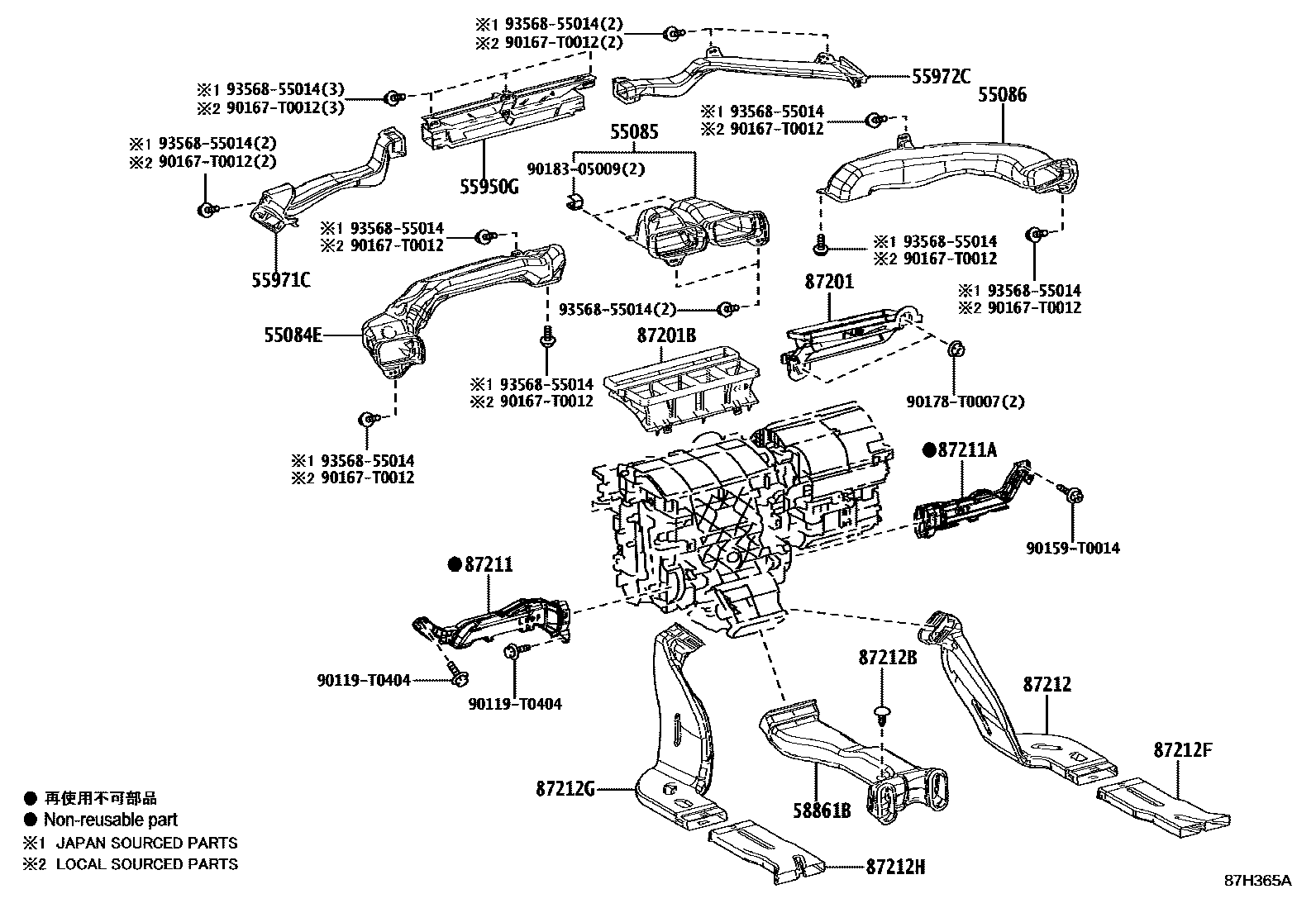

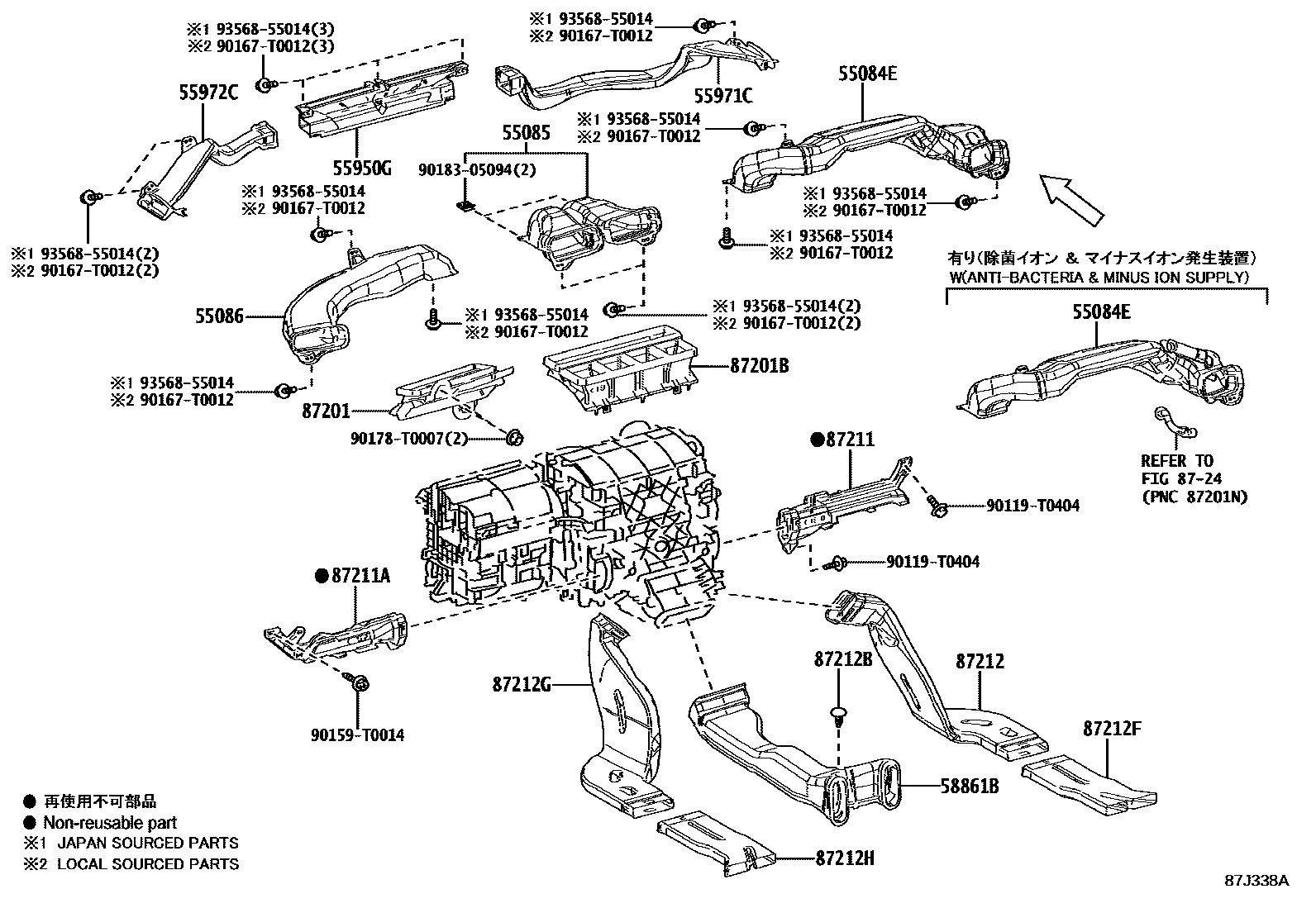

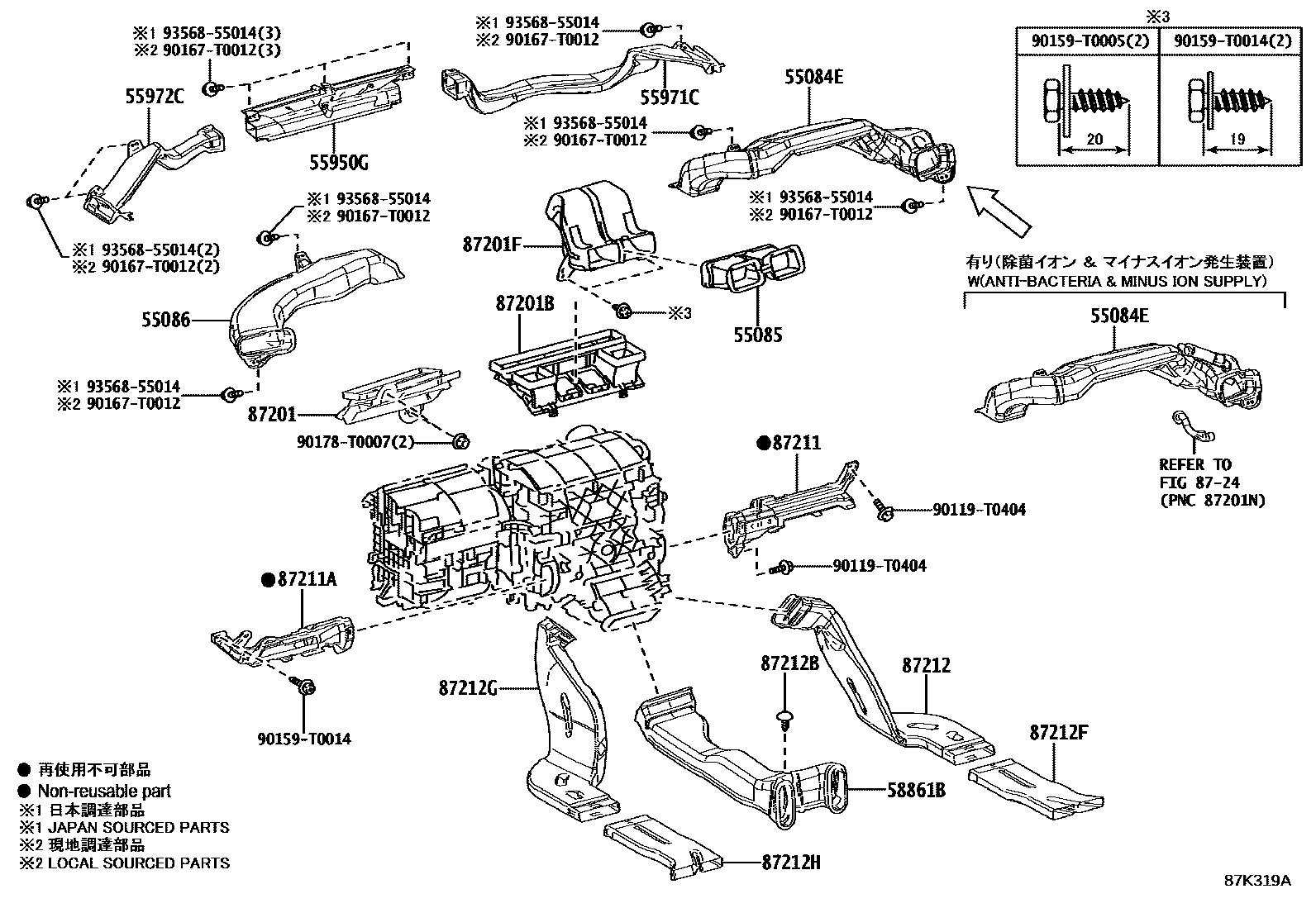

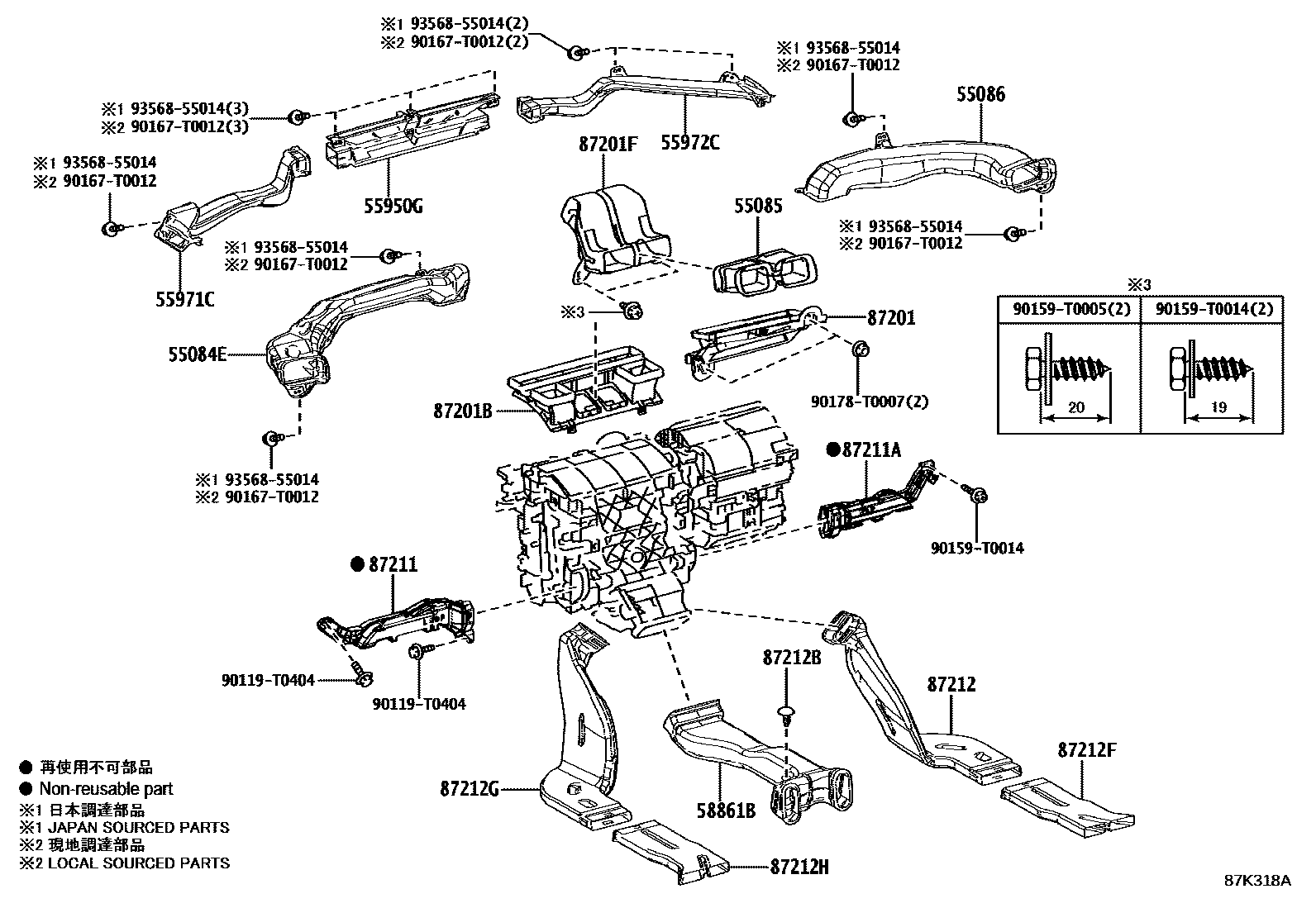

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-06350 · 55843-06390 · 55870-06070 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-06210 · 55844-06240 · 55844-06340 · 55844-06350 · 55844-33200 · 55844-33260 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-06180 · 55845-06250 |

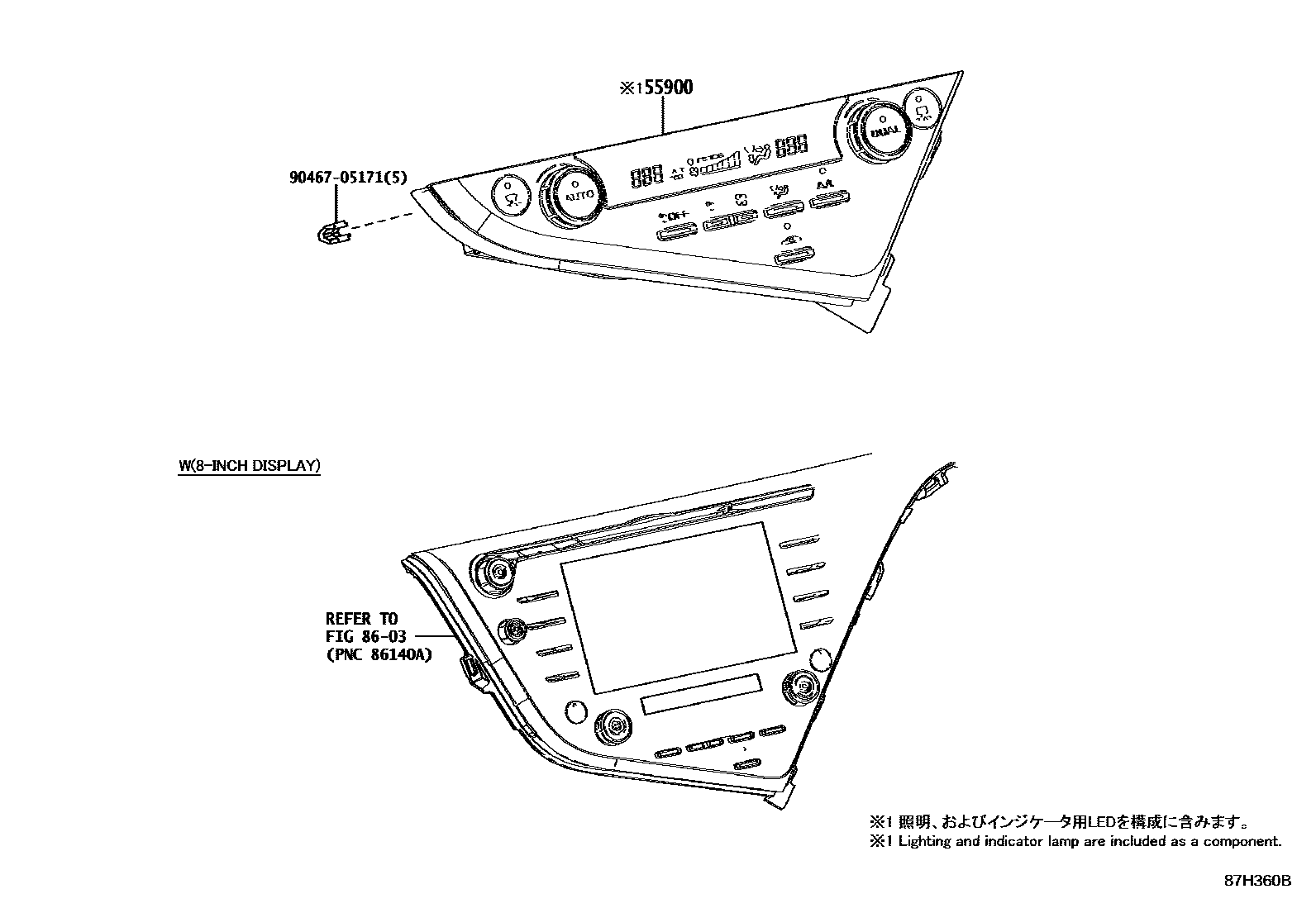

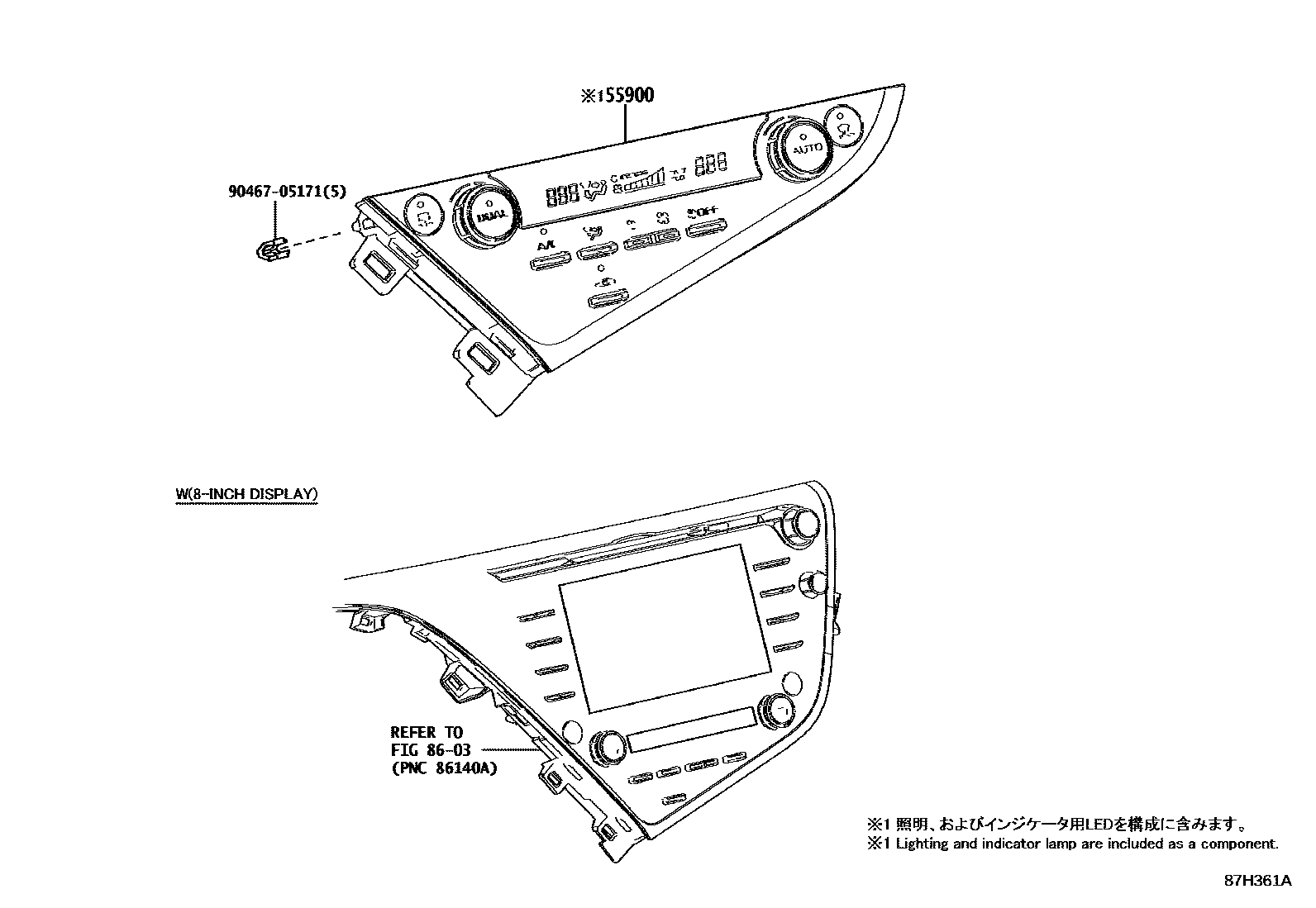

| 55900 | Air conditioning control assembly | 55900-06650 · 55900-06660 · 55900-06690 · 55900-06700 |
| 55950G | Defroster nozzle assembly | 55950-06180 · 55950-06210 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06170 · 55971-06200 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06170 · 55972-06200 |
| 58861B | Air duct No. 1 for armrest box | 58861-06220 · 58861-06250 |
| 87201 | No. 1 air duct sub-assembly | 87201-06850 · 87201-06890 |
| 87201B | No. 2 air duct sub-assembly | 87201-06B10 · 87201-06B20 · 87201-06C40 · 87201-06C50 |
| 87201F | No. 3 air duct sub-assembly | 87201-06C30 |
| 87211 | No. 1 air duct | 87201-06830 · 87201-06870 |
| 87211A | Duct No. 2 | 87201-06840 · 87201-06880 |
| 87212 | No. 1 rear air duct | 87212-06120 · 87212-06121 · 87212-06130 |
| 87212F | No. 2 rear air duct | 87215-06080 |
| 87212G | No. 3 rear air duct | 87213-06120 · 87213-06130 · 87213-06131 |
| 87212H | No. 4 rear air duct | 87216-06080 |

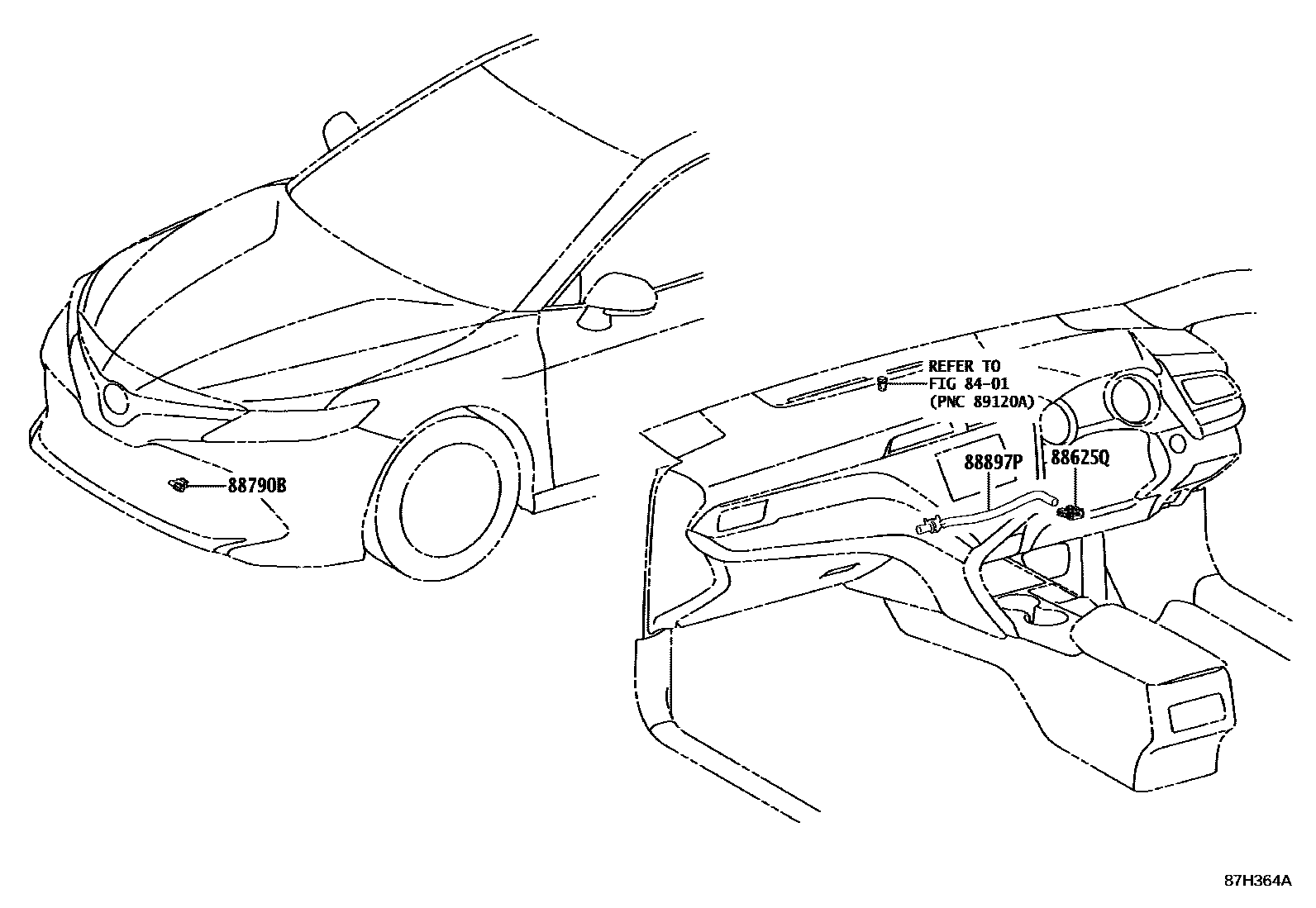

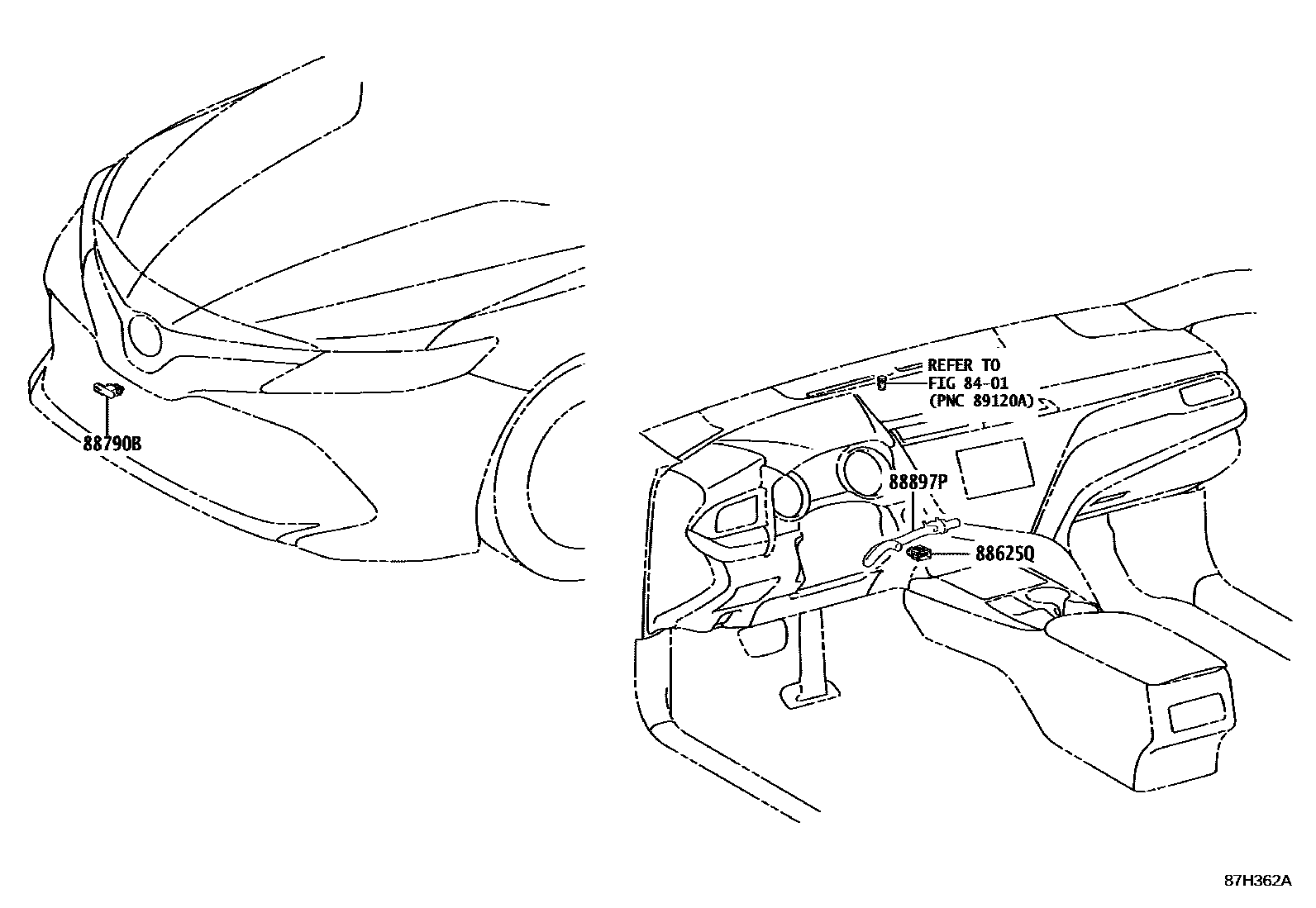

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-0K020 · 88625-47021 |
| 88790B | Thermistor assembly | 88790-0K010 · 88790-28100 |
| 88897P | aspirator | 87201-06860 · 87201-06A00 |
