Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

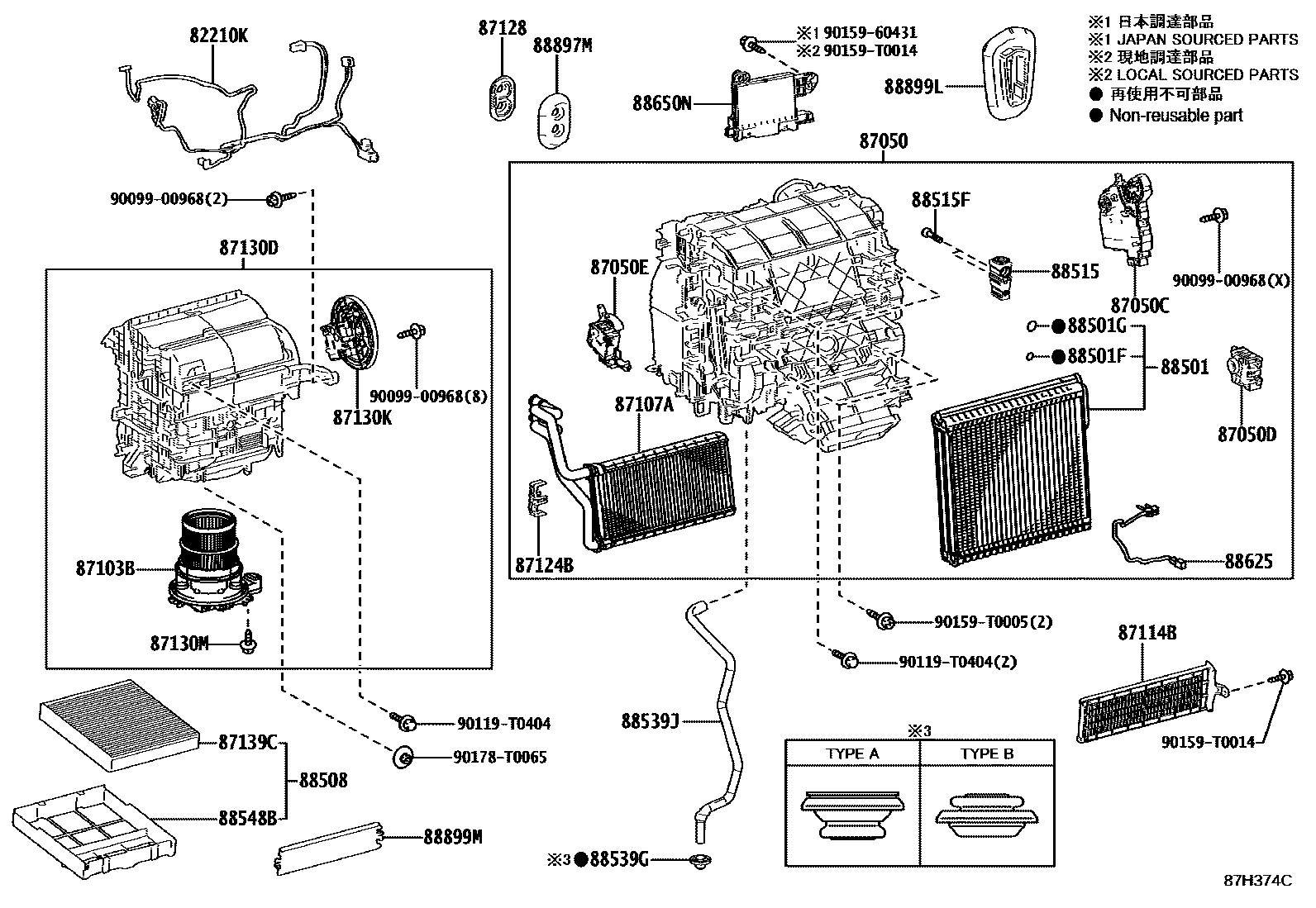

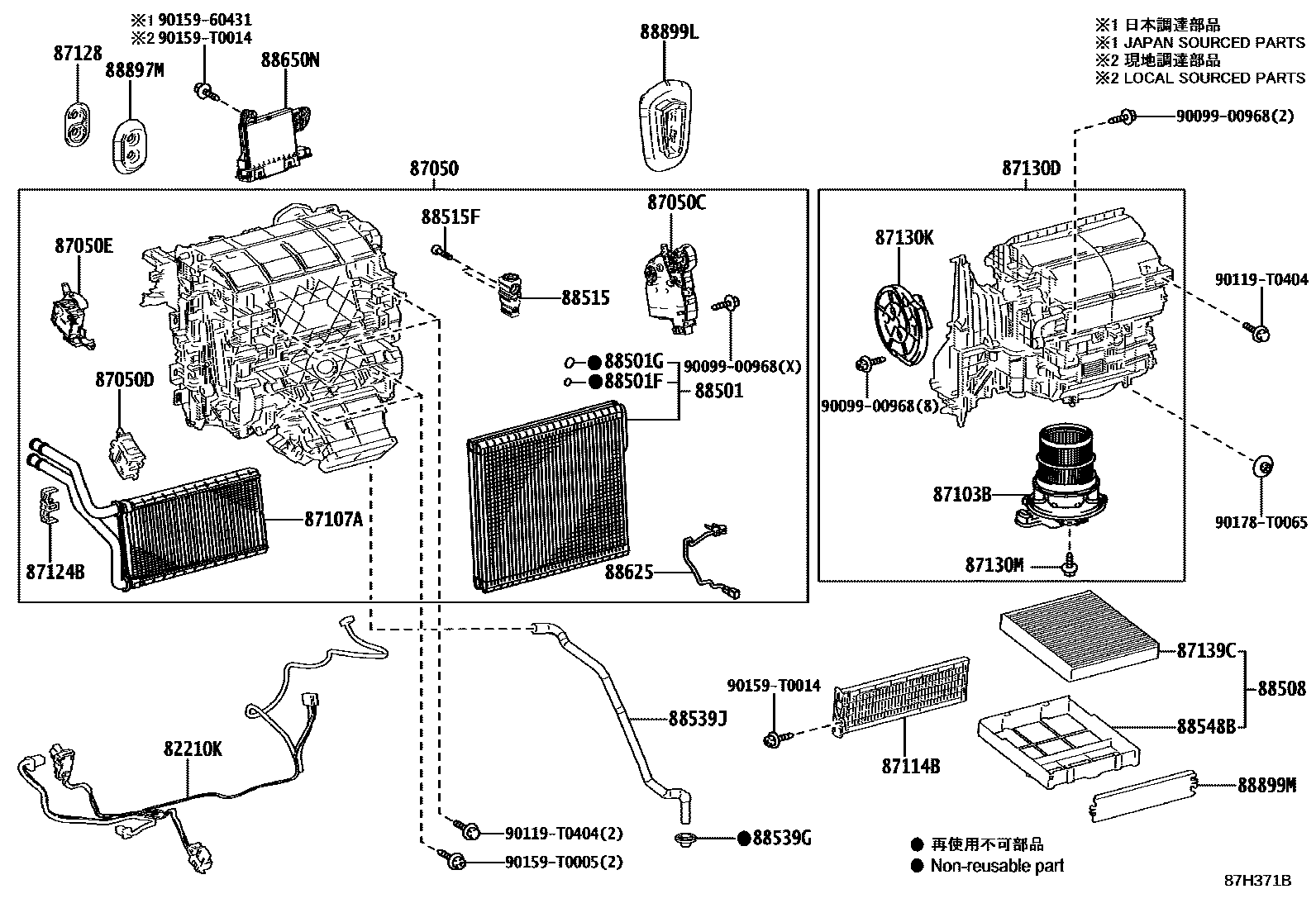

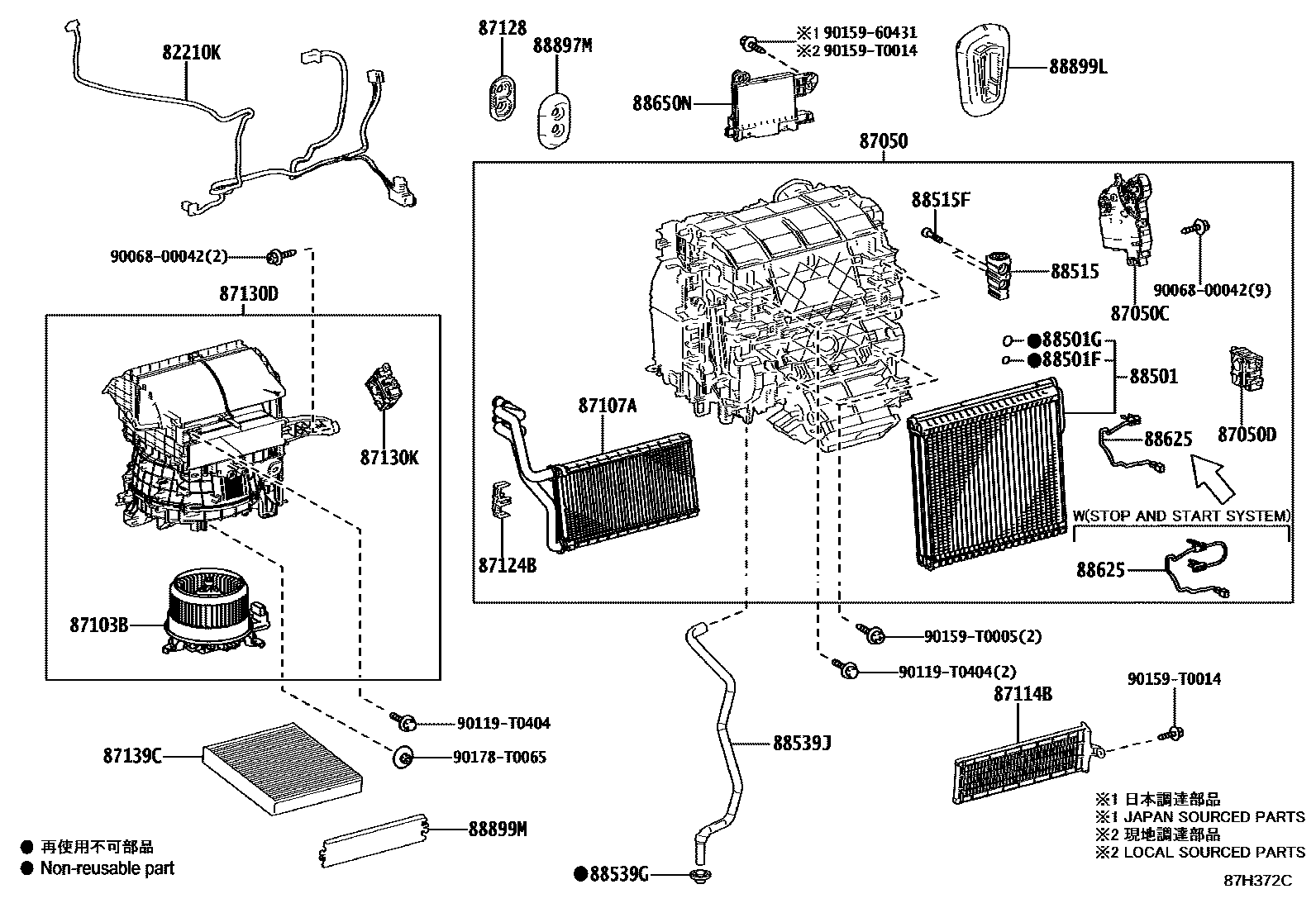

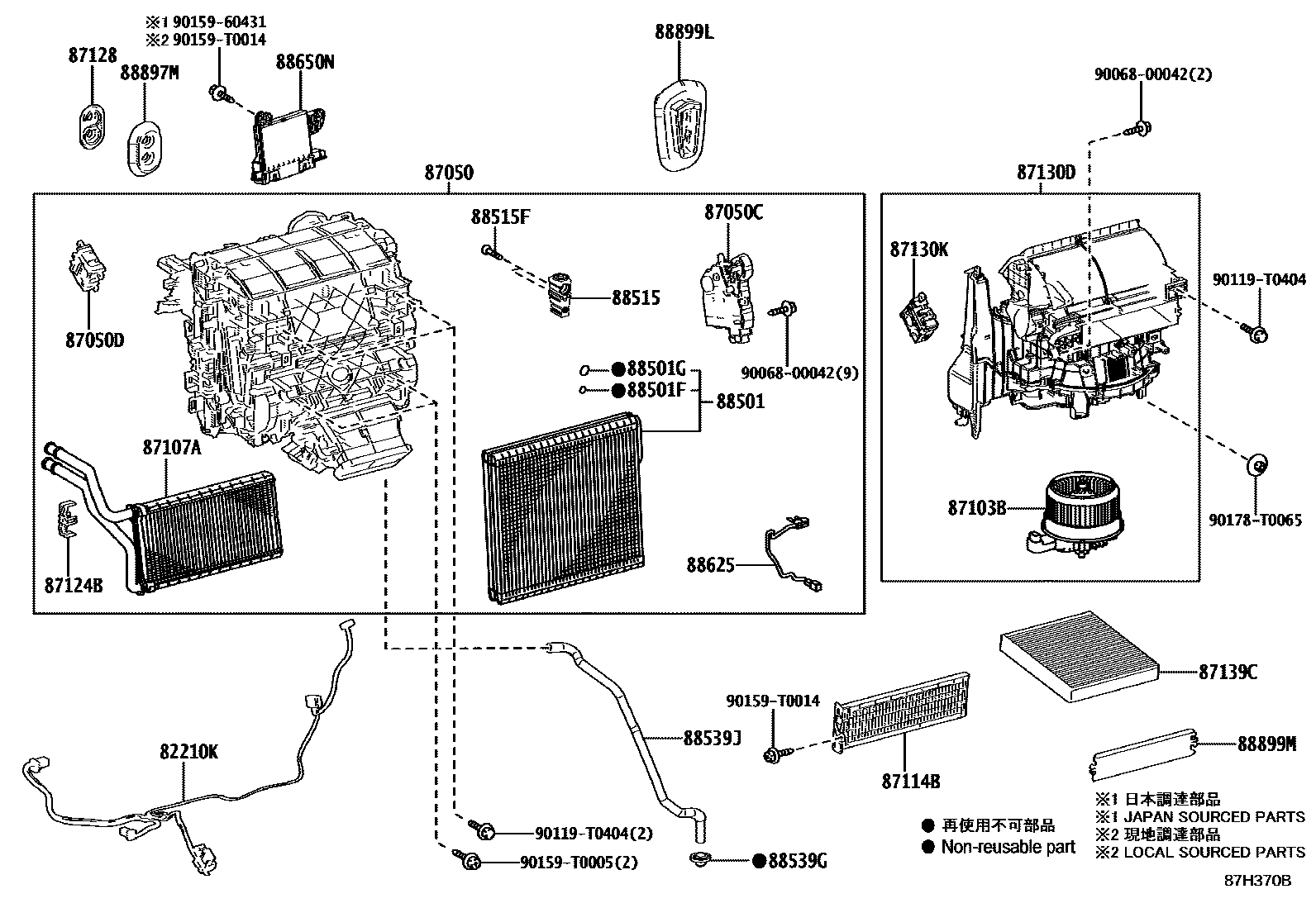

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06260 · 82212-06270 · 82212-33110 · 82212-33210 |
| 87050 | Air conditioning radiator assembly | 87050-06A10 · 87050-06B10 · 87050-06B20 · 87050-06B30 · 87050-06B40 · 87050-33A40 · 87050-33C40 · 87050-33F80 · 87050-33G30 · 87050-33G40 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-48170 · 87106-F4060 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06430 · 87106-06440 · 87106-33340 · 87106-48200 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-33310 |
| 87103B | Blower motor sub-assembly with fan | 87103-0A060 · 87103-0A070 · 87103-0K400 · 87103-42120 · 87103-42130 · 87103-58070 · 87103-58080 · 87103-F4050 |
| 87107A | Heater radiator device sub-assembly | 87107-06120 · 87107-06130 · 87107-33130 · 87107-33140 |
| 87114B | heater cover | 87114-06110 |
| 87124B | heater clip | 87124-06140 · 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-06430 · 87130-06431 · 87130-42470 · 87130-42480 · 87130-47290 · 87130-47300 · 87130-F4060 · 87130-F4061 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-06450 · 87106-28250 · 87106-58050 · 87106-F4070 |
| 87130M | Screws (for blower) | 87193-87101 |
| 87139C | air purification filter | 87139-06130 · 87139-06190 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06520 · 88501-06530 · 88501-06540 · 88501-33340 · 88501-33350 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90068-14044 · 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90068-14043 · 90099-14121 |
| 88508 | Air purification filter sub-assembly | 88899-06240 · 88899-06340 |
| 88515 | Cooler expansion valve | 88515-02440 · 88515-06200 · 88515-48110 · 88515-48120 · 88515-F4030 |
| 88515F | Bolt (for cooler expansion valve) | 90068-04062 · 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-02020 · 88888-47010 · 90480-26030 |
| 88539J | Cooler drain hose | 88539-06190 · 88539-06200 |
| 88548B | air filter housing | 88899-06250 · 88899-06350 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K010 · 88620-0K020 · 88620-28050 |
| 88650N | Air conditioning amplifier assembly | 88650-06B80 · 88650-06C00 · 88650-06E50 · 88650-06G50 · 88650-06G90 |
| 88897M | Seals (for heater tubes) | 87128-06030 · 87128-33020 |
| 88899L | Cooling unit parts | 88899-06320 · 88899-33080 · 88899-33090 |
| 88899M | cover (for air cleaner) | 88899-06330 |
