Toyota CAMRY 后视镜 — Figure 8701

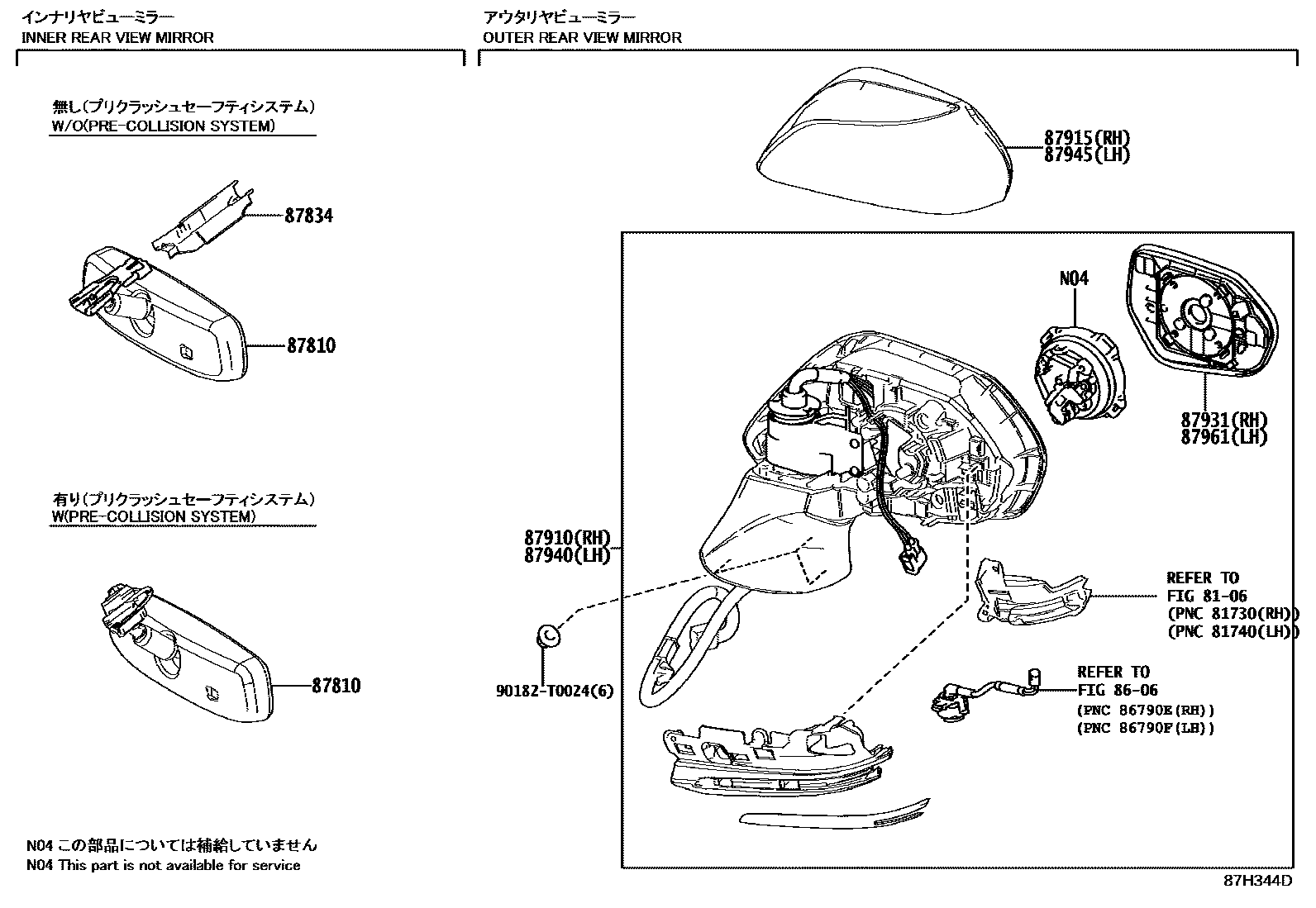

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0WS50 · 87810-0WS51 · 87810-0WW40 · 87810-0WW41 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-76010 |
| 87910 | Right exterior rearview mirror assembly | 87910-06770 · 87910-06B10 · 87910-06B11 · 87910-06B20 · 87910-06B21 · 87910-06B60 · 87910-06B61 · 87910-06B80 · 87910-06B81 · 87910-06B90 · 87910-06B91 · 87910-06D70 · 87910-06D71 · 87910-06D80 · 87910-06D90 · 87910-06D91 |
| 87915 | Right exterior rearview mirror cover | 87915-06915 |
| 87931 | Right exterior rearview mirror | 87902-02090 · 87902-02100 · 87902-06110 · 87902-06120 · 87902-06200 · 87902-06201 · 87902-06220 · 87902-06221 |
| 87940 | Left exterior rearview mirror assembly | 87940-06770 · 87940-06B10 · 87940-06B11 · 87940-06B20 · 87940-06B21 · 87940-06B60 · 87940-06B61 · 87940-06B80 · 87940-06B81 · 87940-06B90 · 87940-06B91 · 87940-06D40 · 87940-06D41 · 87940-06D50 · 87940-06D60 · 87940-06D61 |
| 87945 | Left exterior rearview mirror cap | 87945-06915 |
| 87961 | Left exterior rearview mirror | 87907-02100 · 87907-02110 · 87907-06090 · 87907-06091 · 87907-06100 · 87907-06101 · 87907-06180 · 87907-06200 |
