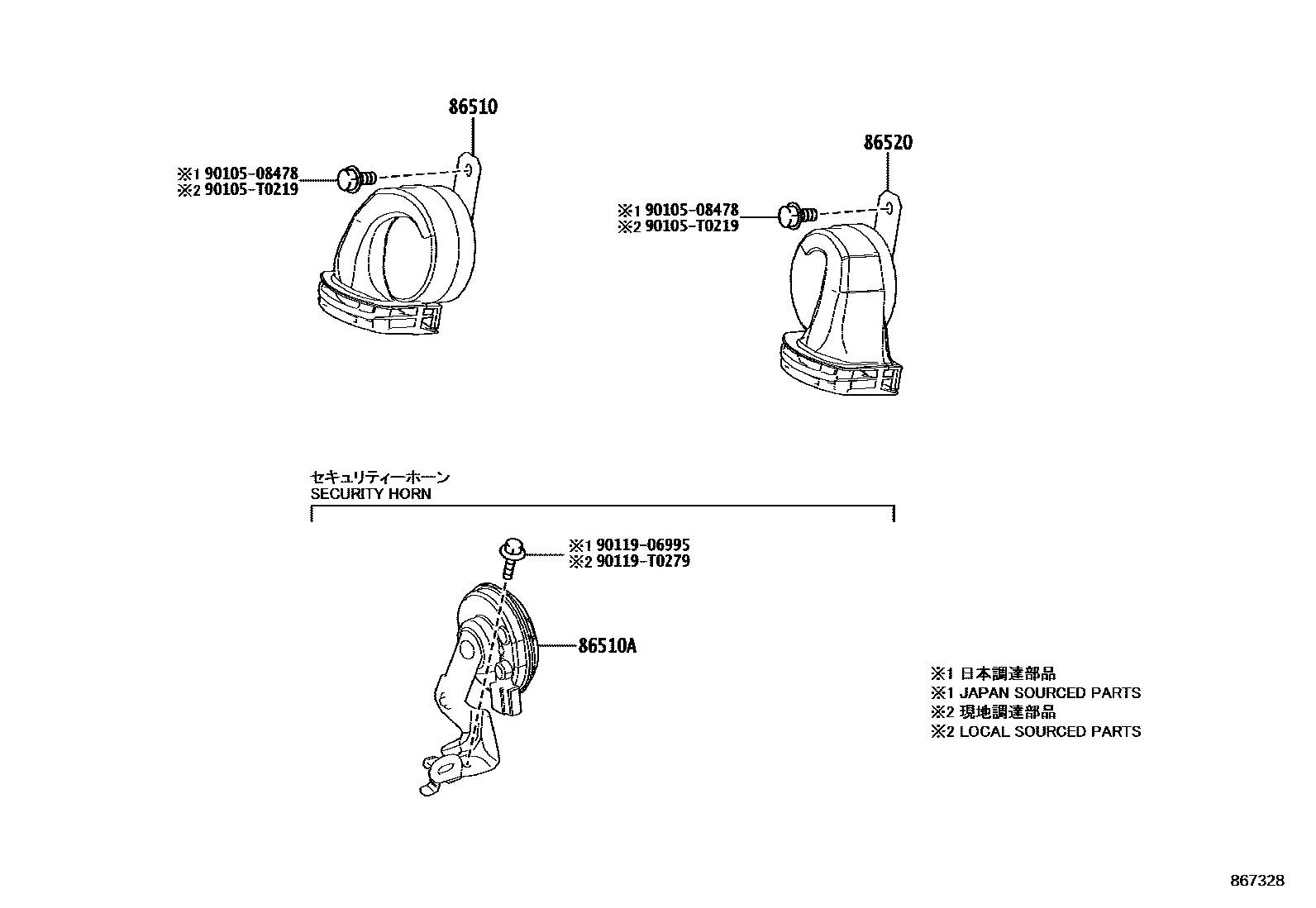

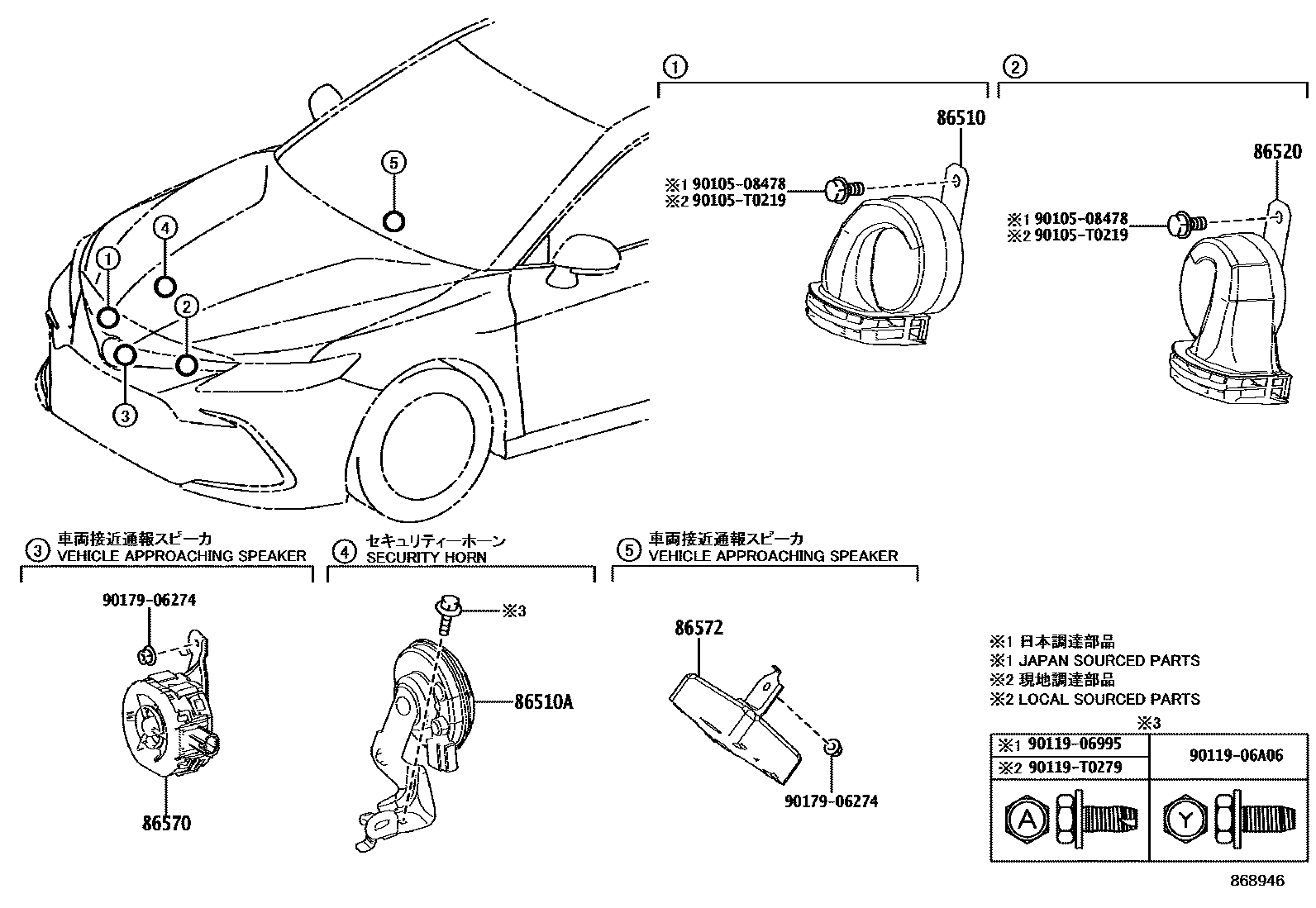

Toyota CAMRY 喇叭 — Figure 8611
Toyota CAMRY EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-06260 · 86510-26130 · 86510-26131 · 86510-33250 · 86510-33300 |
| 86510A | Alarm horn assembly | 86560-06110 · 86560-06220 · 86560-33060 |
| 86520 | Subwoofer assembly | 86520-06250 · 86520-12740 · 86520-26200 · 86520-26201 · 86520-33210 |
| 86570 | Vehicle intrusion speaker assembly | 86570-33110 |
| 86572 | vehicle hacking speaker controller | 86572-33191 |
