Toyota CAMRY 倒车影像和摄像头 — Figure 8606

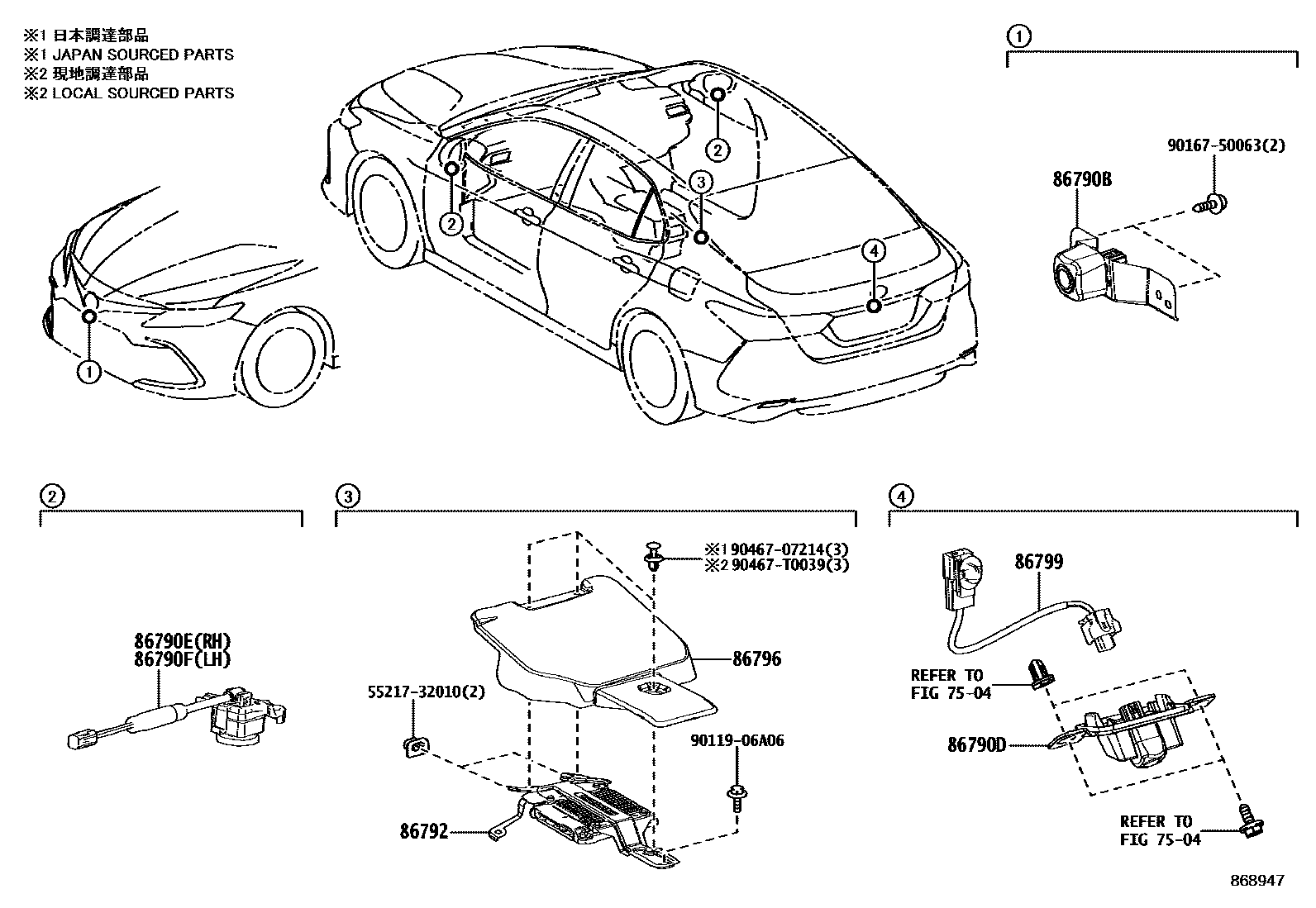

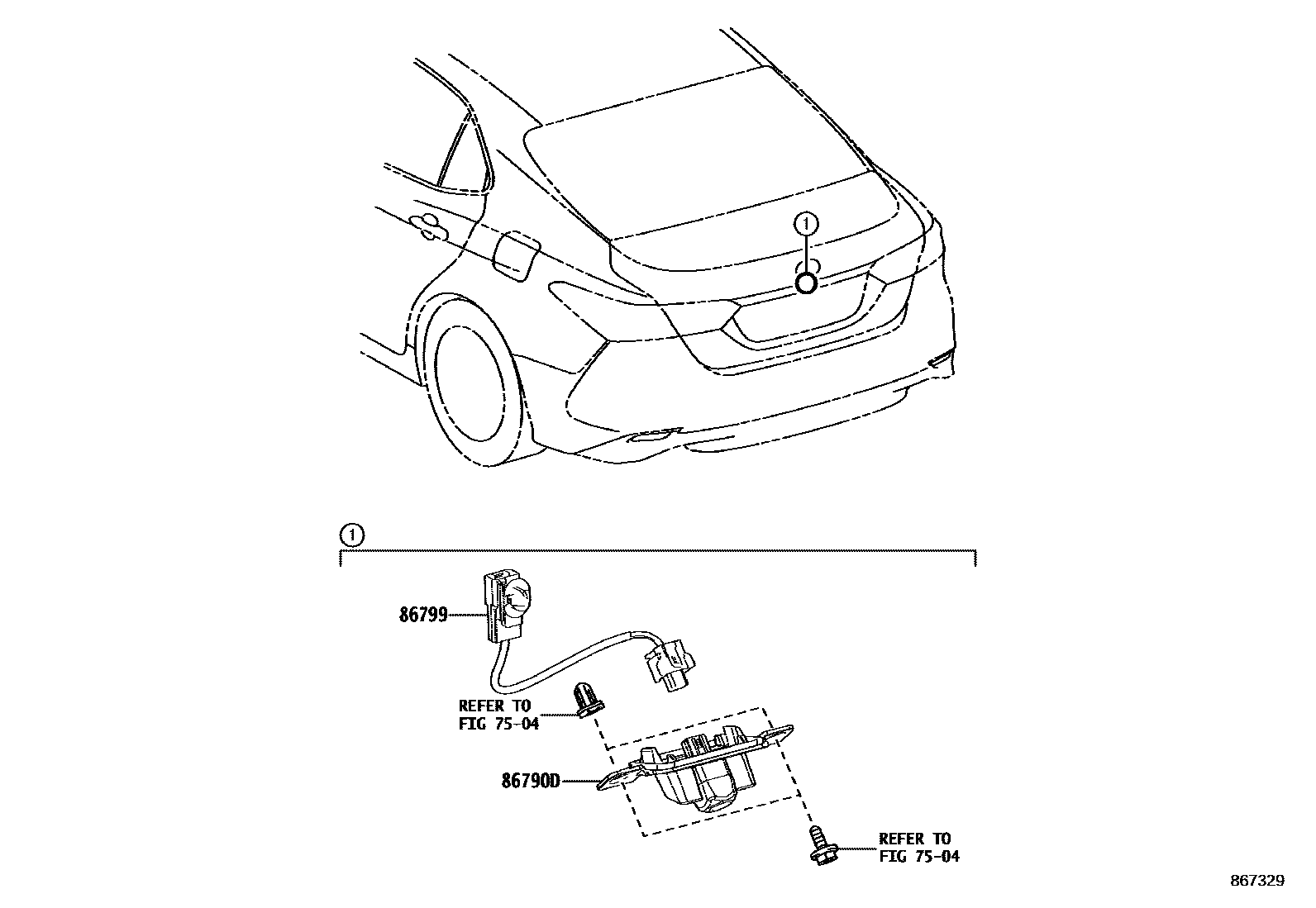

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-33220 · 86790-33221 |
| 86790D | Rear reversing image camera assembly | 86790-33180 · 86790-33260 · 867B0-33080 · 867B0-33230 · 867B0-33320 |
| 86790E | Right image camera assembly | 86790-33250 · 86790-33251 |
| 86790F | Left image camera assembly | 86790-33240 · 86790-33241 |
| 86792 | Reversing camera controller | 86792-33410 · 86792-33411 · 86792-33420 · 86792-33421 |
| 86799 | Reversing image camera wiring harness | 86799-06050 · 86799-06060 · 86799-33020 · 86799-33030 |
