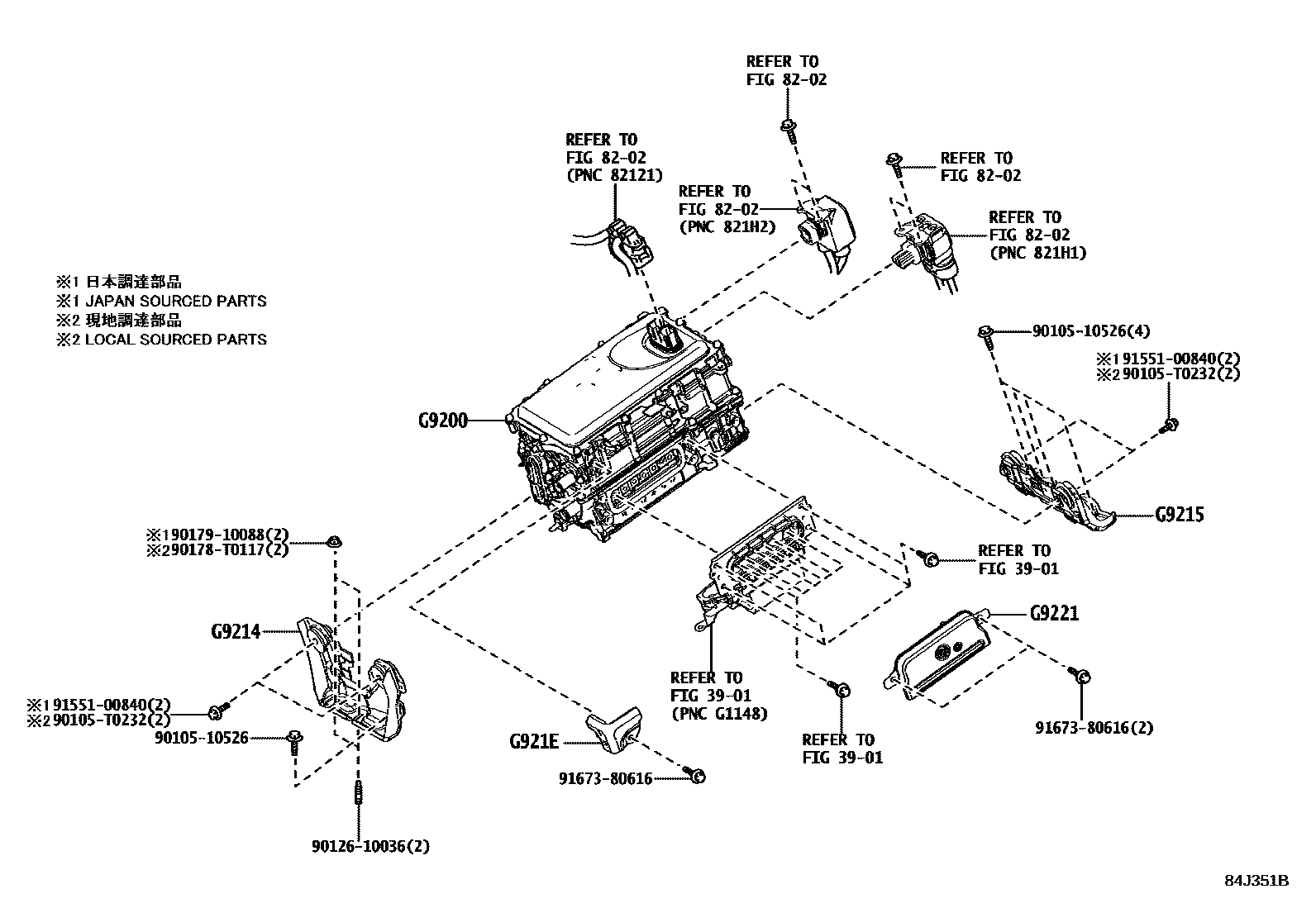

Toyota CAMRY HEV 逆变器 — Figure 8431
Toyota CAMRY EPC diagram 8431, HEV 逆变器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9200 | Inverter assembly with converter | G92A0-33031 · G92A0-33032 · G92A0-33033 |
| G9214 | No. 1 inverter bracket | G9214-33040 |
| G9215 | No. 2 inverter bracket | G9215-33040 |
| G921E | Inverter protection device | G921E-47010 |
| G9221 | Inverter cover | G9022-47050 |
