Toyota CAMRY 防盗装置 — Figure 8424

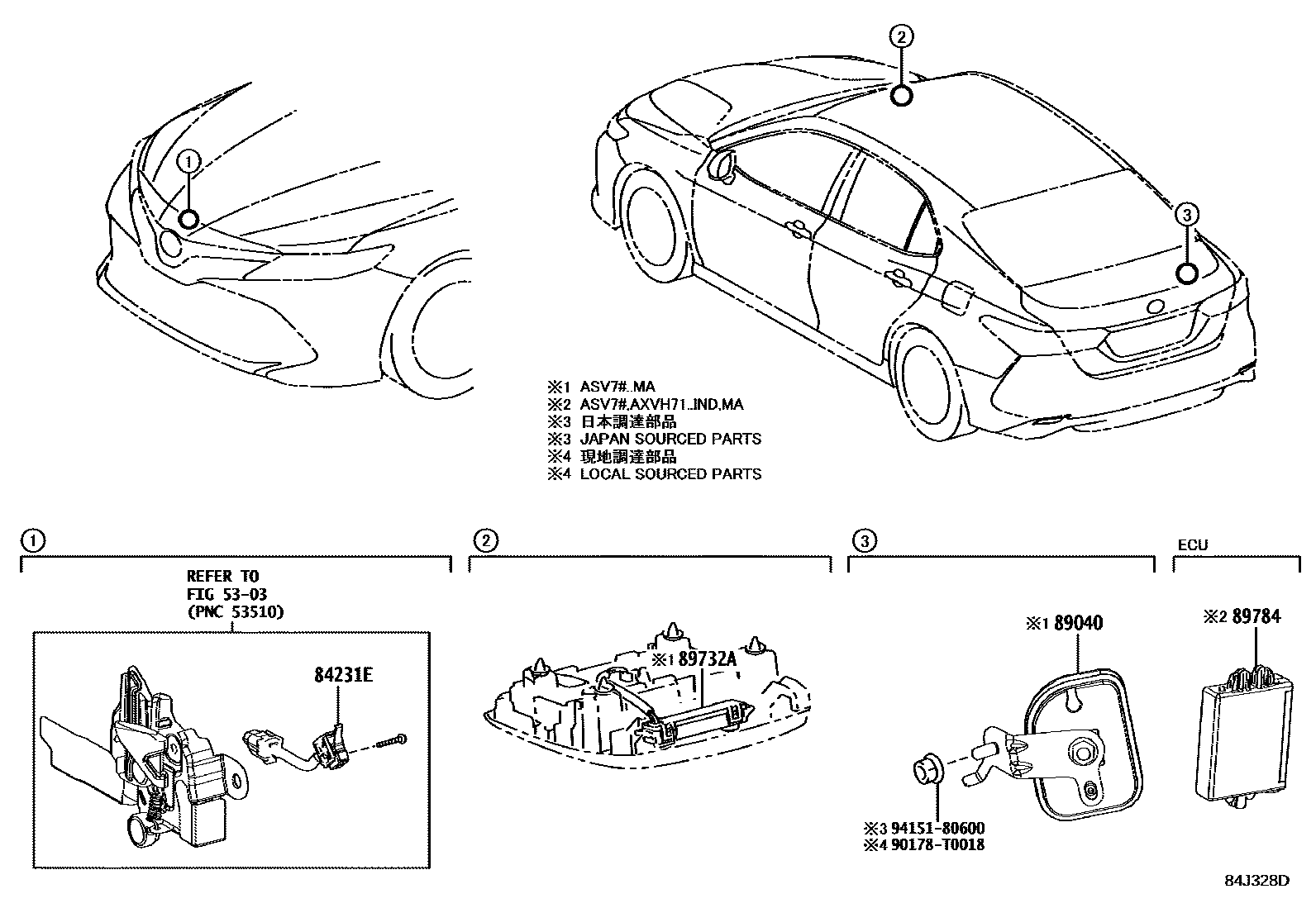

Toyota CAMRY EPC diagram 8424, 防盗装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84231E | Door control light switch (anti-theft) | 84237-06120 · 84237-06130 · 84237-06160 |
| 89040 | Anti-theft alarm assembly | 89040-06010 |
| 89732A | anti-theft alarm ultrasonic sensor | 89732-33050 |
| 89784 | Shutdown code system ECU | 89784-F4020 |
