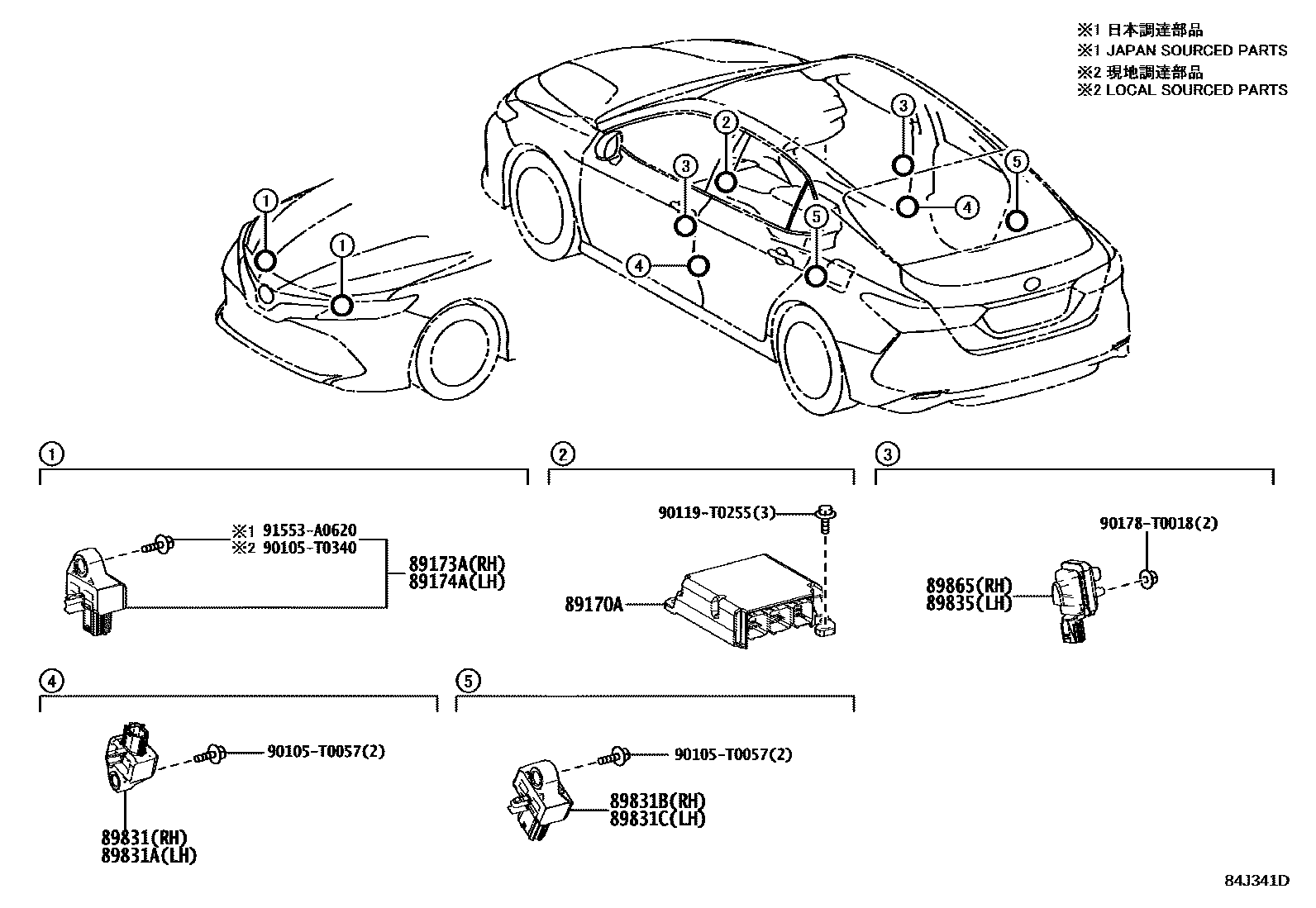

Toyota CAMRY 空气囊 — Figure 8421
Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-06820 · 89170-06850 · 89170-06870 · 89170-06A00 · 89170-06A10 · 89170-06B10 |
| 89173A | Right front air bag sensor | 89173-09D00 |
| 89174A | Left front air bag sensor | 89173-09D00 |
| 89831 | Right side air bag sensor No. 1 | 89831-06190 |
| 89831A | Left No. 1 side airbag sensor | 89831-06190 |
| 89831B | Right side air bag sensor No. 2 | 89831-06180 |
| 89831C | Left No. 2 side airbag sensor | 89831-06180 |
| 89835 | Left door side air bag sensor | 8983A-33010 · 8983A-33011 |
| 89865 | Right door side air bag sensor | 8983A-33010 · 8983A-33011 |
