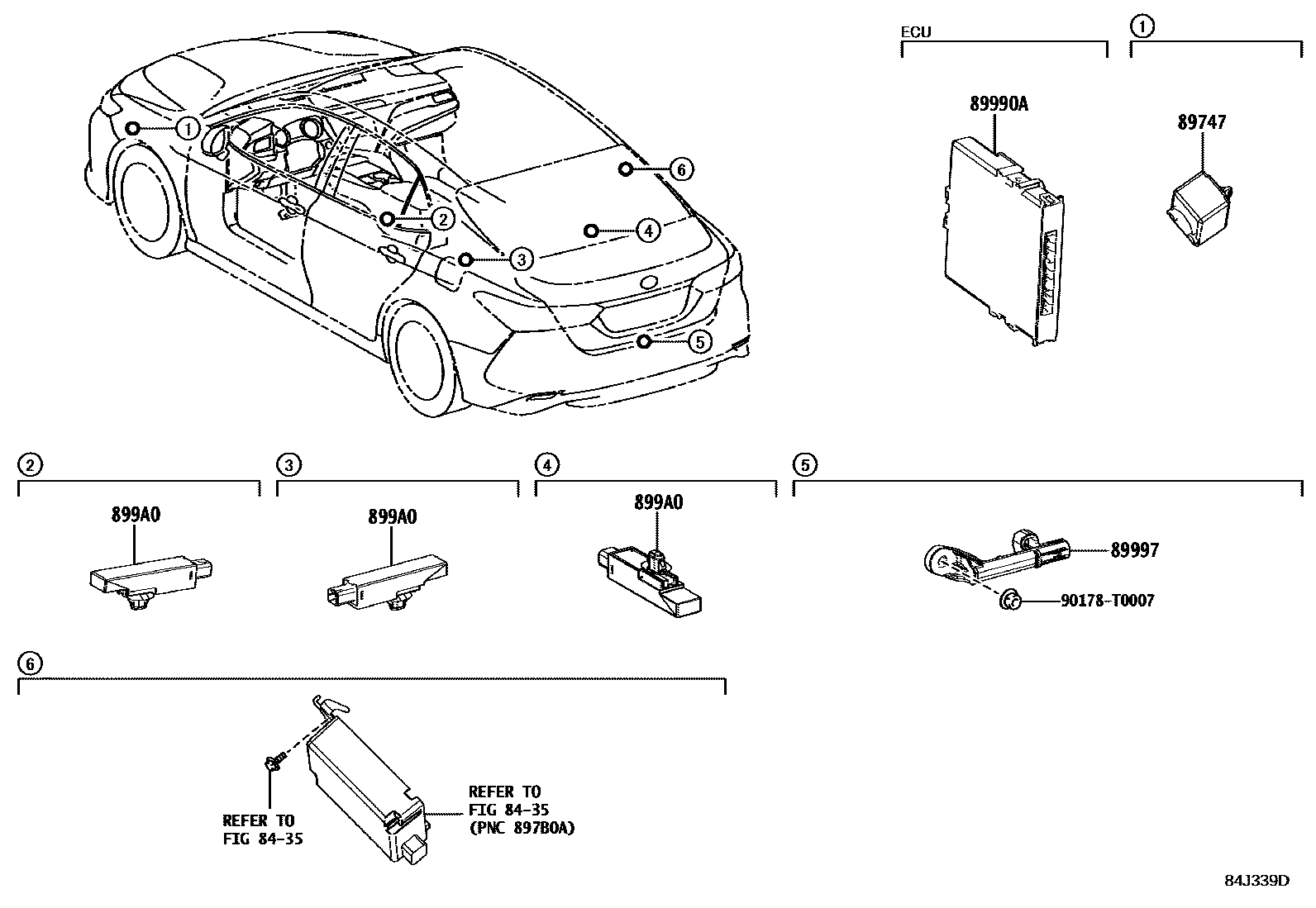

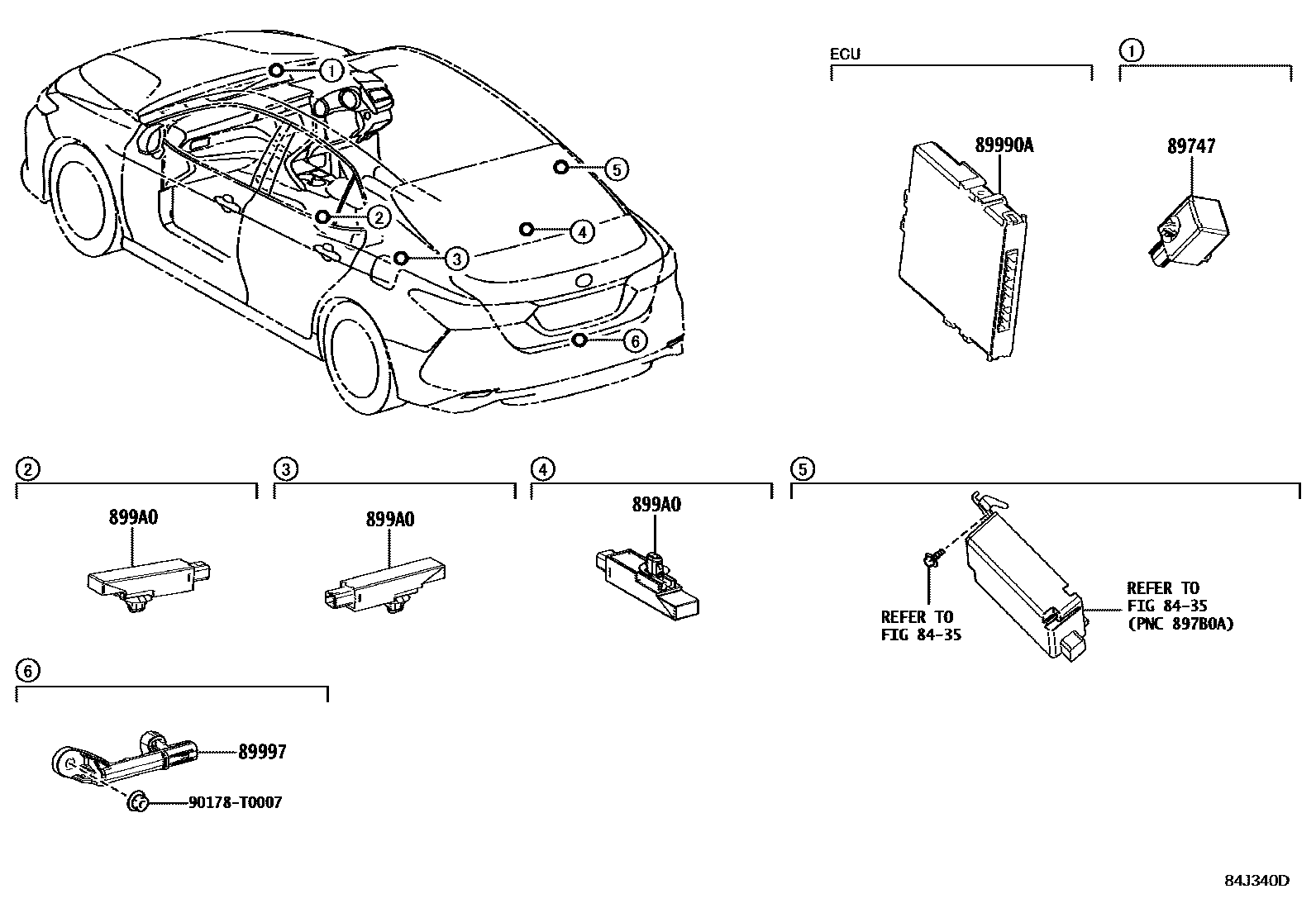

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-33660 · 89990-33700 · 89990-33710 · 89990-33790 · 89990-33800 · 89990-33B40 · 89990-33B70 · 89990-33B71 · 89990-33B80 · 89990-33B81 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02070 |
