Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

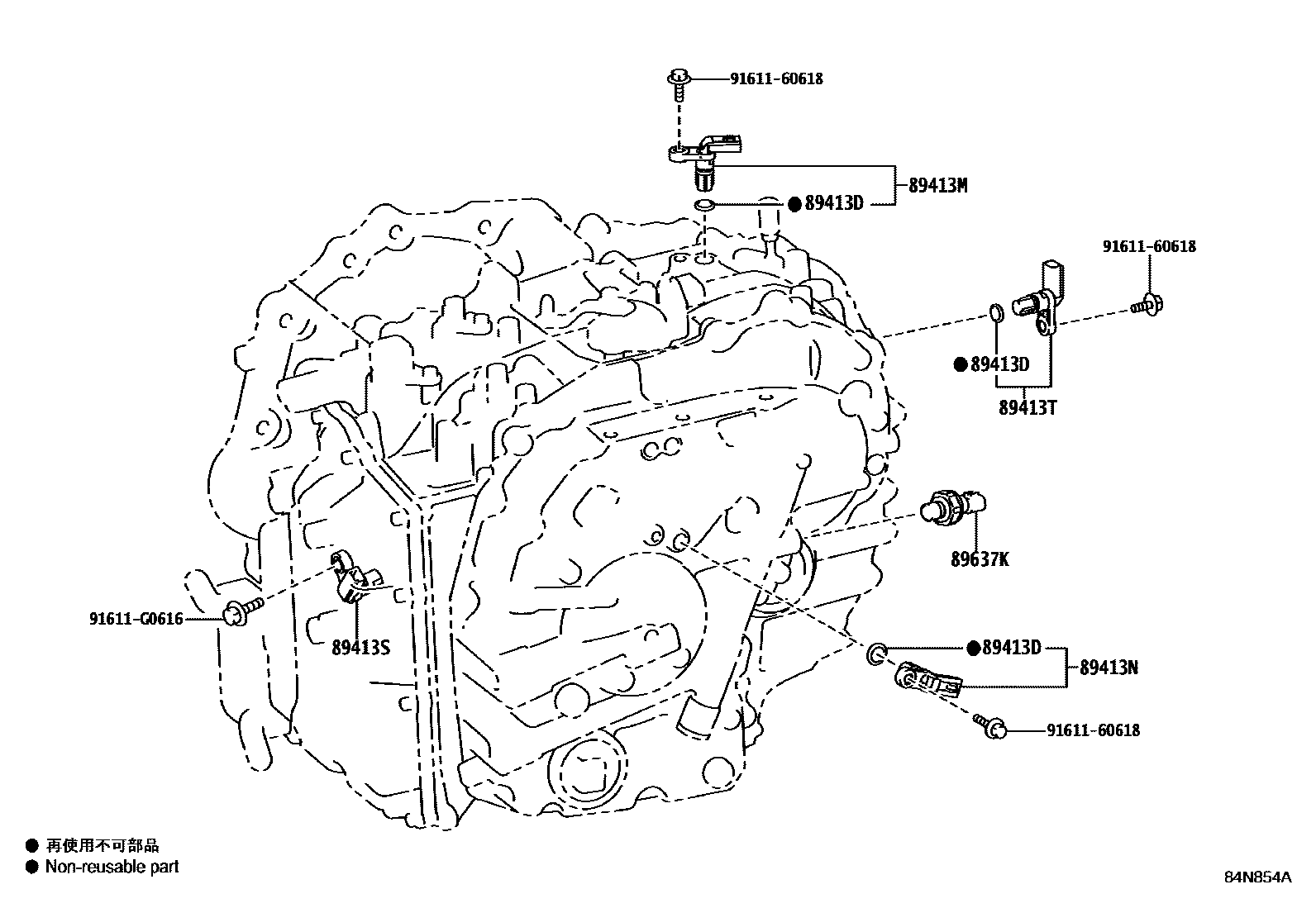

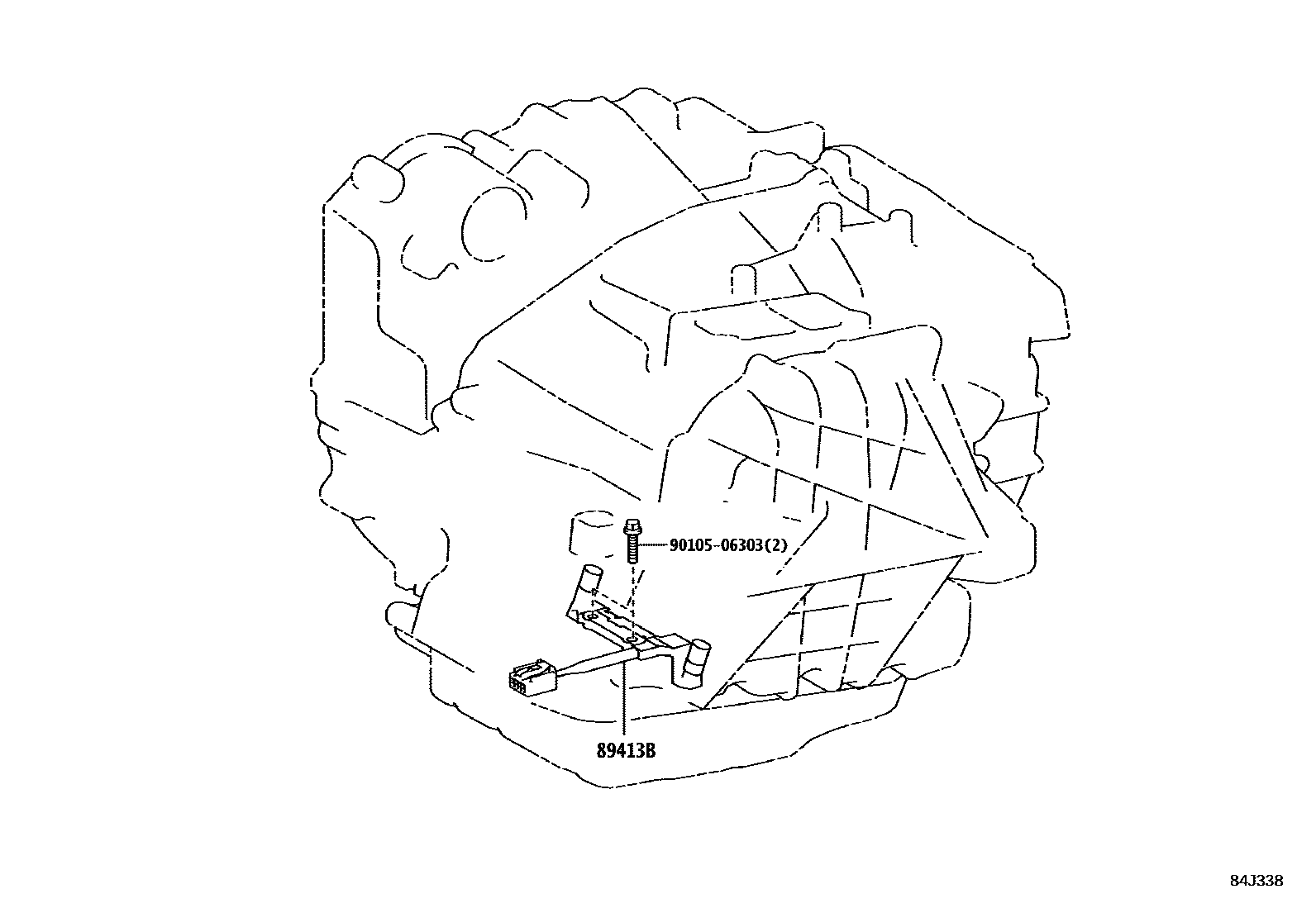

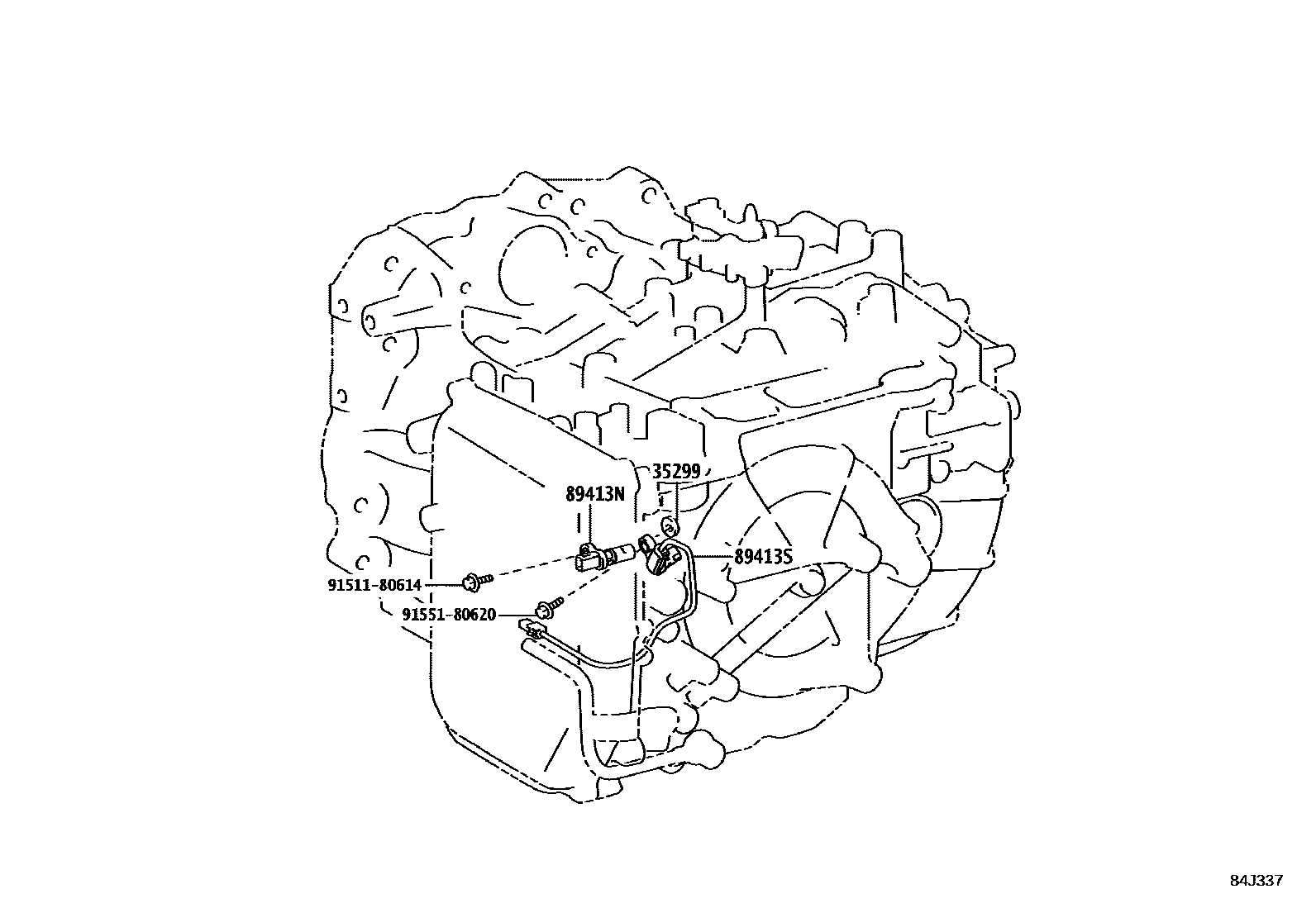

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35299 | Transmission speed sensor spacer | 35469-48010 |
| 89413B | Transmission speed sensor | 89413-73010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89413M | Transmission speed sensor (NOUT) | 89413-12010 |
| 89413N | Transmission speed sensor (NT) | 89413-12010 · 89413-33041 |
| 89413S | Transmission speed sensor (NC) | 89413-11021 · 89413-33051 |
| 89413T | Transmission Speed Sensor (NSS) | 89413-12010 |
| 89637K | oil pressure sensor | 89637-12040 |
