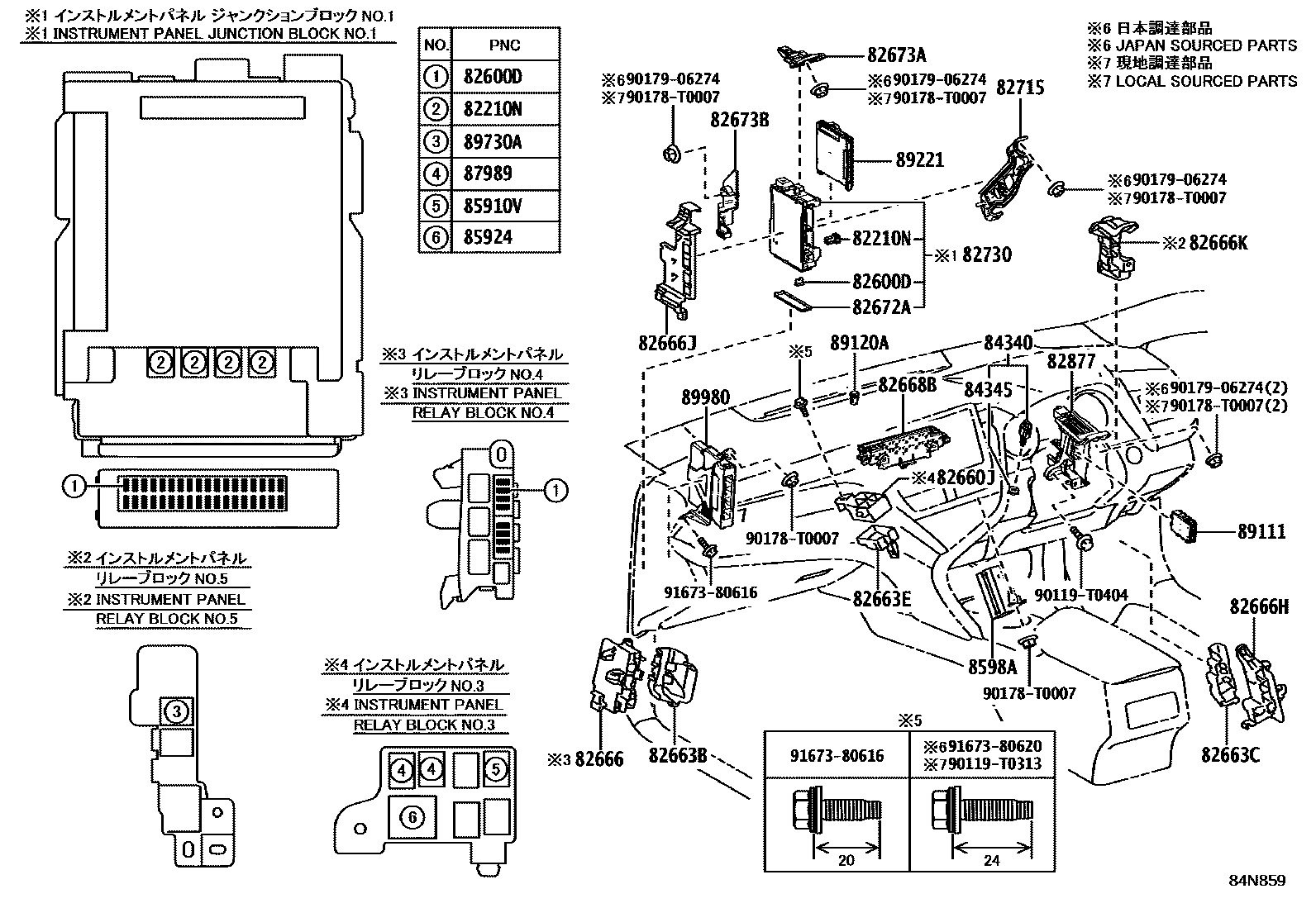

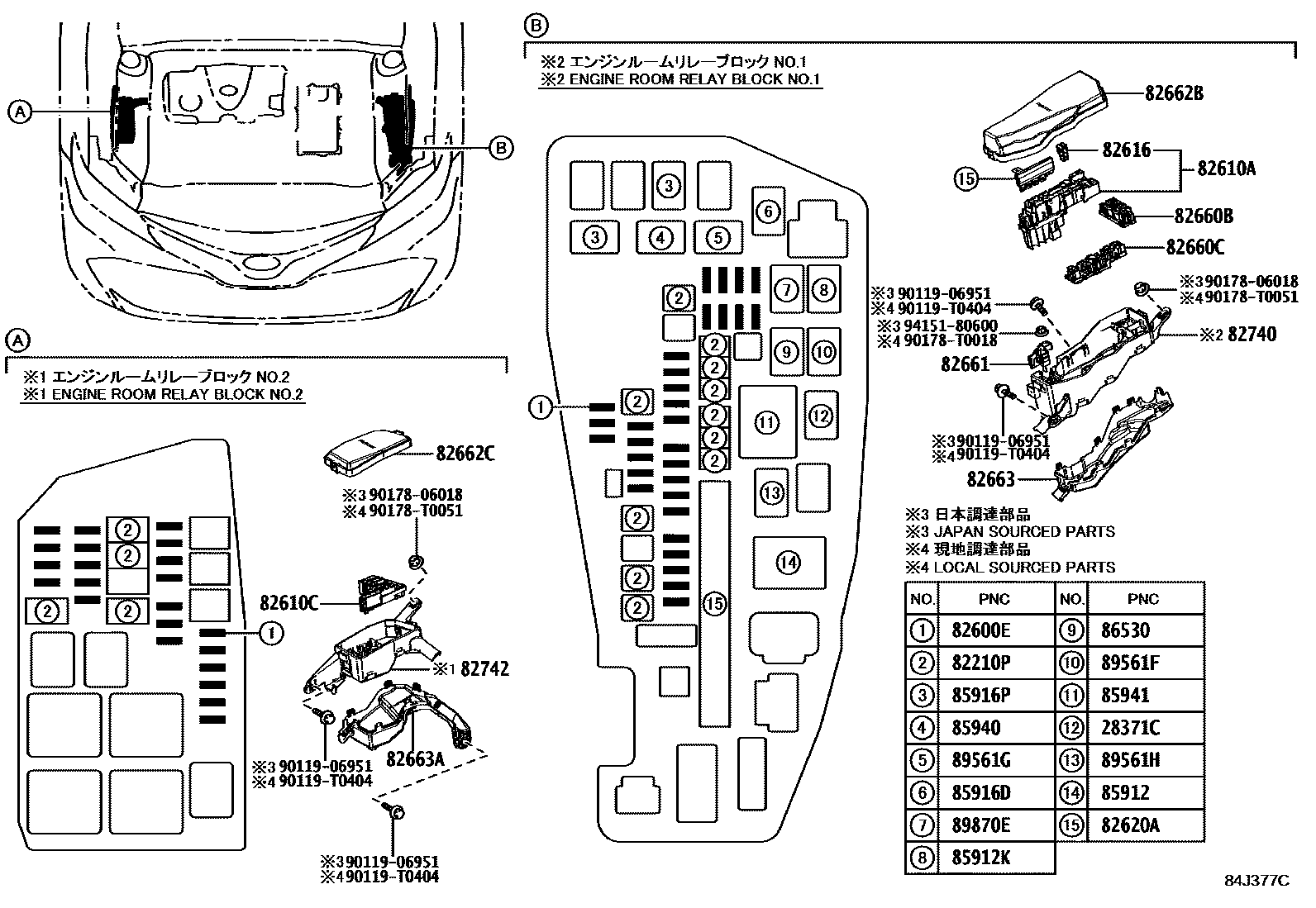

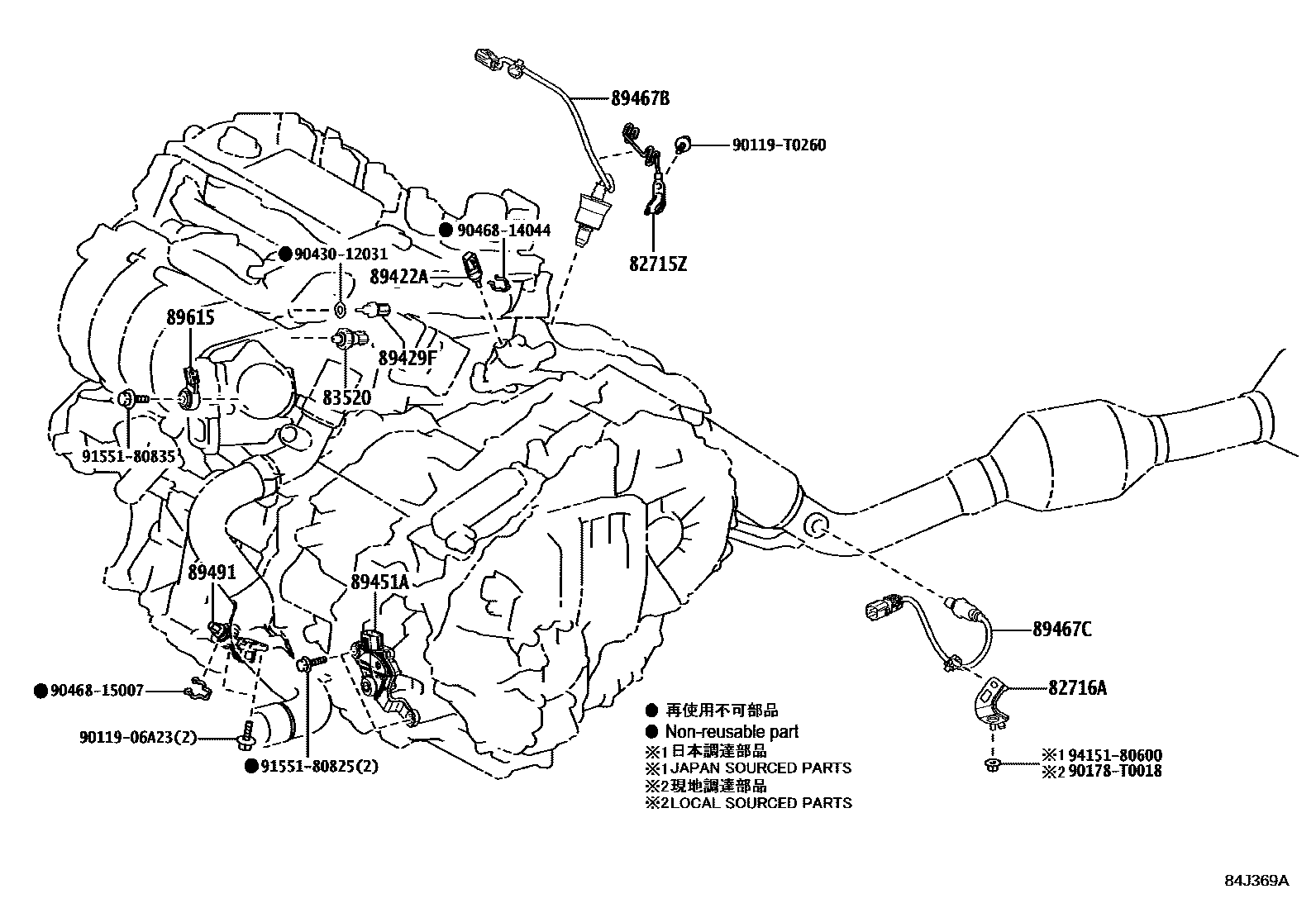

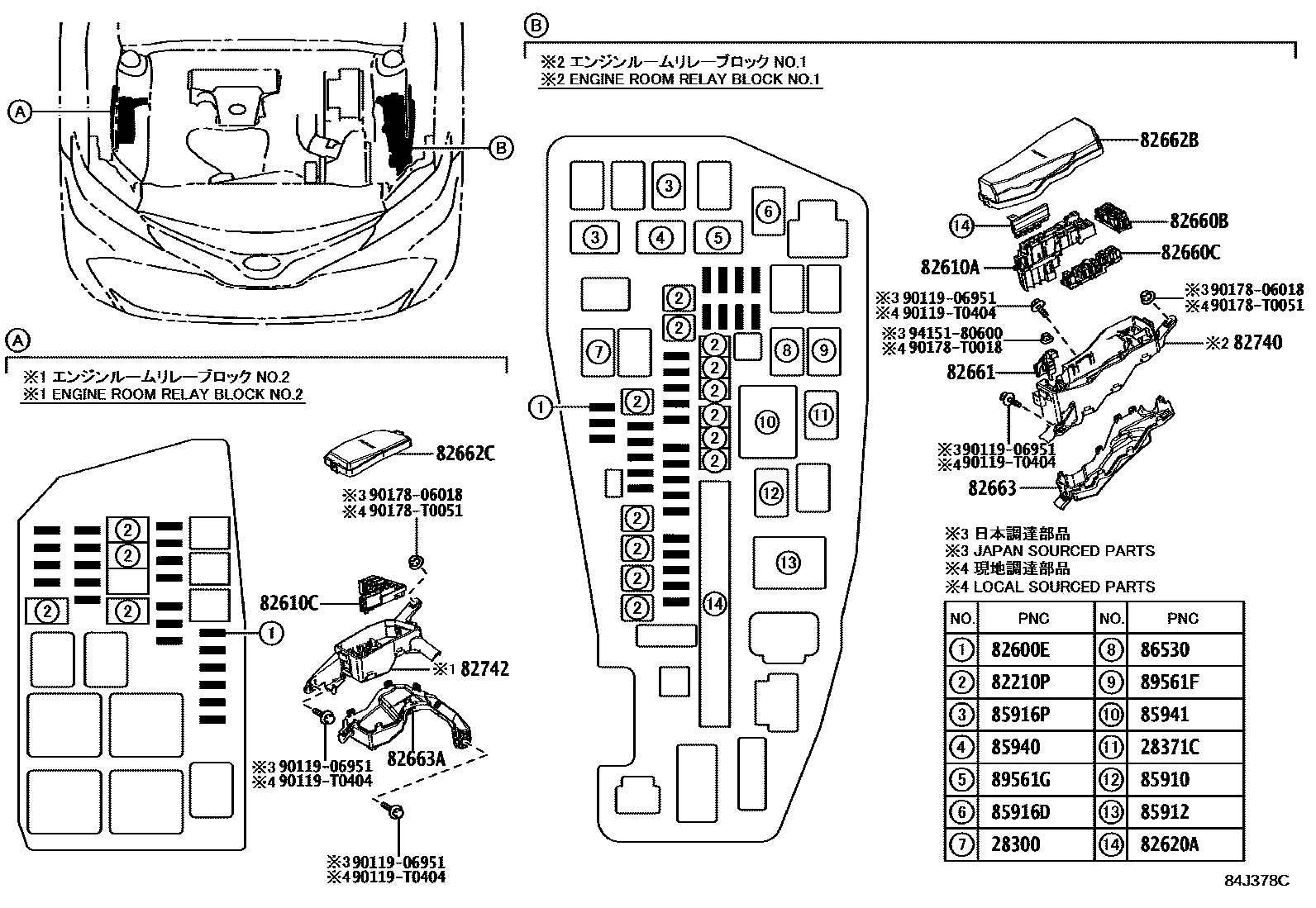

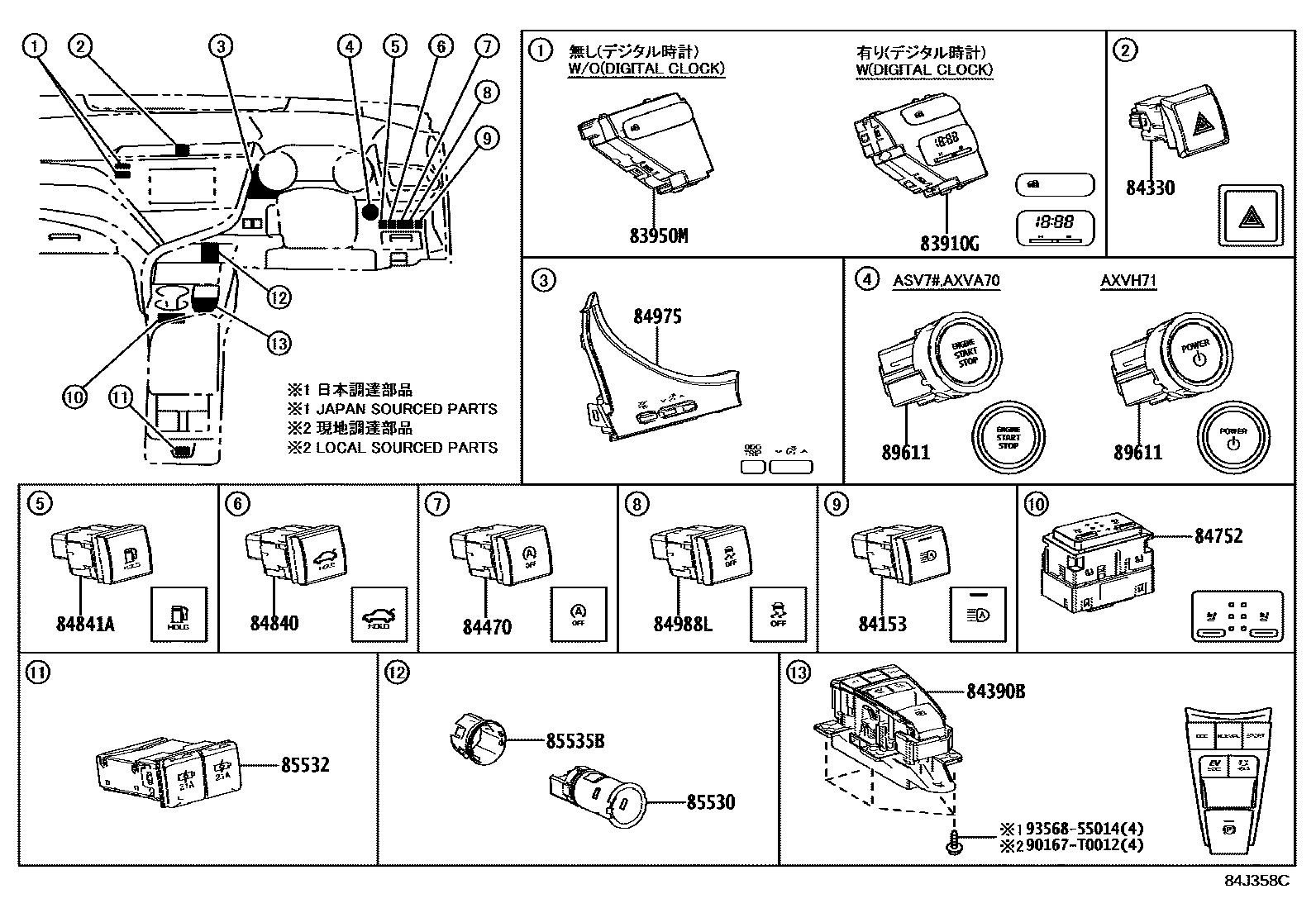

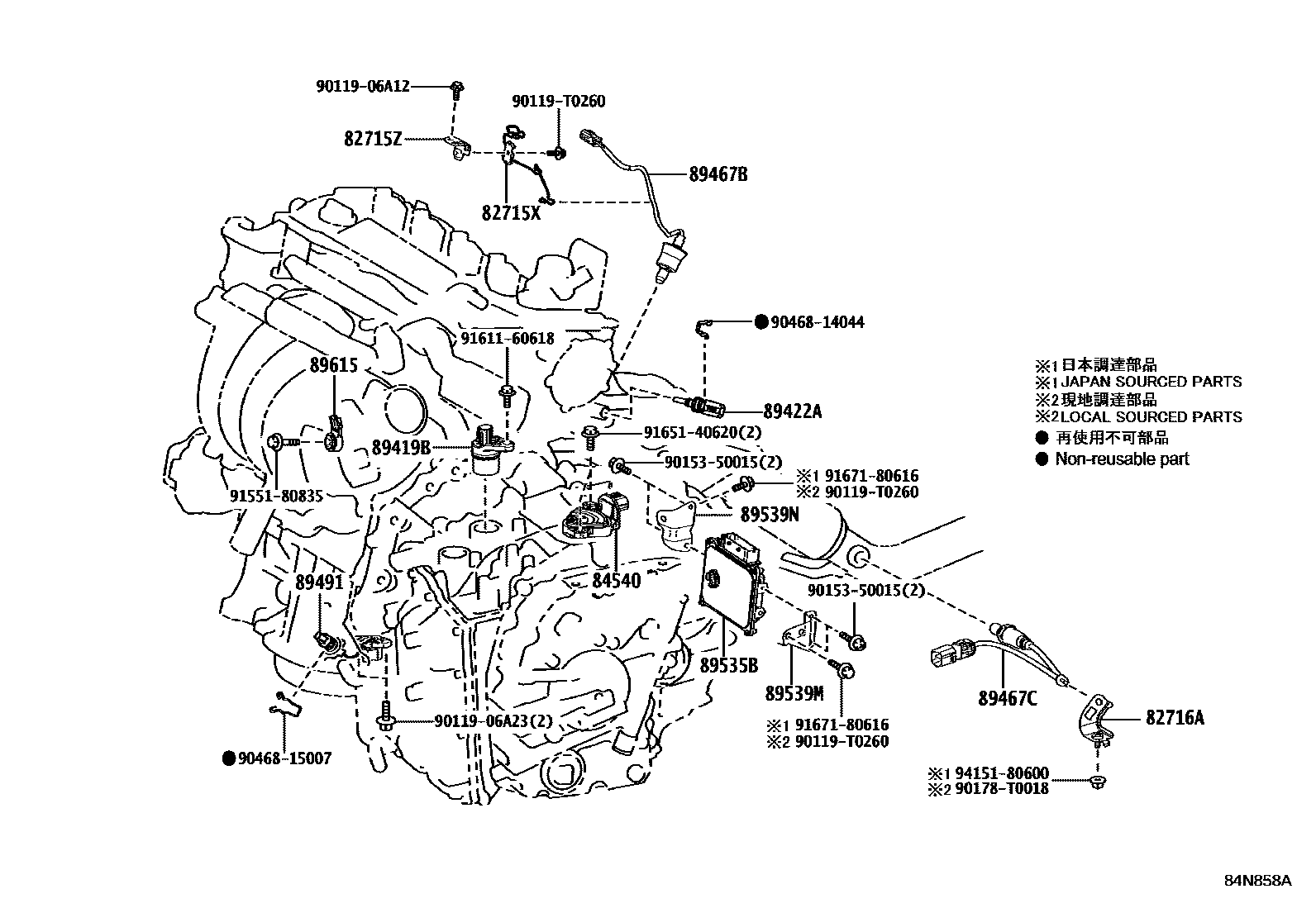

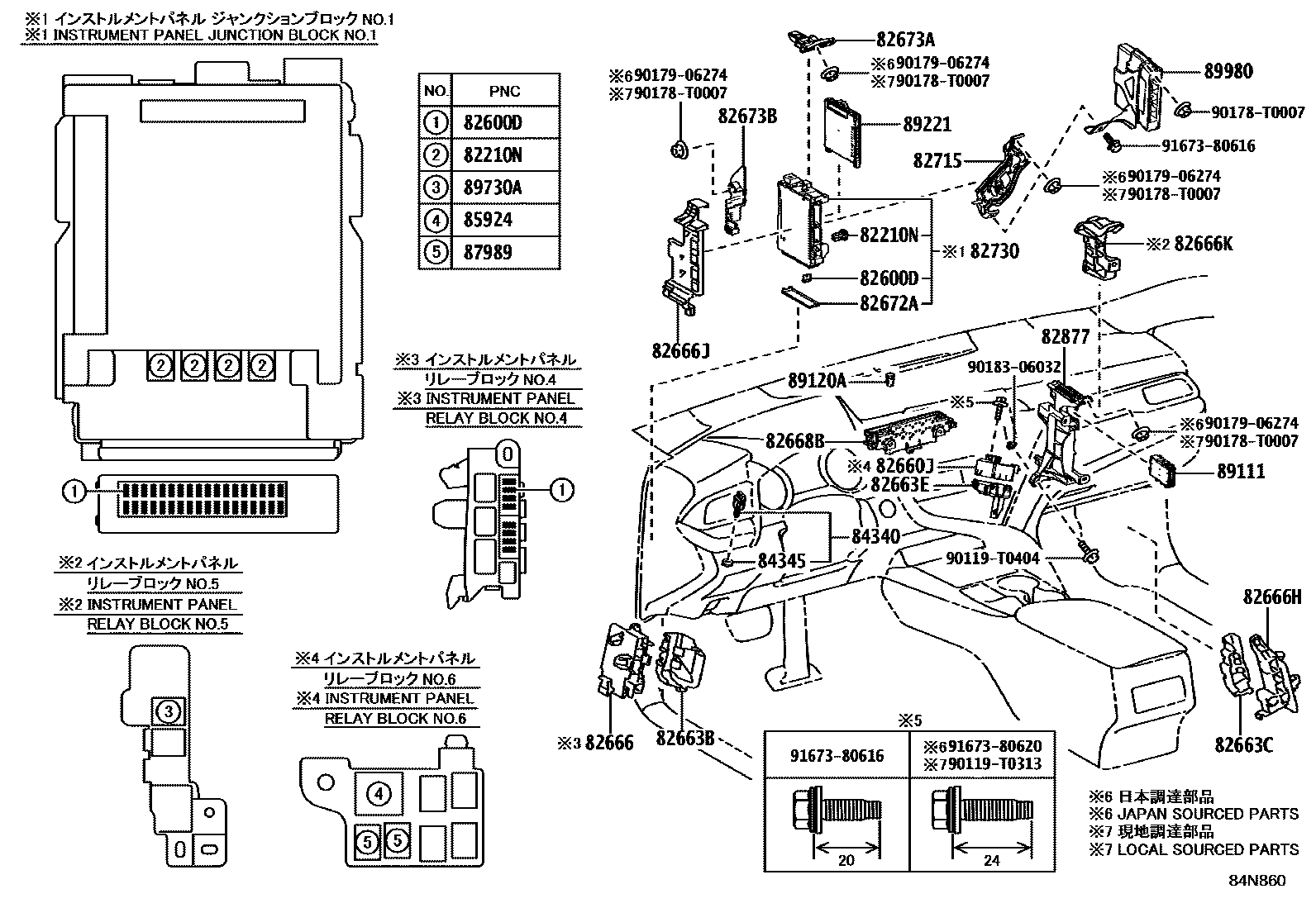

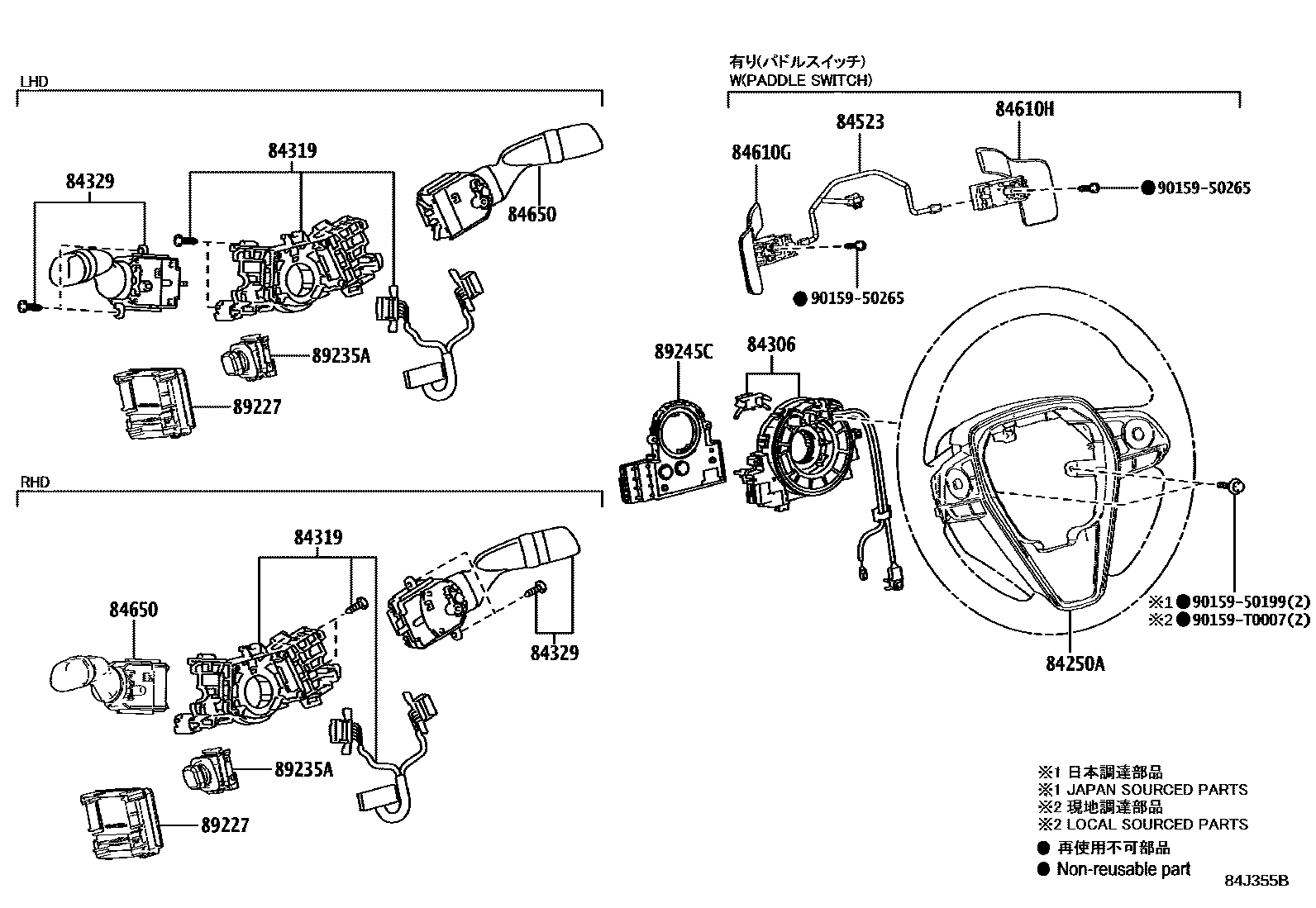

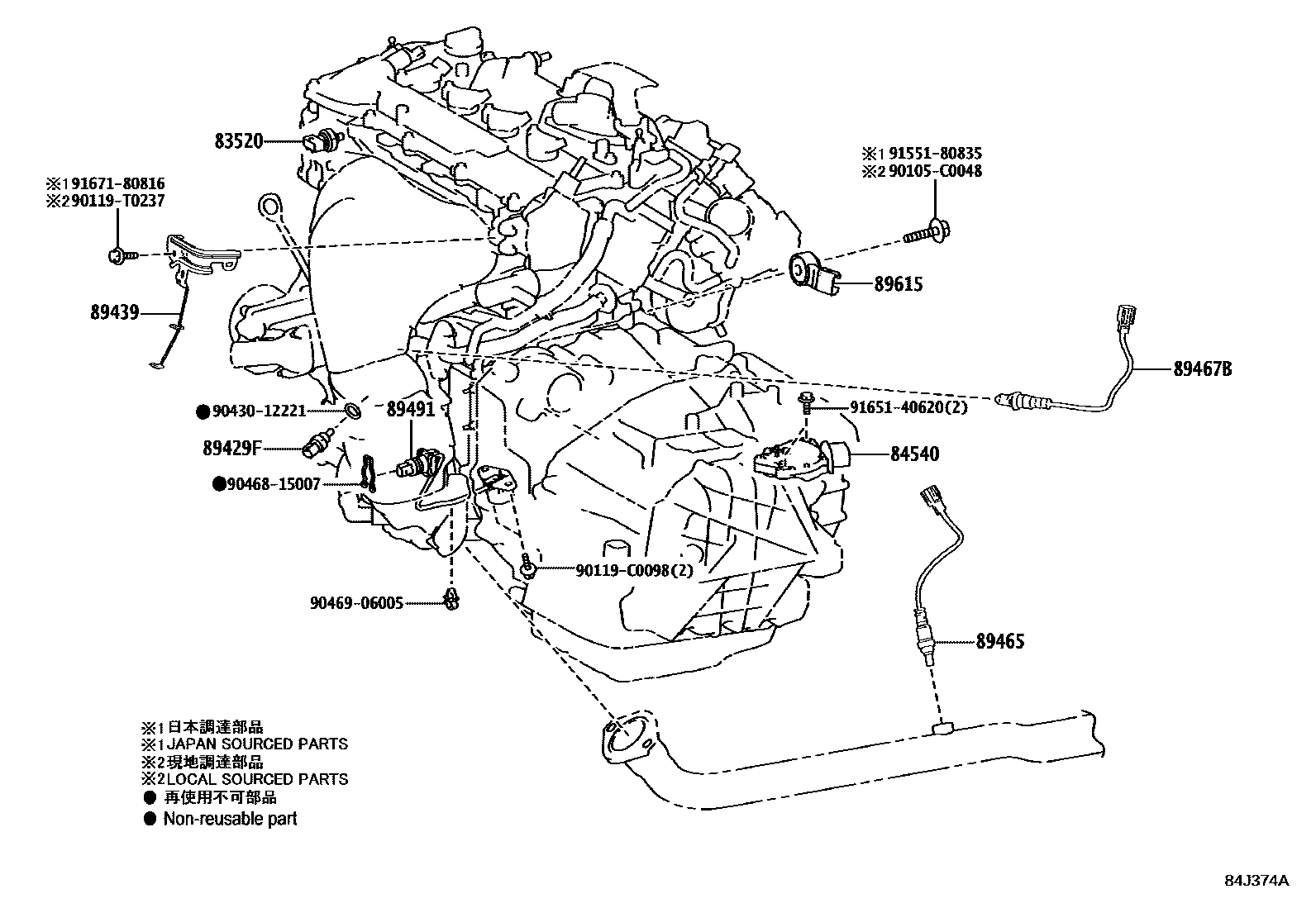

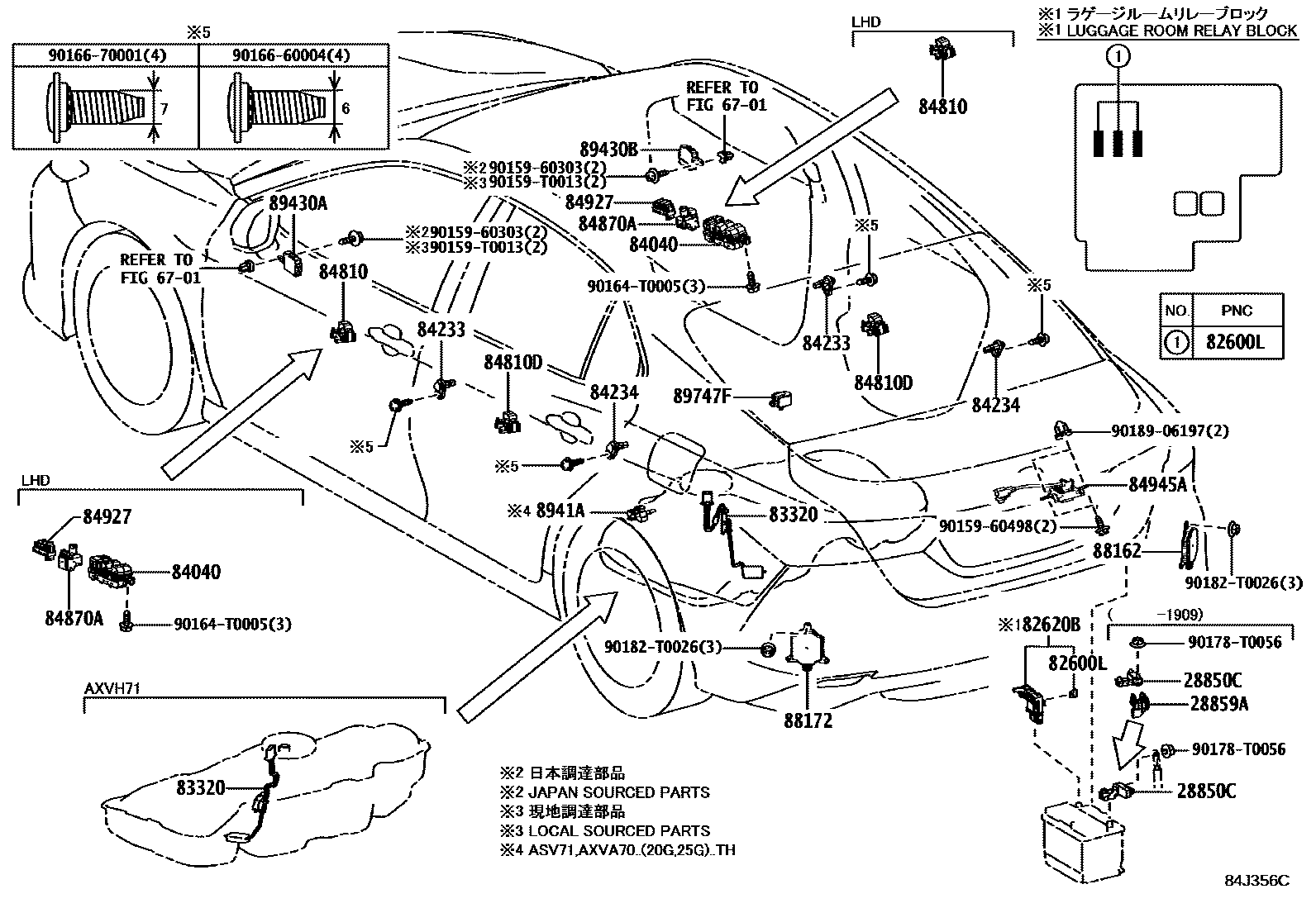

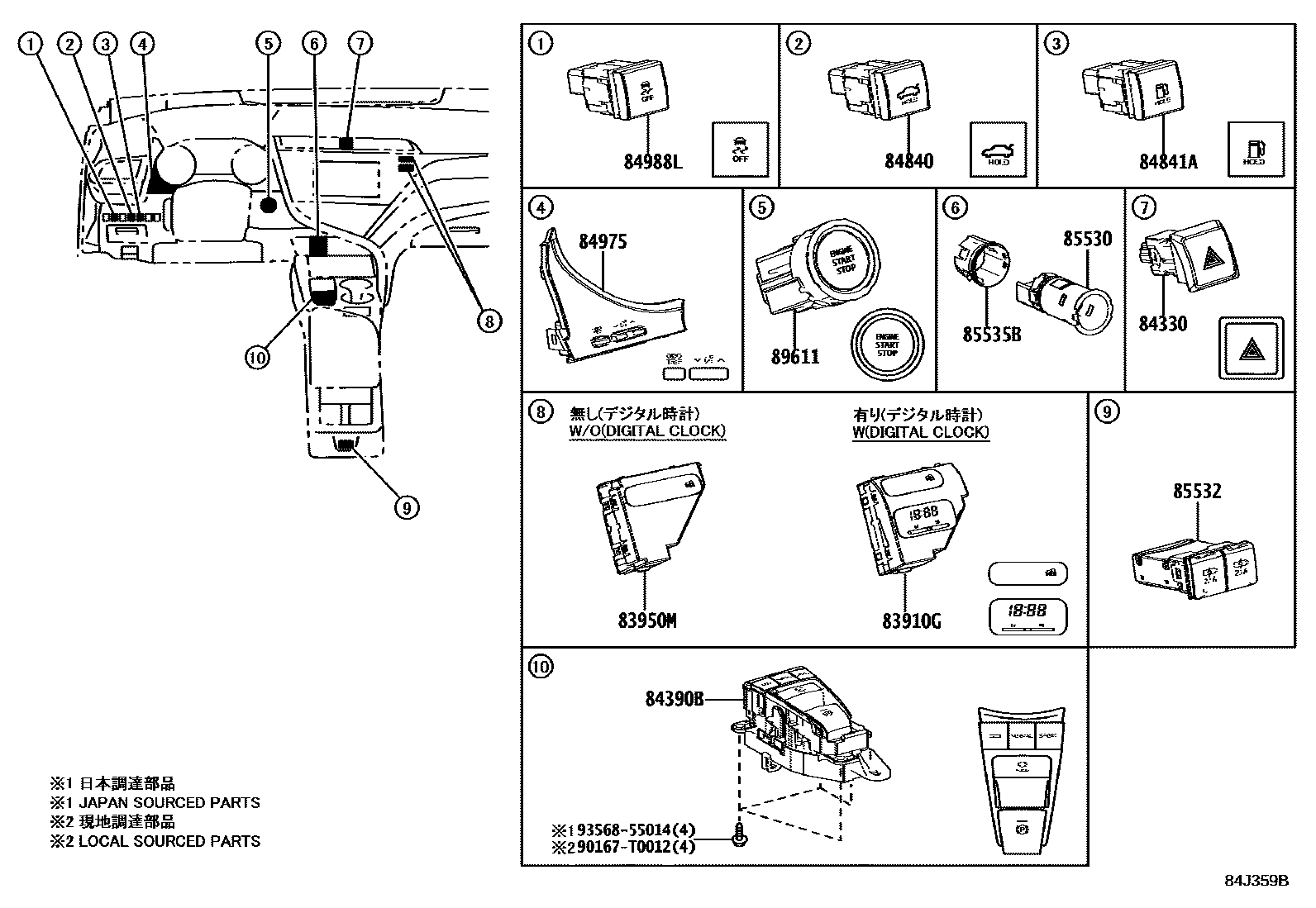

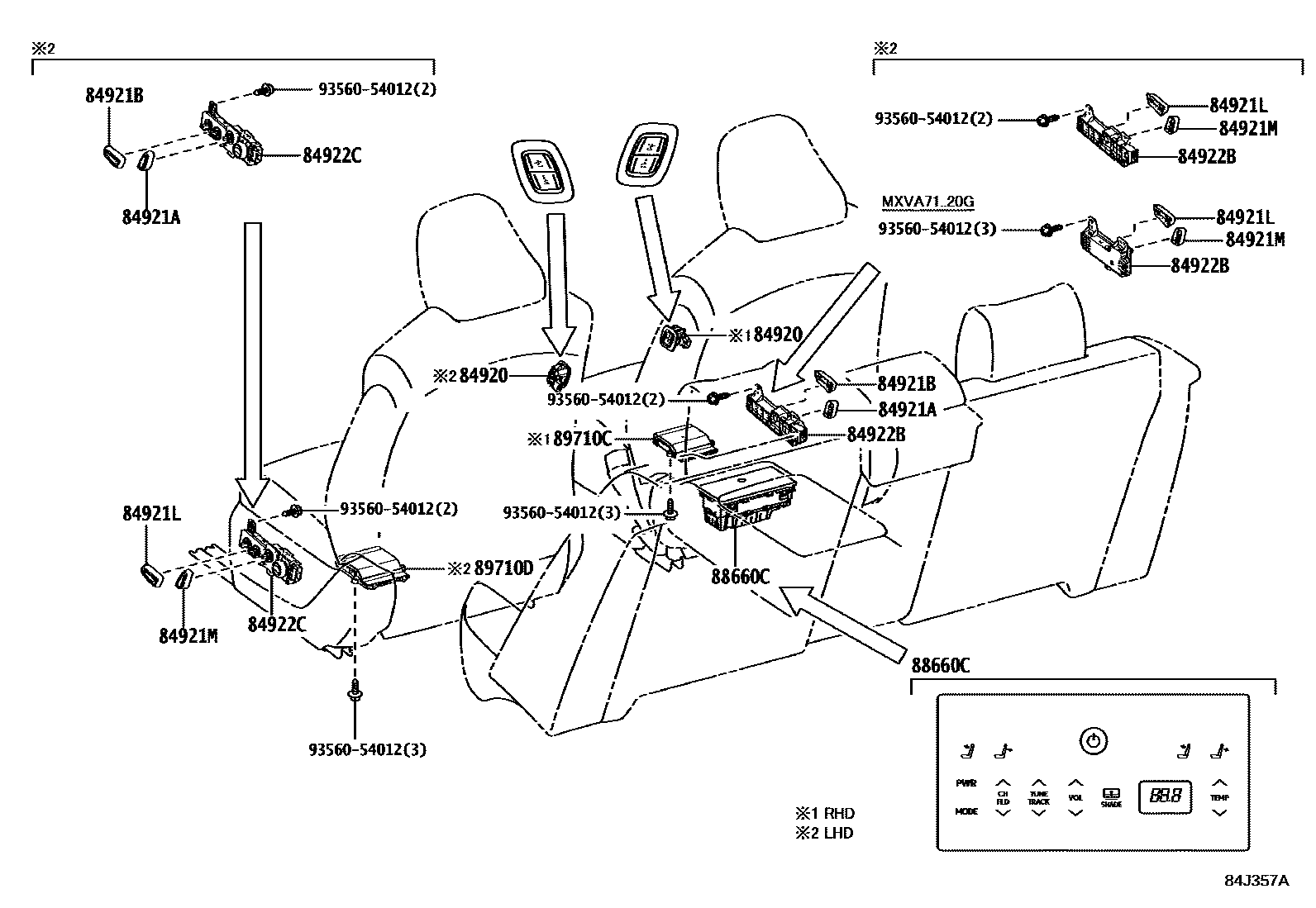

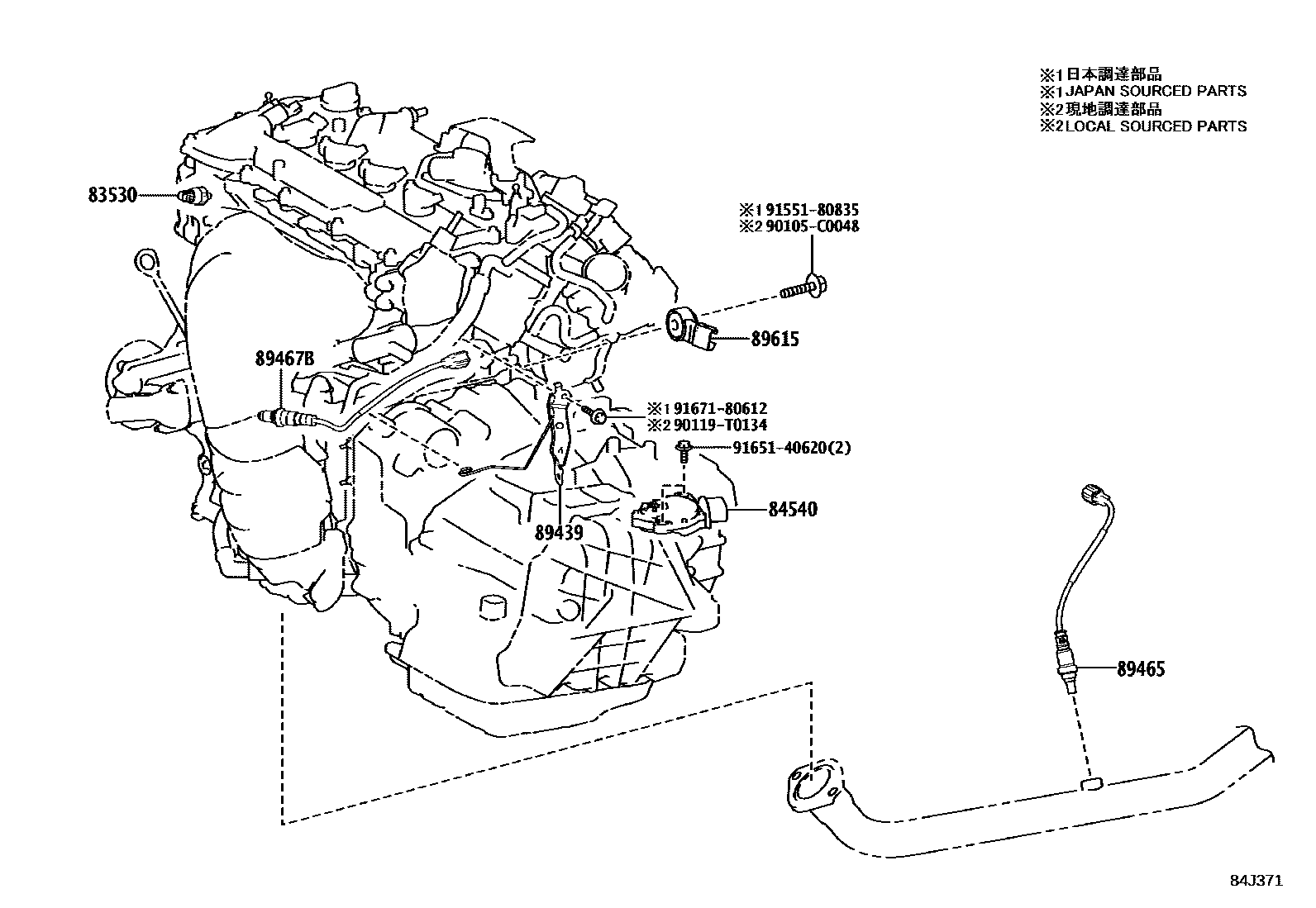

Toyota CAMRY 开关和继电器和ECU — Figure 8401

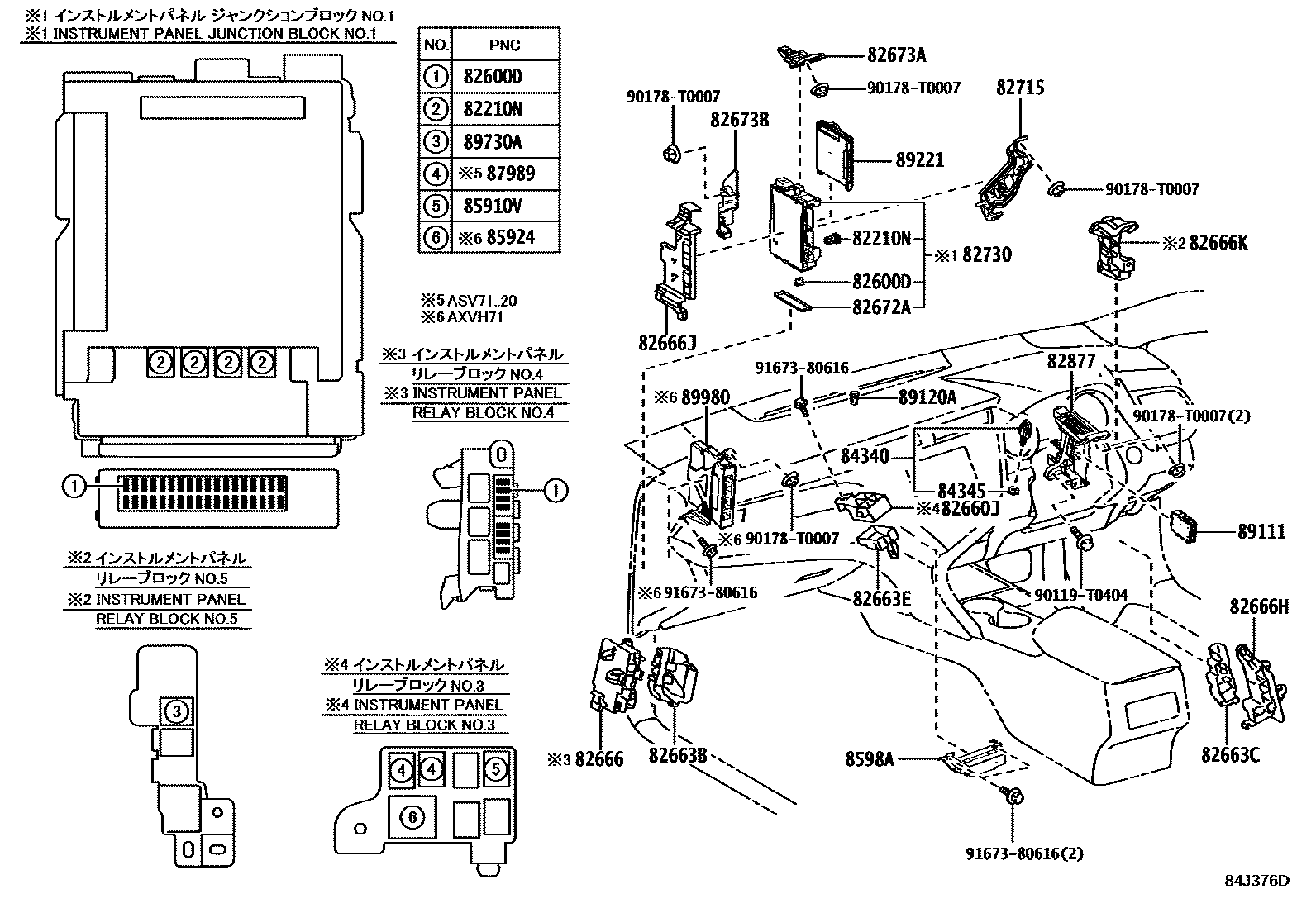

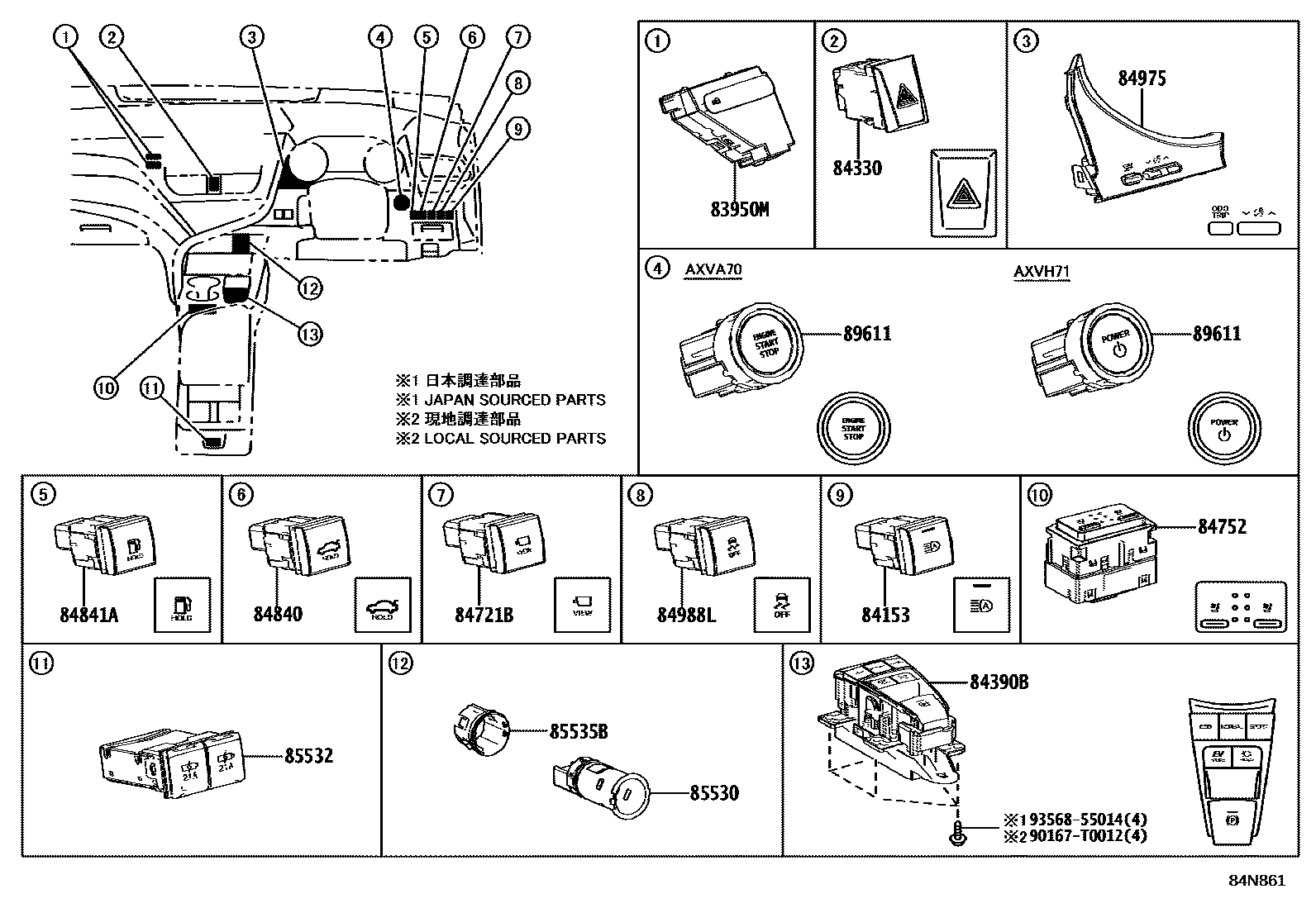

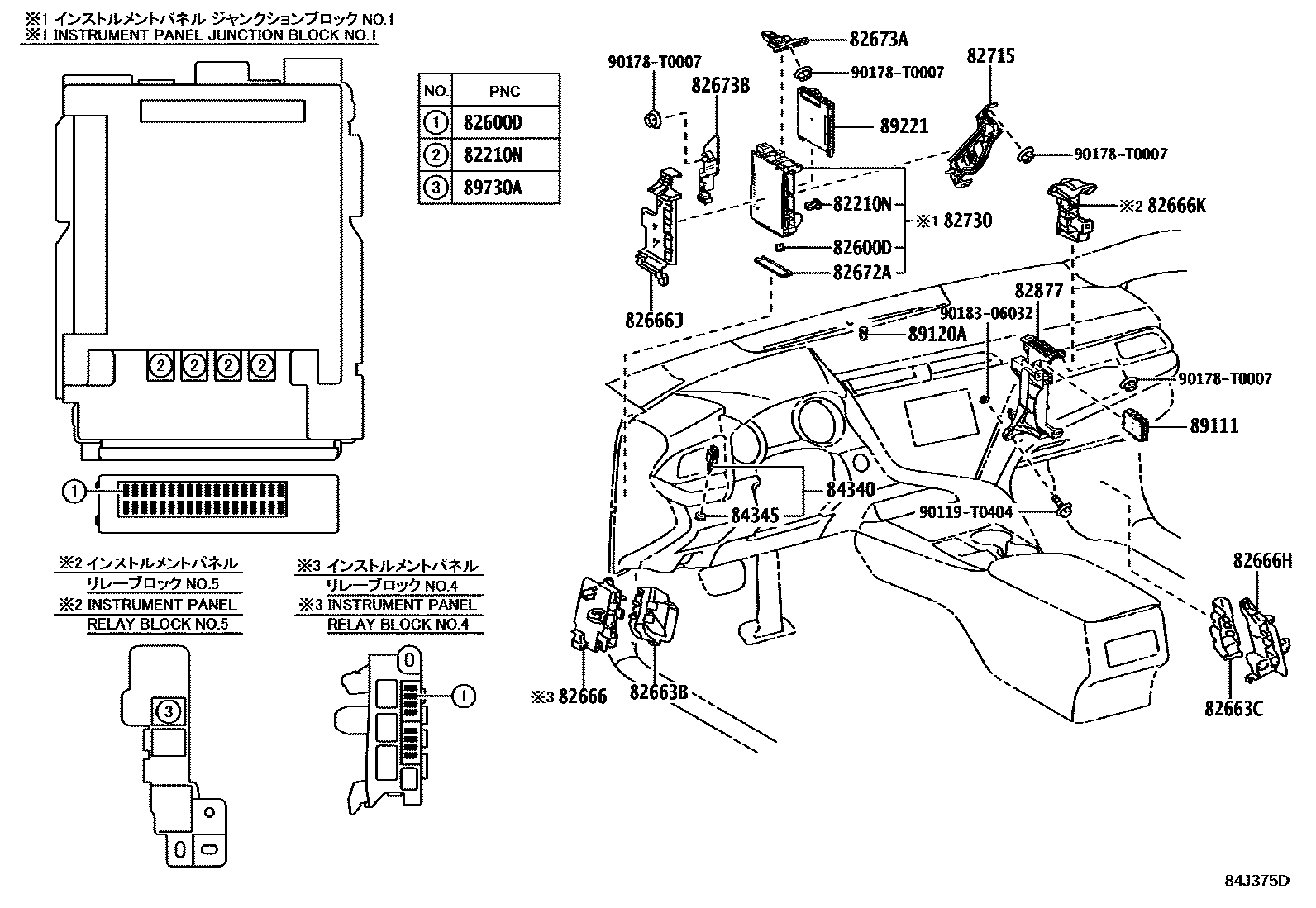

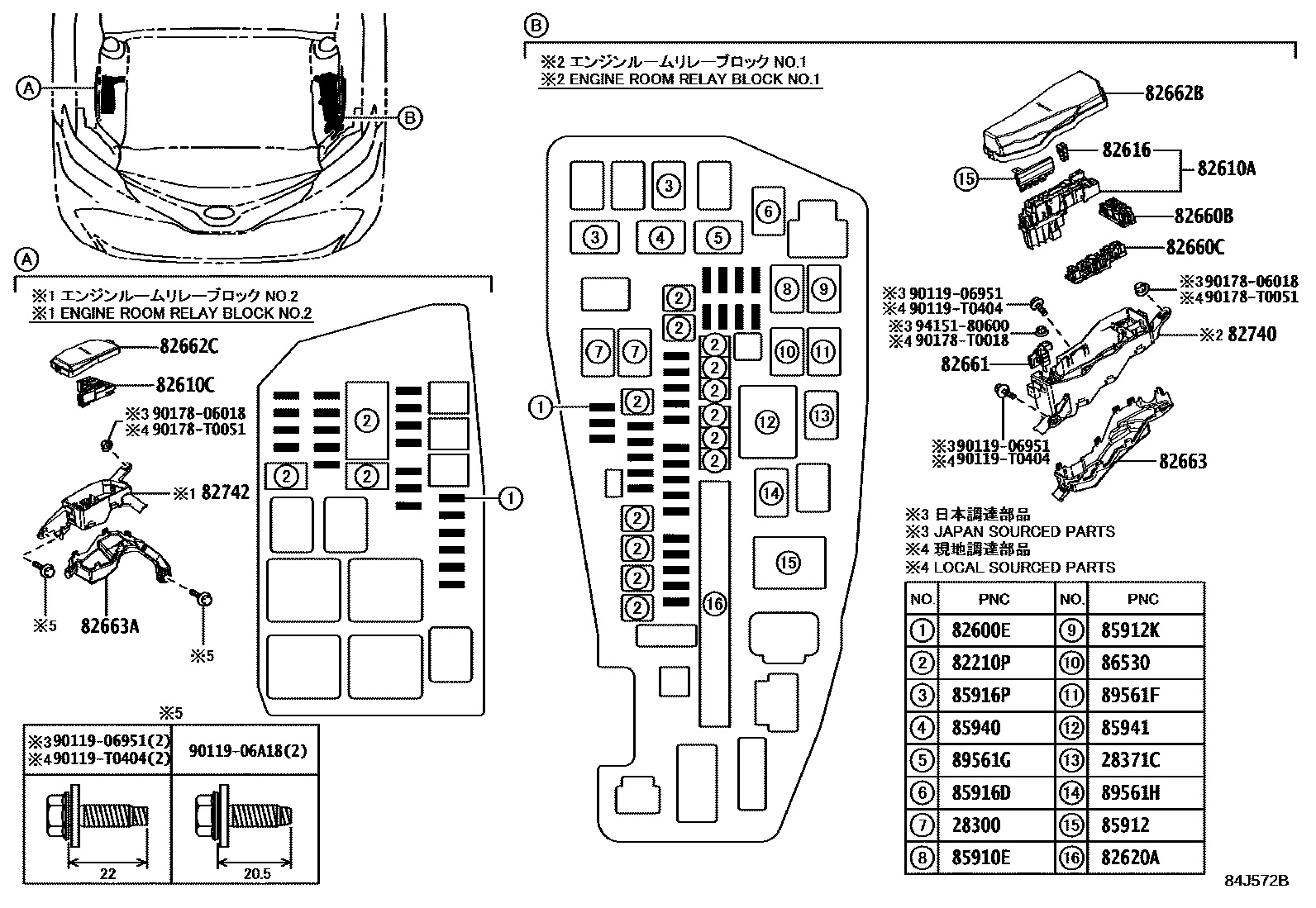

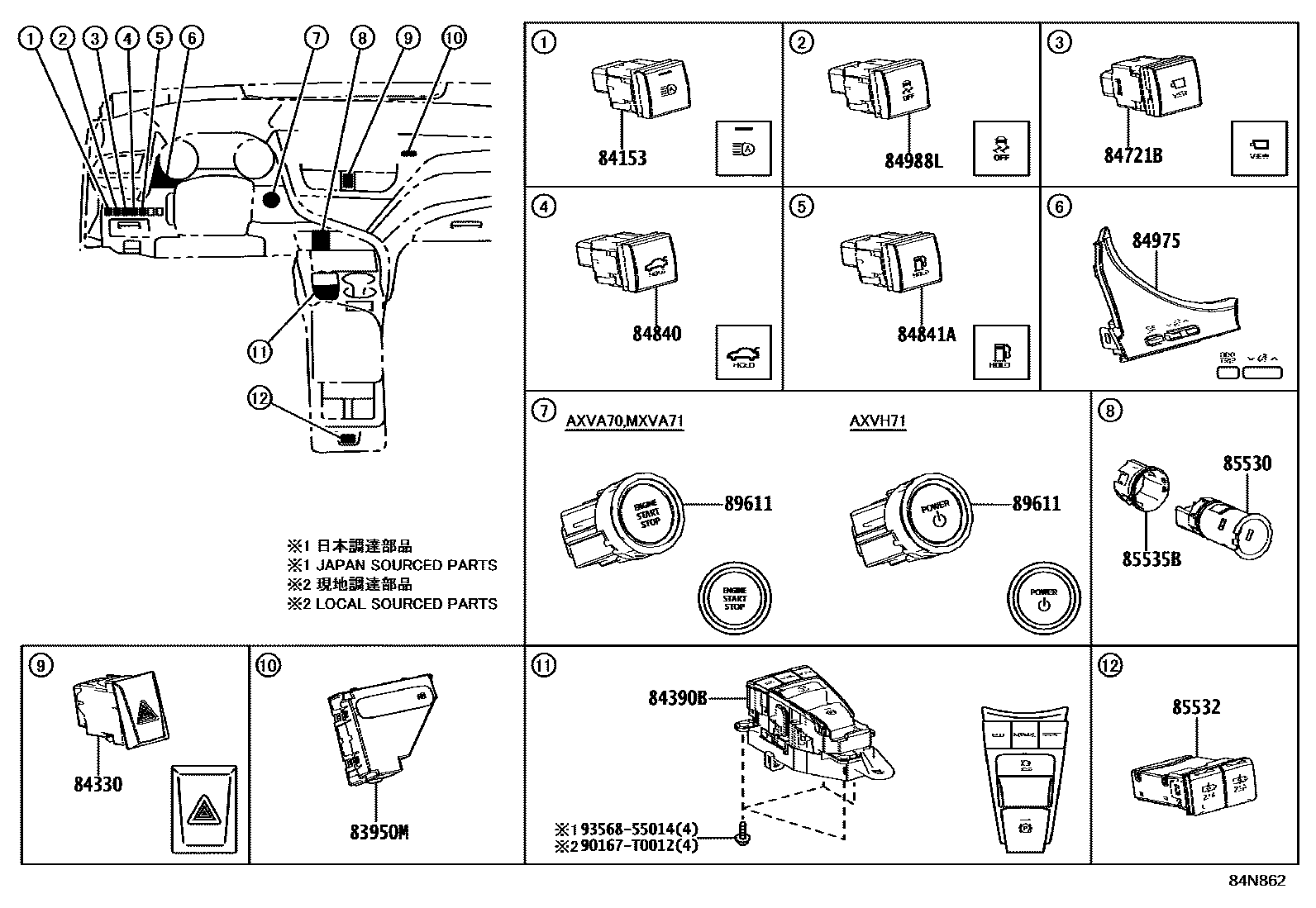

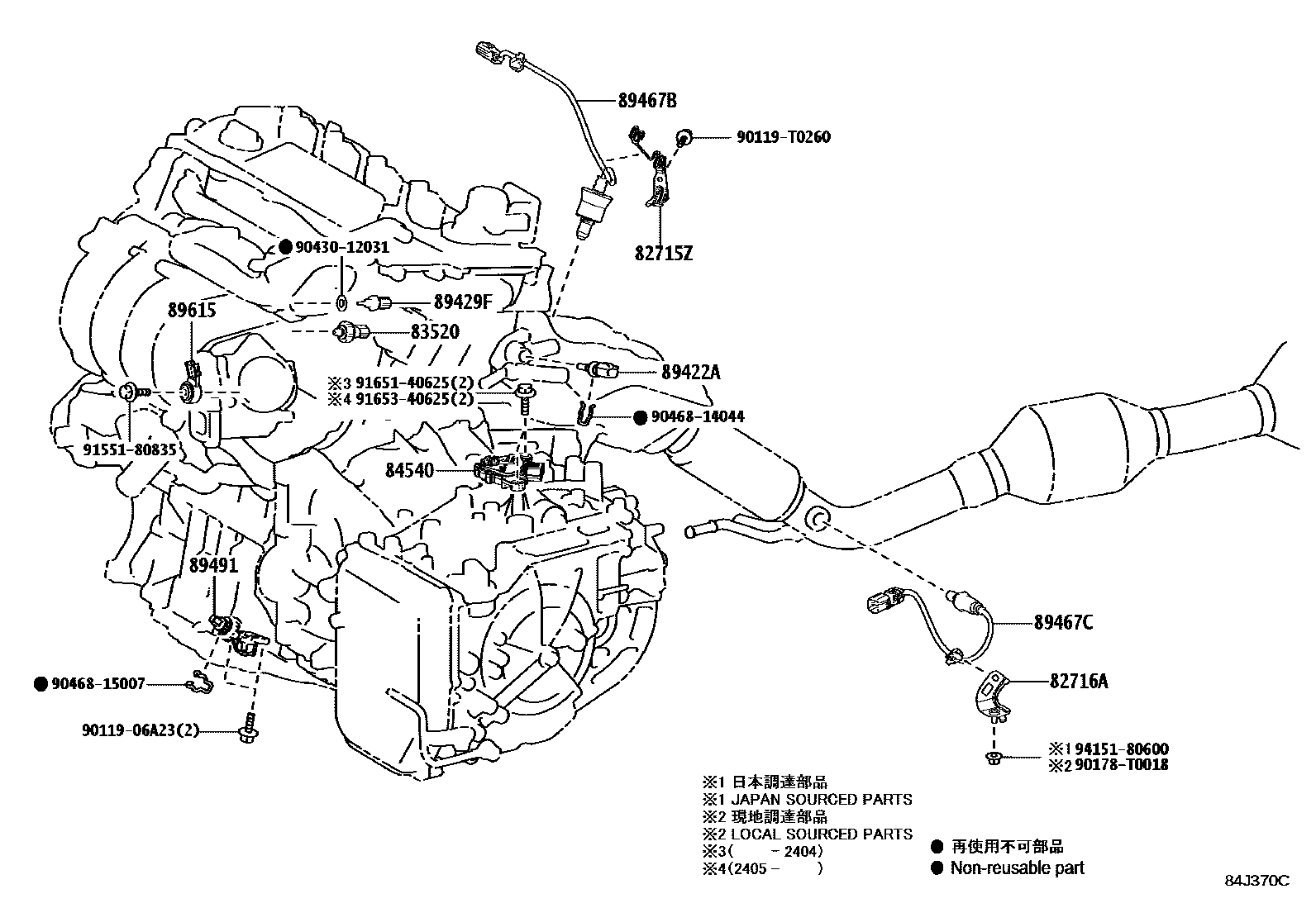

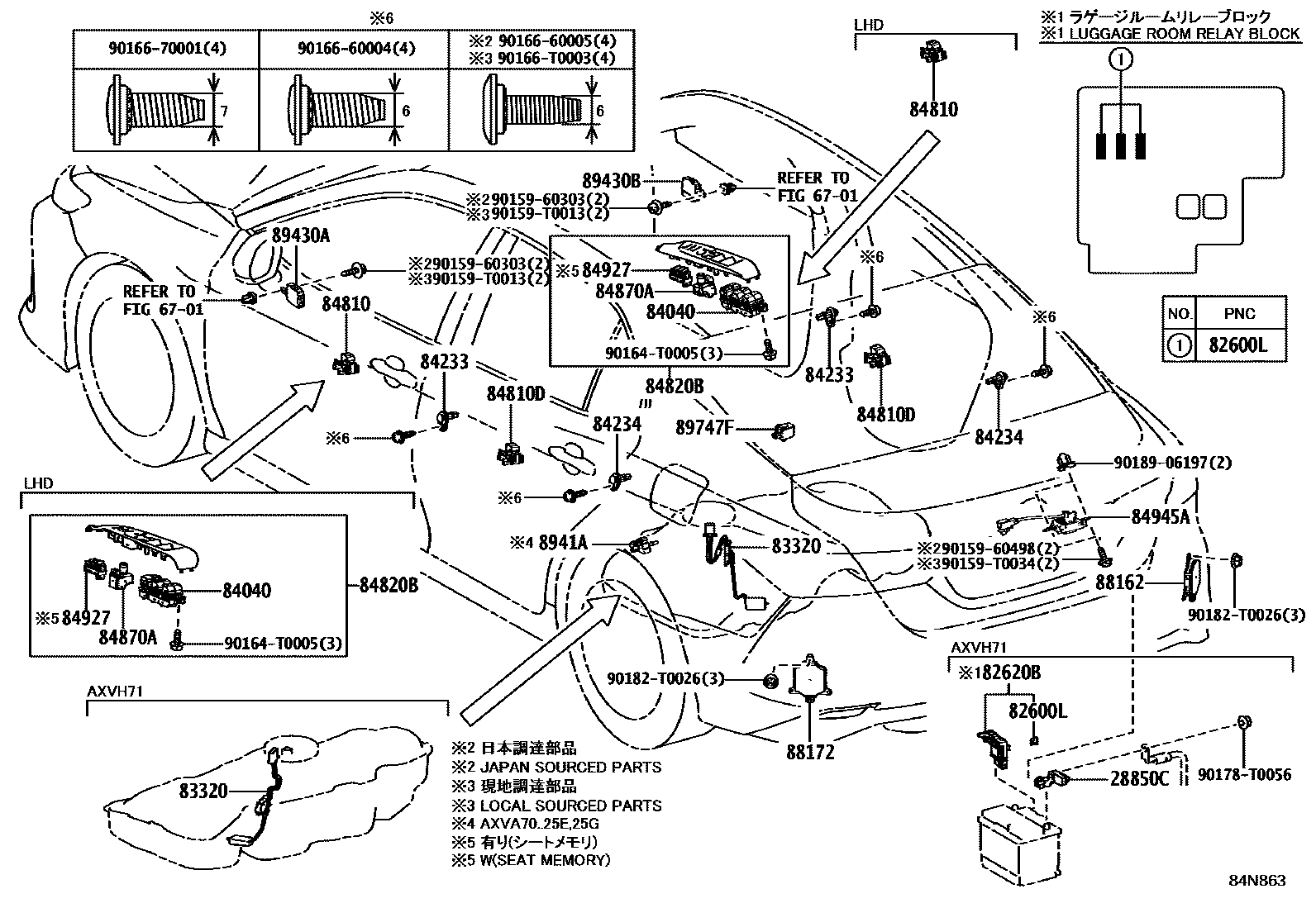

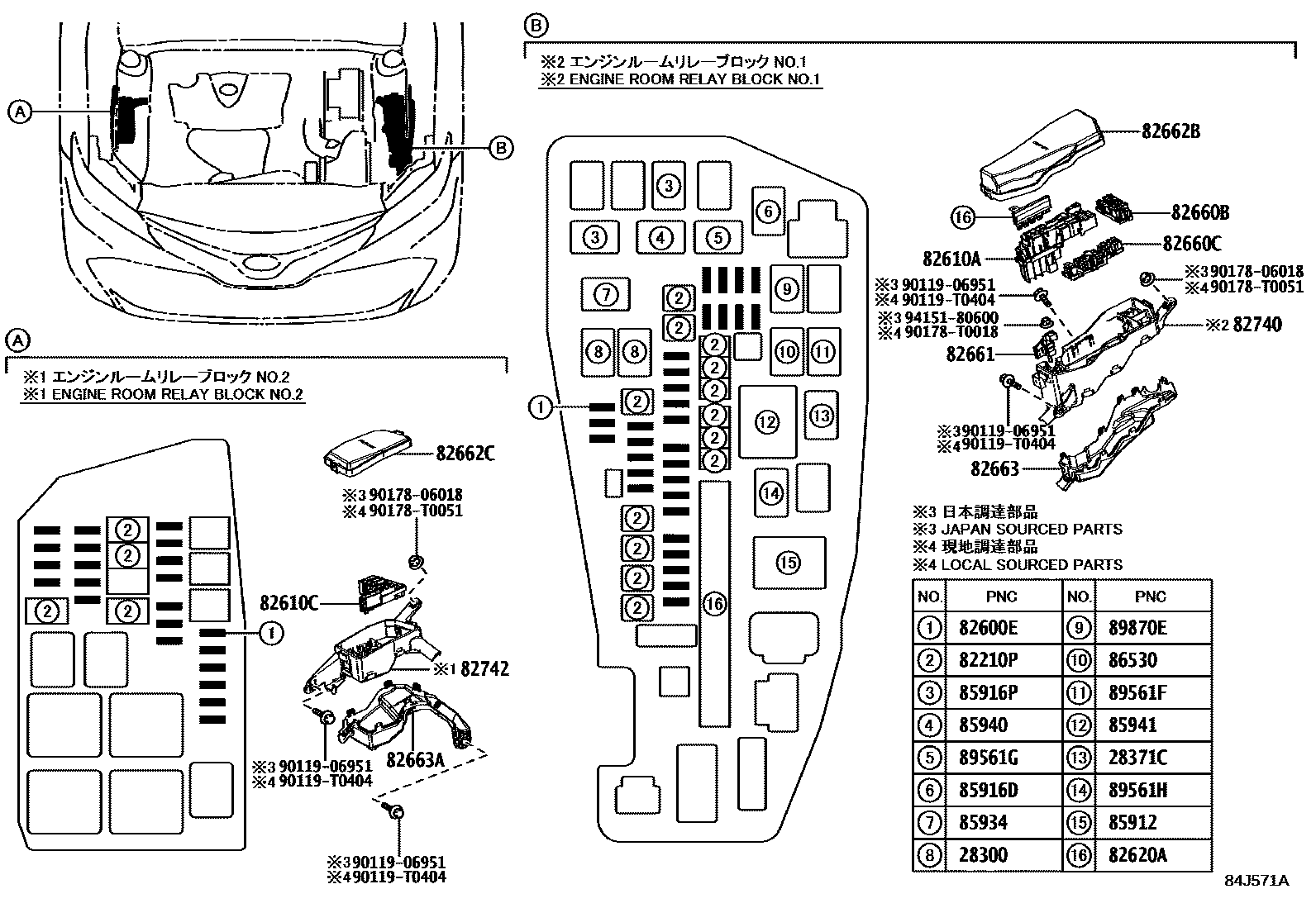

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 22 images and 130 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0L011 · 28300-21020 |
| 28371C | No. 2 ignition relay | 90987-T2001 |

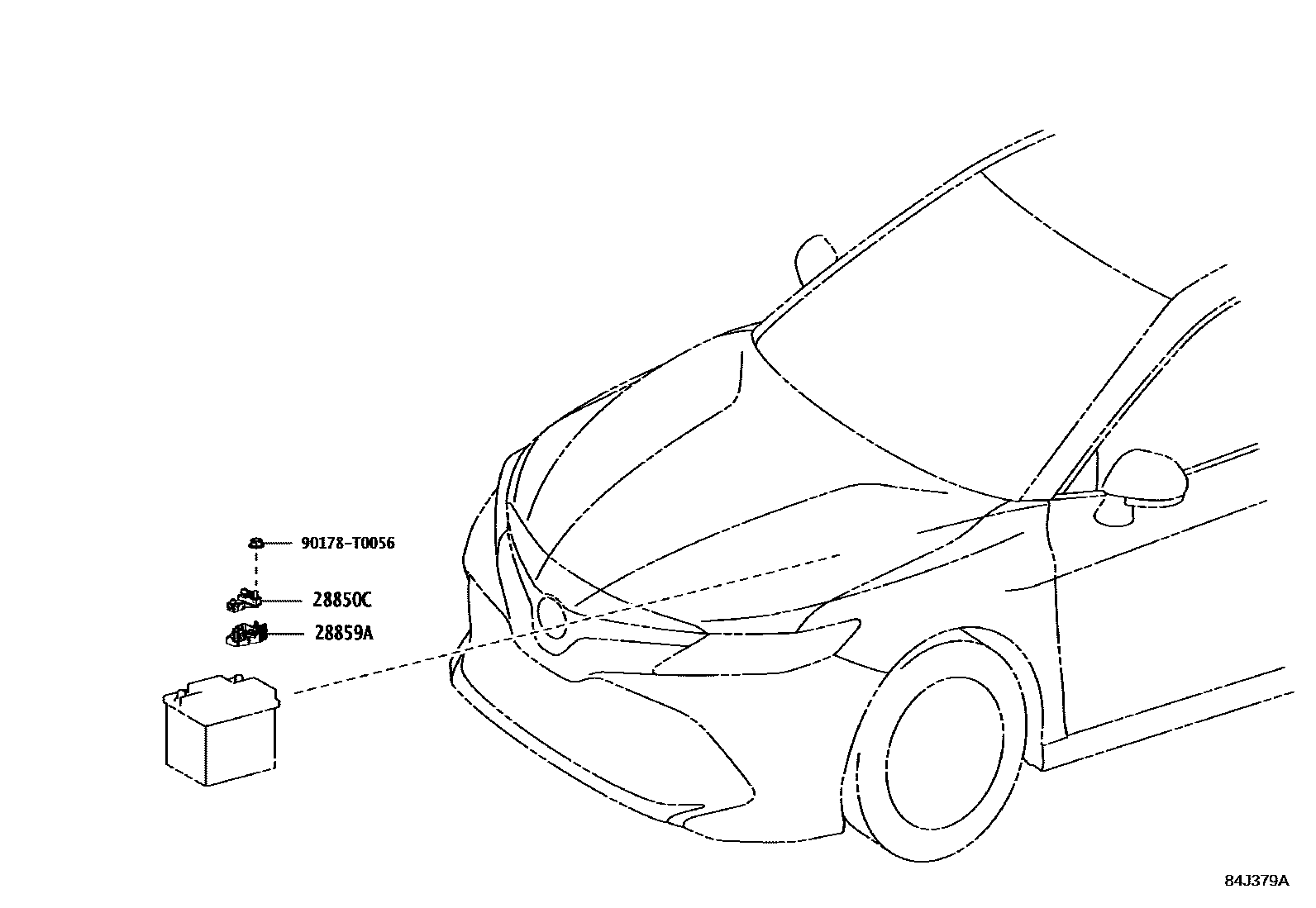

| 28850C | Battery status sensor assembly | 28850-25010 · 28850-25020 · 28850-70010 |
| 28859A | Battery current sensor mount | 28859-25010 · 28859-25020 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | luggage fuse | 90982-09020 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-33130 · 82610-33140 |
| 82610C | Fuse box assembly | 82610-33150 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33140 · 82620-33150 |
| 82620B | Fuse box assembly | 82620-33111 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82660J | Relay assembly | 82660-33060 · 82660-33080 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662B | No. 2 relay box upper cover | 82662-06740 · 82662-06820 · 82662-06830 · 82662-06840 · 82662-06B00 · 82662-06B10 |
| 82662C | No. 3 relay box upper cover | 82662-06A10 |
| 82663 | Relay box lower cover | 82663-33210 · 82663-33230 |
| 82663A | No. 2 relay box lower cover | 82663-33220 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33250 |
| 82663E | No. 7 relay box lower cover | 82663-33260 |
| 82666 | Connector holder | 82666-33570 |
| 82666H | Connector holder No. 2 | 82666-33580 |
| 82666J | No. 3 connector holder | 82666-33630 |
| 82666K | No. 4 connector holder | 82666-33640 |
| 82668B | No. 5 connector holder | 82666-33590 |
| 82672A | Junction box cover | 82672-06281 · 82672-06331 |
| 82673A | Junction box bracket | 82673-06090 |
| 82673B | Junction box bracket | 82673-06100 |
| 82715 | Wire harness clamp bracket | 82715-06Z50 · 82715-0X240 |
| 82715X | No. 2 wire harness clip bracket | 82715-12V90 |
| 82715Z | Wire harness clamp bracket | 82715-12X50 · 82715-33K11 |
| 82716A | Wire harness clamp bracket | 82715-06X30 |
| 82730 | Instrument panel junction box assembly | 82730-06821 · 82730-06861 · 82730-06B41 |
| 82740 | Engine room relay box assembly | 82740-33080 · 82740-33090 |
| 82742 | Engine room No. 2 relay box | 82742-33050 |
| 82877 | Right ECU integrated box | 82877-06050 · 82877-06060 |
| 83320 | Fuel gauge sensor assembly | 83320-06160 · 83320-33150 · 83320-33160 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 · 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83910G | clock assembly | 83910-06310 · 83910-06330 |
| 83950M | Warning light assembly | 83950-33030 · 83950-33050 · 83950-33070 · 83950-33100 · 83950-33110 |
| 84040 | Multi-channel network main switch assembly | 84040-06110 · 84040-06120 · 84040-06150 · 84040-06160 |
| 84153 | Automatic high beam switch | 84153-06040 |
| 84233 | Door control light switch assembly (for front door) | 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06C00 · 84250-06C10 · 84250-06C20 |
| 84306 | Spiral cable sub-assembly | 84308-06030 · 84308-06070 |
| 84319 | Steering wheel switch housing | 84319-06050 · 84319-06060 |
| 84329 | turn signal switch | 84329-06090 · 84329-06100 · 84329-06110 · 84329-06120 |
| 84330 | Hazard warning signal switch assembly | 84332-33100 · 84332-33110 · 84332-33140 |
| 84340 | brake light switch assembly | 84340-09200 · 84340-09380 |
| 84345 | Brake light switch base adjuster | 84345-0K010 · 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-33020 · 84390-33030 · 84390-33040 · 84390-33050 · 84390-33060 · 84390-33090 |
| 84470 | Warning release switch assembly | 84470-33060 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-33010 · 84540-33020 · 84540-33021 |
| 84610G | No. 1 transmission shift switch assembly | 84610-33011 |
| 84610H | No. 2 transmission shift switch assembly | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-06420 · 84652-06430 · 84652-06440 |
| 84721B | Panoramic display switch | 84721-06010 |
| 84752 | Relax seat switch | 84752-33120 · 84752-33430 |
| 84810 | Electric window lift switch assembly | 84810-02330 · 84810-06110 |
| 84810D | Rear electric window lift switch assembly | 84810-02330 · 84810-06110 |
| 84820B | Power window switch assembly | 84802-06C60 · 84802-06C70 · 84802-06D10 · 84802-06D20 |
| 84840 | Trunk door opening switch assembly | 84840-06061 · 84840-33121 |
| 84841A | Fuel filler cap opener switch | 84841-06041 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02570 · 84872-02580 · 84872-02620 · 84872-02660 · 84872-06150 · 84872-06180 · 84872-06190 · 84872-06200 · 84872-06210 |
| 84922B | Front right electric seat switch | 84922-33140 · 84922-33170 |
| 84922C | Front left electric seat switch | 84922-33180 · 84922-33200 |
| 84927 | Seat memory switch | 84927-06050 · 84927-06060 |
| 84945A | Luggage electronic key switch | 84945-33040 |
| 84975 | trip odometer switch | 84975-33040 · 84975-33050 |
| 84988L | VSC off switch | 84988-06110 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85532 | USB charging socket | 85532-06020 · 85532-06060 |
| 85535B | No. 1 power outlet cover | 85535-33100 |
| 85910 | Circuit breaking relay assembly | 90987-T2001 |
| 85910E | Injector relay | 90987-02027 · 90987-T2001 |
| 85910V | seat heater relay | 90987-T2001 |
| 85912 | defogger relay | 90987-T2003 |
| 85912K | VVT relay | 90987-02027 · 90987-T2001 |
| 85916D | fog light relay | 90987-T2001 |
| 85916P | headlight relay | 90987-T2001 |
| 85924 | Ignition control relay | 90987-02031 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85940 | Windshield wiper relay assembly | 90987-T2001 |
| 85941 | windshield washer relay | 90987-T2002 |
| 8598A | door control battery | 8598A-06010 · 8598A-06060 |
| 86530 | Speaker relay assembly | 90987-02027 · 90987-T2001 |
| 87989 | Rearview mirror control relay | 85927-22010 |
| 88162 | Blind spot monitor right sensor | 88162-33070 · 88162-33071 · 88162-33072 · 88162-33120 · 88162-33121 |
| 88172 | Blind spot monitor left sensor | 88162-33070 · 88162-33071 · 88162-33072 · 88162-33120 · 88162-33121 |
| 88660C | Cooler control switch assembly | 84660-33190 · 84660-33290 · 84660-33370 |
| 89111 | Network gateway ECU | 89111-06110 · 89111-06130 · 89111-06210 · 89111-06220 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-33T30 · 89220-33T40 · 89220-33T50 · 89220-33T60 · 89220-33T70 · 89220-33T80 · 89220-33T90 · 89220-33U00 · 89220-3T110 · 89220-3TJ70 · 89220-3TJ80 · 89220-3TJ90 · 89220-3TK00 · 89220-3TK10 · 89220-3TK20 · 89220-3TK30 · 89220-3TT10 · 89220-3TT20 · 89220-3TT30 · 89220-3TT40 · 89220-3TT50 · 89220-3TT60 · 89220-3TT70 · 89220-3TT80 · 89221-33C60 · 89221-33F30 · 89221-33F31 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33030 · 89227-48070 |
| 89235A | Tilt-telescoping steering column switch | 89235-33010 |
| 89245C | steering sensor | 8924B-06050 |
| 89419B | gear shift sensor | 89419-12011 |
| 8941A | Ethanol concentration sensor | 8941A-06010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-12010 |
| 89430A | Left exterior rearview mirror control ECU assembly | 89430-06050 · 89430-33250 |
| 89430B | Right exterior mirror control ECU assembly | 89430-06060 · 89430-33260 |
| 89439 | Sensor holder | 82715-33T60 · 82715-33T70 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89465 | oxygen sensor | 89465-33650 · 89465-33660 |
| 89467B | air fuel ratio sensor | 89467-06220 · 89467-12280 · 89467-33290 · 89467-48270 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-33210 |
| 89491 | Engine oil level sensor | 89491-33042 · 89491-33051 · 89491-33052 |
| 89535B | Transmission control ECU | 89535-33050 |
| 89539M | No. 1 transmission control ECU bracket | 89539-42080 |
| 89539N | No. 2 transmission control ECU bracket | 89539-42090 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 · 90987-T2001 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 · 90987-T2001 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02027 · 90987-T2001 |
| 89611 | One-button start switch | 89611-06070 · 89611-0D060 · 89611-0D061 · 89611-0K011 · 89611-0K070 · 89611-0K071 |
| 89615 | knock control sensor | 89615-20090 |
| 89710C | Right position control ECU assembly | 89710-33071 |
| 89710D | Left position control ECU assembly | 89710-33061 |
| 89730A | Relay (for safety warnings) | 90987-T2001 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2001 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-33150 · 89980-33190 · 89980-33500 · 89980-33510 · 89980-33720 |
