Toyota CAMRY 仪表 — Figure 8301

Toyota CAMRY EPC diagram 8301, 仪表, with 4 images and 9 PNC and OE references.

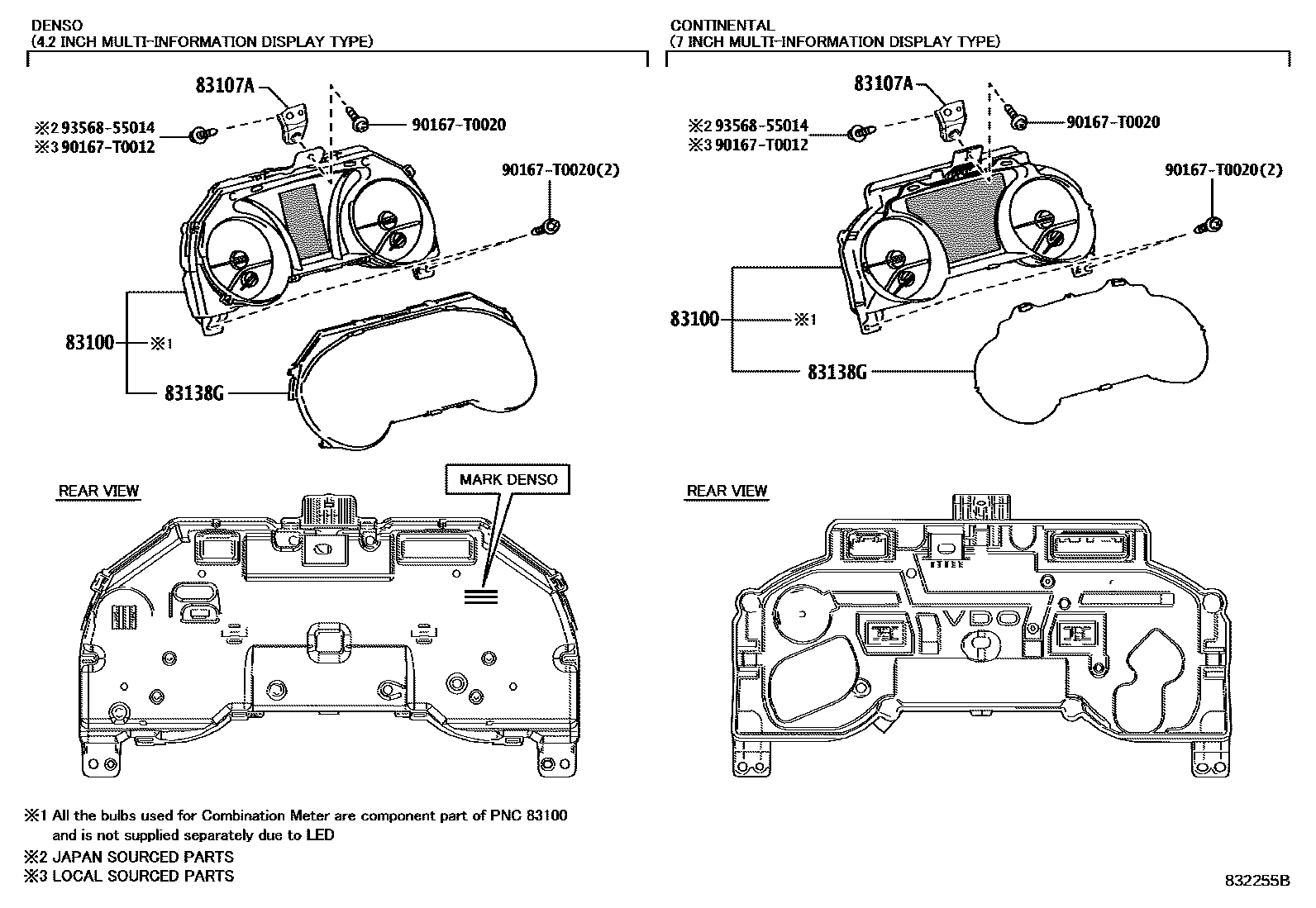

Toyota CAMRY 仪表 EPC diagram — 832255B
仪表 — 832255B (201810 – 202112)

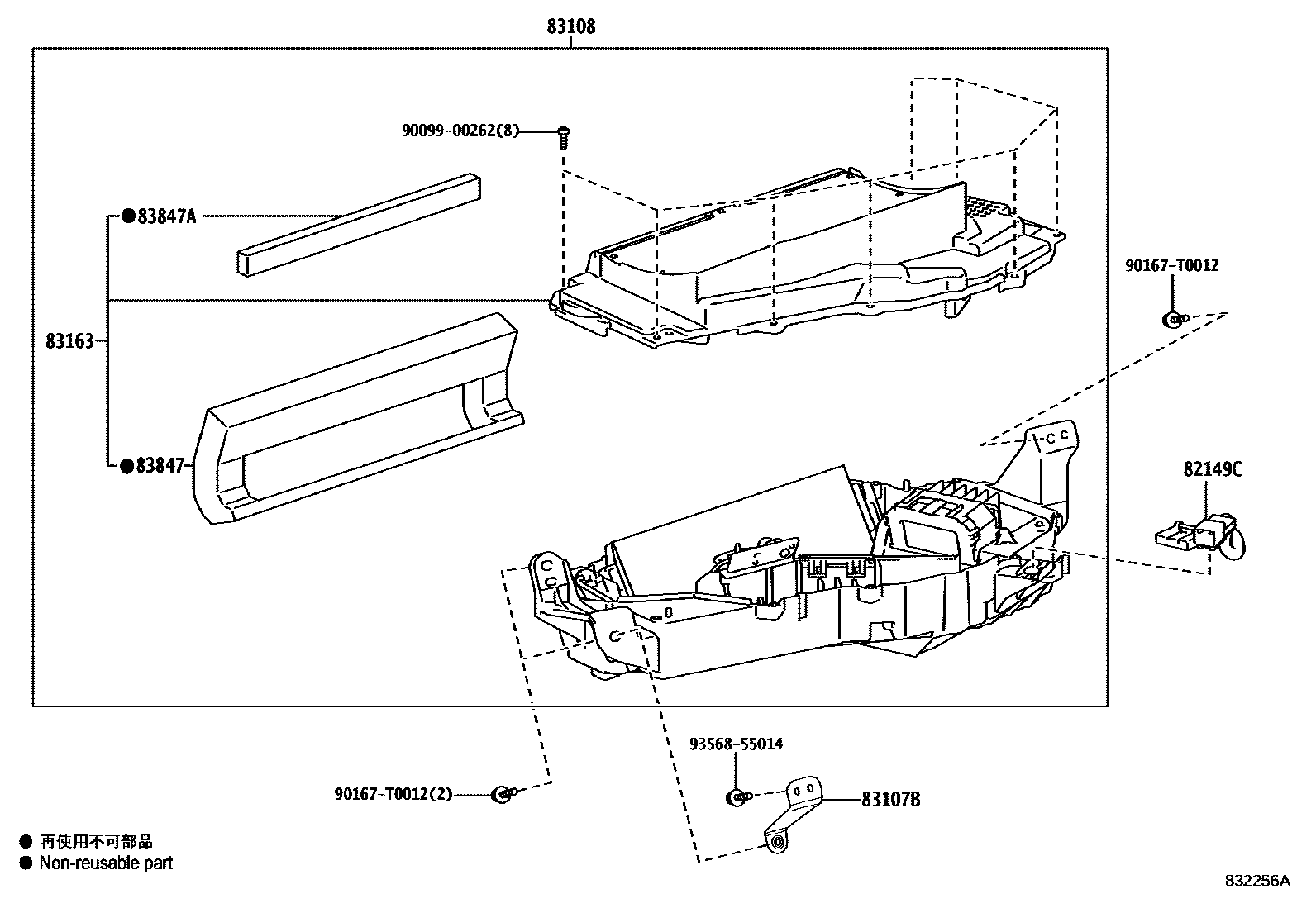

Toyota CAMRY 仪表 EPC diagram — 832256A
仪表 — 832256A (201810 – 999999)

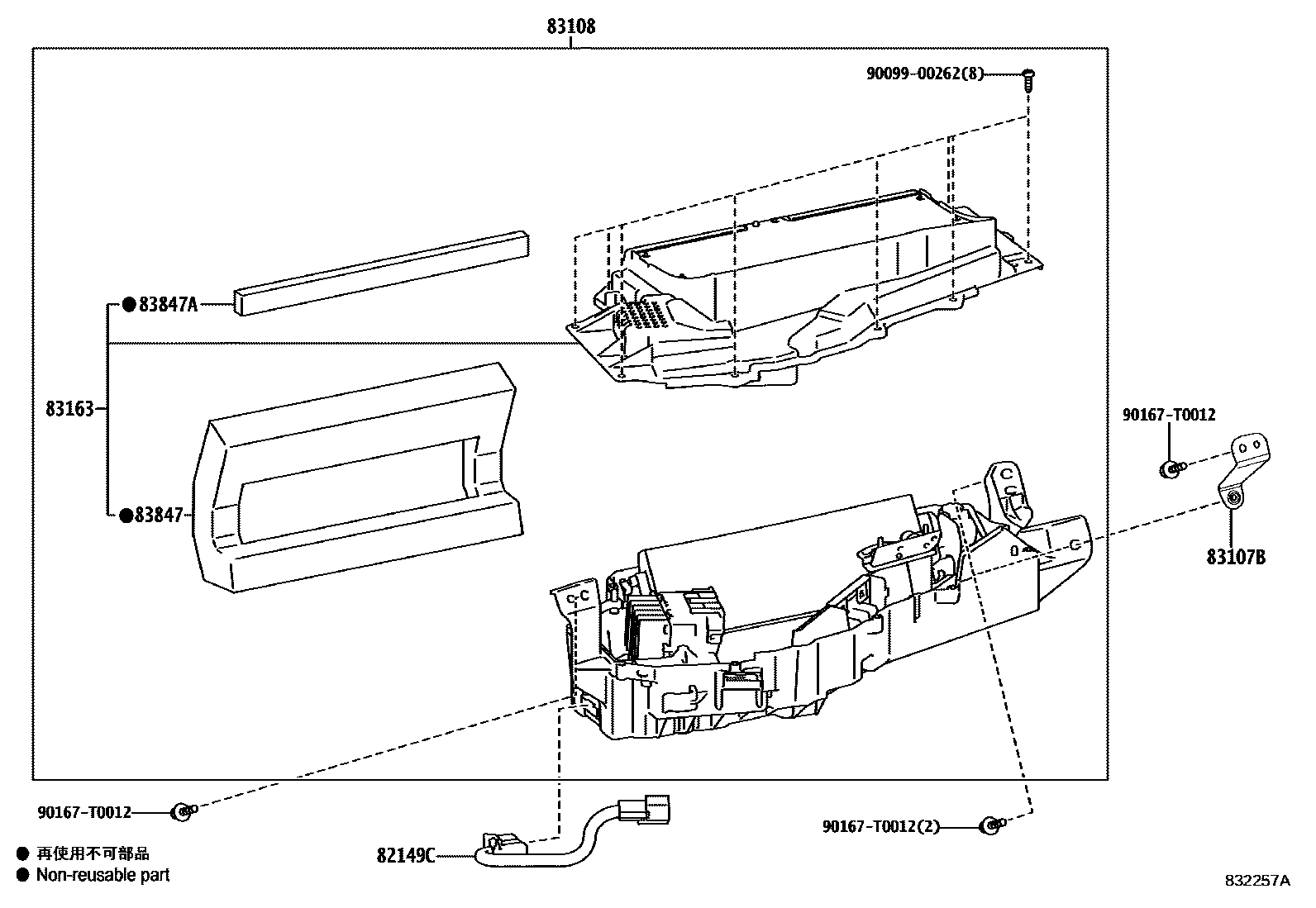

Toyota CAMRY 仪表 EPC diagram — 832257A
仪表 — 832257A (201810 – 999999)

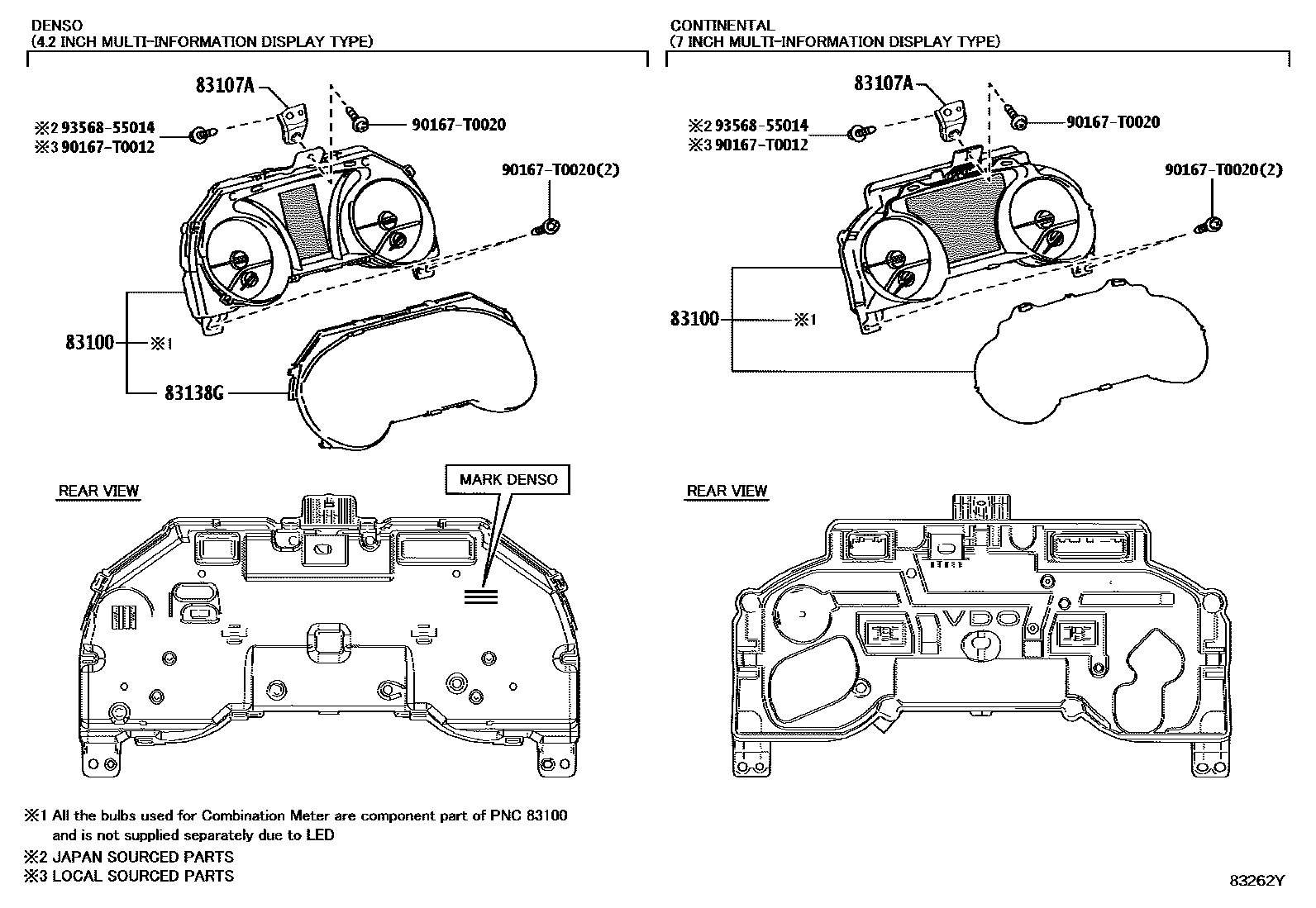

Toyota CAMRY 仪表 EPC diagram — 83262Y
仪表 — 83262Y (202110 – 999999)

PNC and OE references

PNCPart nameOE numbers
82149CInstrument mirror wiring harness82149-06030
83100Combined instrument assembly83800-0XF30 · 83800-0XF31 · 83800-0XF32 · 83800-0XF33 · 83800-0XF50 · 83800-0XF51 · 83800-0XF60 · 83800-0XF61 · 83800-0XF62 · 83800-0XF70 · 83800-0XF71 · 83800-0XK70 · 83800-0XK71 · 83800-0XK72 · 83800-0XK80 · 83800-0XK81 · 83800-0XK90 · 83800-0XK91 · 83800-0XK92 · 83800-0XM80 · 83800-0XM81 · 83800-0XM82 · 83800-0XN00 · 83800-0XN01
83107ANo. 1 instrument bracket sub-assembly83107-06050 · 83107-33010
83107BNo. 2 instrument bracket sub-assembly83107-06040 · 83107-33020
83108Instrument rearview mirror sub-assembly83108-33030 · 83108-33032 · 83108-33033 · 83108-33040 · 83108-33042 · 83108-33043
83138GInstrument cluster glass83852-0XF60 · 83852-0XN00
83163No. 1 instrument cluster rearview mirror panel83163-33030 · 83163-33032 · 83163-33040 · 83163-33042
83847No. 1 combination speedometer cushion83847-33030
83847ACombination speedometer cushion83847-33040
