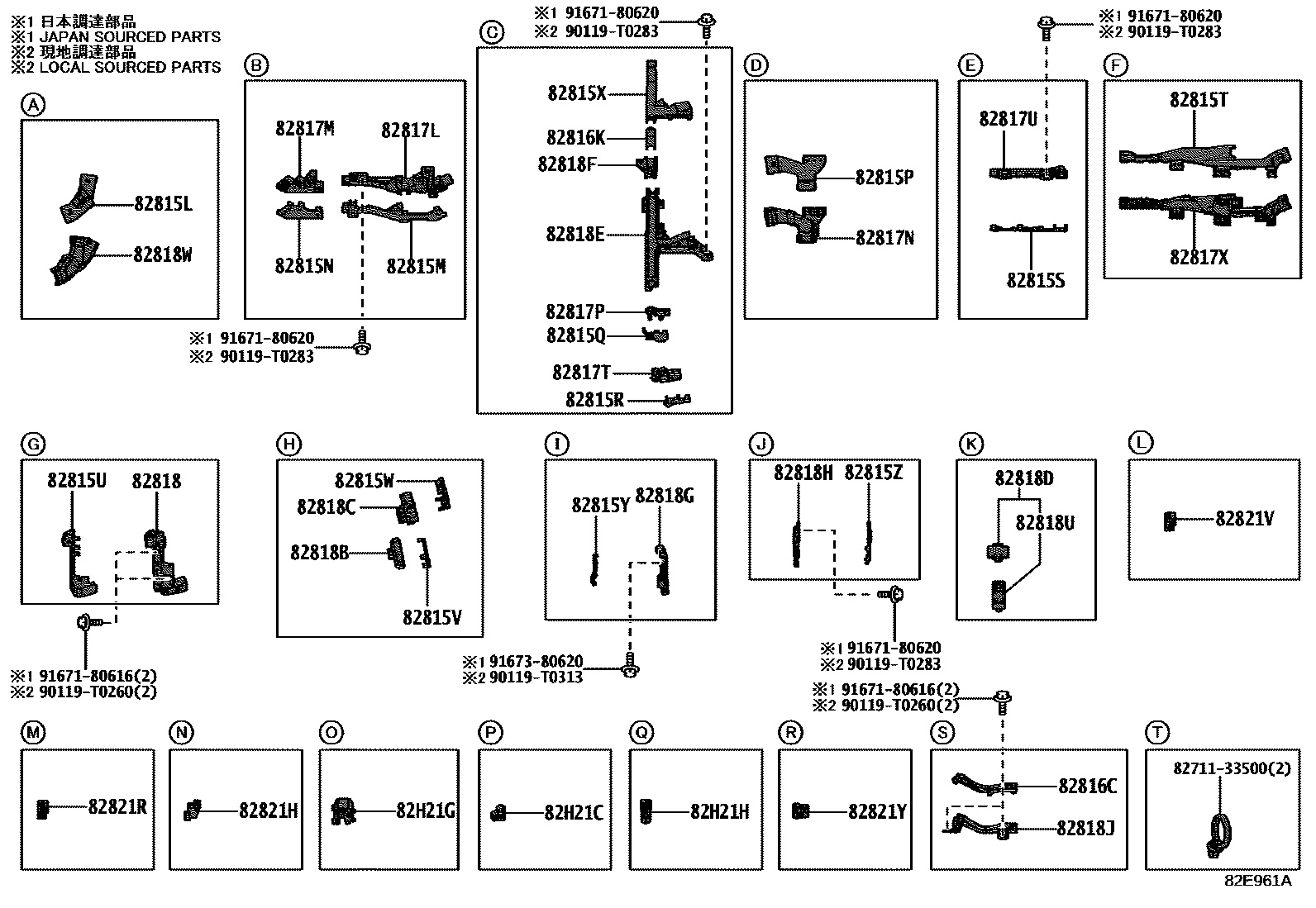

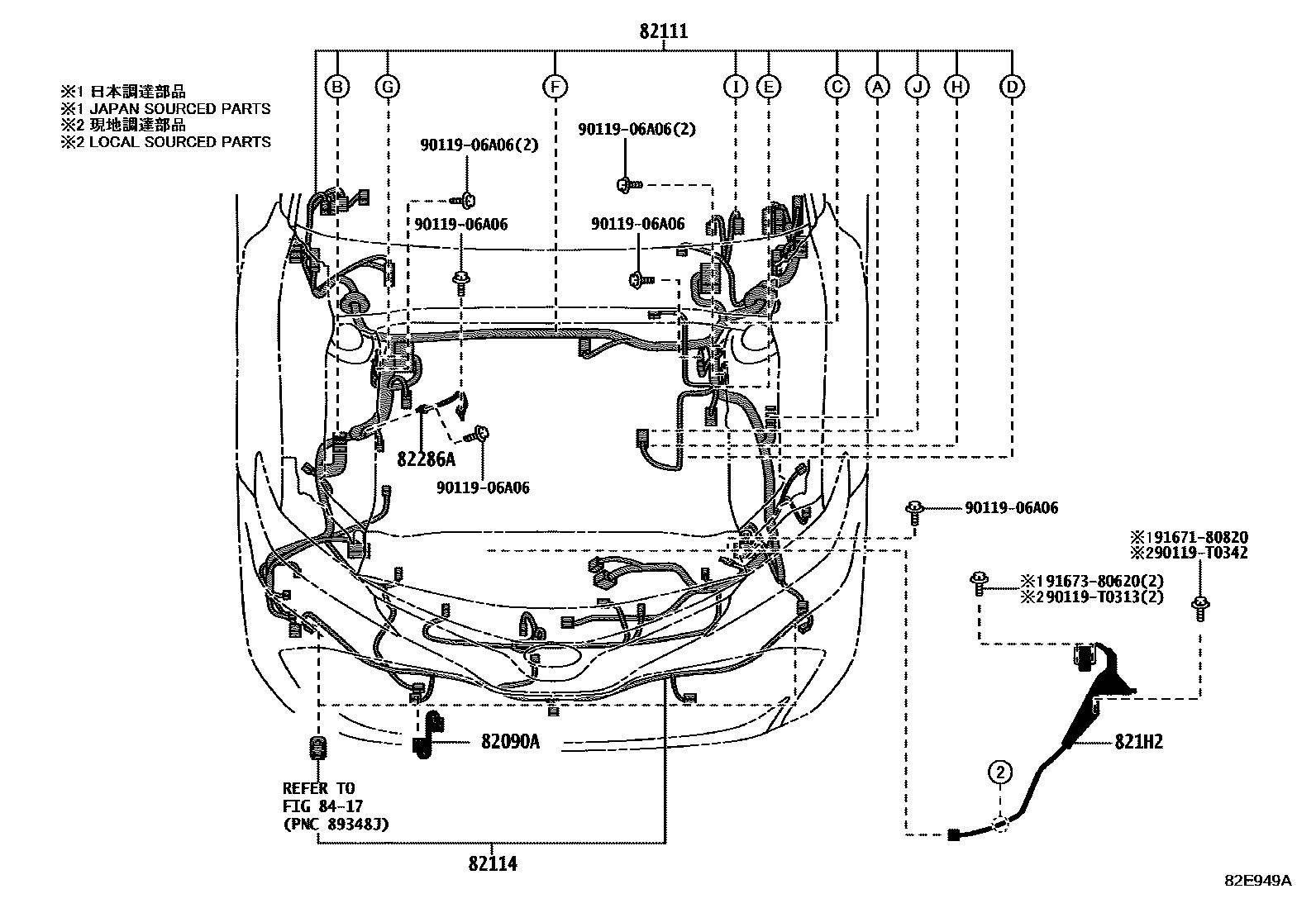

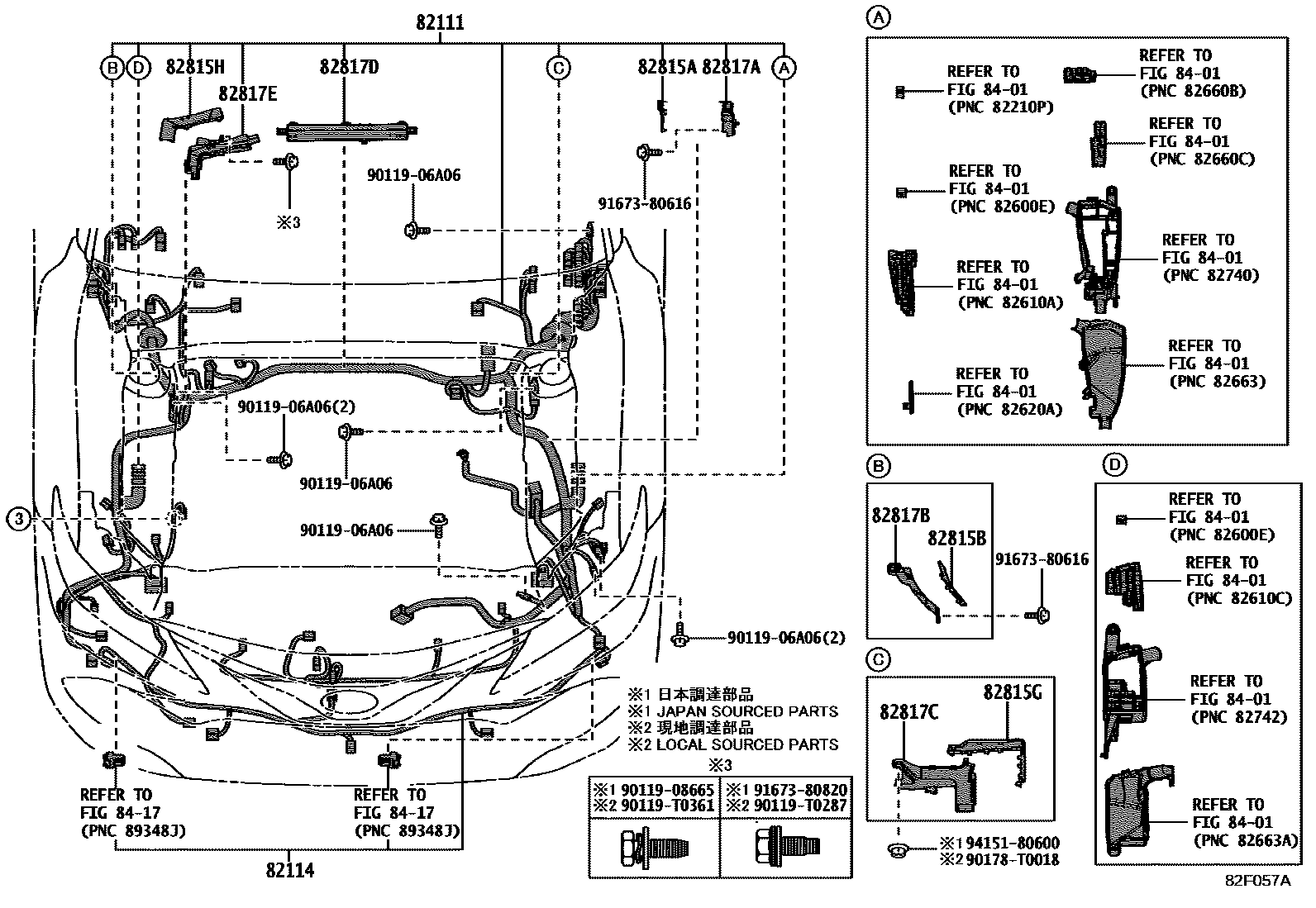

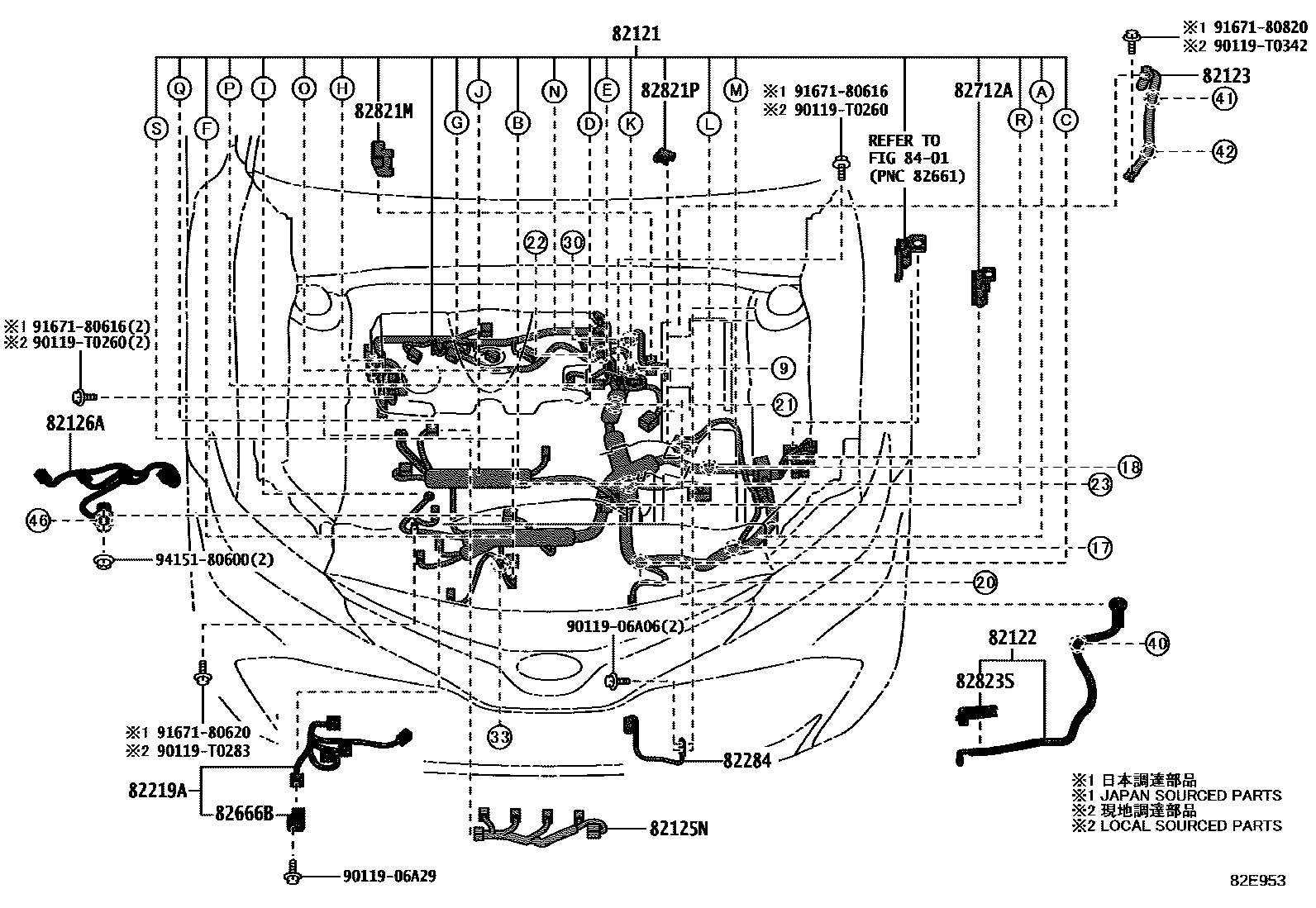

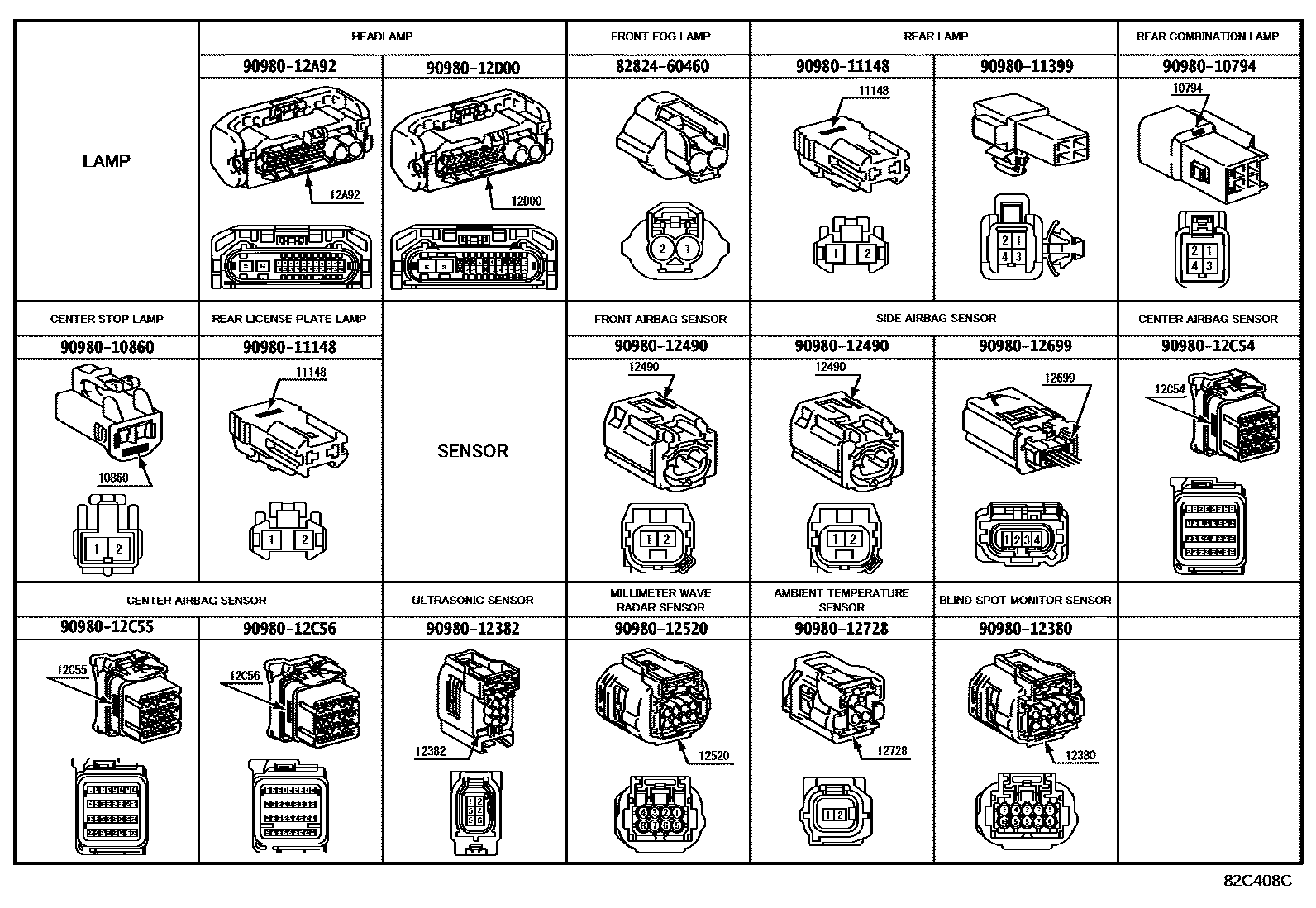

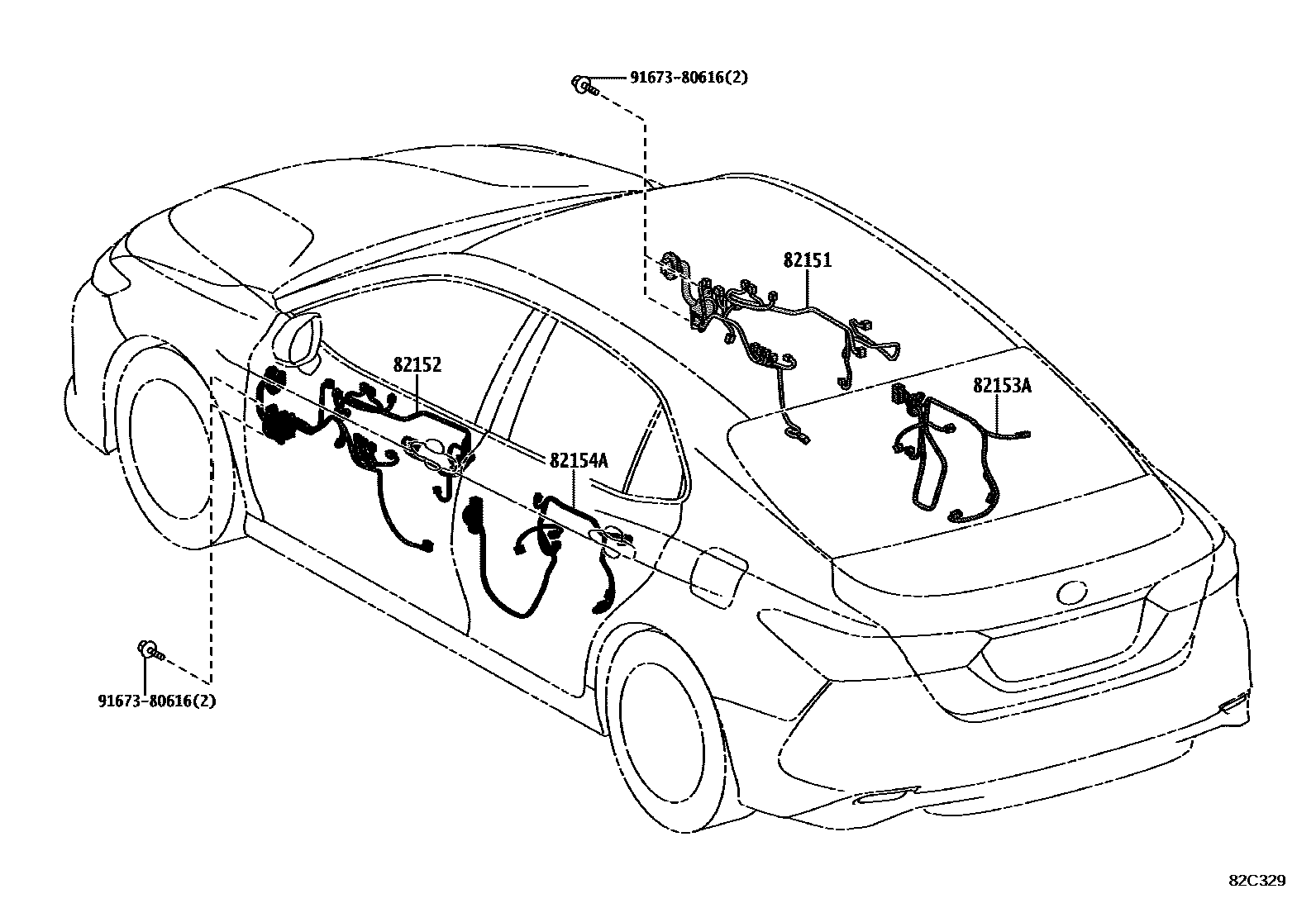

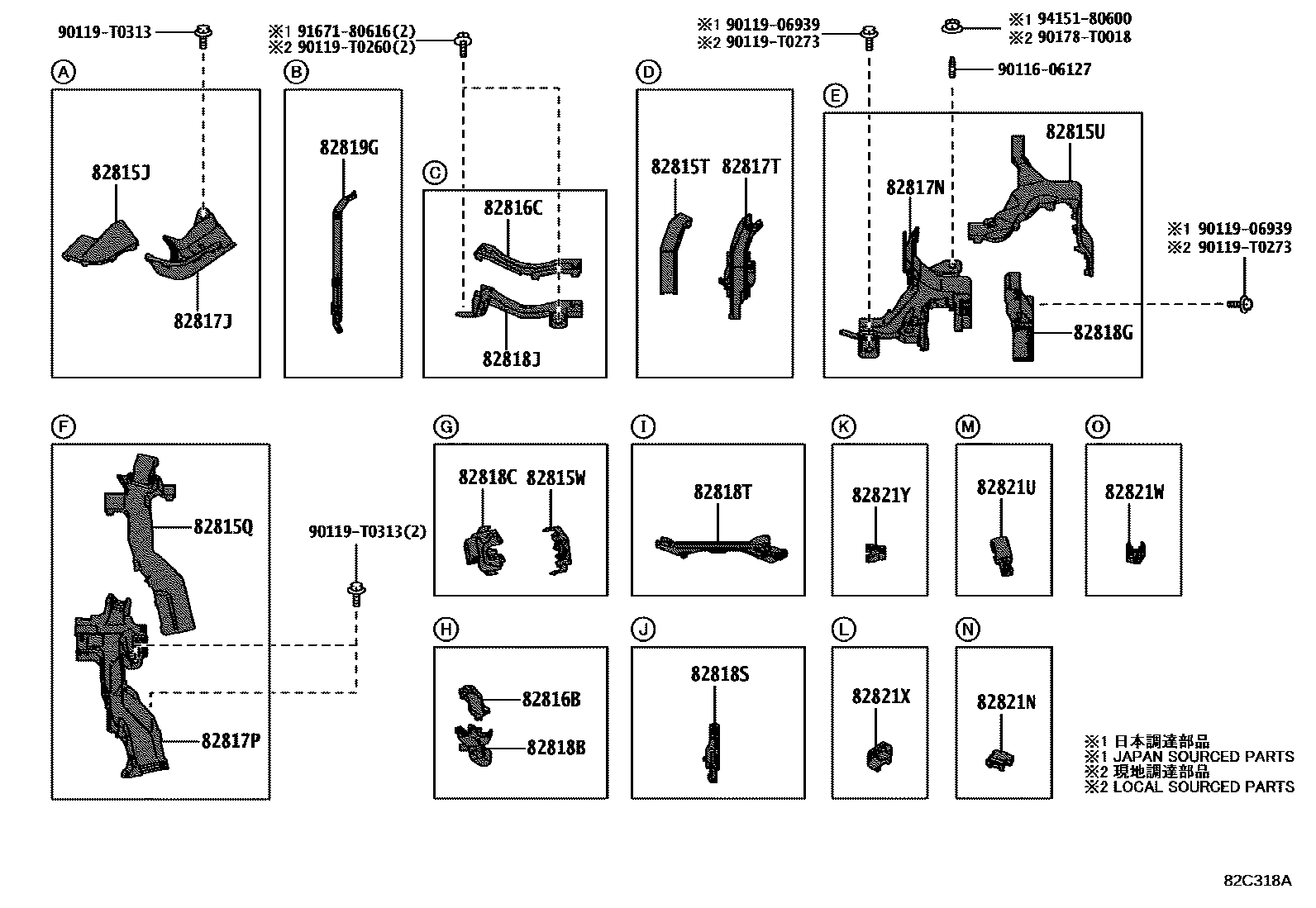

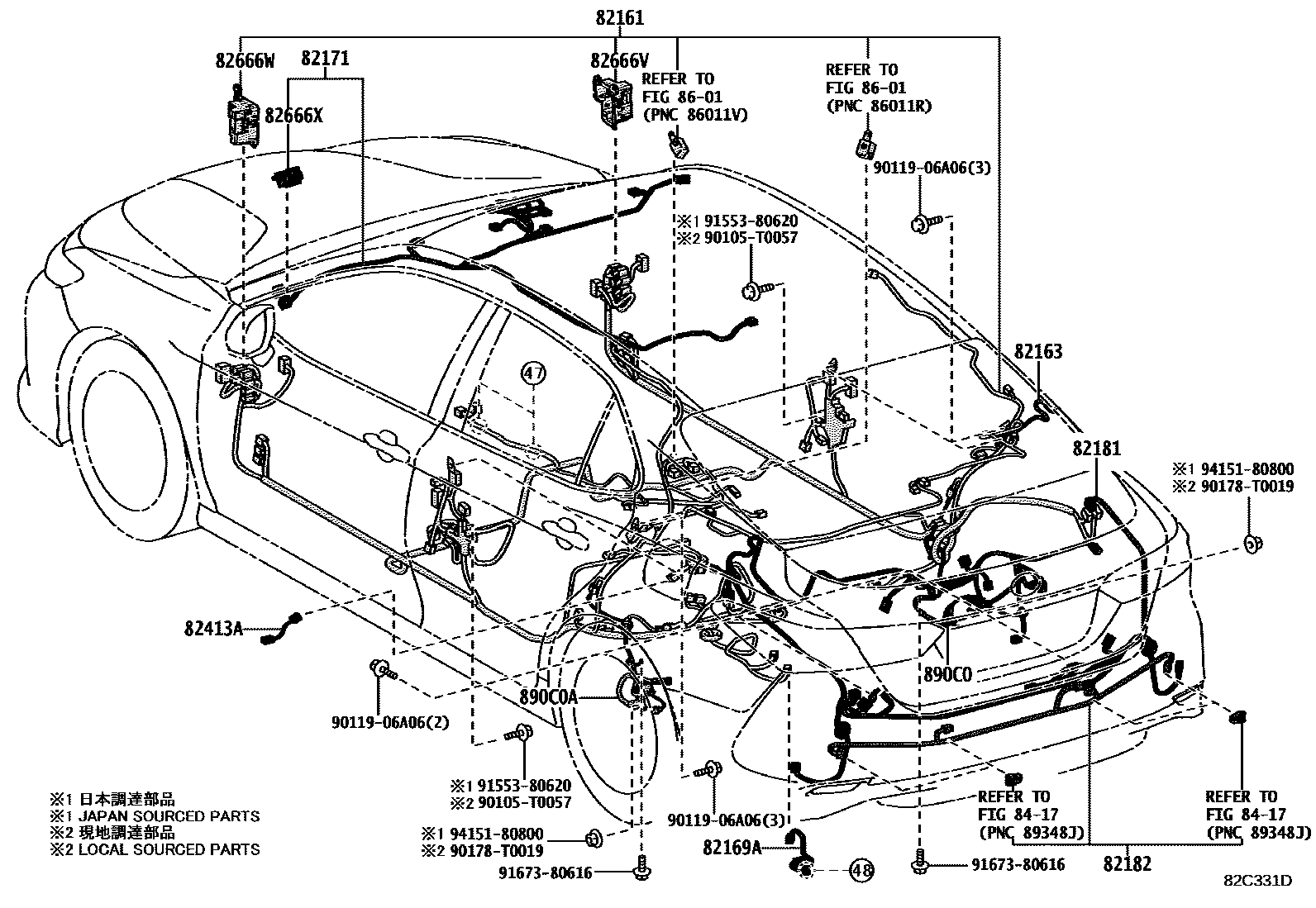

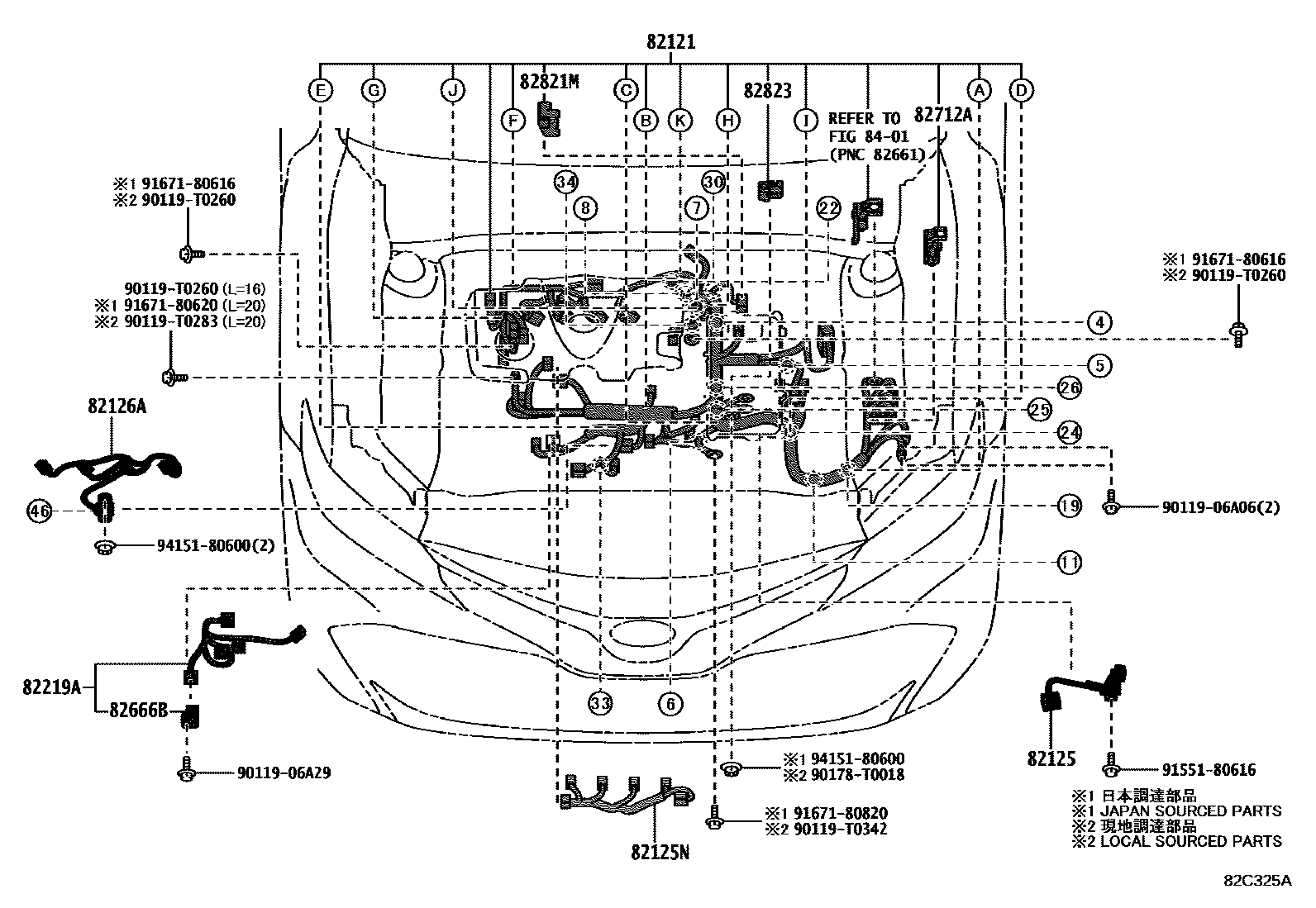

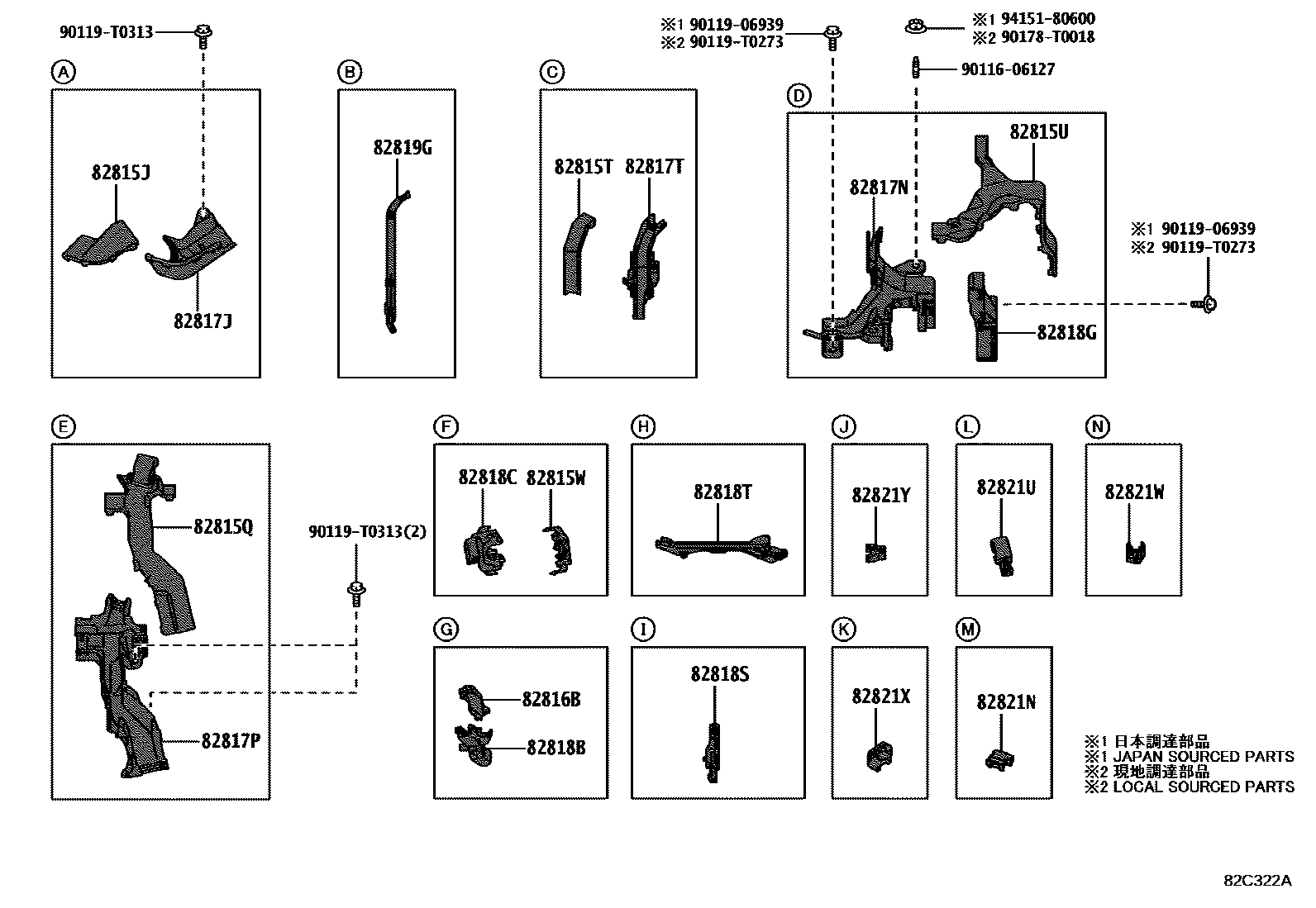

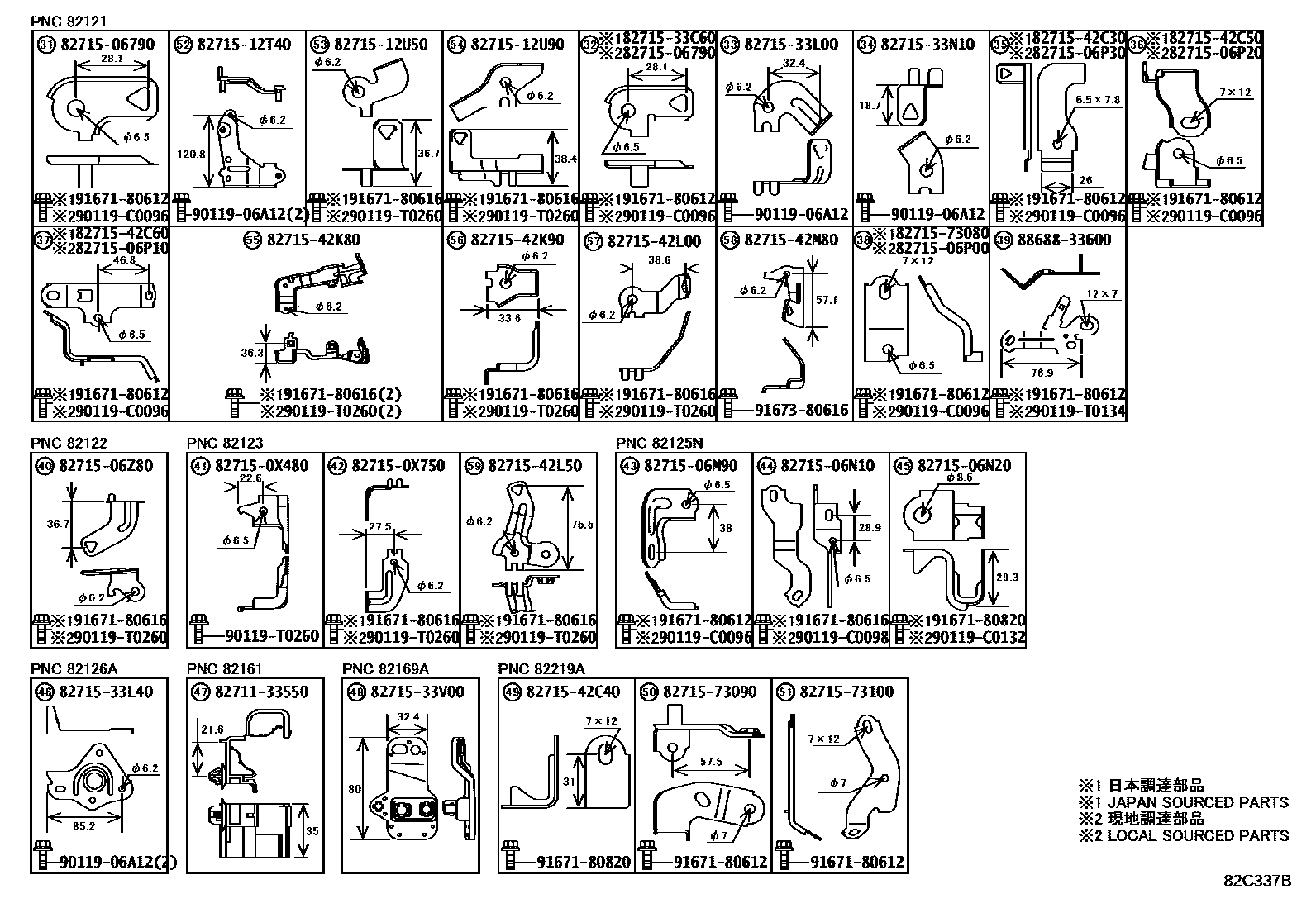

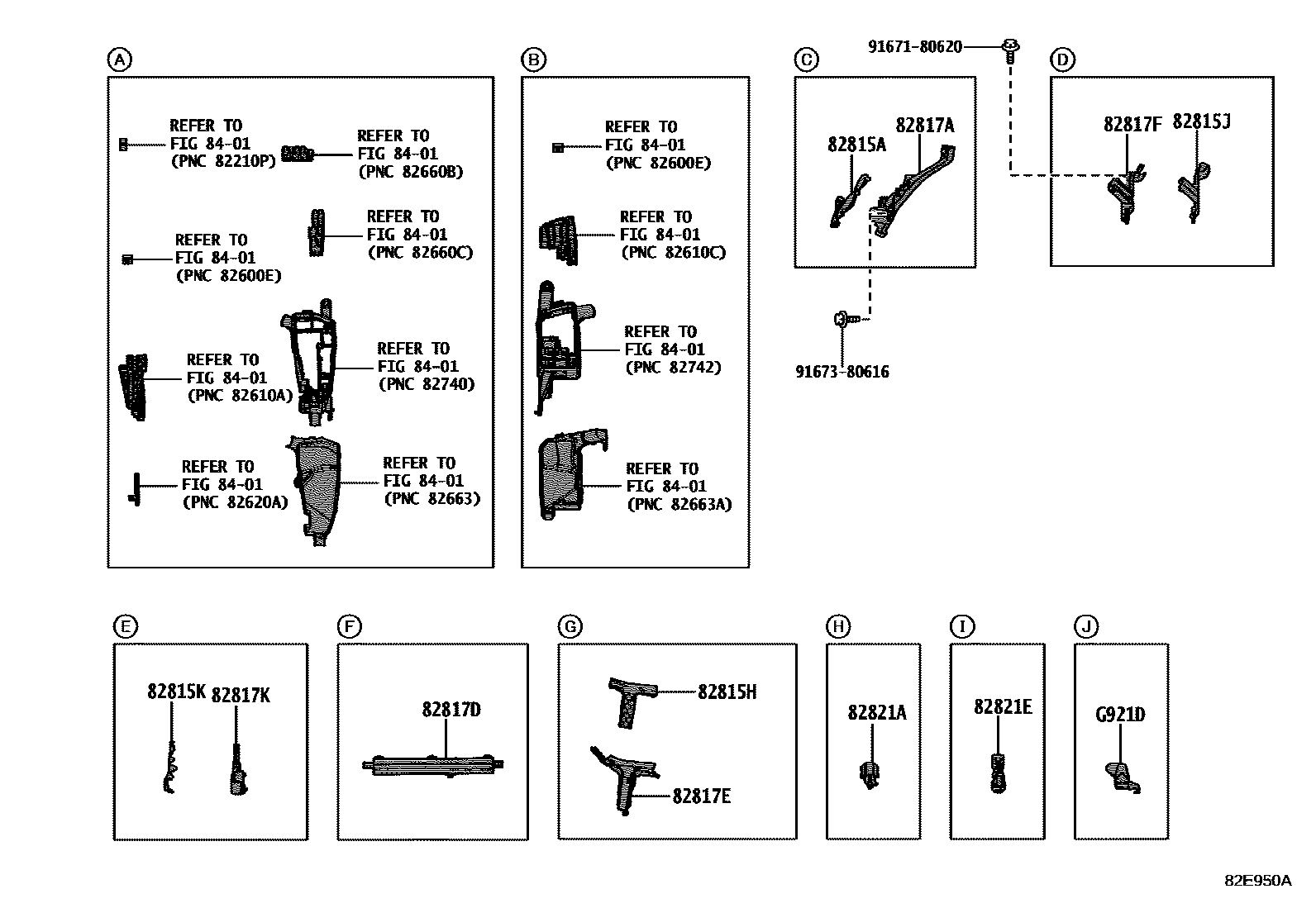

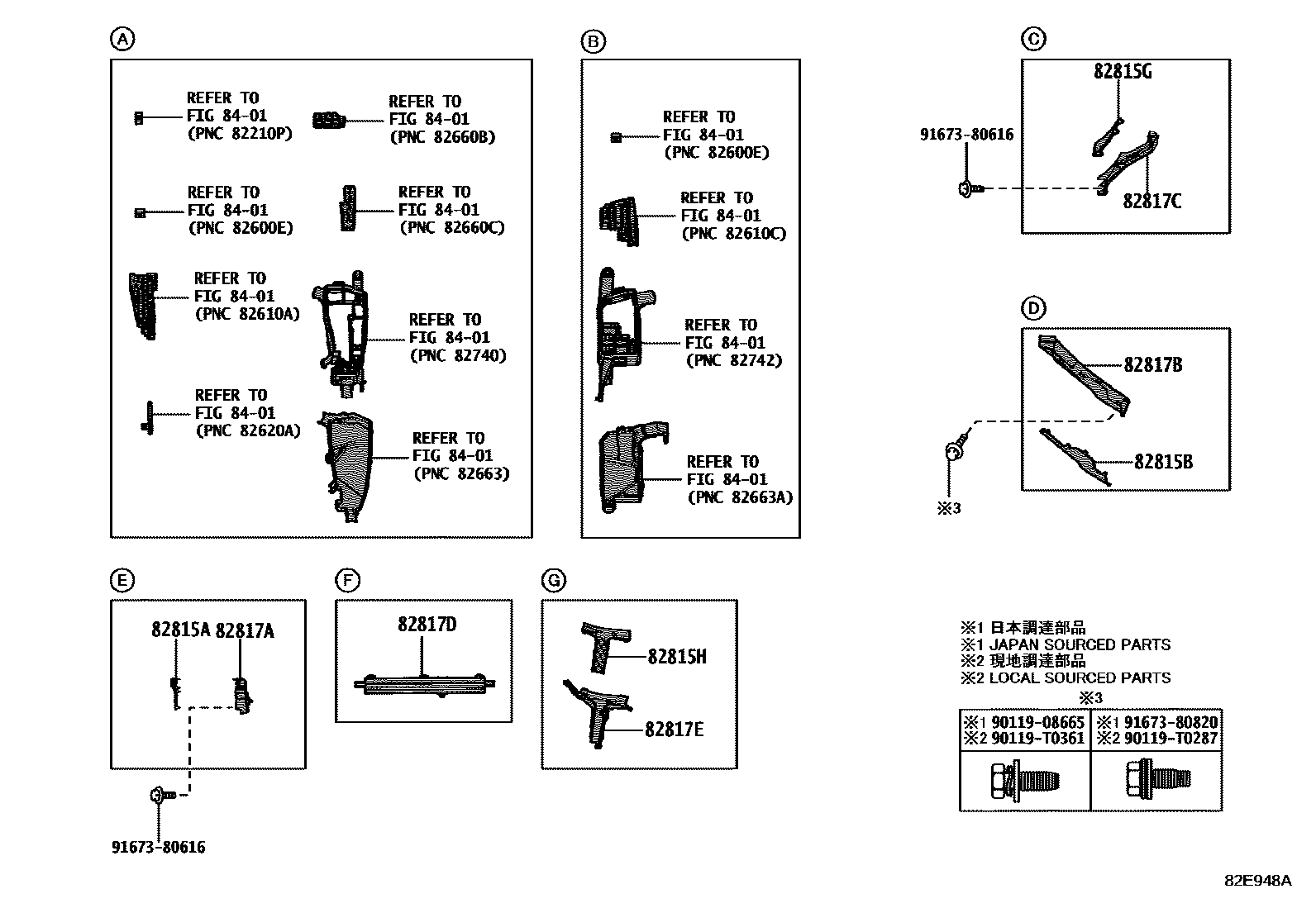

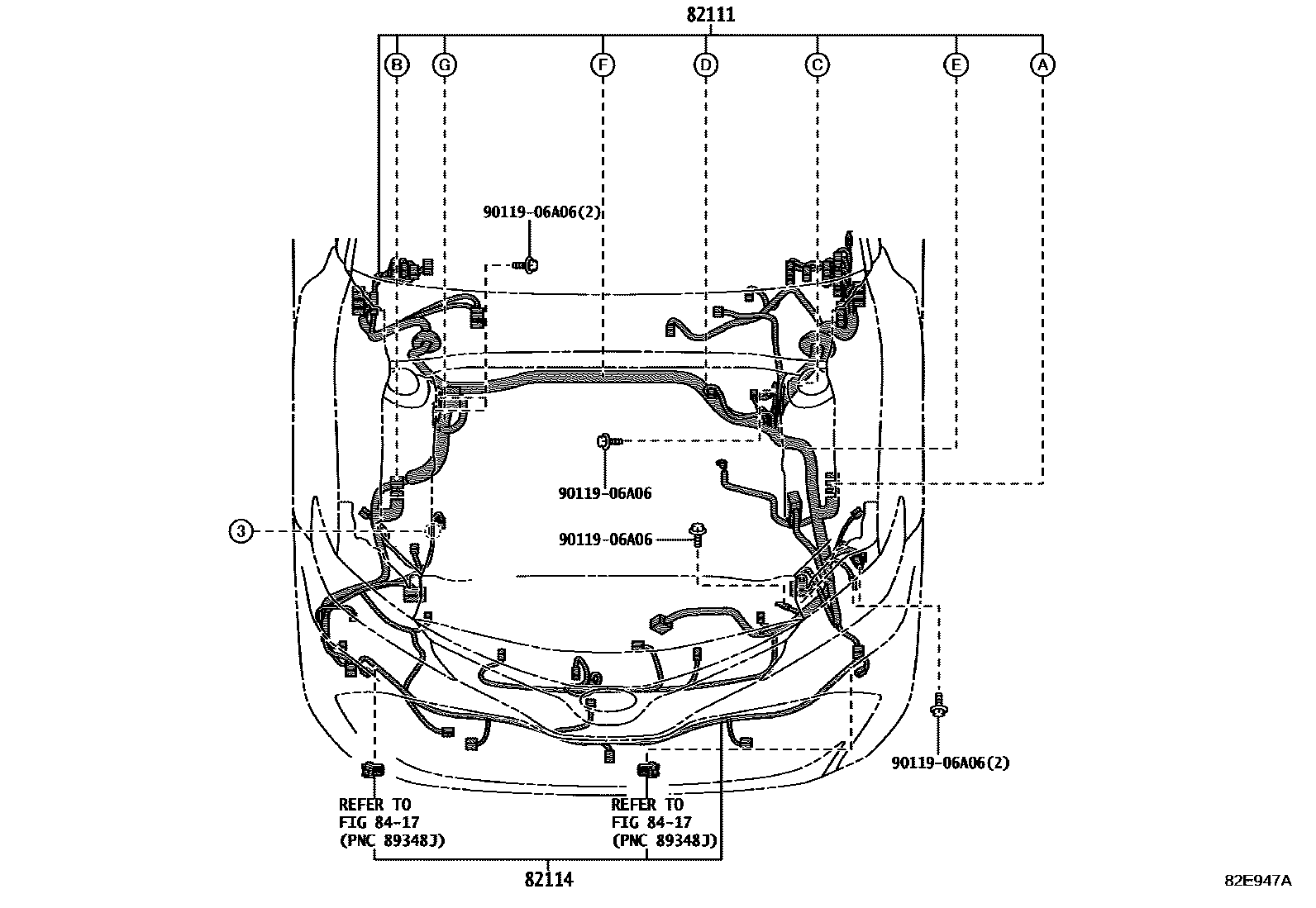

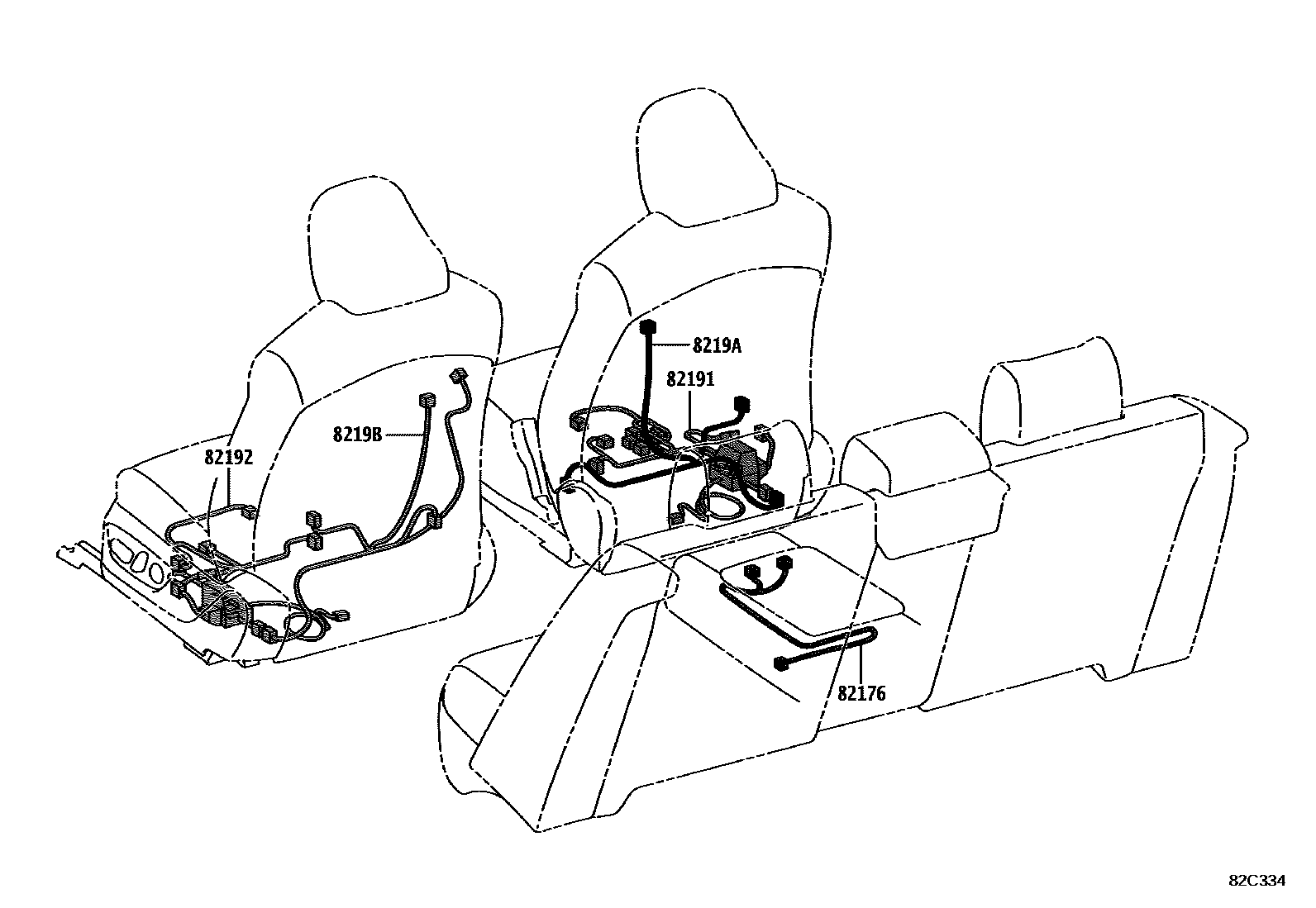

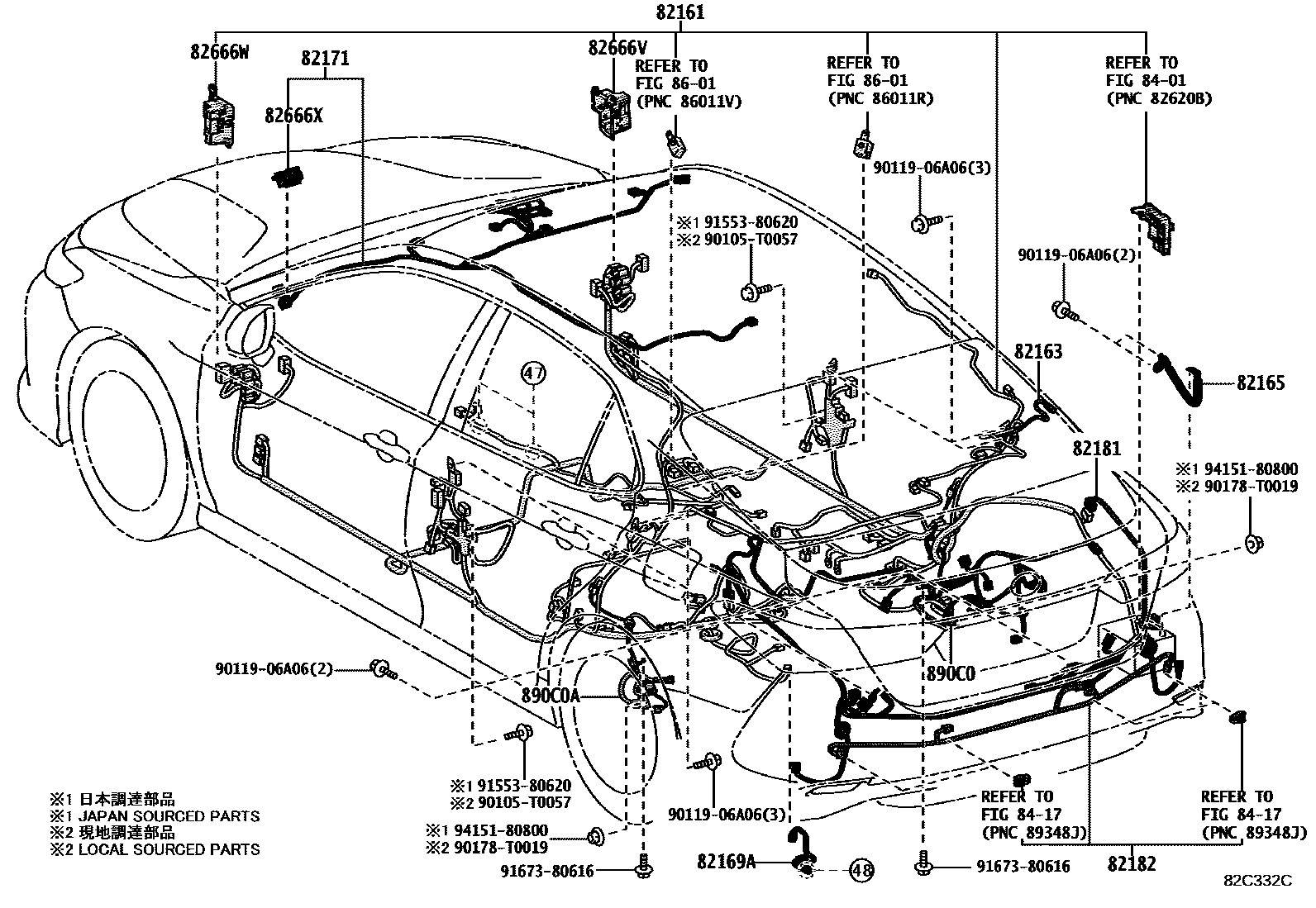

Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 40 images and 128 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

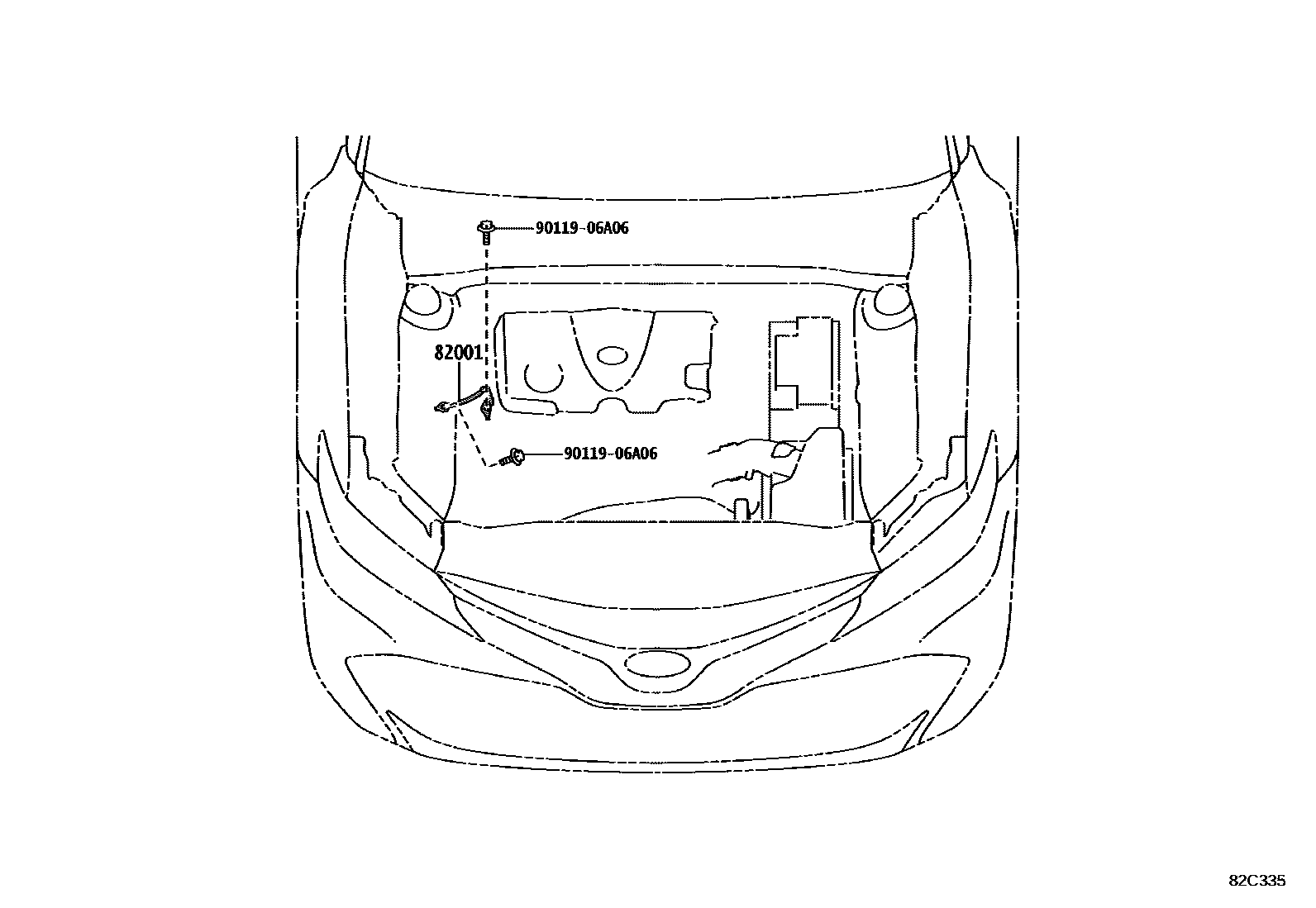

| 82001 | Connection cable No. 1 | 82286-33020 |
| 82090A | Extension cord assembly | 82090-33030 |

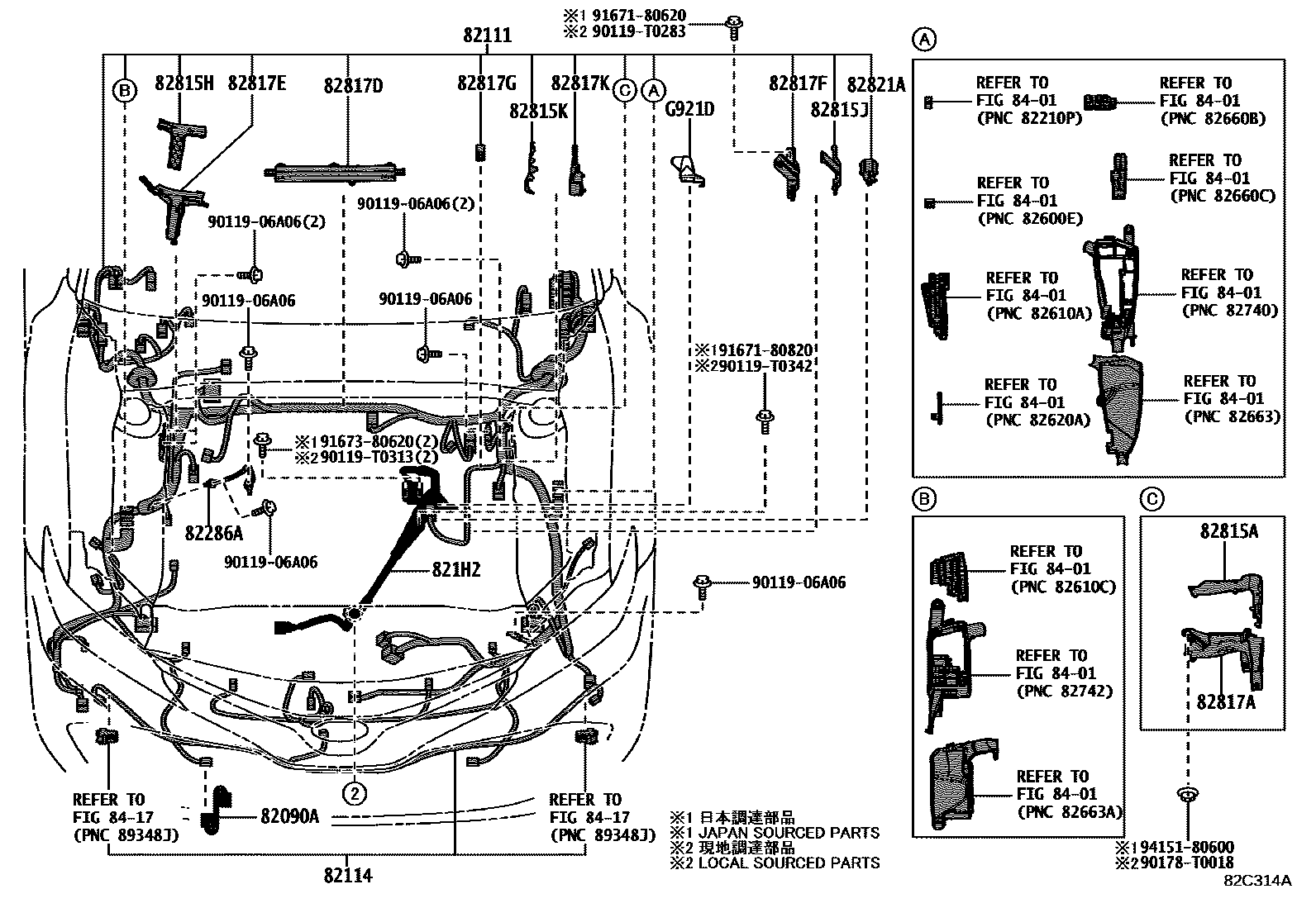

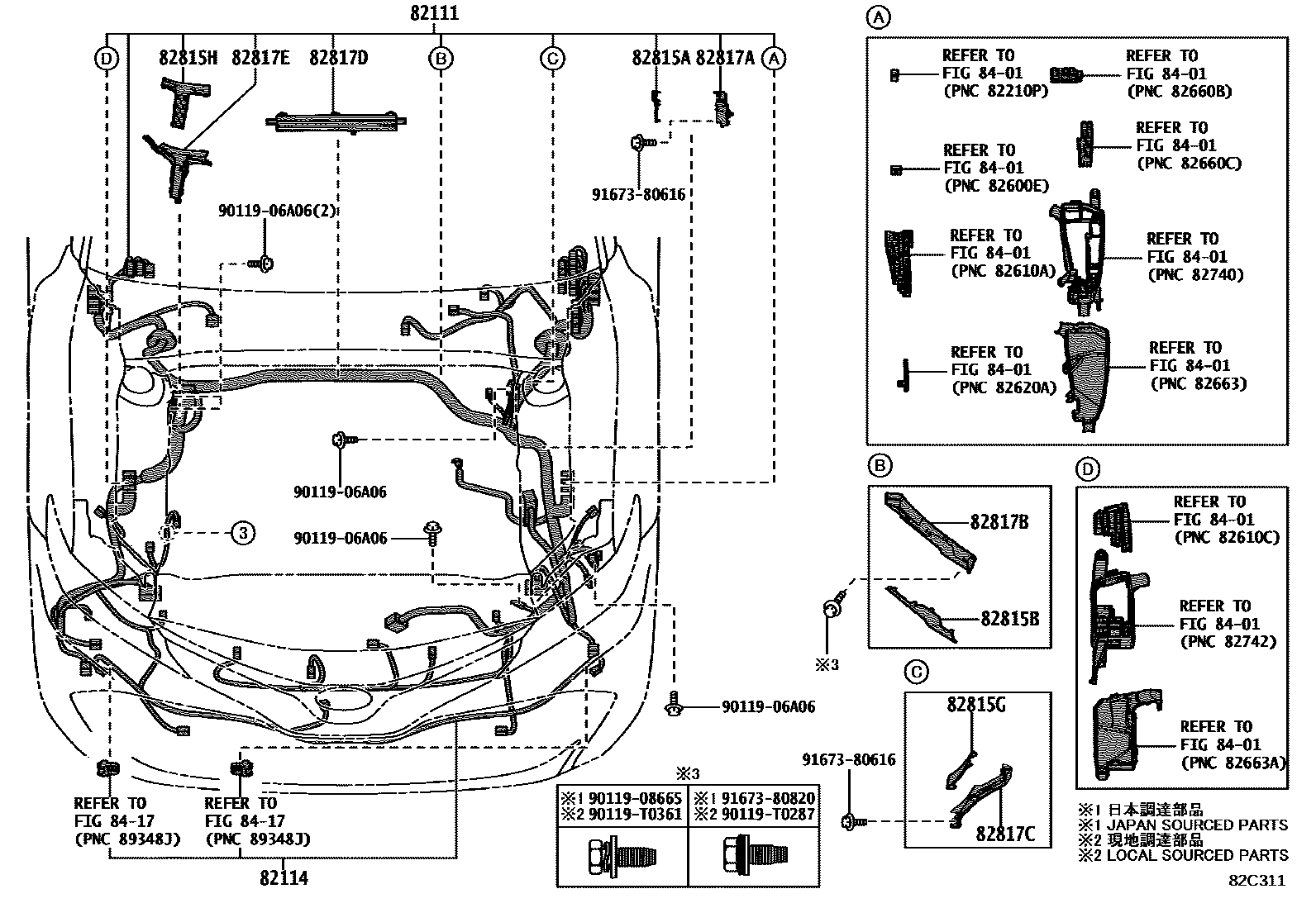

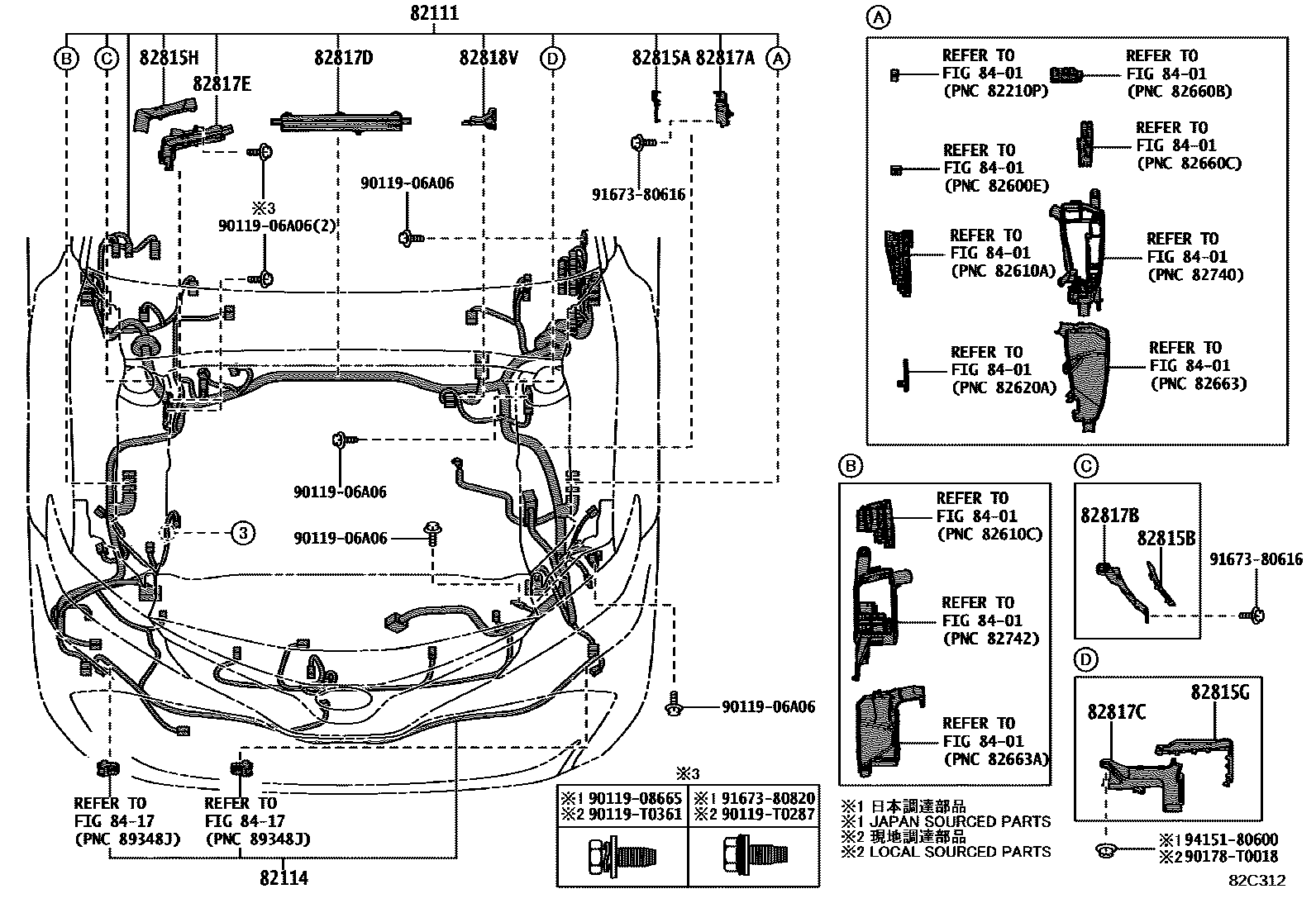

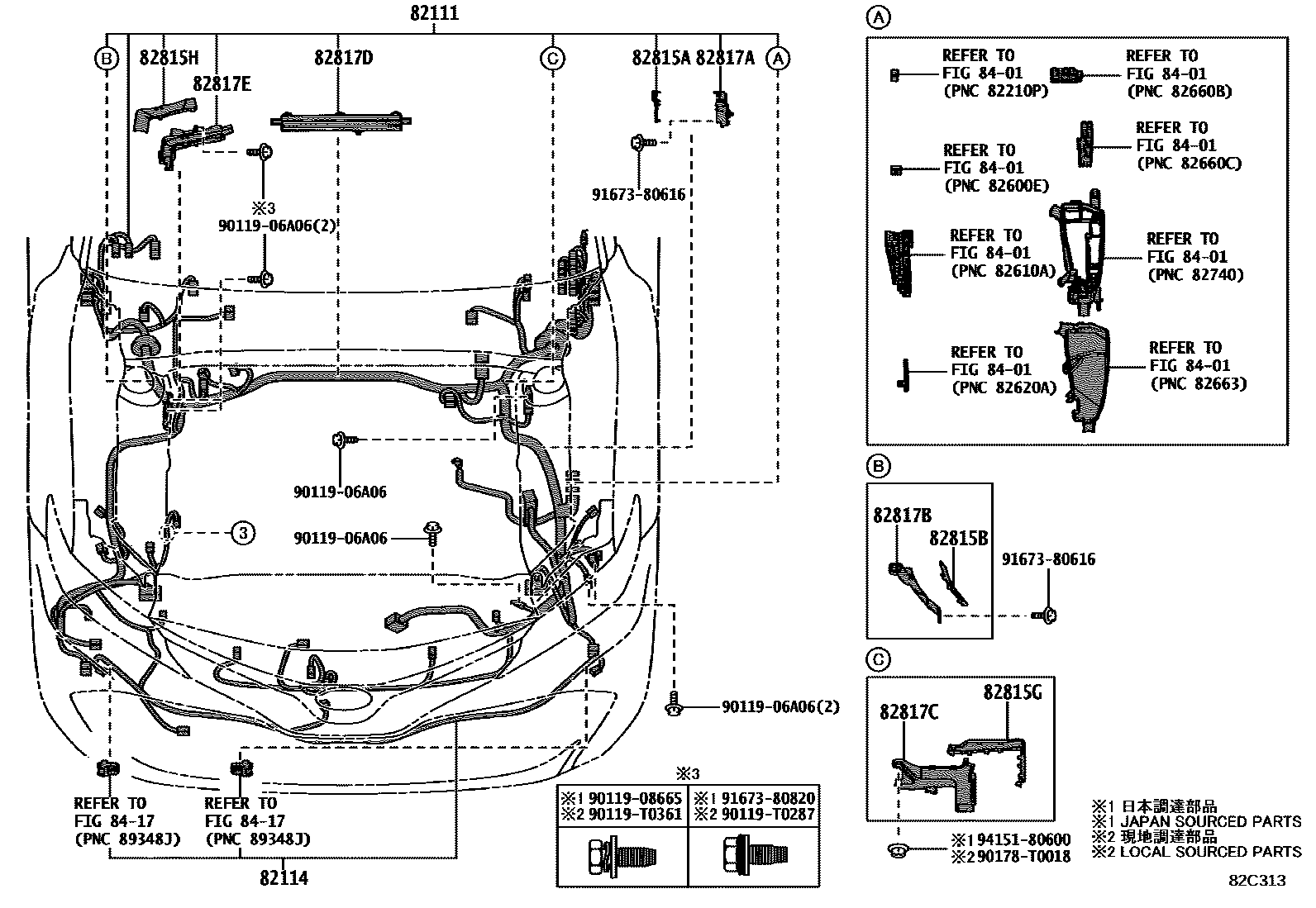

| 82111 | Engine room main wiring harness | 82115-06J60 · 82116-06280 · 82116-06310 · 82116-06390 · 82116-06440 · 82116-06C60 · 82116-06C70 · 82116-06C80 · 82116-06C90 · 82116-06D00 · 82116-06D20 · 82116-06D30 · 82116-06D40 · 82116-06D50 · 82116-06D60 · 82116-06D80 · 82116-06E00 · 82116-06E70 · 82116-06E80 · 82116-06G70 · 82116-06J20 · 82116-06J30 · 82116-06J40 · 82116-06J50 · 82116-06J60 · 82116-06J80 · 82116-06K10 · 82116-06S40 · 82116-06S50 · 82116-06S60 · 82116-06S70 · 82116-06S80 · 82116-06S90 |
| 82114 | Engine room wiring harness No. 4 | 82114-06190 · 82114-06220 · 82114-06330 · 82114-06380 · 82114-06410 · 82114-06420 |

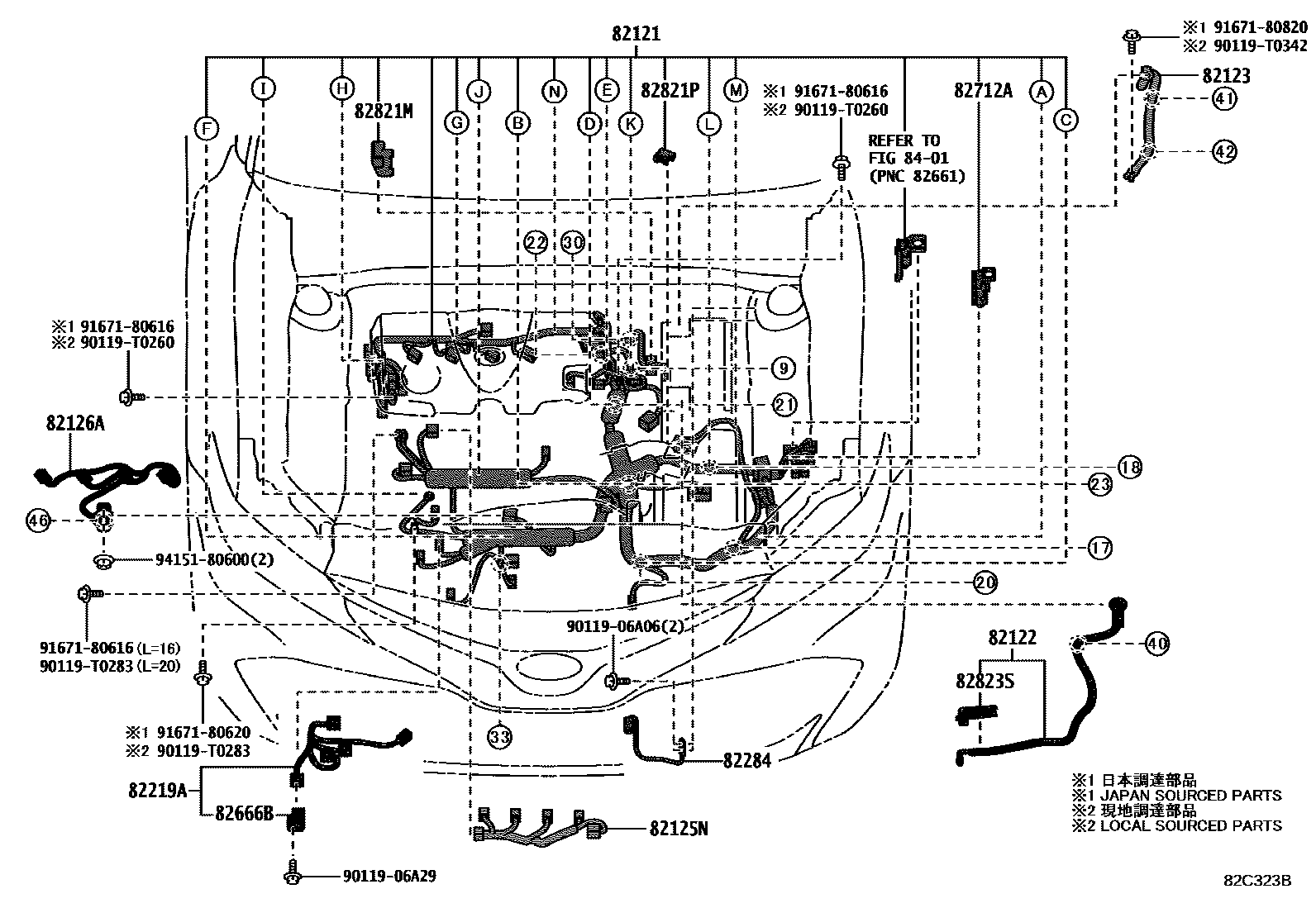

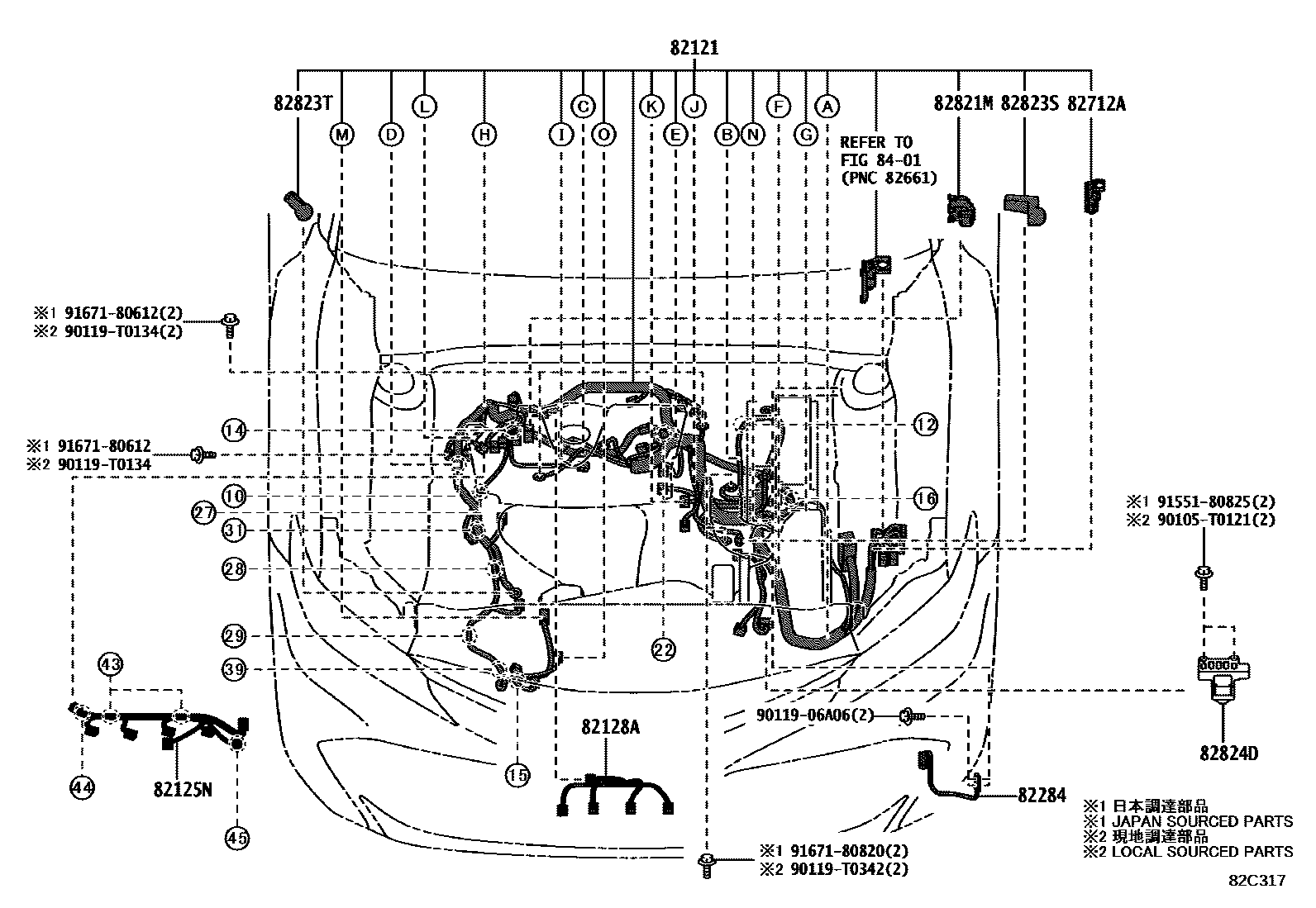

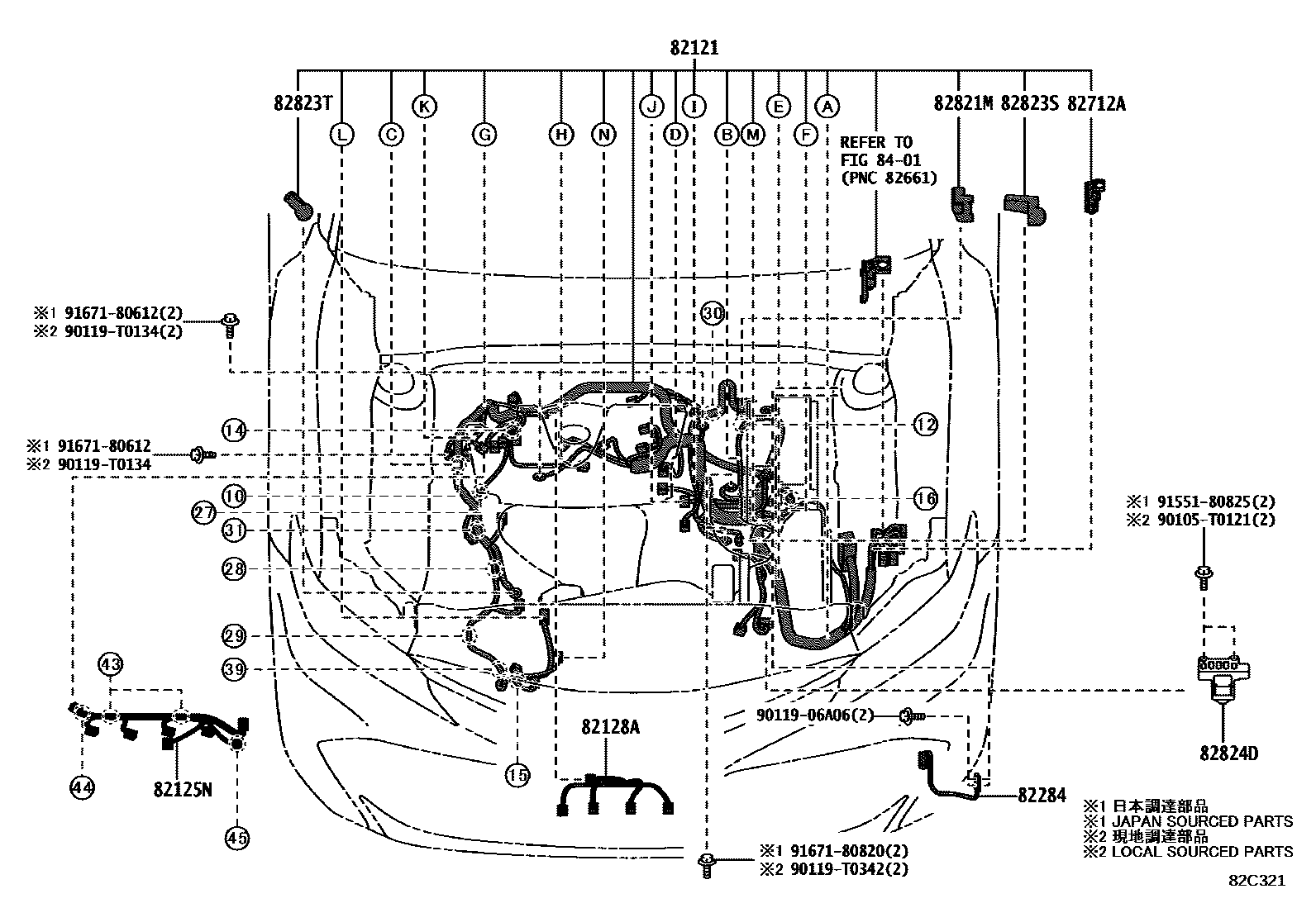

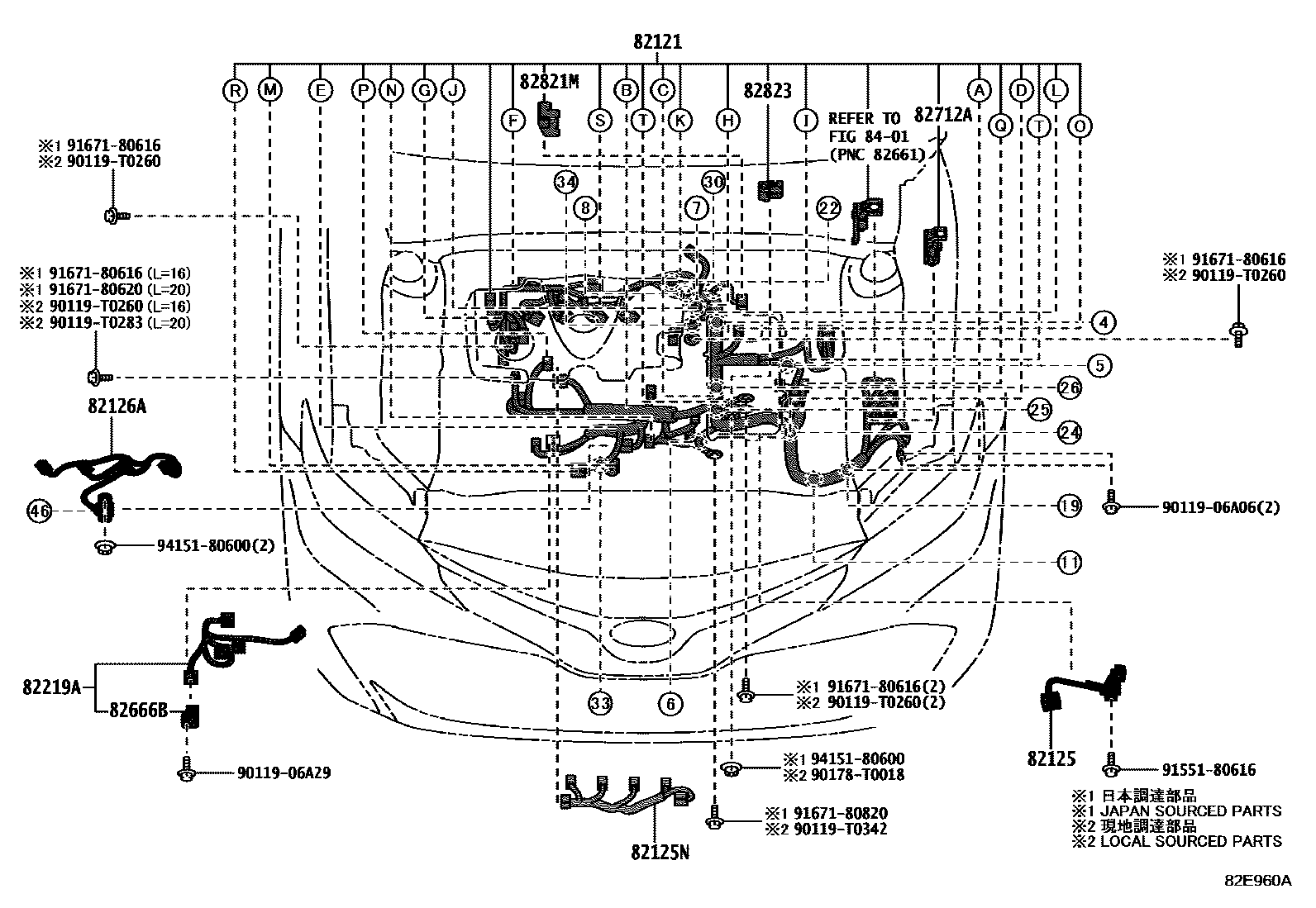

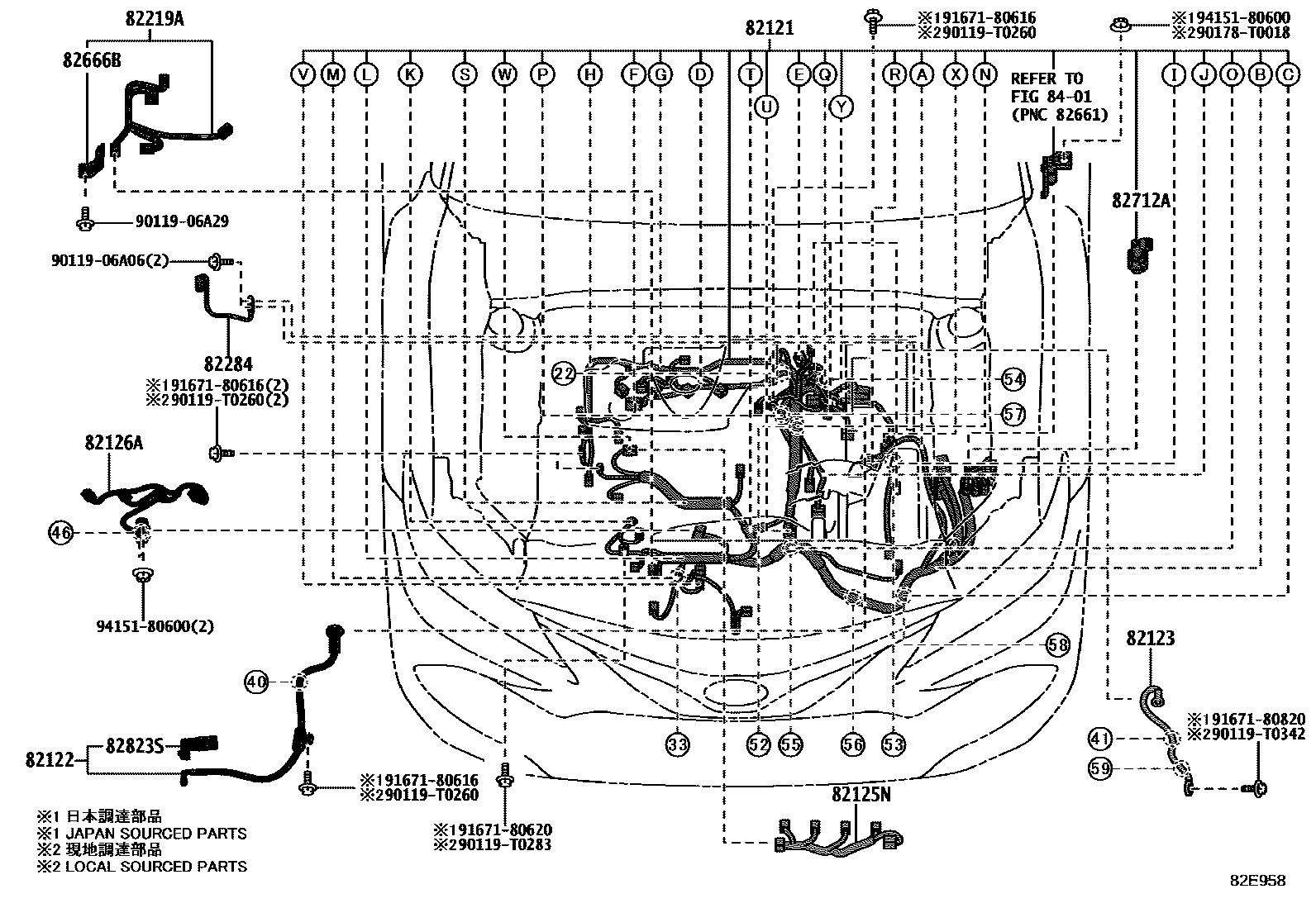

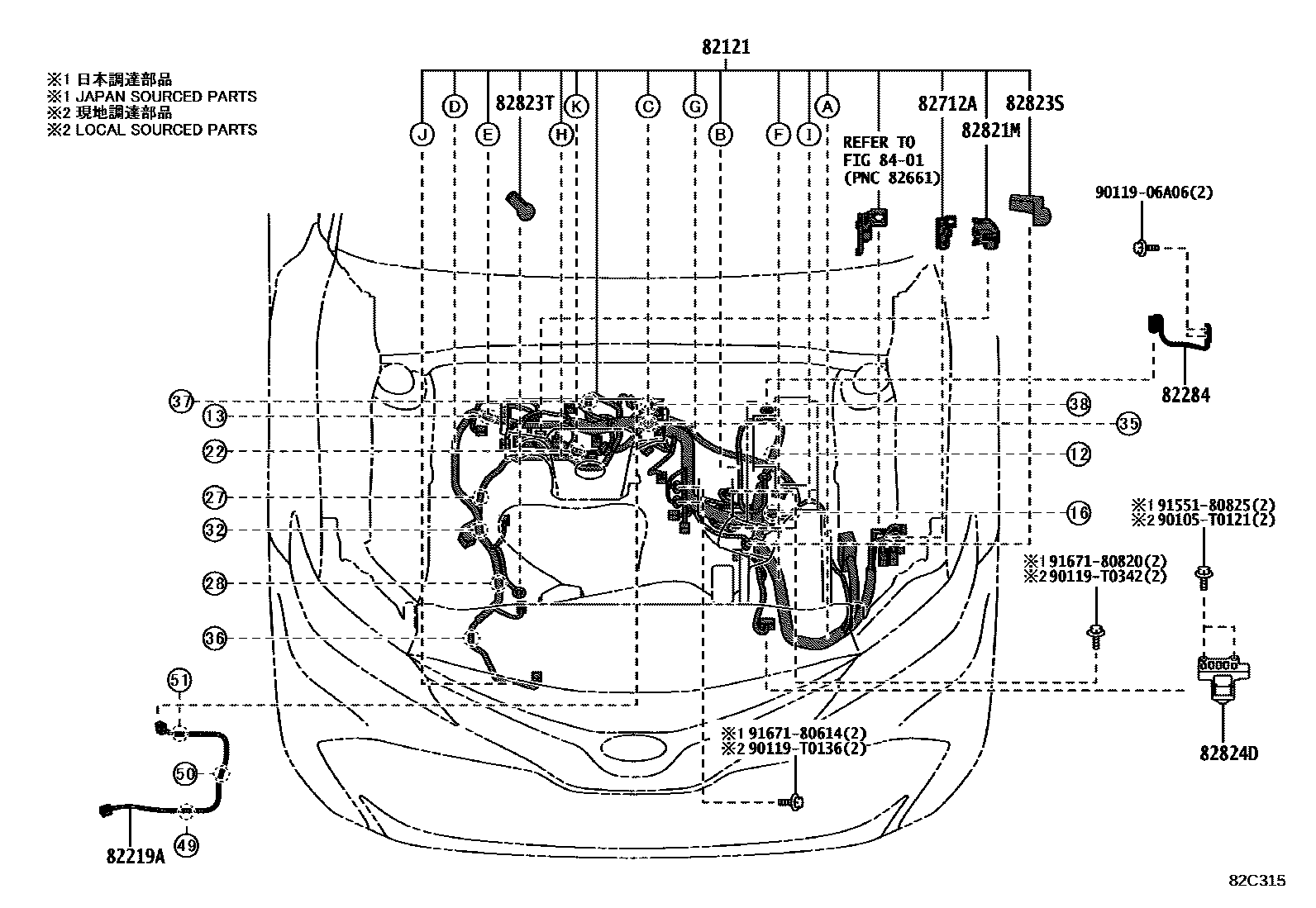

| 82121 | Engine wiring harness | 82121-06J90 · 82121-06K00 · 82121-06K30 · 82121-06K40 · 82121-06K50 · 82121-06K60 · 82121-06M20 · 82121-06M30 · 82121-06M40 · 82121-06N20 · 82121-06N50 · 82121-06P30 · 82121-06R10 · 82121-06R20 · 82121-06R40 |
| 82122 | Engine No. 2 wiring harness | 82122-06370 · 82122-06460 |
| 82123 | Engine No. 3 wiring harness | 82123-06120 · 82123-06160 |
| 82125 | Transmission wiring harness | 82125-33270 |
| 82125N | Engine No. 5 wiring harness | 82125-06070 · 82125-12660 · 82125-33180 · 82125-33220 |
| 82126A | No. 6 engine wiring harness | 82126-12010 · 82126-33050 |
| 82128A | Engine wiring harness No. 8 | 82128-06040 |

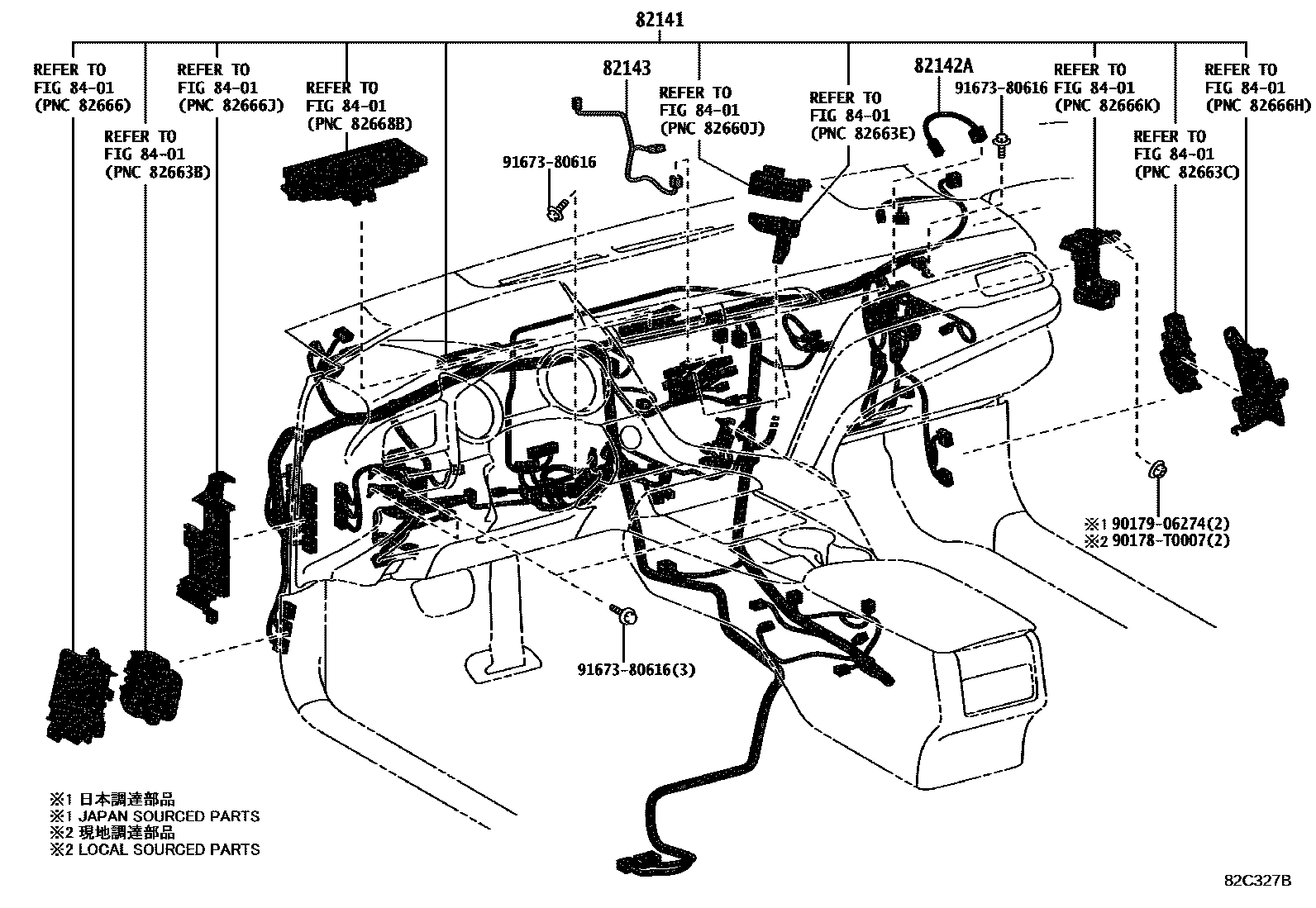

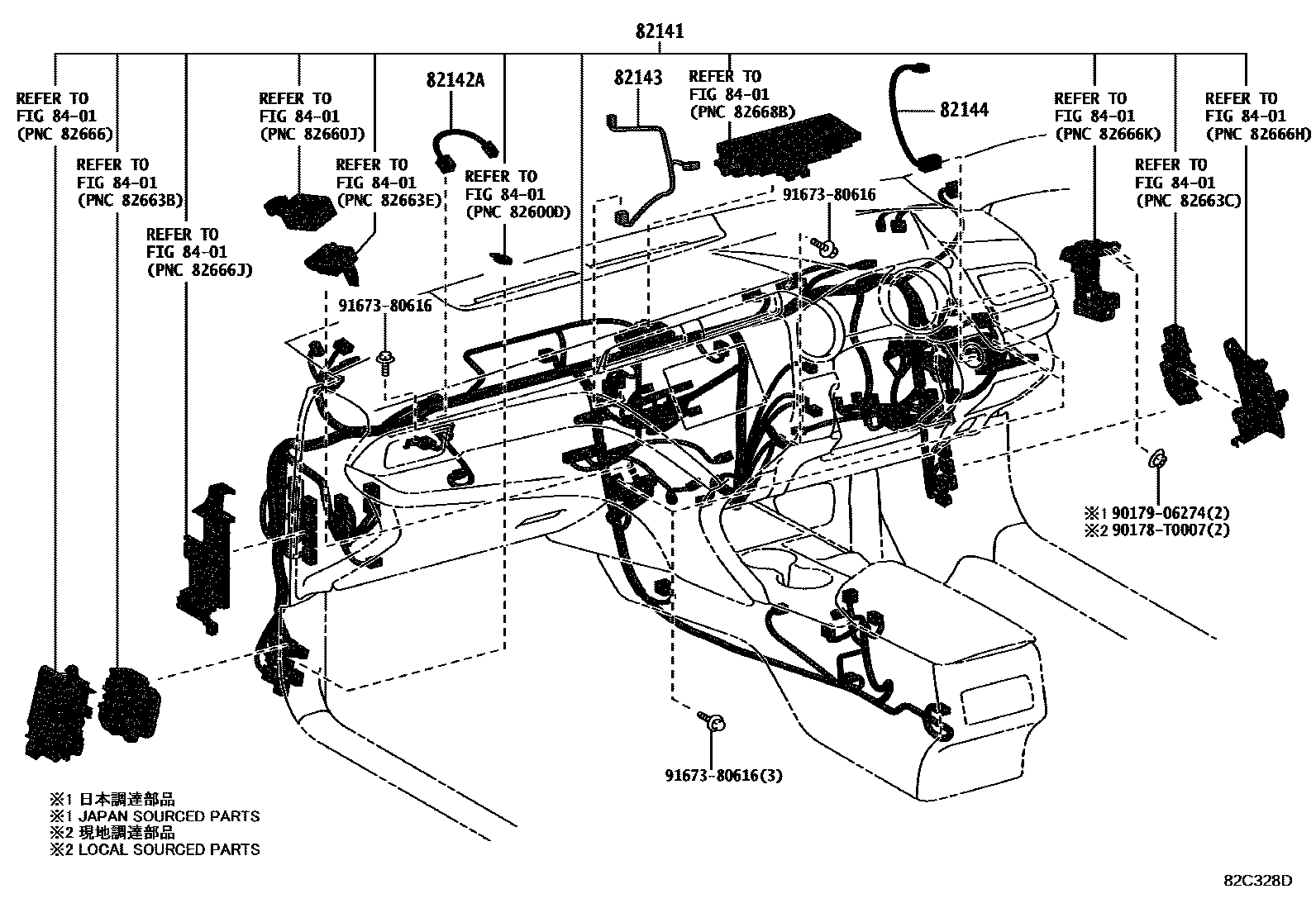

| 82141 | Dashboard wiring harness | 82141-0X840 · 82141-0XM30 · 82145-06680 · 82145-06760 · 82145-06770 · 82145-06780 · 82145-06S10 · 82145-06S60 · 82145-06S90 · 82145-06T90 · 82145-0X080 · 82145-0X100 · 82145-0X110 · 82145-0X130 · 82145-0X150 · 82145-0X580 · 82145-0XP80 · 82145-0XW70 · 82145-0XW80 · 82145-0XW90 · 82145-0XX20 · 82145-0XX30 · 82145-0XX40 · 82145-0XX50 · 82145-0XX60 · 82145-0XX70 · 82145-0XX80 · 82145-0XX90 · 82146-06640 · 82146-06650 · 82146-06660 · 82146-06670 · 82146-06680 · 82146-06690 · 82146-06700 · 82146-06710 · 82146-06720 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-33092 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-06480 · 82143-06520 · 82143-06550 · 82143-06560 |
| 82144 | Instrument panel wiring harness No. 4 | 82144-06030 |
| 82151 | Right front door wiring harness | 82151-06K30 · 82151-06K50 · 82151-06M20 · 82151-06M60 · 82151-06M70 · 82151-06M80 · 82151-06M90 · 82151-06S10 · 82151-06S20 · 82151-06S30 · 82151-06S40 · 82151-06S50 · 82151-06S60 · 82151-06S80 · 82151-06U70 · 82151-06U80 · 82151-06V60 · 82151-06V80 · 82151-06V90 |
| 82152 | Left front door wiring harness | 82152-06N90 · 82152-06R10 · 82152-06R20 · 82152-06R30 · 82152-06R40 · 82152-06R50 · 82152-06R60 · 82152-06R80 · 82152-06U70 · 82152-06V50 · 82152-06W60 · 82152-06W70 · 82152-06Y10 · 82152-06Y20 · 82152-06Y30 · 82152-06Y40 · 82152-06Y50 · 82152-06Y60 |
| 82153A | Right rear door wiring harness | 82153-06760 · 82153-06840 · 82153-06860 · 82153-06A80 · 82153-06A90 · 82153-06B00 |
| 82154A | Left rear door wiring harness | 82154-06750 · 82154-06830 · 82154-06850 · 82154-06A80 · 82154-06A90 · 82154-06B00 |
| 82161 | floor wiring harness | 82161-0X430 · 82161-0XJ60 · 82161-0XQ10 · 82161-0XQ20 · 82161-0XQ30 · 82161-0XQ40 · 82161-0XQ60 · 82161-0XQ80 · 82161-0XQ90 · 82161-0XR00 · 82161-0XR10 · 82161-0XR20 · 82161-0XR30 · 82161-0XS40 · 82161-0XS50 · 82161-0XS70 · 82199-06380 · 82199-06G50 · 82199-06G60 · 82199-06M60 · 82199-06M70 · 82199-06M80 · 82199-06N10 · 82199-06N20 · 82199-06N30 · 82199-06N40 · 82199-06N50 · 82199-06N60 · 82199-06N70 · 82199-06X30 · 82199-06X40 · 82199-06X50 · 82199-06X60 · 82199-06X70 · 82199-06X80 · 82199-06X90 |
| 82163 | Floor wiring harness No. 3 | 82163-06270 · 82163-06310 |
| 82165 | No. 2 frame wiring harness | 82165-06090 · 82165-06091 · 82165-06120 · 82165-06121 |
| 82169A | No. 6 floor wiring harness | 82169-06030 · 82169-06060 |
| 82171 | Roof No. 1 wiring harness | 82171-06N90 · 82171-06R40 · 82171-06R50 · 82171-06U80 · 82171-06U90 · 82171-06V10 · 82171-06V20 · 82171-06V50 · 82171-06W50 · 82171-06W60 · 82171-06X10 · 82171-0X060 · 82171-0X080 · 82171-0X380 · 82171-0X490 · 82171-0X560 · 82171-0X590 · 82171-0X600 · 82171-0X650 · 82171-0X660 · 82171-0X670 |
| 82176 | Rear armrest box wiring harness | 82176-06030 |
| 82181 | Luggage No. 1 wiring harness | 82181-06T00 · 82181-06T10 · 82181-06T20 · 82181-06V80 · 82181-06V90 · 82181-06W30 · 82181-06W31 · 82181-06X20 · 82181-06X21 · 82181-06Z80 · 82181-06Z90 · 82181-0X360 · 82181-0X370 · 82181-0X380 · 82181-0X390 · 82181-0X400 · 82181-0X410 |
| 82182 | Luggage No. 2 wiring harness | 82182-06530 · 82182-06550 · 82182-06620 · 82182-06690 · 82182-06730 |

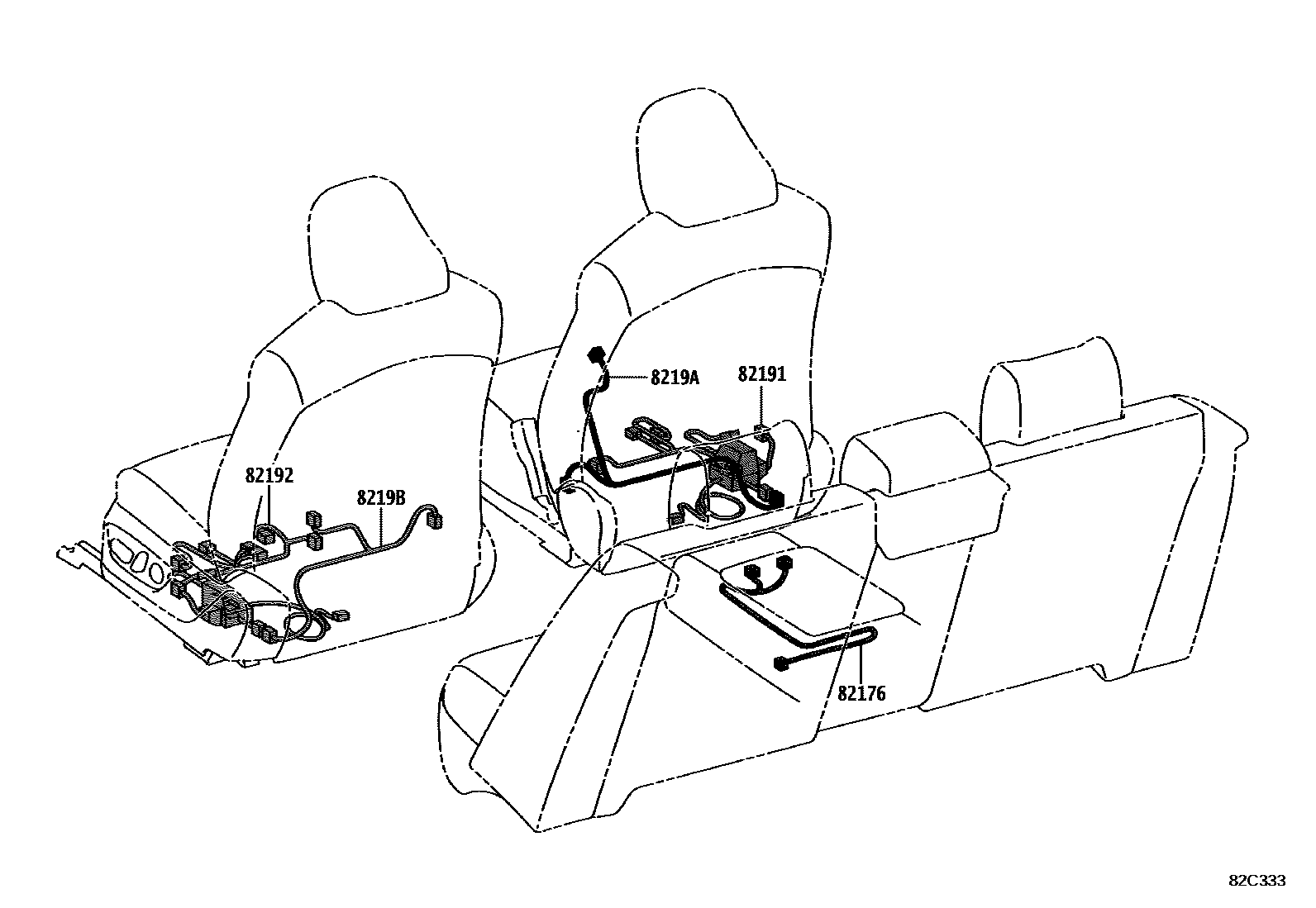

| 82191 | Front right seat wiring harness | 82191-06800 · 82191-06810 · 82191-06830 · 82191-06840 · 82191-06A60 · 82191-06A70 |
| 82192 | Front left seat wiring harness | 82192-06720 · 82192-06730 · 82192-06750 · 82192-06800 · 82192-06A00 · 82192-06A10 · 82192-06A20 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-06340 · 8219A-06350 · 8219A-06370 · 8219A-06380 · 8219A-06440 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-06350 · 8219B-06360 · 8219B-06380 · 8219B-06390 · 8219B-06470 |

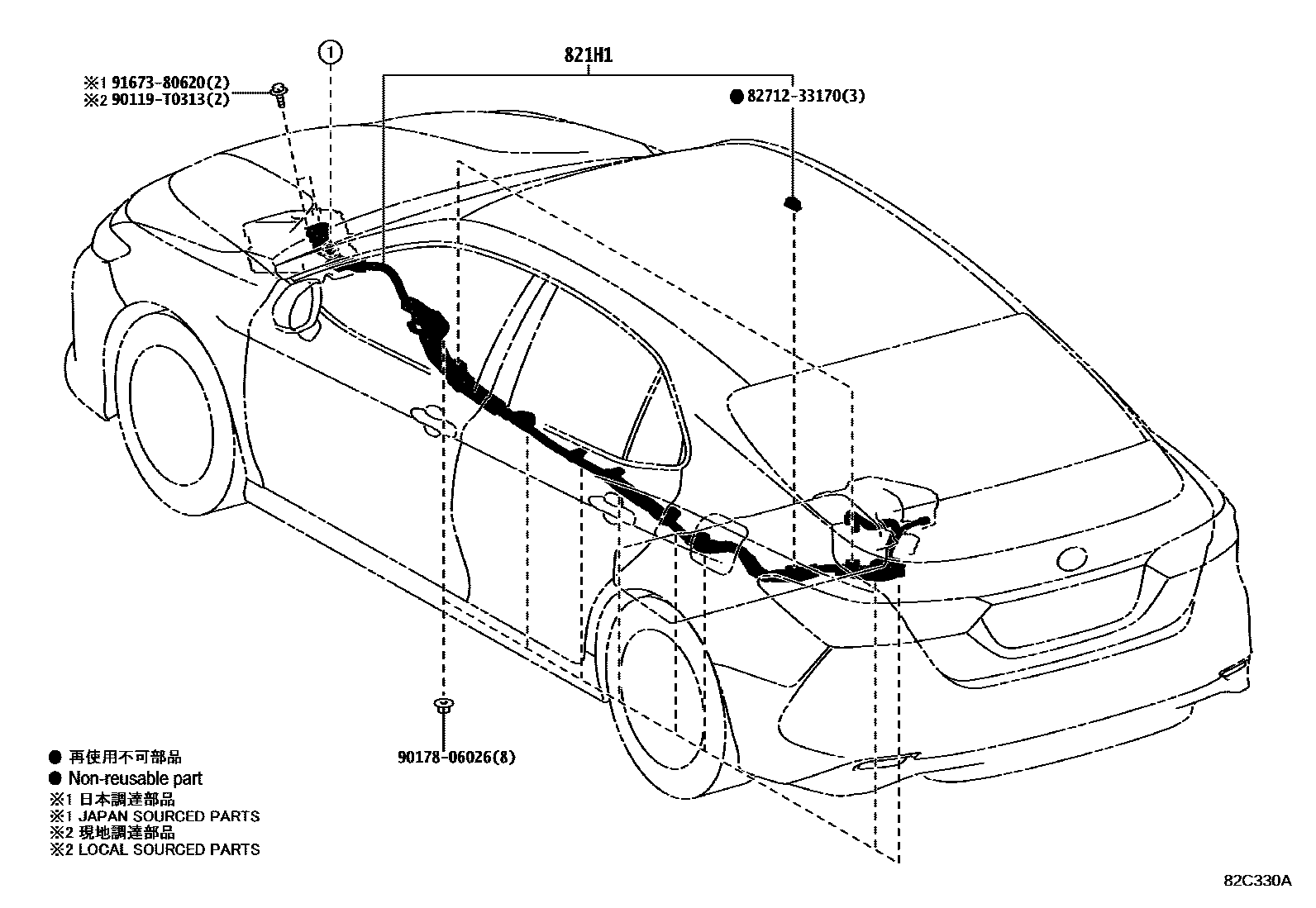

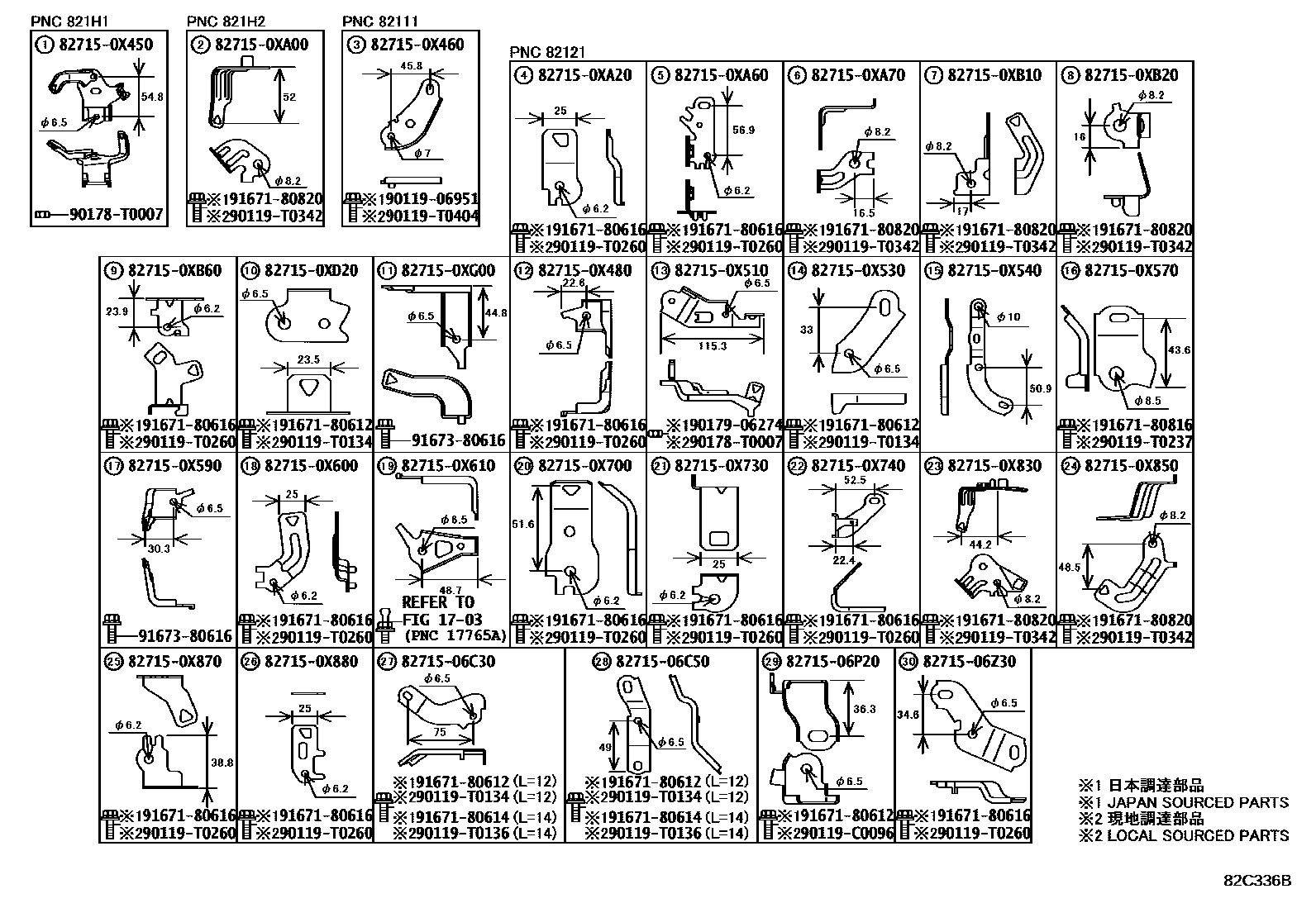

| 821H1 | Underfloor wiring harness | 821H1-06030 · 821H1-06060 |
| 821H2 | HV air conditioner wiring harness | 821H2-06030 · 821H2-06060 |
| 82219A | sensor harness | 82219-12140 · 82219-33090 · 82219-33140 · 82219-33141 |
| 82284 | Ground wire | 82284-06130 · 82284-06310 |
| 82286A | Line 2 | 82286-33020 |
| 82413A | fuel tank wiring harness | 82413-06020 |
| 82666B | No. 3 connector holder | 82666-12490 · 82666-33720 |
| 82666V | No. 15 connector holder | 82666-33650 |
| 82666W | No. 16 connector socket | 82666-33660 |
| 82666X | No. 17 connector holder | 82666-33500 |
| 82712A | Wire harness bracket | 82712-33160 |

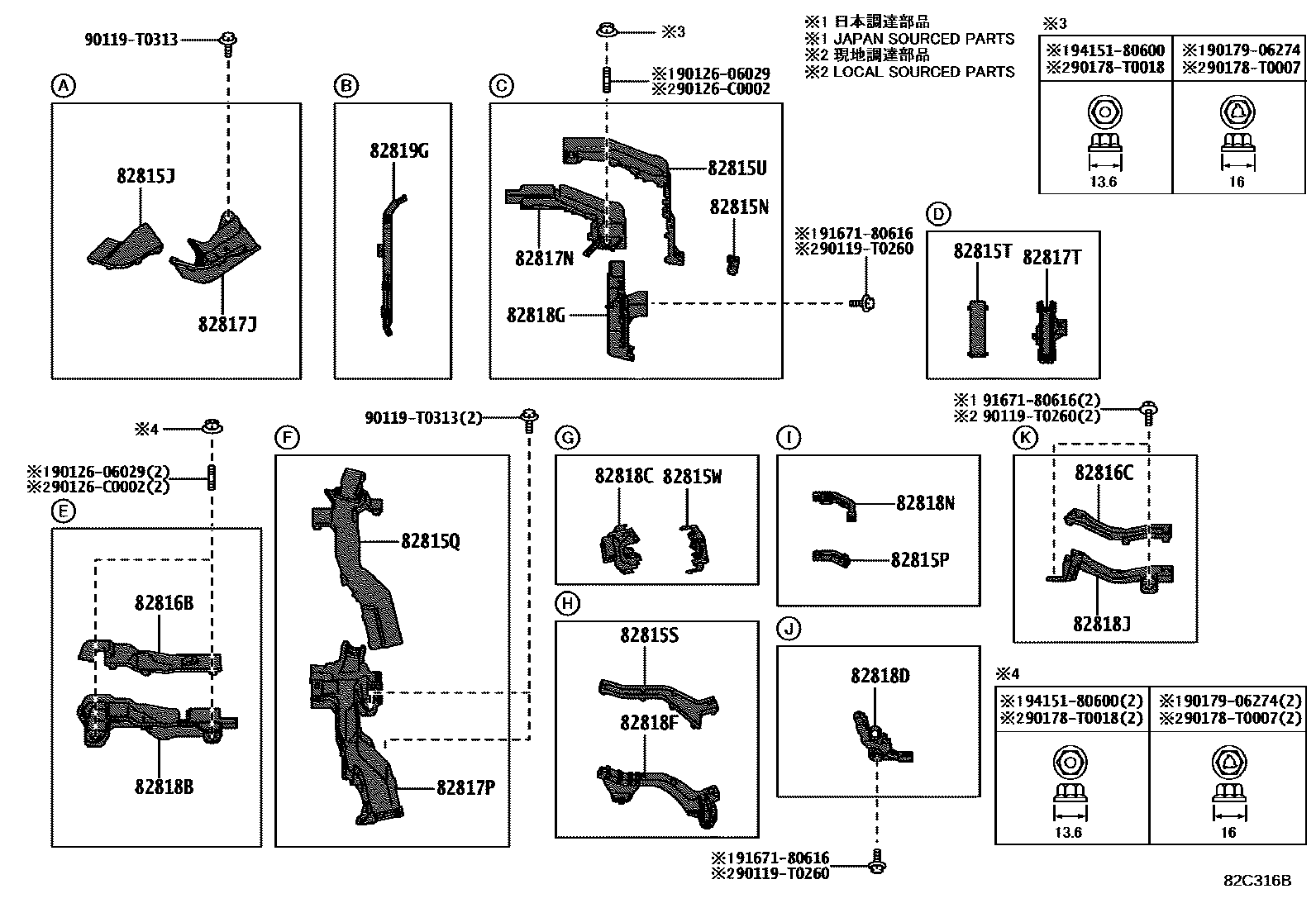

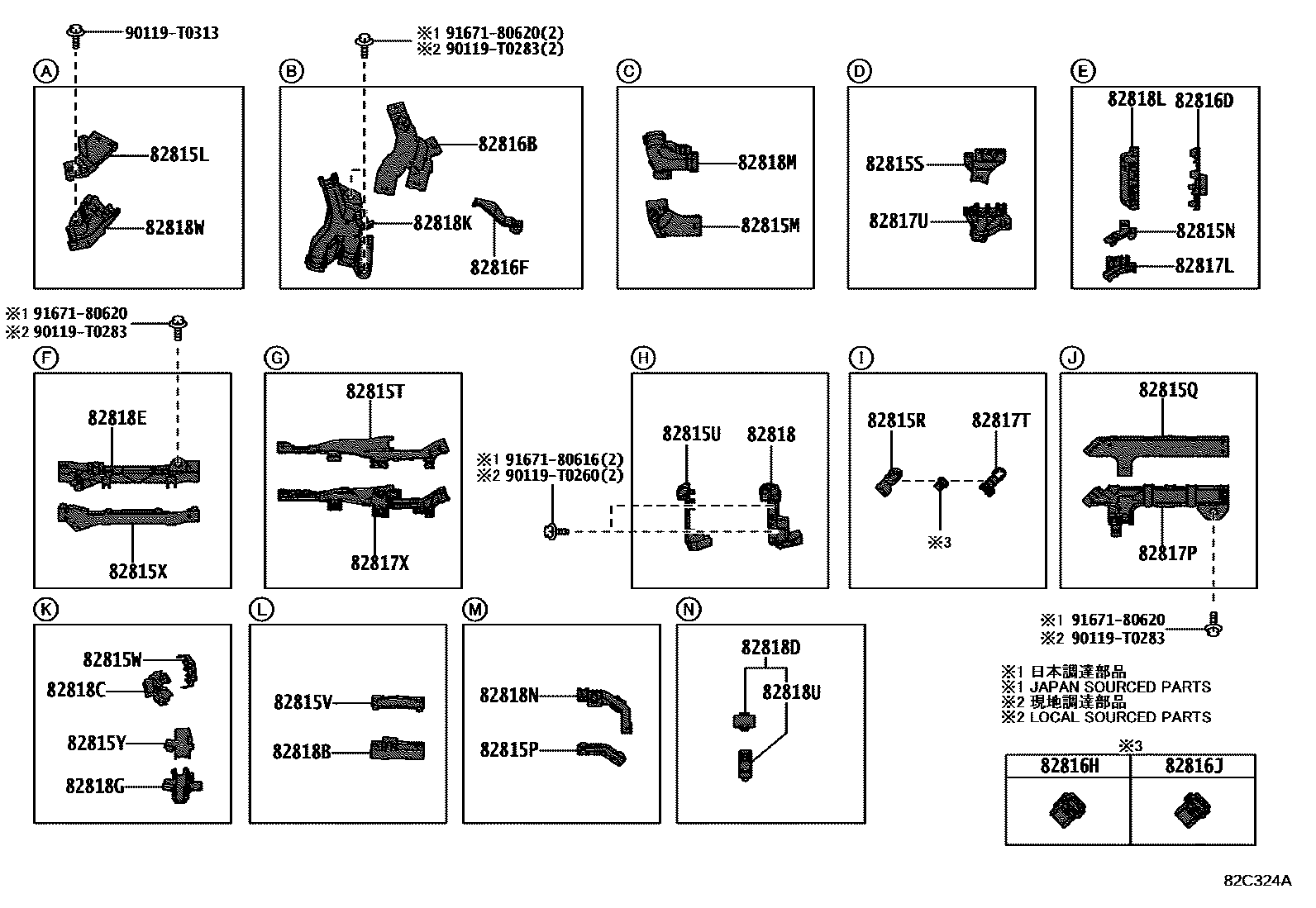

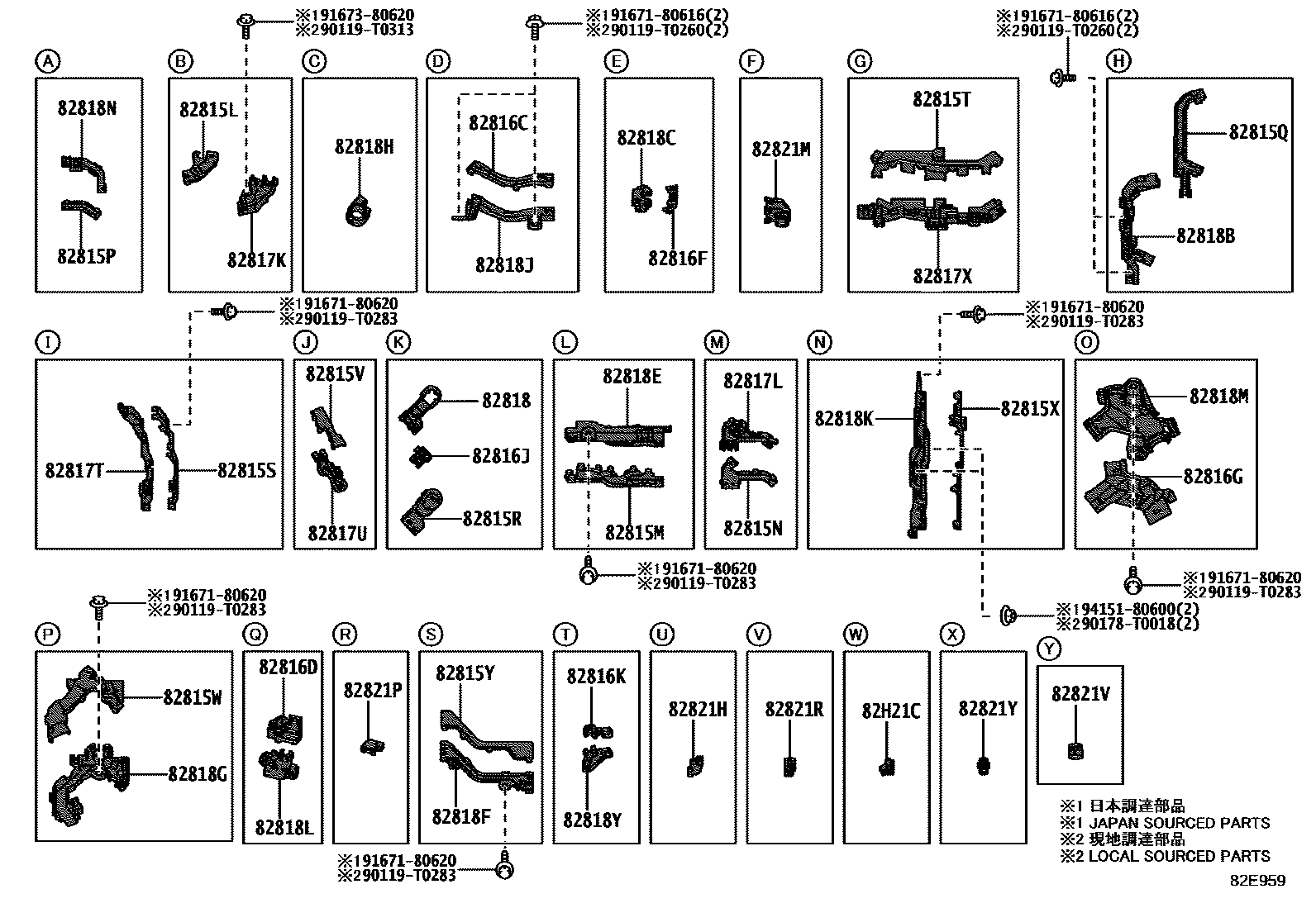

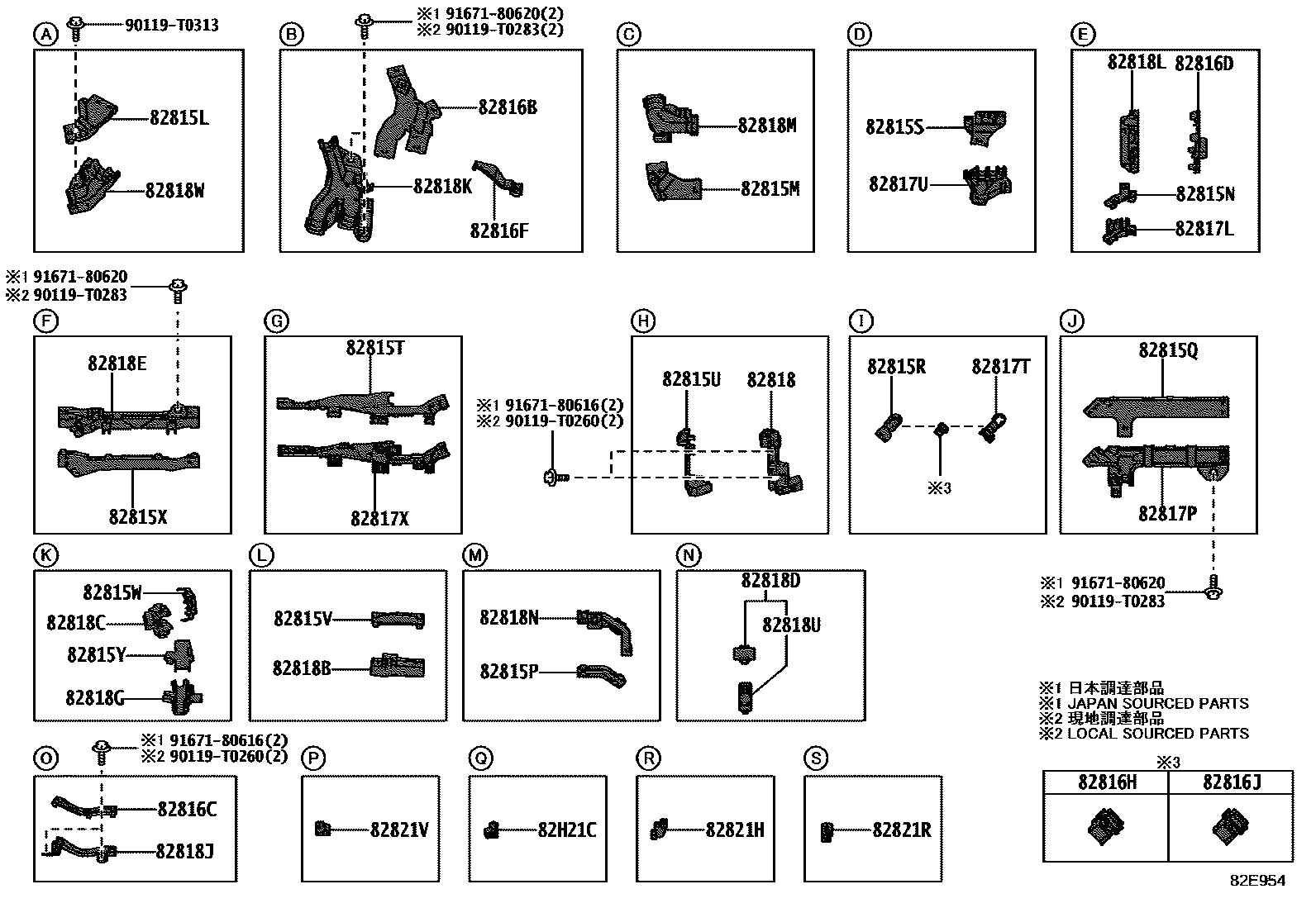

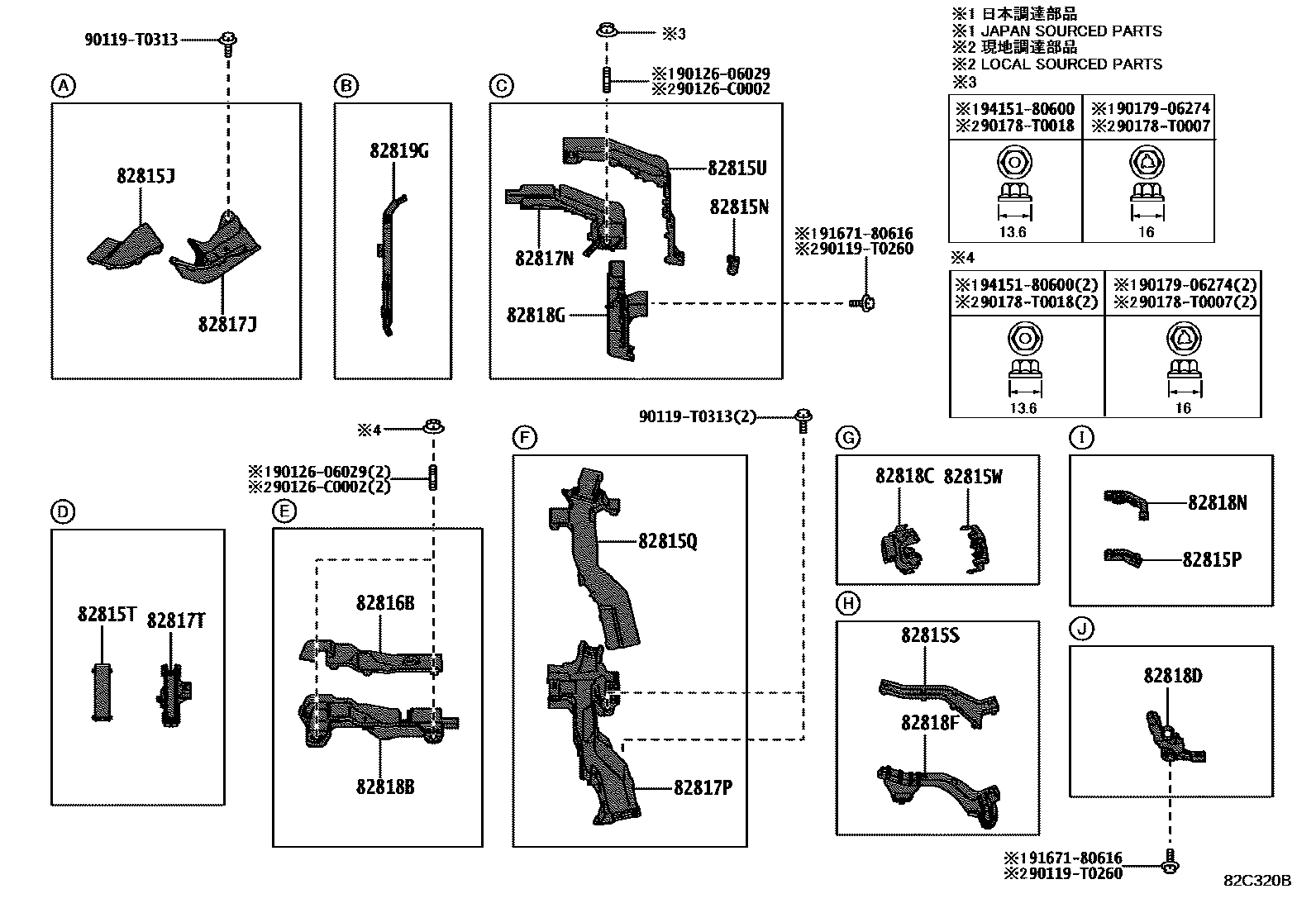

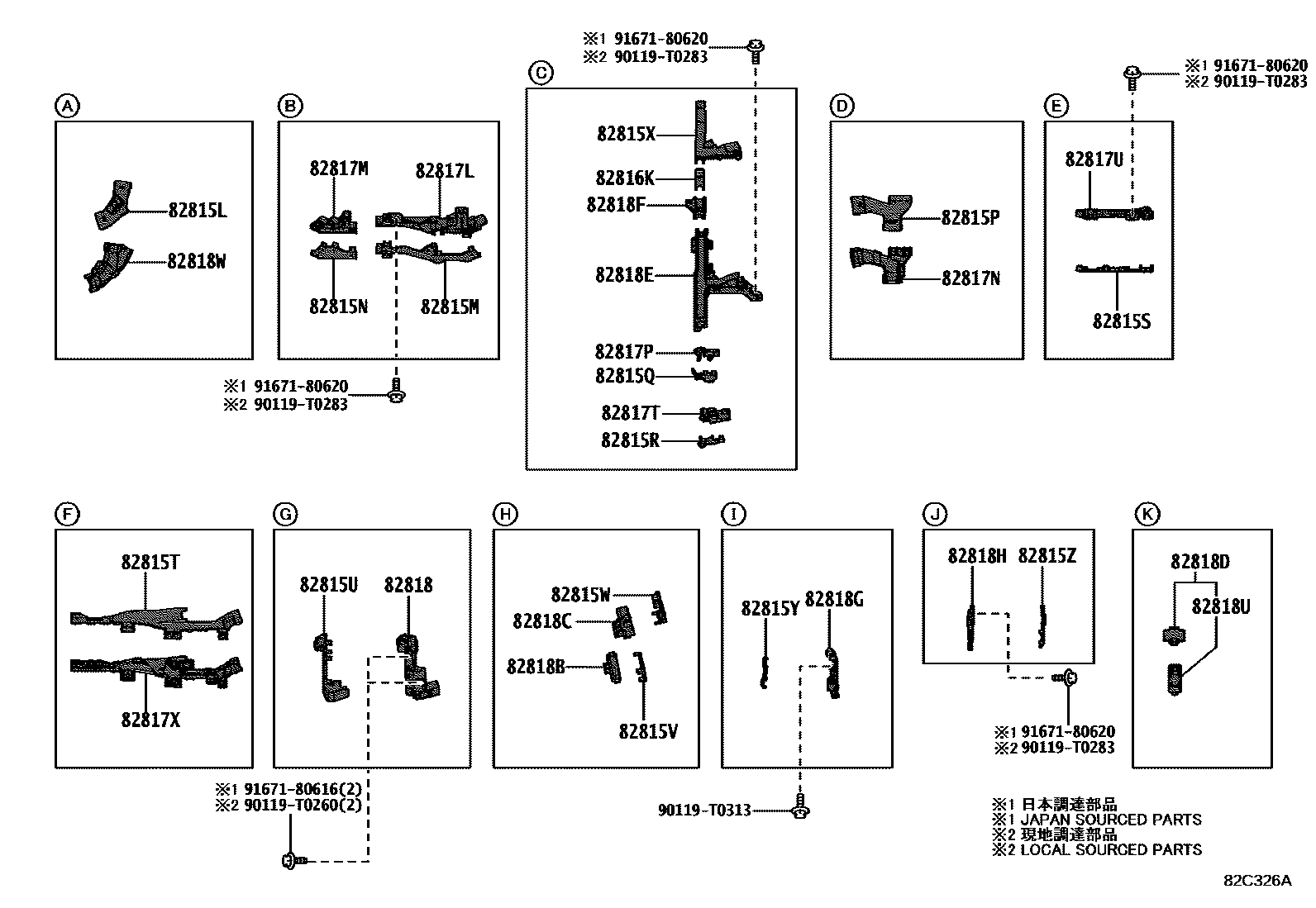

| 82815A | Wiring harness protector cover | 82815-33E00 · 82815-33E30 · 82815-33E60 |
| 82815B | Wiring harness protector cover | 82815-33E10 · 82815-33E50 |
| 82815G | No. 5 wire harness protector cover | 82815-33E20 · 82815-33L10 |
| 82815H | No. 6 wire harness protector cover | 82815-33E40 · 82815-33K50 |
| 82815J | No. 7 wire harness protector cover | 82815-33C30 · 82815-33E70 · 82815-33M50 |
| 82815K | No. 8 wire harness protector cover | 82815-33M60 |
| 82815L | No. 9 wire harness protector cover | 82815-0R190 · 82815-33C60 · 82815-33C80 |
| 82815M | No. 10 wire harness protector cover | 82815-0R130 · 82815-33F20 · 82815-33F60 |
| 82815N | No. 11 wire harness protector cover | 82815-0R160 · 82815-0T090 · 82815-33F70 · 82815-33J60 |
| 82815P | No. 12 wire harness protector cover | 82815-33F80 · 82815-33N00 |
| 82815Q | No. 13 wire harness protector cover | 82815-12B00 · 82815-33C00 · 82815-33F90 · 82815-33J50 |
| 82815R | No. 14 wire harness protector cover | 82815-33G00 · 82815-33J10 |
| 82815S | No. 15 wire harness protector cover | 82815-33F30 · 82815-33G60 · 82815-33M40 · 82815-F4510 |
| 82815T | No. 16 wire harness protector cover | 82815-33A90 · 82815-33B20 · 82815-33G90 · 82815-F4550 |
| 82815U | No. 17 wire harness protector cover | 82815-33B00 · 82815-33B40 · 82815-33J00 |
| 82815V | No. 1 wire harness protector cover | 82815-33J40 · 82815-33K60 · 82815-F4520 |
| 82815W | No. 2 wire harness protector cover | 82815-33J90 · 82815-42C70 |
| 82815X | No. 3 wire harness protector cover | 82815-0R180 · 82815-33G80 · 82815-33M70 |
| 82815Y | No. 4 wire harness protector cover | 82815-12D80 · 82815-33J80 · 82815-33M80 |
| 82815Z | No. 18 wire harness protector cover | 82815-33M90 |
| 82816B | No. 1 wire harness protector cover | 82815-33B30 · 82815-33F10 · 82815-33M30 |
| 82816C | No. 2 wire harness protector cover | 82815-33E80 |
| 82816D | No. 3 wire harness protector cover | 82815-0R210 · 82815-33F40 |
| 82816F | No. 4 wire harness protector cover | 82815-0R200 · 82815-33L60 |
| 82816G | No. 5 wire harness protector cover | 82815-0R170 |
| 82816H | No. 6 wire harness protector cover | 82815-33K90 |
| 82816J | No. 7 wire harness protector cover | 82815-33K90 · 82815-33L00 |
| 82816K | No. 8 wire harness protector cover | 82815-33M20 · 82815-F4570 |
| 82817A | No. 2 wire harness protection device | 82817-33N30 · 82817-33T80 · 82817-33U80 |
| 82817B | No. 3 wire harness protection device | 82817-33N40 · 82817-33T70 |
| 82817C | No. 4 wire harness protection device | 82817-33N60 · 82817-33Z00 |
| 82817D | No. 5 wire harness protection device | 82817-33Y20 |
| 82817E | No. 6 wire harness protection device | 82817-33T60 · 82817-33Y30 |
| 82817F | No. 7 wire harness protection device | 82817-33V00 · 82817-3T190 |
| 82817G | No. 8 wire harness protection device | 82817-3T200 |
| 82817J | No. 9 wire harness protection device | 82817-33W70 |
| 82817K | No. 10 wire harness protection device | 82817-0R660 · 82817-3T210 |
| 82817L | No. 11 wire harness protection device | 82817-0R630 · 82817-33R20 · 82817-33X30 |
| 82817M | No. 12 wire harness protection device | 82817-33R30 |
| 82817N | No. 13 wire harness protection device | 82817-33R40 · 82817-33U00 · 82817-33U40 |
| 82817P | No. 14 wire harness protection device | 82817-33R50 · 82817-33T20 · 82817-33W20 |
| 82817T | No. 15 wire harness protection device | 82817-33R60 · 82817-33S70 · 82817-33U20 · 82817-33V20 · 82817-F4730 |
| 82817U | No. 16 wire harness protection device | 82817-33Q90 · 82817-33S20 · 82817-F4740 |
| 82817X | No. 17 wire harness protection device | 82817-33S50 · 82817-F4770 |
| 82818 | No. 2 wire harness protection device | 82817-33S60 · 82817-33S70 |
| 82818B | No. 3 wire harness protection device | 82817-12V00 · 82817-33T00 · 82817-33U30 · 82817-33Y60 · 82817-3T160 |
| 82818C | No. 4 wire harness protection device | 82817-0R670 · 82817-33X70 |
| 82818D | No. 5 wire harness protection device | 82817-33E60 · 82817-33Y50 |
| 82818E | No. 6 wire harness protection device | 82817-0R610 · 82817-33S40 · 82817-3T220 |
| 82818F | No. 7 wire harness protection device | 82817-12R80 · 82817-3T150 · 82817-3T180 |
| 82818G | No. 8 wire harness protection device | 82817-33V30 · 82817-33X60 · 82817-33Y40 · 82817-3T230 · 82817-42J50 |
| 82818H | No. 9 wire harness protection device | 82817-3T240 · 82817-42J70 |
| 82818J | No. 10 wire harness protection device | 82817-33X40 |
| 82818K | No. 11 wire harness protection device | 82817-0R650 · 82817-33Q70 |
| 82818L | No. 12 wire harness protection device | 82817-0R680 · 82817-33R00 |
| 82818M | No. 13 wire harness protection device | 82817-0R640 · 82817-33Q80 |
| 82818N | No. 14 wire harness protection device | 82817-3T250 |
| 82818S | No. 15 wire harness protection device | 82817-3T170 |
| 82818T | No. 16 wire harness protection device | 82817-33U10 |
| 82818U | No. 17 wire harness protection device | 82817-33Z40 |
| 82818V | No. 18 wire harness protection device | 82817-06840 |
| 82818W | No. 19 wire harness protection device | 82817-33V40 · 82817-33X20 |
| 82818Y | No. 21 wire harness protection device | 82817-F4790 |
| 82819G | No. 23 wire harness protection device | 82817-33Z10 |
| 82821A | Connector cover | 82821-33470 |
| 82821E | Connector cover | 82821-33620 |
| 82821H | Connector cover | 82821-33620 |
| 82821M | Connector cover | 82821-33460 |
| 82821N | Connector cover | 82821-33690 |
| 82821P | Connector cover | 82821-33690 |
| 82821R | Connector cover | 82821-33790 |
| 82821U | Connector cover | 82821-33410 |
| 82821V | Connector cover | 82821-33810 |
| 82821W | Connector cover | 82821-33790 |
| 82821X | Connector cover | 82821-30690 |
| 82821Y | Connector cover | 82821-30600 |
| 82823 | No. 1 terminal cover | 82823-33060 |
| 82823S | starter terminal cover | 82823-30090 · 82823-33070 |
| 82823T | Generator terminal cover | 82823-0C010 |

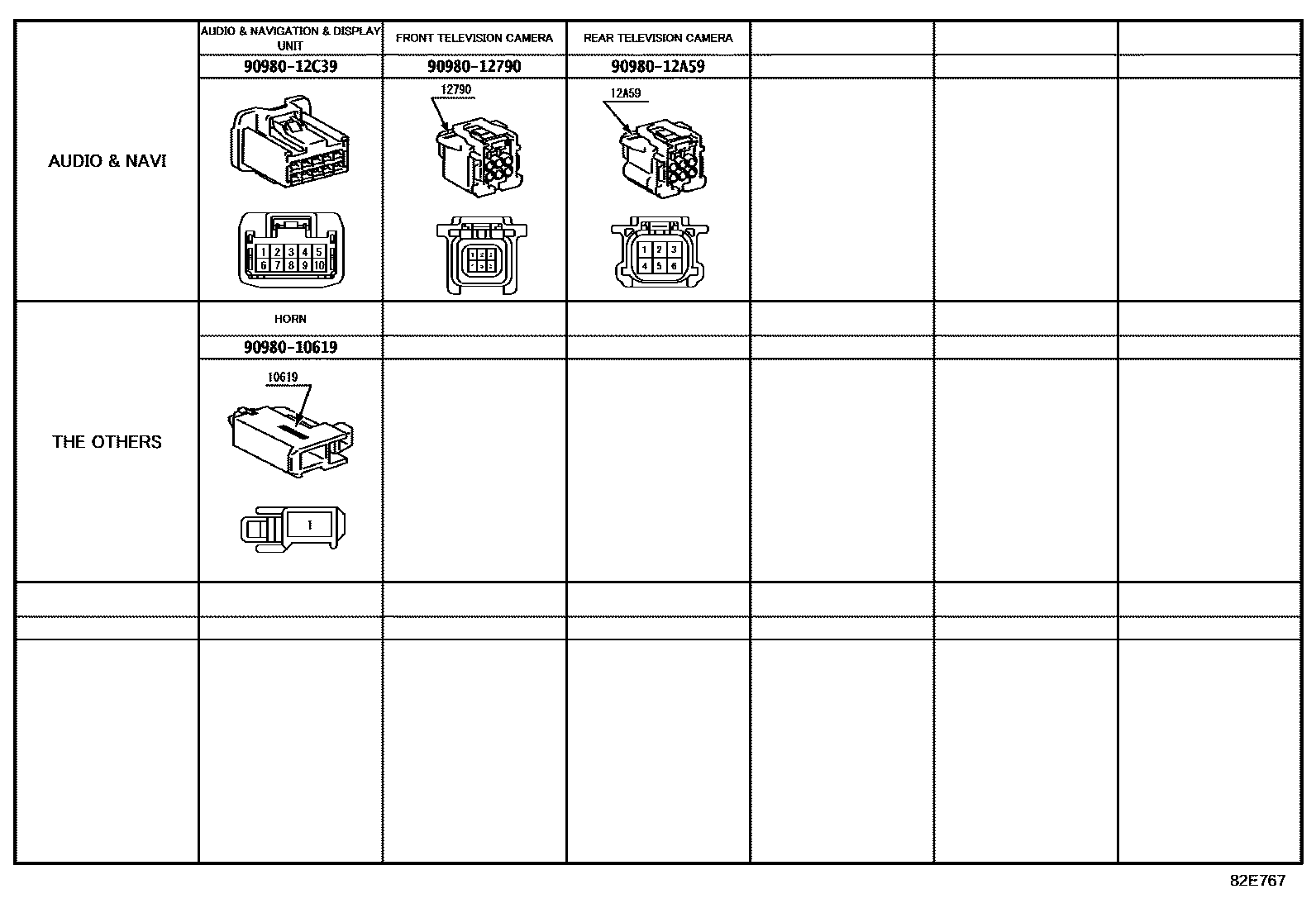

| 82824D | Harness connector | 82824-33360 |
| 82H21C | Connector cover | 82821-50510 |
| 82H21G | Connector cover | 82821-47690 |
| 82H21H | Connector cover | 82821-50500 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-06050 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-06060 |
| G921D | Inverter Connector Cover Protector | G921D-47020 |
