Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201
Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

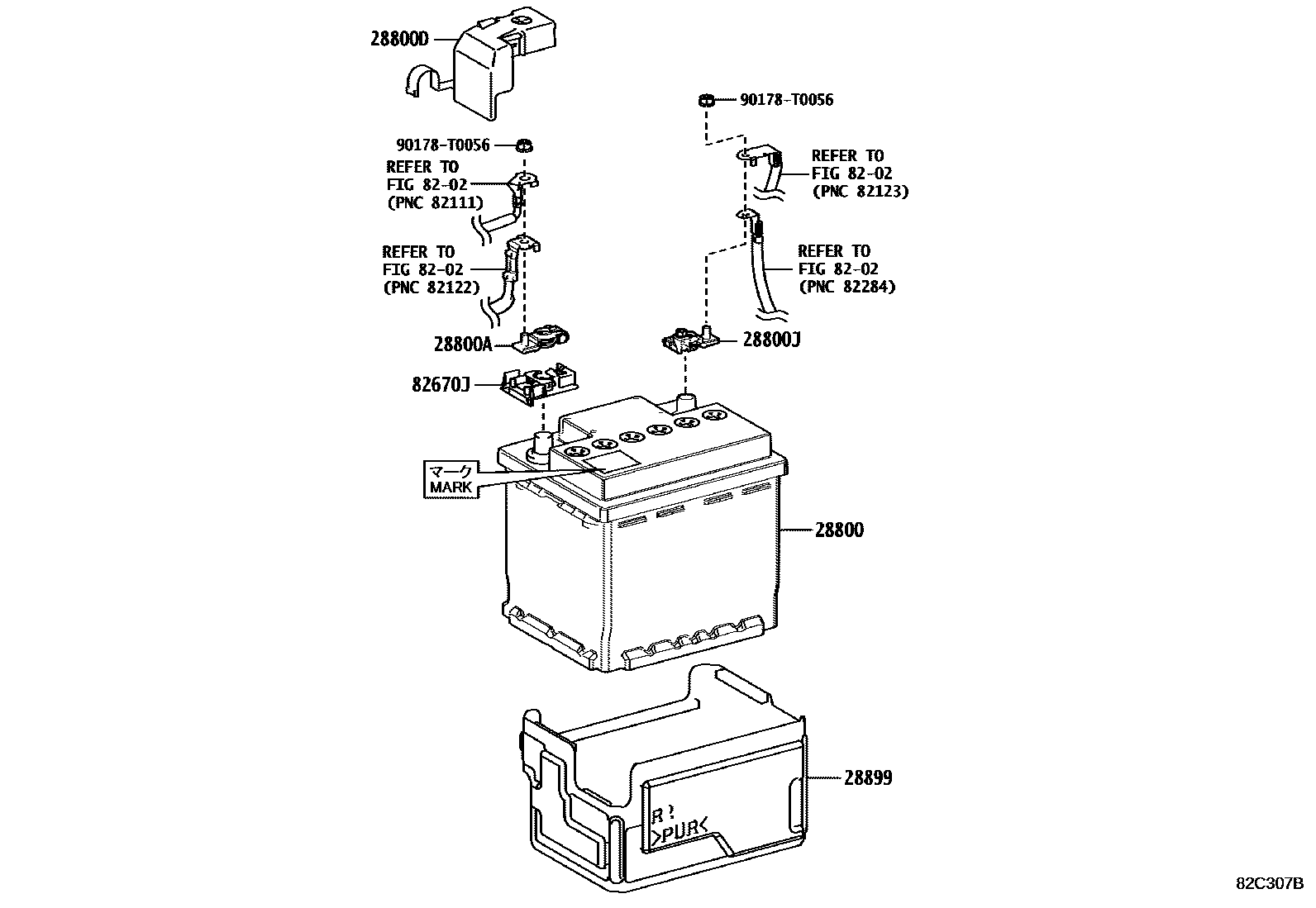

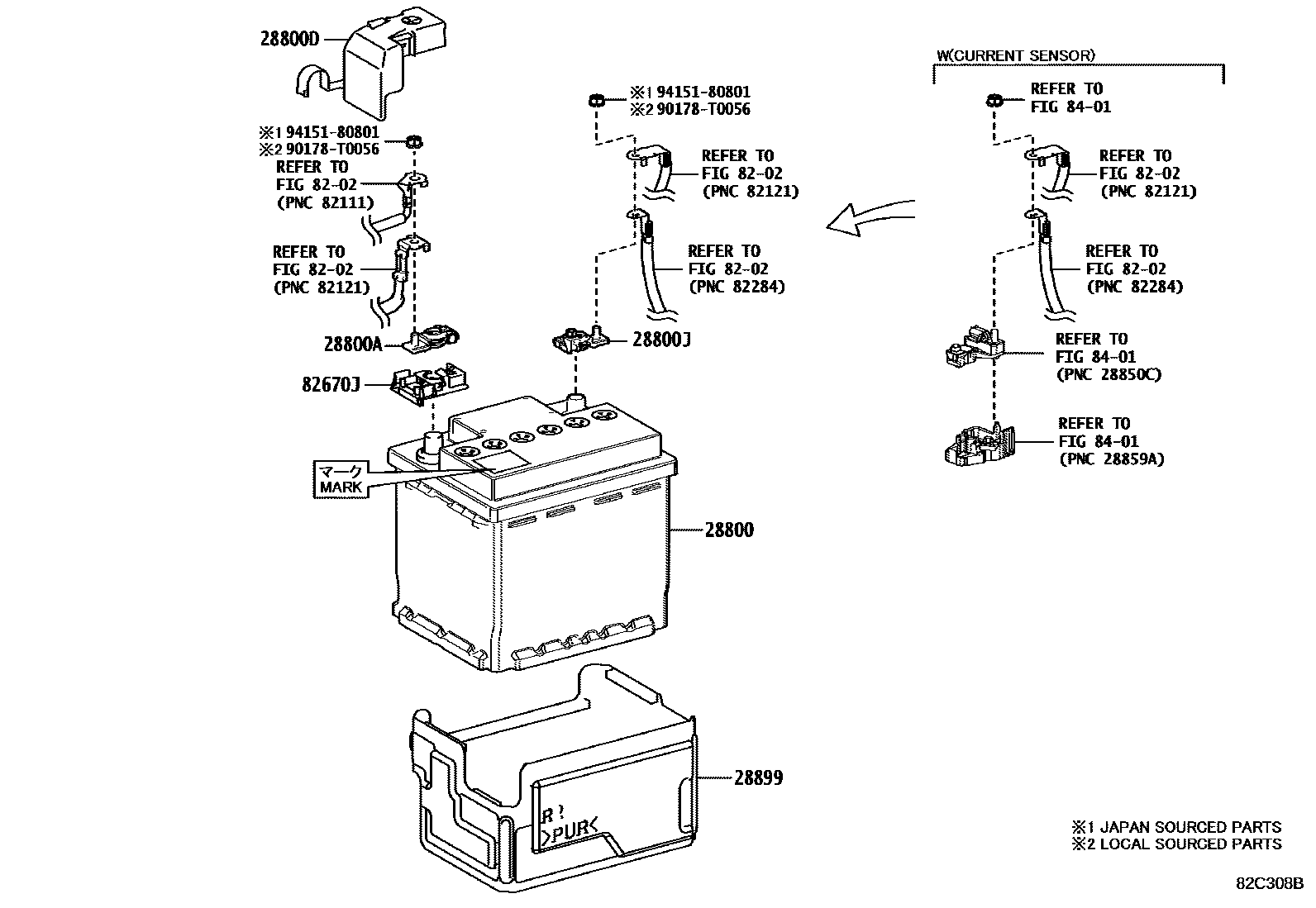

| 28800 | battery | 28800-0C272 · 28800-0C273 · 28800-0L730 · 28800-0L731 · 28800-0L732 · 28800-25030 · 28800-F0030 · 28800-F0031 · 28800-F0100 |
| 28800A | battery positive terminal | 90982-05053 · 90982-05072 |
| 28800D | Connector cover (for battery terminals) | 82621-06081 · 82821-33440 |
| 28800J | battery negative terminal | 90982-06061 |

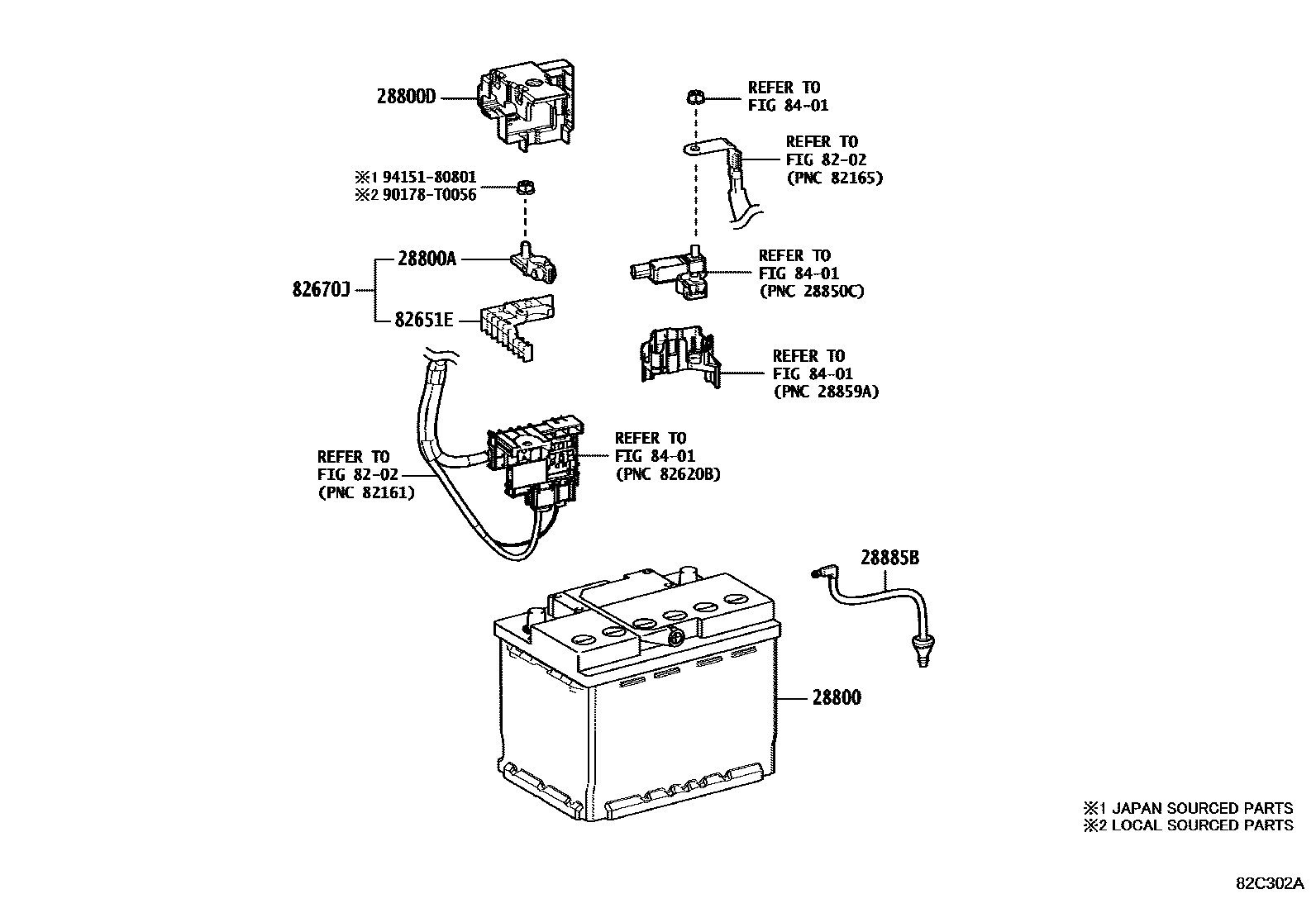

| 28885B | battery hose | 28885-F0010 |
| 28899 | Battery insulation cover | 28899-0V030 · 28899-0V040 · 28899-0V050 · 28899-0V060 |
| 82651E | Terminal box | 82671-33090 |
| 82670J | Junction box assembly | 82670-33140 · 82671-33100 |
| 82818P | Harness protection device | 82817-47Q60 |
| 89892A | battery voltage sensor | 89892-33040 |
| G3834 | Service plug handle | G3834-47050 |

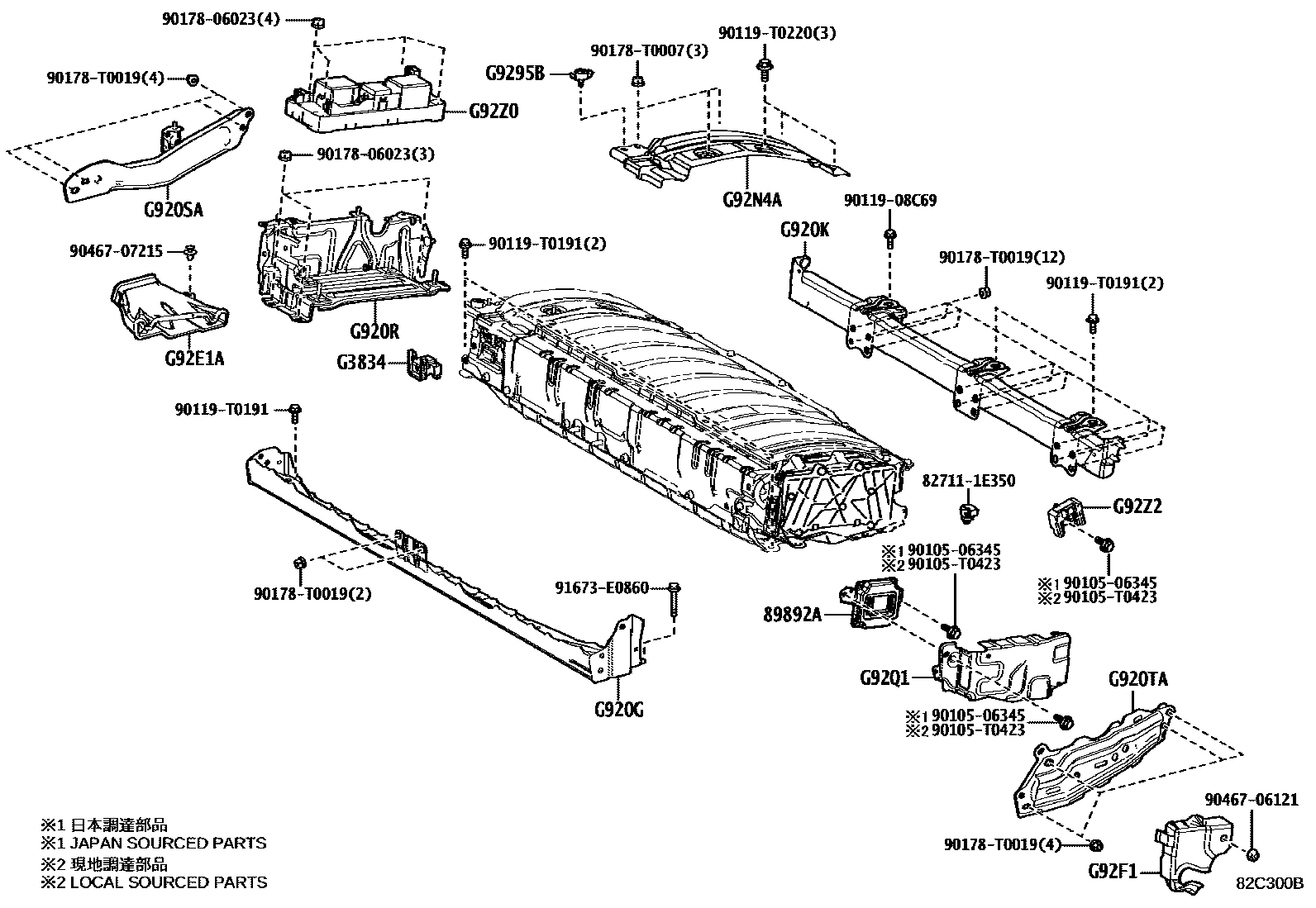

| G920G | No. 4 HV battery end plate sub-assembly | G920G-33010 |
| G920K | No. 5 HV battery end plate sub-assembly | G920K-33010 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-33030 |
| G920SA | HV battery No. 3 shielding sub-assembly | G920S-33020 |
| G920TA | EV battery No. 4 shielding sub-assembly | G920T-33020 |

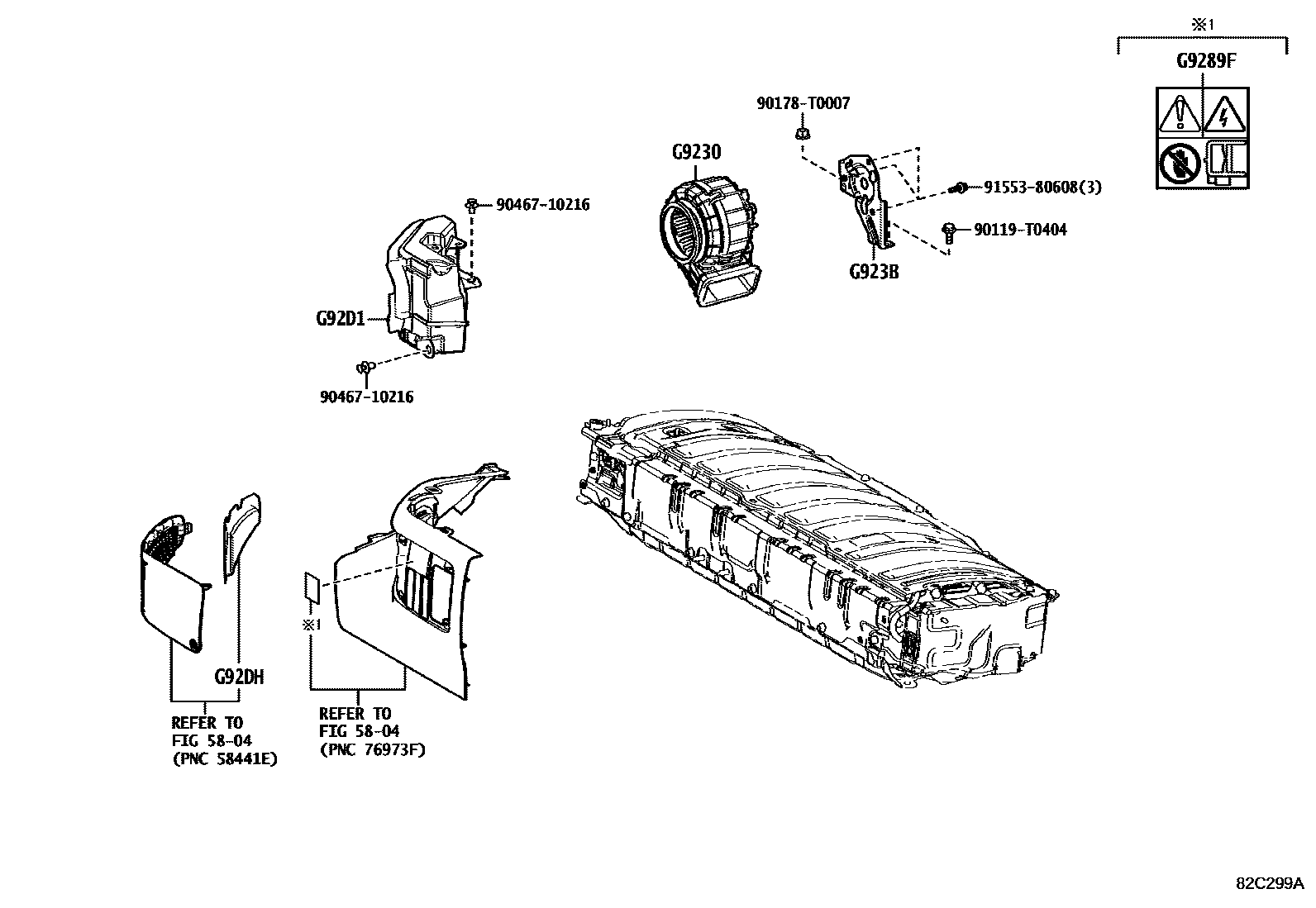

| G9230 | Battery cooling blower assembly | G9230-33050 |
| G923B | Battery cooling blower bracket | G923B-33020 |
| G9282 | HV battery thermistor | G9282-33030 |
| G9289A | battery warning label | G9288-48040 · G9288-48080 · G9288-F4010 |
| G9289F | AA battery warning label | 82685-47110 · 82685-47111 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06160 |
| G92DH | No. 1 HV battery air intake filter | G92DH-33050 |
| G92E1A | No. 1 HV battery left air inlet | G92E1-33020 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-06030 · G92F1-33020 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-33040 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-33050 |
| G92Z0 | HV battery junction box assembly | G92Z0-06010 · G92Z0-33041 · G92Z0-47100 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |

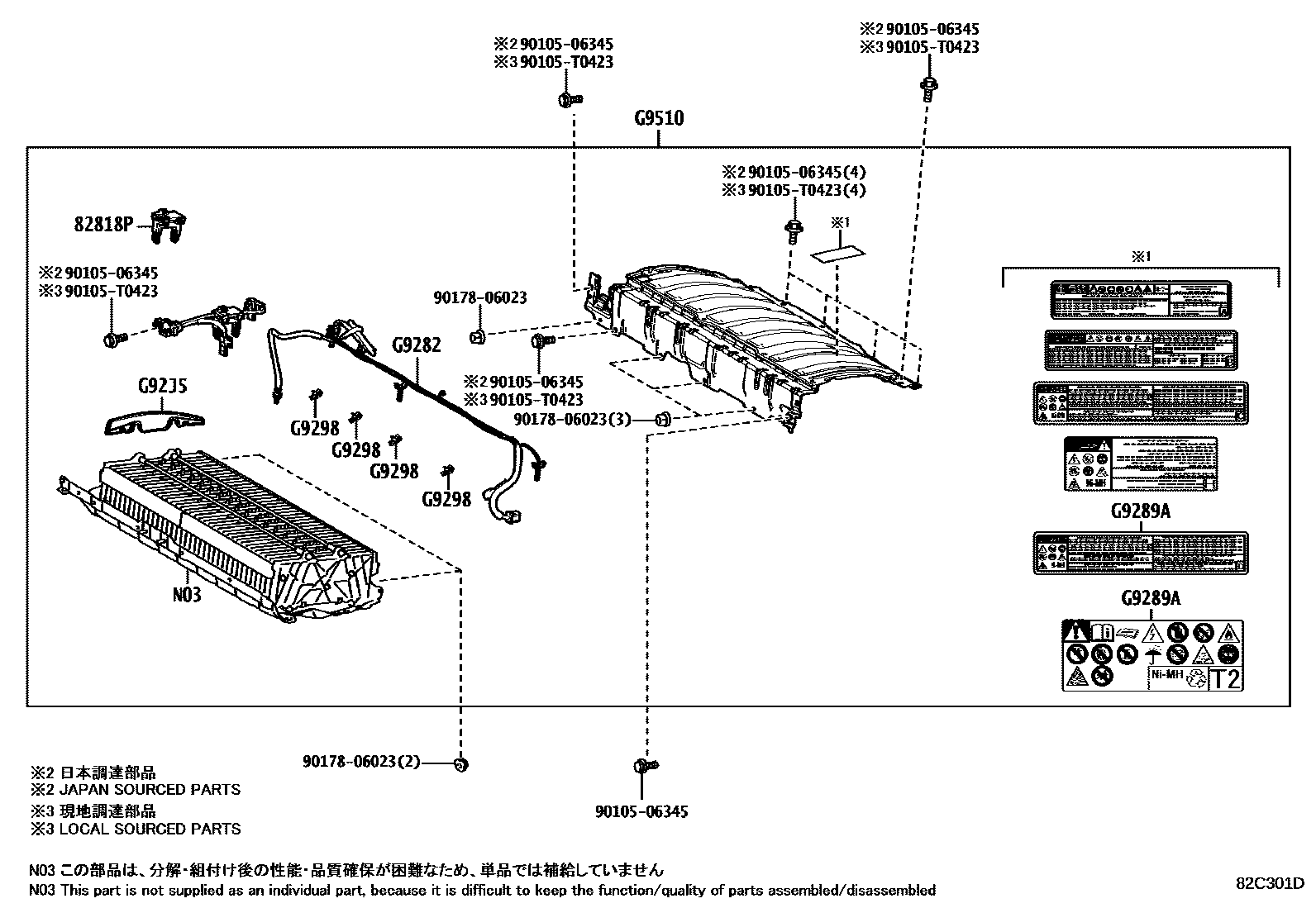

| G9510 | HV power supply battery assembly | G9510-06020 · G9510-33110 · G9510-33150 |
