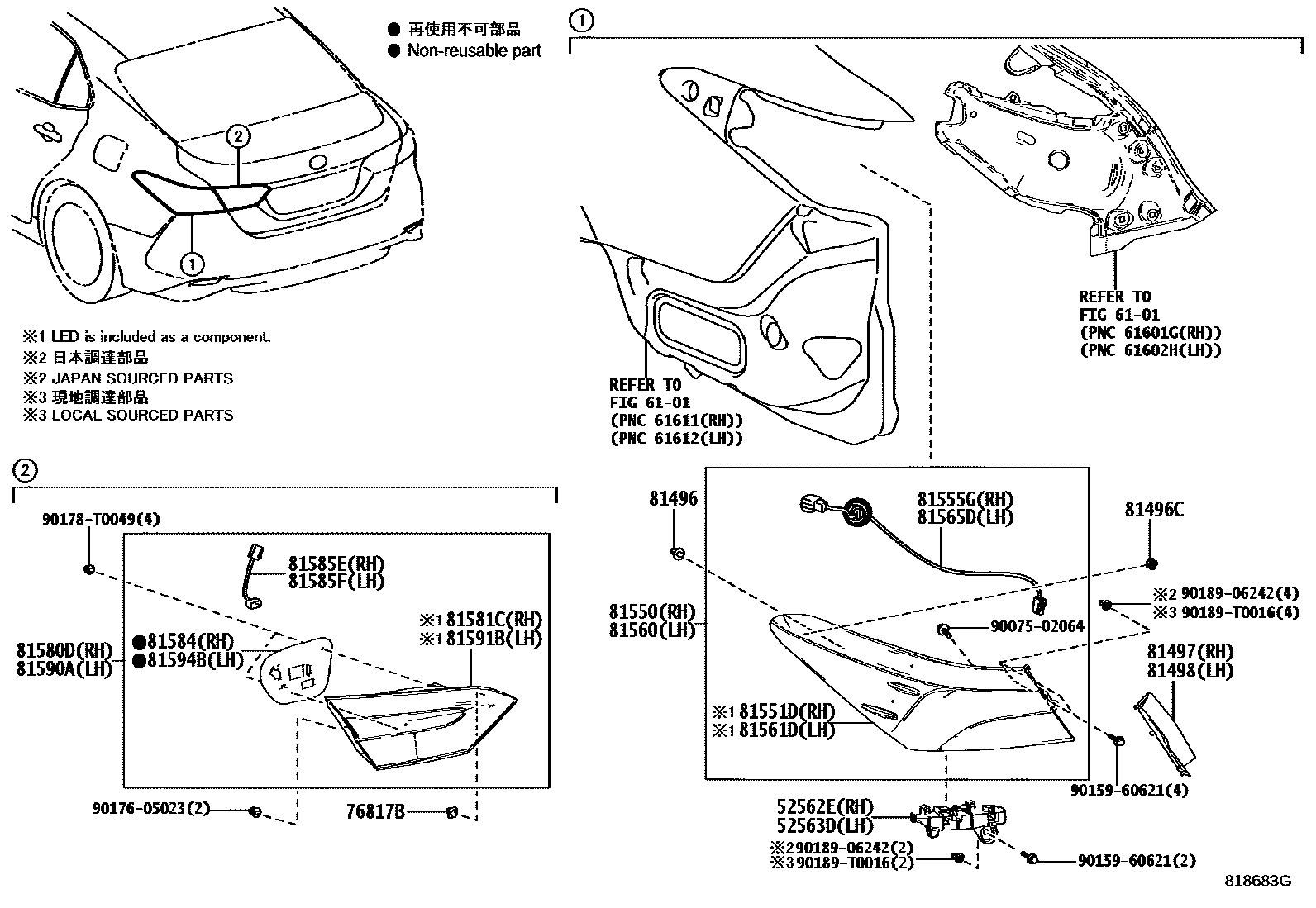

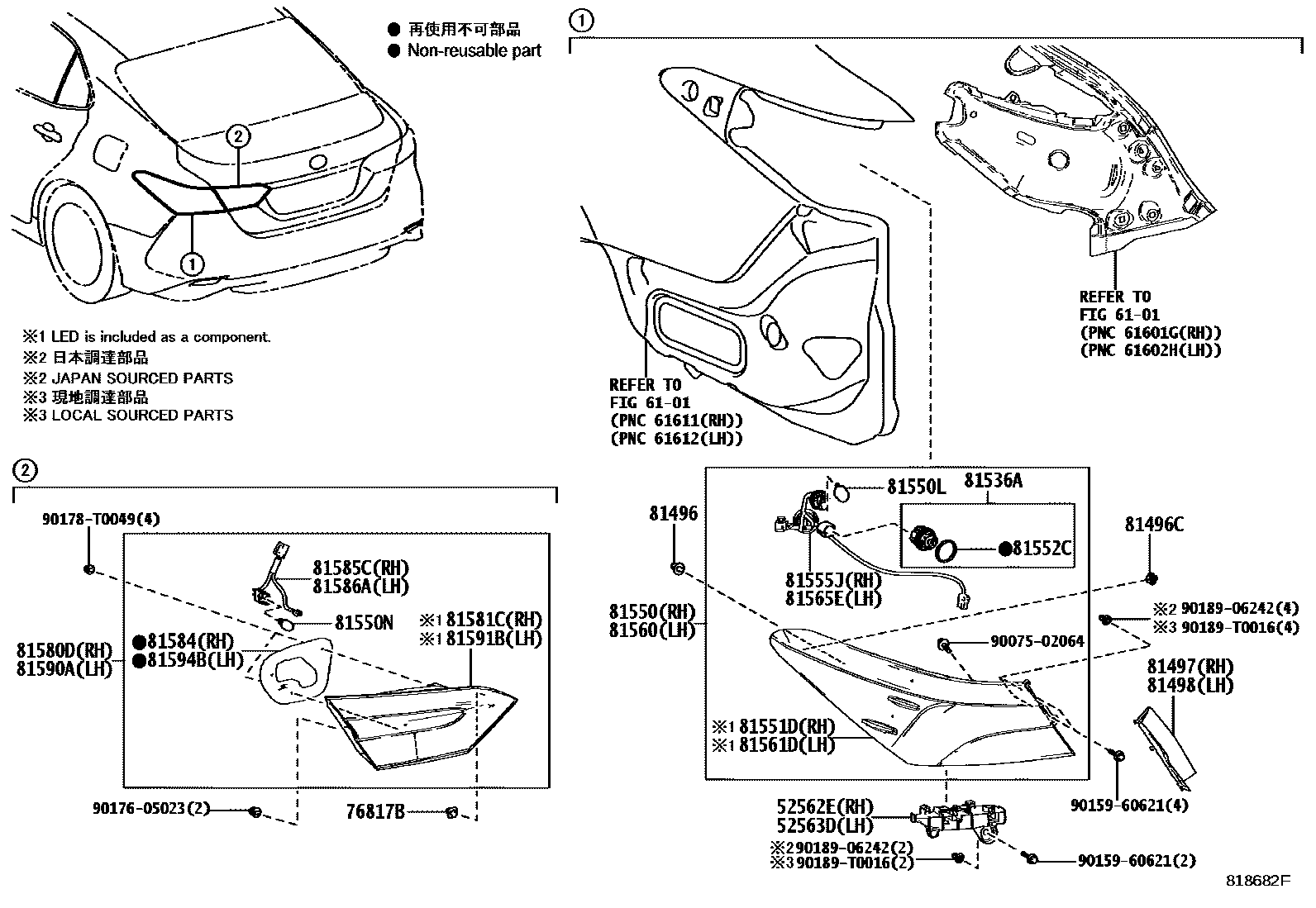

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-06150 |
| 52563D | Rear bumper upper left fixing bracket | 52563-06150 |
| 76817B | Rear light clip | 76817-26040 |
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81497 | Right rear combination lamp cover | 81497-06020 |
| 81498 | Left rear combination lamp cover | 81498-06020 |
| 81536A | Rear LED combination light | 81536-52C80 |
| 81550 | Right rear combination light assembly | 81550-06780 · 81550-06790 · 81550-06800 · 81550-06A90 · 81550-06B10 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06780 · 81551-06790 · 81551-06800 · 81551-06A90 · 81551-06B10 |
| 81552C | Rear combination light gasket | 90075-68010 |
| 81555G | Right rear combination lamp wire | 81555-06790 |
| 81555J | Right rear combination lamp holder and wiring harness | 81555-06780 |
| 81560 | Left rear combination light assembly | 81560-06780 · 81560-06790 · 81560-06800 · 81560-06A90 · 81560-06B10 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06780 · 81561-06790 · 81561-06800 · 81561-06A90 · 81561-06B10 |
| 81565D | Left rear combination lamp wire | 81555-06790 |
| 81565E | Left rear combination lamp holder and wiring harness | 81555-06780 |
| 81580D | Right rear light assembly | 81580-06680 · 81580-06690 · 81580-06700 · 81580-06720 · 81580-06810 · 81580-06890 · 81580-06A00 · 81580-06A20 |
| 81581C | Right rear light lampshade and lamp body | 81581-06680 · 81581-06690 · 81581-06700 · 81581-06720 · 81581-06810 · 81581-06890 · 81581-06A00 · 81581-06A20 |
| 81584 | Right rear light seal | 81582-06690 · 81582-06700 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-06690 |
| 81585E | Right rear light wire | 81585-06700 |
| 81585F | Left rear light wire | 81585-06700 |
| 81586A | Left rear light lamp holder and wiring harness | 81585-06690 |
| 81590A | Left rear light assembly | 81590-06680 · 81590-06700 · 81590-06710 · 81590-06890 · 81590-06A00 |
| 81591B | Left rear light shade and body | 81591-06680 · 81591-06700 · 81591-06710 · 81591-06890 · 81591-06A00 |
| 81594B | Left rear light seal | 81592-06690 · 81592-06700 |
