Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 2 images and 4 PNC and OE references.

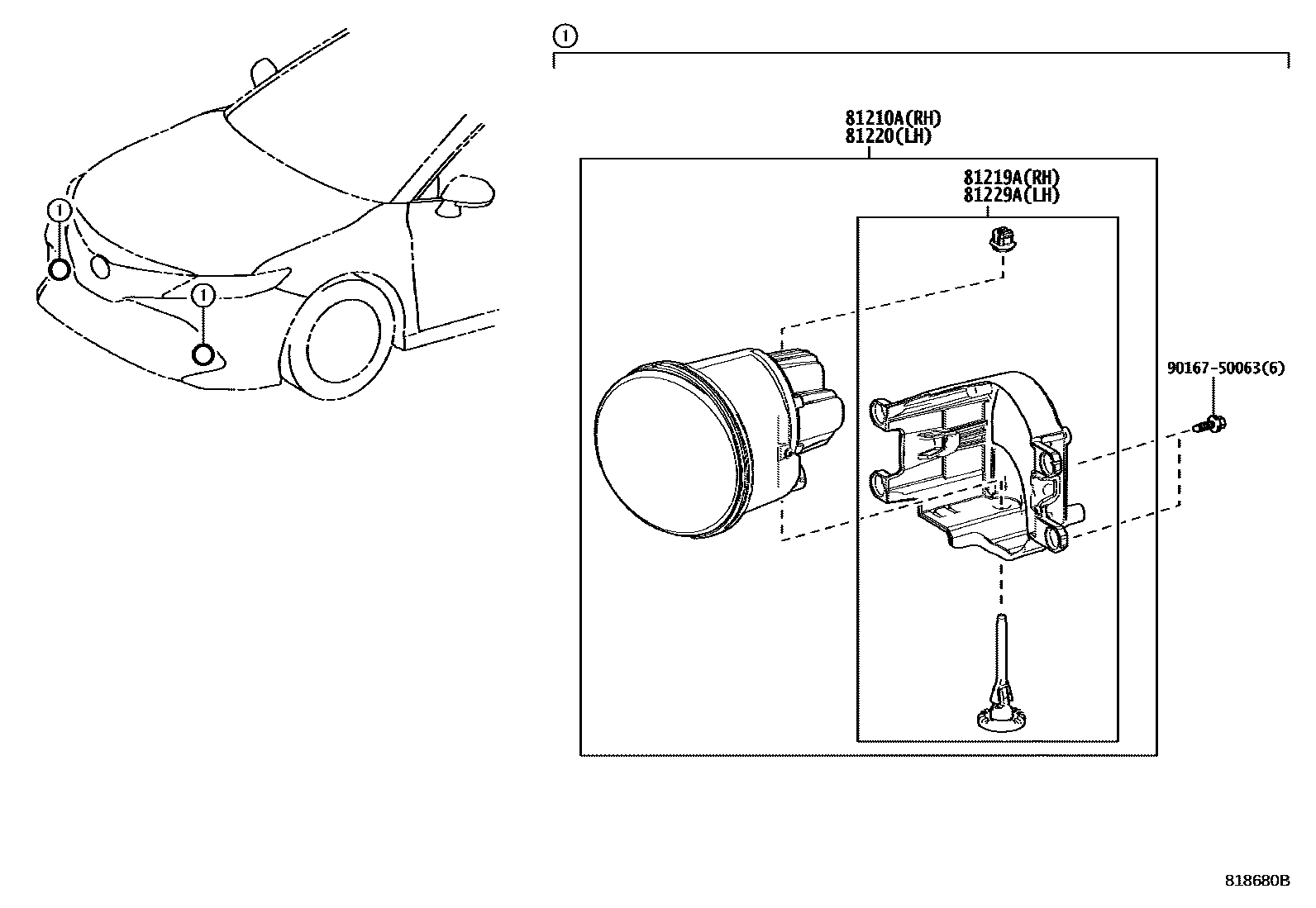

Toyota CAMRY Fog Lamp EPC diagram — 818680B
Fog Lamp — 818680B (201810 – 999999)

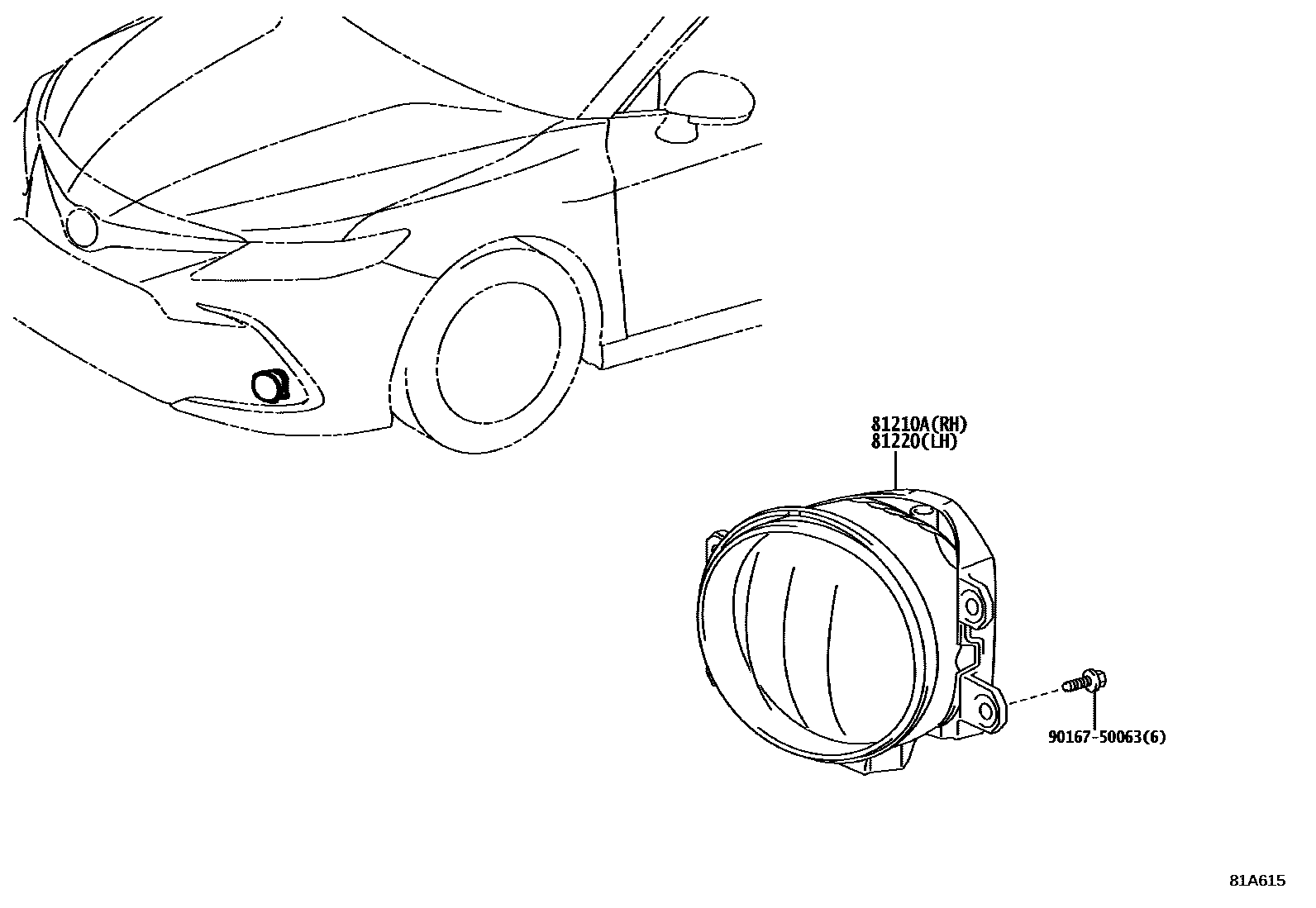

Toyota CAMRY Fog Lamp EPC diagram — 81A615
Fog Lamp — 81A615 (202111 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-0K150 · 81210-48051
81219ARight fog light bracket81219-48051
81220Left fog light assembly81220-0K100 · 81220-48051
81229ALeft fog light bracket81229-48051
