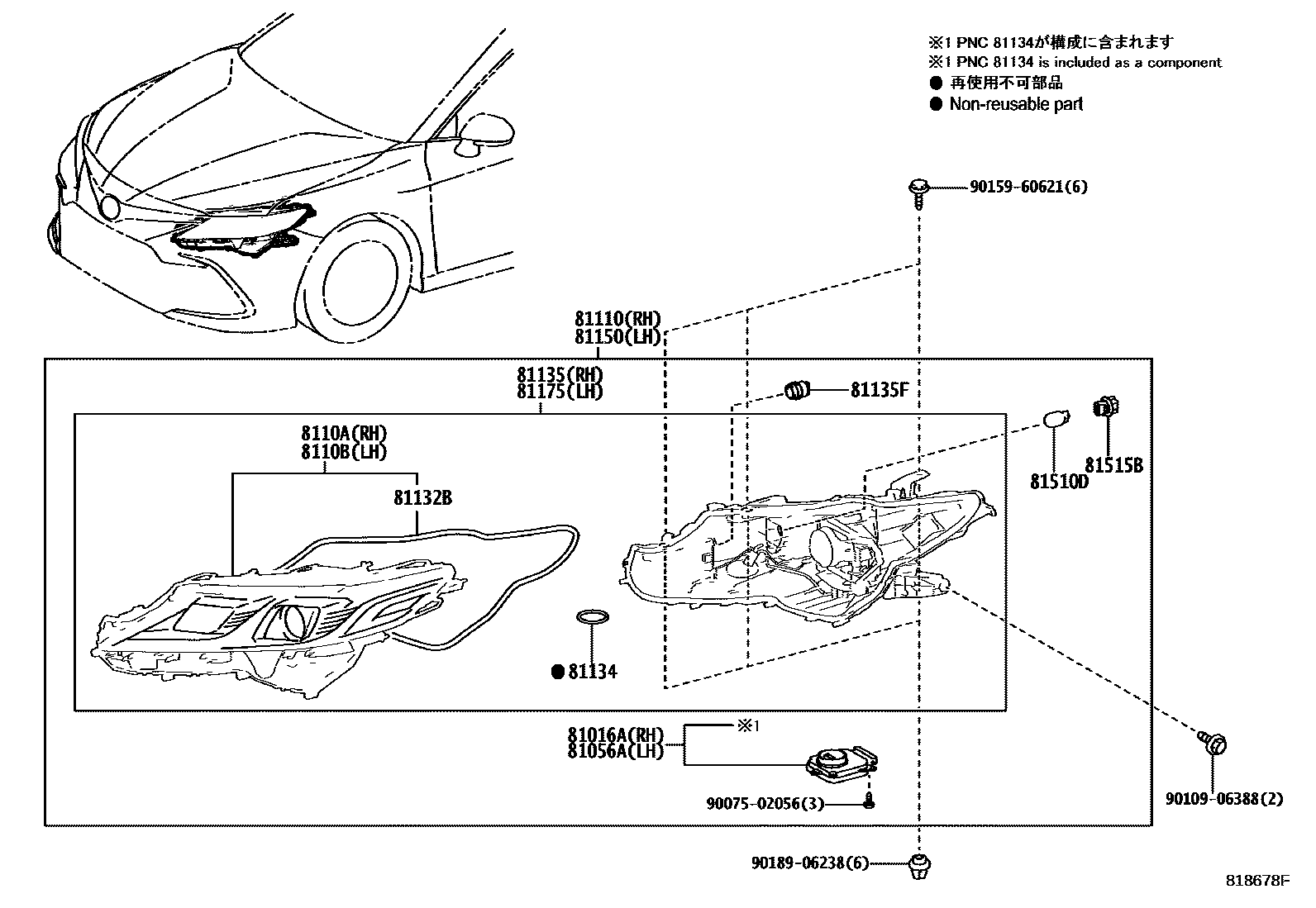

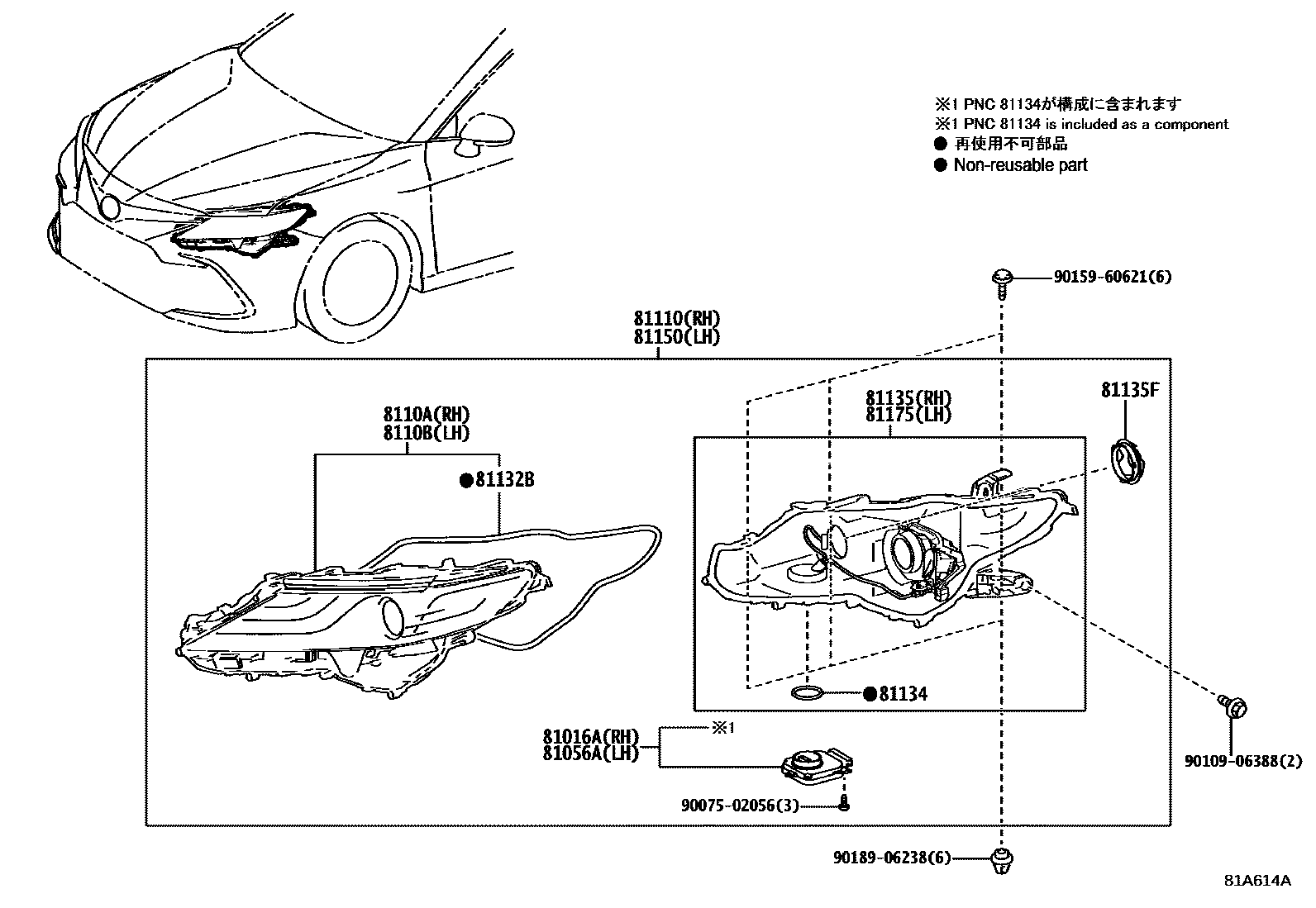

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-06E80 · 81016-06F00 · 81016-06G60 |
| 81056A | Left headlight ECU sub-assembly | 81056-06E80 · 81056-06F00 · 81056-06G60 |
| 8110A | Right headlight cover sub-assembly | 8110A-06E80 · 8110A-06F10 · 8110A-06G60 |
| 8110B | Left headlight cover sub-assembly | 8110B-06E80 · 8110B-06F10 · 8110B-06G60 |
| 81110 | Right headlight assembly | 81110-06E80 · 81110-06E90 · 81110-06F00 · 81110-06F10 · 81110-06F50 · 81110-06G60 · 81110-06G70 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81134 | headlight gasket | 90075-23003 |
| 81135 | Right headlight assembly assembly | 81145-06E80 · 81145-06E90 · 81145-06F00 · 81145-06F10 · 81145-06F50 · 81145-06G60 · 81145-06G70 |
| 81135F | headlight rear cover | 81135-22B70 · 90075-66017 |
| 81150 | Left headlight assembly | 81150-06E80 · 81150-06E90 · 81150-06F00 · 81150-06F10 · 81150-06F50 · 81150-06G60 · 81150-06G70 |
| 81175 | Left headlight assembly assembly | 81185-06E80 · 81185-06E90 · 81185-06F00 · 81185-06F10 · 81185-06F50 · 81185-06G60 · 81185-06G70 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
