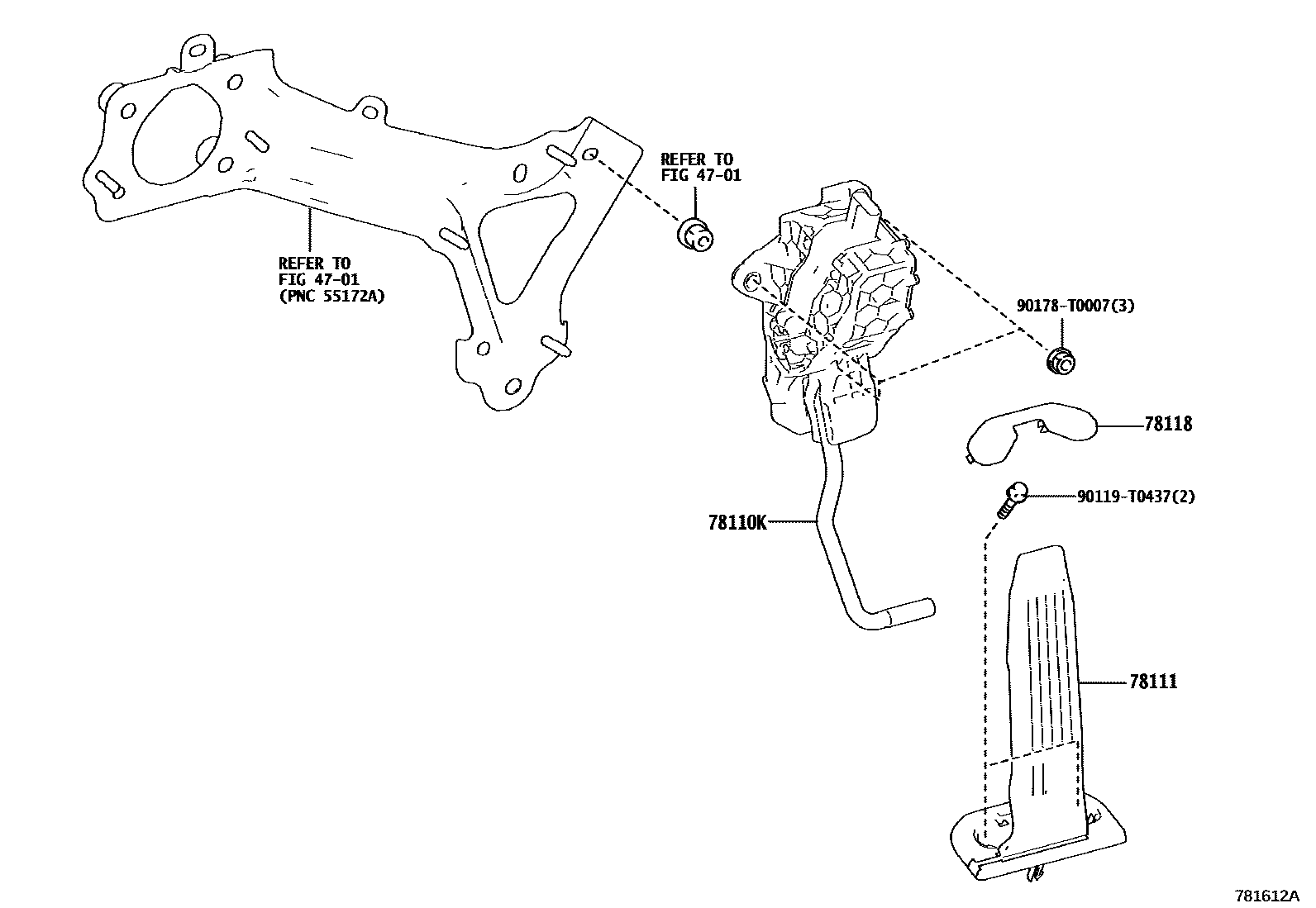

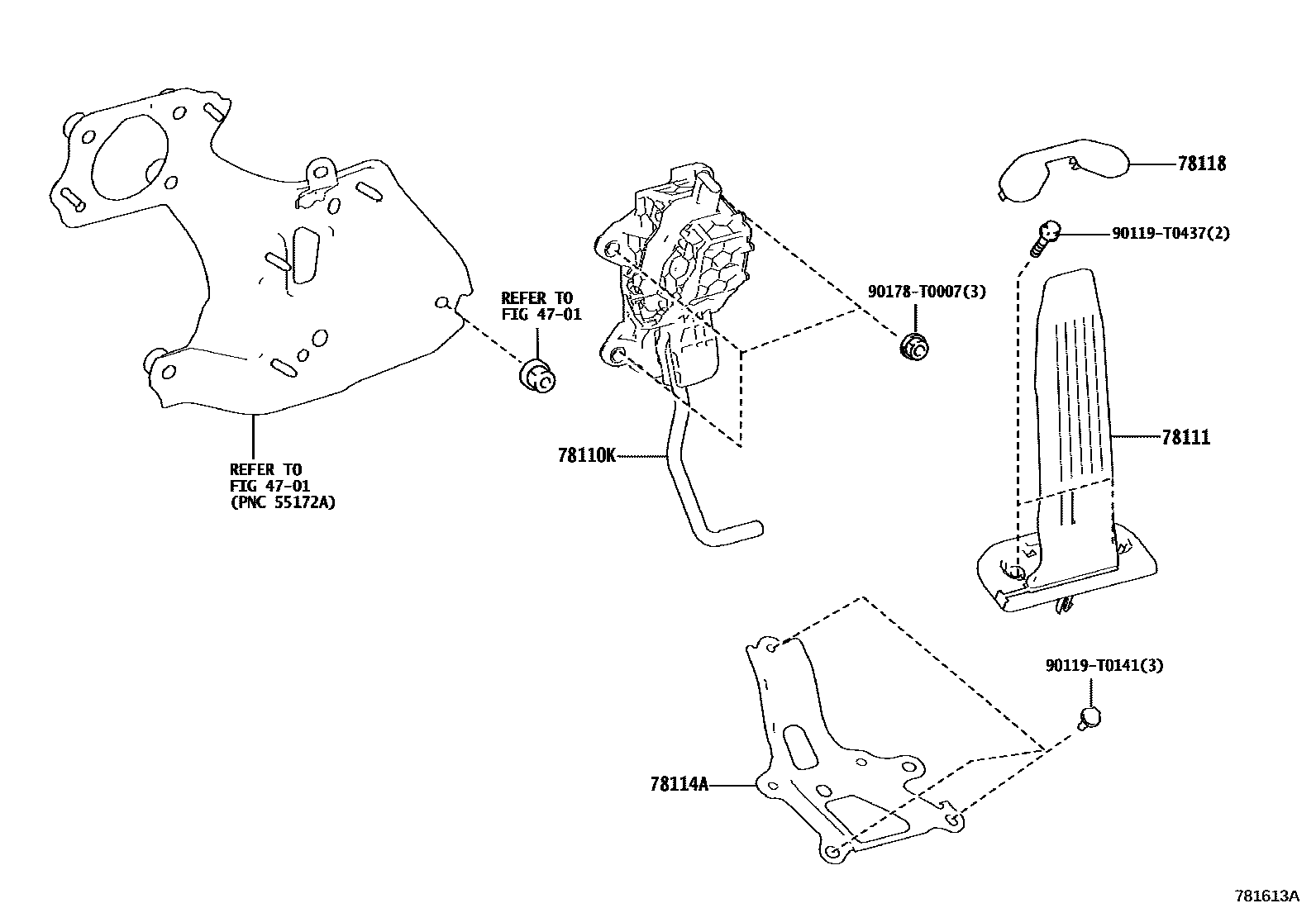

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-06100 · 78110-06140 · 78110-06141 · 78110-06142 · 78110-06150 · 78110-06151 · 78110-06152 · 78110-06160 · 78110-06161 · 78110-06162 |
| 78111 | accelerator pedal | 78101-33060 · 78101-33061 |
| 78114A | accelerator pedal bracket | 78114-06010 |
| 78118 | accelerator pedal pad | 78117-33020 |
