Toyota CAMRY 侧防护条 — Figure 7503

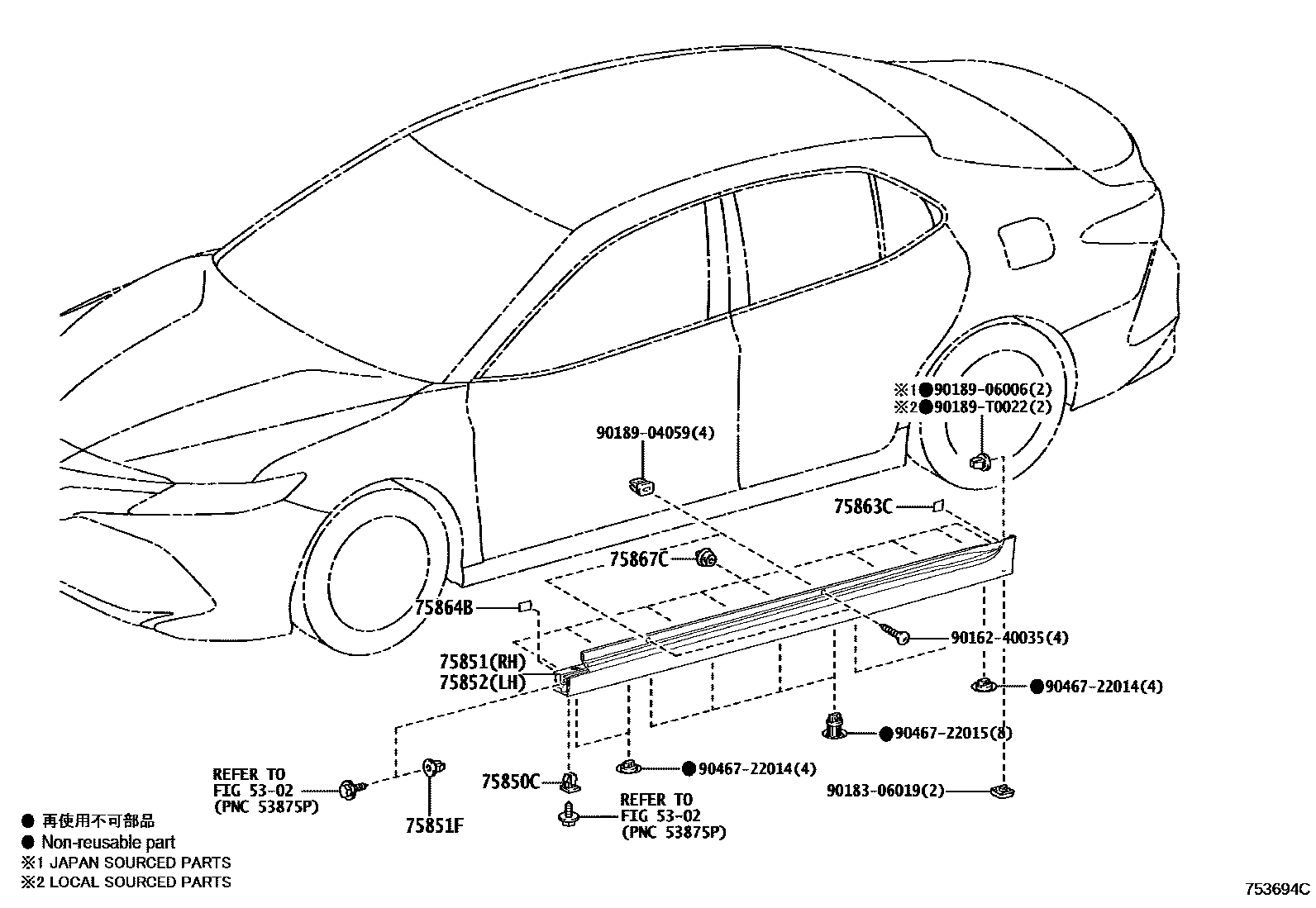

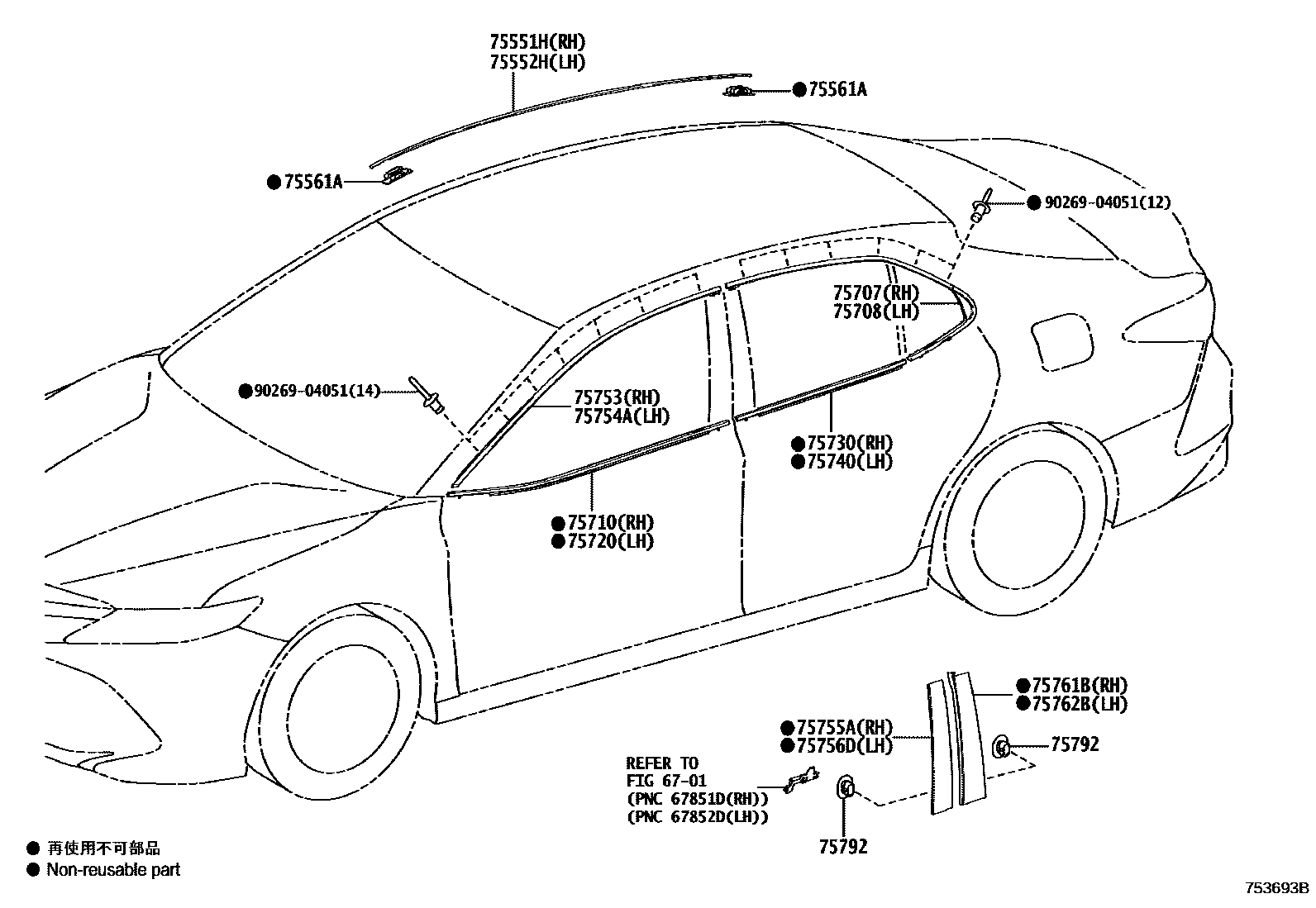

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551H | Drainage groove side on the right side of the roof | 75555-06150 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75556-06170 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52040 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-33060 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-33060 |
| 75710 | Right front door waistline protection strip assembly | 75710-06240 |
| 75720 | Left front door waistline protection strip assembly | 75720-06240 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06220 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06220 |
| 75753 | Protective strip on right front door window frame | 75753-06170 · 75753-06171 |
| 75754A | Protective strip on left front door window frame | 75754-06170 · 75754-06171 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-06190 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-06190 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-06190 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-06190 |
| 75792 | Car door window frame protective strip clip | 75792-0D020 |
| 75850C | Gasket No. 1 | 90189-06193 |
| 75851 | Right side door sill panel protective strip | 75851-06945 |
| 75851F | Gasket (for body sill protection strip) | 90189-06006 · 90189-T0022 |
| 75852 | Left side door sill panel protective strip | 75852-06945 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06260 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06240 |
| 75867C | Door sill panel protective strip clip | 75867-68010 |
