Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

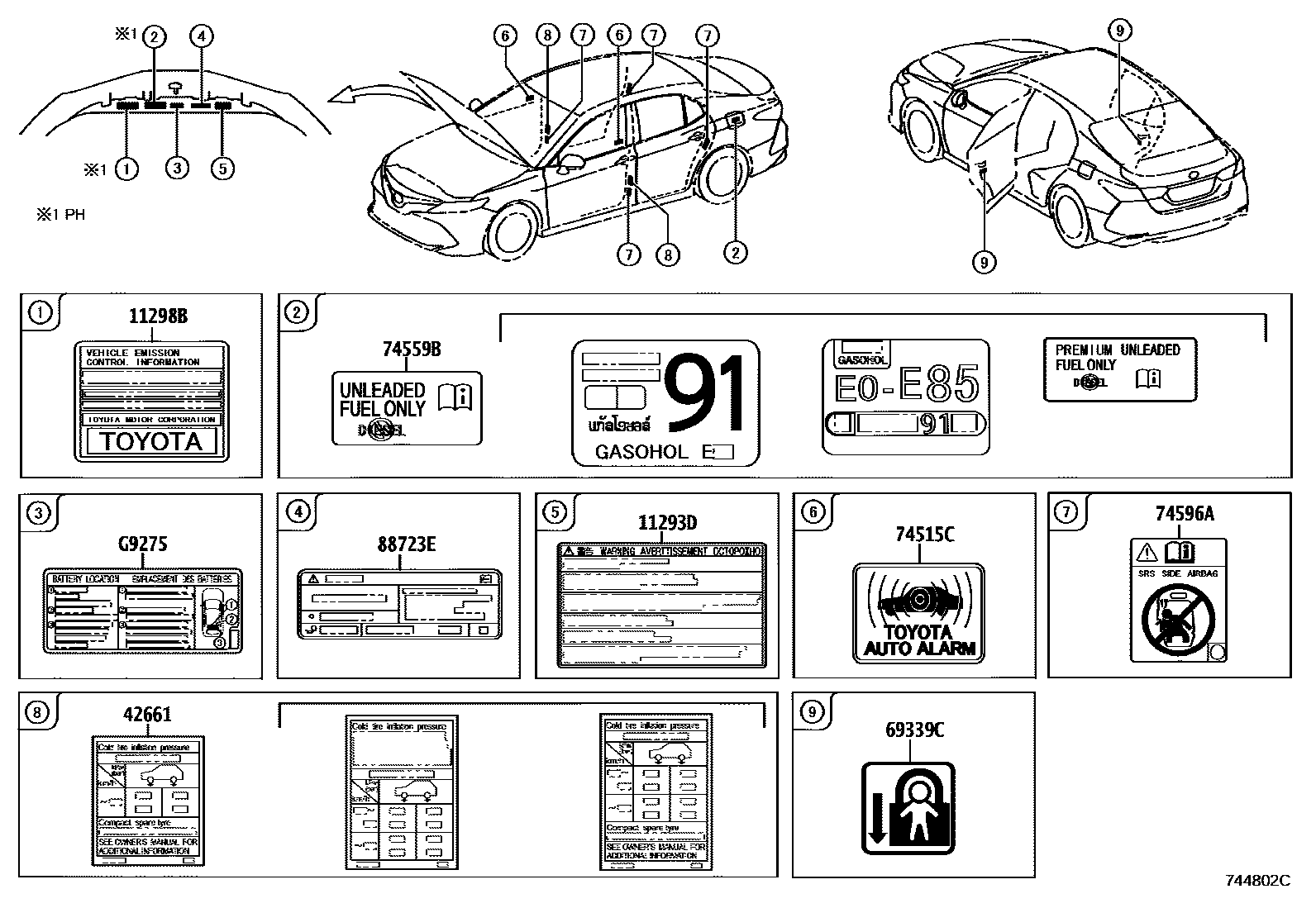

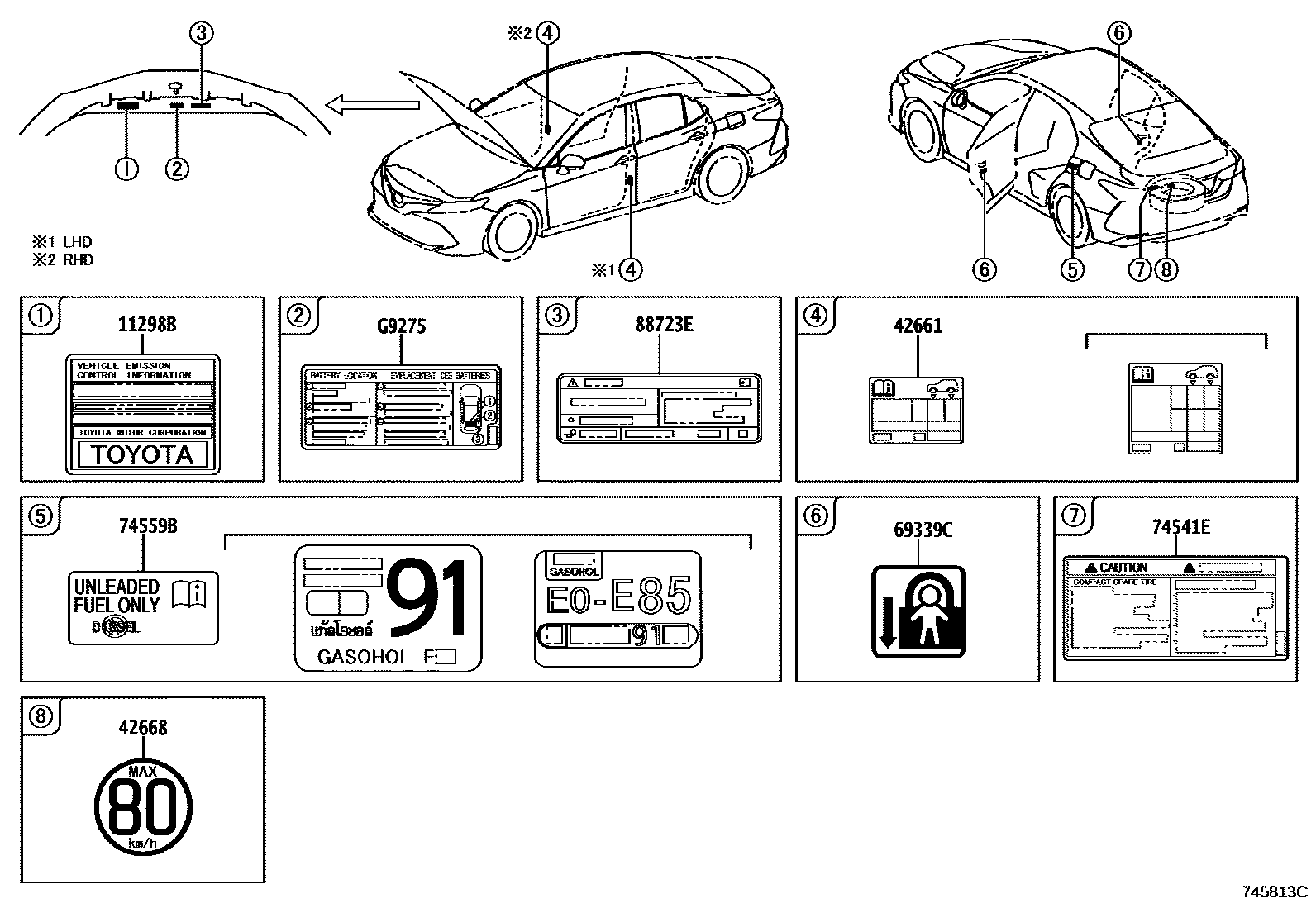

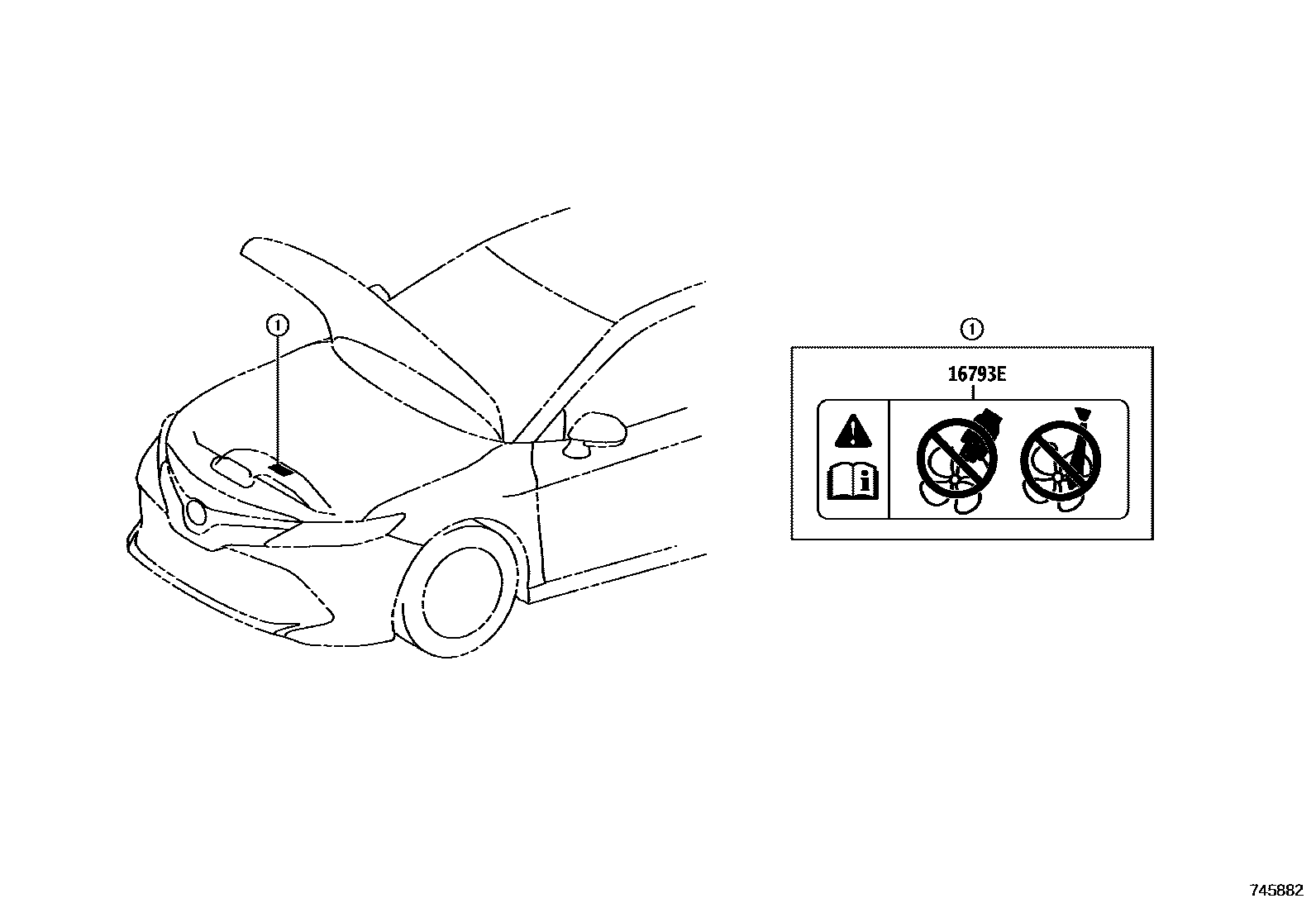

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 11298B | Emission Control Information Label | 11298-25181 · 11298-36161 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 42661 | tire pressure information label | 42661-06C10 · 42661-06C20 · 42661-06D70 · 42661-06D80 · 42661-33C80 · 42661-33J70 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 69339C | Child Restraint Information Label | 69339-06060 · 69339-0K010 |
| 74515C | Anti-theft warning information label | 74515-0K020 |
| 74541E | Small spare tire warning plate | 42668-02060 |
| 74559B | fuel information label | 74559-02030 · 74559-02050 · 74559-20140 · 74559-60030 |
| 74596A | Side air bag warning label | 74596-0K010 |
| 88723E | Cooler maintenance warning label | 88723-06170 · 88723-06190 · 88723-06240 · 88723-06250 |
| G9275 | No. 1 battery warning label | G9275-12010 |
