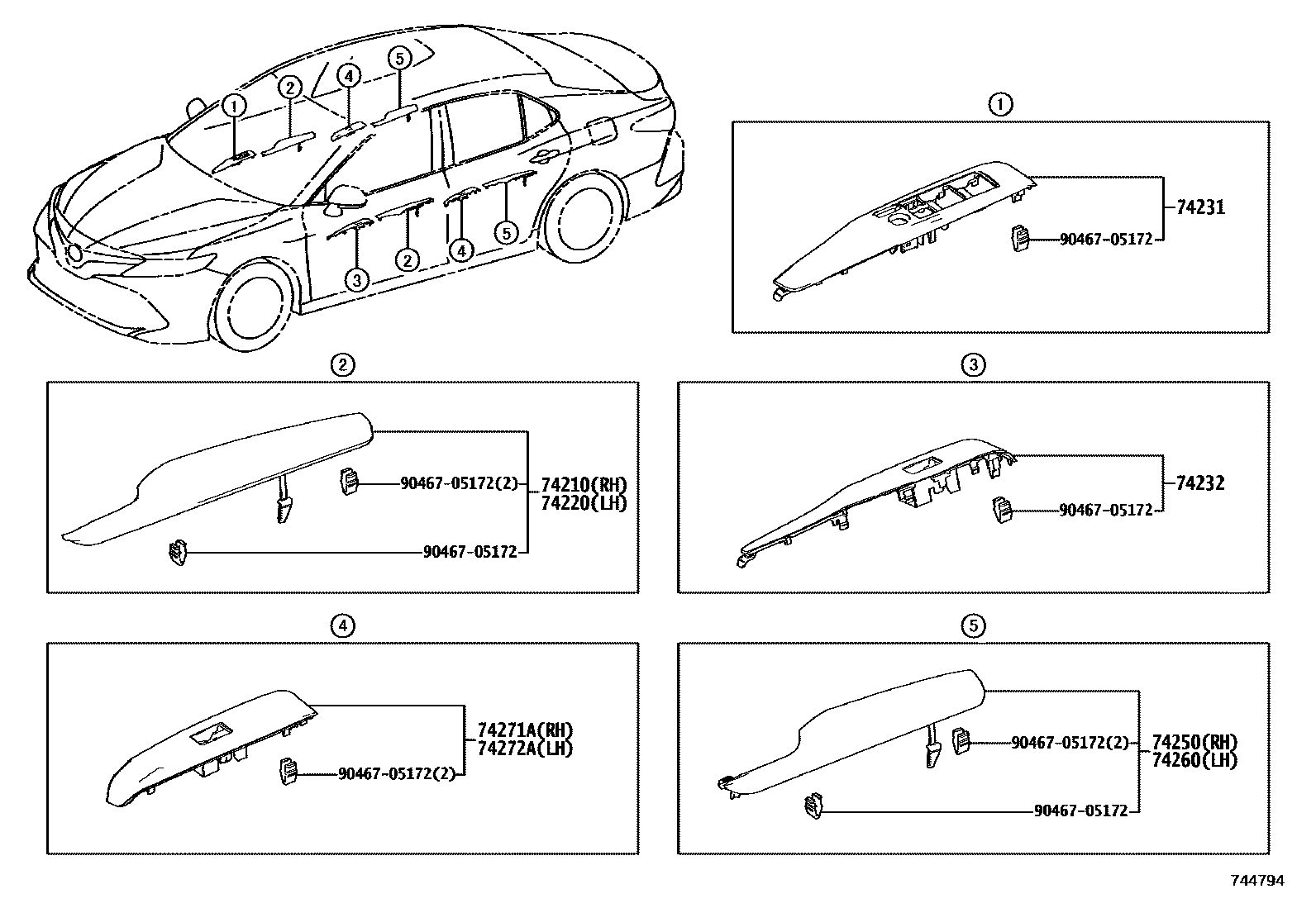

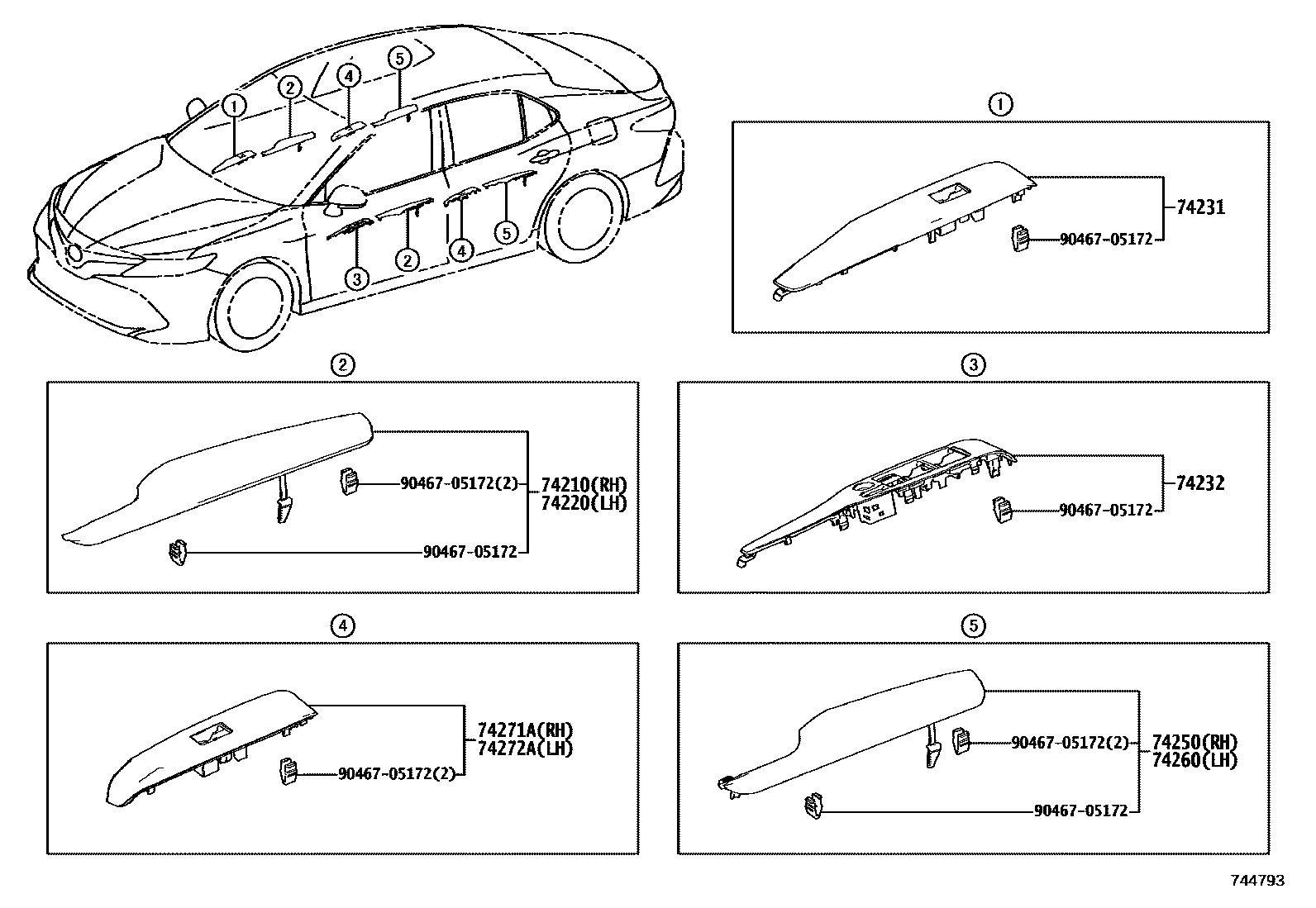

Toyota CAMRY 扶手和遮阳板 — Figure 7401
Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-06C00 · 74231-06C01 · 74231-06C50 · 74231-06C51 · 74231-06C60 · 74231-06C61 |
| 74232 | Left front armrest upper panel | 74232-06C00 · 74232-06C01 · 74232-06C50 · 74232-06C51 · 74232-06C60 · 74232-06C61 |
| 74271A | Right rear door armrest upper panel | 74271-06880 · 74271-06881 |
| 74272A | Left rear door armrest upper panel | 74272-06880 · 74272-06881 |
| 74614B | Auxiliary handle locking plate | 74614-06010 |
| 74614C | Auxiliary handle locking plate | 74614-06010 |
