Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

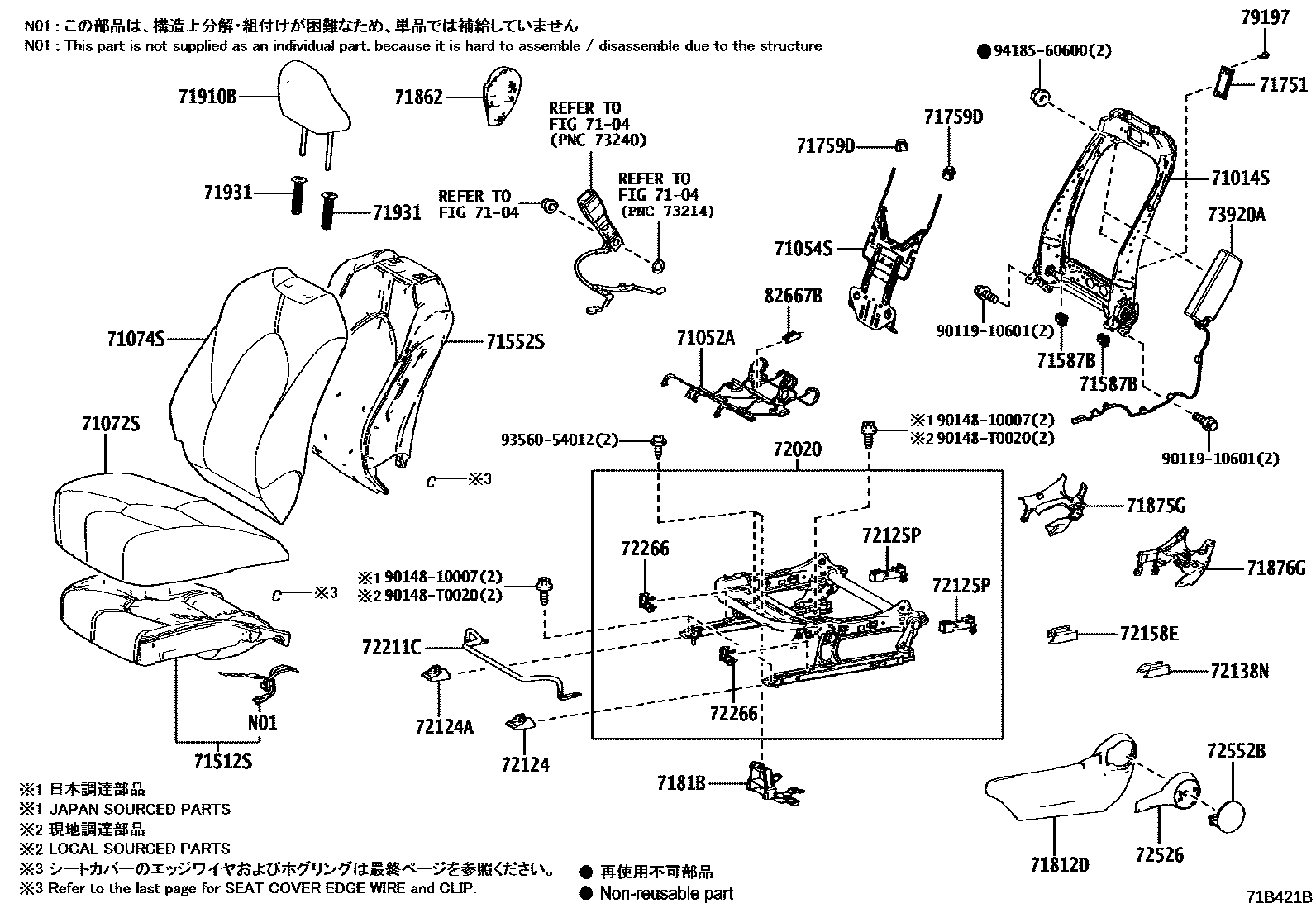

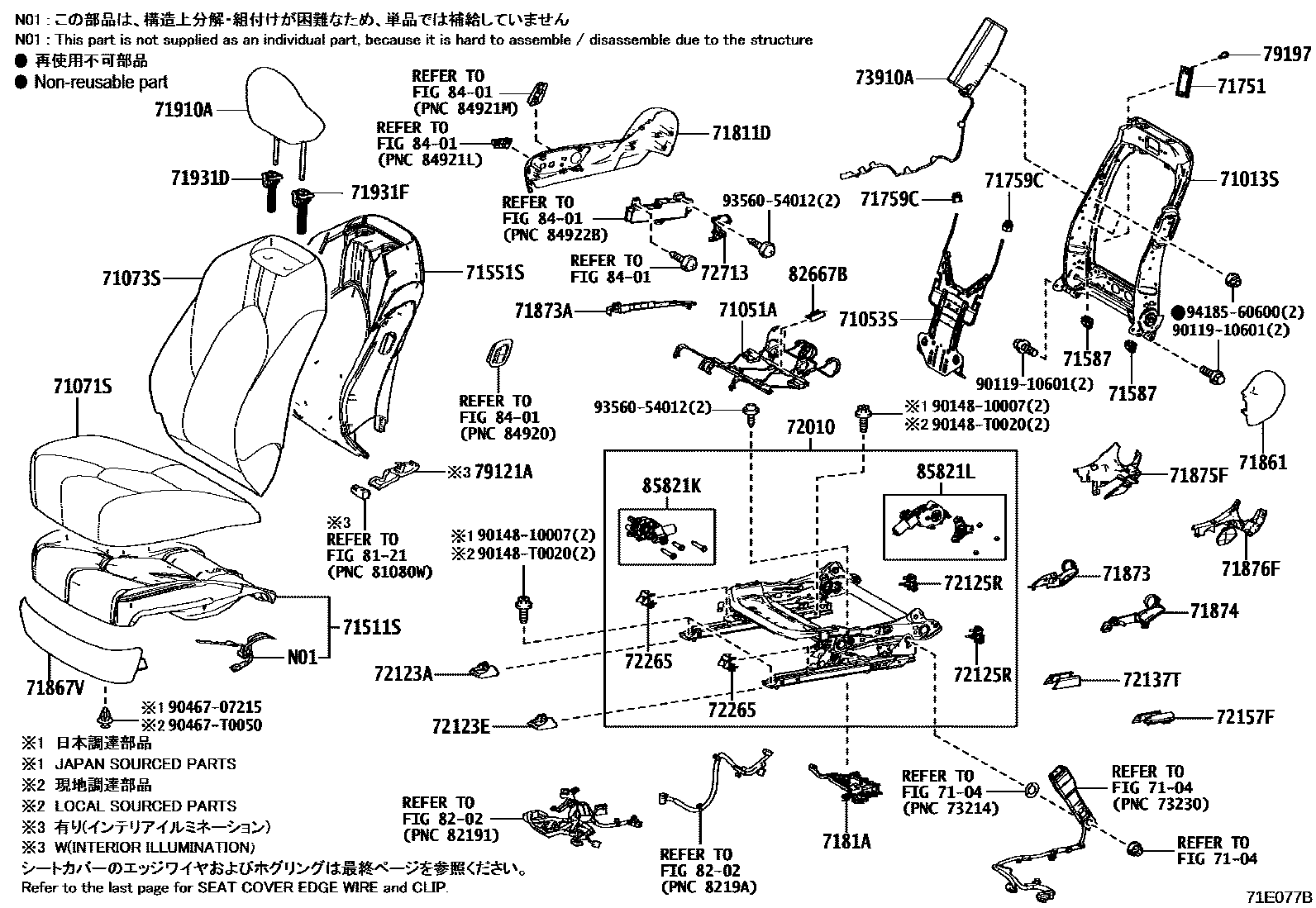

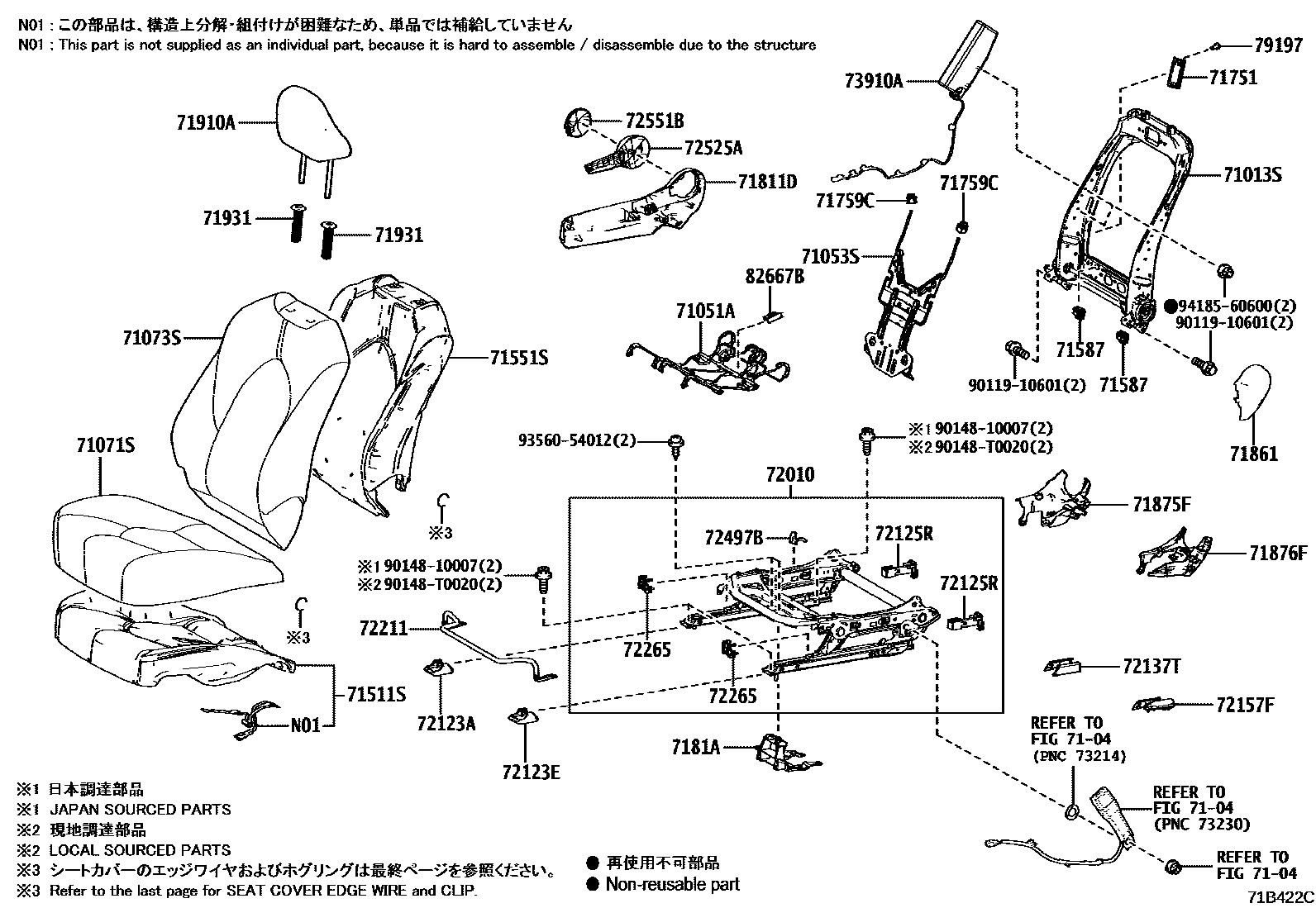

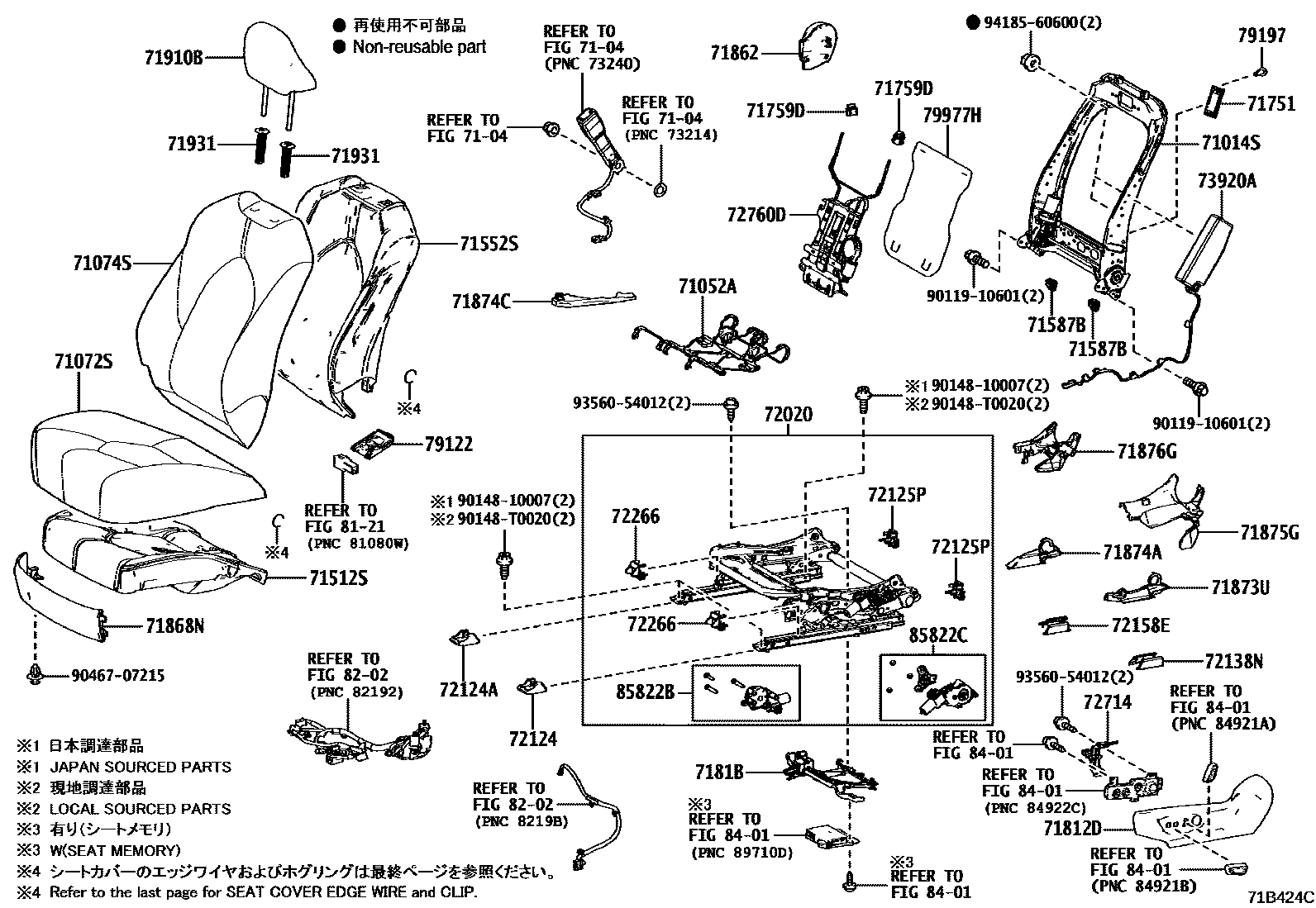

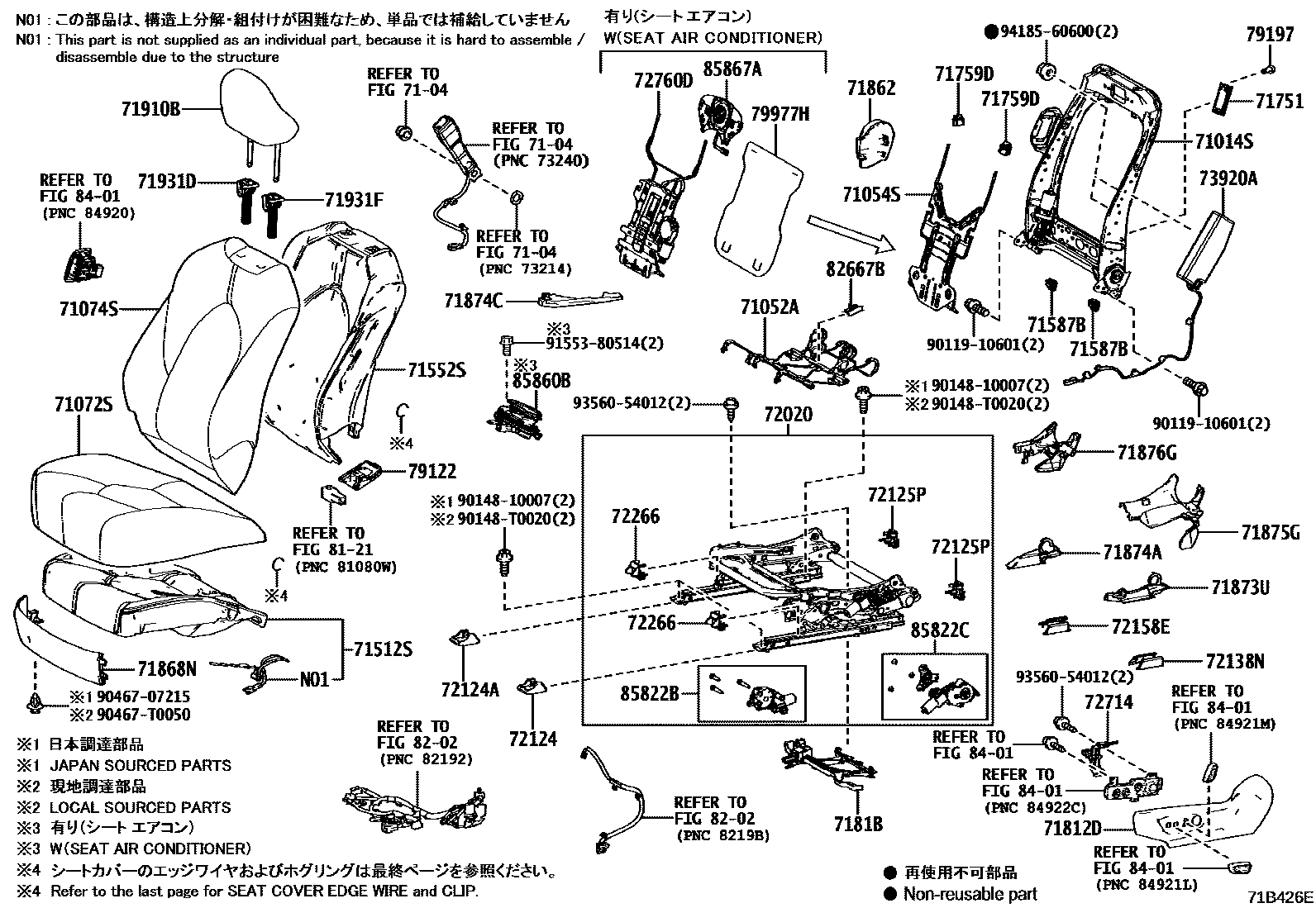

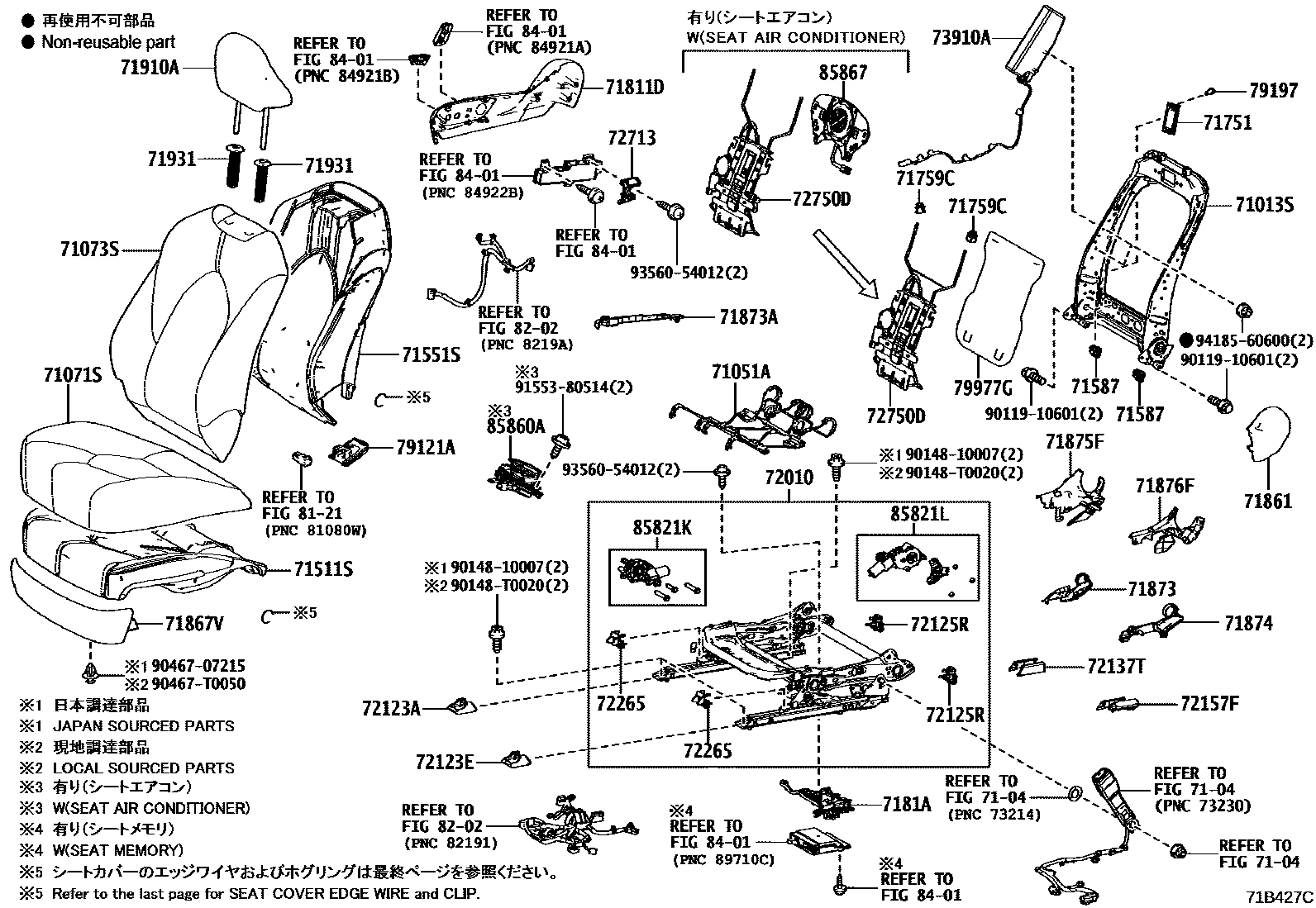

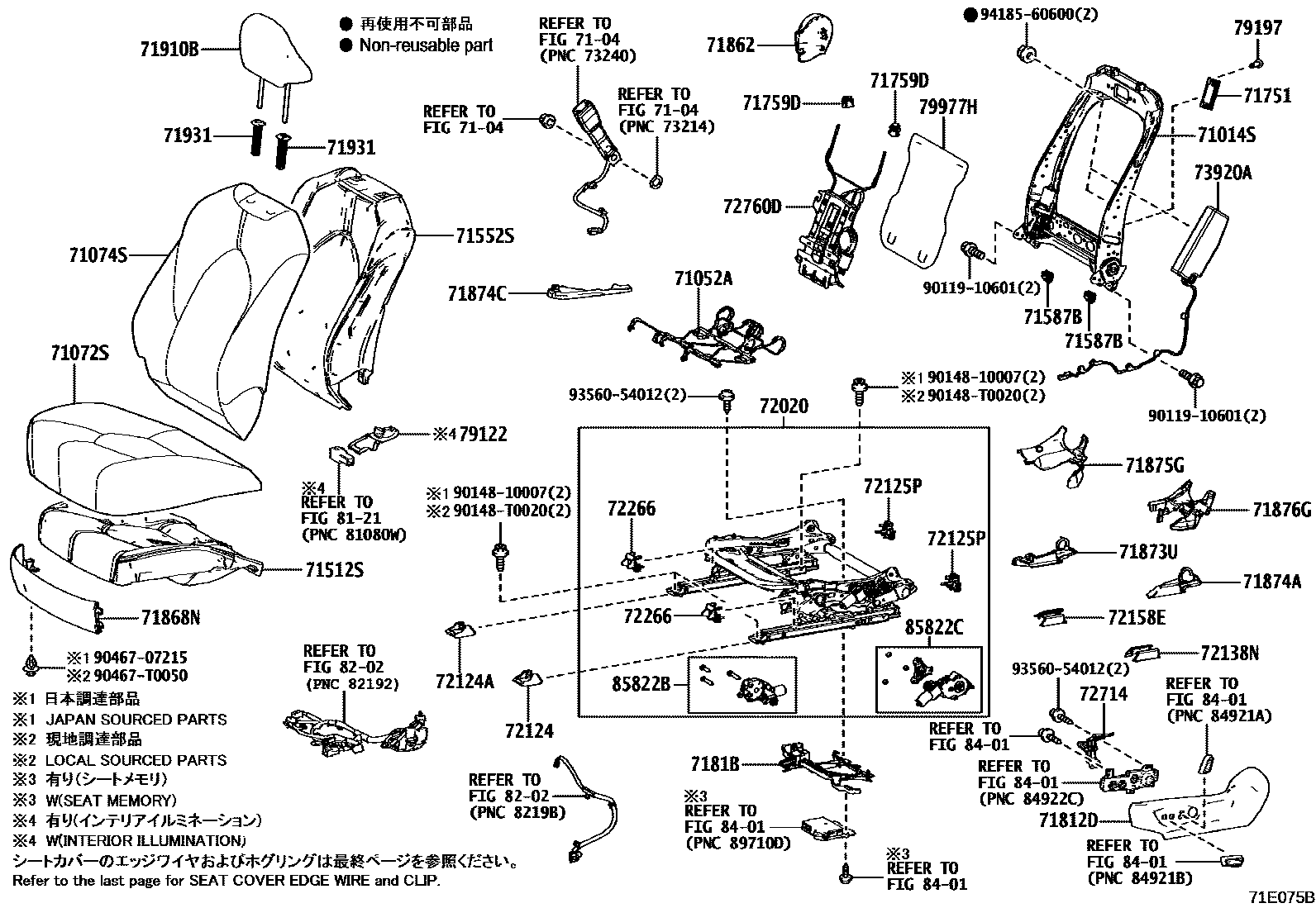

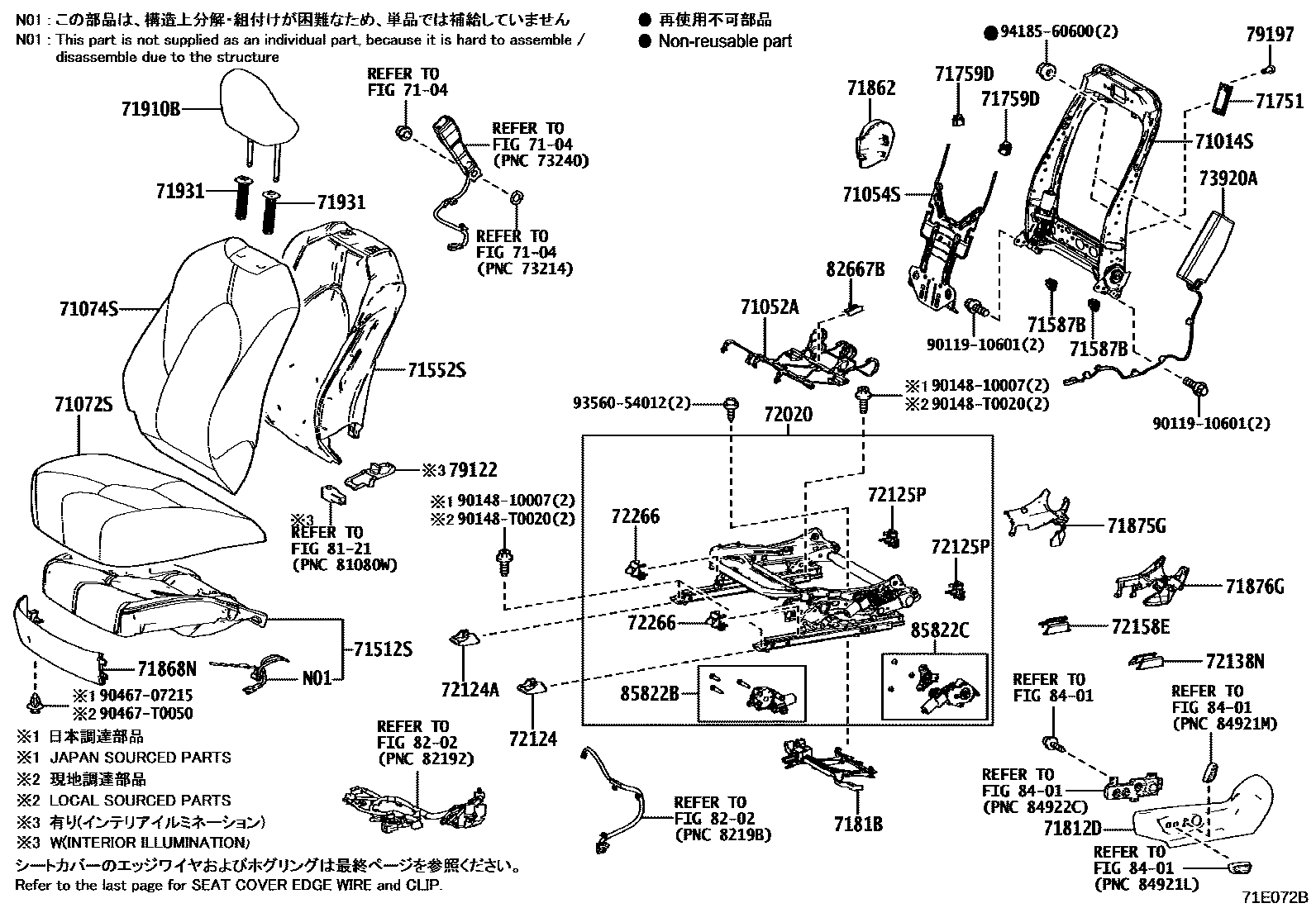

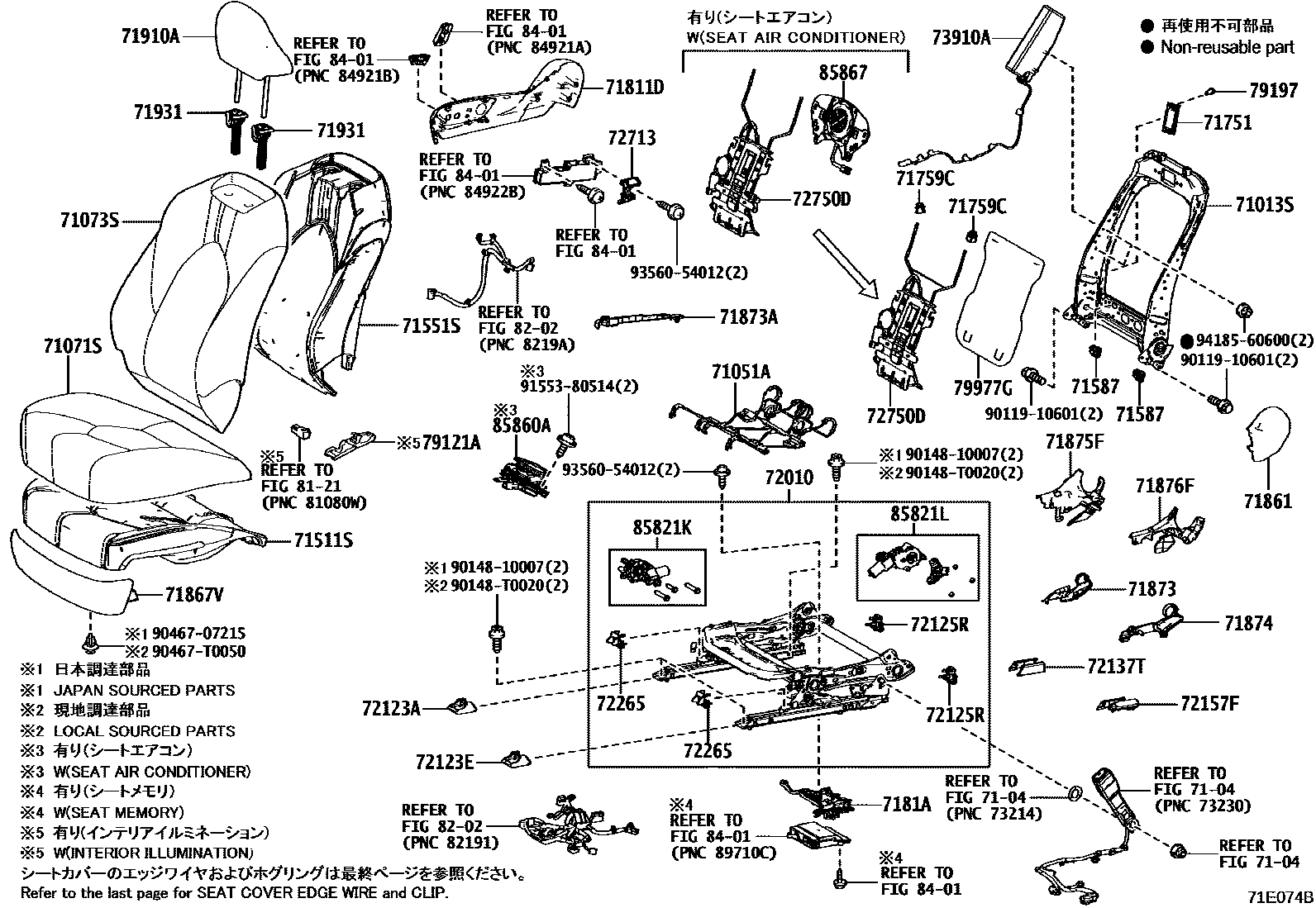

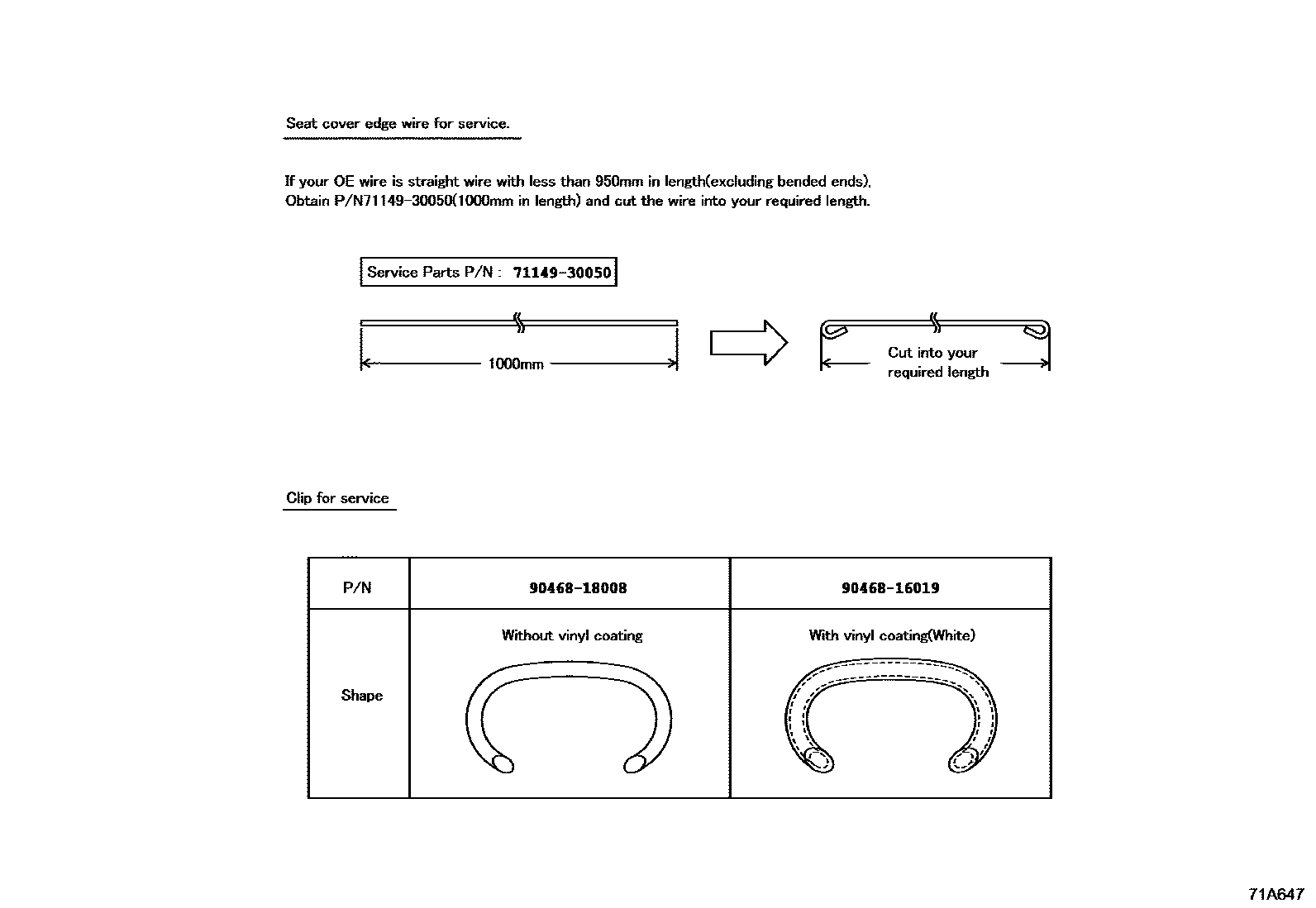

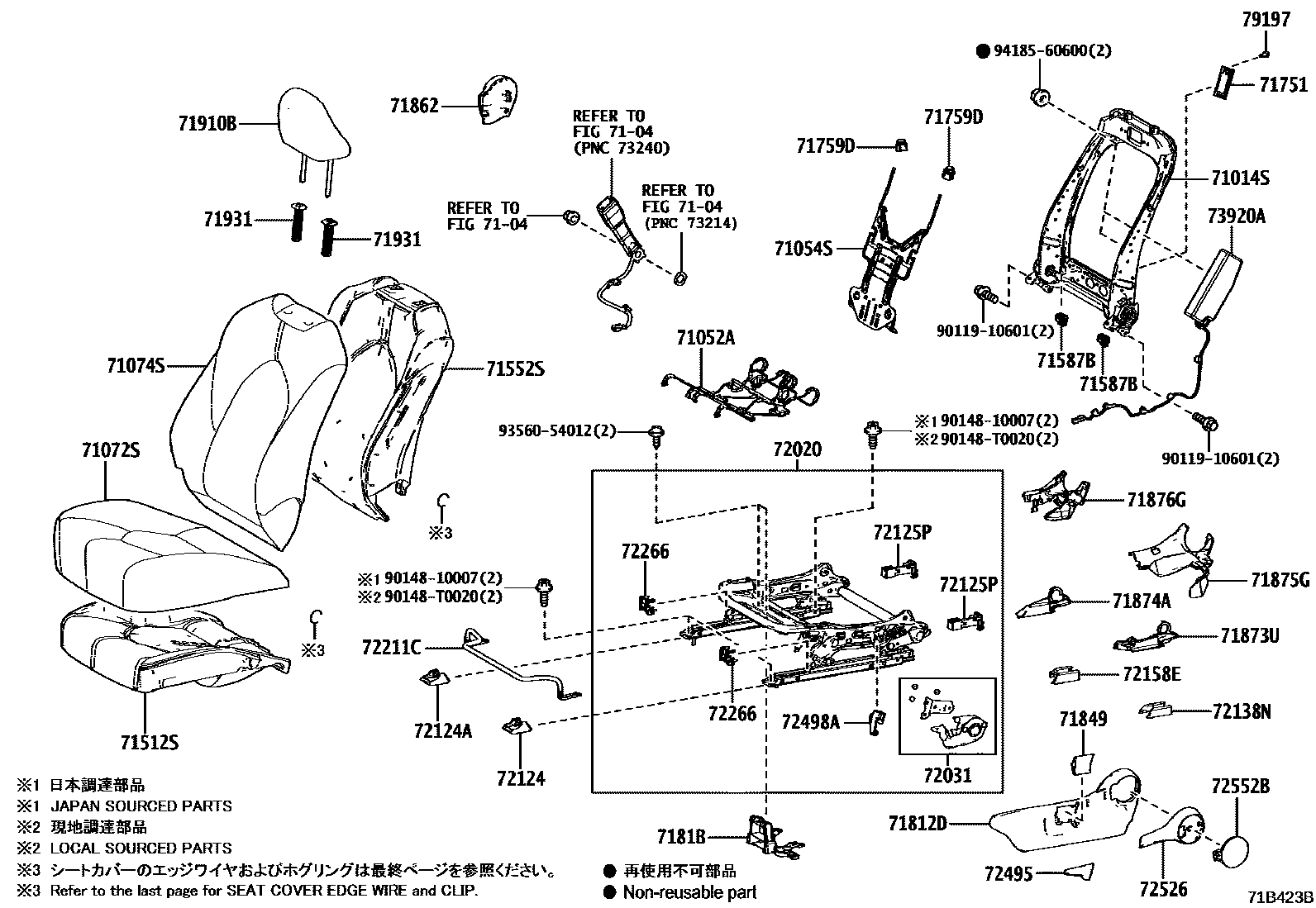

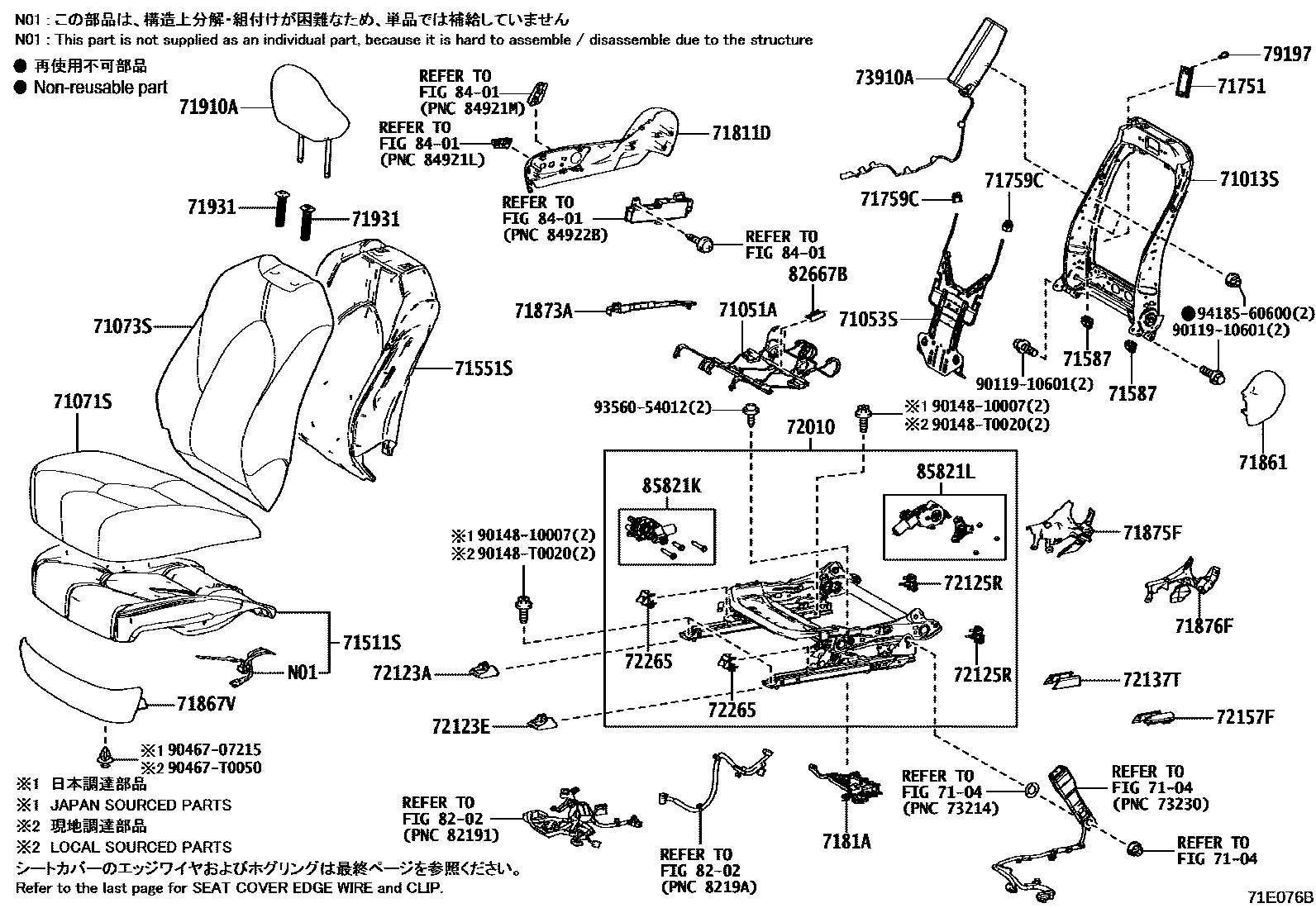

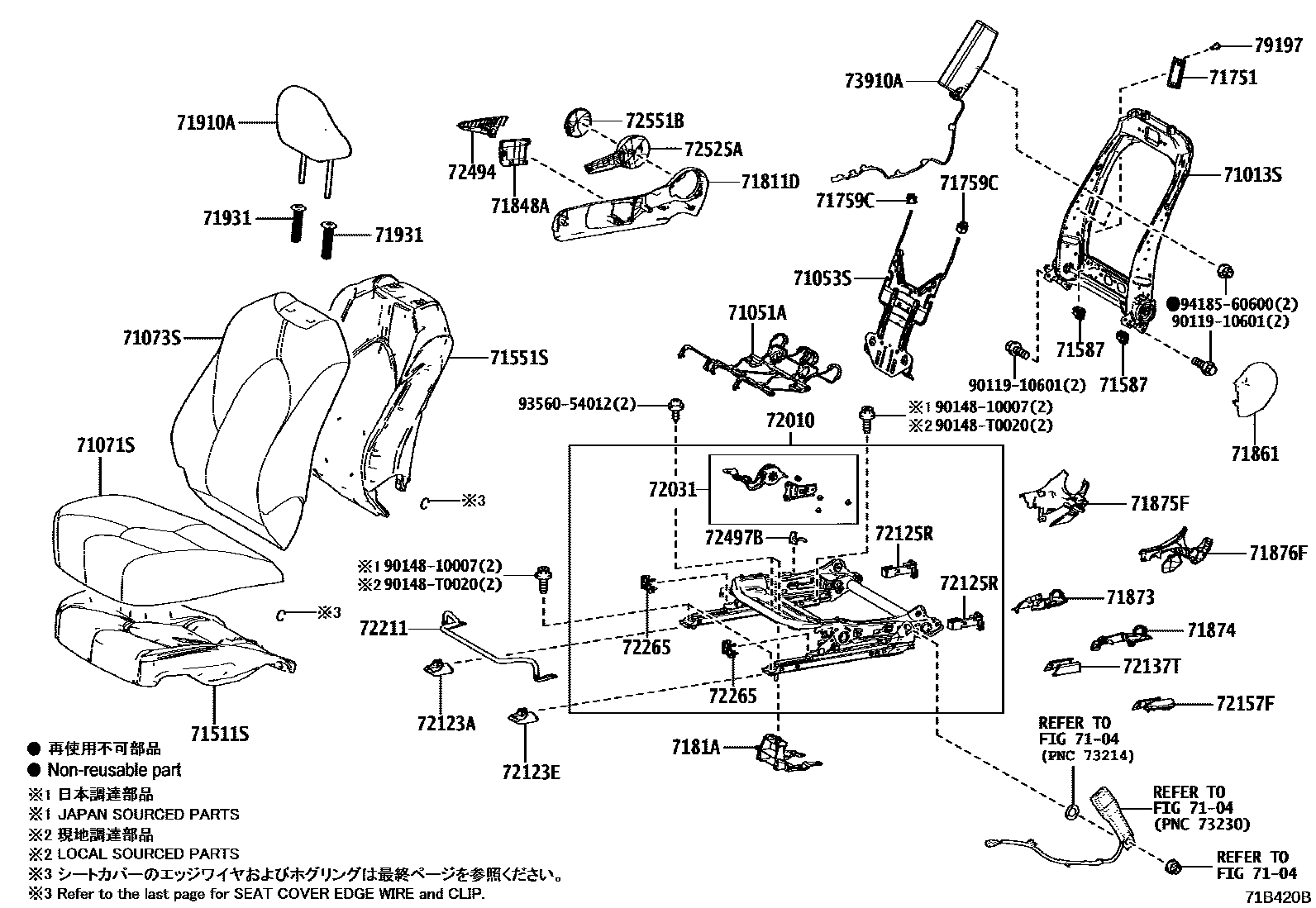

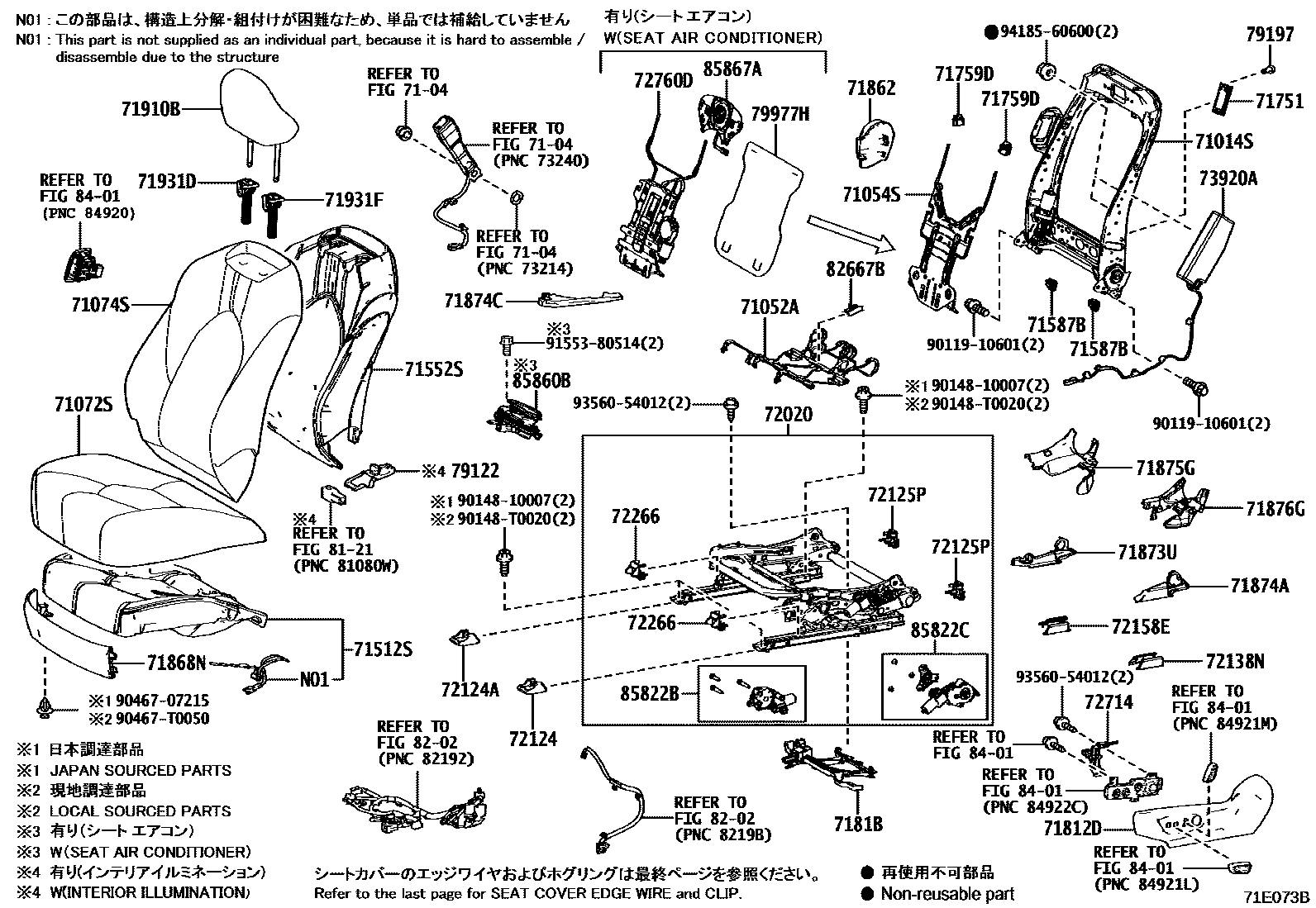

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 15 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06580 · 71013-06581 · 71013-06600 · 71013-06601 · 71013-06610 · 71013-06611 · 71013-06620 |
| 71014S | Front left seat back frame sub-assembly | 71014-06520 · 71014-06521 · 71014-06540 · 71014-06541 · 71014-06550 · 71014-06551 · 71014-06560 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-06120 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-06120 |
| 71053S | Front right seat back spring sub-assembly | 71053-06160 |
| 71054S | Front left seat back spring sub-assembly | 71053-06160 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06360 · 71501-06370 · 71511-06A50 · 71511-06A70 · 71511-06A80 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-06270 · 71502-06280 · 71502-06290 · 71512-06840 · 71512-06870 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06830 · 71551-06840 · 71551-06860 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06720 · 71552-06740 · 71552-06780 |
| 71587 | Front seat back edge protective cover | 71587-F4030 |
| 71587B | Front seat back edge protective cover | 71587-F4030 |
| 71751 | Seat cover hanger | 71751-0K070 · 71751-47050 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 |
| 71759D | Front seat back hook 2 | 71759-0K060 |
| 7181A | Front right seat cushion harness holder | 7181A-06030 · 7181A-F4020 |
| 7181B | Front left seat cushion harness holder | 7181B-06030 · 7181B-F4020 |
| 71873 | Front right seat cushion lower guard panel | 71873-06430 |
| 71873A | Front seat cushion lower guard | 71873-06550 |
| 71873U | Front right seat cushion lower guard panel | 71874-06640 |
| 71874 | Front left seat cushion lower guard | 71873-06620 |
| 71874A | Front left seat cushion lower guard | 71874-06420 |
| 71874C | Front seat cushion lower guard | 71874-06570 |
| 72010 | Front right seat adjuster assembly | 72010-06440 · 72010-06450 · 72010-06460 · 72010-06461 · 72010-06470 · 72010-06570 |
| 72020 | Front left seat adjuster assembly | 72020-06420 · 72020-06430 · 72020-06440 · 72020-06441 · 72020-06450 · 72020-06590 |
| 72031 | Front seat height adjuster assembly | 72443-47010 · 72443-47011 · 72443-47020 · 72443-47021 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06130 |
| 72123E | Front right seat inner slide rail bracket cover | 72123-06130 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-06130 |
| 72124A | Front left seat inner slide rail bracket cover | 72123-06130 |
| 72125P | Slide rail cover on rear seat 3 | 72125-06090 · 72125-06100 · 72125-47020 |
| 72125R | Slide rail cover on rear seat No. 1 | 72125-06090 · 72125-06100 · 72125-47020 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-06150 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-06150 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-06210 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-06210 |
| 72211 | Seat slide adjustment handle | 72211-06150 |
| 72211C | Seat slide adjustment handle | 72211-06150 |
| 72265 | Right seat rail upper rail cover | 72265-06040 · 72265-06060 · 72265-47020 |
| 72266 | Left seat rail upper rail cover | 72265-06040 · 72265-06060 · 72265-47020 |
| 72497B | Right height adjuster bracket cover | 72498-06020 |
| 72498A | Left height adjuster bracket cover | 72498-06010 |
| 72713 | Right seat adjuster protective clip bracket | 72713-06020 |
| 72714 | Left seat adjuster protective clip bracket | 72714-06020 |
| 72750D | Right lumbar support adjuster assembly | 72750-11010 · 72750-11020 |
| 72760D | Left lumbar support adjuster assembly | 72760-11010 · 72760-11020 |
| 73910A | Front right seat airbag assembly | 73910-06210 |
| 73920A | Front left seat airbag assembly | 73920-06220 |
| 79121A | Front right seat cushion bracket | 79121-06010 |
| 79122 | Front left seat cushion bracket | 79122-06010 |
| 79197 | Seat back cover hook | 79197-0K010 · 79197-47010 |
| 79977G | Front seat back right felt pad | 79977-06040 |
| 79977H | Felt pad, left side of front seat backrest | 79977-06040 |
| 82667B | Connector holder | 82666-47630 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-11020 · 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-11030 · 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-11040 · 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-11050 · 85801-47030 |
| 85860A | Right seat cushion temperature control blower assembly | 85801-11010 · 85801-42040 |
| 85860B | Left seat cushion temperature control blower assembly | 85802-11010 · 85802-42020 |
| 85867 | Right seat back temperature control blower | 85867-11010 · 85867-42020 |
| 85867A | Left-hand seat back temperature control blower | 85867-11010 · 85867-42020 |
