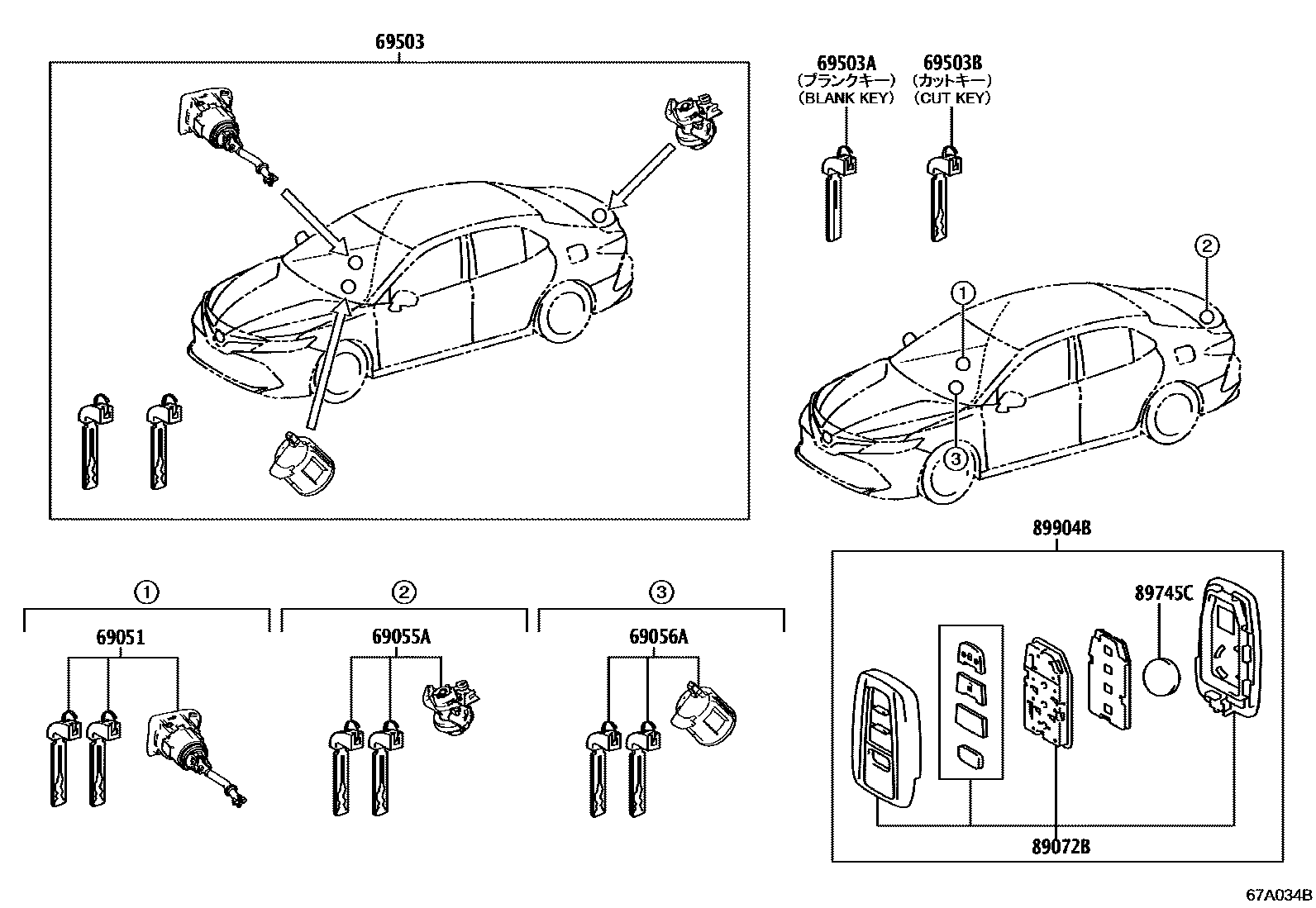

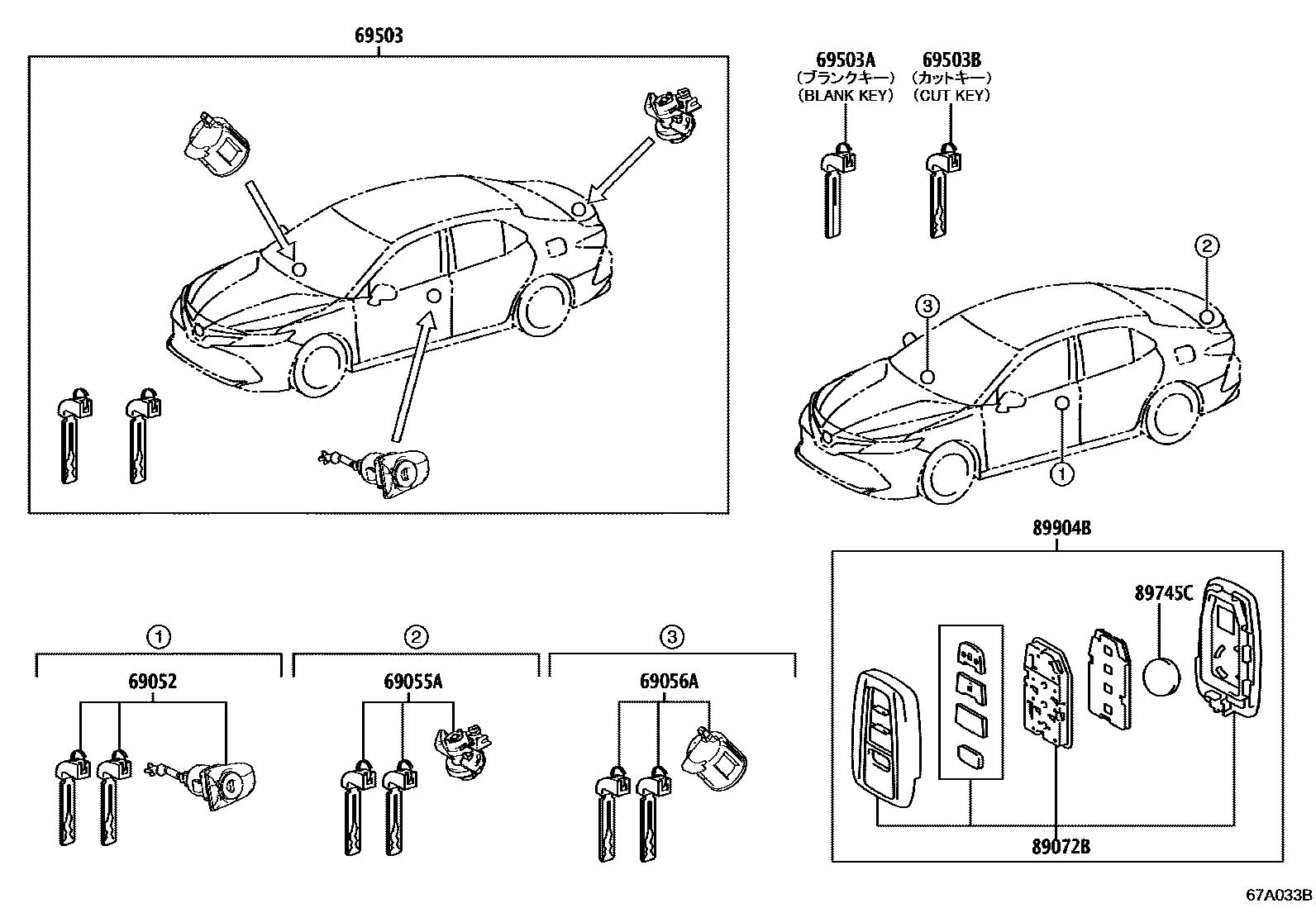

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06160 |
| 69052 | Left door lock cylinder and key assembly | 69052-06310 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06160 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06170 |
| 69503 | Door lock cylinder components | 69005-06830 · 69005-06860 |
| 69503A | external tooth key | 69515-06050 · 69515-16110 |
| 69503B | internal tooth key | 69515-06040 · 69515-0A010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-33A60 · 89072-33B50 · 89072-33B51 · 89072-33B52 · 89072-33C10 · 89072-33C40 · 89072-33C50 · 89072-33C51 · 89072-33C52 · 89072-33C53 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33830 · 89904-33840 · 89904-33860 · 89904-33870 · 89904-33F00 · 89904-33F01 · 89904-33F02 · 89904-33F10 · 89904-33F11 · 89904-33F12 |
