Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 9 PNC and OE references.

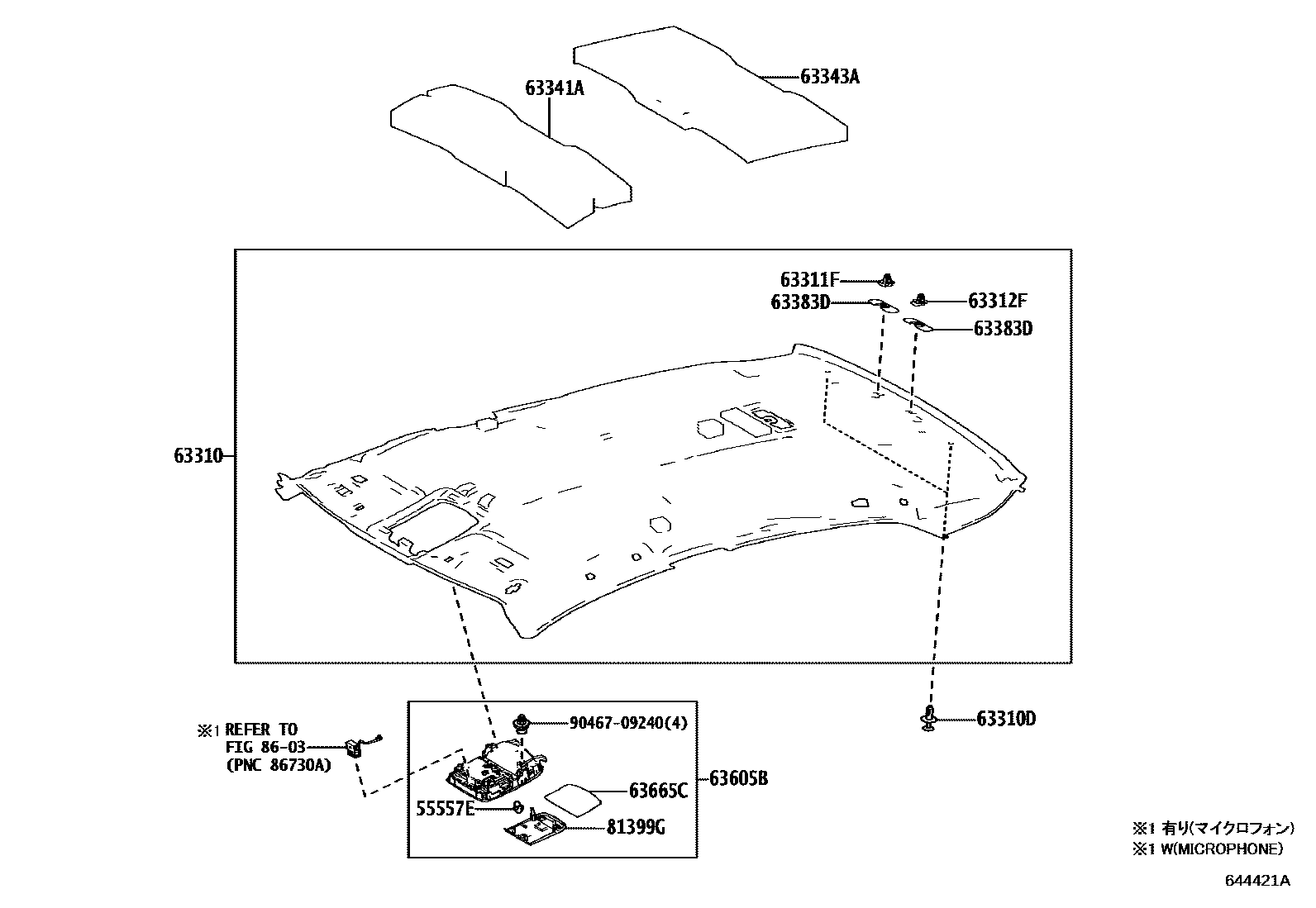

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 644421A
车顶内衬和消声垫 — 644421A (201810 – 999999)

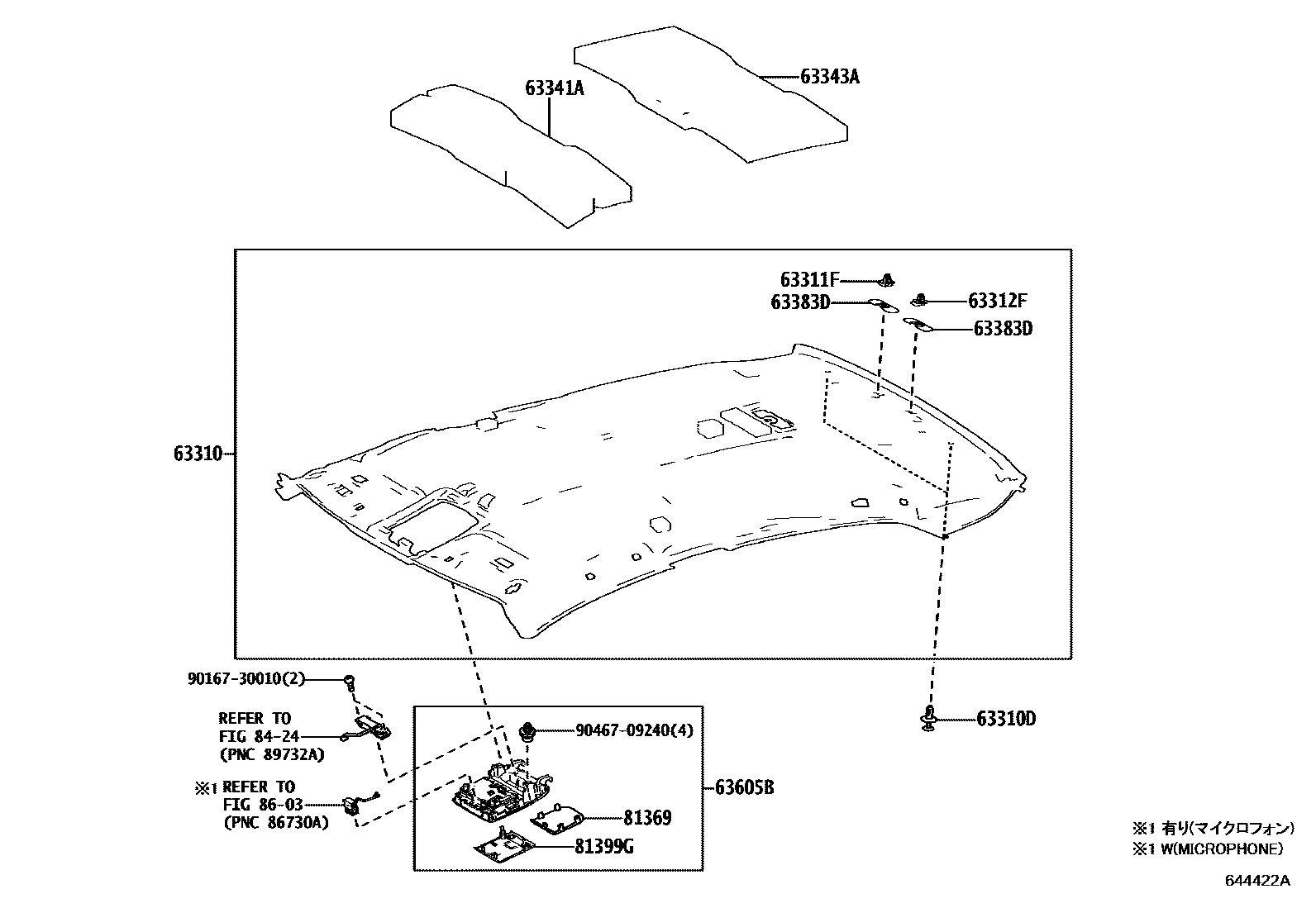

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 644422A
车顶内衬和消声垫 — 644422A (201810 – 999999)

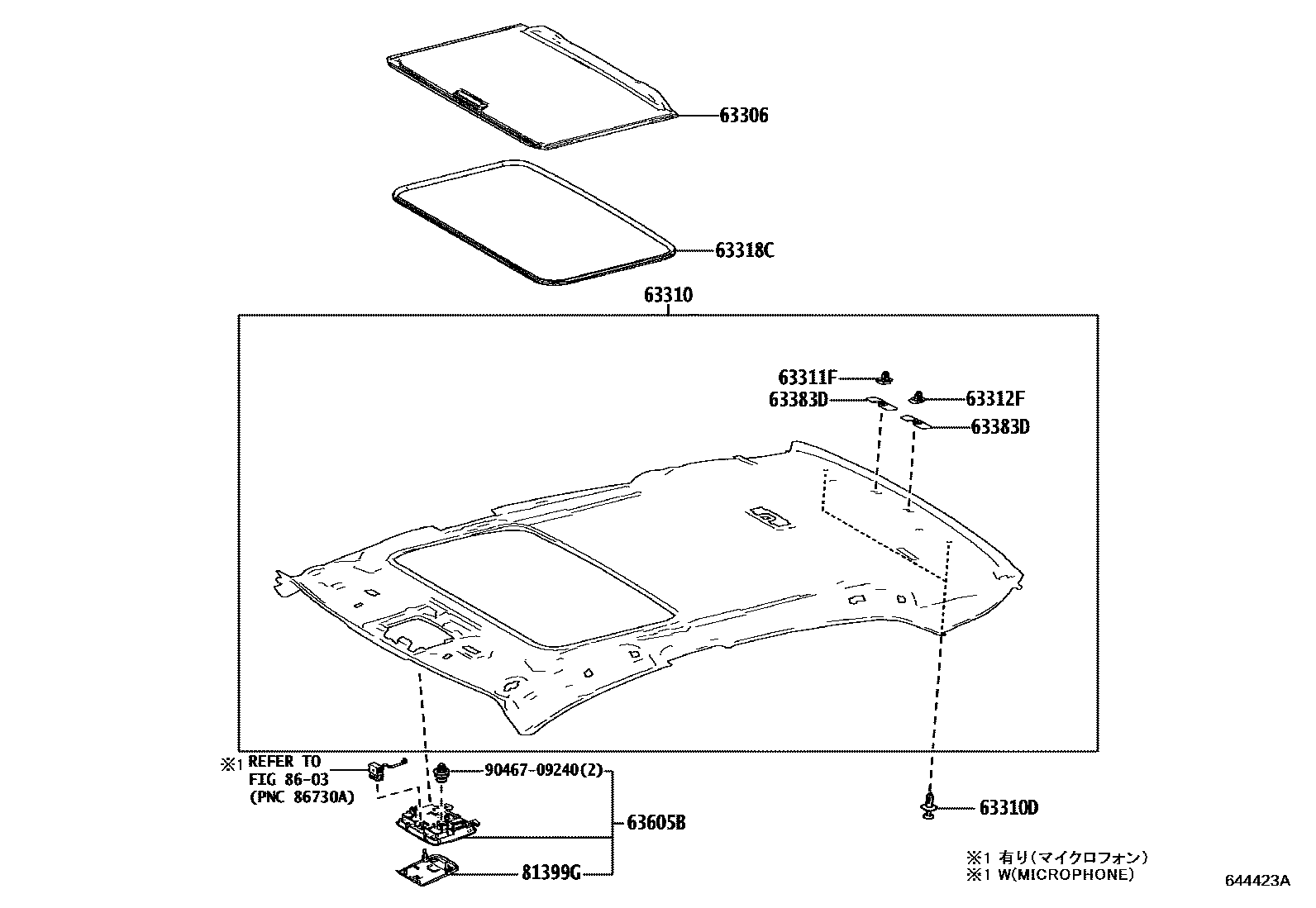

Toyota CAMRY 车顶内衬和消声垫 EPC diagram — 644423A
车顶内衬和消声垫 — 644423A (201810 – 999999)

PNC and OE references

PNCPart nameOE numbers
55557Eroof console cushion55557-47050
63311FNo. 1 headliner clip90467-10181
63312FNo. 2 headliner clip90467-09126
63341ANo. 1 roof silencer63341-06240
63343ANo. 3 roof silencer63343-06240
63383DRear headliner fixings63383-24030
63665Croof console mat63665-33020
81369spotlight cover81369-33010
81399GLampshade cover81399-33010 · 81399-33060 · 81399-33080
