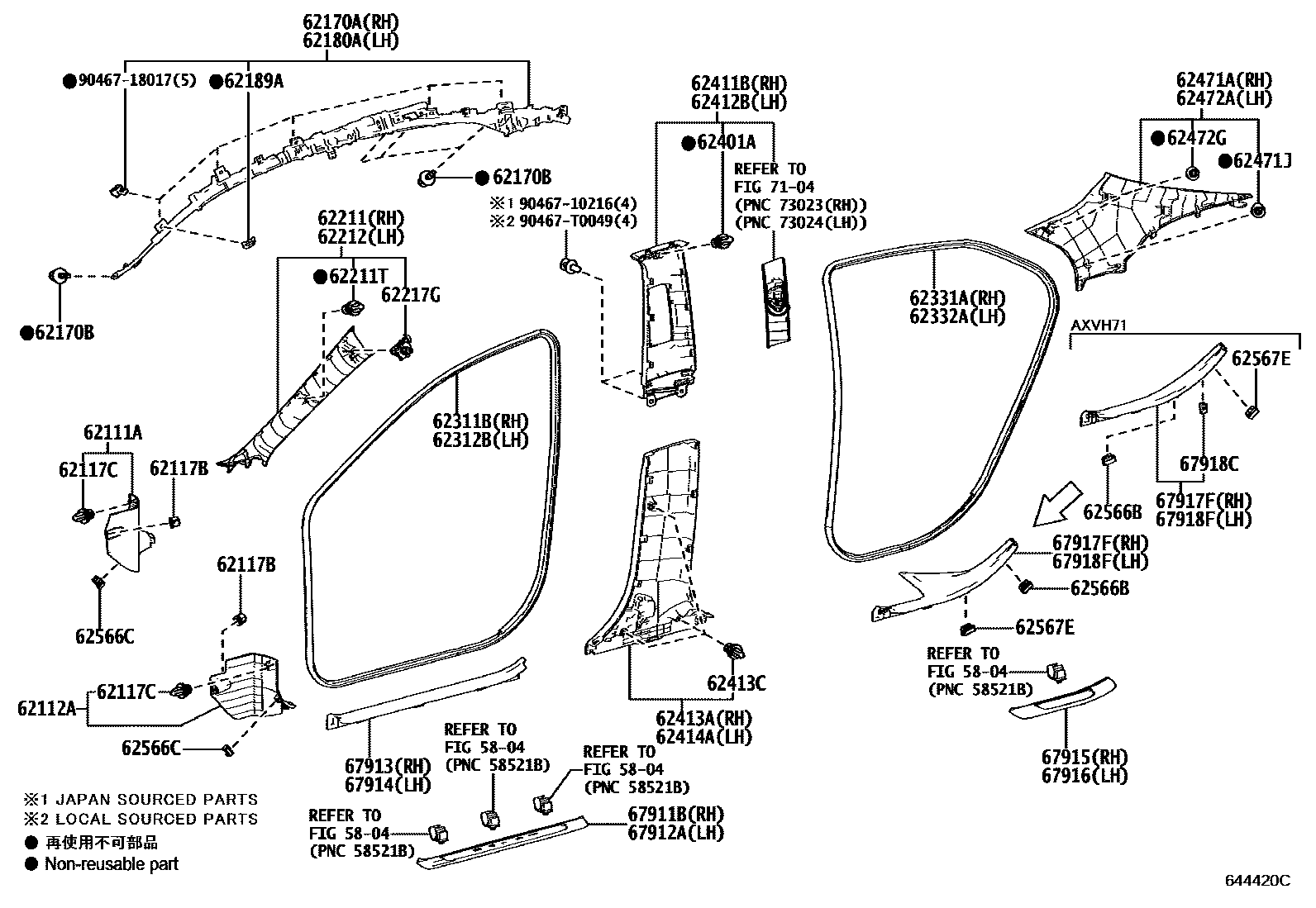

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401
Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-T0021 |
| 62170A | Right curtain air bag assembly | 62170-06140 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-06140 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-T0021 |
| 62217G | Front pillar decorative plate clip | 62217-24020 |
| 62311B | Right front door opening waterproof tape | 62311-06240 |
| 62312B | Left front door opening waterproof tape | 62312-06240 |
| 62331A | Right rear door opening waterproof tape | 62331-06220 |
| 62332A | Left rear door opening waterproof tape | 62332-06220 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-T0021 |
| 62471J | Clips (for roof side trim panels) | 90467-09240 |
| 62472G | Clips (for roof side trim panels) | 90467-10188 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-32010 |
| 62566C | Front wall side trim clip | 62567-33040 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33040 |
| 67911B | Right front door outer wear plate | 67911-06210 |
| 67912A | Left front door outer wear plate | 67912-06210 |
| 67915 | Right rear door outer wear plate | 67915-06180 · 67915-06220 |
| 67916 | Left rear door outer wear plate | 67916-06110 · 67916-06200 |
| 67918C | Catch (for rear door wear plate) | 90467-05171 |
