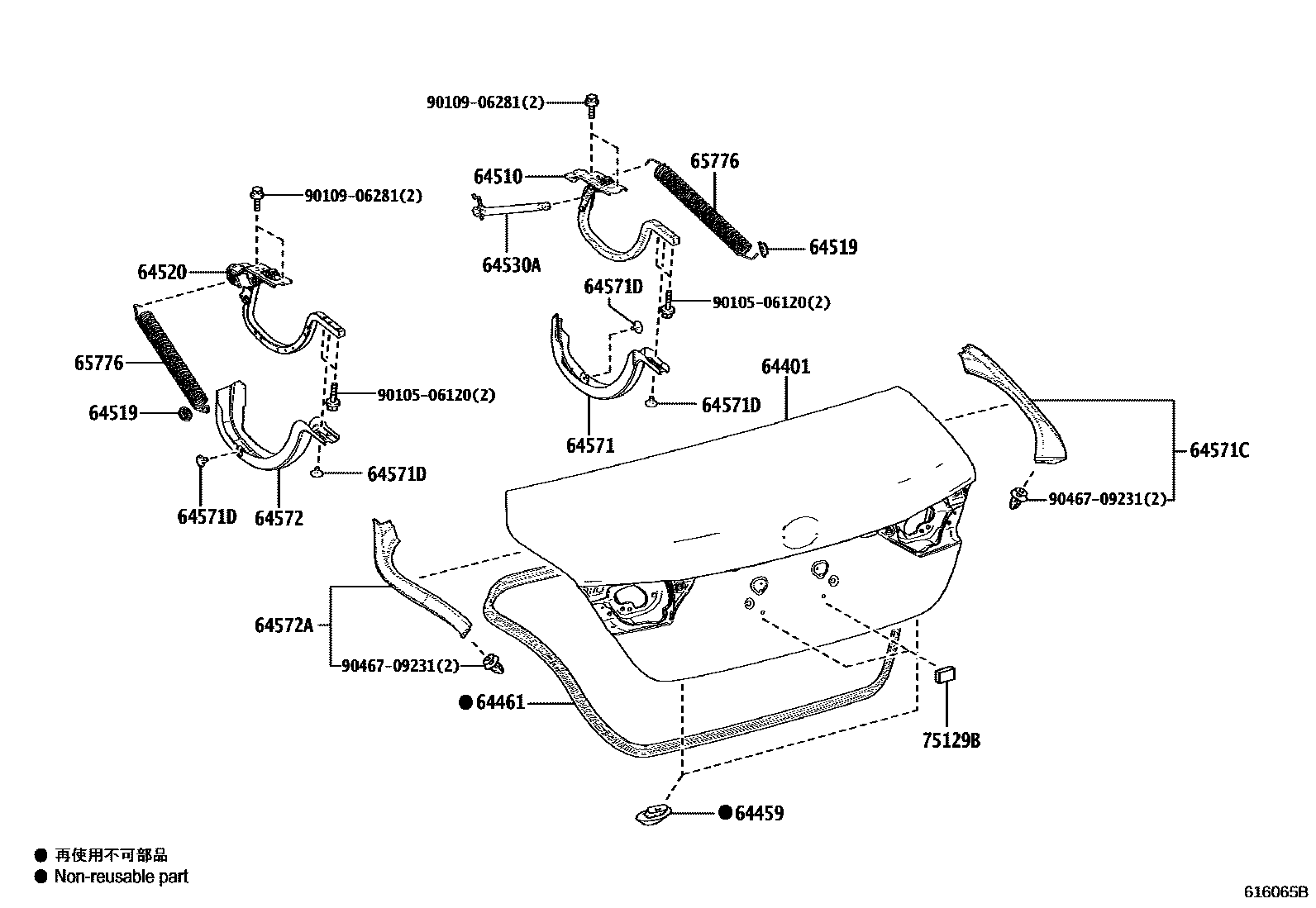

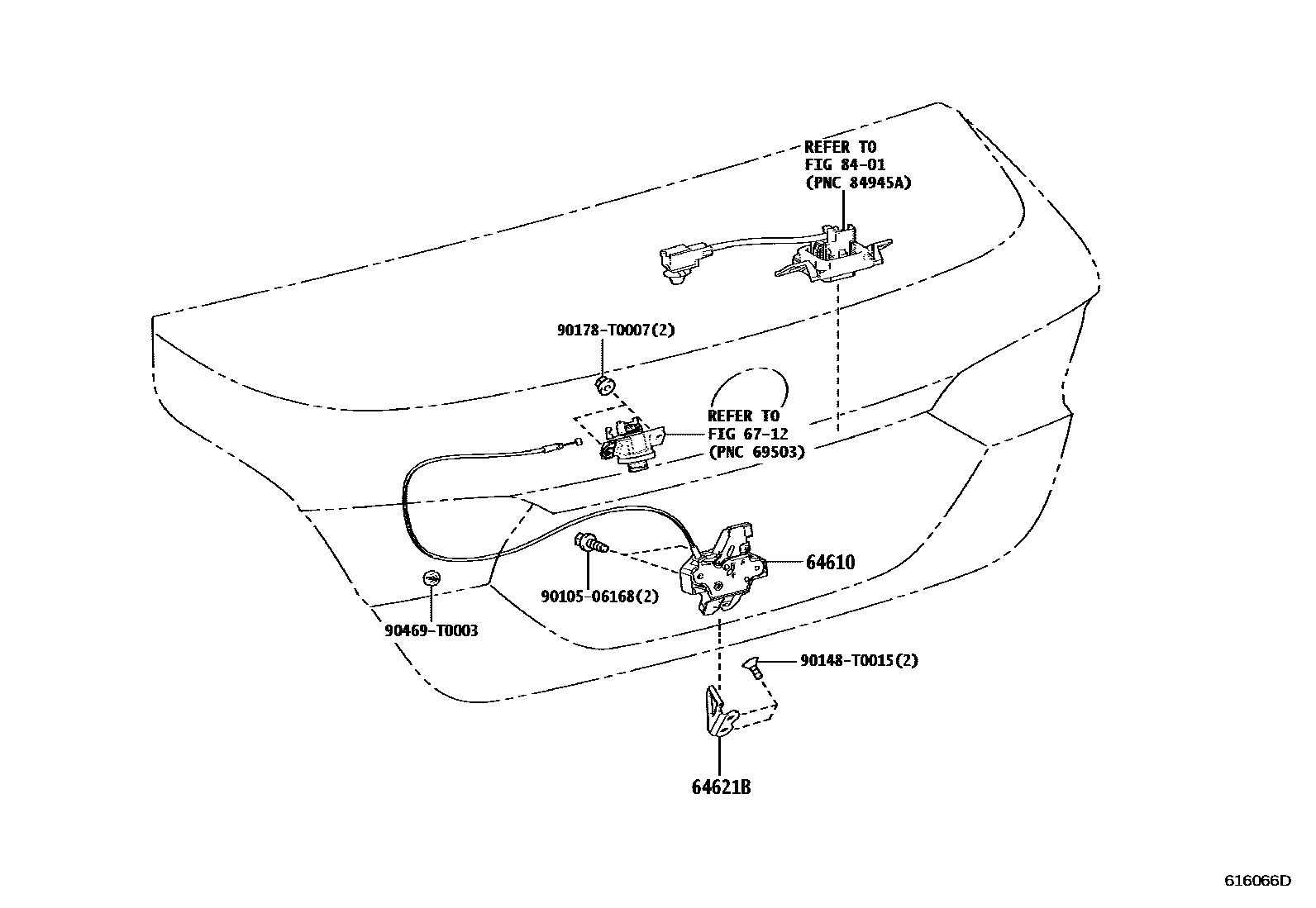

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-06F20 |
| 64459 | Trunk door cushion | 64459-06020 |
| 64461 | Trunk door seal | 64461-06250 |
| 64510 | Trunk door right hinge assembly | 64510-06350 |
| 64519 | Trunk door hinge bracket bushing | 64519-06270 |
| 64520 | Trunk door left hinge assembly | 64520-06170 |
| 64530A | Trunk door bracket assembly | 64530-06010 |
| 64571 | Trunk door hinge cover | 64571-06120 |
| 64571C | Decorative cover on right side of luggage compartment door | 64571-06170 |
| 64572 | Trunk door left hinge cover | 64572-06100 |
| 64572A | Luggage door left decorative cover | 64572-06150 |
| 64610 | Trunk door lock assembly | 64600-06100 |
| 64621B | Trunk door latch | 64621-06080 |
| 65776 | Rear door support rod spring | 65776-33011 |
| 75129B | rear license plate cushion | 75129-13020 |
