Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

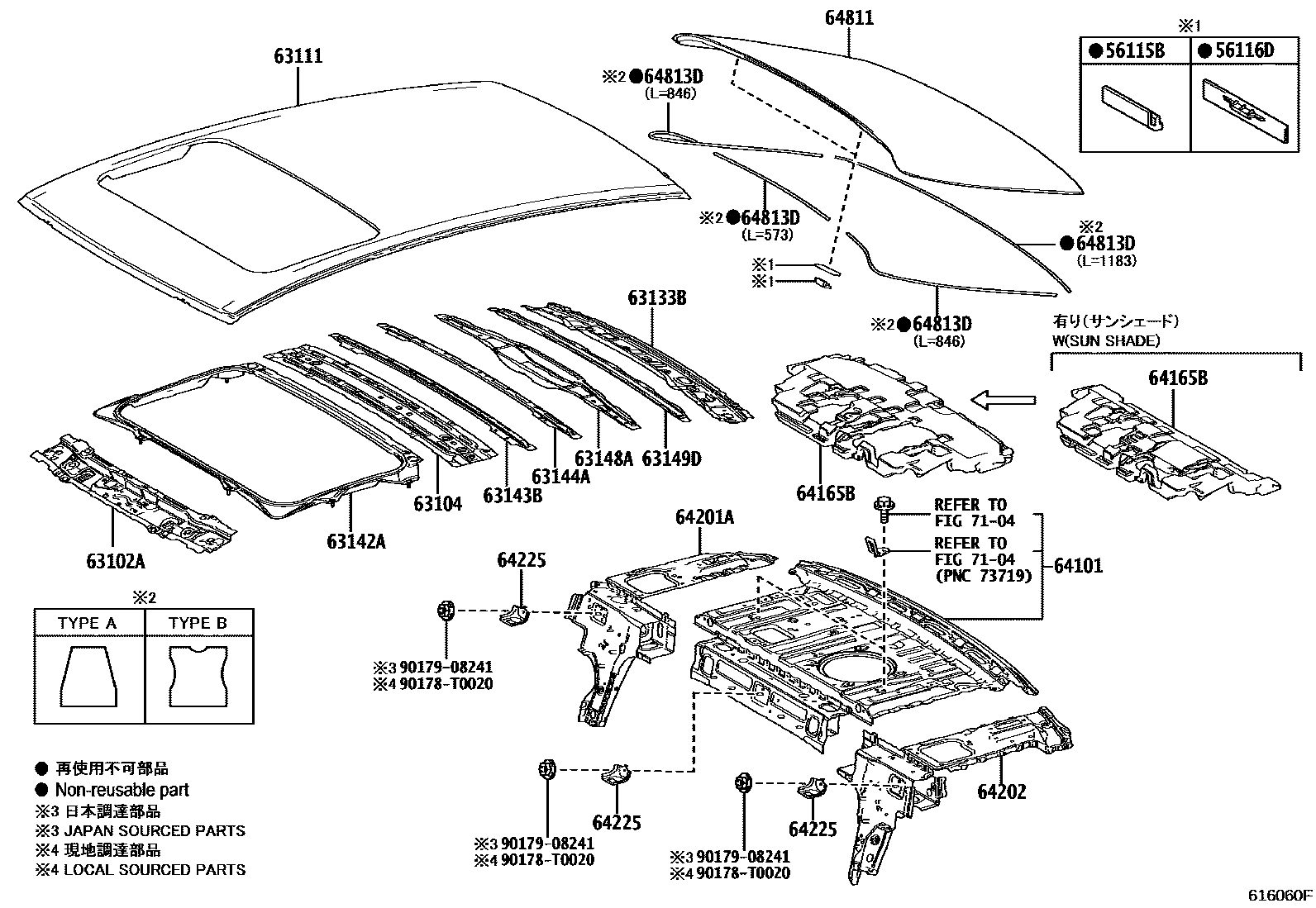

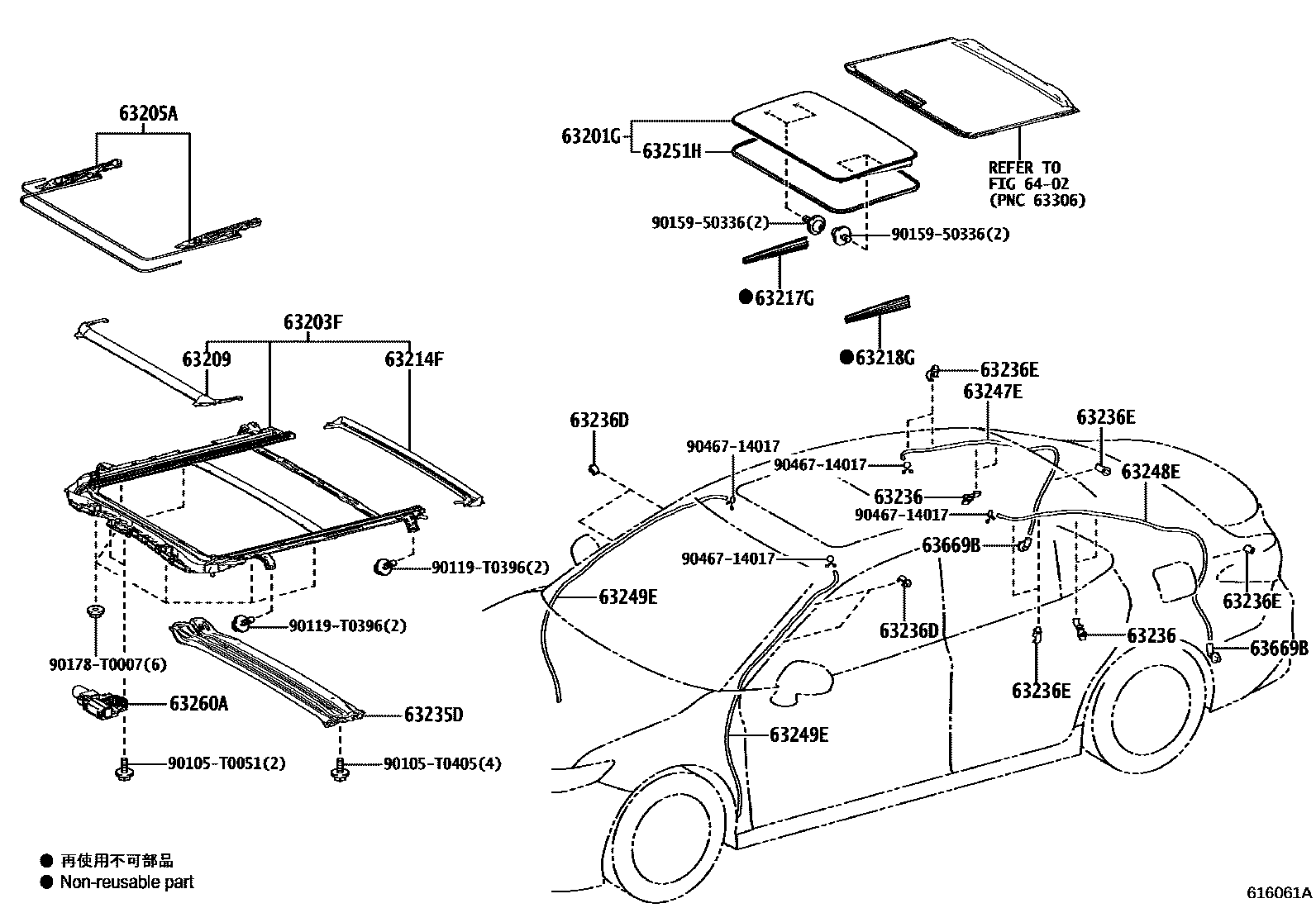

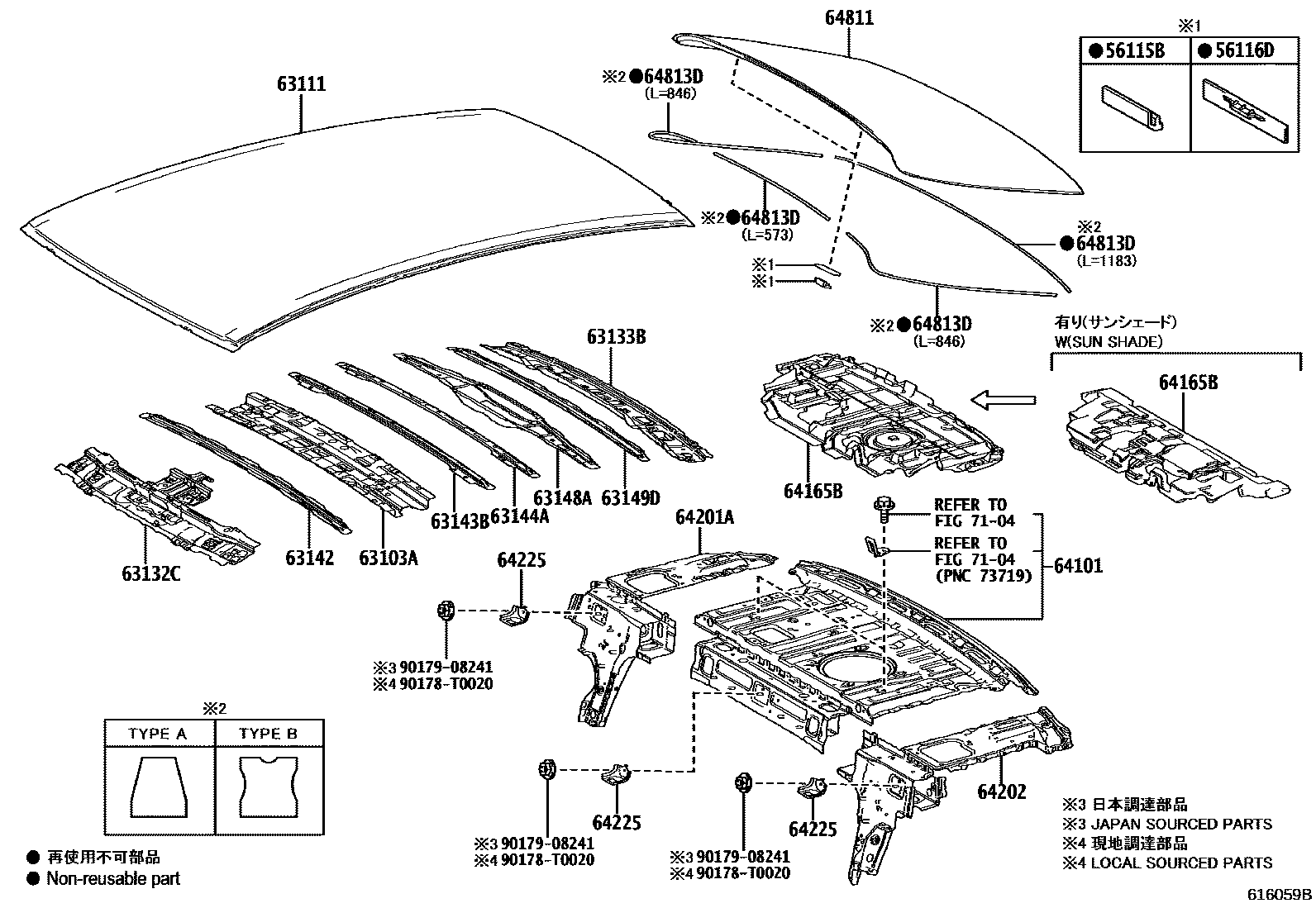

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-06922 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-06150 |
| 63104 | Center roof panel reinforcement sub-assembly | 63107-06040 |
| 63111 | roof panel | 63111-06640 · 63111-06690 |
| 63132C | Windshield inner roof panel | 63102-06921 |
| 63133B | back window frame | 63133-06200 |
| 63142 | No. 2 roof panel reinforcement | 63143-06140 |
| 63142A | No. 2 roof panel reinforcement | 63142-33080 |
| 63143B | No. 3 roof panel reinforcement | 63128-06040 |
| 63144A | No. 4 roof panel reinforcement | 63144-06250 |
| 63148A | No. 7 roof panel reinforcement | 63148-06160 |
| 63149D | No. 8 roof panel reinforcement | 63149-06110 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-33300 · 63201-33400 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-33190 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48020 |
| 63209 | Roof deflector sub-assembly | 63209-33170 |
| 63214F | Roof rear drain channel | 63214-48020 |
| 63217G | Right sliding sunroof trim | 63217-47020 |
| 63218G | Sliding sunroof trim, left | 63217-47020 |
| 63235D | central sliding skylight frame | 63235-33050 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-30010 |
| 63236D | Sliding skylight drain hose clamp | 63236-42010 |
| 63236E | Sliding skylight drain hose clamp | 63236-42010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-33050 |
| 63248E | Left rear sliding sunroof drain hose | 63247-33050 |
| 63249E | Sliding skylight drain hose | 63249-33200 |
| 63251H | Sliding skylight seal | 63251-33070 · 63251-33110 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-33160 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-06420 |
| 64165B | No. 1 upper back panel hole cover | 64165-06330 · 64165-06390 · 64165-06450 · 64165-33110 |
| 64201A | Glove box right extension sub-assembly | 64201-06210 · 64201-33090 |
| 64202 | Glove box left extension section sub-assembly | 64202-06210 · 64202-33090 |
| 64225 | Rear seat cushion bracket hanger | 64225-06090 |
| 64811 | back window glass | 64801-06280 · 64801-06290 · 64801-06300 · 64801-06330 |
| 64813D | Back window glass adhesive seal | 64813-06170 · 64813-06190 · 64813-06290 · 64813-06300 · 64813-06310 · 64813-06320 · 64813-06330 · 64813-06350 · 64813-06370 |
