Toyota CAMRY 车侧通风装置 — Figure 6102

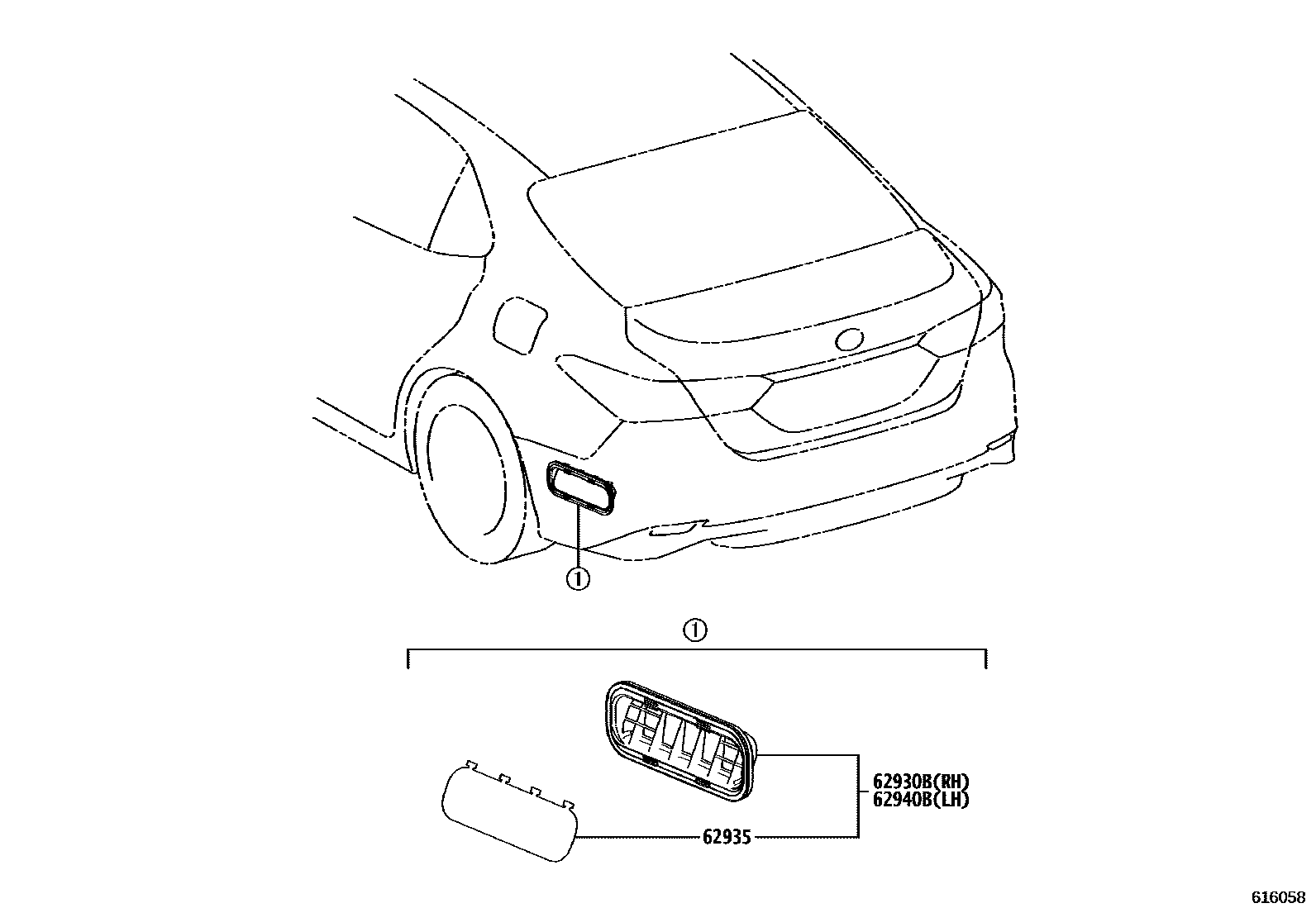

Toyota CAMRY EPC diagram 6102, 车侧通风装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62930B | Right side ventilation duct assembly | 62940-0D060 |
| 62935 | Side ventilation butterfly valve | 62935-0D090 |
| 62940B | Left side ventilation duct assembly | 62940-0D060 |
