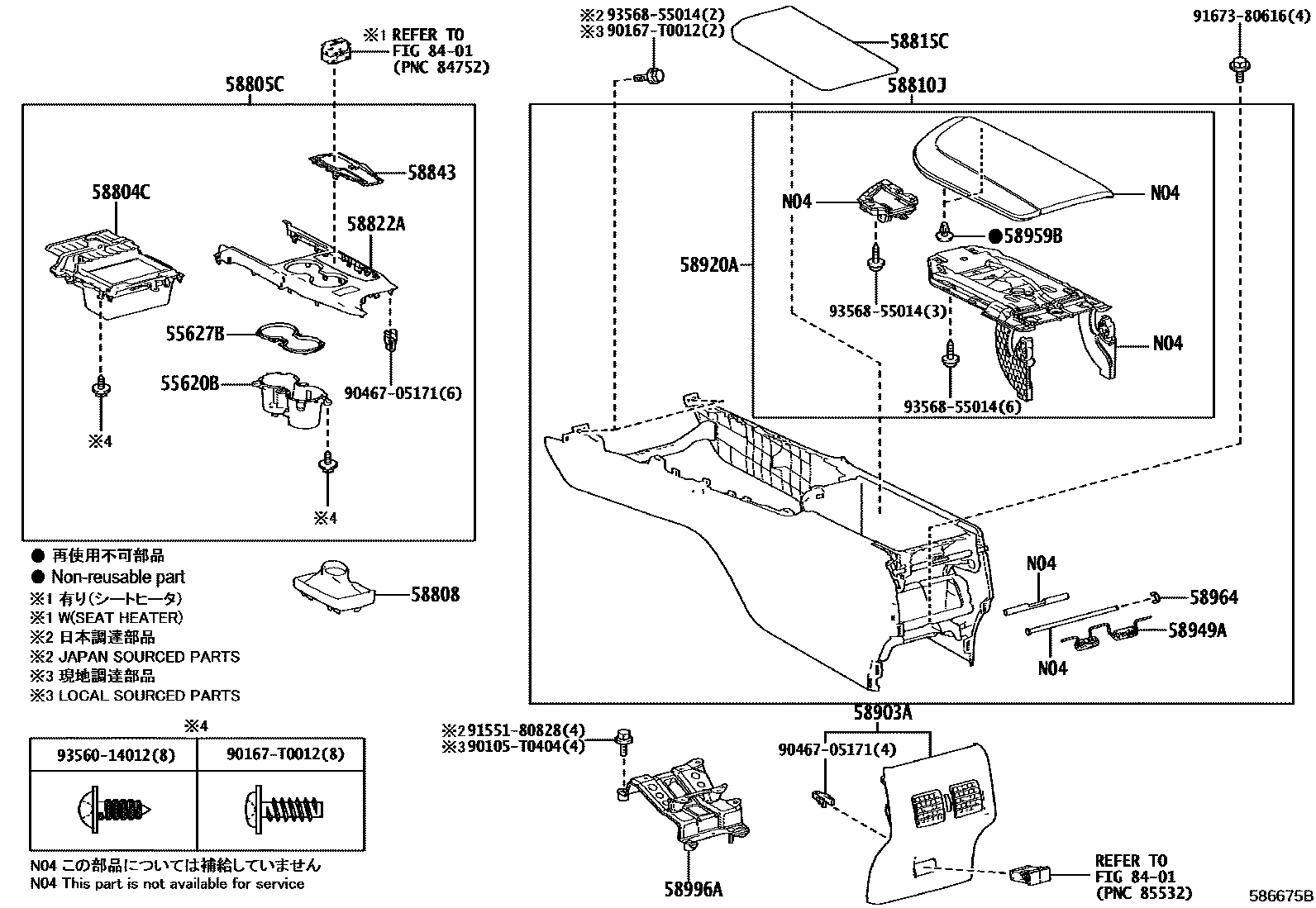

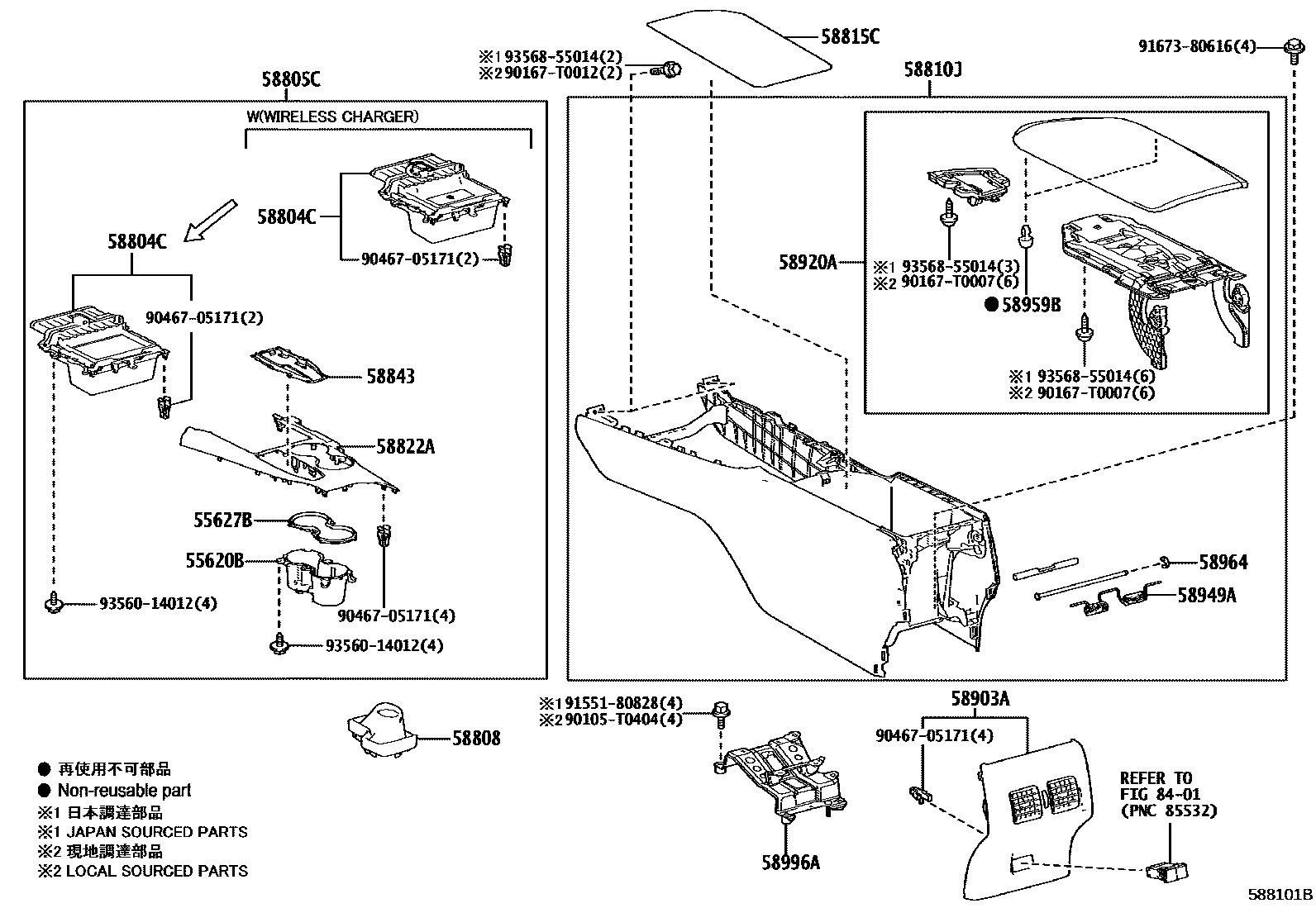

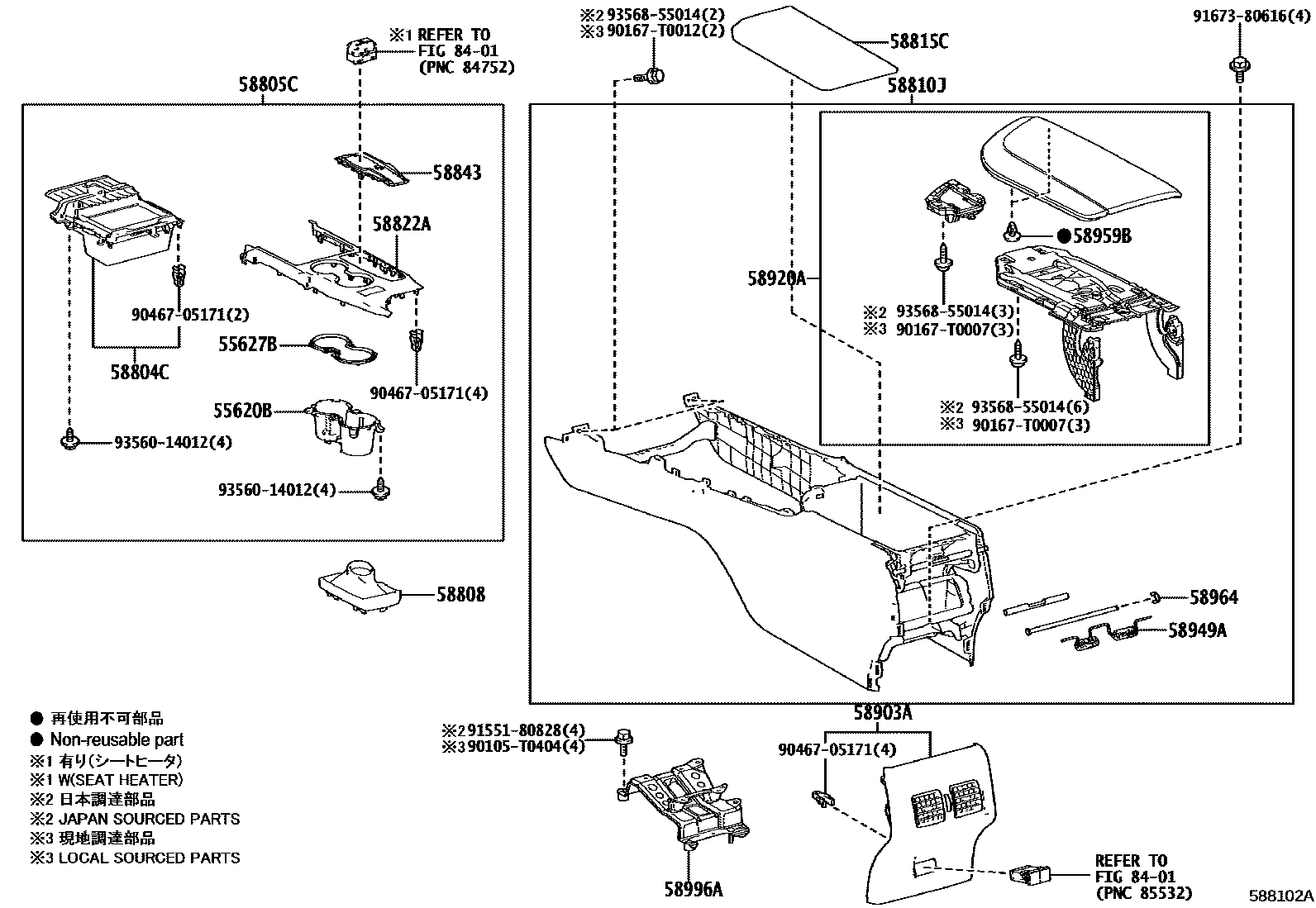

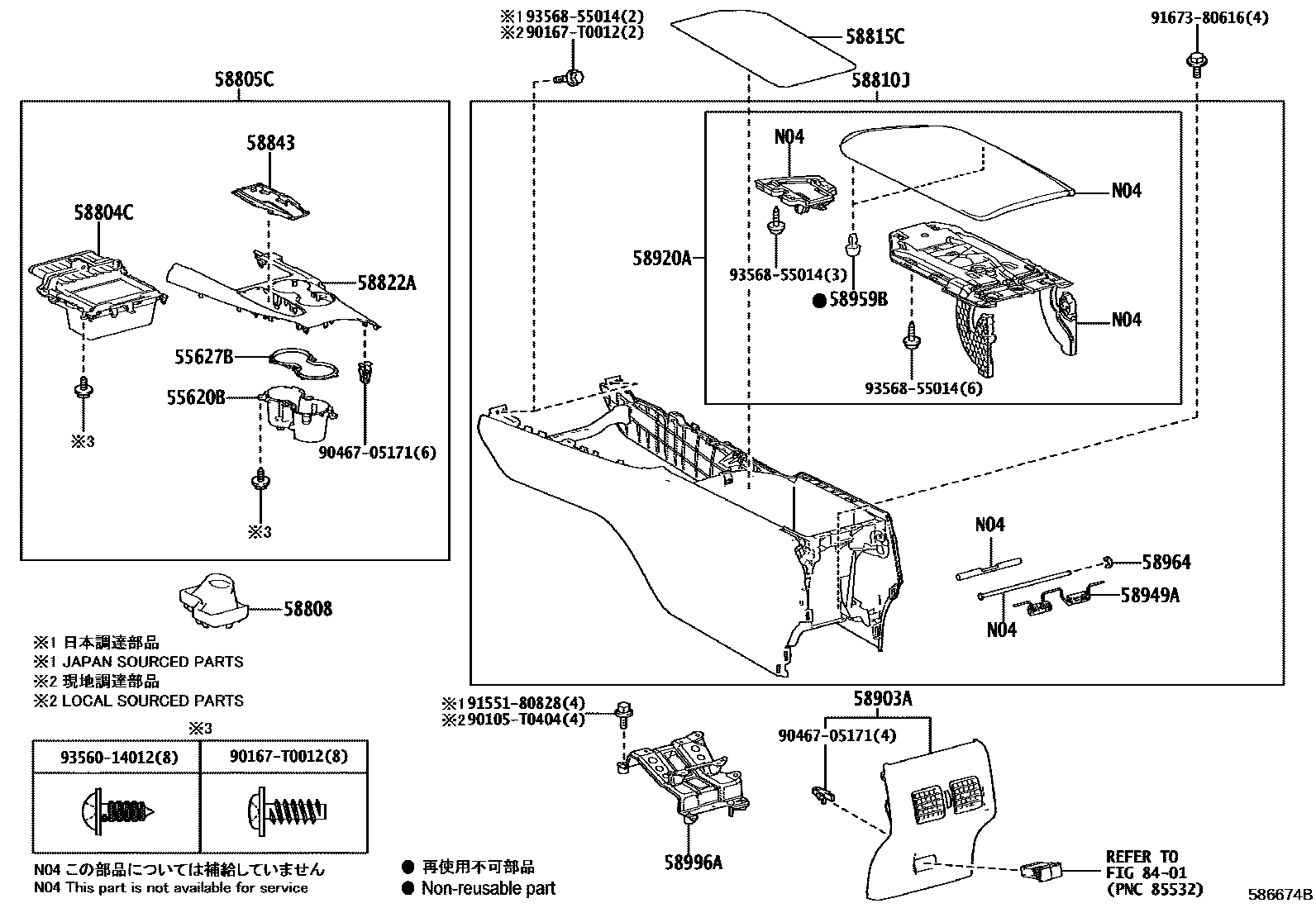

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620B | Dashboard cup holder | 55620-06540 · 55620-06560 |
| 55627B | Armrest box cup holder guide rail | 55627-06060 · 55627-06080 |
| 58804C | Front armrest box insert sub-assembly | 58804-06490 · 58804-06620 · 58804-06630 · 58804-06740 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06800 · 58805-06B40 · 58805-06B50 · 58805-06F40 · 58805-06F50 · 58805-06F80 · 58805-06F90 |
| 58815C | Armrest box felt pad | 58815-06210 · 58815-06240 |
| 58822A | Rear armrest box upper panel | 58822-06780 · 58822-06890 · 58822-06C60 · 58822-06C70 · 58822-06C80 · 58822-06C90 · 58822-06D00 · 58822-33510 · 58822-33520 |
| 58843 | shift hole frame | 58843-06230 · 58843-06270 |
| 58949A | Armrest box mounting bracket spring | 58949-06040 |
| 58959B | Armrest box cover cushion | 58959-35010 |
| 58964 | Armrest box cover No. 1 stop | 58964-33040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06120 · 58996-06121 · 58996-33101 |
