Toyota CAMRY 地板垫和地毯 — Figure 5804

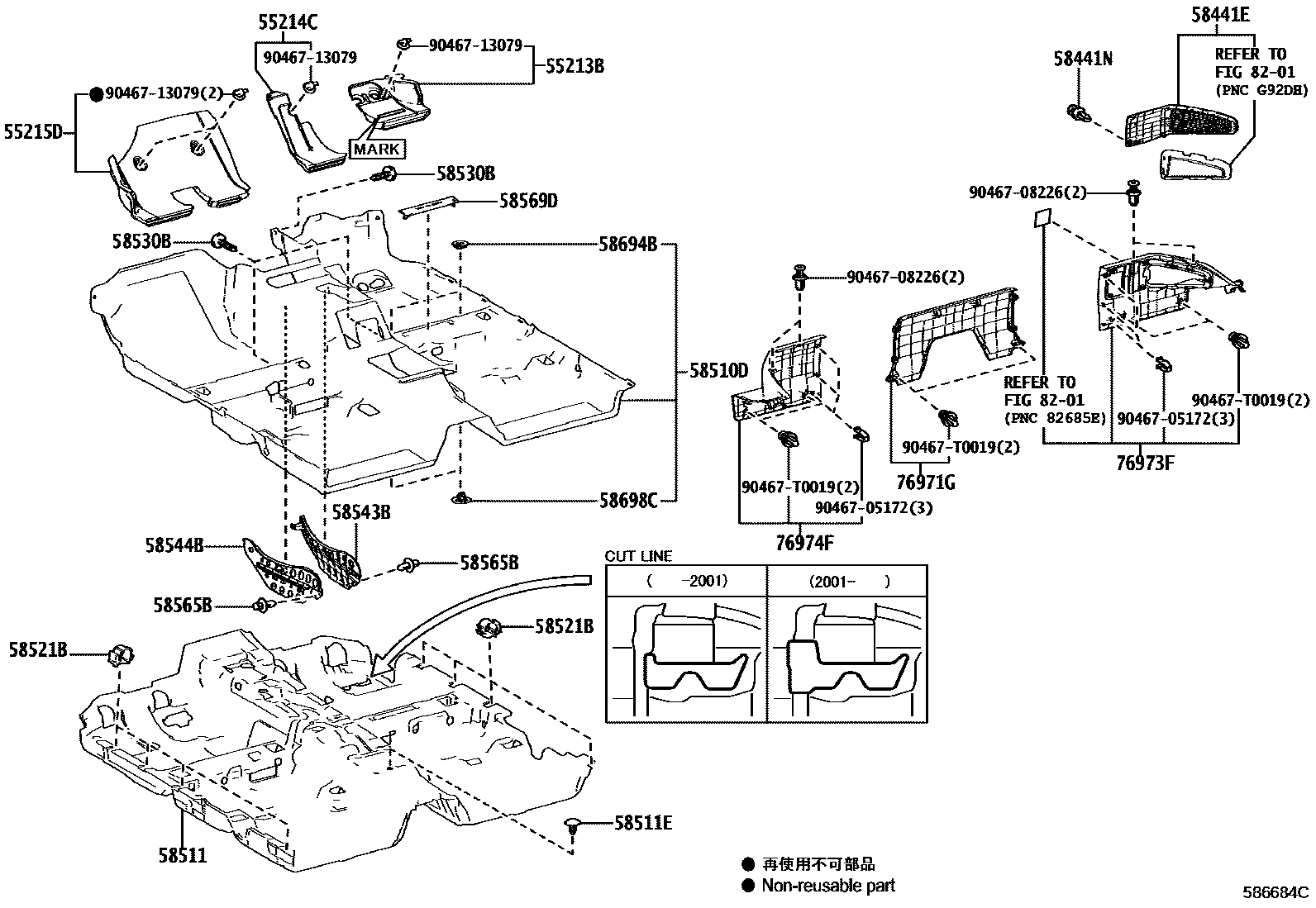

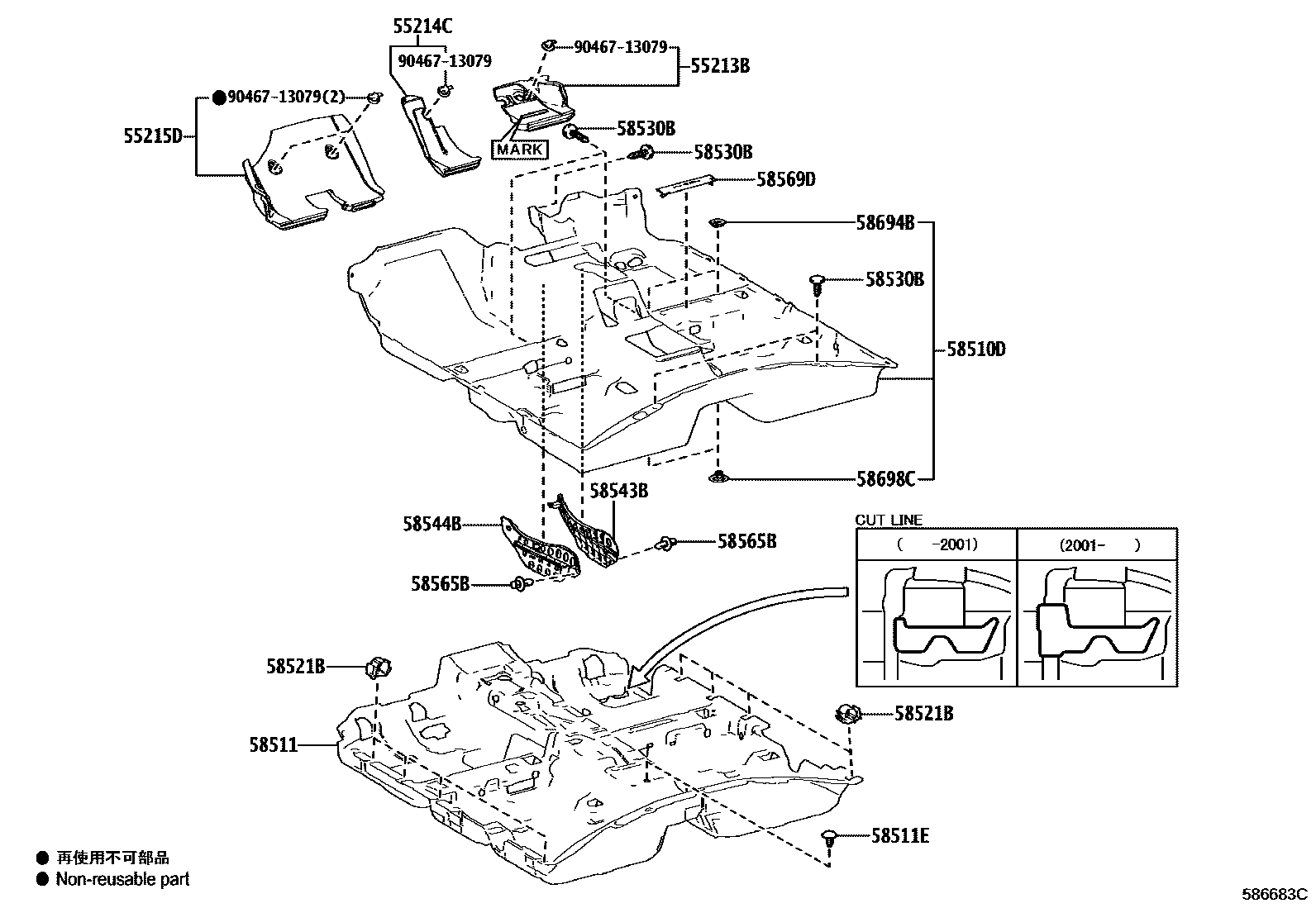

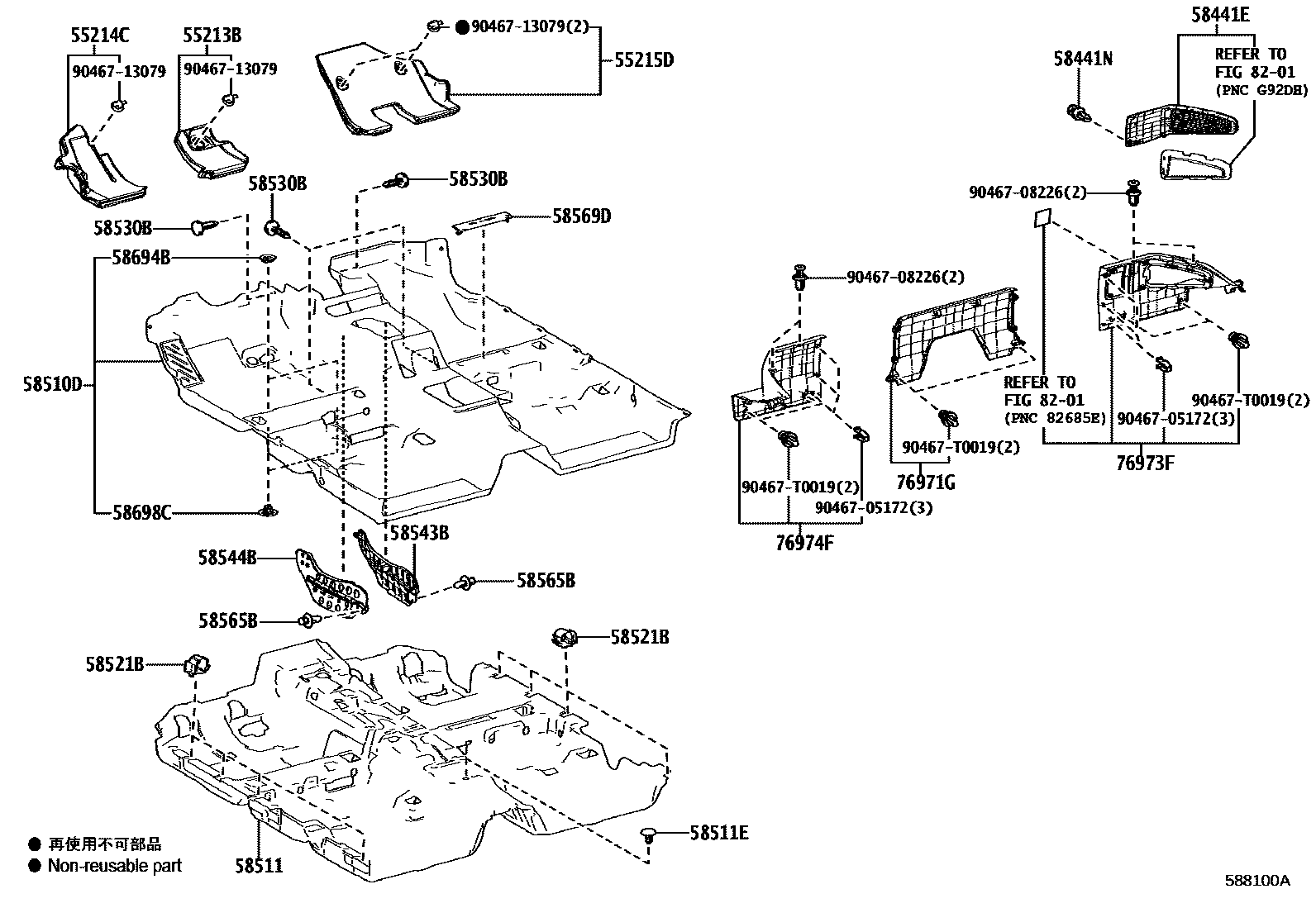

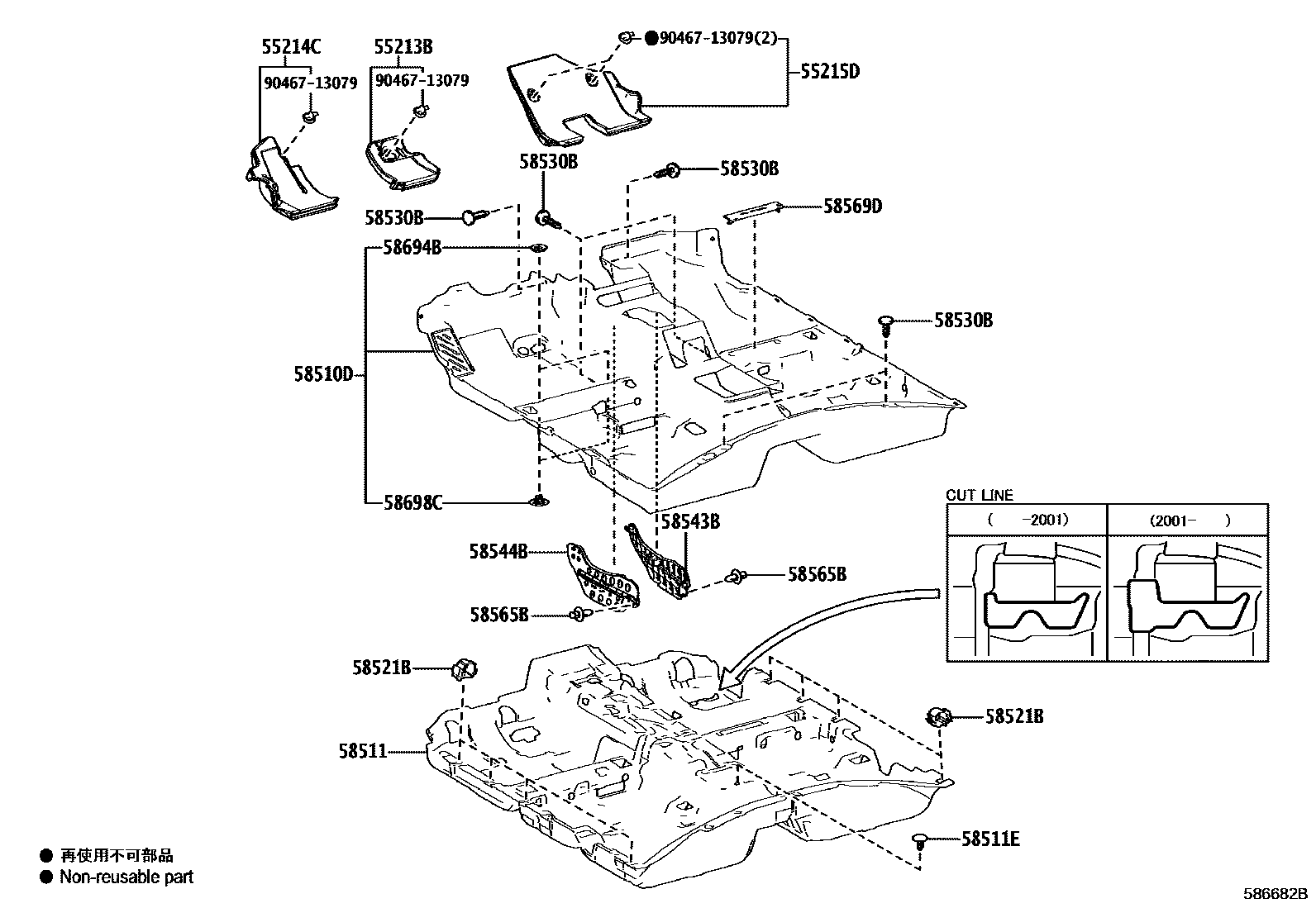

Toyota CAMRY EPC diagram 5804, 地板垫和地毯, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-06210 · 55213-06211 · 55213-06221 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-06180 · 55214-06190 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-06070 · 55215-06080 |
| 58511 | front floor mat | 58511-06180 · 58511-06181 · 58511-06190 · 58511-06191 |
| 58521B | carpet hook | 58521-06170 |
| 58543B | Right carpet bracket | 58543-06200 · 58543-06210 |
| 58544B | left carpet bracket | 58544-06210 · 58544-06220 |
| 58694B | Pad the fixing plate | 58694-0K010 |
| 58698C | Fixing plate under the pad | 58698-0K070 |
