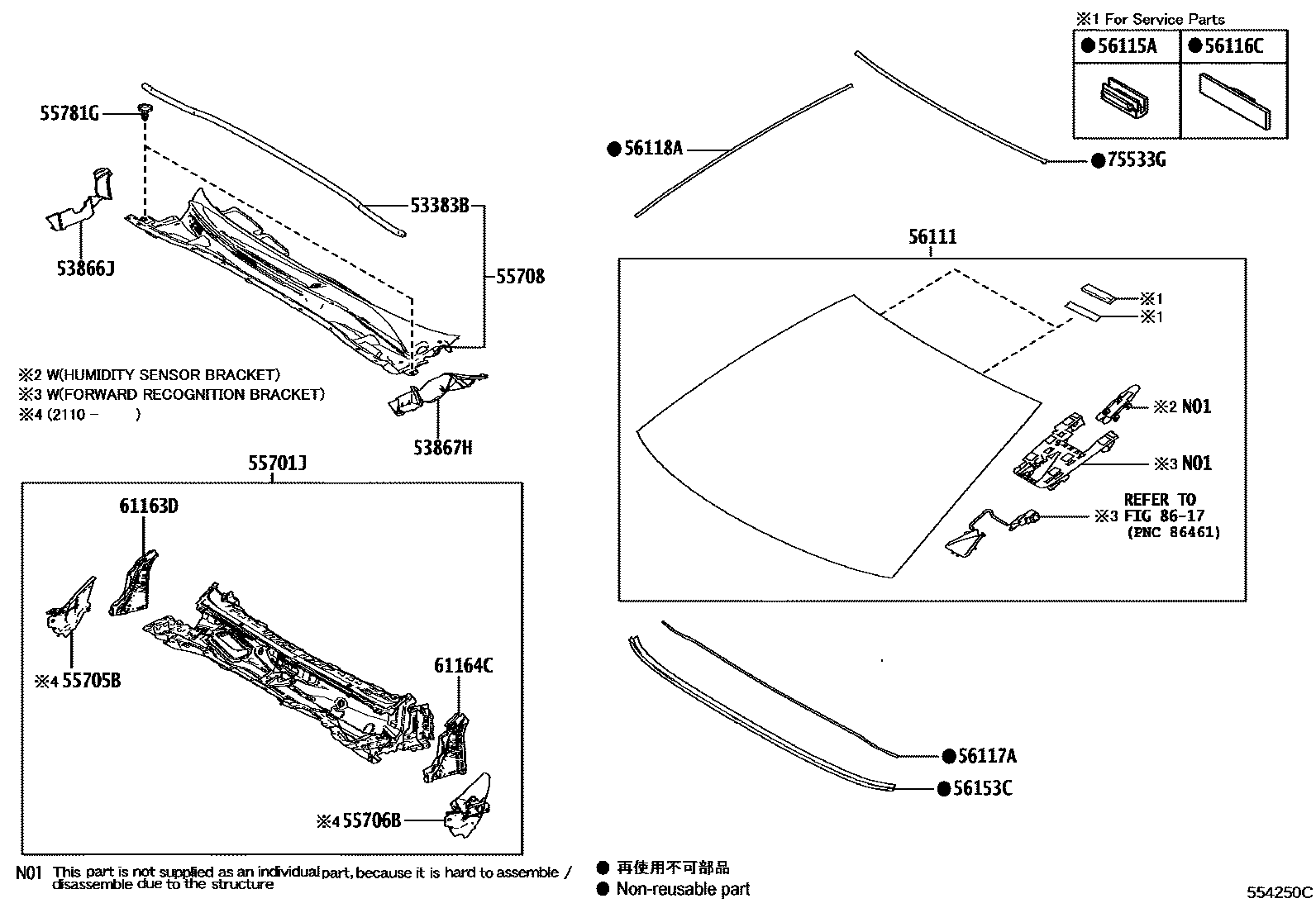

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-33140 |
| 53866J | Right front fender to cowl side seal | 53866-06170 · 53866-33090 |
| 53867H | Left front fender to cowl side seal | 53867-06170 · 53867-33090 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06380 · 55701-06390 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-06050 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-06050 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-06320 · 55708-06321 · 55708-06330 · 55708-06331 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-06993 · 56101-06994 · 56101-06995 · 56101-06996 · 56101-06997 · 56101-06998 · 56101-06999 · 56101-0X900 · 56101-0X904 · 56101-0X905 · 56101-0X906 · 56101-0X907 · 56101-0X909 · 56101-0X917 · 56101-0X918 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-06230 · 56117-06260 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-06050 · 56118-06090 |
| 56153C | Front center window inner protective strip | 56153-33010 |
| 61163D | Right body inner front lower pillar | 61163-06040 |
| 61164C | Left side inner front lower pillar | 61164-06040 |
| 75533G | Windshield outer protective strip | 75531-06220 |
