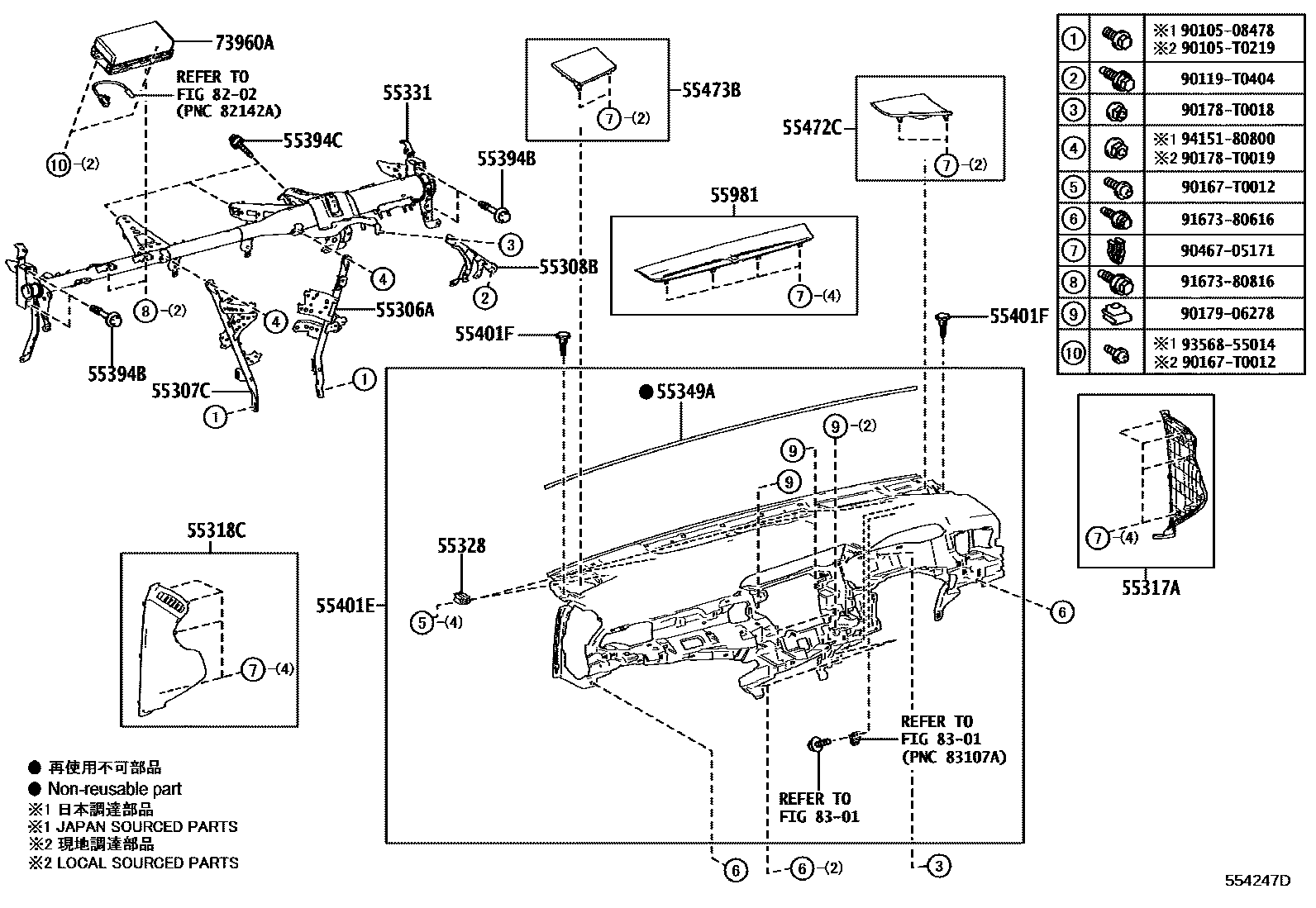

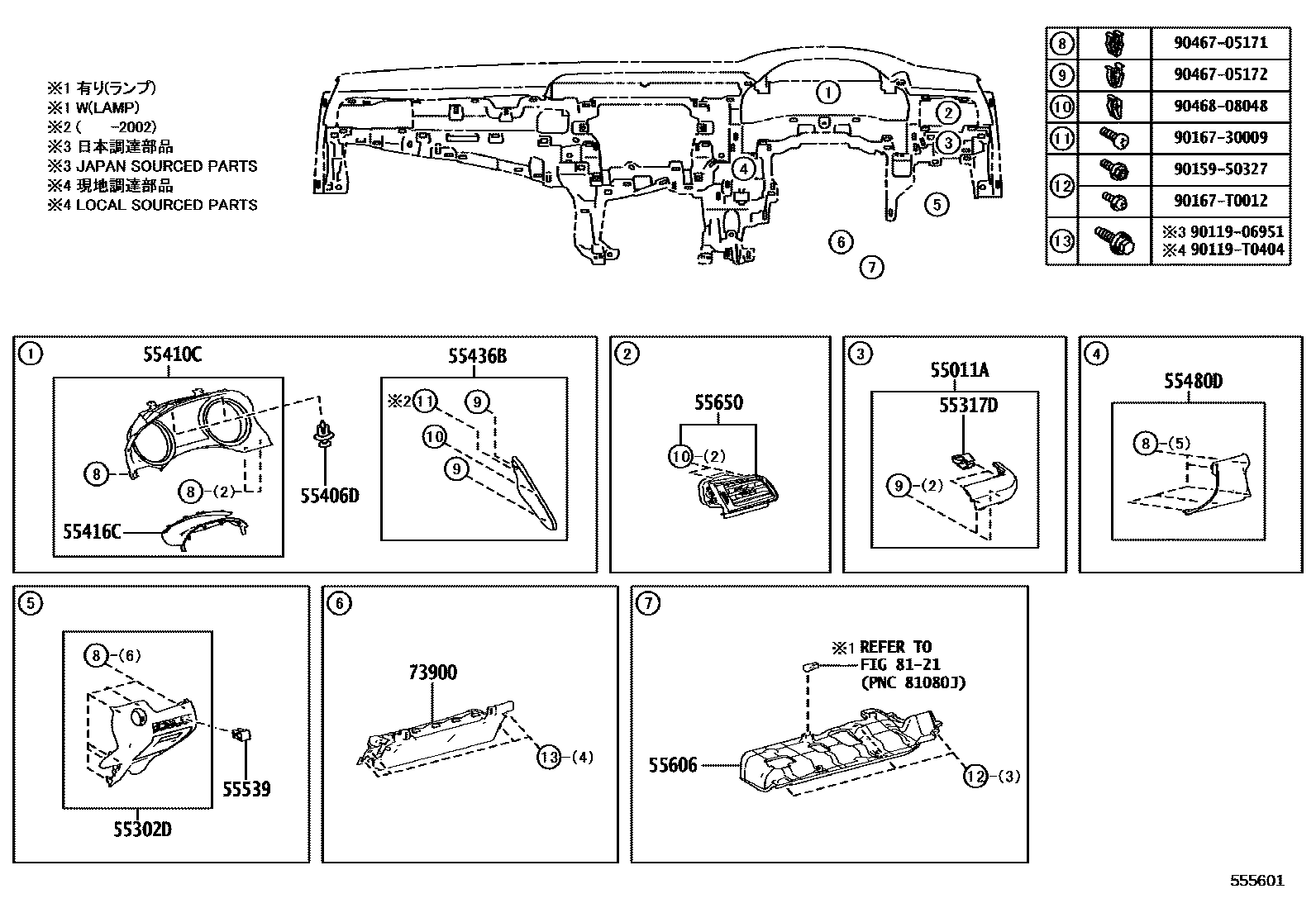

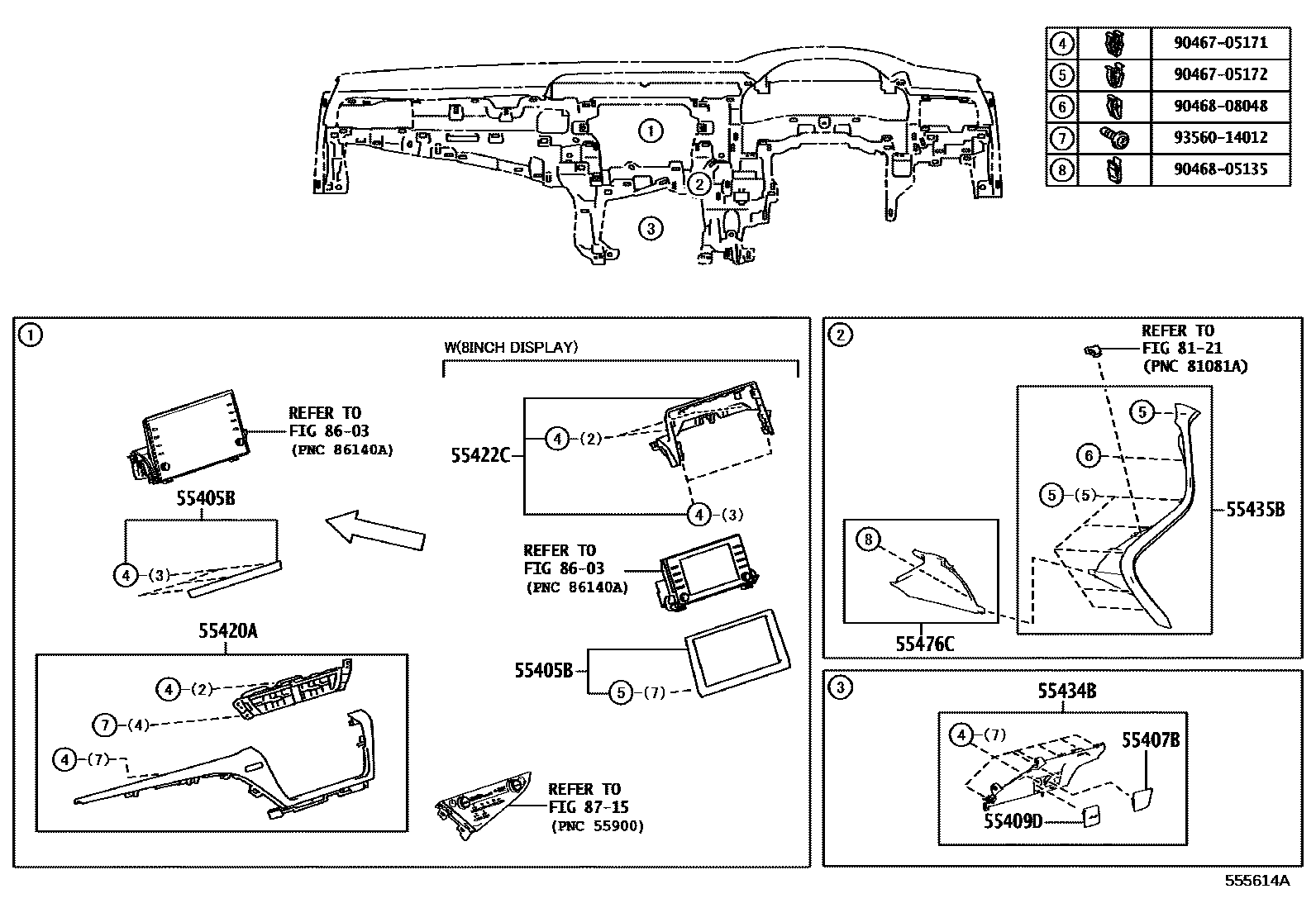

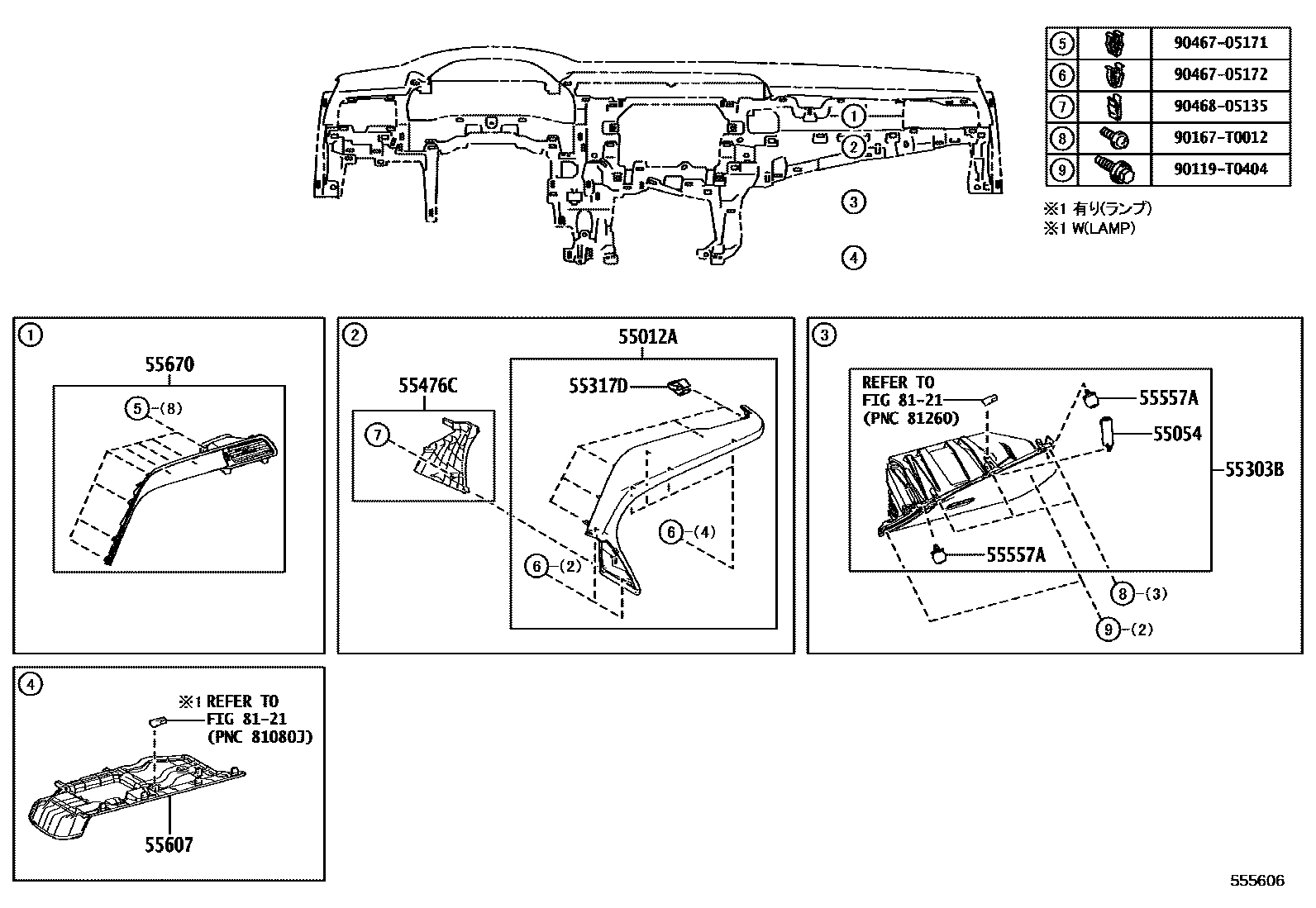

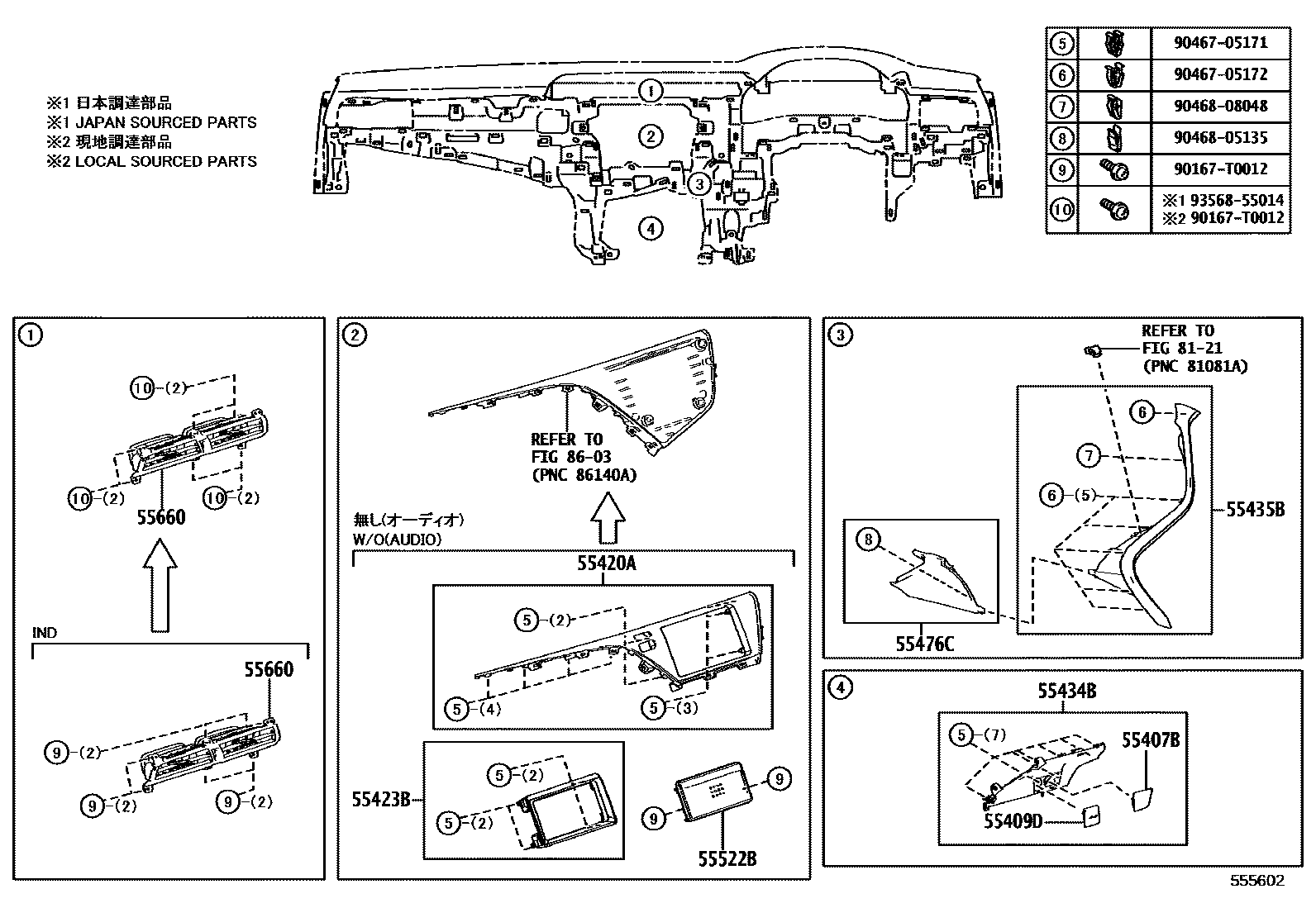

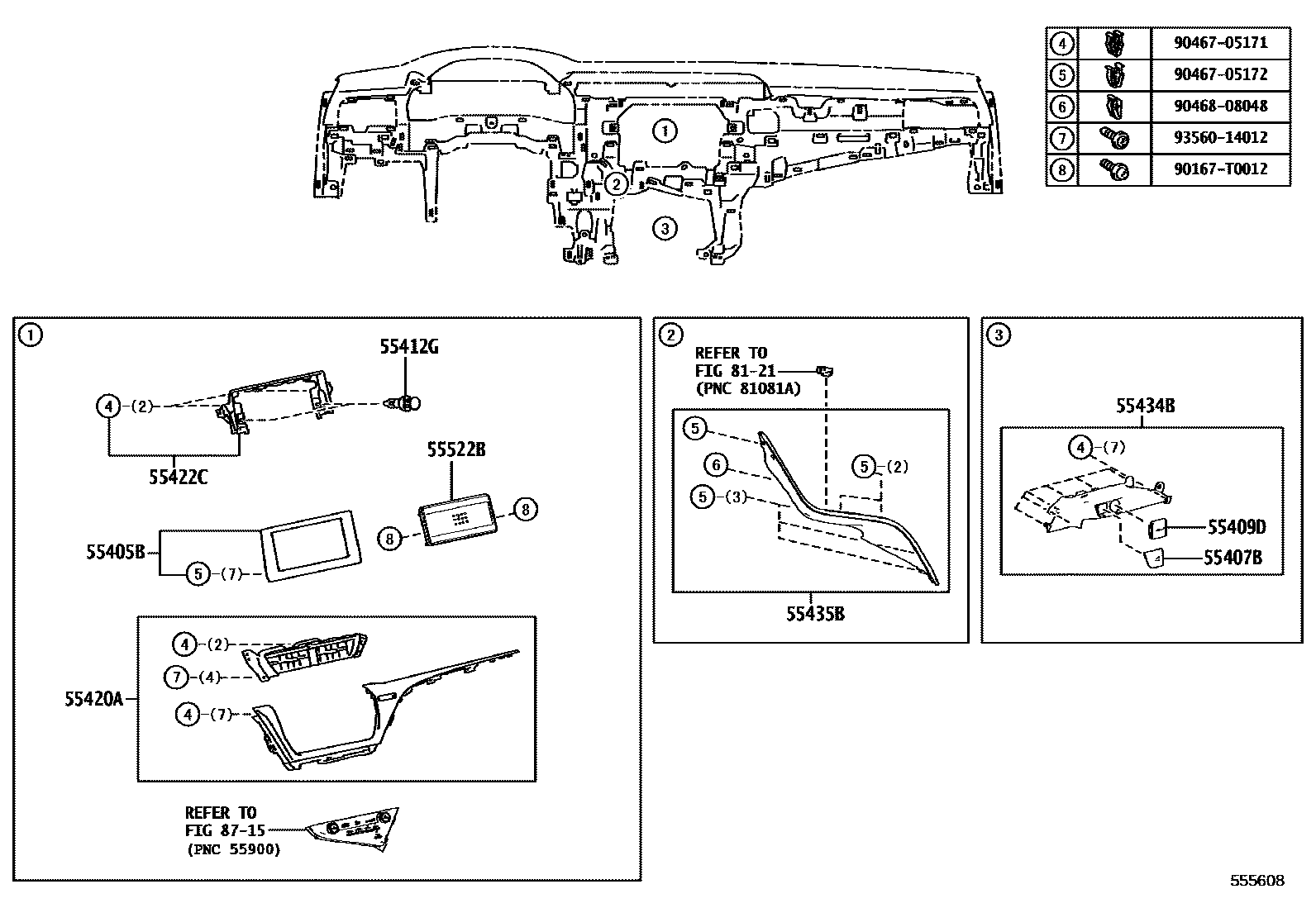

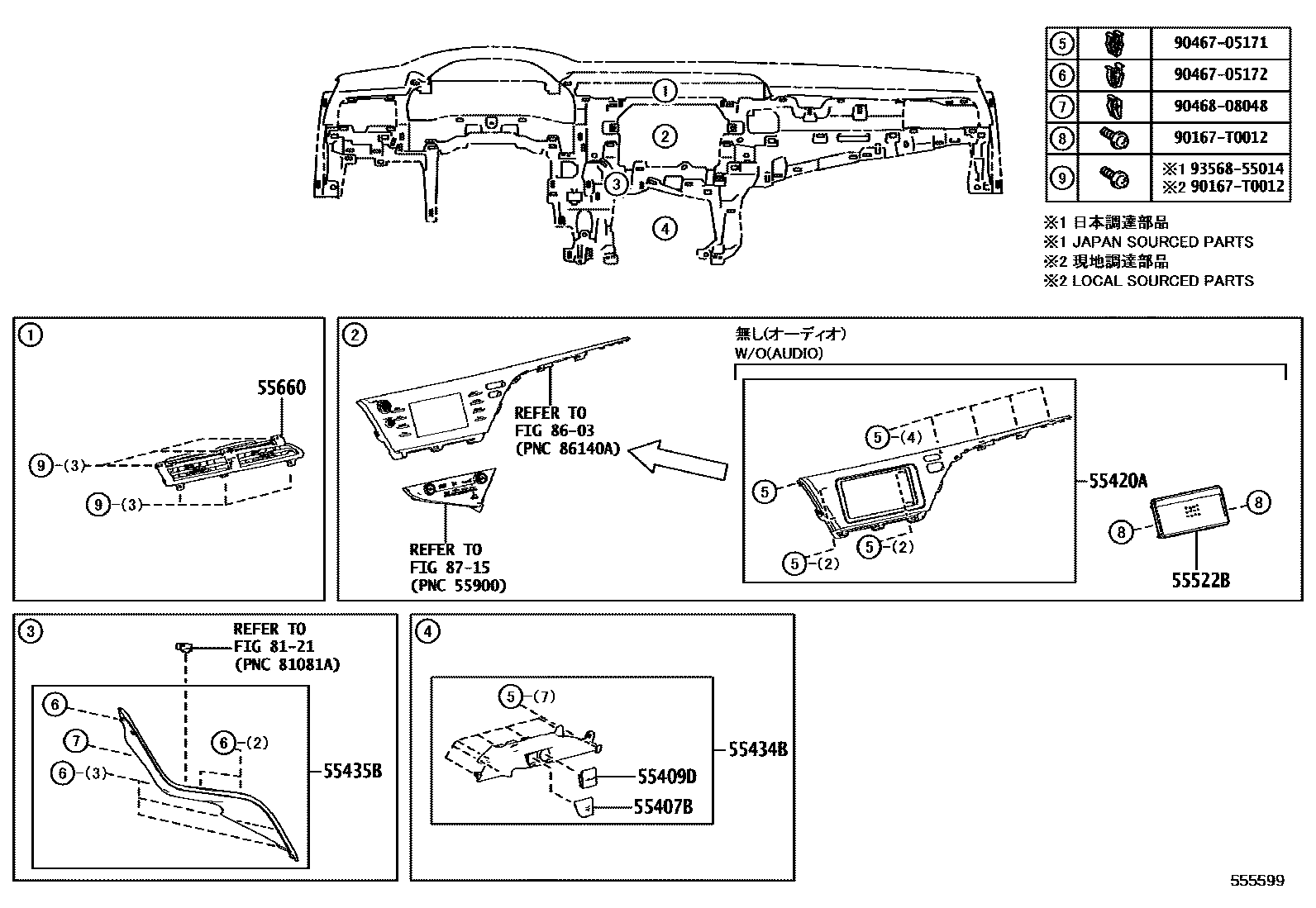

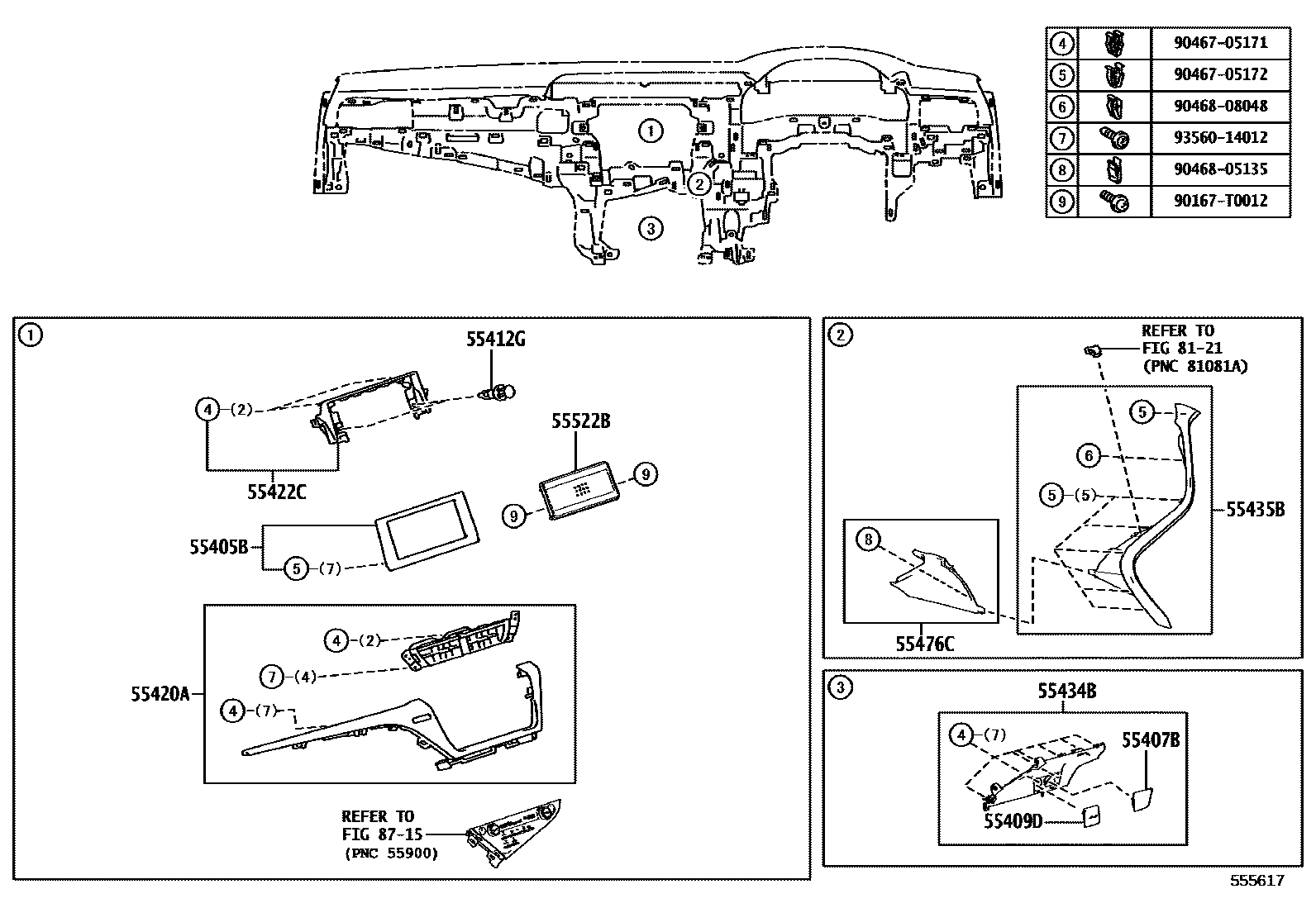

Toyota CAMRY 仪表板和手套箱 — Figure 5501

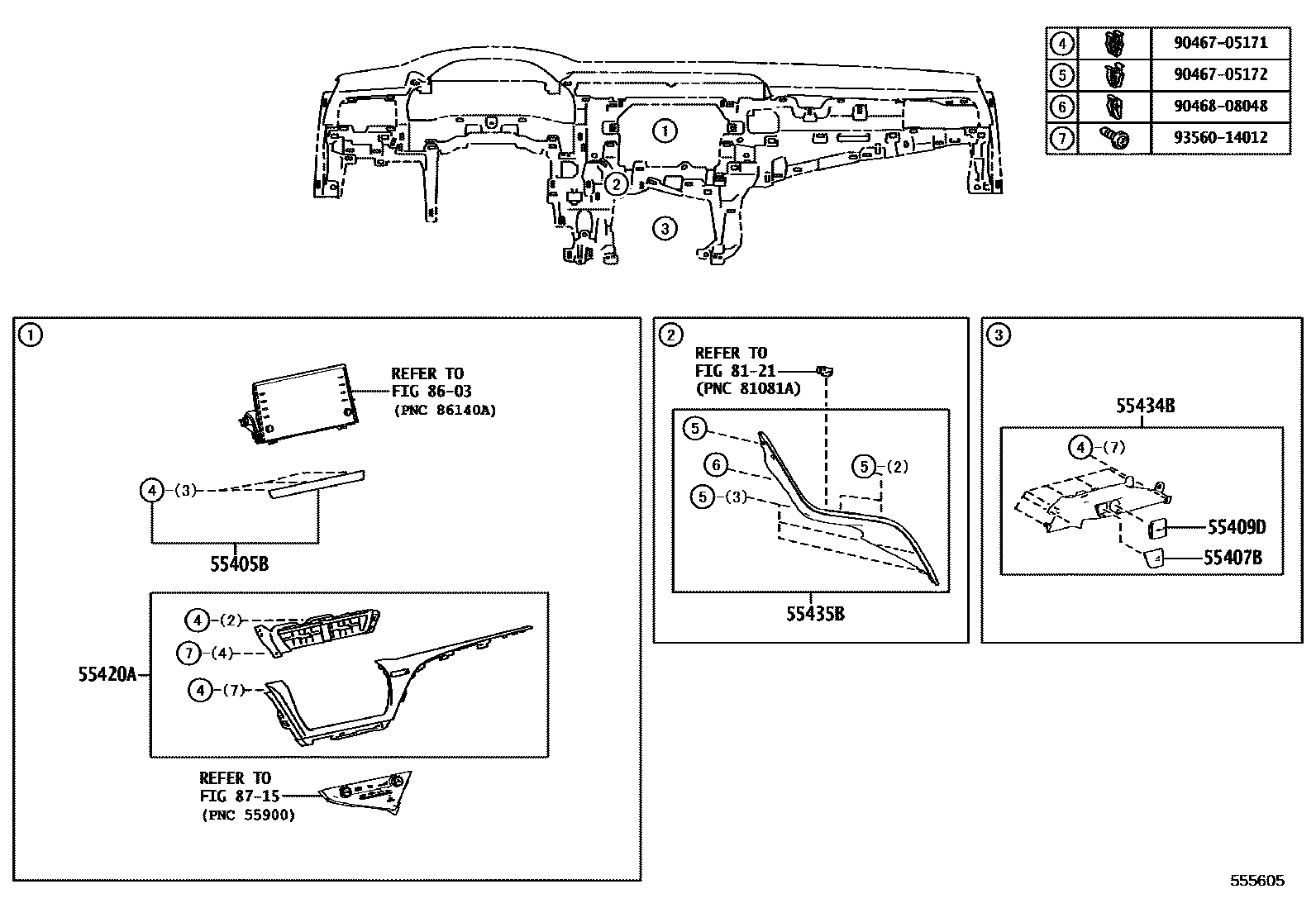

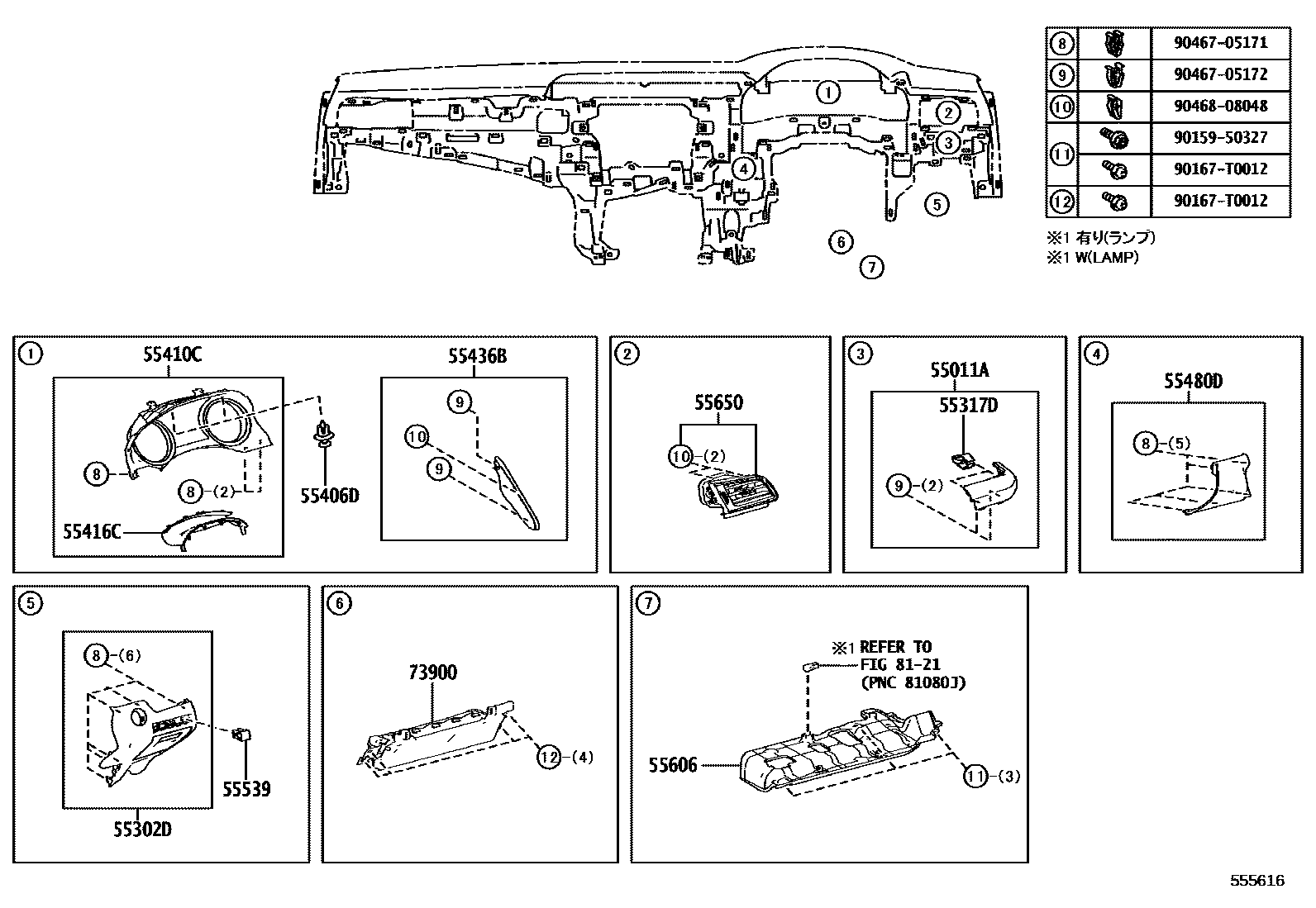

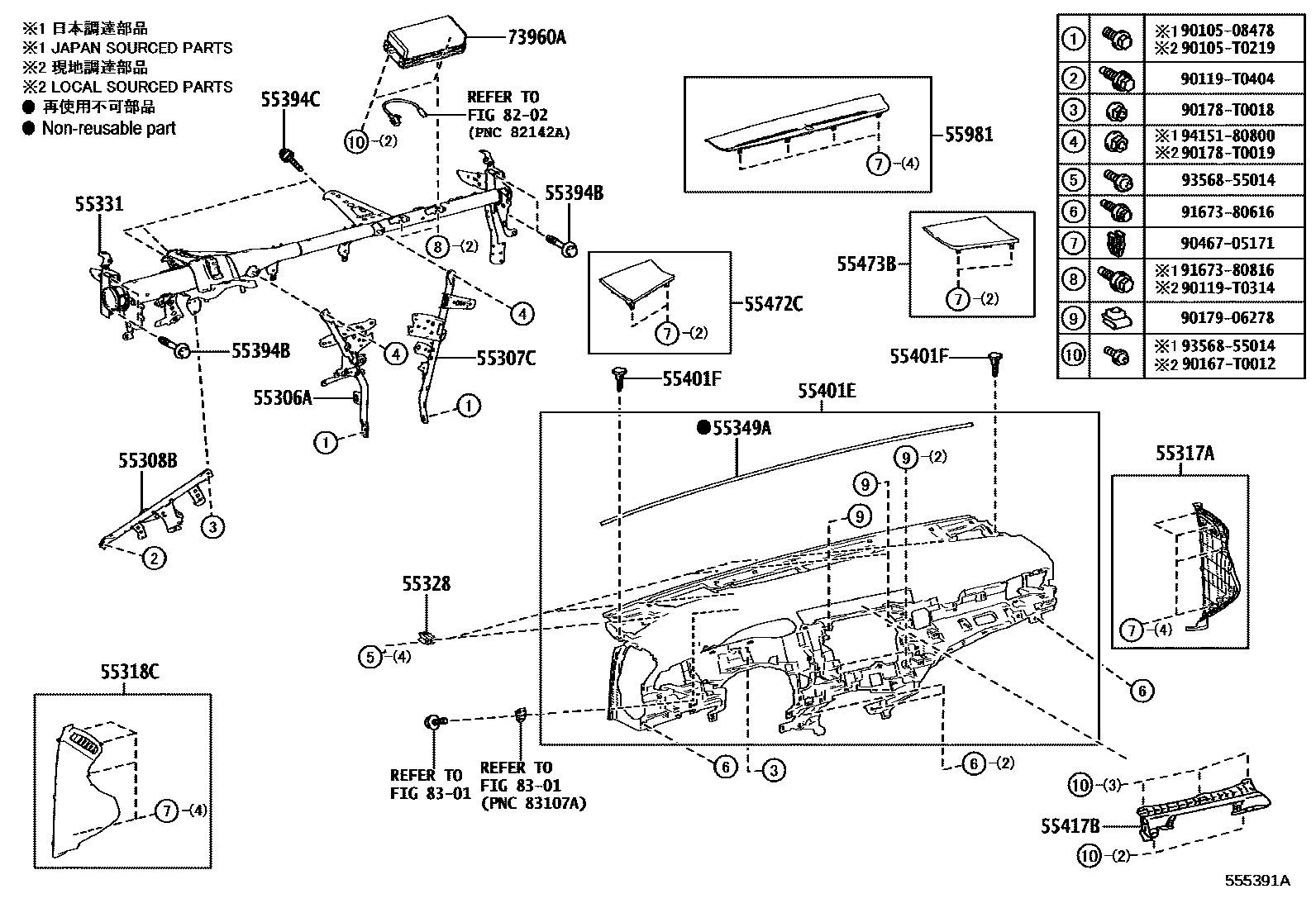

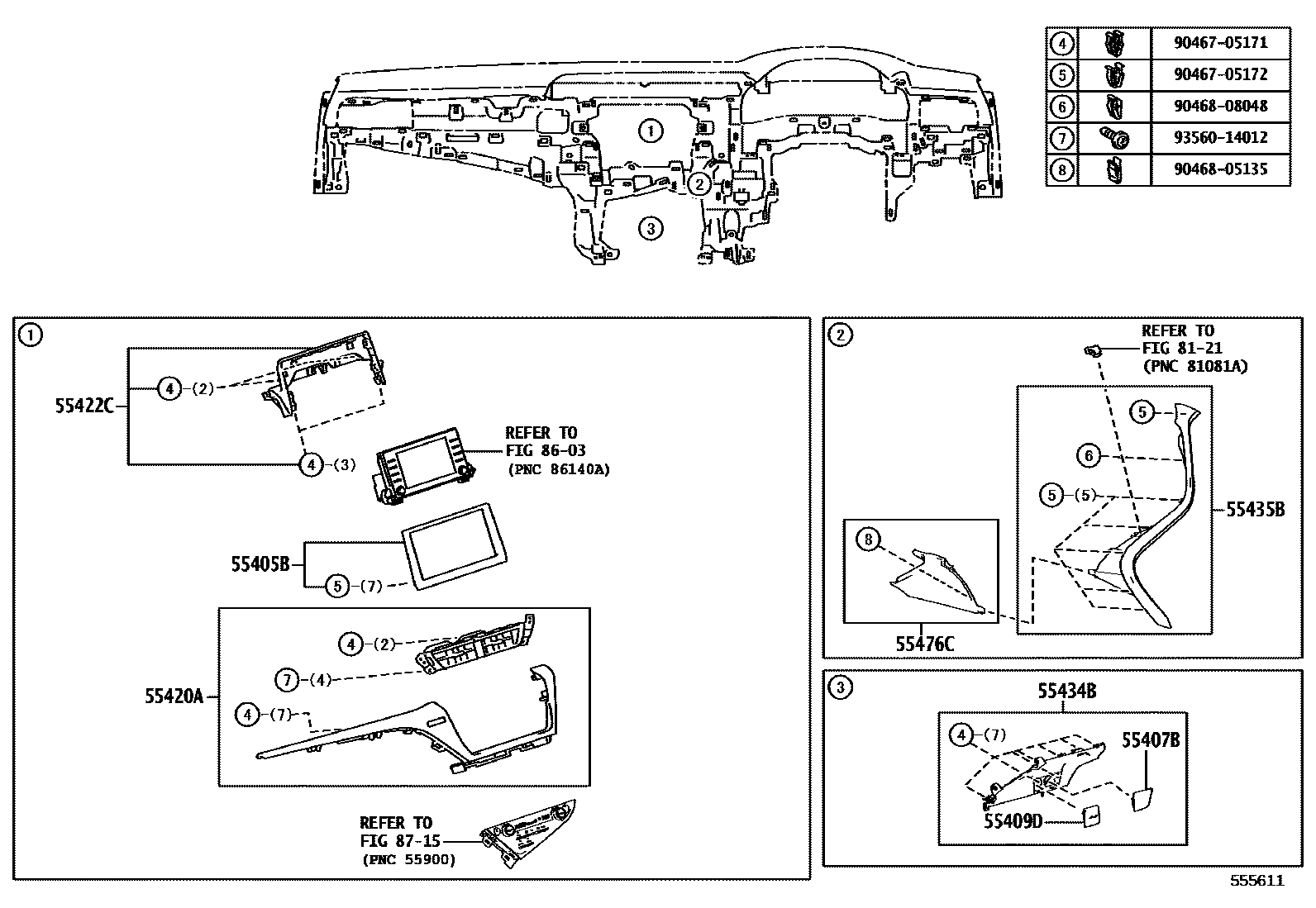

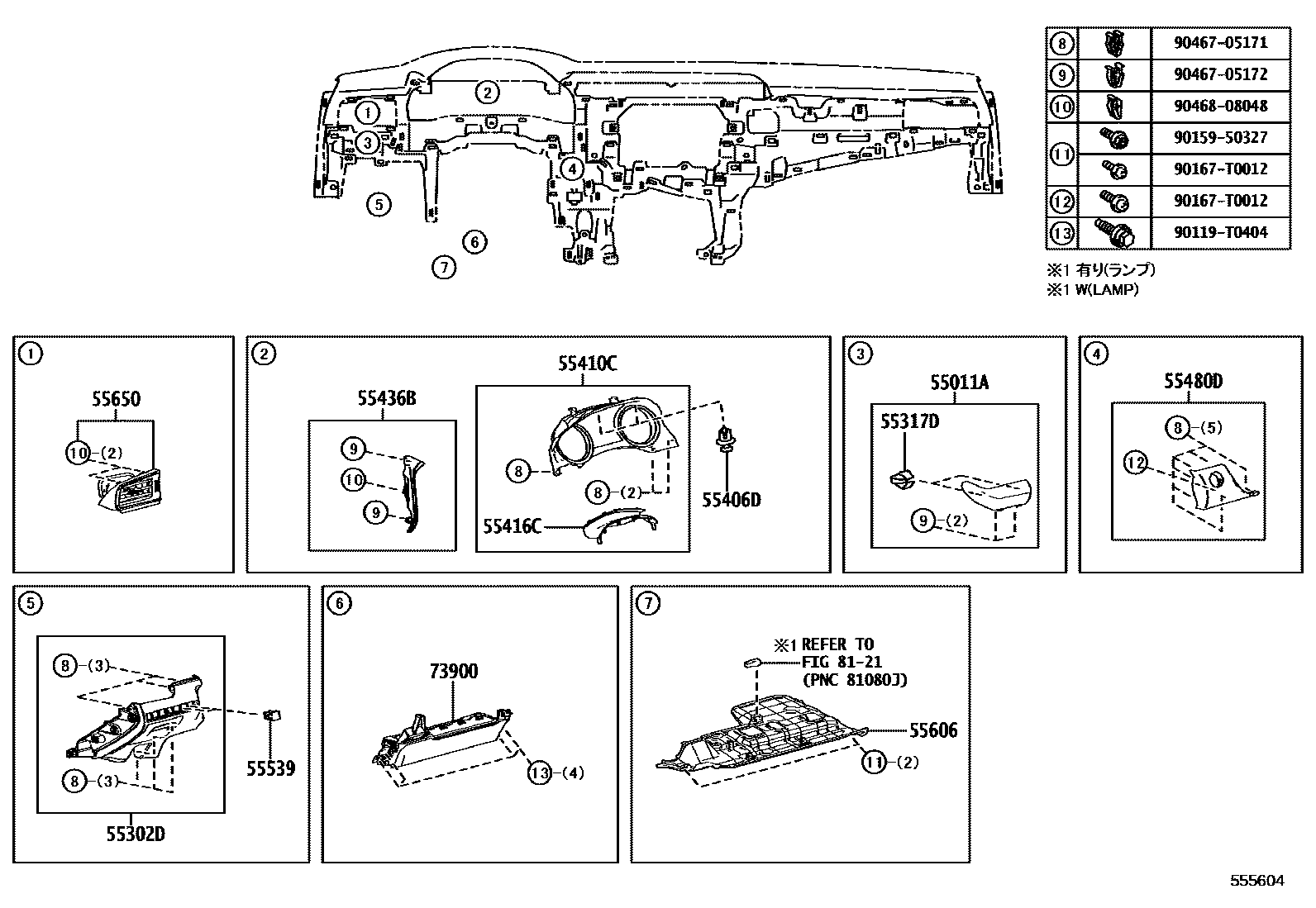

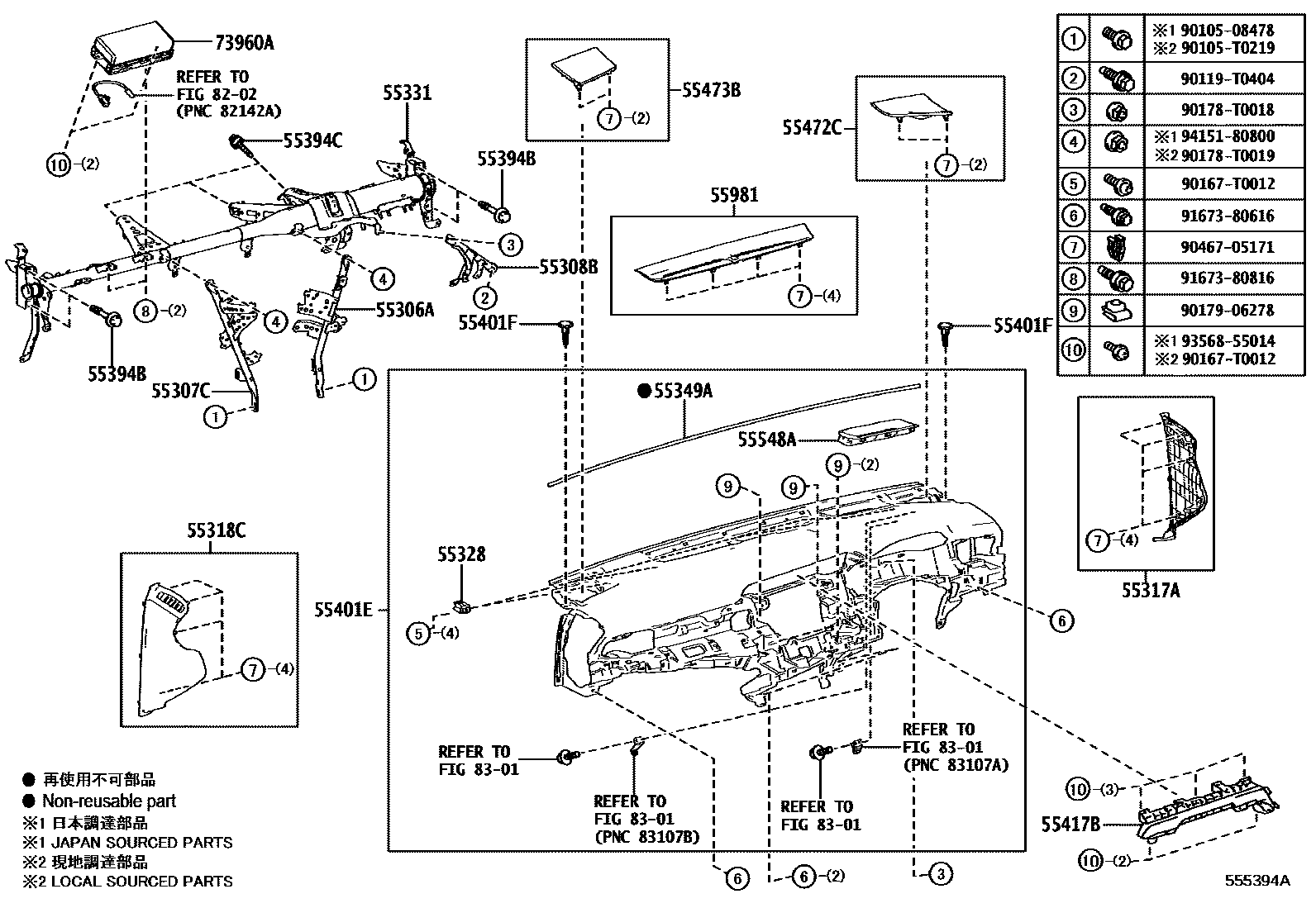

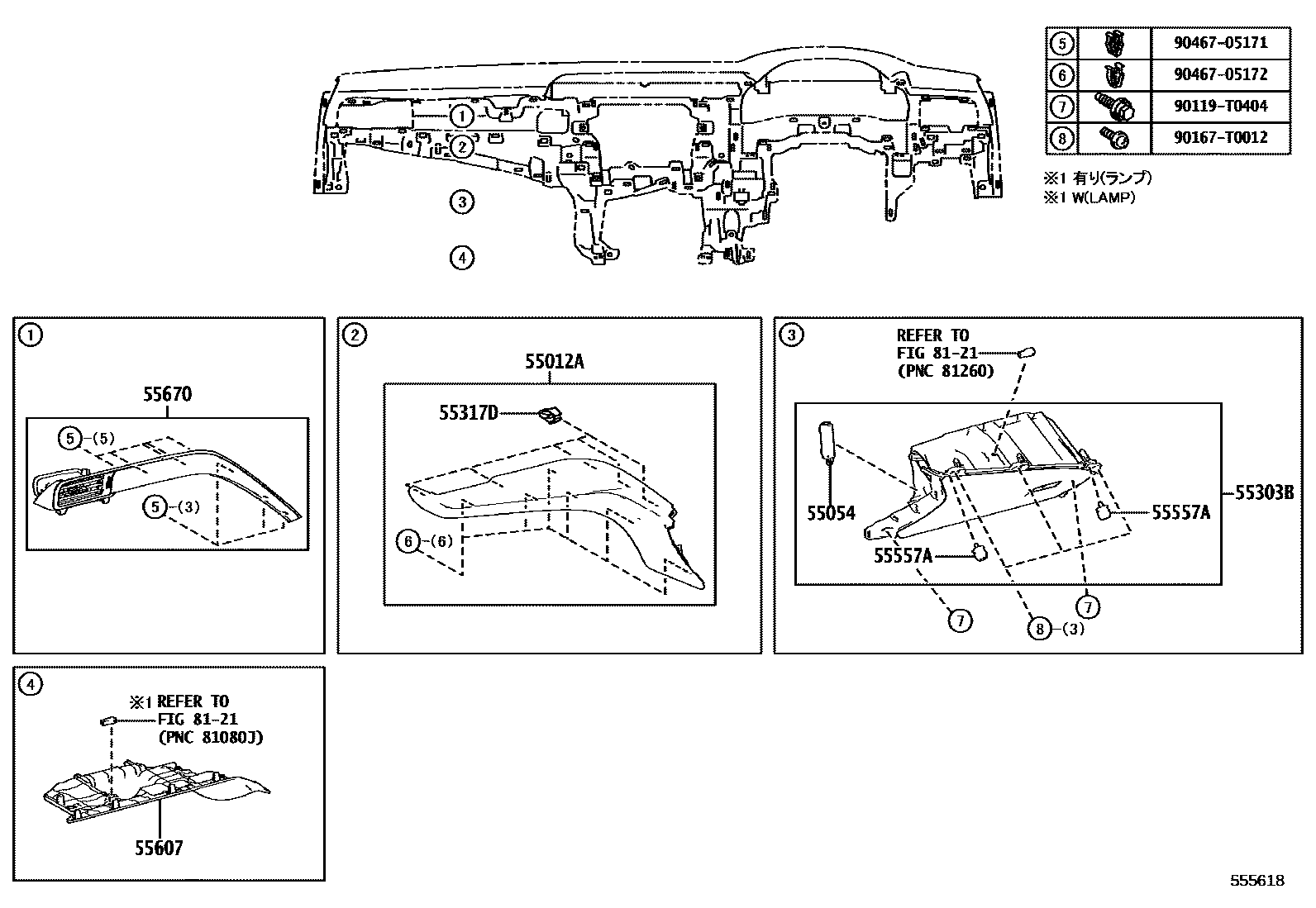

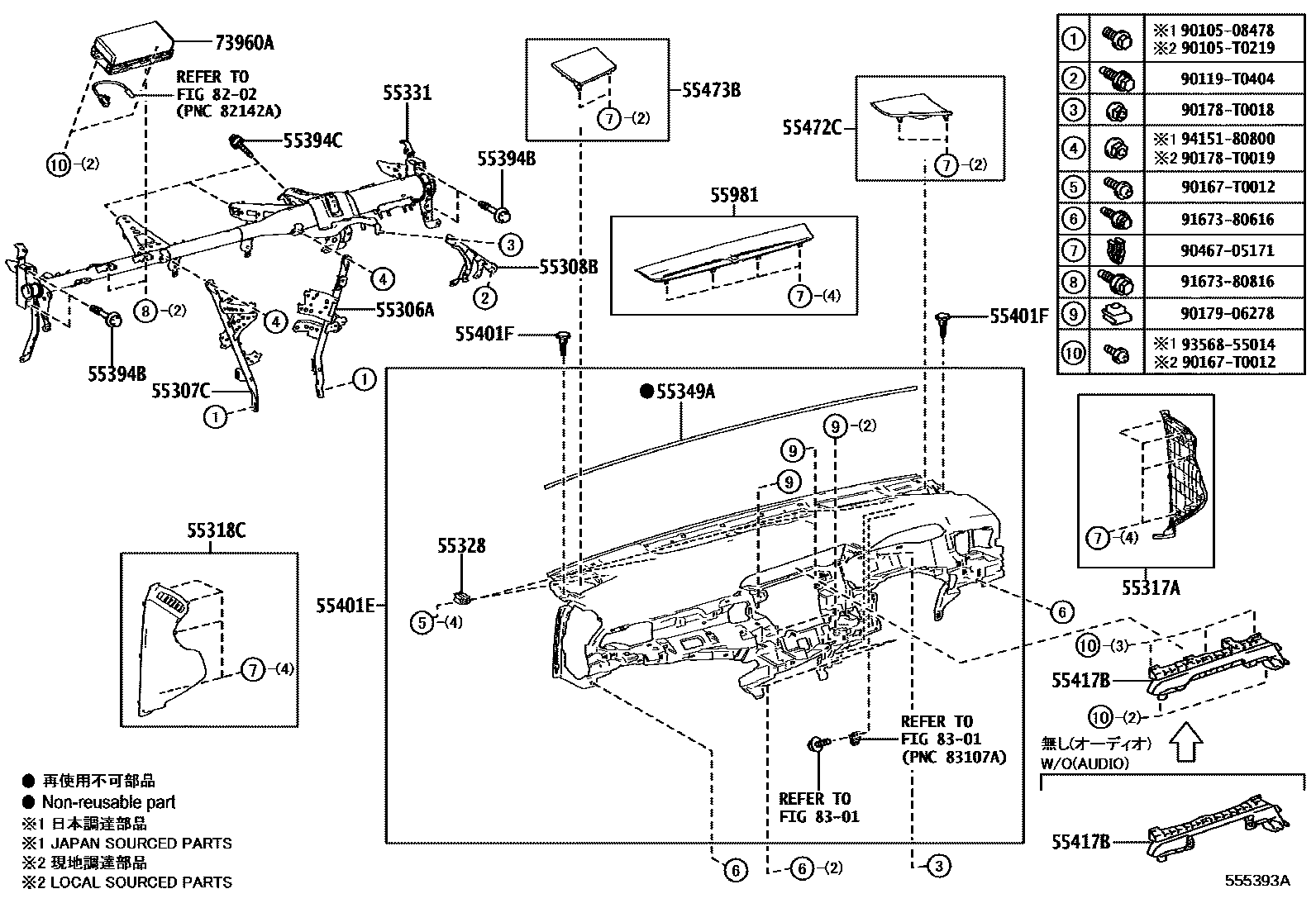

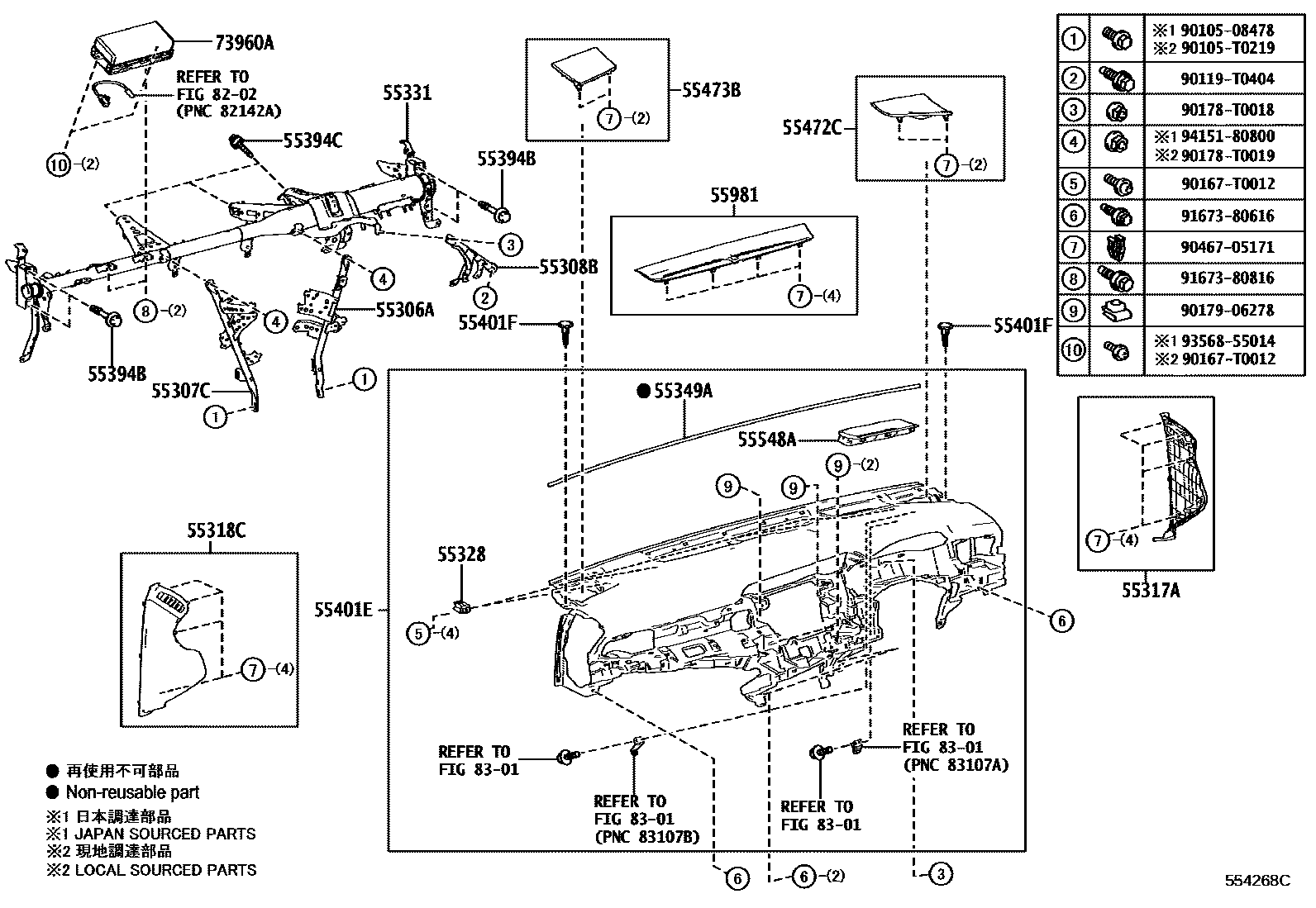

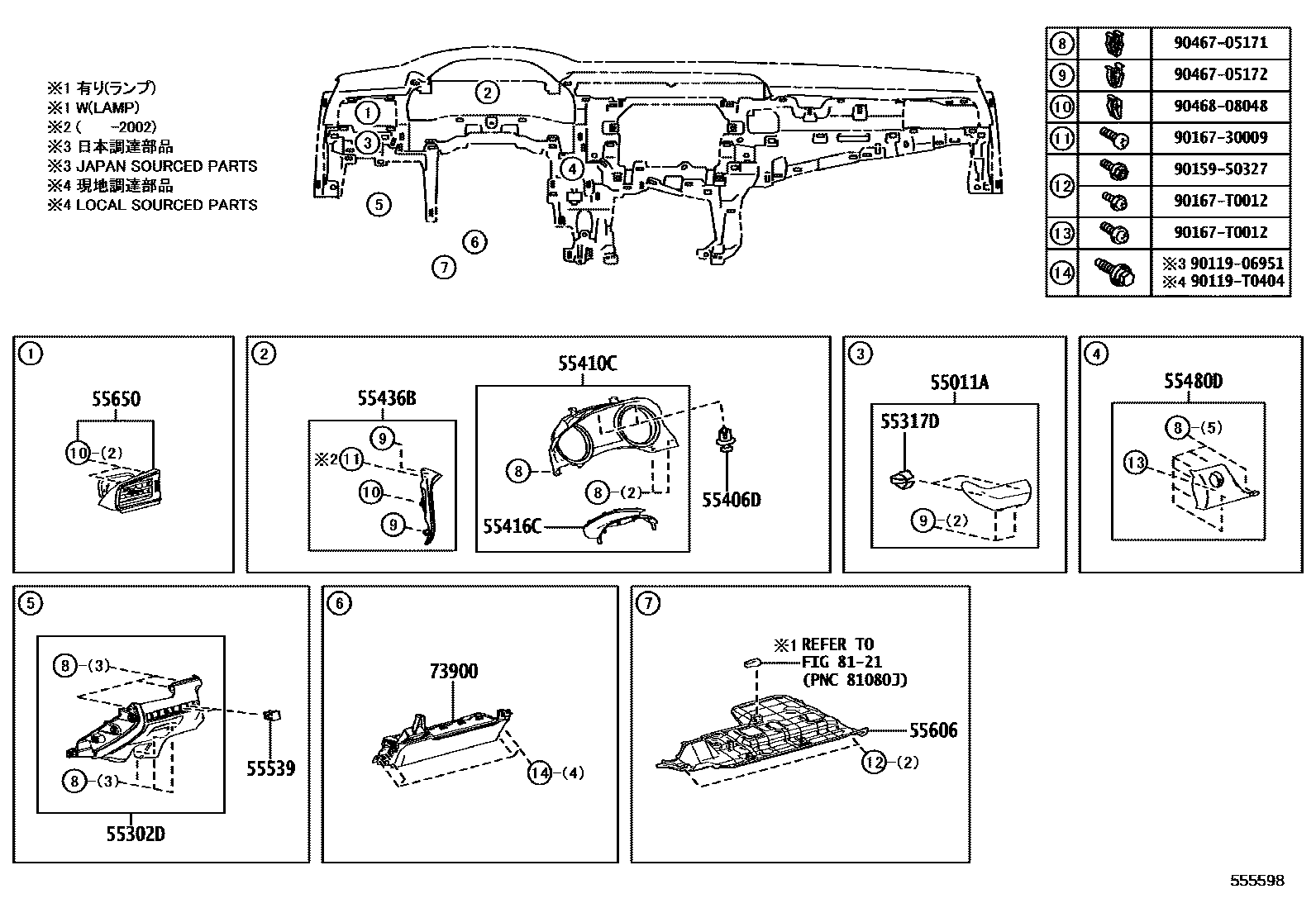

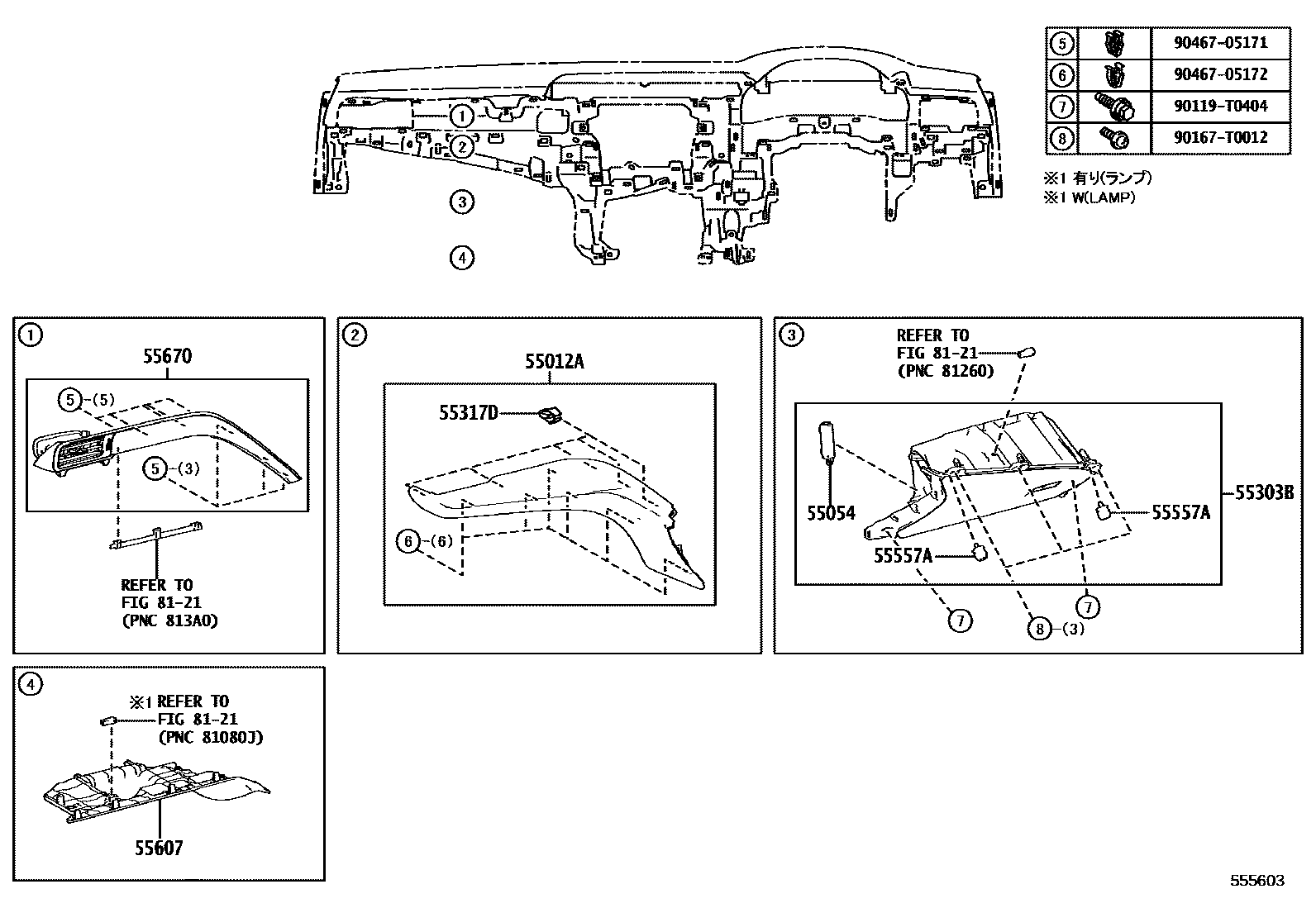

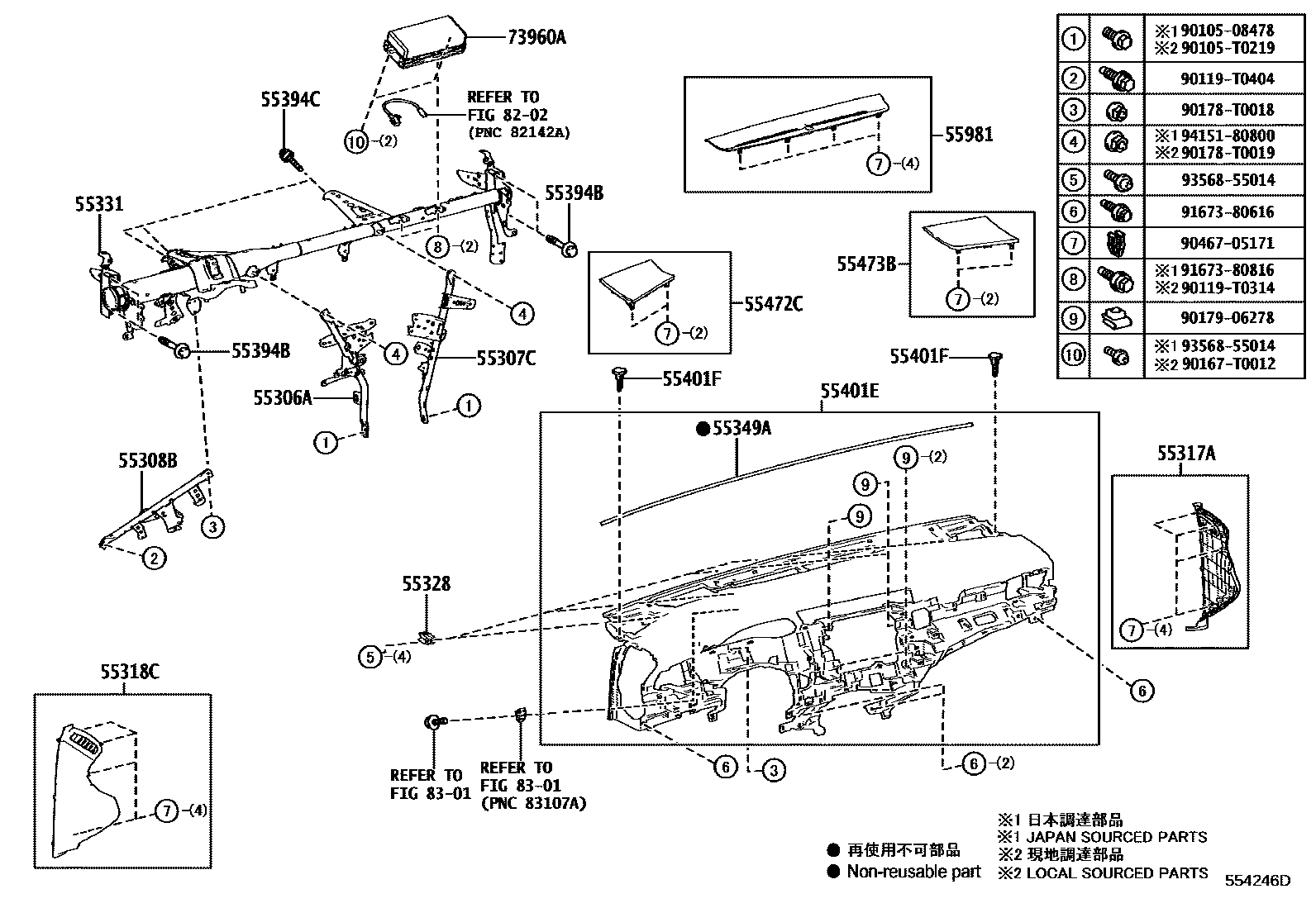

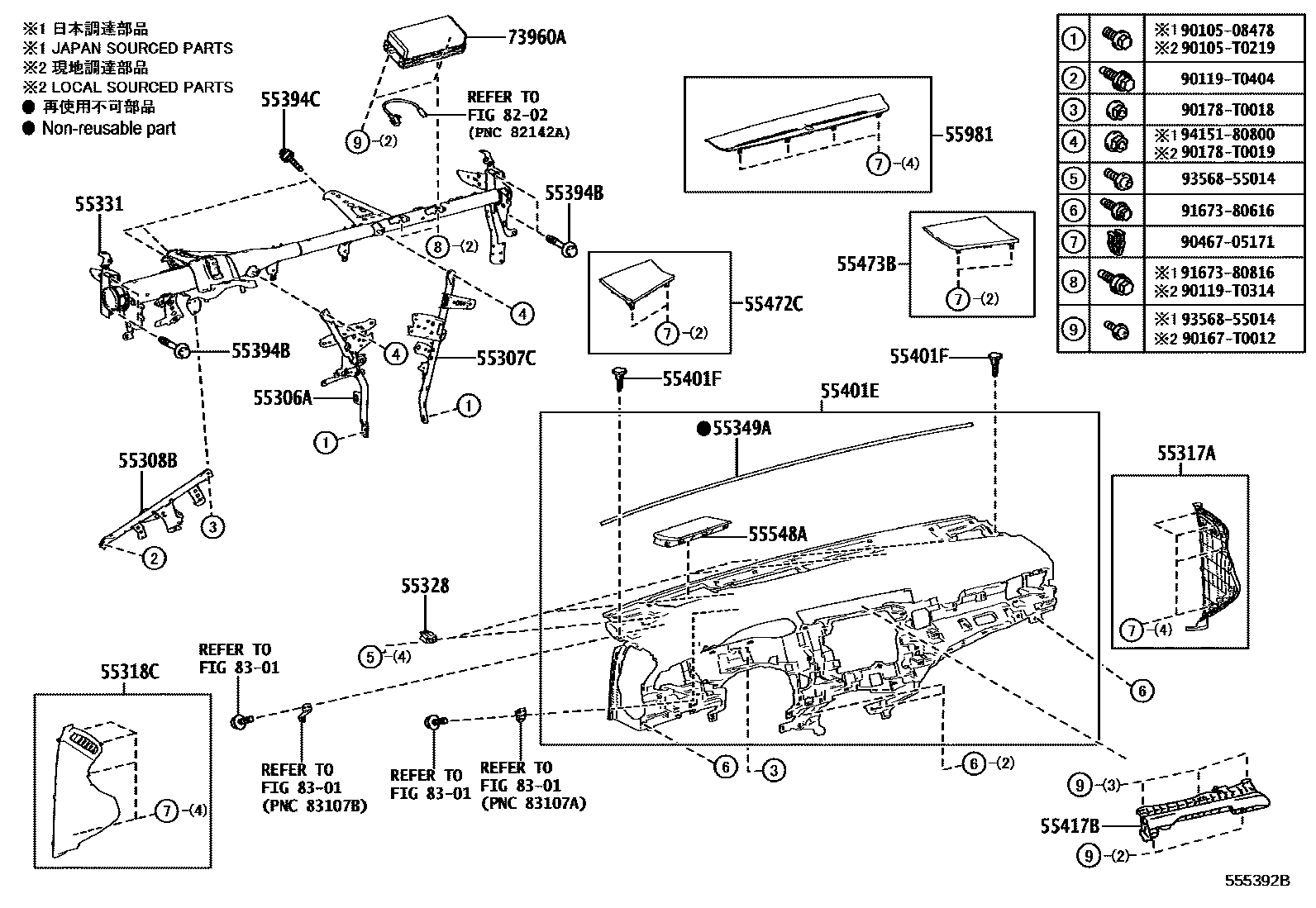

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 29 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-06180 · 55306-06210 · 55306-06270 · 55306-06280 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-06170 · 55307-06200 · 55307-06260 · 55307-06270 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-06090 · 55308-06120 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-06410 · 55330-06480 · 55330-06510 · 55330-06570 |
| 55349A | Dashboard cushion | 55349-06190 · 55349-33060 |
| 55394B | Dashboard bolts | 90105-08473 · 90105-T0220 |
| 55394C | Dashboard bolts | 90119-T0527 |
| 55401F | Clip (for safety mat) | 52161-0K040 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-06260 · 55405-06270 · 55405-33390 |
| 55410C | Instrument cluster decorative panel assembly | 55410-06160 · 55410-06180 · 55410-06210 · 55410-06240 |
| 55412G | Clip (for center instrument cluster trim panel) | 52161-0K040 |
| 55416C | Instrument cluster decorative panel fixings | 55416-06130 · 55416-06160 · 55416-06170 · 55416-06210 |
| 55417B | Radio tuner trim panel fixing | 55417-06040 · 55417-06050 · 55417-33060 · 55417-33080 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-06080 · 55420-06090 · 55420-06100 · 55420-06130 |
| 55422C | Center instrument cluster upper decorative panel | 55422-06090 · 55422-33090 · 55422-33100 |
| 55423B | Instrument cluster decorative panel cover | 55424-06040 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-06290 · 55435-06320 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-06260 · 55436-06290 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55539 | Spare switch hole cover | 55539-06130 |
| 55548A | Dashboard hole cover | 55548-33130 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-06100 · 55606-06130 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06370 · 55607-06520 · 55607-06521 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-06500 · 55650-06530 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-06280 · 55660-06310 · 55660-33290 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06250 |
