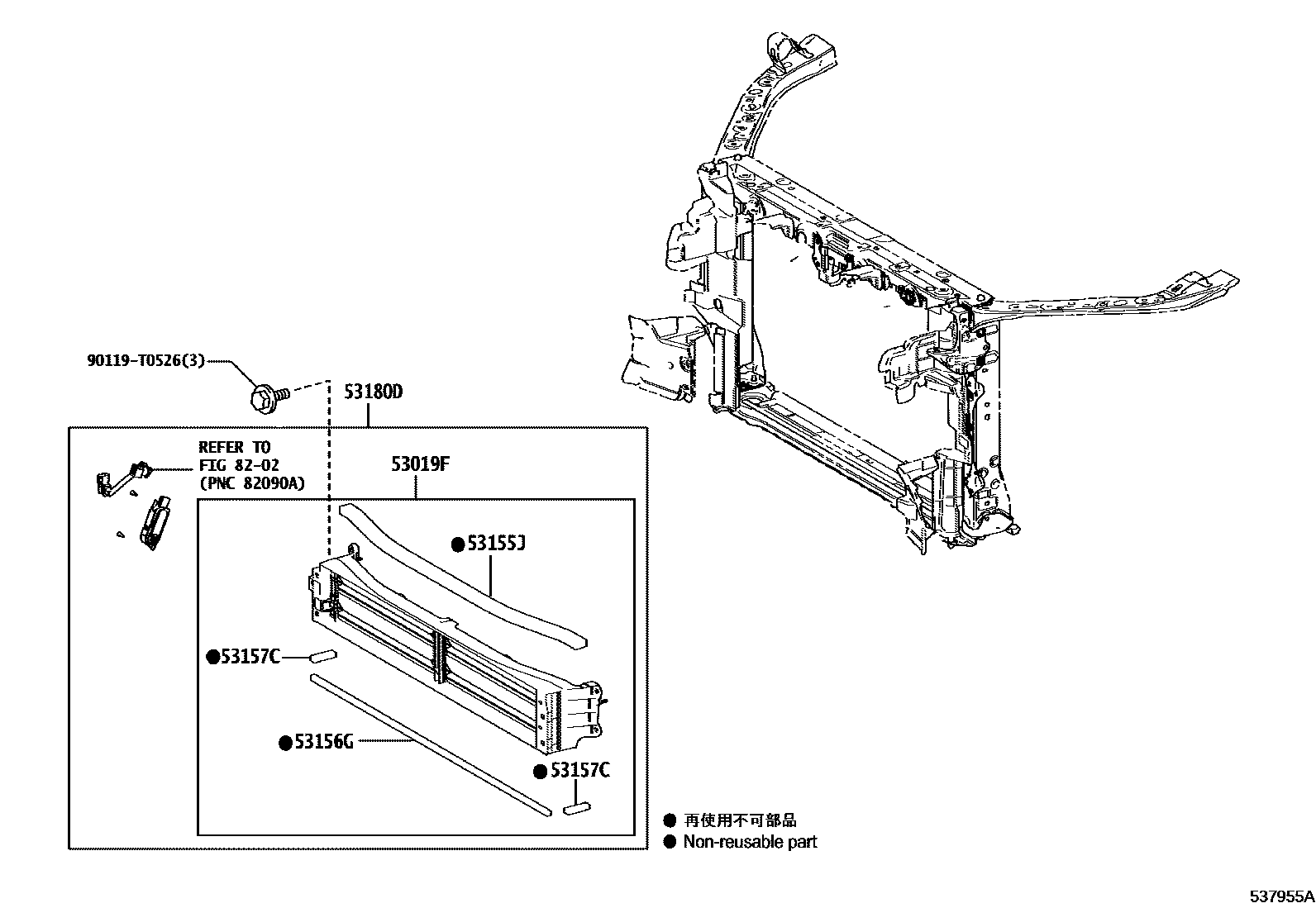

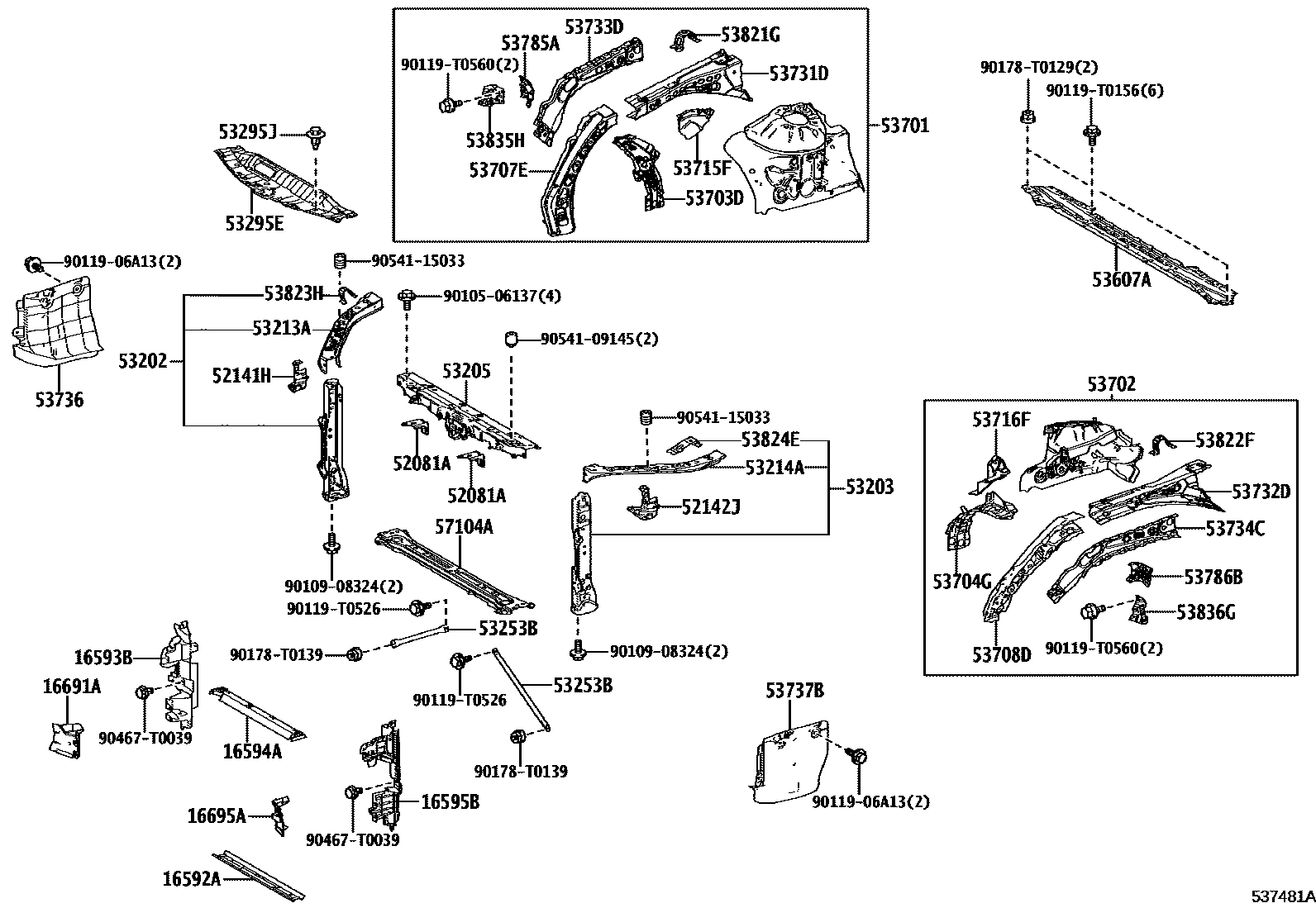

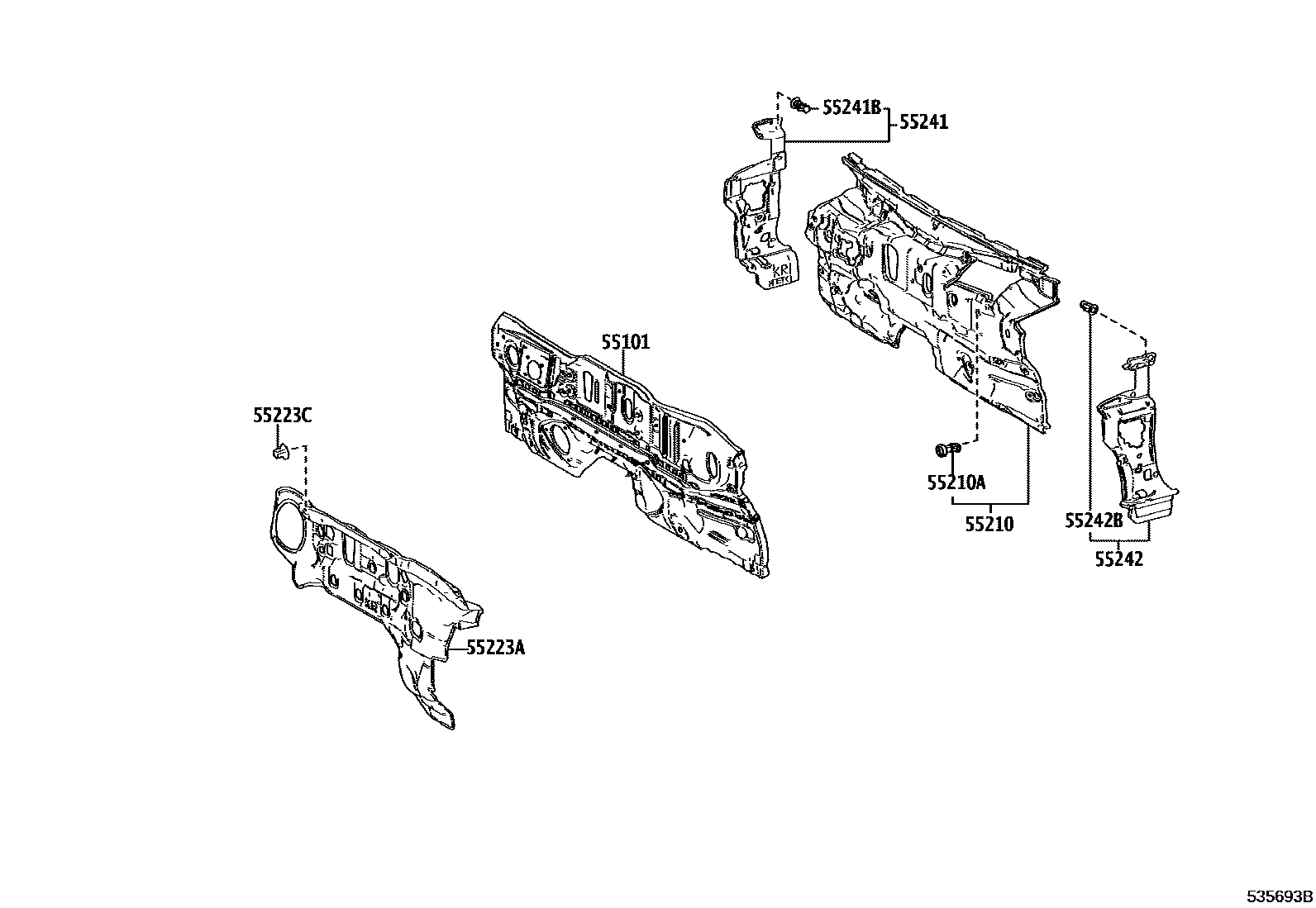

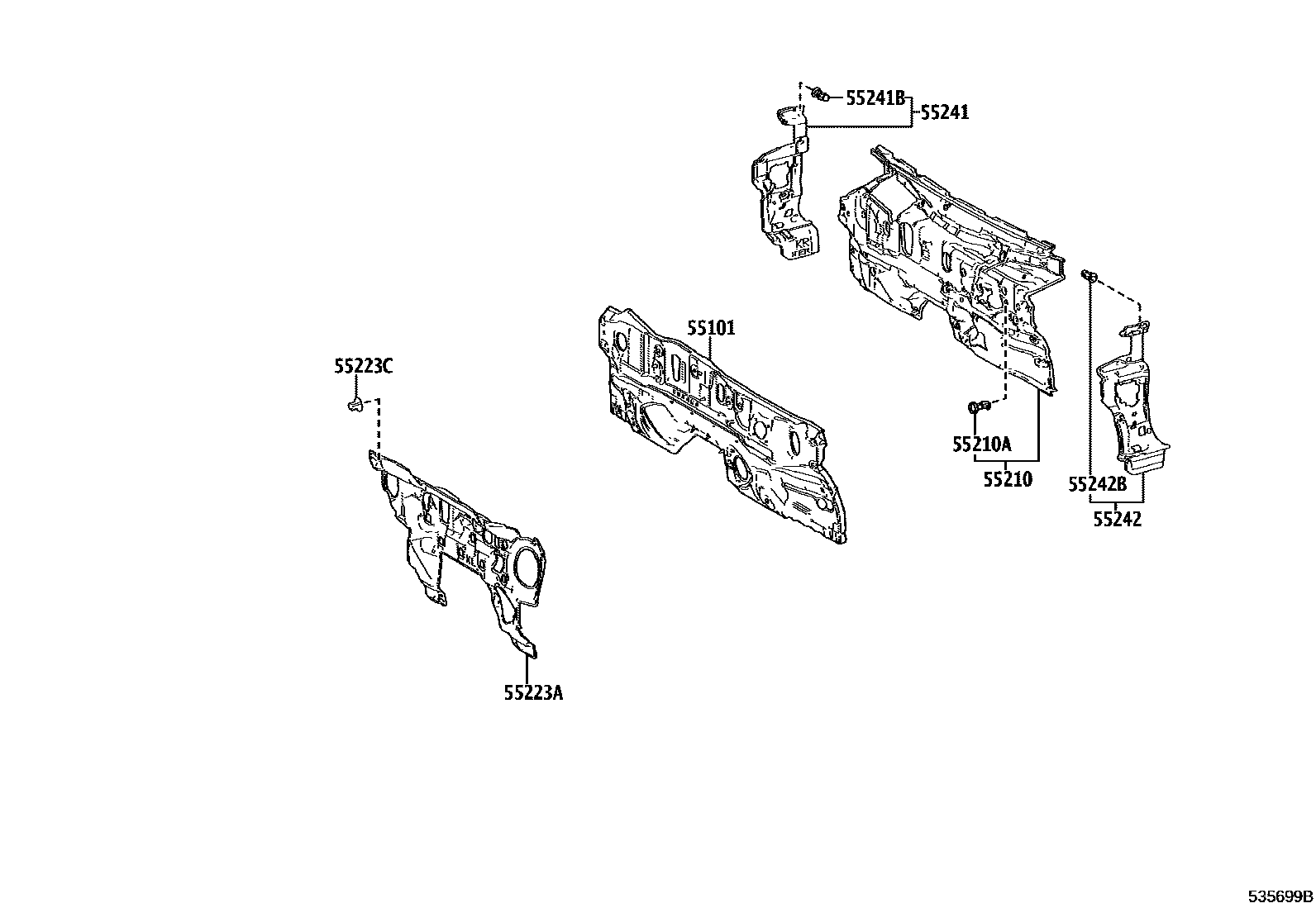

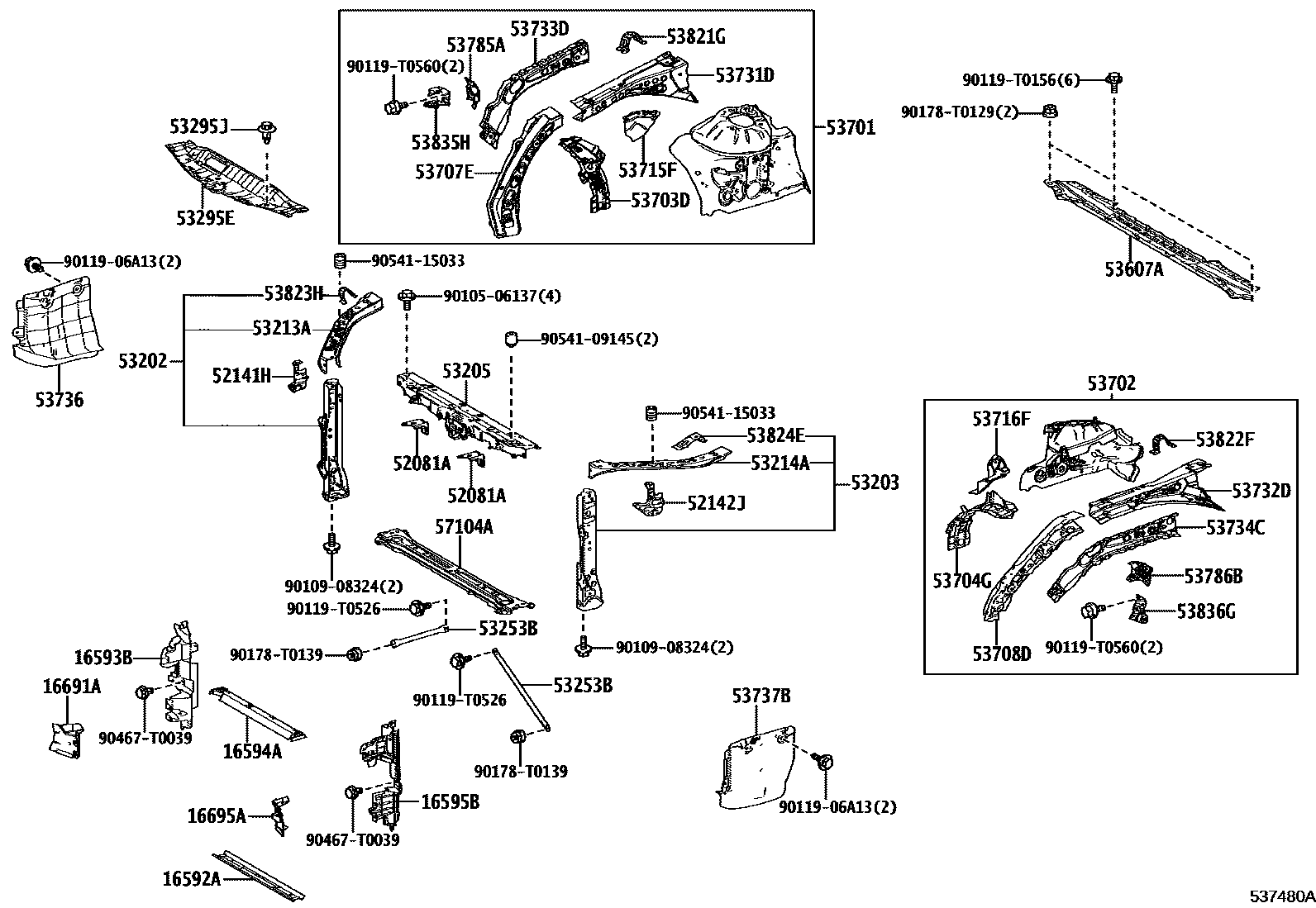

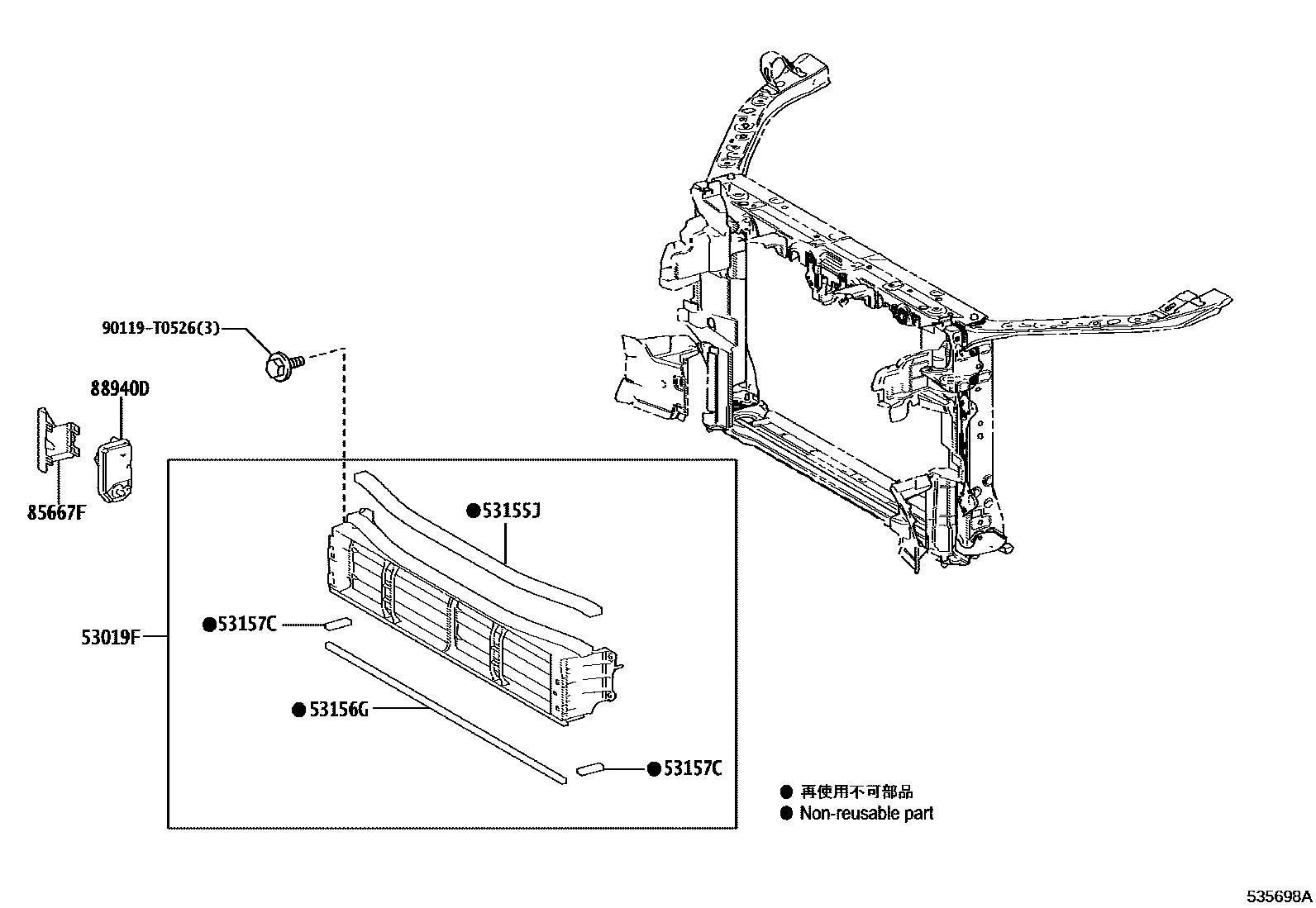

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-F0030 |
| 16593B | No. 1 radiator right deflector | 16593-F0030 · 16593-F0080 · 16593-F0480 · 16593-F0490 |
| 16594A | Radiator deflector No. 2 | 16594-F0030 |
| 16595B | No. 1 radiator left deflector | 16595-F0030 · 16595-F0080 · 16595-F0500 · 16595-F0510 |
| 16691A | Radiator right front side deflector | 16691-F0070 · 16691-F0180 |
| 16695A | Radiator left front deflector | 16695-F0070 · 16695-F0200 |
| 52081A | Front bumper right side stay sub-assembly | 52081-06030 |
| 52141H | Front bumper right upper arm | 52141-06190 |
| 52142J | Front bumper left upper arm | 52142-06180 |
| 53019F | Radiator louver sub-assembly | 53019-33010 · 53019-33011 · 53019-33020 |
| 53155J | Radiator grille seal No. 1 | 53155-33070 · 53155-33120 |
| 53156G | Radiator grille seal No. 2 | 53156-33010 |
| 53157C | Radiator grille seal No. 3 | 53157-33010 |
| 53180D | Radiator shutter assembly | 53180-33090 · 53180-33091 · 53180-33092 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06260 |
| 53203 | Radiator left bracket sub-assembly | 53203-06300 |
| 53205 | Radiator upper bracket sub-assembly | 53205-06250 |
| 53213A | Radiator upper right bracket | 53213-06210 |
| 53214A | Radiator upper left bracket | 53214-06240 |
| 53253B | Radiator mounting bracket | 53253-06020 |
| 53295E | Cold air intake pipe seal | 53295-06230 |
| 53295J | Cold air intake pipe clip | 90467-07217 · 90467-T0048 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-06020 |
| 53701 | Right front fender fender sub-assembly | 53701-06290 |
| 53702 | Left front fender fender sub-assembly | 53702-06270 · 53702-06330 |
| 53703D | No. 2 right front fender fender sub-assembly | 53703-06150 |
| 53704G | No. 2 left front fender fender sub-assembly | 53704-06160 |
| 53707E | Fender right fender sub-assembly | 53707-06090 |
| 53708D | Fender left fender sub-assembly | 53708-06040 |
| 53715F | Right fender fender | 53715-06040 |
| 53716F | Left fender fender | 53716-06040 |
| 53731D | Right front fender to cowl side upper beam | 53731-06220 |
| 53732D | Left front fender to cowl side upper beam | 53732-06210 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06210 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06210 |
| 53736 | Right front fender fender seal | 53736-06120 |
| 53737B | Left front fender fender seal | 53737-06160 |
| 53785A | Right front fender corner plate | 53785-06040 |
| 53786B | Left front fender corner plate | 53786-06040 |
| 53821G | Right front fender rear support | 53821-06170 |
| 53822F | Left front fender rear support | 53822-06160 |
| 53823H | Right front fender corner panel | 53823-06180 |
| 53824E | Left front fender corner panel | 53824-06180 |
| 53835H | Right front fender to extension stay | 53835-06160 |
| 53836G | Left front fender to extension stay | 53836-06170 |
| 55101 | Front apron sub-assembly | 55101-06904 · 55101-06905 |
| 55210 | Front wall insulation pad assembly | 55210-06450 · 55210-06460 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-06530 · 55223-06540 |
| 55223C | clip | 90467-06197 · 90467-T0032 |
| 55241 | Front panel No. 1 right side silencer | 55241-06030 |
| 55241B | Front panel side muffler clip | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-06040 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 57104A | Front cross member sub-assembly | 57104-06090 |
| 85667F | Motor cover | 85667-10010 |
| 88940D | Swing grille actuator assembly | 88940-33050 · 88940-33070 · 88940-33121 · 88940-33122 |
