Toyota CAMRY radiator grille — Figure 5301

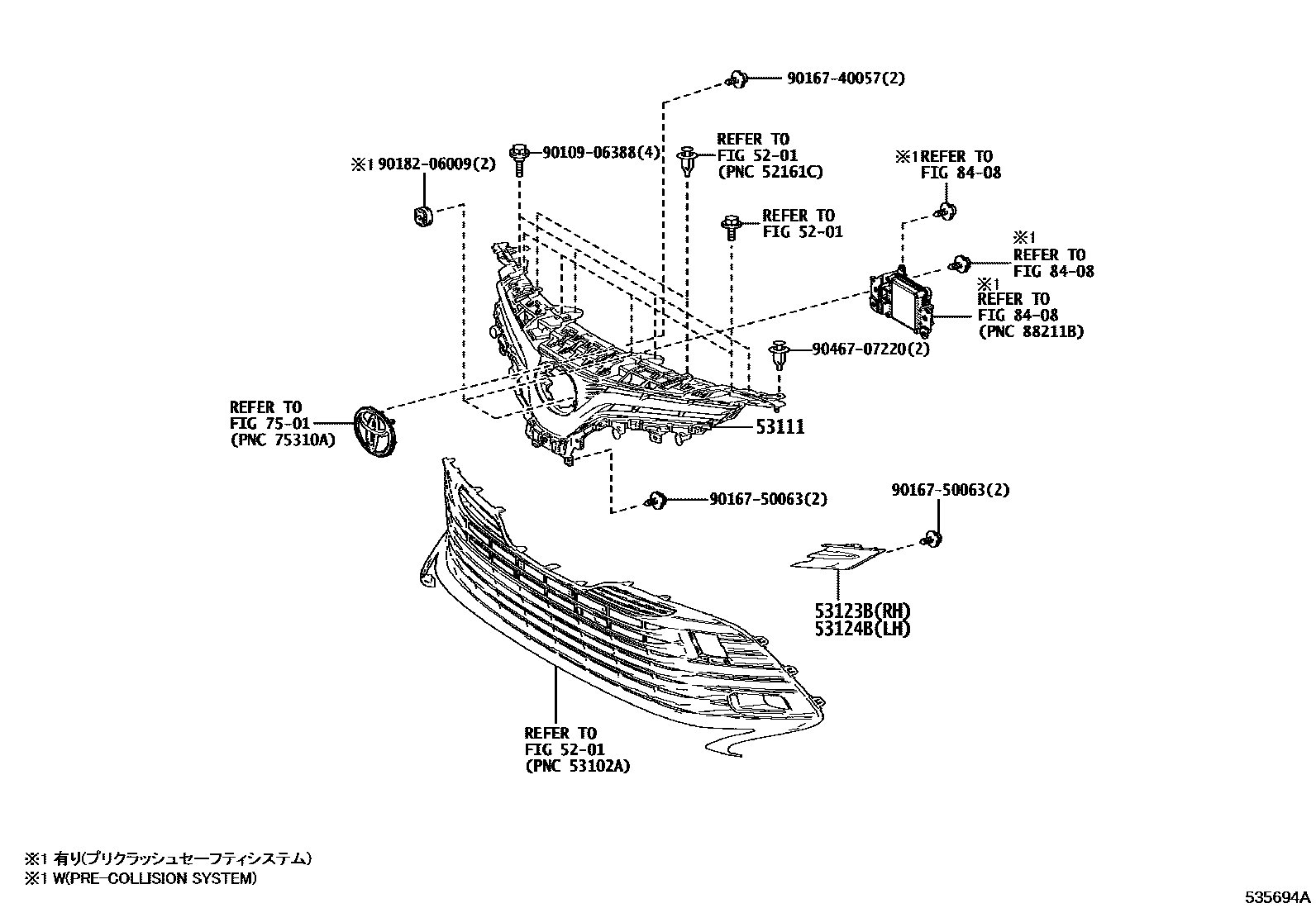

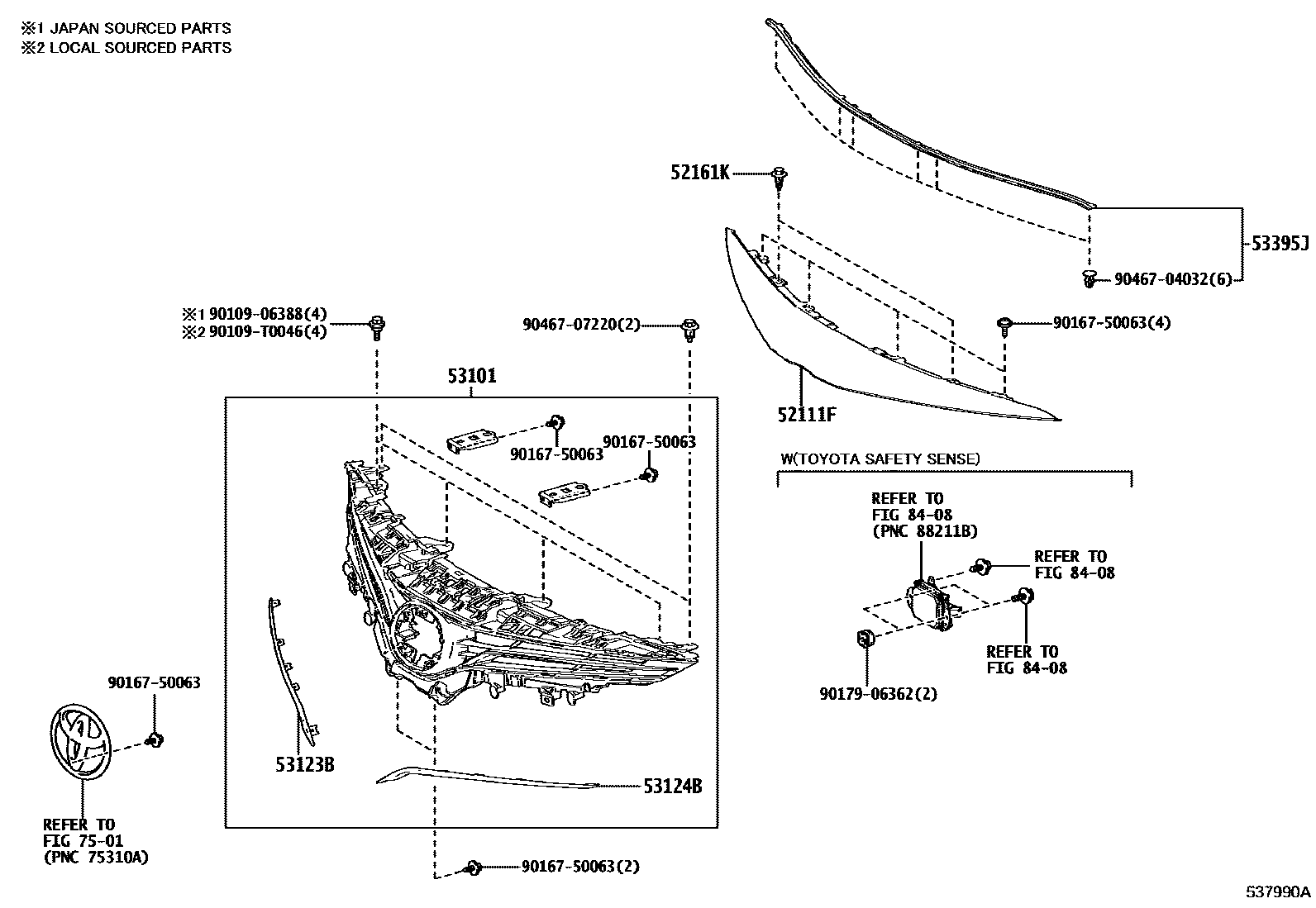

Toyota CAMRY EPC diagram 5301, radiator grille, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111F | Front bumper center stay | 52111-06903 |
| 52161K | front bumper insert | 52161-0K040 |
| 53101 | Radiator grille sub-assembly | 53101-06G70 · 53101-06G80 |
| 53111 | radiator grille | 53101-06C30 · 53101-06C40 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-06170 · 53123-06250 · 53123-06260 |
| 53124B | Radiator grille left protective strip | 53124-06170 · 53124-06300 · 53124-06310 |
| 53395J | Engine cover to front end plate seal | 53395-06110 |
