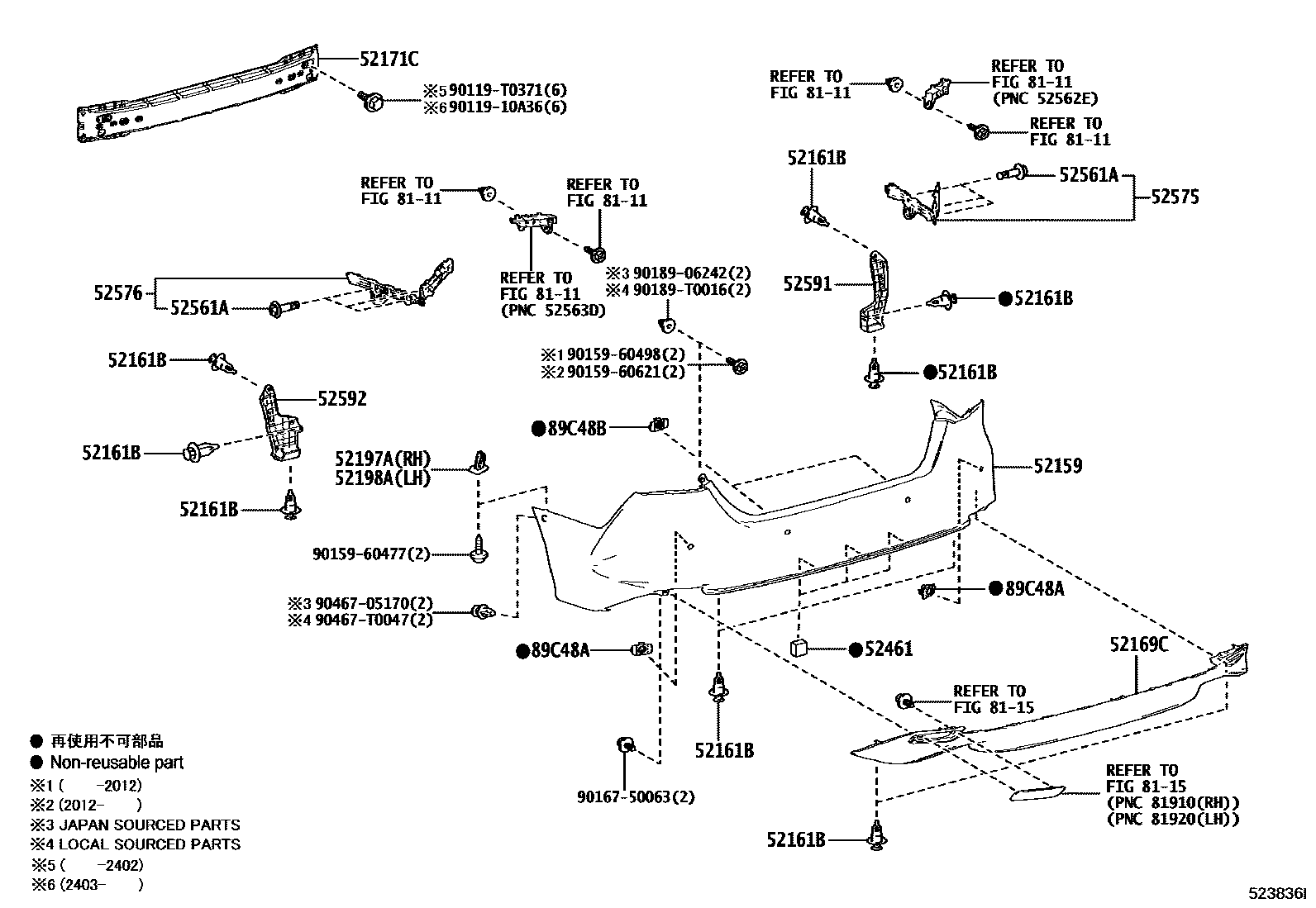

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-0X926 · 52159-0X934 |
| 52161B | Rear bumper insert | 52161-0K040 |
| 52169C | Rear bumper lower cover | 52169-06250 |
| 52171C | Rear bumper reinforcement | 52023-06220 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52461 | Rear bumper center lining | 52462-30090 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52575 | Rear bumper right side fixing bracket | 52575-06180 |
| 52576 | Rear bumper left side fixing bracket | 52576-06180 |
| 52591 | Rear bumper right seal | 52591-06050 |
| 52592 | Rear bumper left seal | 52592-06050 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-06110 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-06110 |
