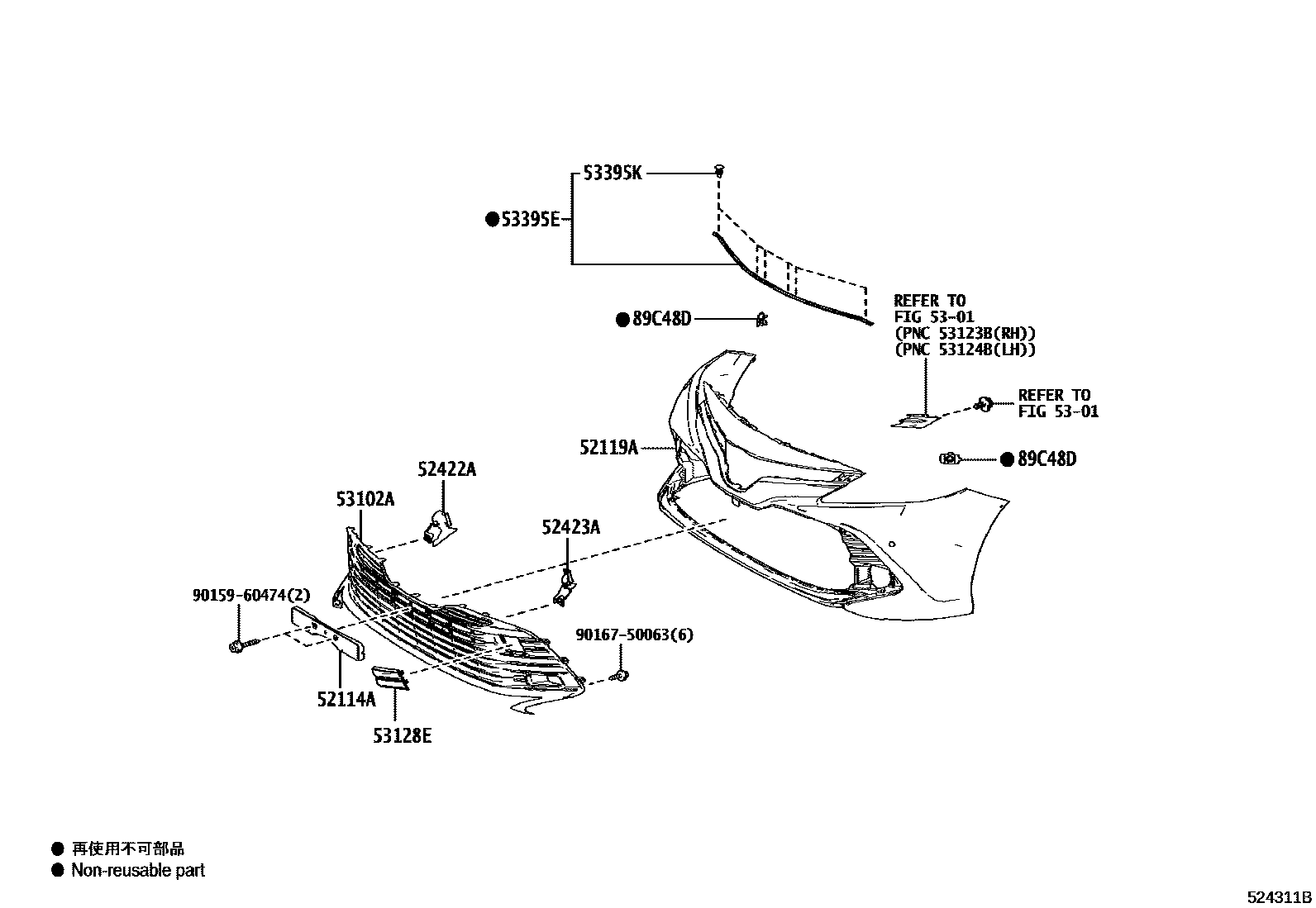

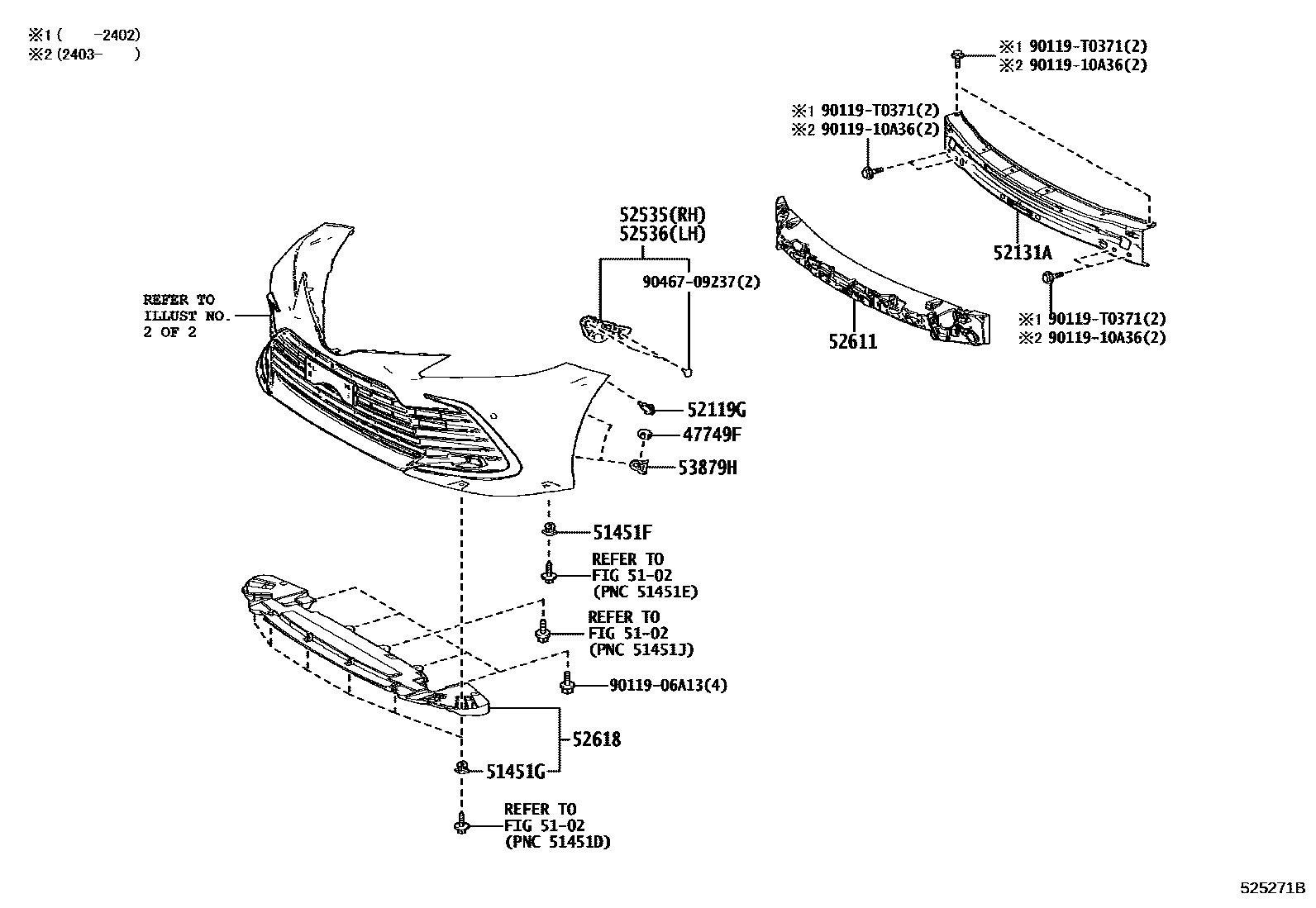

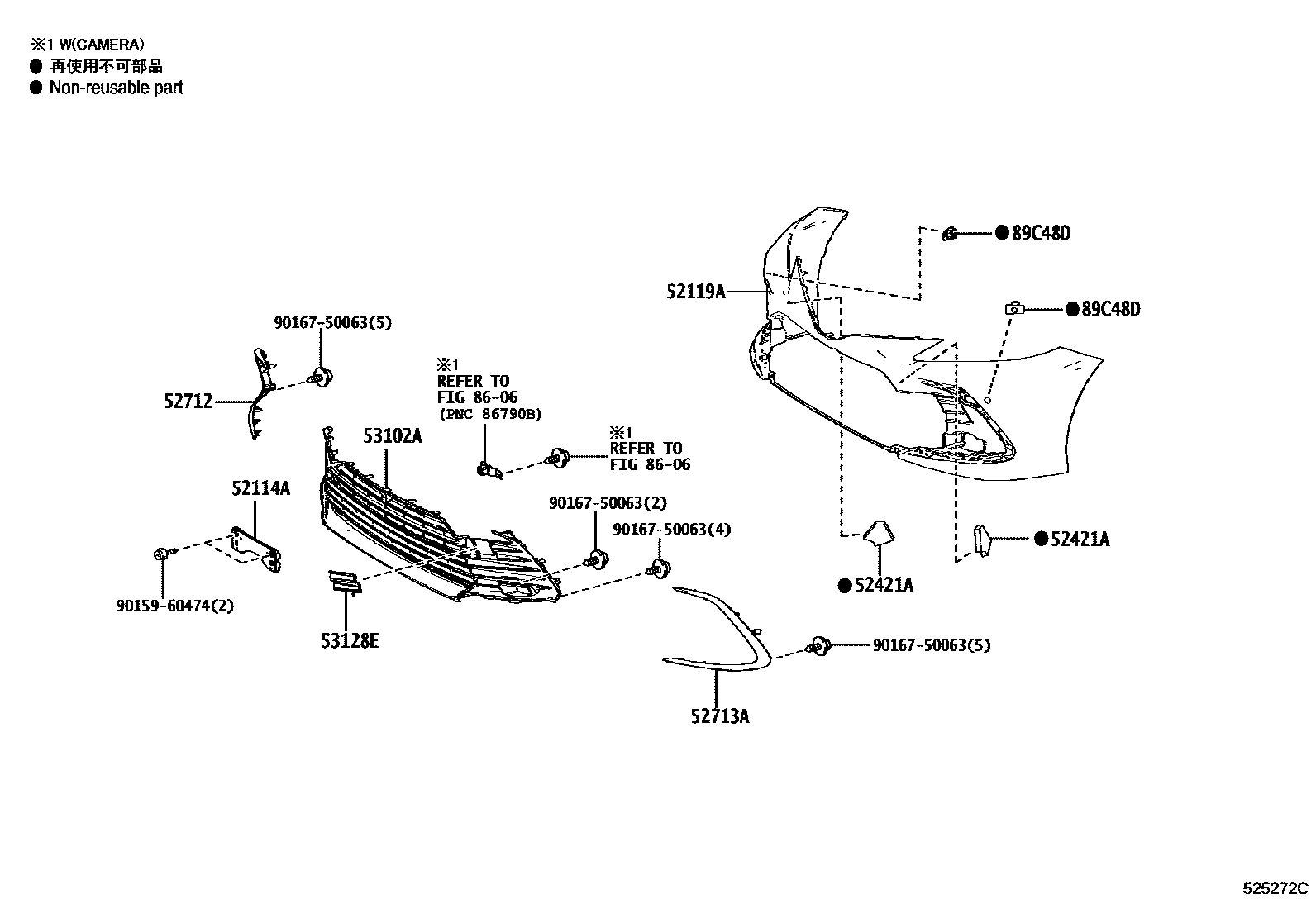

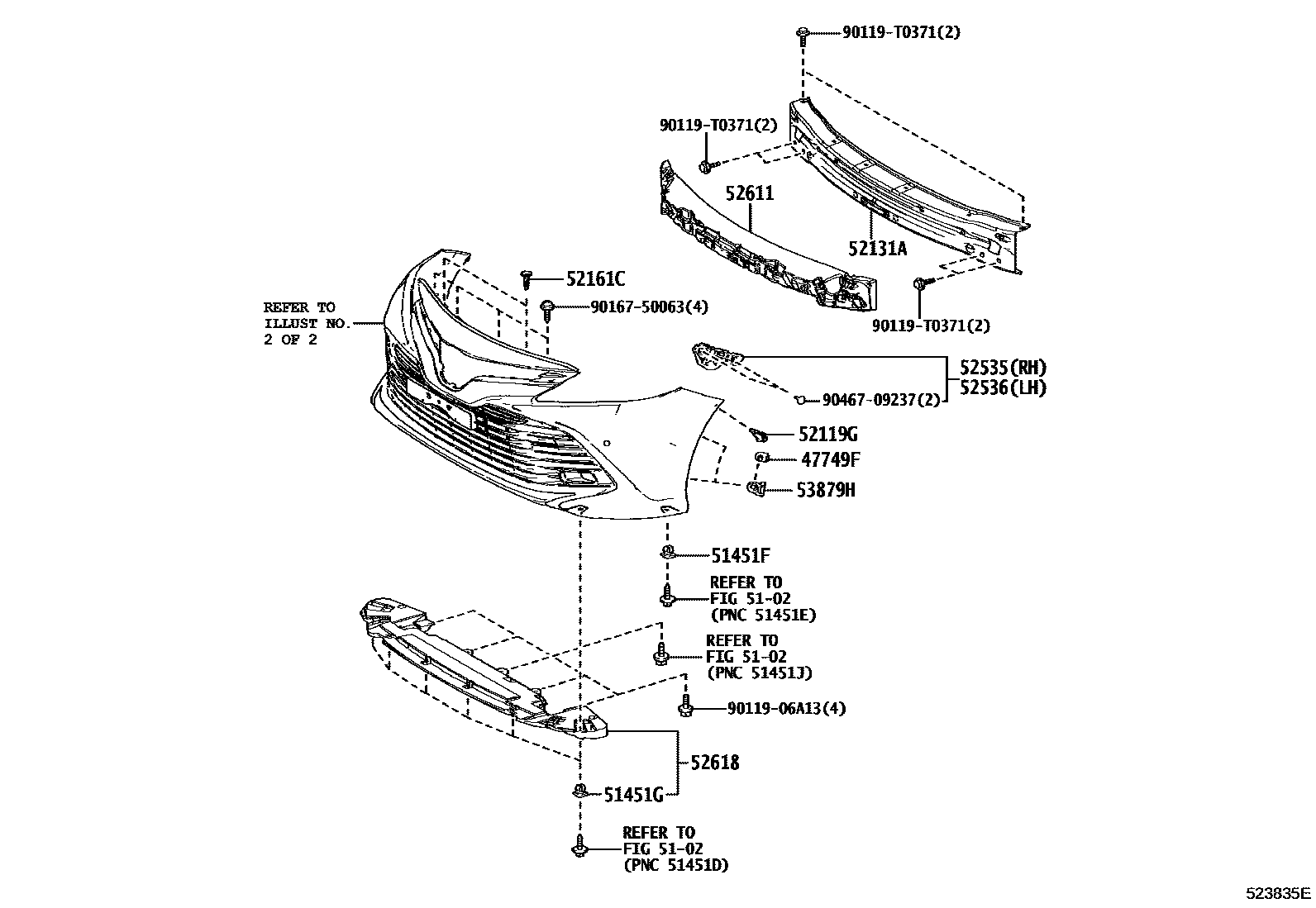

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06193 · 90189-06237 · 90189-T0024 |
| 51451G | Gasket No. 2 | 90189-06237 · 90189-T0024 |
| 52114A | Front bumper extension mounting bracket | 52114-06450 · 52114-06460 · 52114-06590 · 52114-06600 |
| 52119A | front bumper cover | 52119-0X951 · 52119-0X963 · 52119-0X964 |
| 52119G | No. 1 clip | 90467-05170 · 90467-T0047 |
| 52131A | Front bumper reinforcement | 52131-06210 · 52131-06211 |
| 52161C | front bumper insert | 52161-0K040 |
| 52421A | front bumper lining | 52421-06030 |
| 52422A | Front bumper right side lining | 52422-06060 |
| 52423A | Front bumper left lining | 52423-06060 |
| 52535 | Front bumper right side fixing bracket | 52535-06240 |
| 52536 | Front bumper left fixed bracket | 52536-06240 |
| 52611 | front bumper energy absorber | 52611-06490 · 52611-06600 |
| 52618 | Front bumper lower shock absorber | 52618-06070 |
| 52712 | Front bumper right side protective strip | 52712-06220 · 52712-06230 |
| 52713A | Front bumper left protective strip | 52713-06220 · 52713-06230 |
| 53102A | Radiator lower grille sub-assembly | 53102-06210 · 53102-06510 · 53102-06740 · 53102-06750 · 53102-06770 · 53102-06780 · 53102-06790 · 53102-06800 · 53102-06810 · 53102-06820 |
| 53128E | Lower left radiator grille | 53128-06080 · 53128-06280 · 53128-06290 |
| 53395E | Engine cover to front end plate seal | 53395-06110 |
| 53395K | Clip (for hood to front end plate seal) | 90467-04032 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-06110 · 89348-0K050 |
