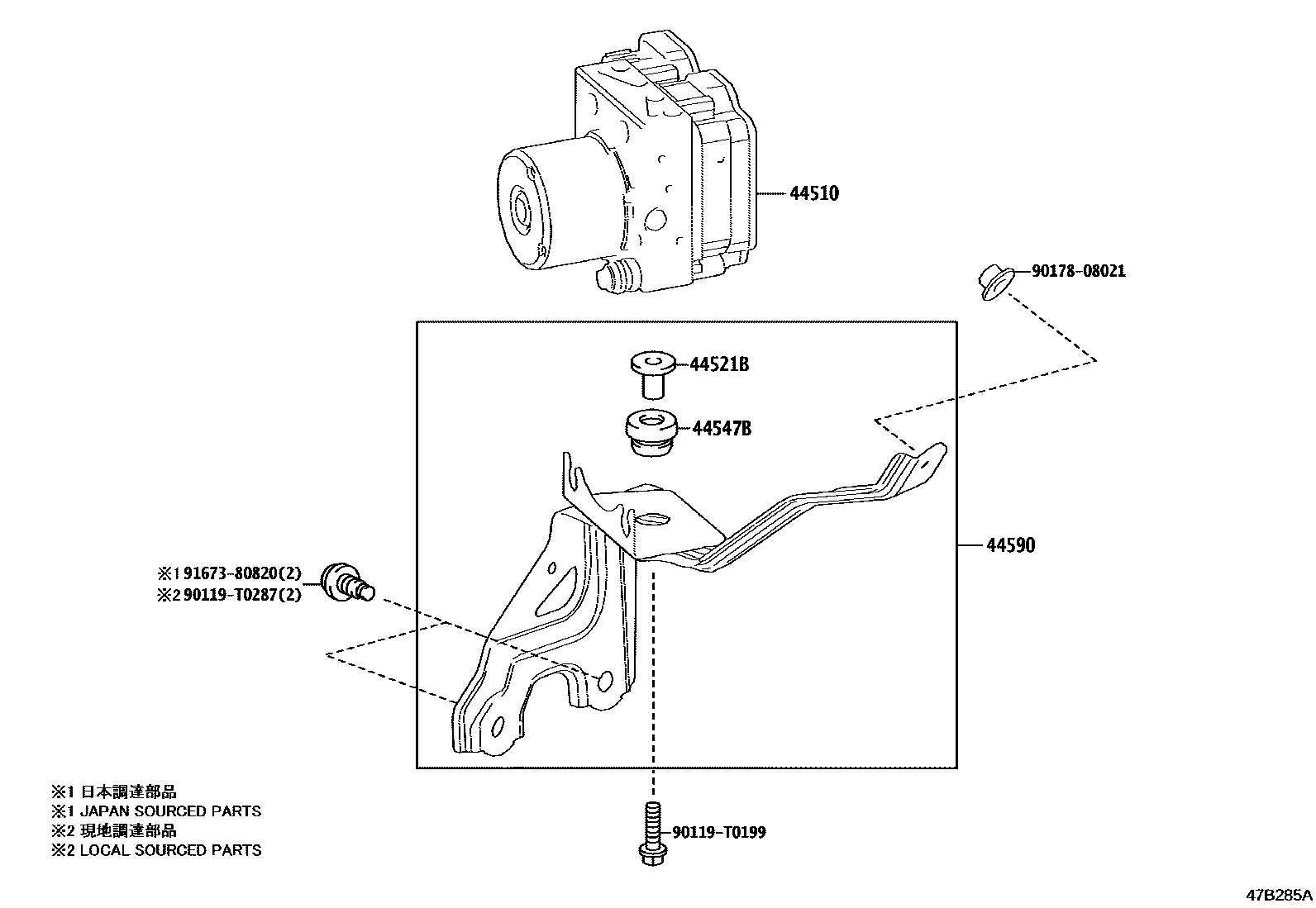

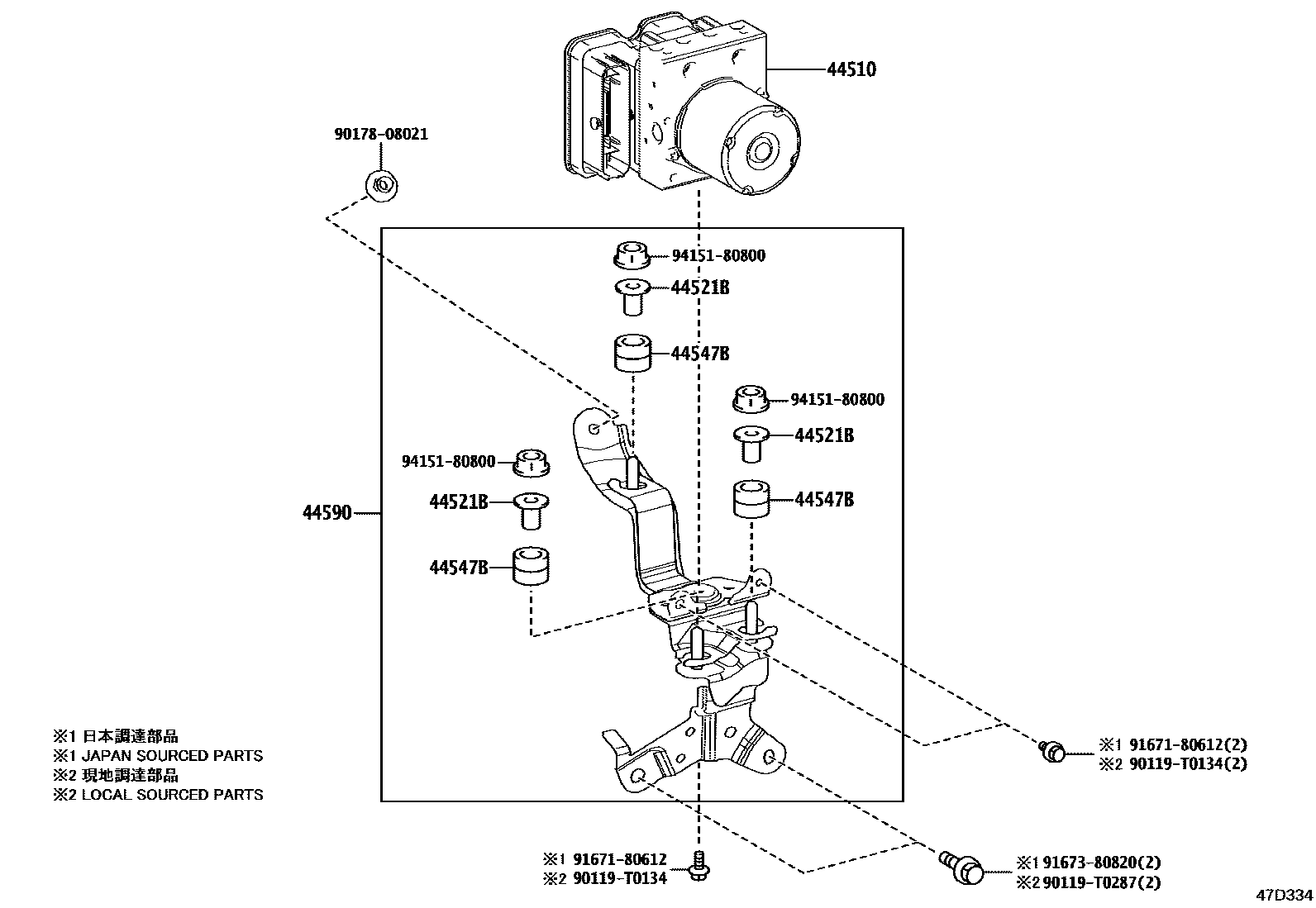

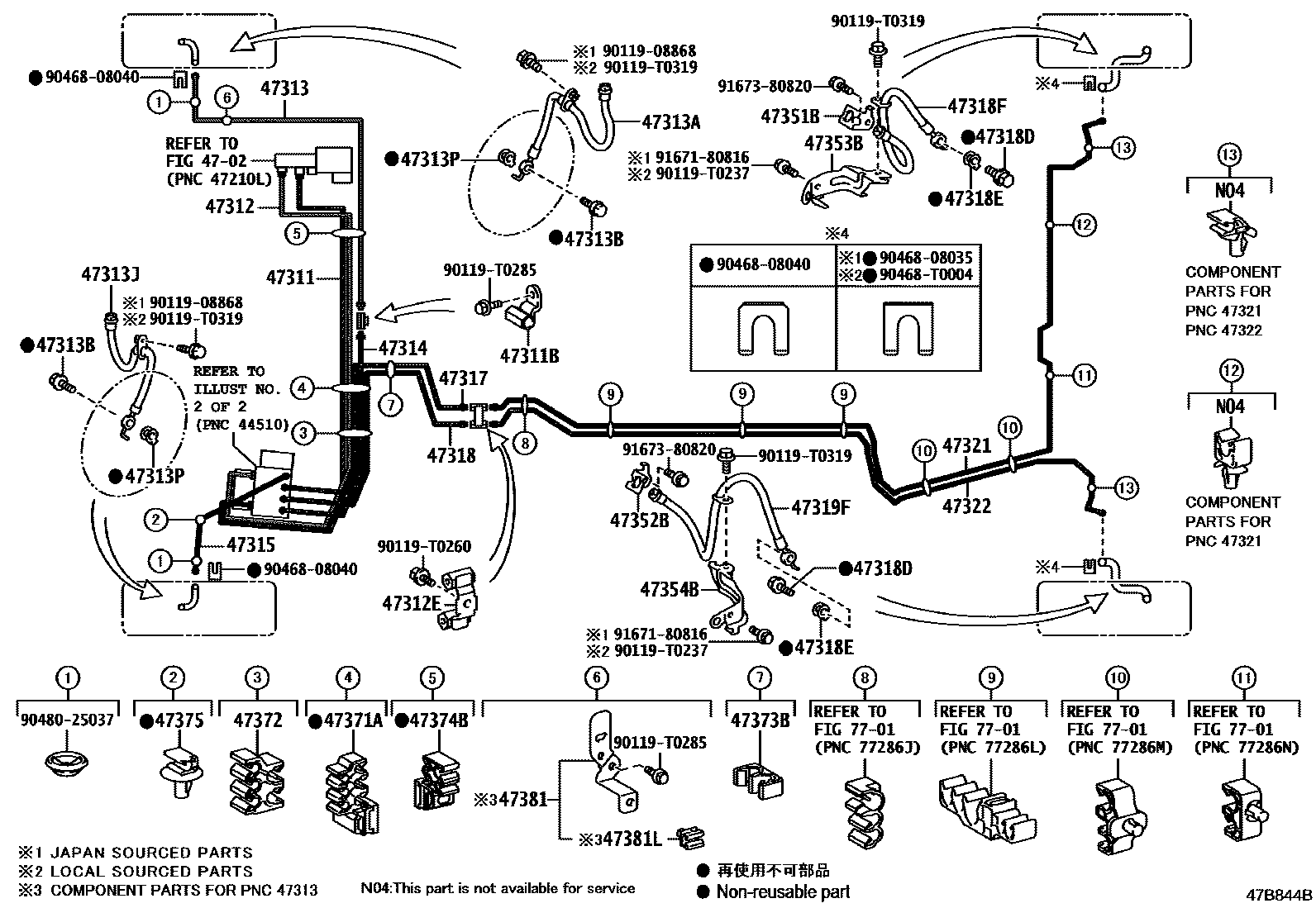

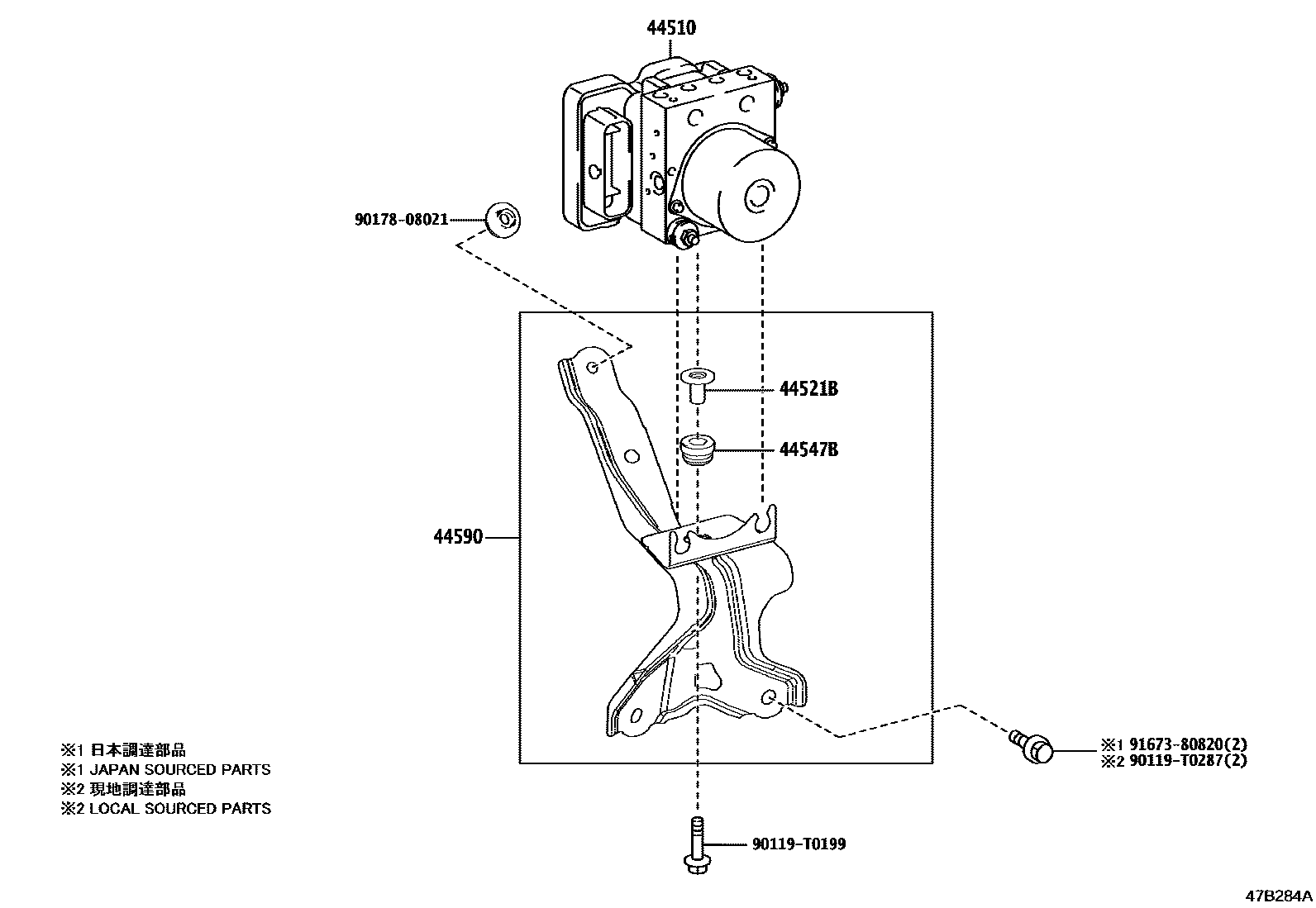

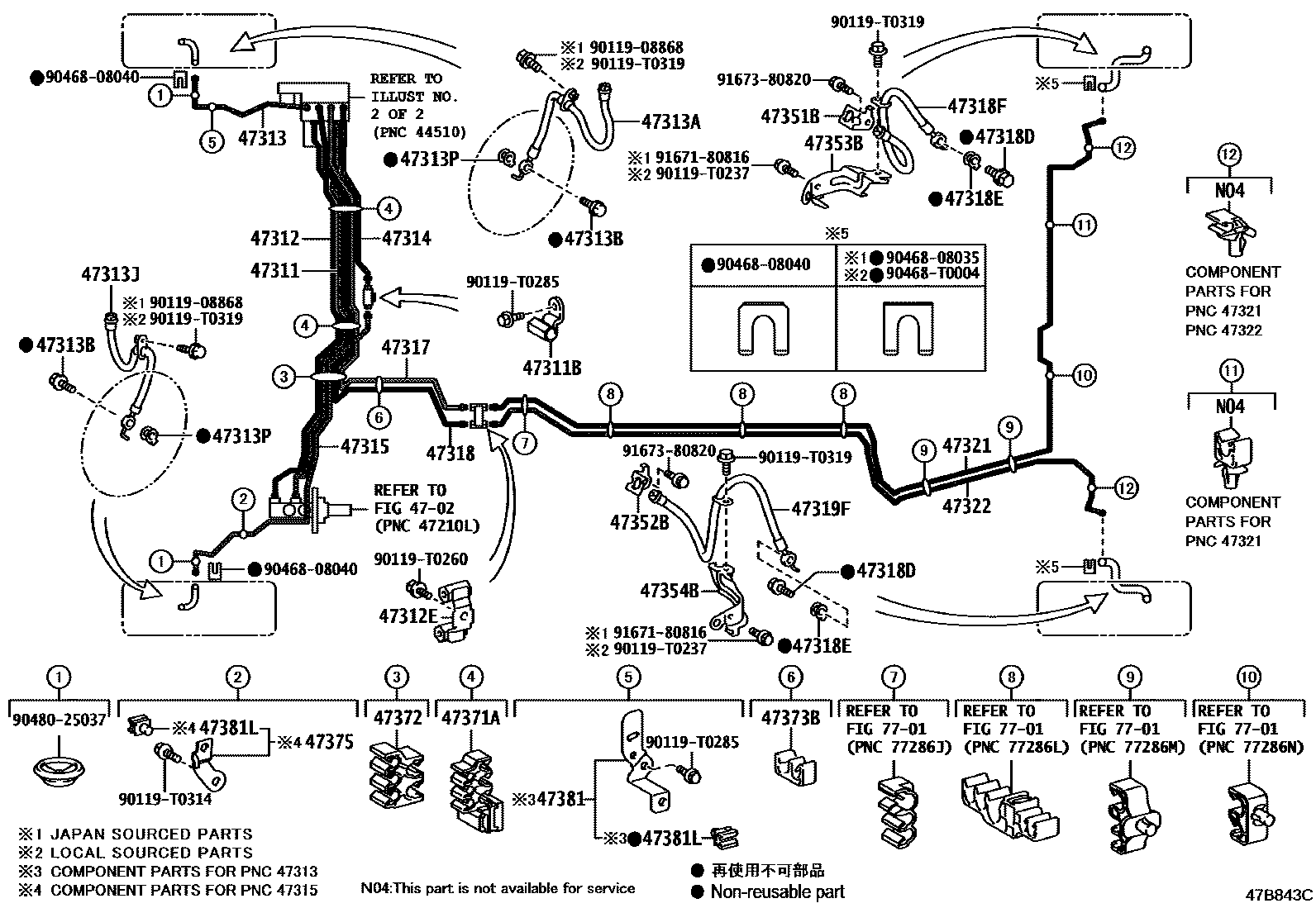

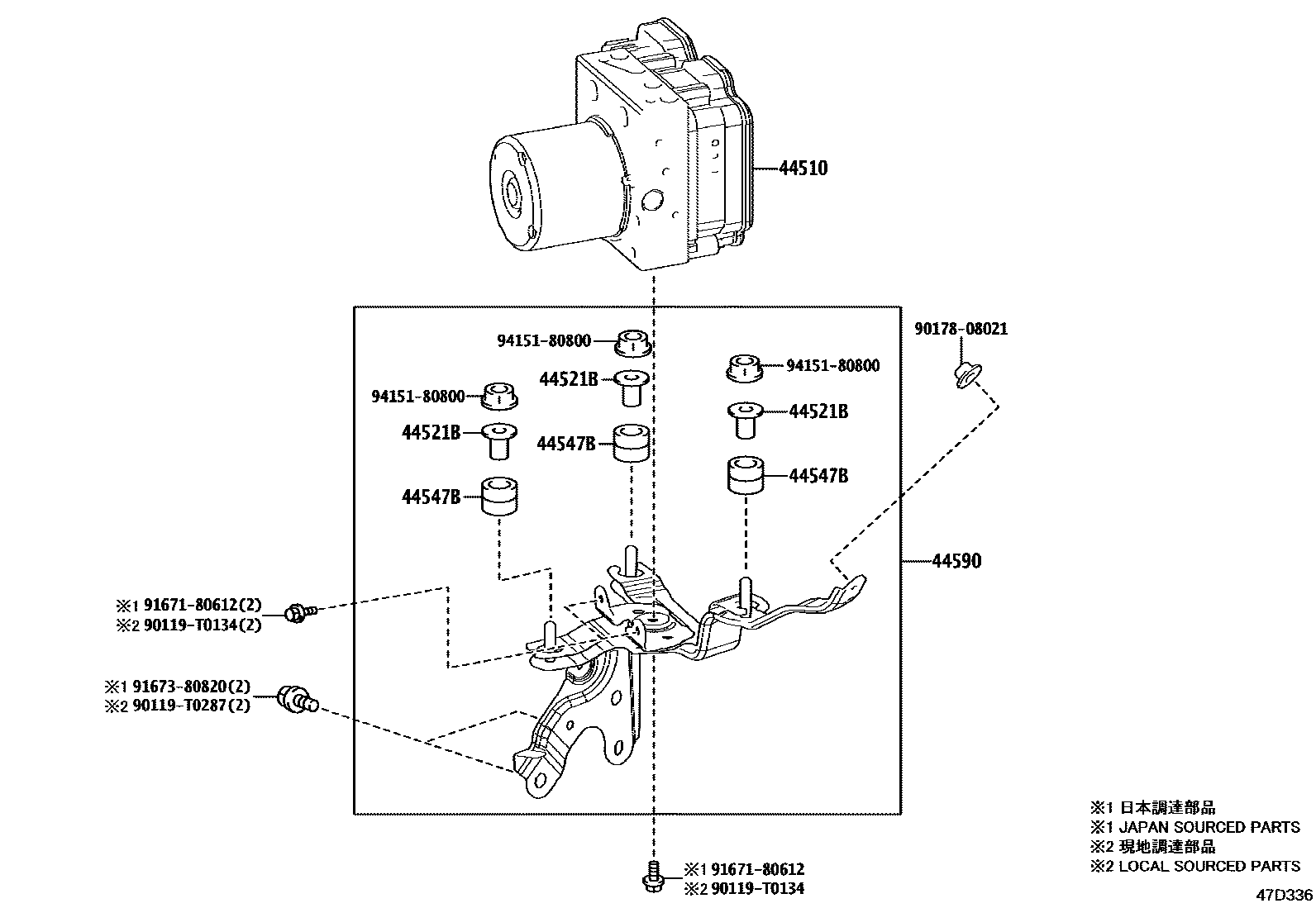

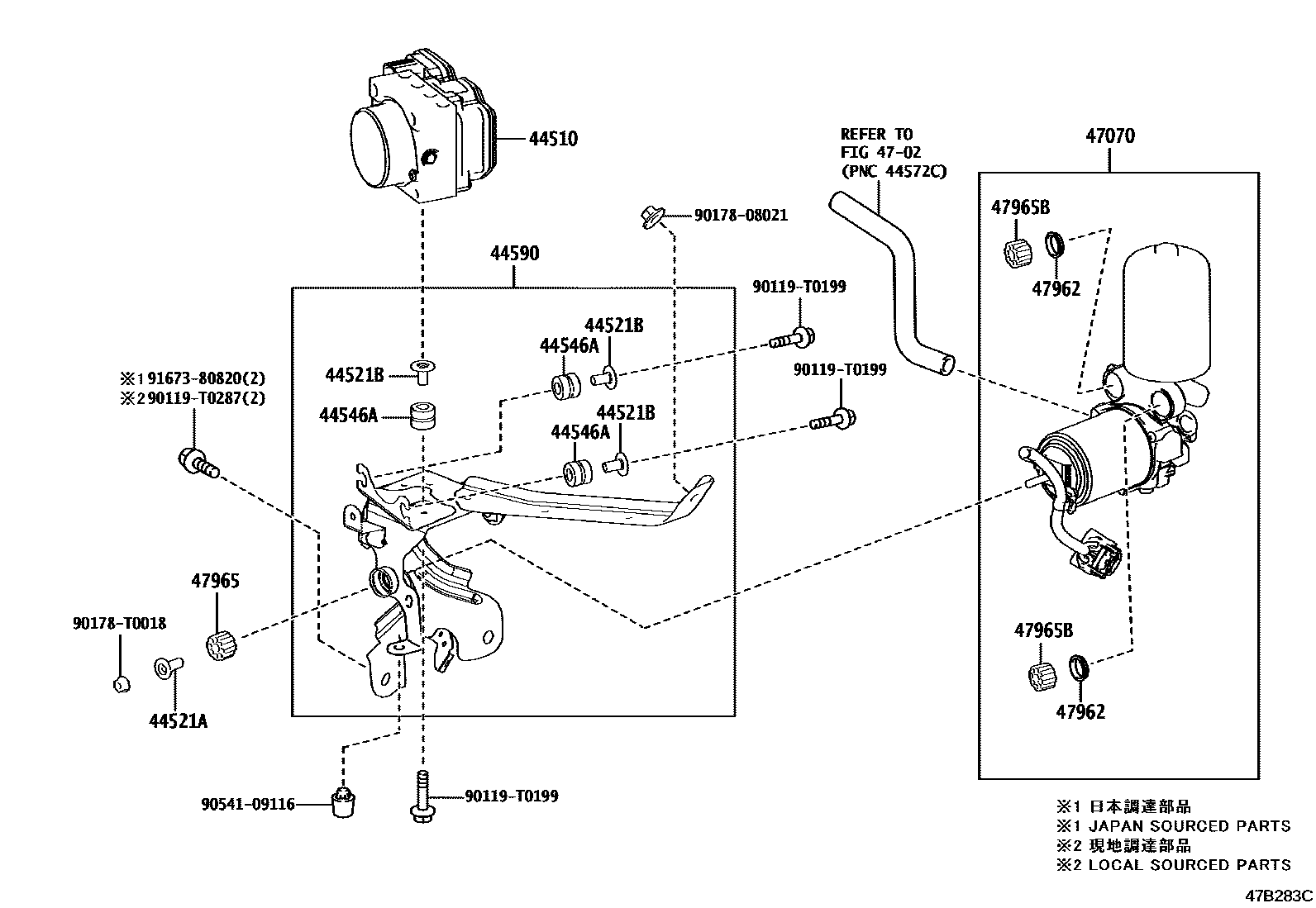

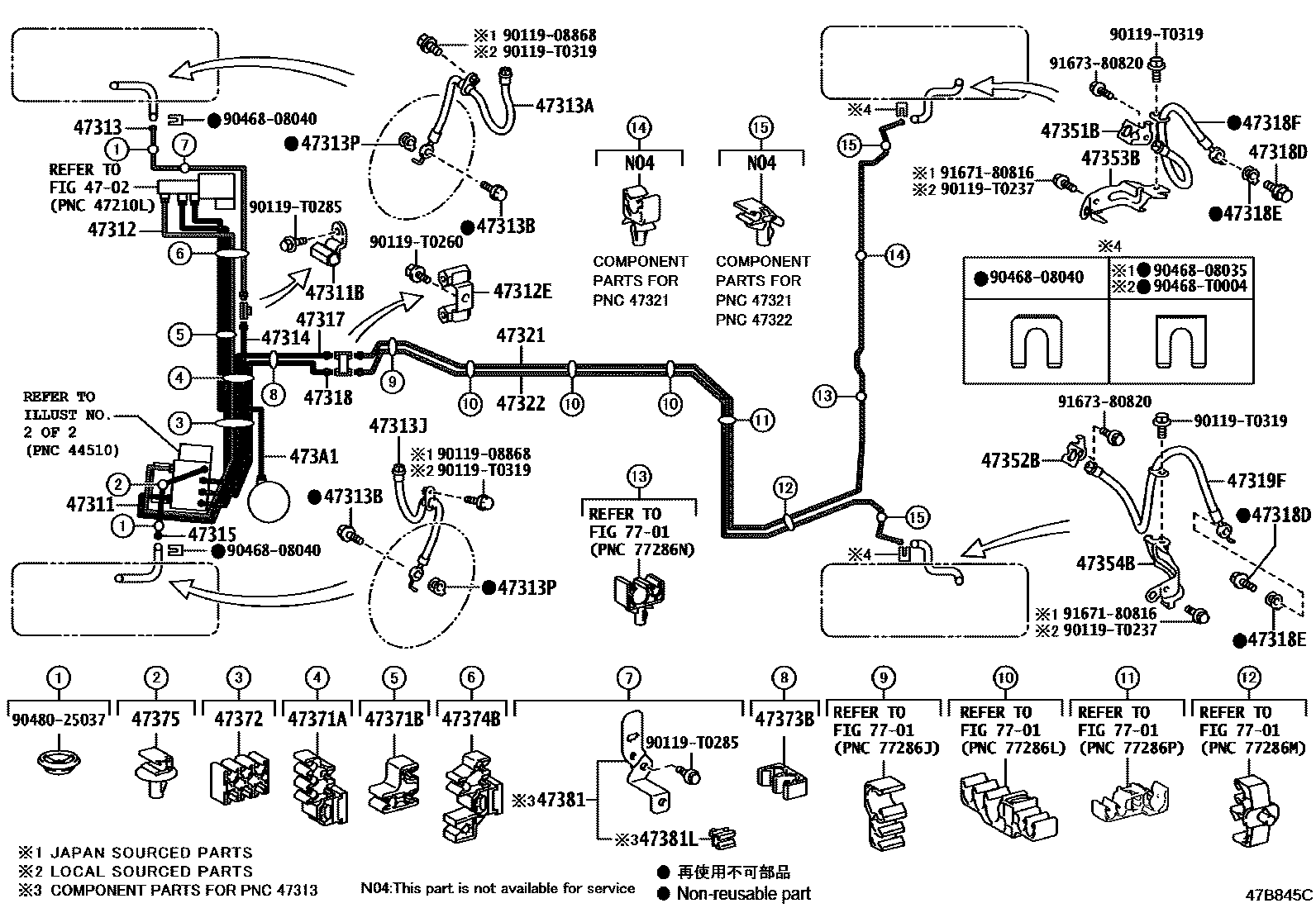

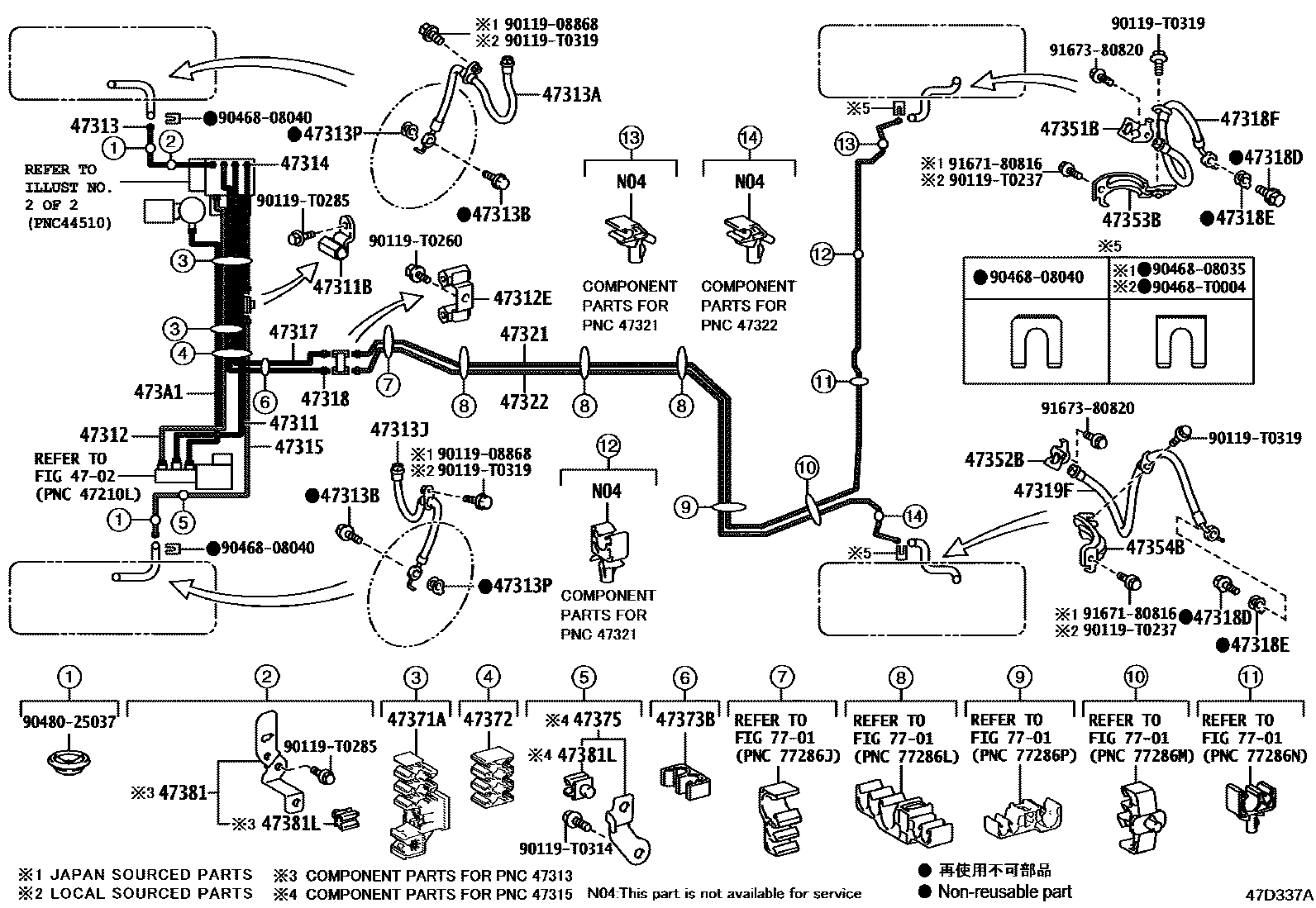

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 10 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

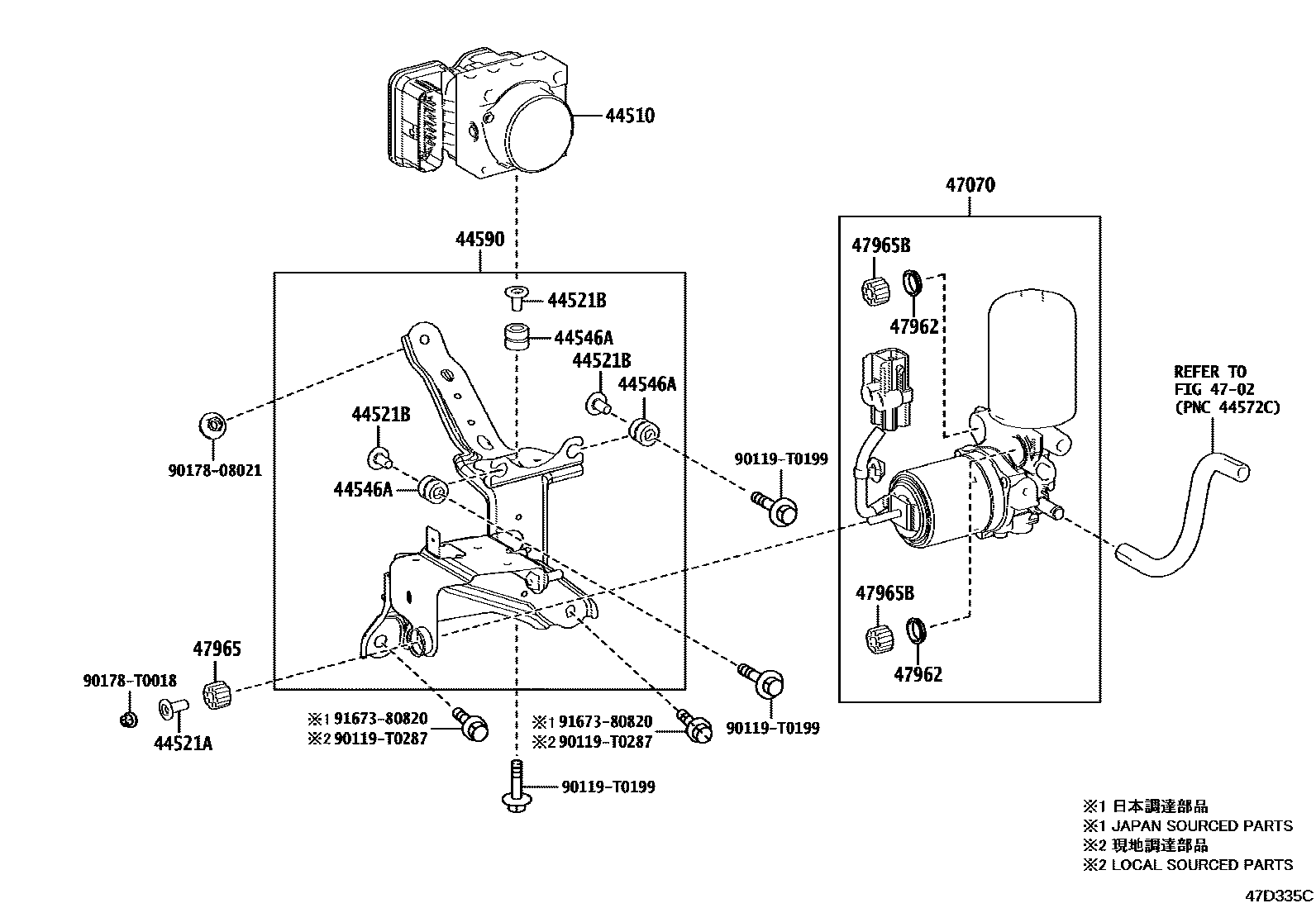

| 44510 | brake actuator assembly | 44050-33650 · 44050-33681 · 44050-33691 · 44050-33700 · 44050-33701 · 44050-33710 · 44050-33711 · 44050-33A60 · 44050-33A70 · 44050-33D80 |
| 44521A | No. 1 brake actuator housing collar | 44521-47010 |
| 44521B | No. 2 brake actuator housing collar | 44521-12050 · 44521-12060 · 44521-33020 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-10080 · 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-06340 · 44590-33170 · 44590-33190 · 44590-33200 · 47940-06040 · 47940-33020 |
| 47070 | Brake booster pump assembly | 47070-33070 · 47070-33080 |
| 47311 | No. 1 front brake pipe | 47311-06700 · 47311-06730 · 47311-06750 · 47311-06780 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 |
| 47312 | No. 2 front brake pipe | 47312-06540 · 47312-06570 · 47312-06590 · 47312-06620 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10285 |
| 47313 | No. 3 front brake pipe | 47313-06530 · 47313-06560 |
| 47313A | No. 1 front flexible hose | 90947-T2130 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2131 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06480 · 47314-06510 · 47314-06530 |
| 47315 | No. 5 front brake pipe | 47315-06500 · 47315-06530 · 47315-06550 · 47315-06580 |
| 47317 | No. 7 front brake pipe | 47317-06600 · 47317-06630 · 47317-06650 |
| 47318 | No. 8 front brake pipe | 47318-06160 · 47318-06190 · 47318-06210 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02H69 |
| 47319F | Left rear flexible hose | 90947-02H70 |
| 47321 | No. 1 rear brake pipe | 47321-06320 · 47321-06350 |
| 47322 | No. 2 rear brake pipe | 47322-06320 · 47322-06350 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-06100 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-06100 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-06080 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-06080 |
| 47371A | No. 1 brake pipe clamp | 90949-01E31 · 90949-01E39 · 90949-01E63 |
| 47371B | No. 6 brake pipe clamp | 47371-33370 |
| 47372 | No. 2 brake pipe clamp | 90949-01D99 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 |
| 47374B | No. 4 brake pipe clamp | 90949-01E30 · 90949-01E38 |
| 47375 | No. 5 brake pipe clamp | 47371-33350 · 90949-01D17 |
| 47381 | No. 1 brake pipe clamp bracket | 47371-33340 |
| 47381L | No. 3 brake pipe clamp bracket | 90949-01D56 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-06040 · 473A1-06070 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
| 47965B | No. 2 brake booster pump bushing | 47965-30010 |
