Toyota CAMRY 制动总泵 — Figure 4702

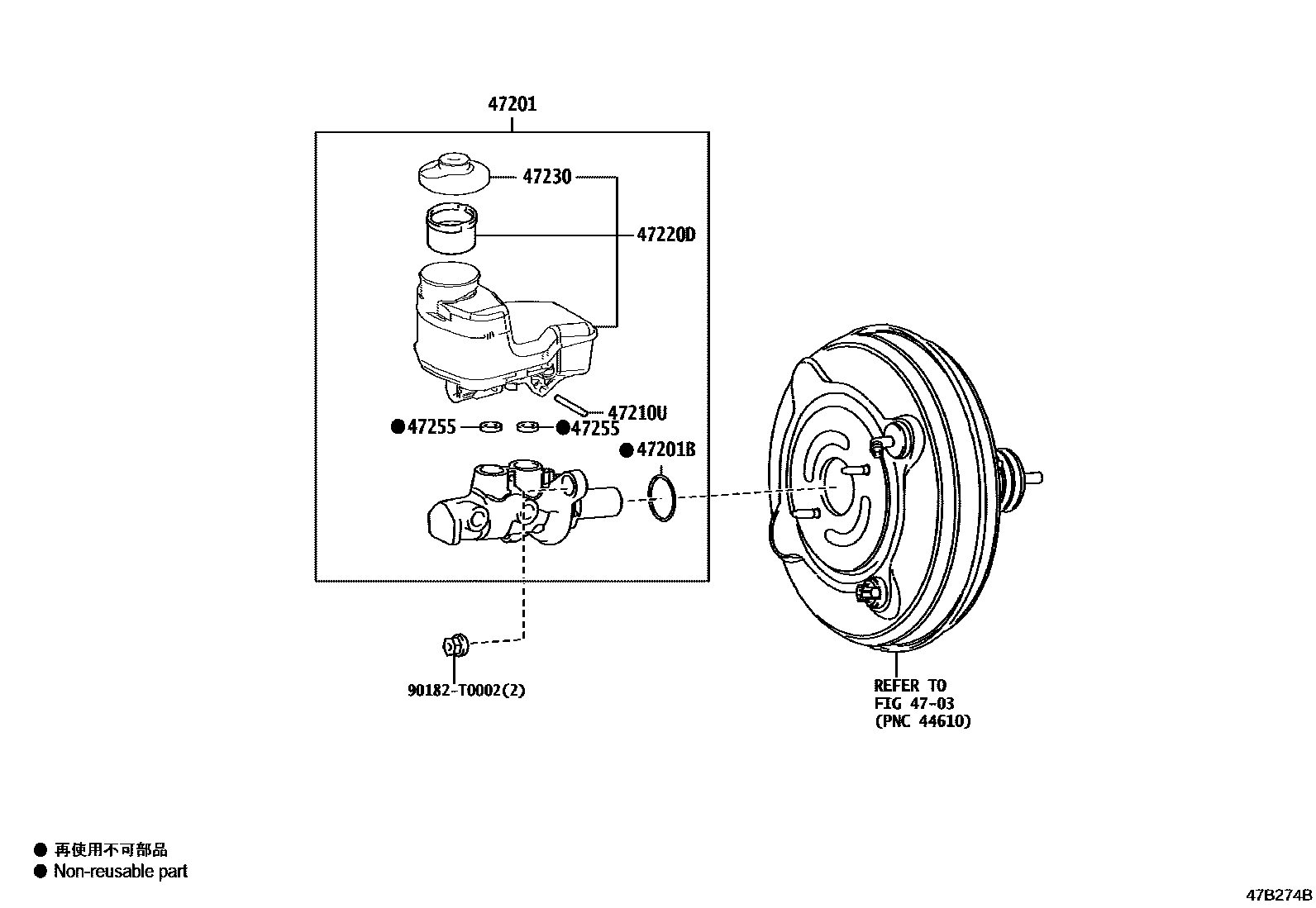

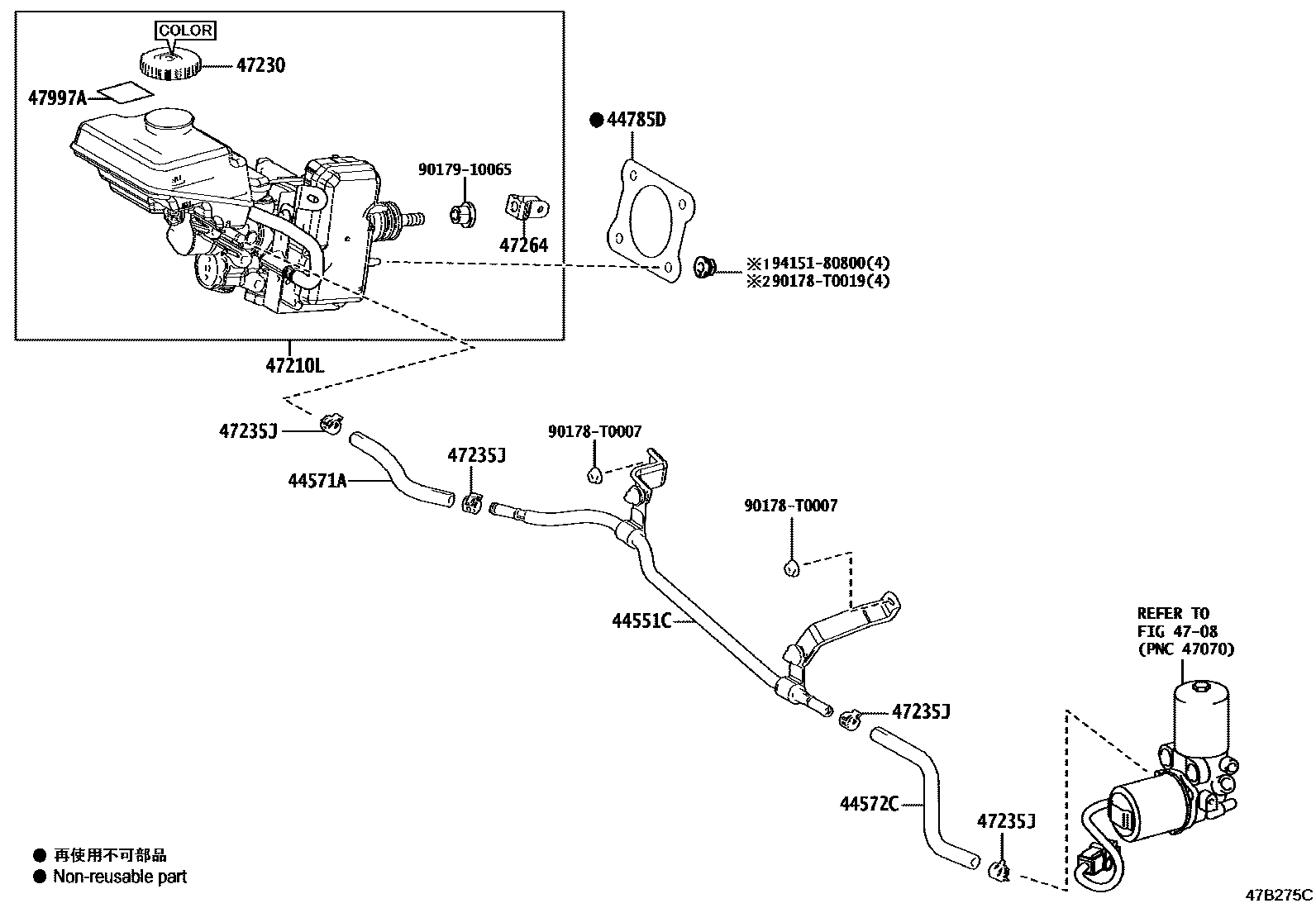

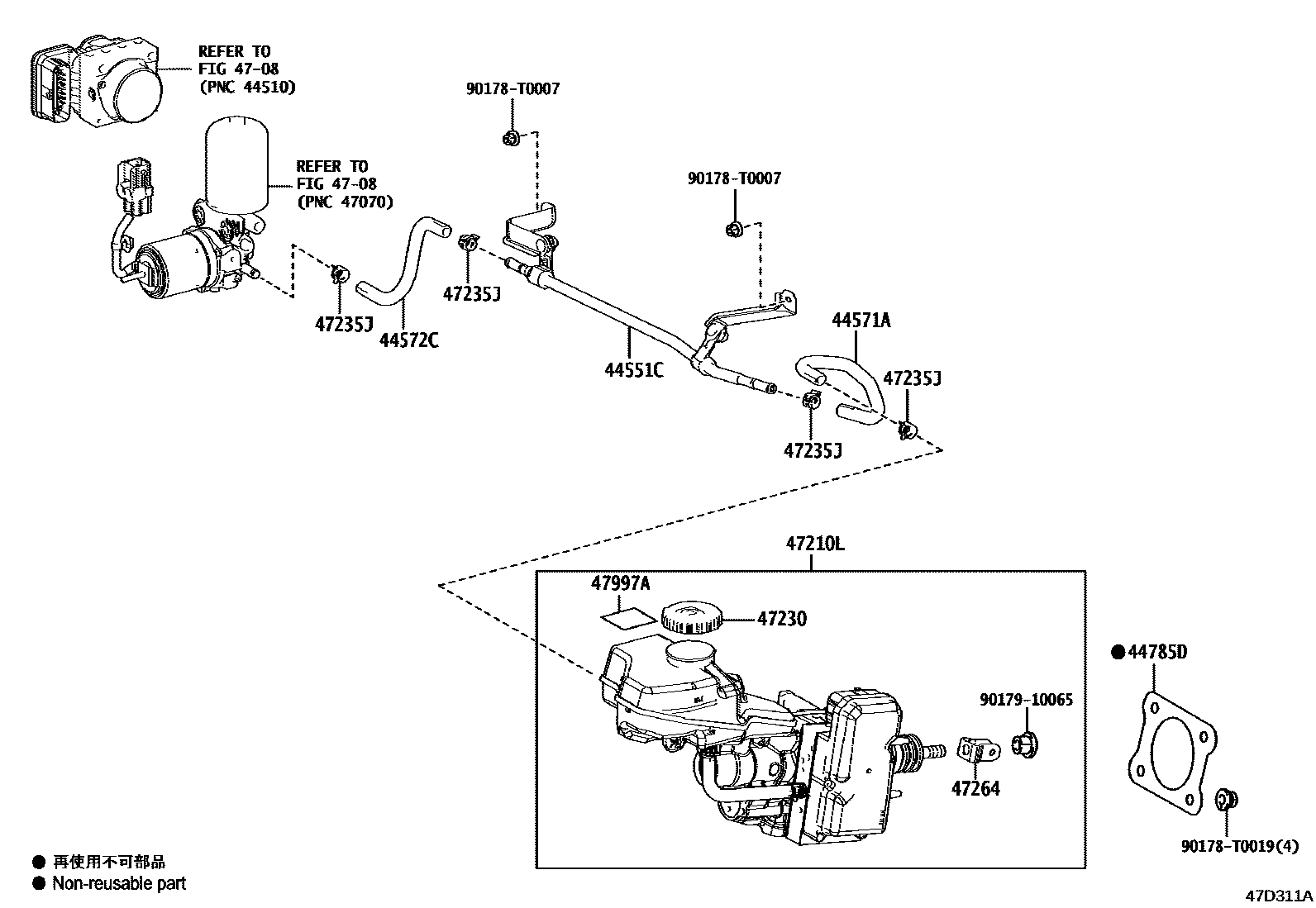

Toyota CAMRY EPC diagram 4702, 制动总泵, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-06090 · 44551-33080 |
| 44571A | No. 1 brake actuator hose | 44571-06080 · 44571-33150 |
| 44572C | No. 2 brake actuator hose | 44572-06050 · 44572-33010 |
| 44785D | brake master cylinder gasket | 44785-0D040 · 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-06520 · 47201-06540 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 |
| 47210L | Brake booster assembly with master cylinder | 47050-33420 · 47050-33430 · 47050-33830 · 47050-33840 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-06270 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33330 · 47230-47090 · 47230-BZ080 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 90466-T0059 · 96137-41501 |
| 47255 | Master pump reservoir seal | 90015-AT001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
