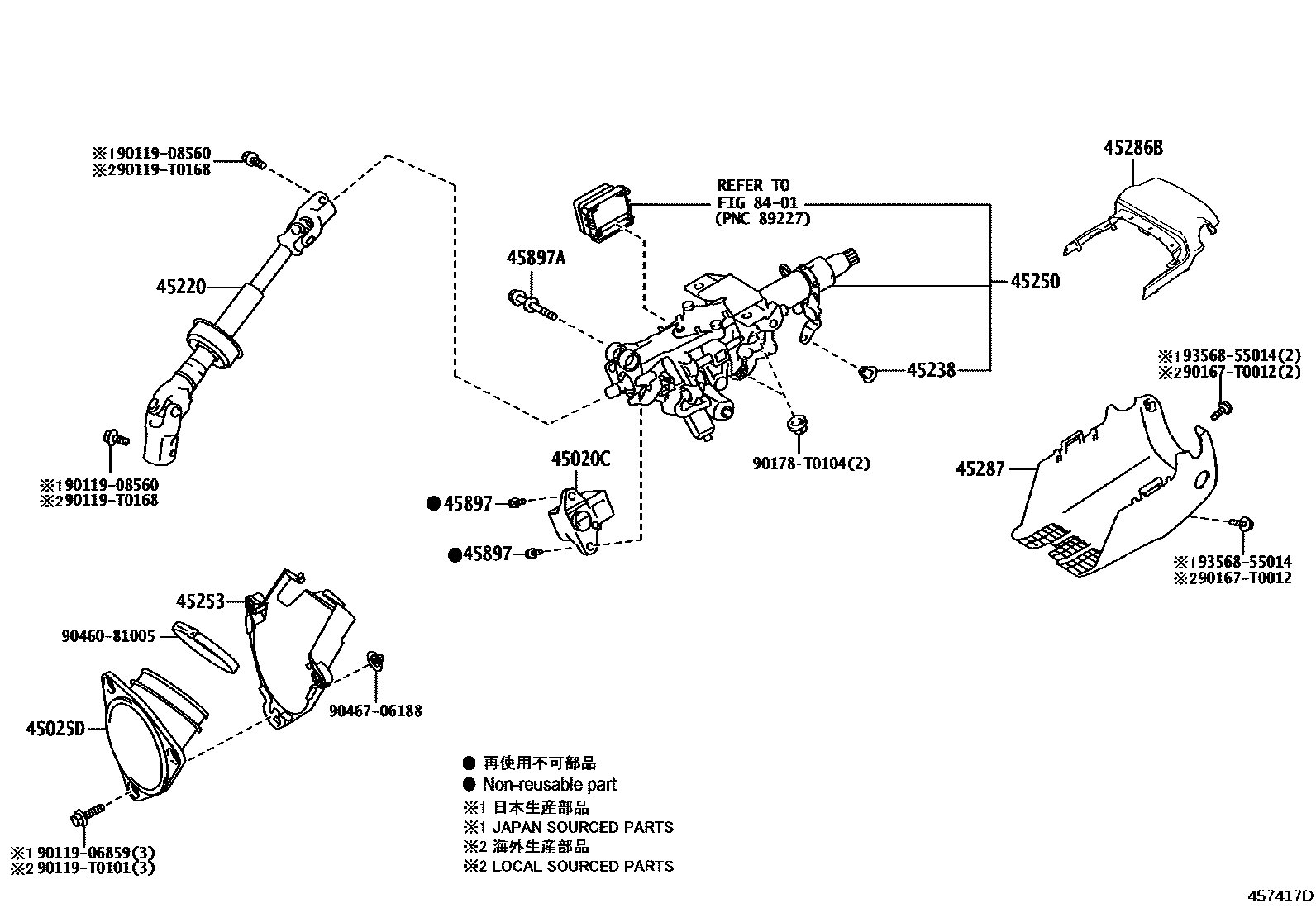

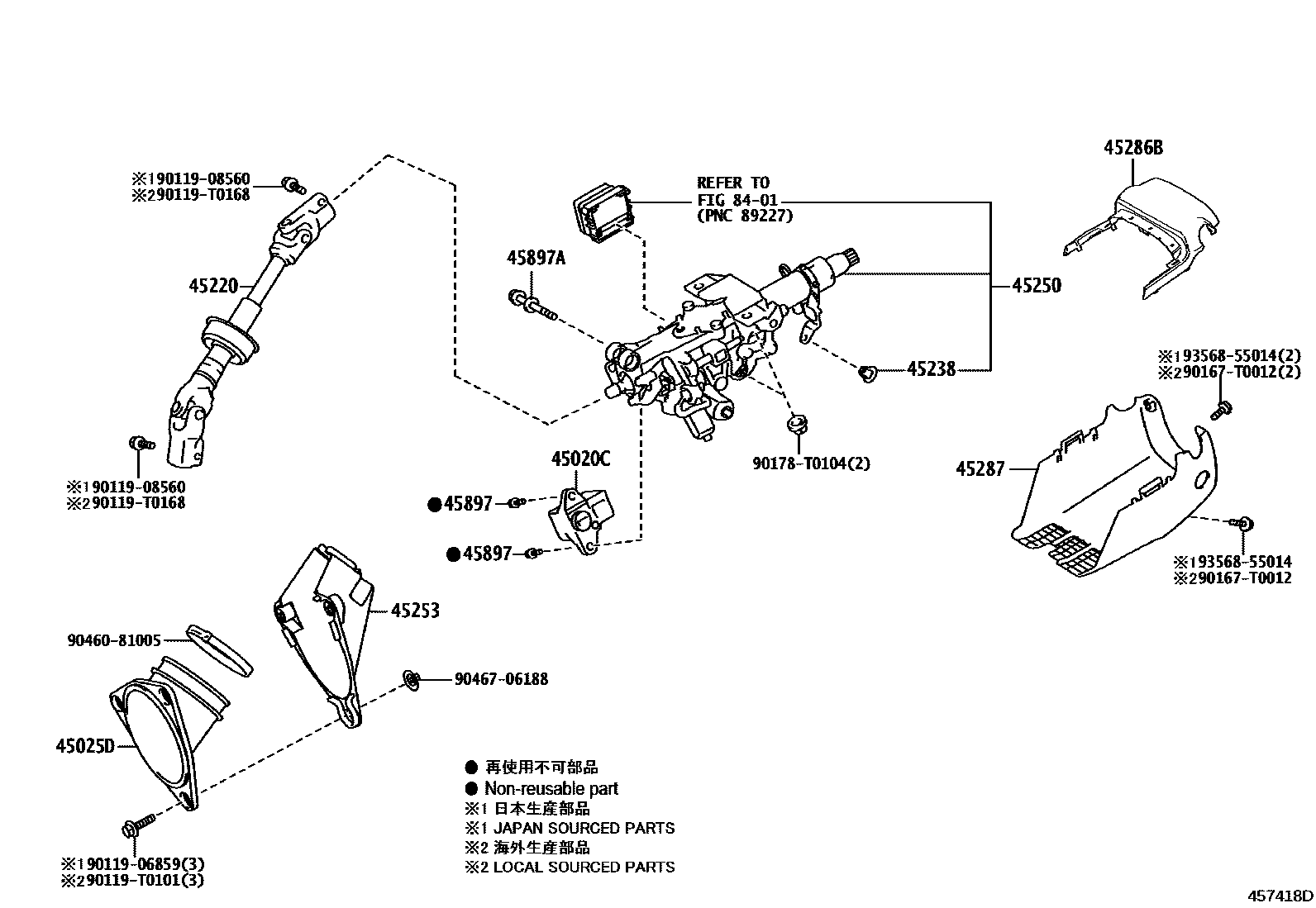

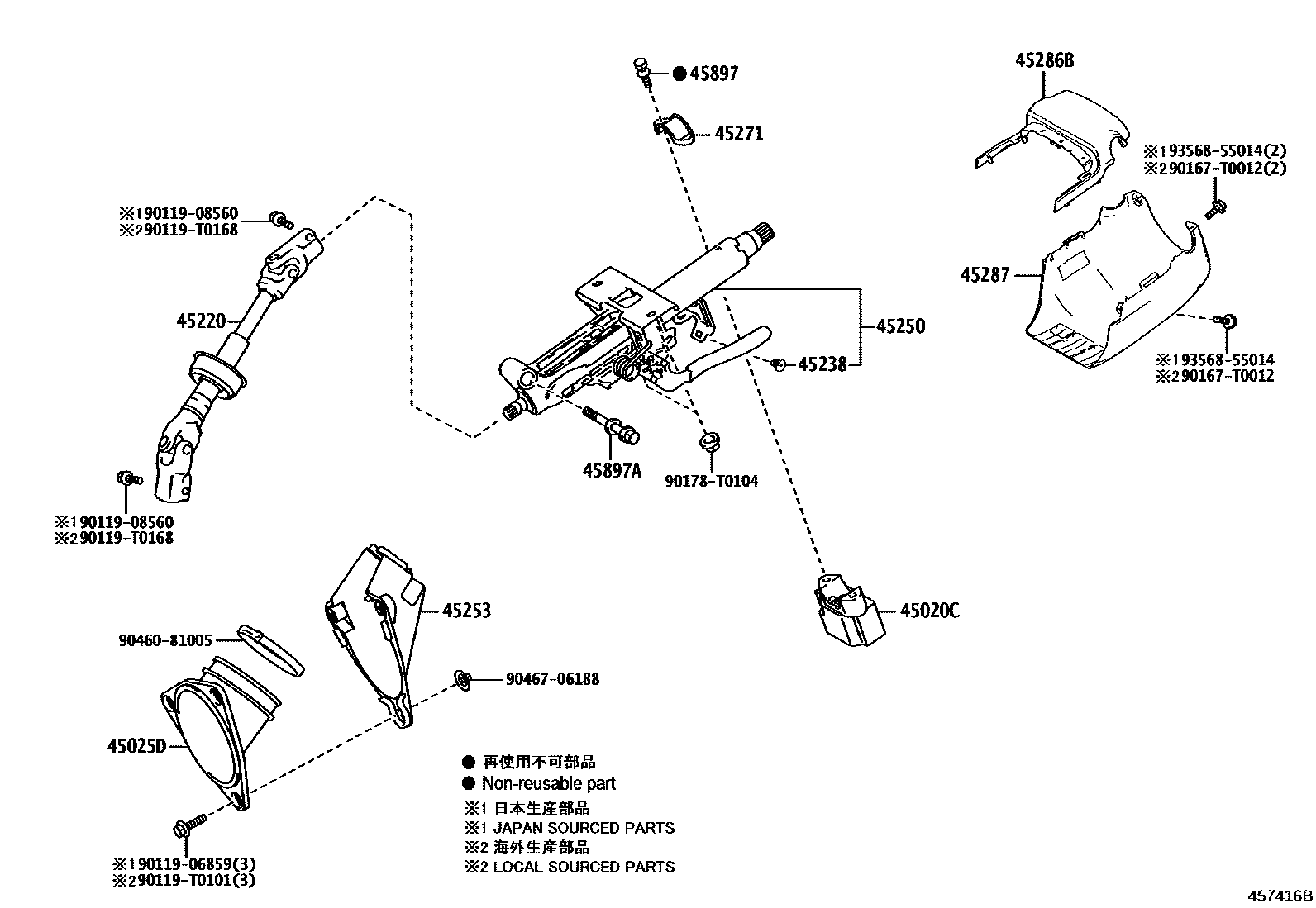

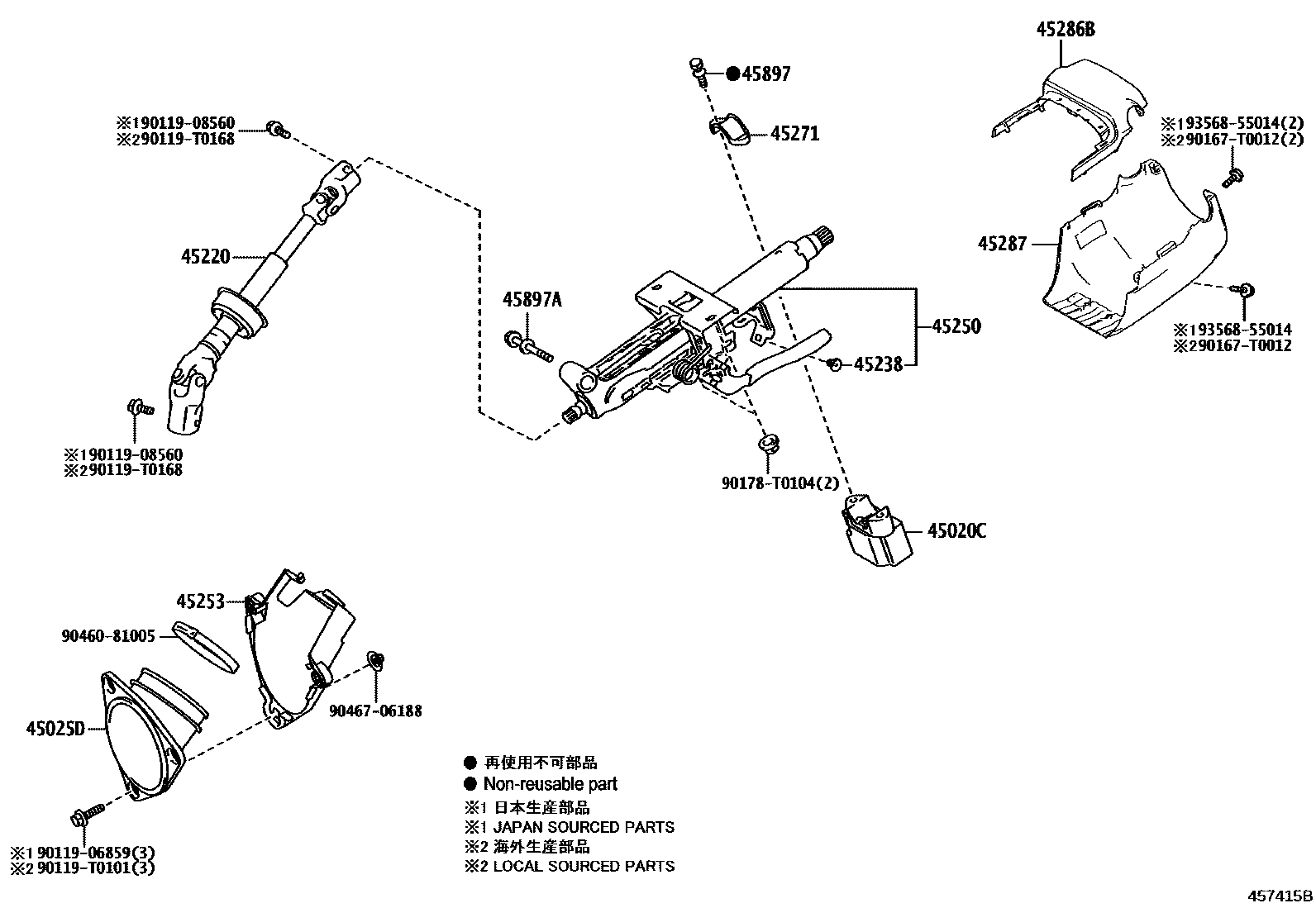

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-06260 · 45020-06270 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06220 |
| 45220 | Steering intermediate shaft assembly | 45220-06260 · 45220-06270 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-11010 · 45238-52010 |
| 45250 | Steering column assembly | 45250-06B60 · 45250-33D60 · 45250-48430 |
| 45253 | Steering column hole cover | 45253-06200 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-T0441 |
