Toyota CAMRY Front Drive Shaft — Figure 4302

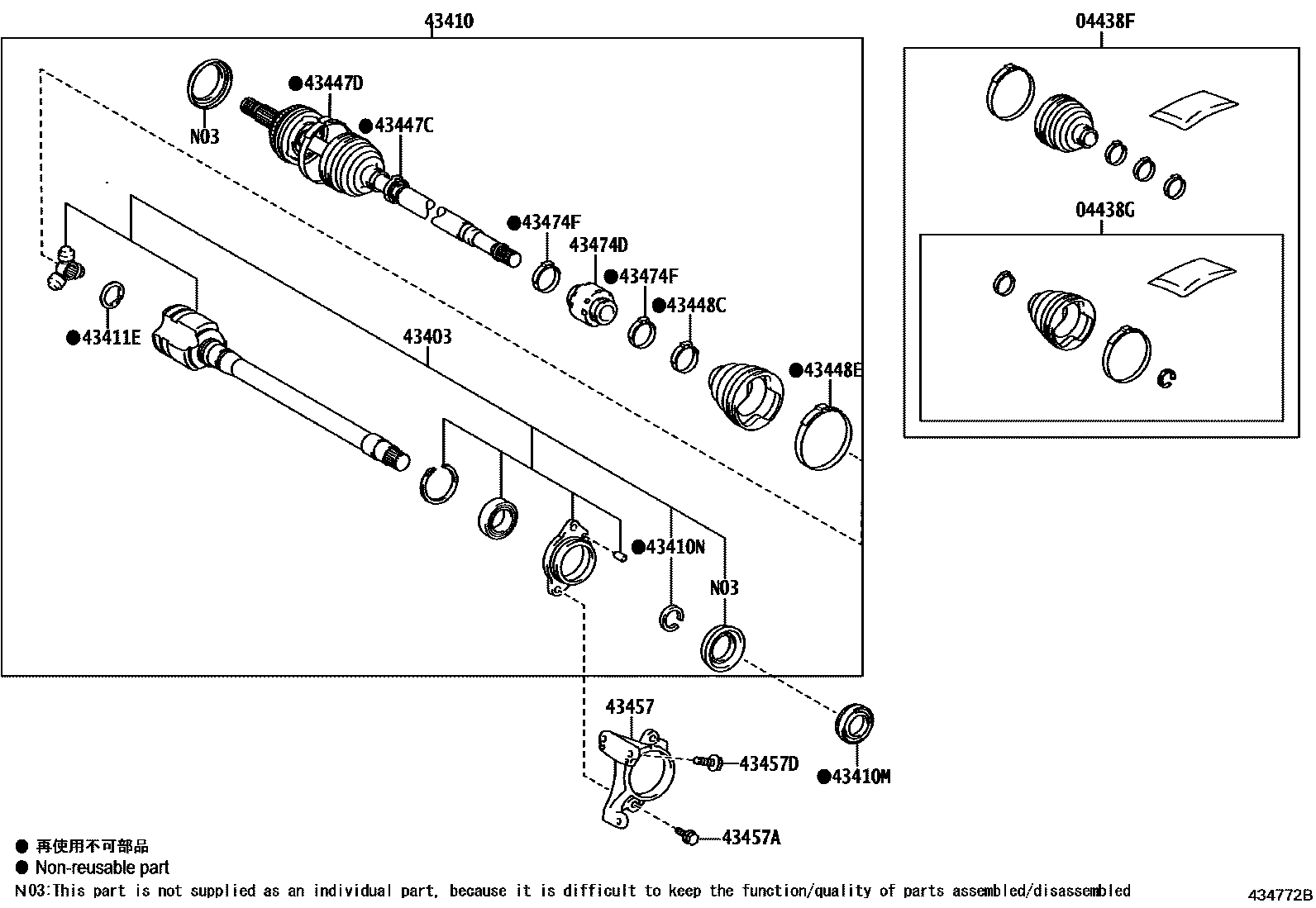

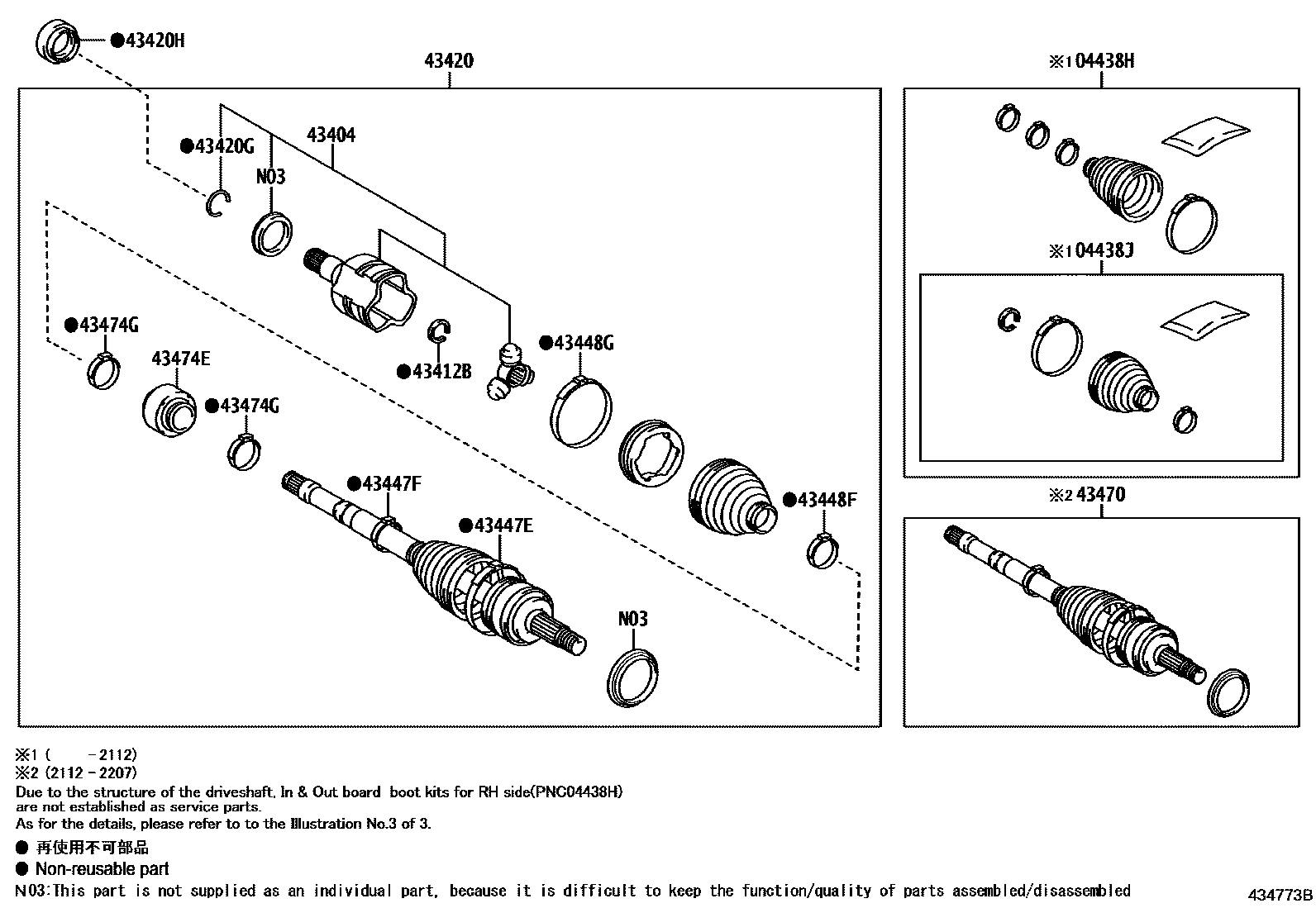

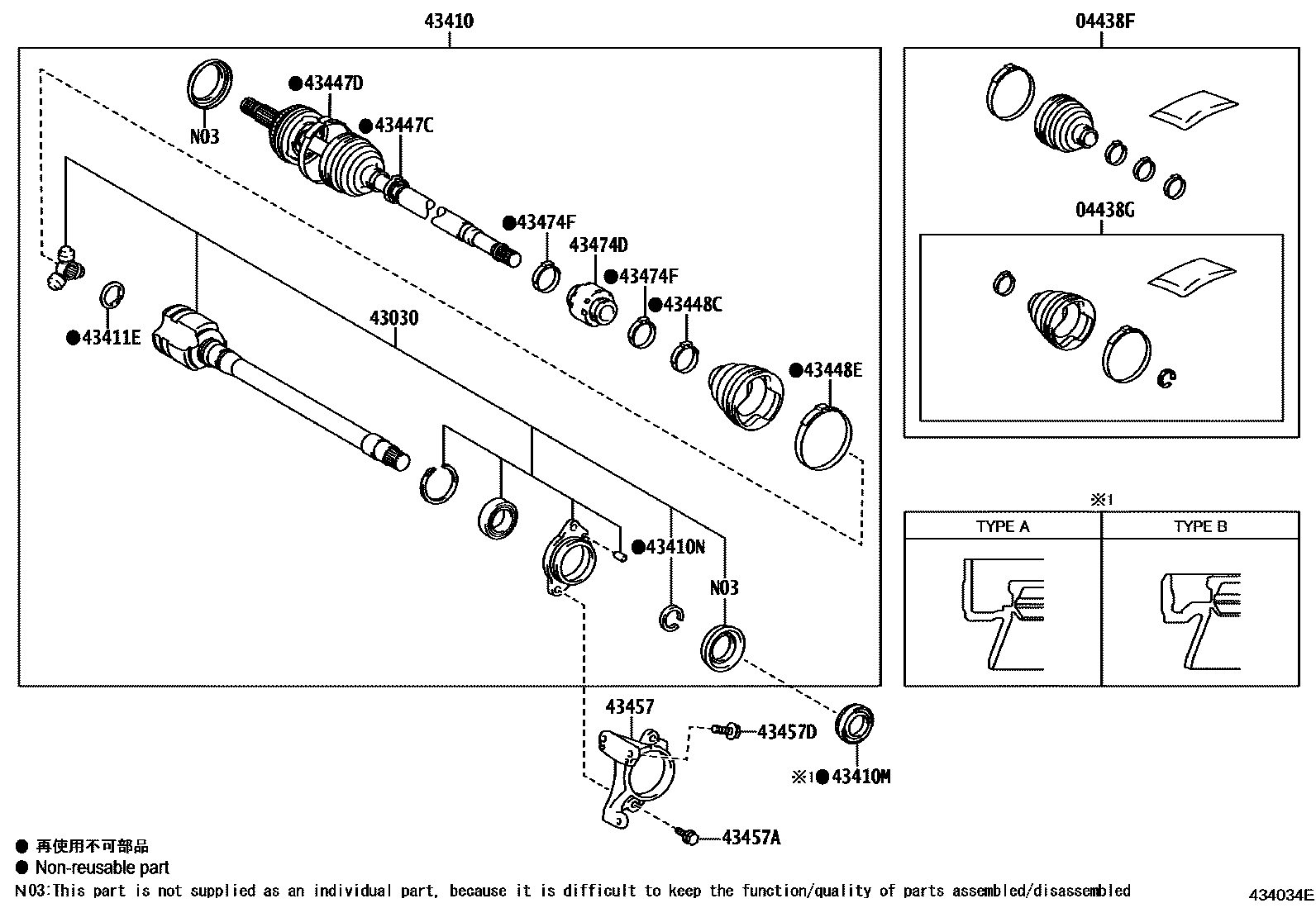

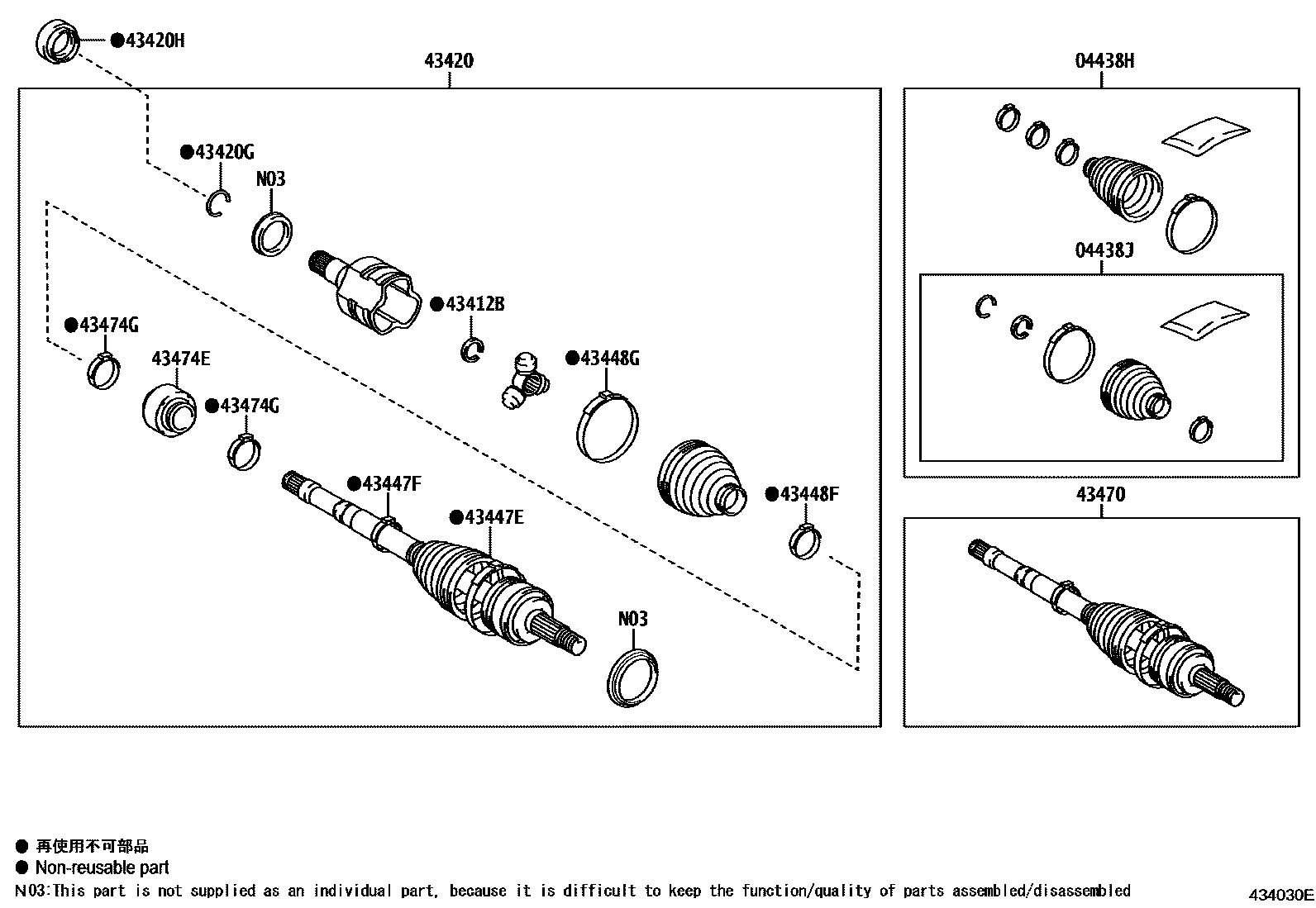

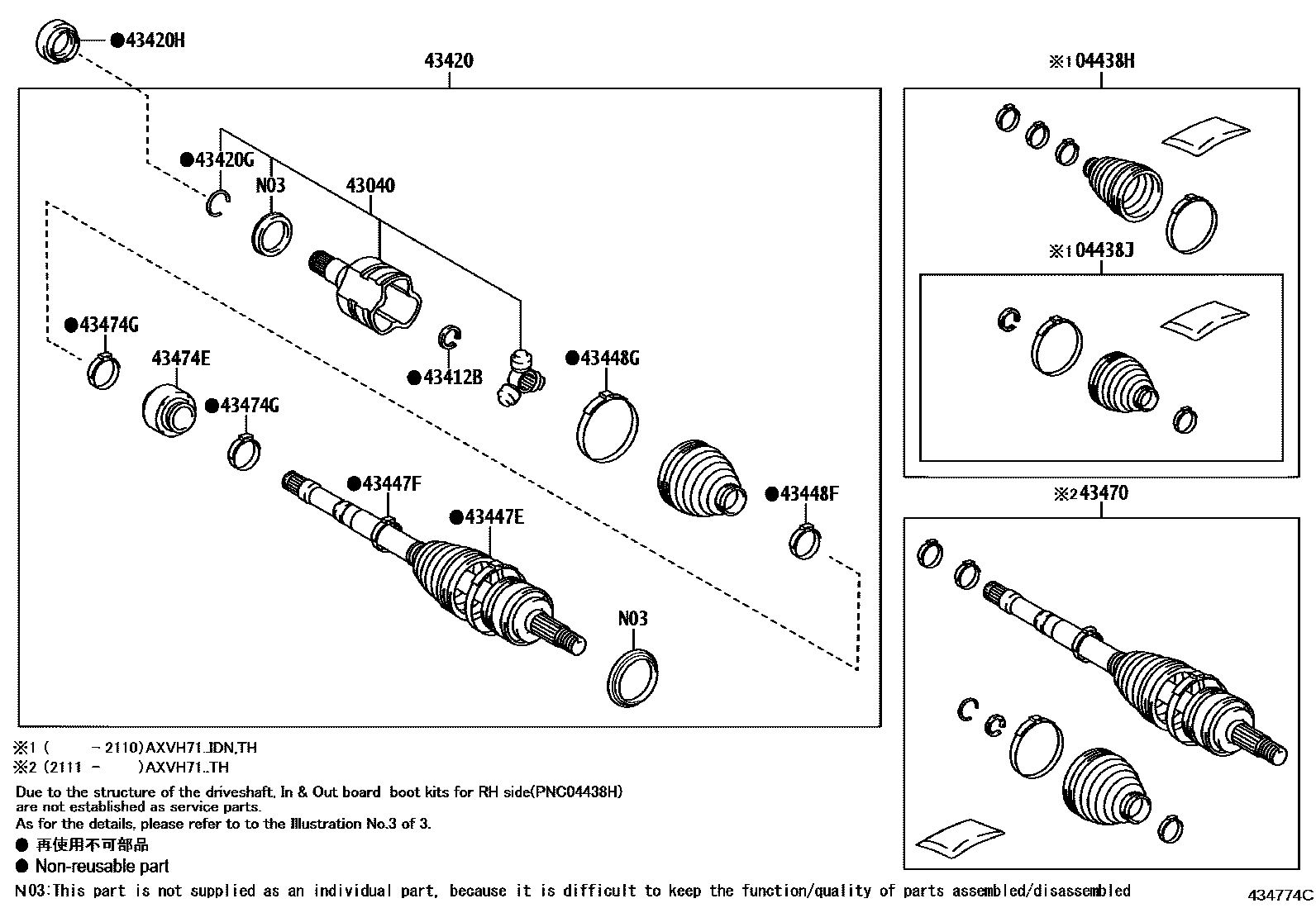

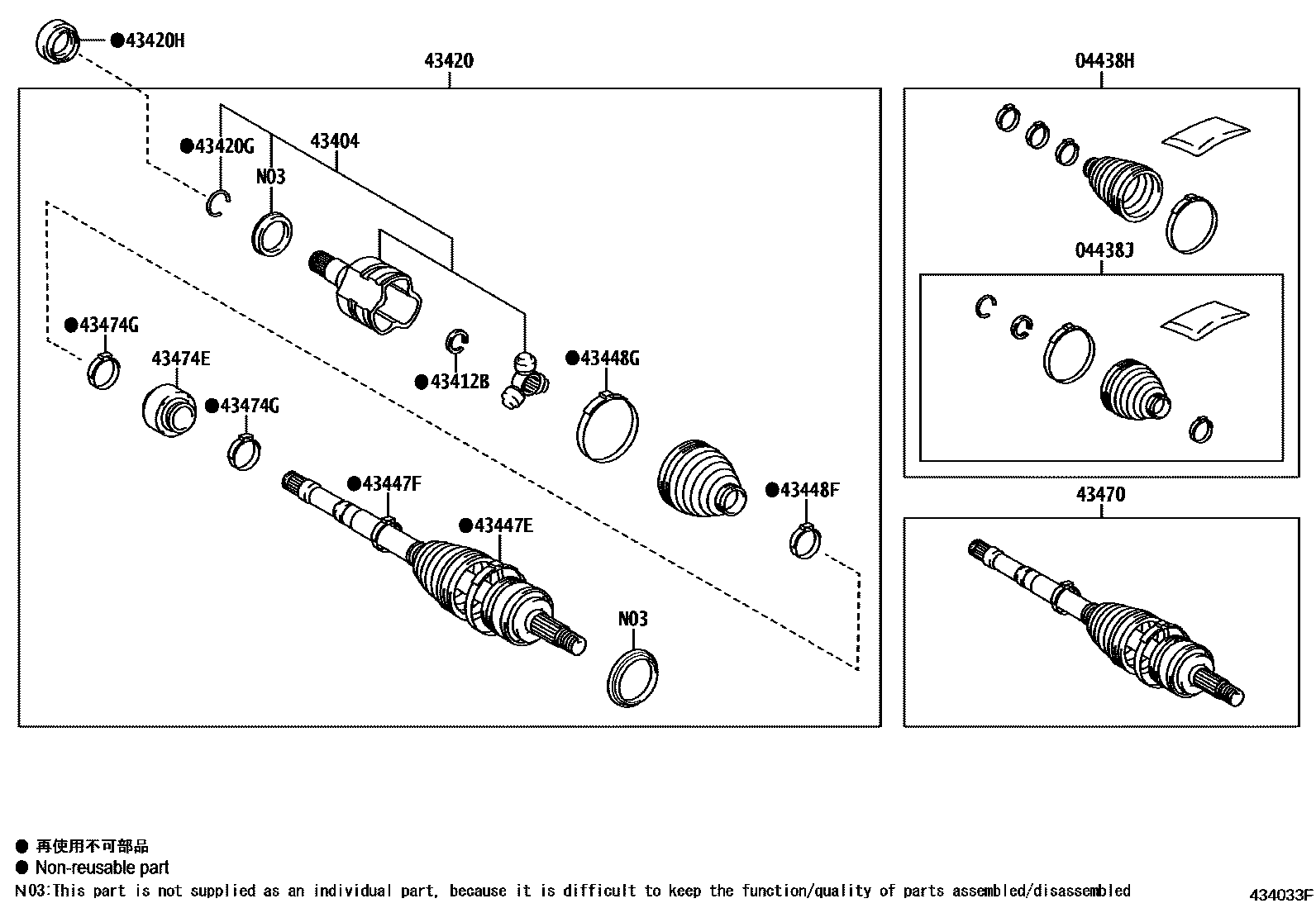

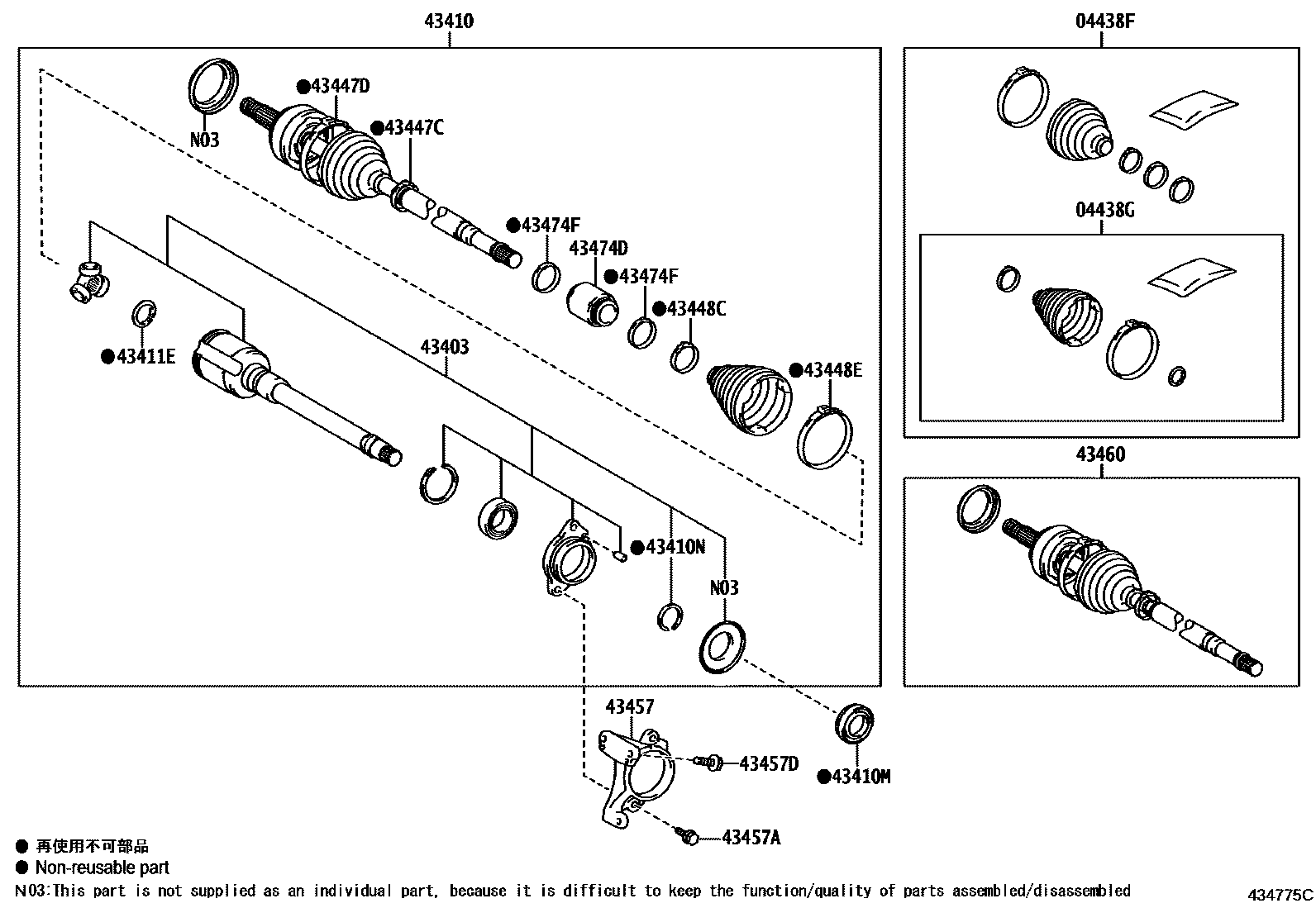

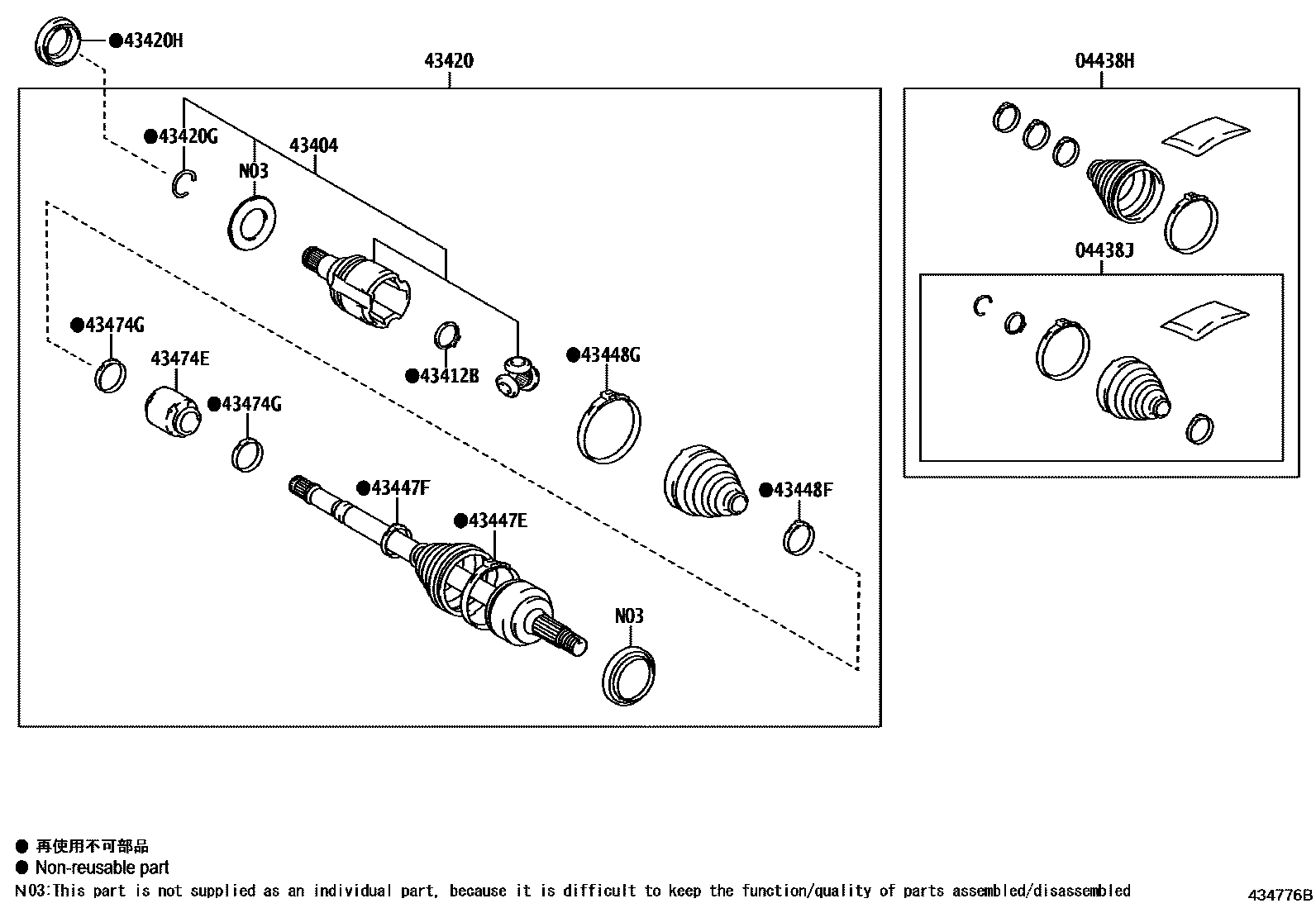

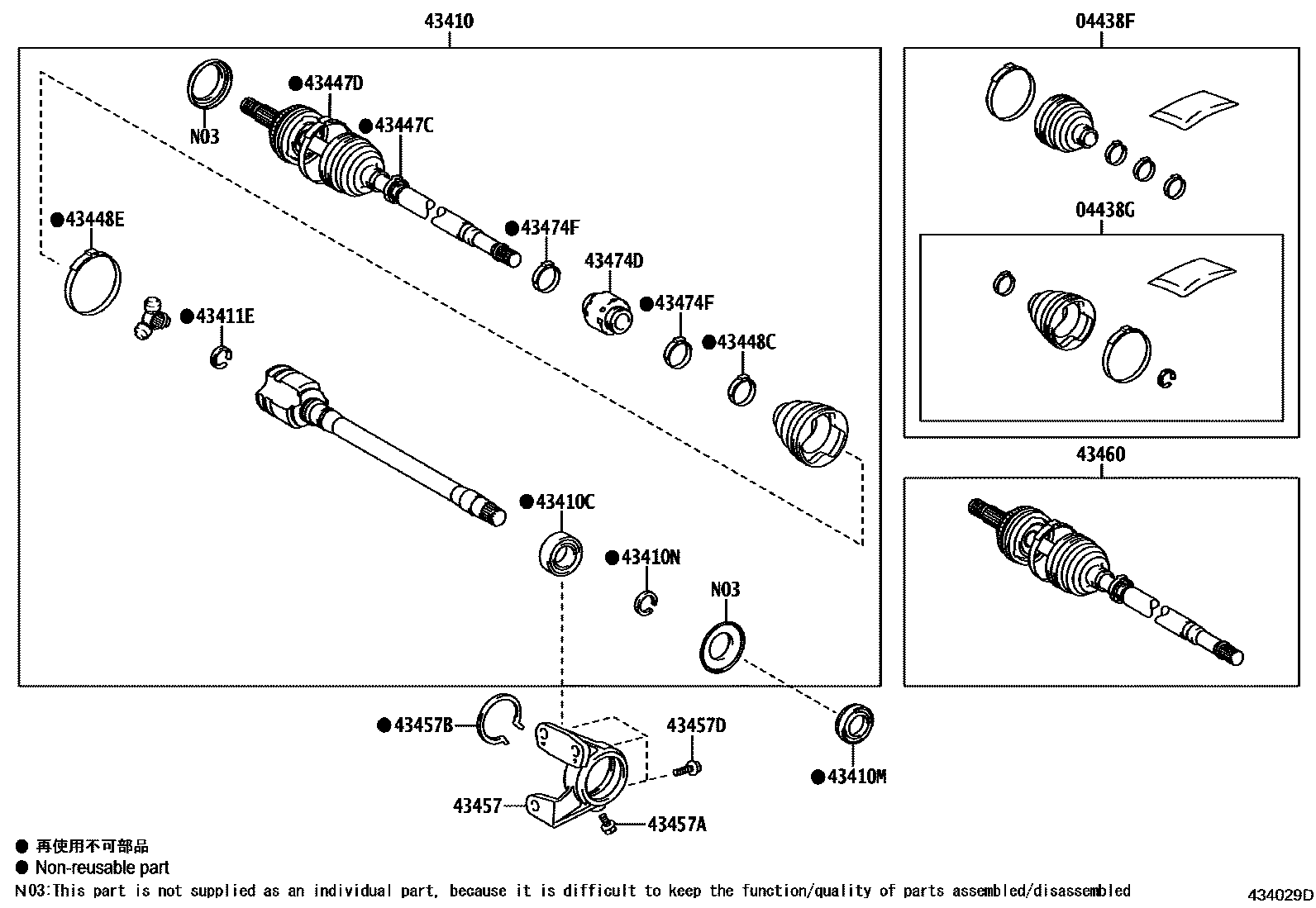

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 9 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06621 · 04427-06622 · 04427-06630 · 04427-06650 · 04427-33120 · 04427-33130 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06340 · 04437-06341 · 04437-06370 · 04437-06400 · 04437-33090 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-33130 · 04428-06641 · 04428-06660 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-33090 · 04438-06680 · 04438-06700 · 04438-48160 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-33070 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-33030 |
| 43403 | Right front axle inner universal joint assembly | 43403-06010 · 43403-06020 · 43403-06060 |
| 43404 | Left front axle inner universal joint assembly | 43404-06010 · 43404-06020 |
| 43410 | Right front driveshaft assembly | 43410-06B30 · 43410-06B40 · 43410-06B90 · 43410-06B91 · 43410-06C60 · 43410-33360 · 43410-33430 |
| 43410C | Bearings (for front driveshaft) | 90363-A0004 |
| 43410M | Front drive shaft right oil seal | 90311-40038 · 90311-40046 · 90311-40047 · 90311-40049 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-06330 · 43425-06510 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-06500 · 43425-06570 · 43425-28010 · 43425-F4110 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06340 · 43425-06520 · 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-06C10 · 43420-06C20 · 43420-06C30 · 43420-06C31 · 43420-06C90 · 43420-33340 · 43420-48180 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-06360 · 43425-06500 · 43425-06570 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-50045 · 90311-50058 · 90311-50064 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06730 · 42345-06B40 · 42345-42090 · 42345-42120 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06720 · 42345-06B50 · 42345-42100 · 42345-42110 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06720 · 42345-06B40 · 42345-42100 · 42345-42120 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06730 · 42345-06B50 · 42345-42090 · 42345-42110 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06B30 · 42345-28090 · 42345-33120 · 42345-F4110 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06A50 · 42345-06B20 · 42345-33140 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06B30 · 42345-28090 · 42345-33120 · 42345-F4110 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06A80 · 42345-06B20 · 42345-33140 |
| 43457 | drive shaft bearing bracket | 43457-06120 · 43457-33050 · 43457-33060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43460 | Right front outer drive universal joint shaft assembly | 43470-06B70 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-06B80 · 43470-06C40 · 43470-80482 |
| 43474D | Right front driveshaft shock absorber | 43474-06420 · 43474-06550 · 43474-48080 |
| 43474E | Left front driveshaft shock absorber | 43474-06430 · 43474-06560 · 43474-42050 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06580 · 42345-06850 · 42345-12090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06580 · 42345-06B70 · 42345-12090 |
