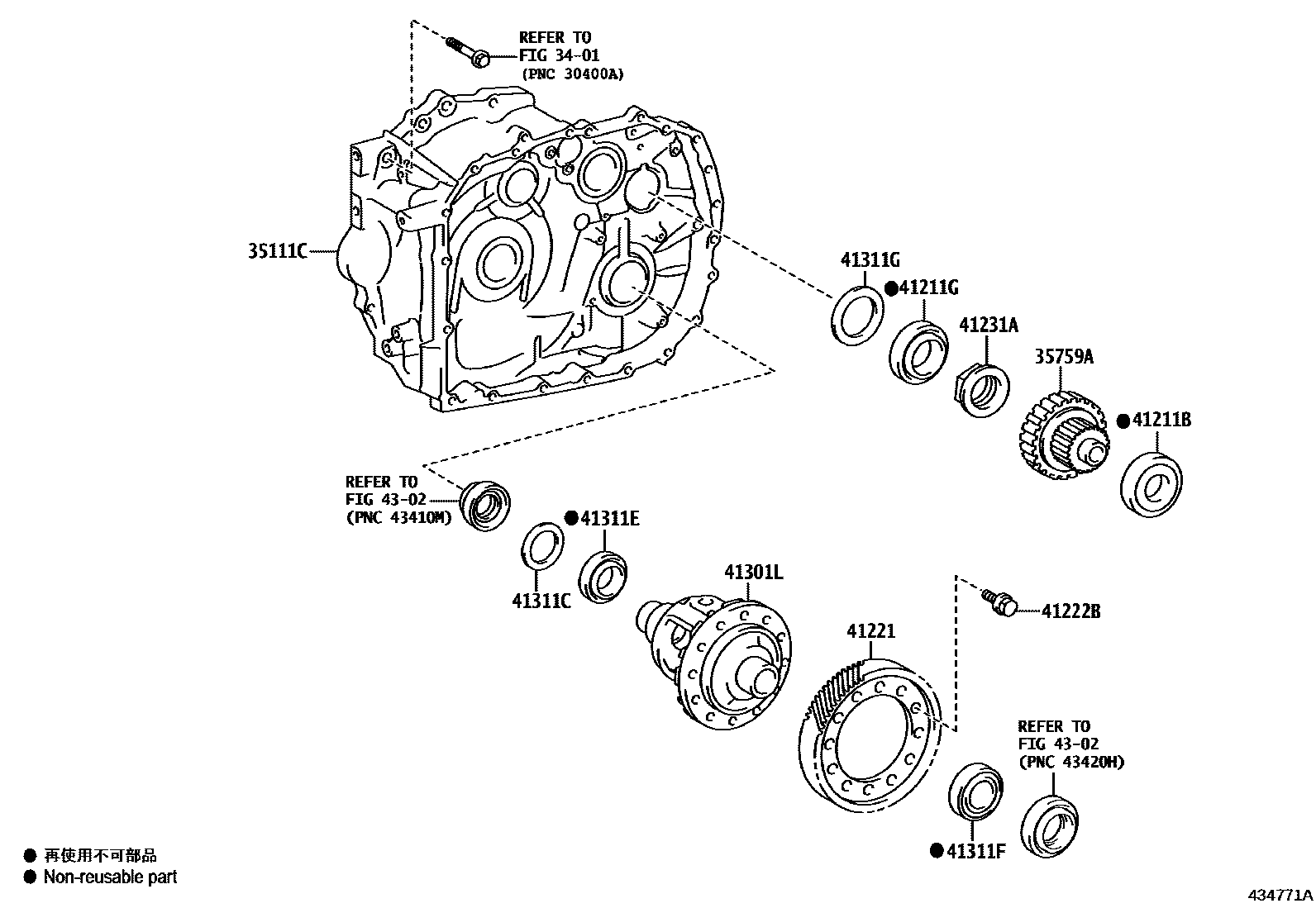

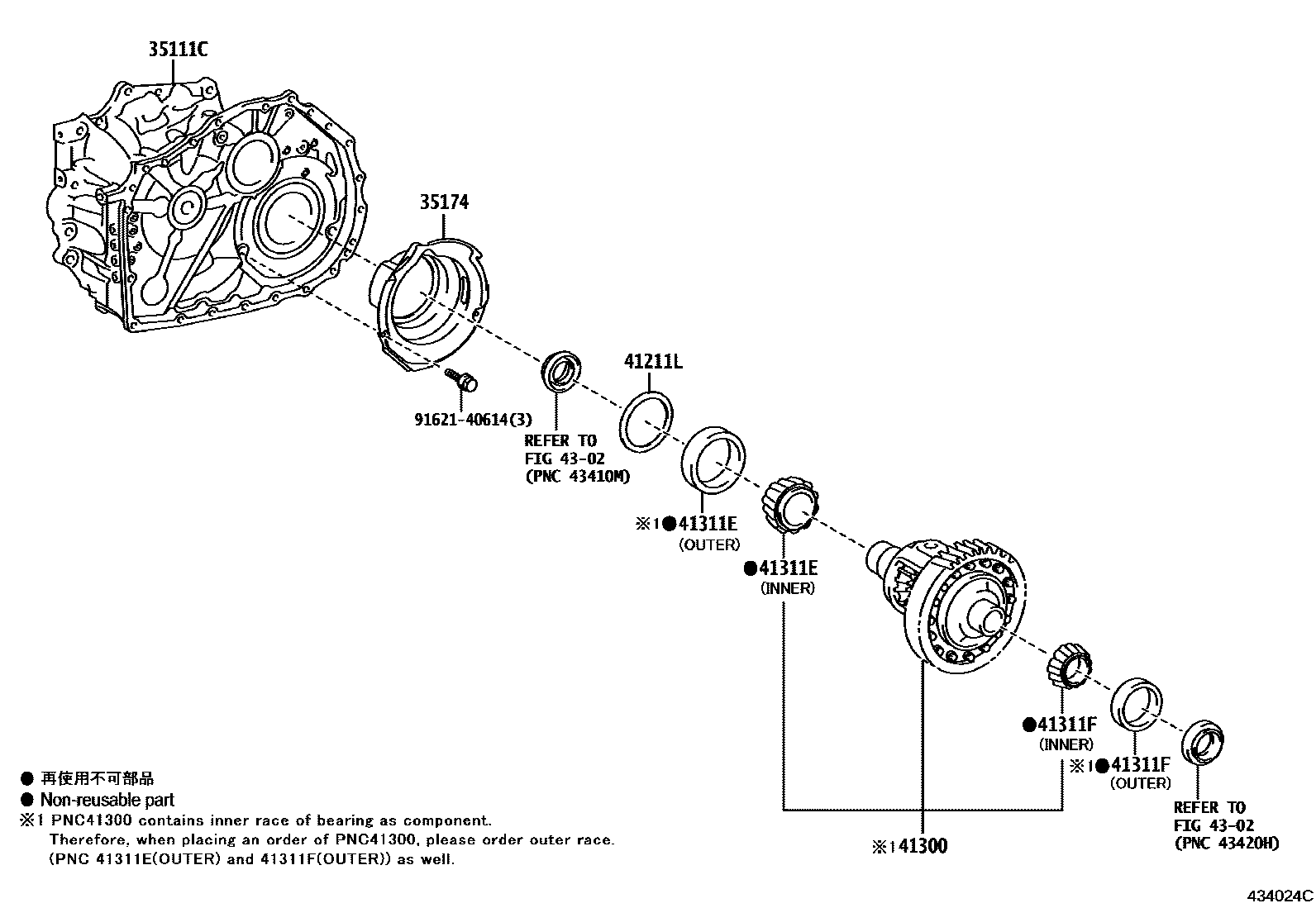

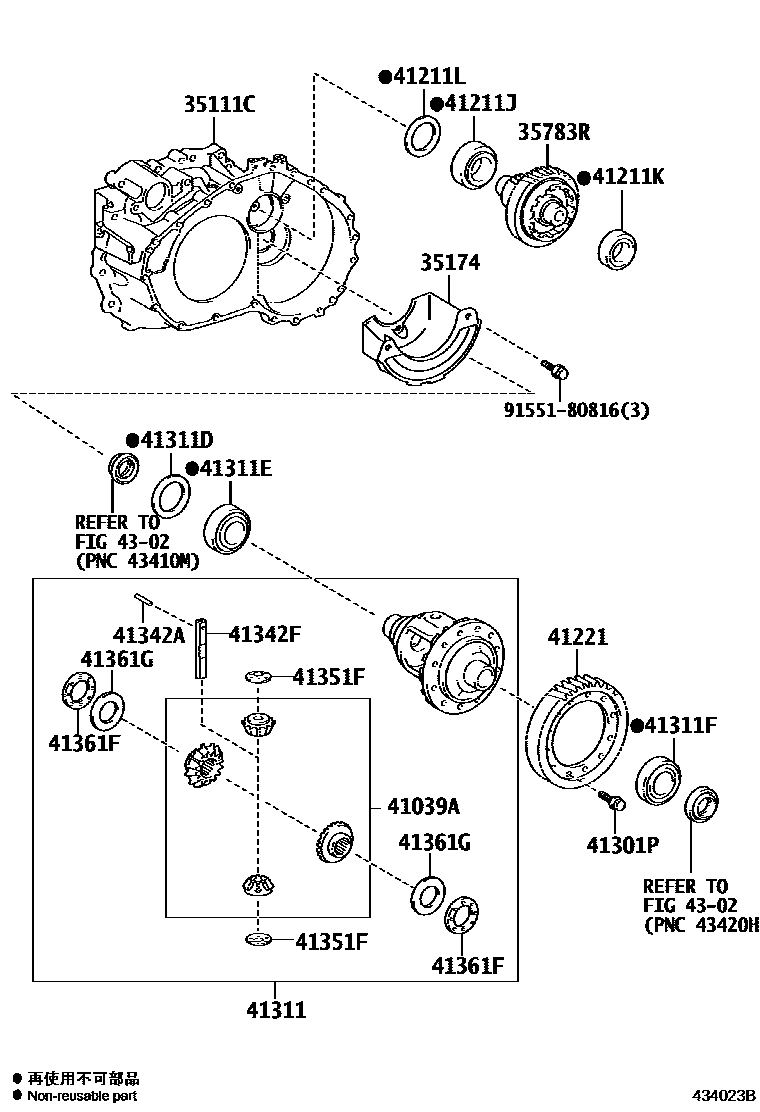

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35105-33022 · 35105-33040 · 35111-33141 · 35111-33142 |
| 35174 | Transmission axle housing oil separator | 35174-33030 · 35174-73010 |
| 35759A | Reduction driven gear | 35705-33140 |
| 35783R | countershaft driven gear | 35705-33120 |
| 41039A | Differential gear assembly | 41039-28030 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29013 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90366-25026 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-35167 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-32034 |
| 41211L | Spacer (for differential drive pinion) | 90564-61022 · 90564-61023 · 90564-61024 · 90564-61025 · 90564-61026 · 90564-61027 · 90564-61028 · 90564-61029 · 90564-61030 · 90564-61031 · 90564-61032 · 90564-61033 · 90564-61034 · 90564-61035 · 90564-61036 · 90564-61037 · 90564-61038 · 90564-61039 · 90564-61040 · 90564-61041 · 90564-61042 · 90564-61043 · 90564-61044 · 90564-61045 · 90564-61046 · 90564-61047 · 90564-61048 · 90564-61049 · 90564-61050 · 90564-61051 · 90564-61052 · 90564-61053 · 90564-61054 · 90564-61055 · 90564-61056 · 90564-61057 · 90564-61058 · 90564-61059 · 90564-61060 · 90564-61061 · 90564-61062 · 90564-75002 · 90564-75003 · 90564-75004 · 90564-75005 · 90564-75006 · 90564-75007 · 90564-75008 · 90564-75009 · 90564-75010 · 90564-75011 · 90564-75012 · 90564-75013 · 90564-75014 · 90564-75015 · 90564-75016 · 90564-75017 · 90564-75018 · 90564-75019 · 90564-75023 · 90564-75024 · 90564-75025 · 90564-75026 · 90564-75027 · 90564-75028 · 90564-75029 · 90564-75030 · 90564-75031 · 90564-75032 · 90564-75033 · 90564-75034 · 90564-75035 |
| 41221 | Front differential ring gear | 41221-33190 · 41221-33360 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12303 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41300 | Front differential case assembly with ring gear | 41300-33030 · 41300-33070 · 41300-33071 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12450 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-33101 |
| 41311C | Rear gasket (for front differential case) | 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 |
| 41311D | Front gasket (for front differential case) | 90564-69001 · 90564-69002 · 90564-69003 · 90564-69004 · 90564-69005 · 90564-69006 · 90564-69007 · 90564-69008 · 90564-69009 · 90564-69010 · 90564-69011 · 90564-69012 · 90564-69013 · 90564-69014 · 90564-69015 · 90564-69016 · 90564-69017 · 90564-69020 · 90564-69021 · 90564-69022 · 90564-69023 · 90564-69024 · 90564-69025 · 90564-69026 · 90564-69027 · 90564-69028 · 90564-69029 · 90564-69030 · 90564-69031 · 90564-69032 · 90564-69033 · 90564-69034 · 90564-69035 · 90564-69036 · 90564-69037 · 90564-69038 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50118 · 90366-50172 · 90366-57048 · 90366-57049 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50175 · 90366-50176 · 90366-50189 · 90366-50206 · 90366-51007 · 90366-55071 |
| 41311G | Front flat washer (for front differential case) | 90564-44070 · 90564-44071 · 90564-44072 · 90564-44073 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-33061 |
| 41351F | Front differential planetary gear thrust washer | 41351-73010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-33340 · 41361-33350 · 41361-33360 · 41361-33370 · 41361-33380 · 41361-33390 · 41361-33400 · 41361-33410 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-40003 |
