Toyota CAMRY 车轮和车轮盖 — Figure 4103

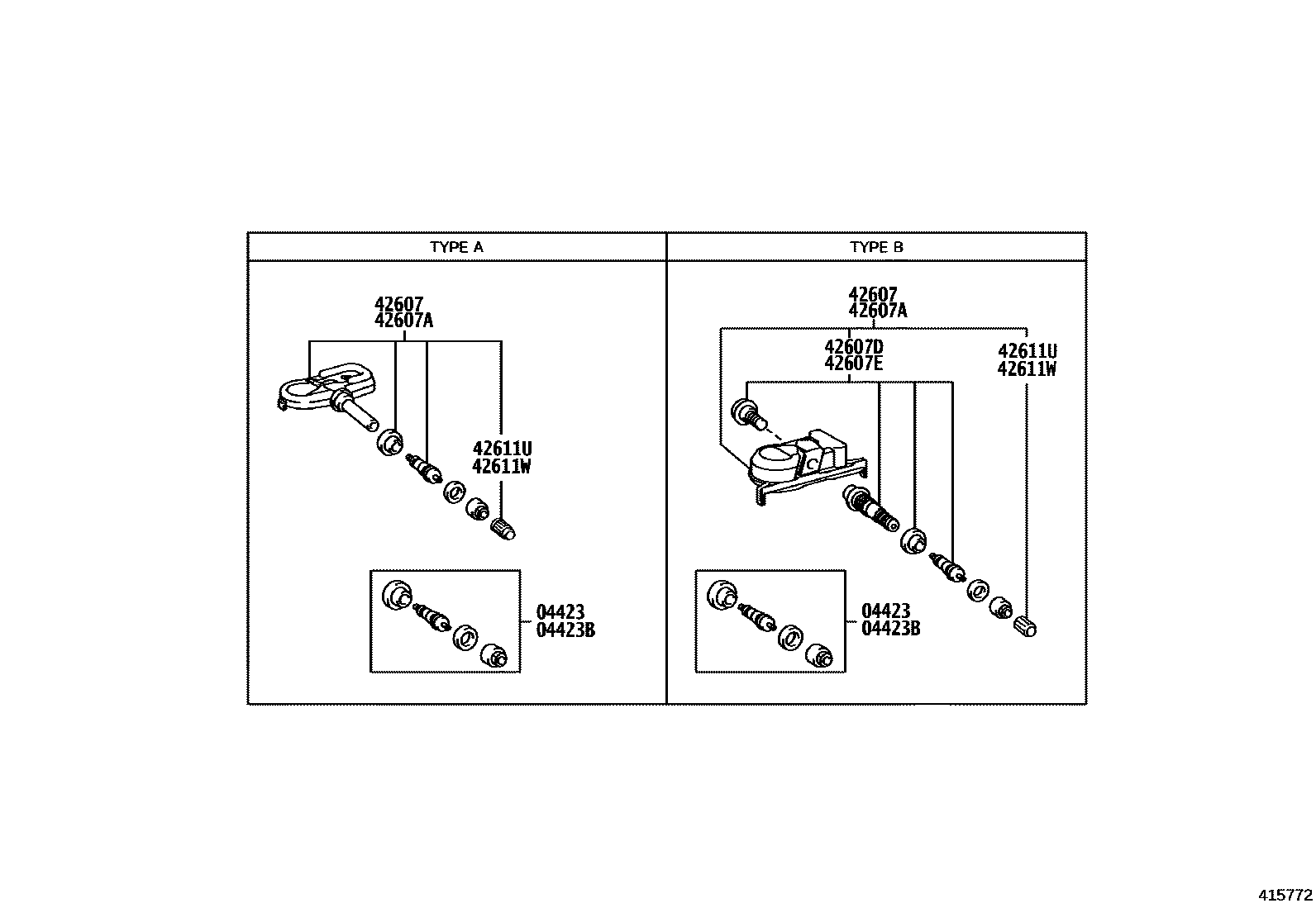

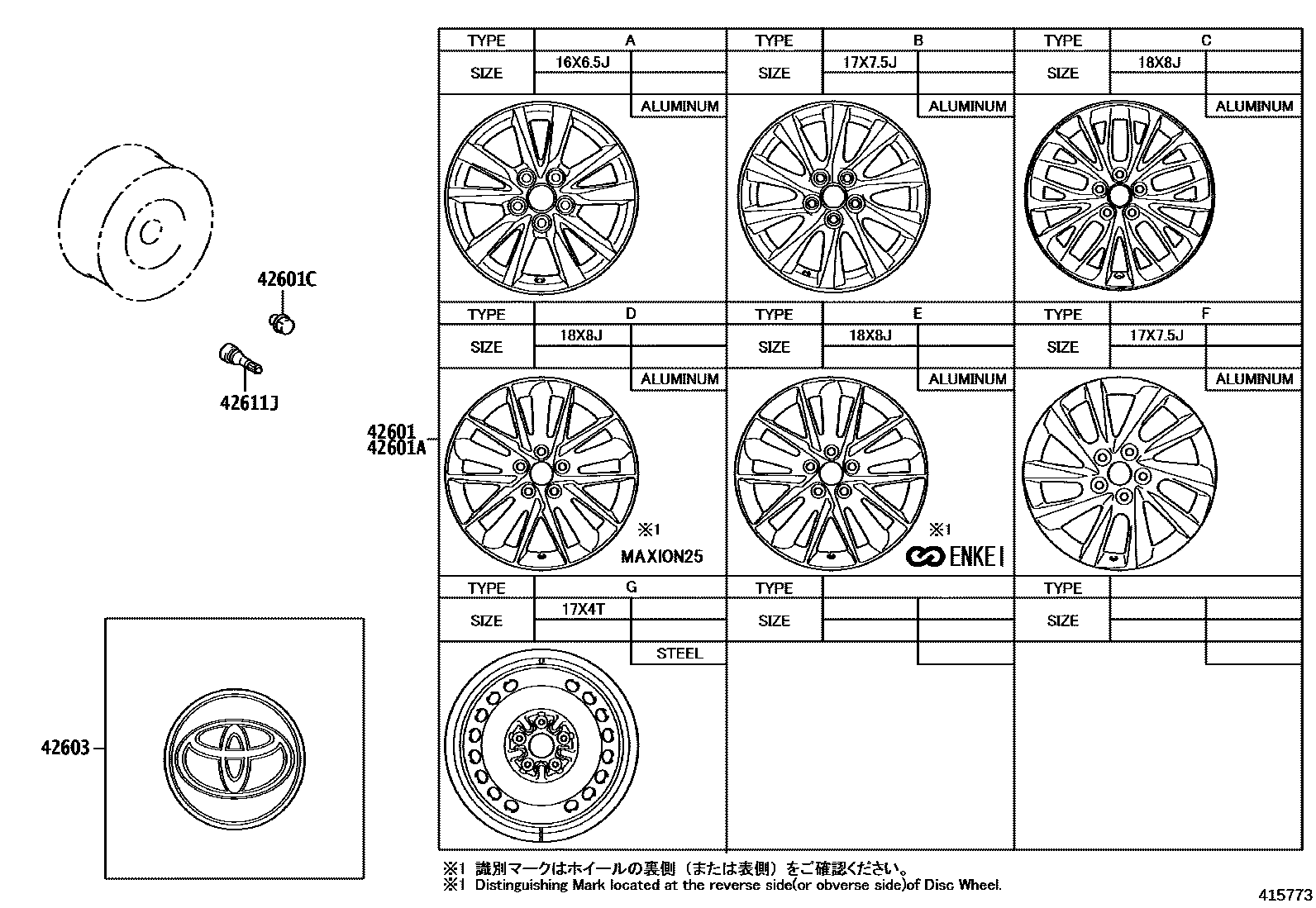

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |
| 42601 | spoke wheel | 42611-06F00 · 42611-06F10 · 42611-06F20 · 42611-06K90 · 42611-06L00 · 42611-06L60 |
| 42601A | Spoke wheel (for spare tire) | 42611-06F00 · 42611-06F10 · 42611-06F20 · 42611-06L00 · 42611-06L60 · 42611-33E20 |
| 42601C | Hub nut (for axle) | 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K280 · 42603-0K290 · 42603-42170 · 42603-VT010 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12020 · 42607-60010 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12020 · 42607-60010 |
| 42607D | tire pressure monitoring valve | 90942-05044 |
| 42607E | Tire pressure monitoring valve (for septa) | 90942-05044 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
