Toyota CAMRY 废气再循环系统 — Figure 2501

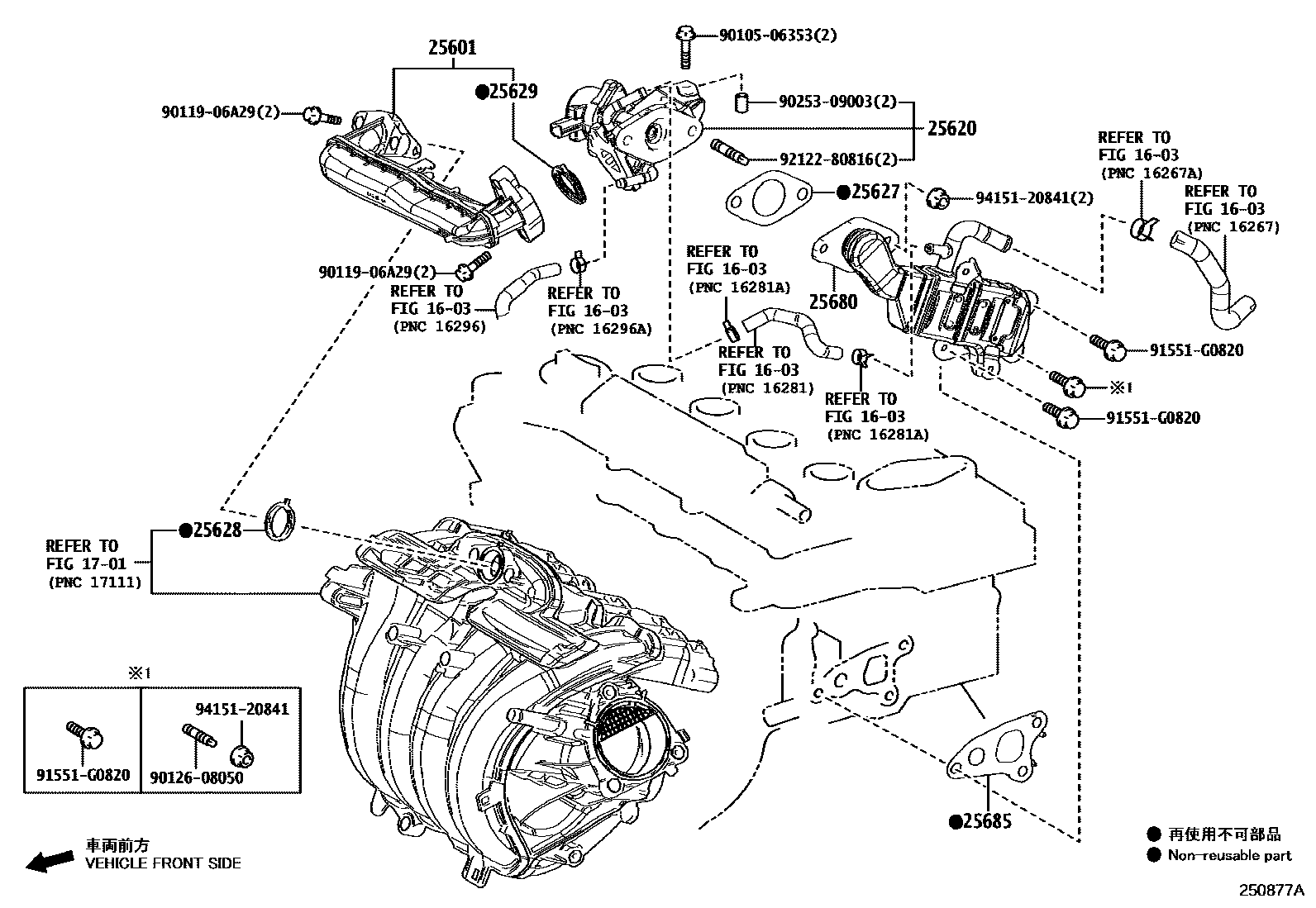

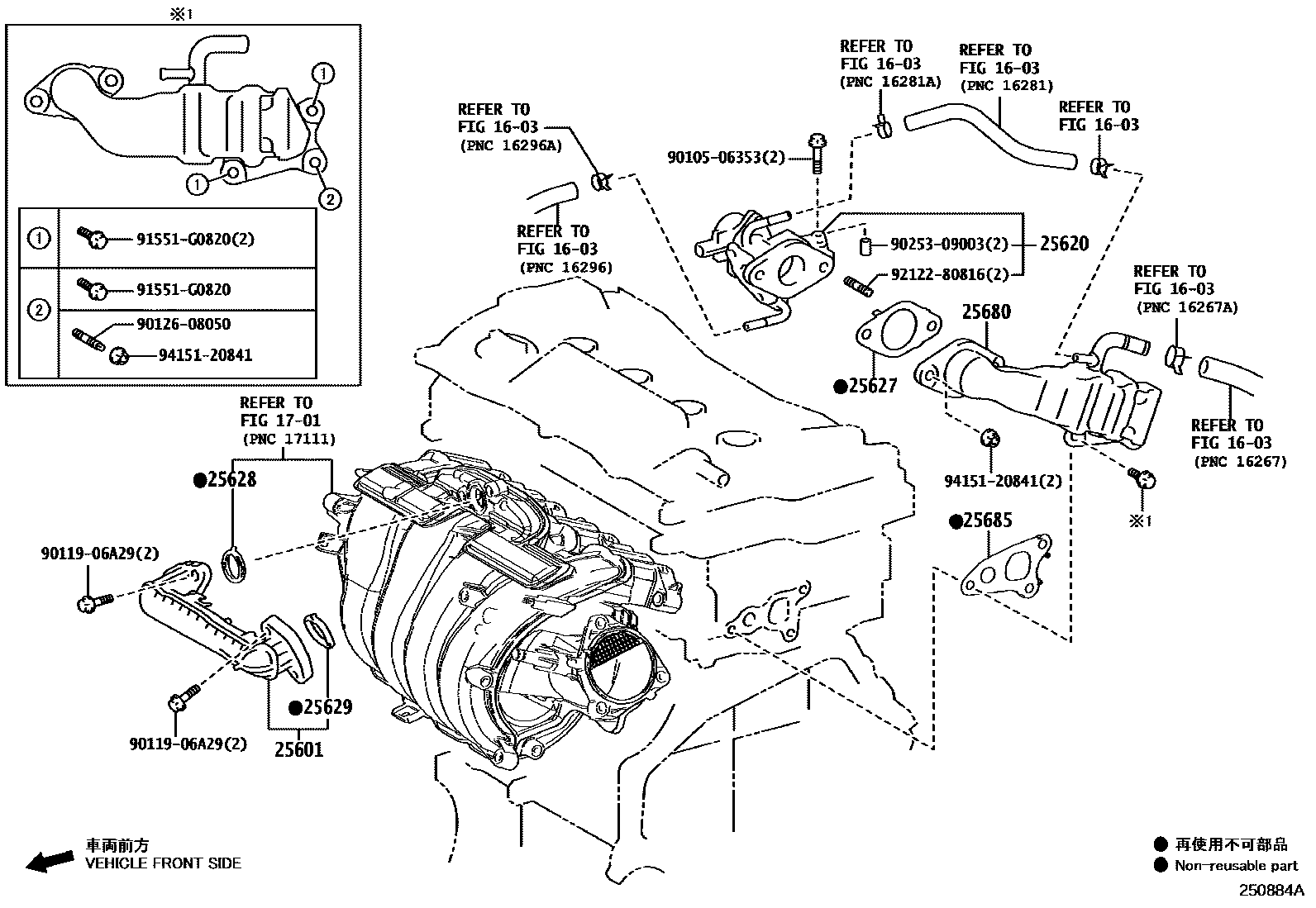

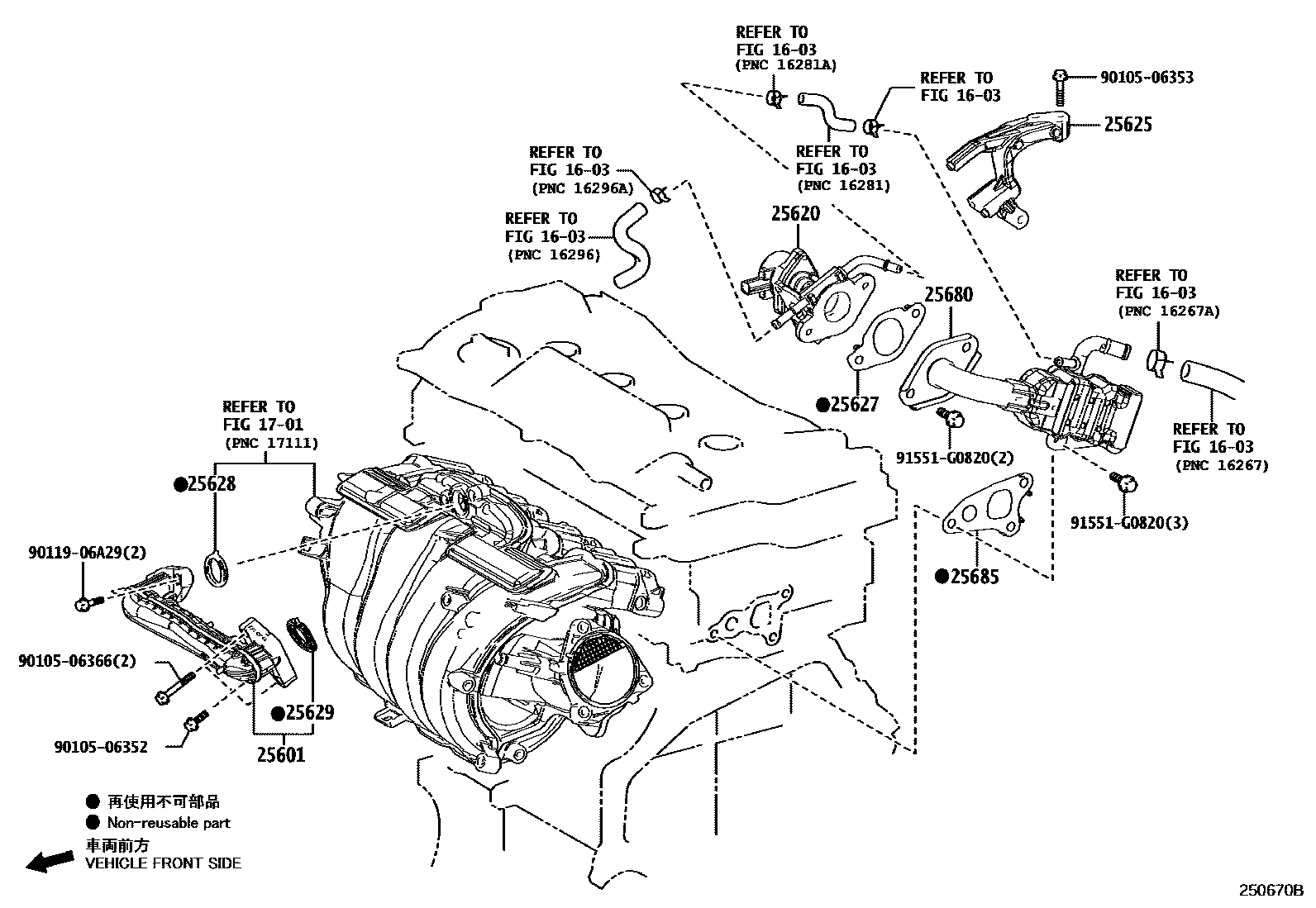

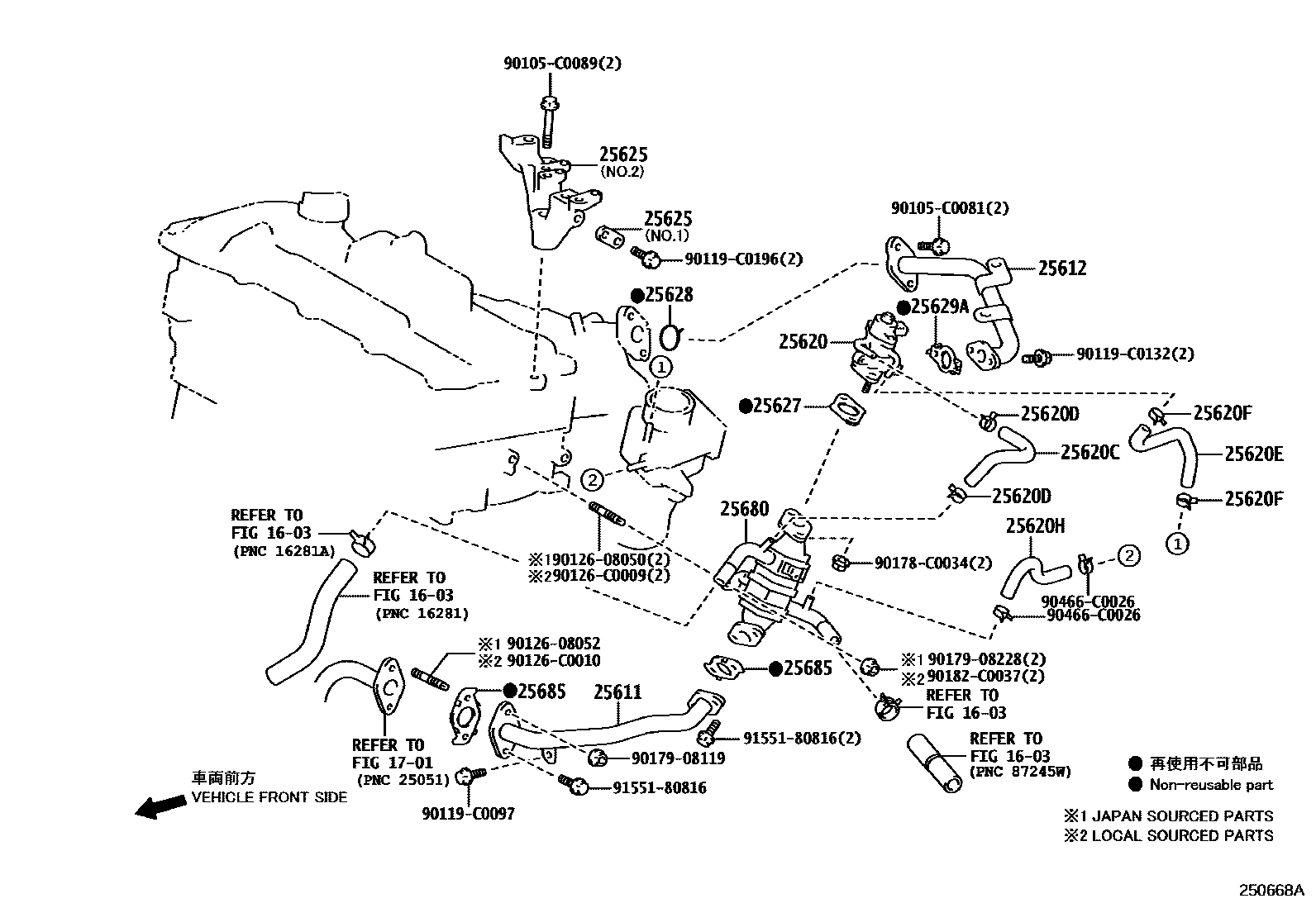

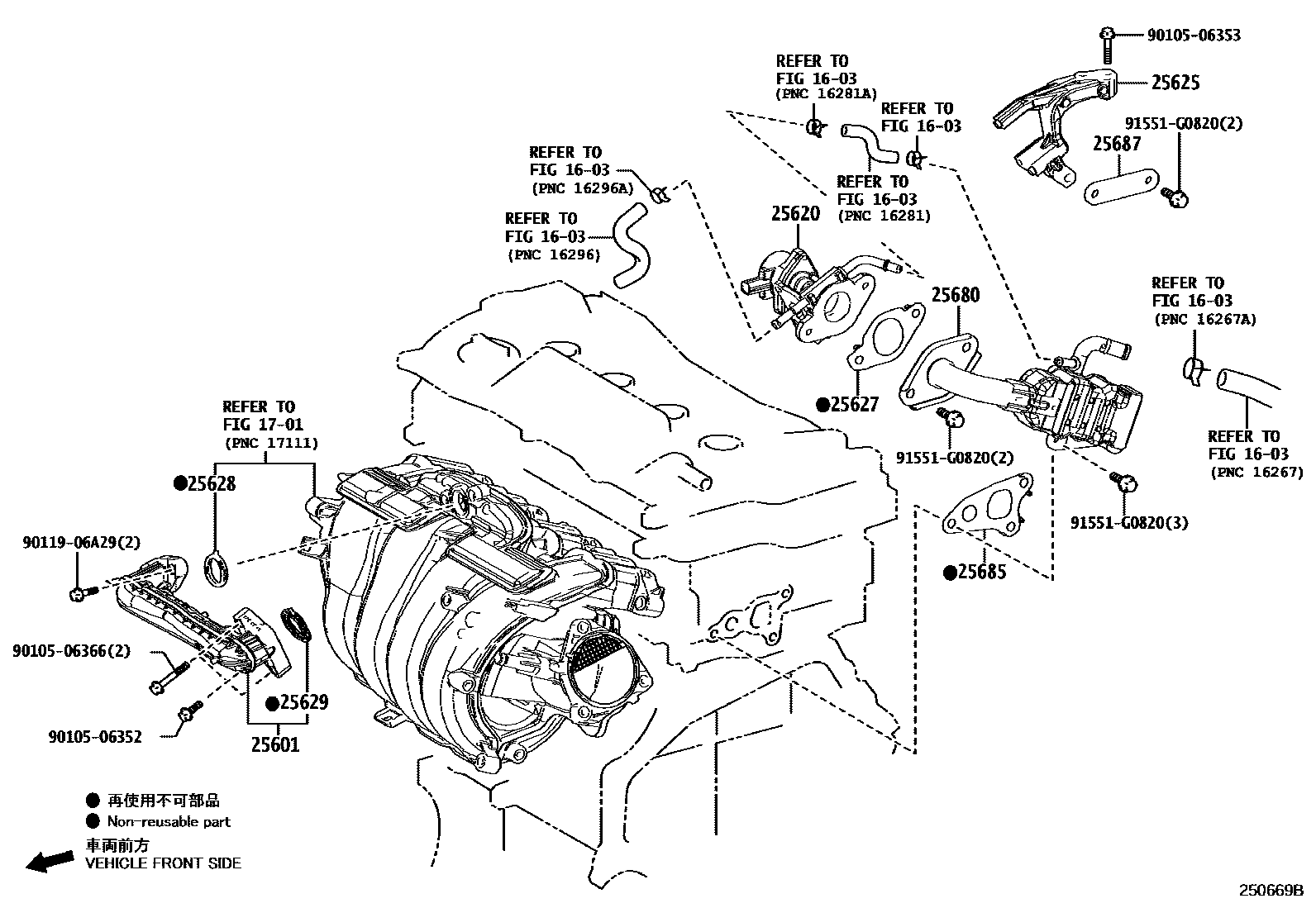

Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-24030 · 25601-25011 · 25601-25030 |
| 25611 | EGR tube connector | 25611-0V020 · 25611-36020 |
| 25612 | No. 2 EGR tube | 25612-0V020 |
| 25620 | EGR valve assembly | 25620-24050 · 25620-24060 · 25620-25030 · 25620-25040 · 25620-25050 · 25620-36050 |
| 25620C | HOSE, WATER BY-PASS, NO.1 | 16261-0V060 · 16261-36140 |
| 25620D | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0026 |
| 25620E | HOSE, WATER BY-PASS, NO.2 | 16264-0V050 · 16264-36150 |
| 25620F | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 |
| 25620H | Water bypass hose assembly | 16267-0V090 · 16267-36150 |
| 25625 | EGR valve bracket | 25625-0V010 · 25625-0V020 · 25625-25010 · 25625-25030 |
| 25627 | EGR valve gasket | 25627-0V010 · 25627-24010 · 25627-25010 |
| 25628 | EGR air intake gasket | 25628-25010 · 25628-28010 |
| 25629 | EGR valve adapter gasket | 25629-25010 |
| 25629A | No. 2 EGR tube gasket | 25629-0V010 |
| 25680 | EGR cooler assembly | 25680-0V010 · 25680-24010 · 25680-25010 · 25680-25030 · 25680-25040 · 25680-25060 · 25680-25080 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-0V010 · 25685-25011 |
| 25687 | No. 1 EGR cooler bracket | 25687-25010 |
