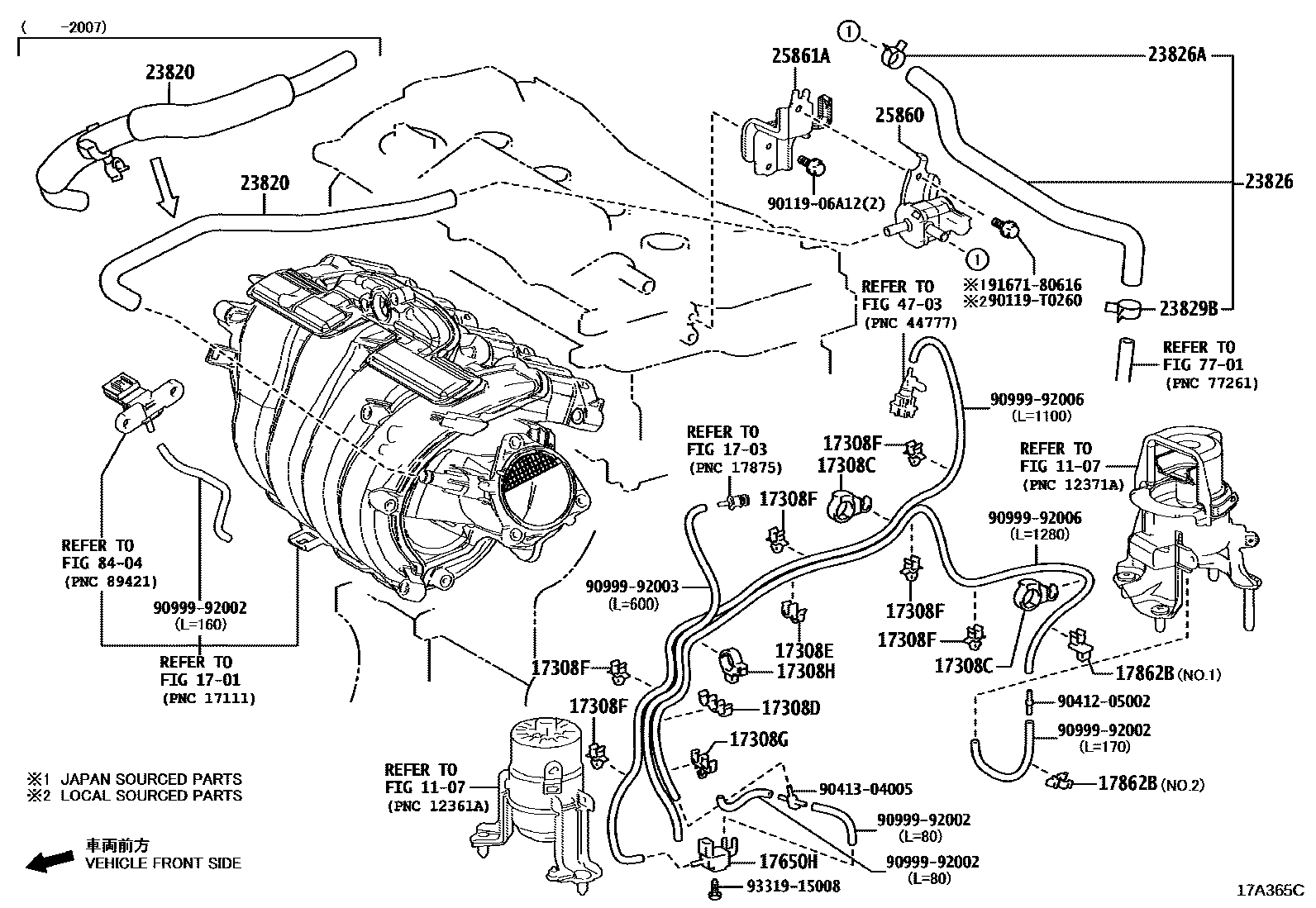

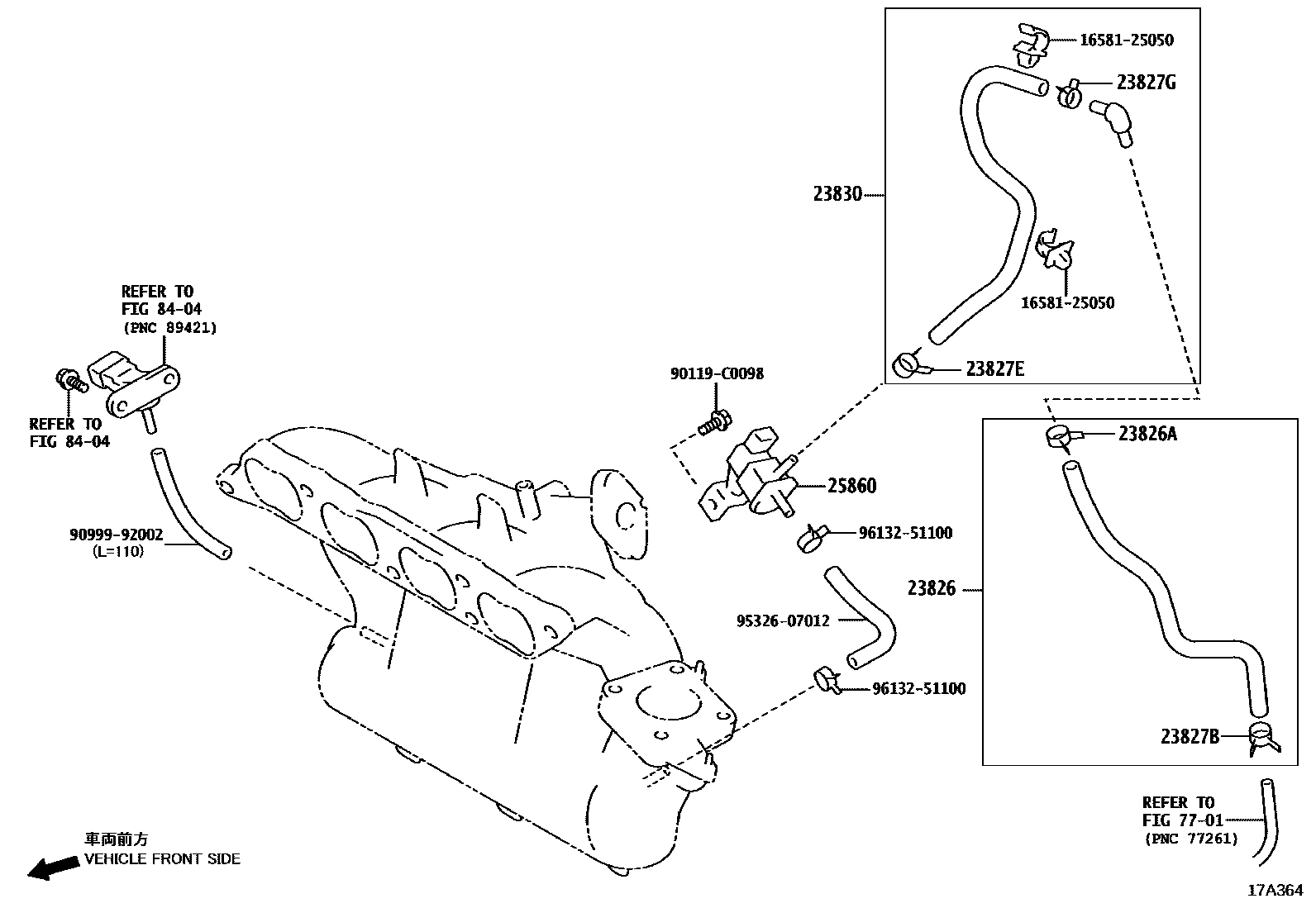

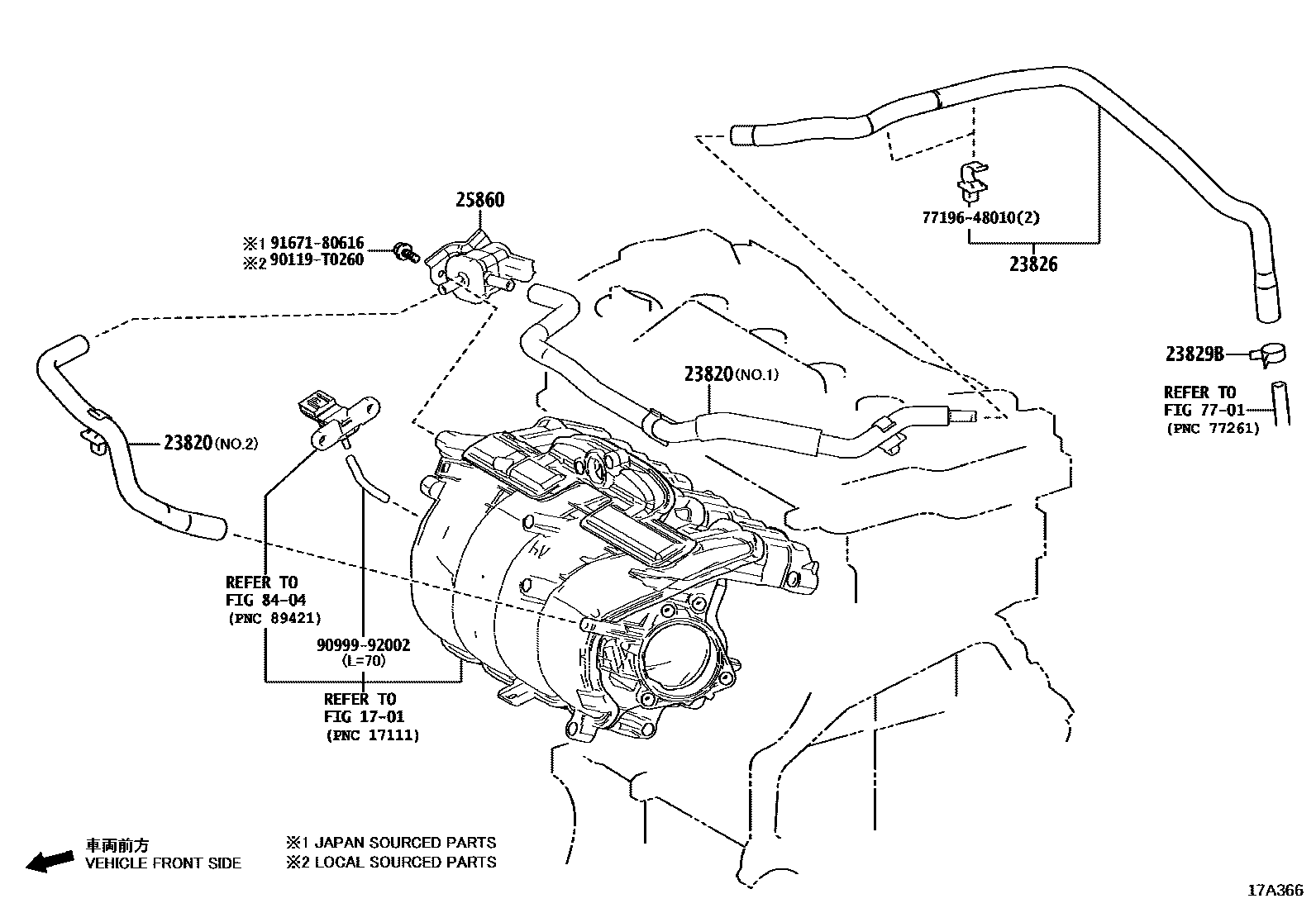

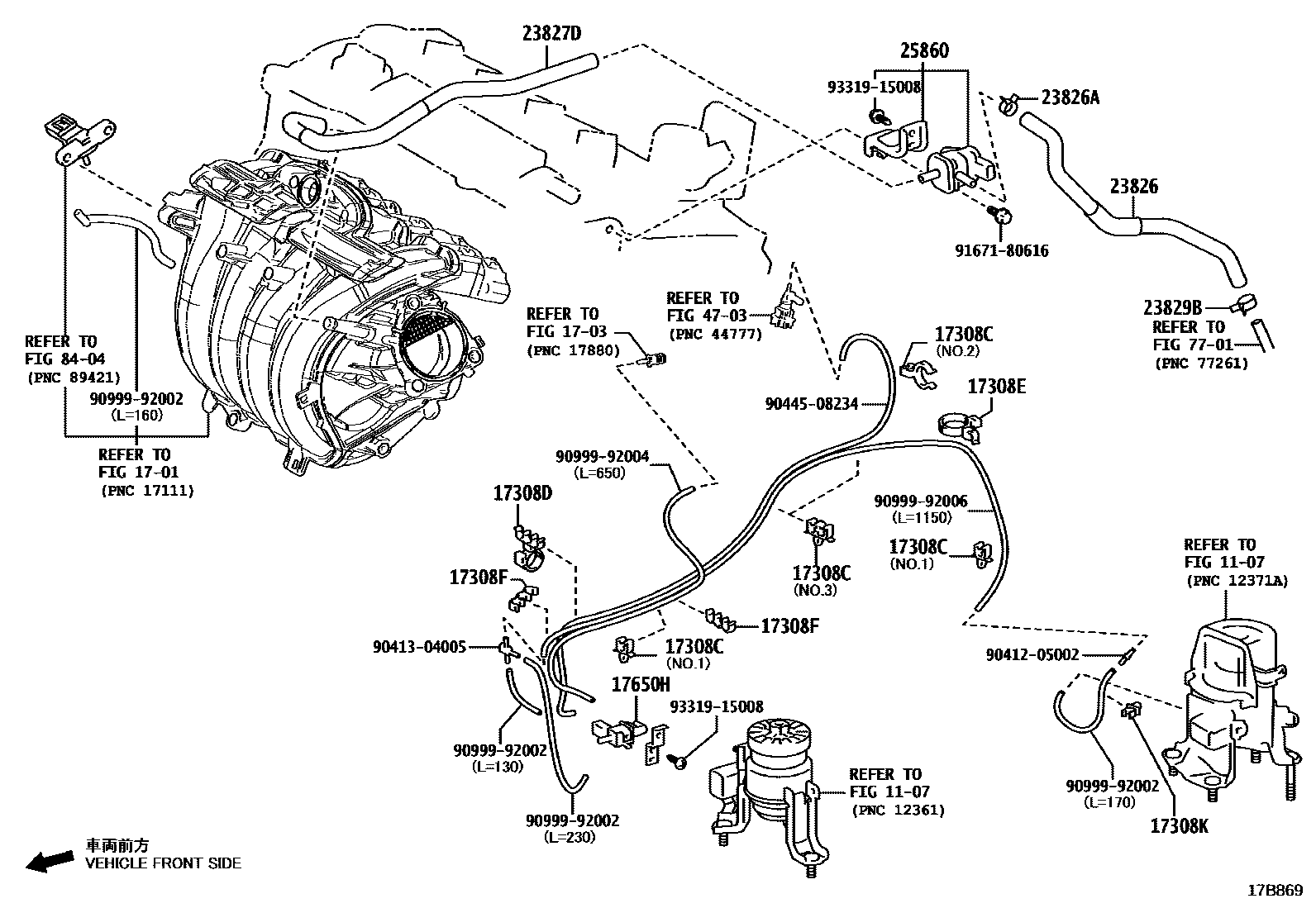

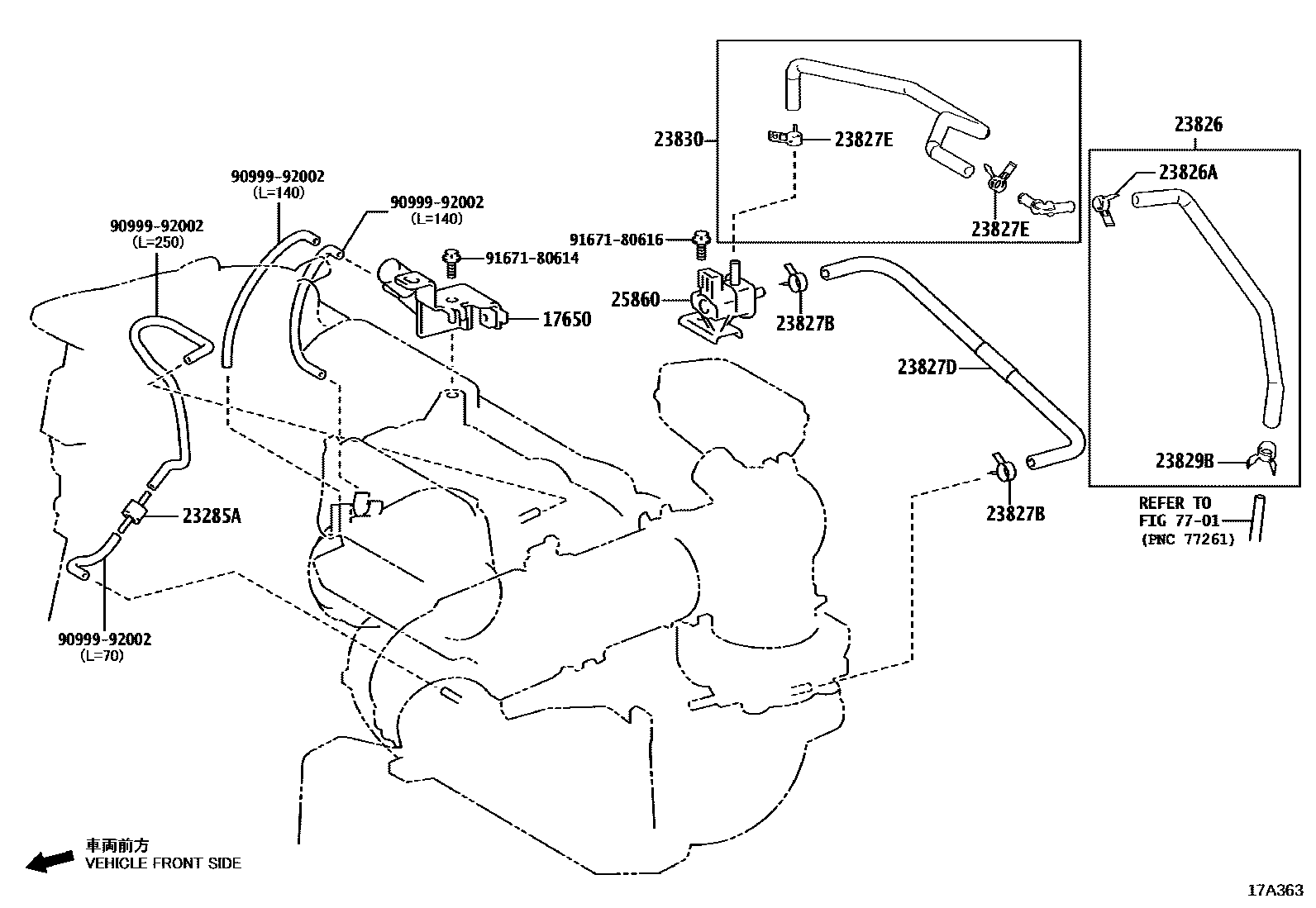

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-33060 · 44783-42040 · 44783-42070 · 44783-42080 |
| 17308D | Clamp No. 2 (for vacuum hose) | 44783-42100 · 90464-00074 |
| 17308E | Clamp No. 3 (for vacuum hose) | 44783-42080 · 44783-42090 |
| 17308F | No. 4 clamp (for vacuum hose) | 44783-42040 · 90464-00074 |
| 17308G | No. 5 clamp (for vacuum hose) | 90469-07012 |
| 17308H | Clamp No. 6 (for vacuum hose) | 90959-01434 |
| 17308K | No. 7 clamp (for vacuum hose) | 44783-42040 |
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 17650H | Vacuum switch valve | 90910-12059 · 90910-TC003 |
| 17862B | hose clamp | 44783-42040 · 44783-42060 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23820 | Fuel vapor supply hose assembly | 23820-25051 · 23820-25070 · 23820-25071 · 23820-25130 |
| 23826 | No. 1 fuel vapor supply hose | 23820-0V270 · 23820-0V280 · 23820-F0050 · 23820-F0060 · 23826-24180 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11004 · 90466-13005 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-13005 |
| 23827D | No. 2 fuel vapor supply hose | 23826-24020 · 23827-0V220 |
| 23827E | Clamp (for No. 2 fuel vapor supply hose) | 90466-11004 |
| 23827G | Clamp (for No. 3 fuel vapor supply hose) | 90466-T0022 · 96137-41301 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-13005 · 90466-15004 · 96136-41901 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-0V220 · 23830-0V230 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0V150 · 25860-24020 · 25860-25020 · 25860-25040 · 25860-36020 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-25011 |
