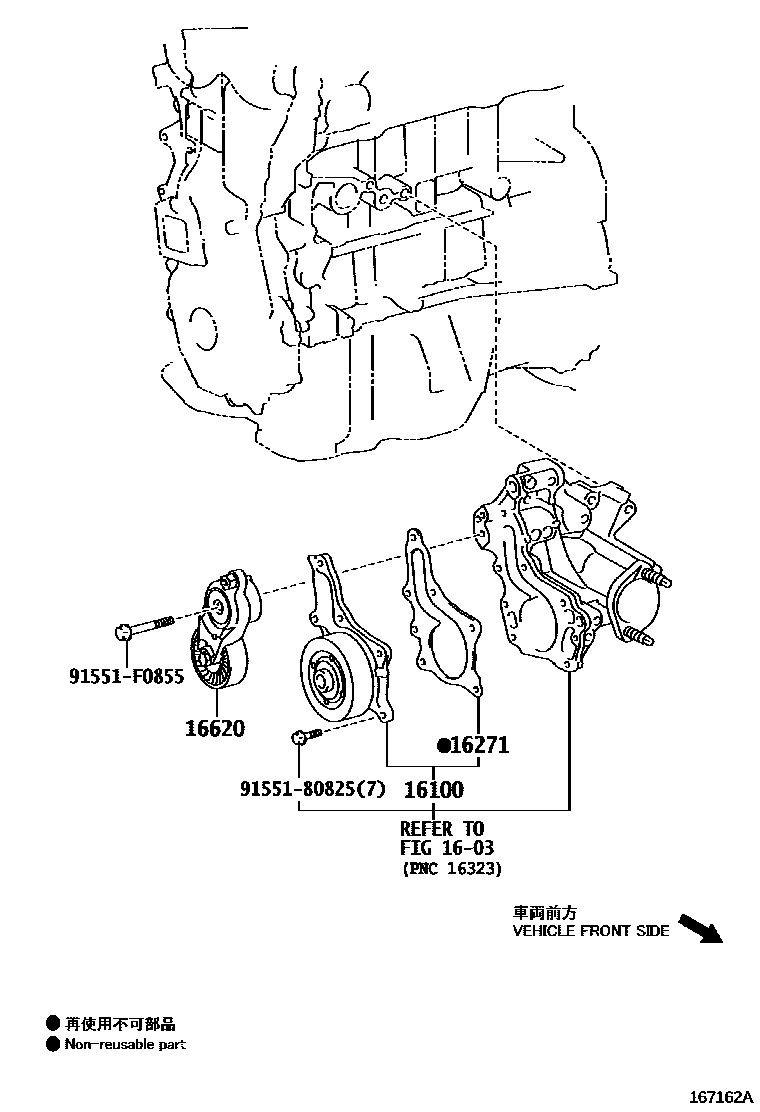

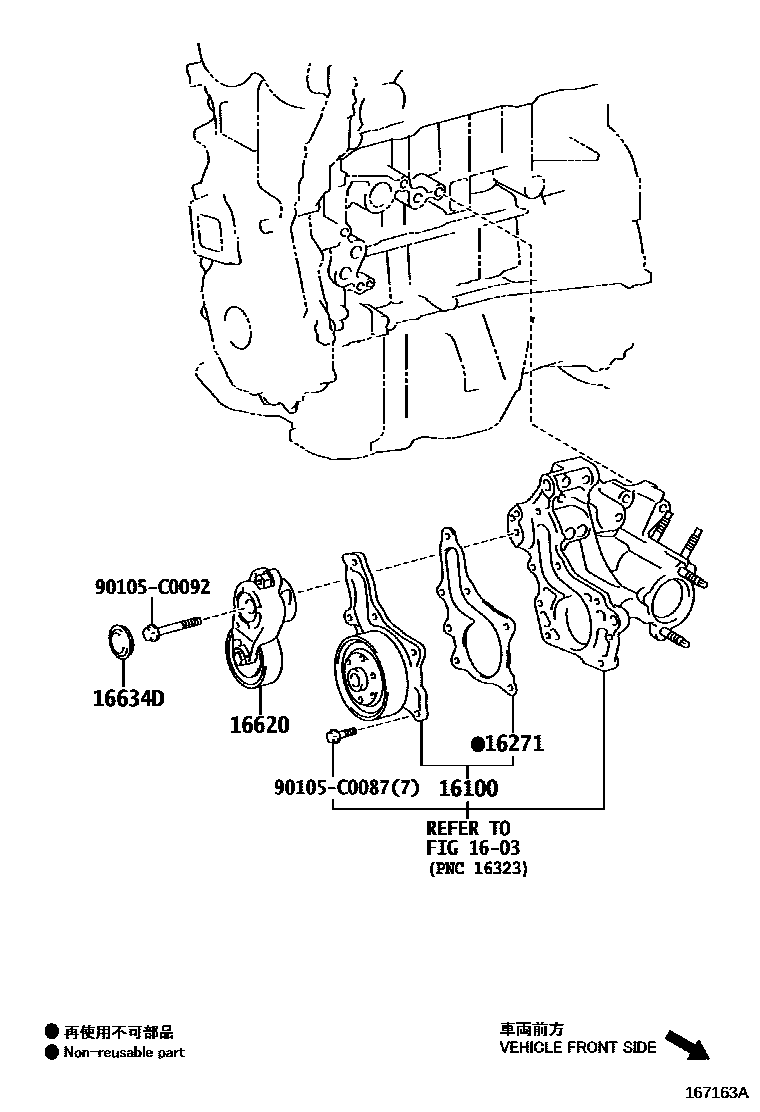

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09700 · 16100-39515 · 16100-39516 |
| 16271 | water pump gasket | 16271-0V010 · 16271-36010 |
| 16620 | Poly V-belt tensioner assembly | 16620-0V051 · 16620-36013 |
| 16634D | dust cover | 16628-0V010 |
