Toyota CAMRY Camshaft & Valve — Figure 1302

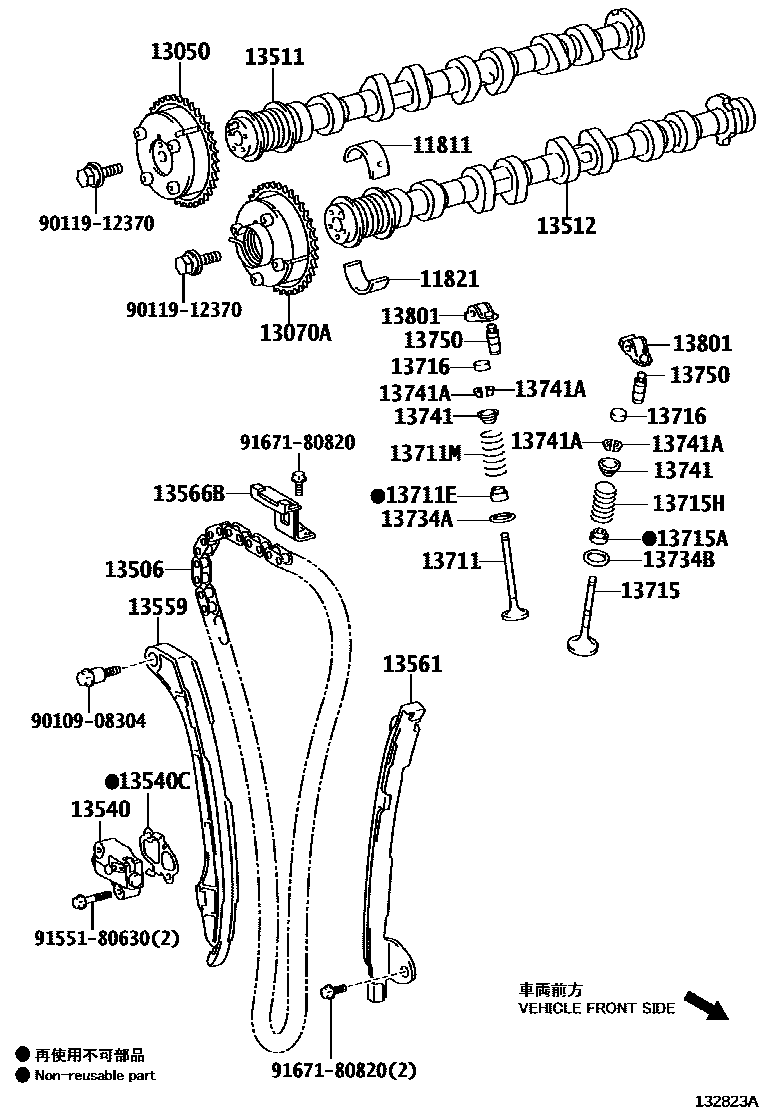

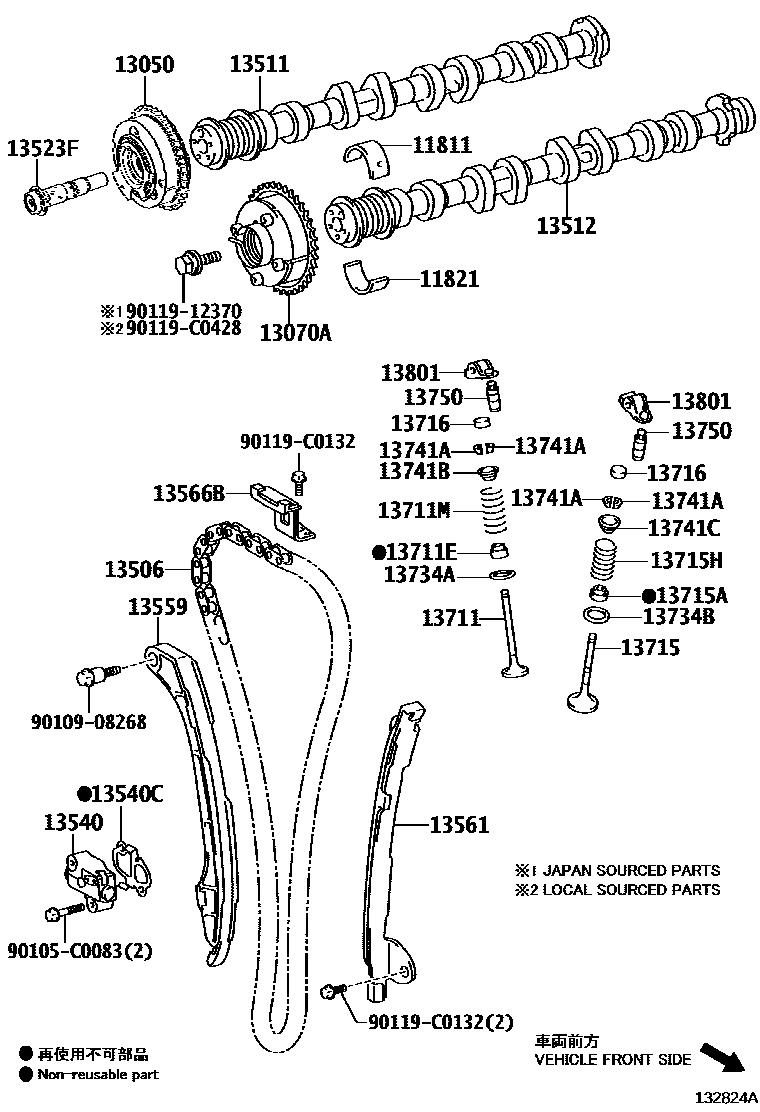

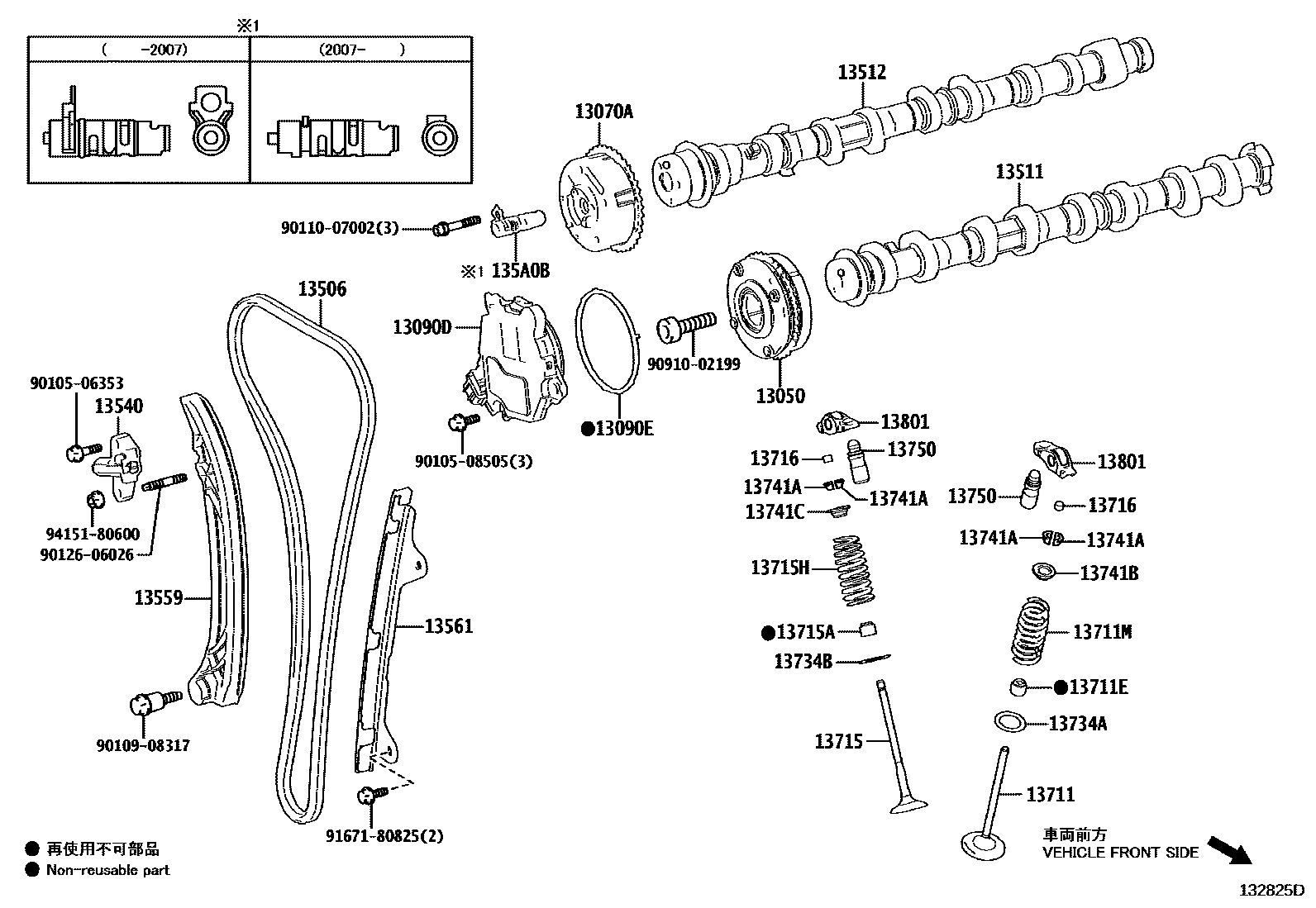

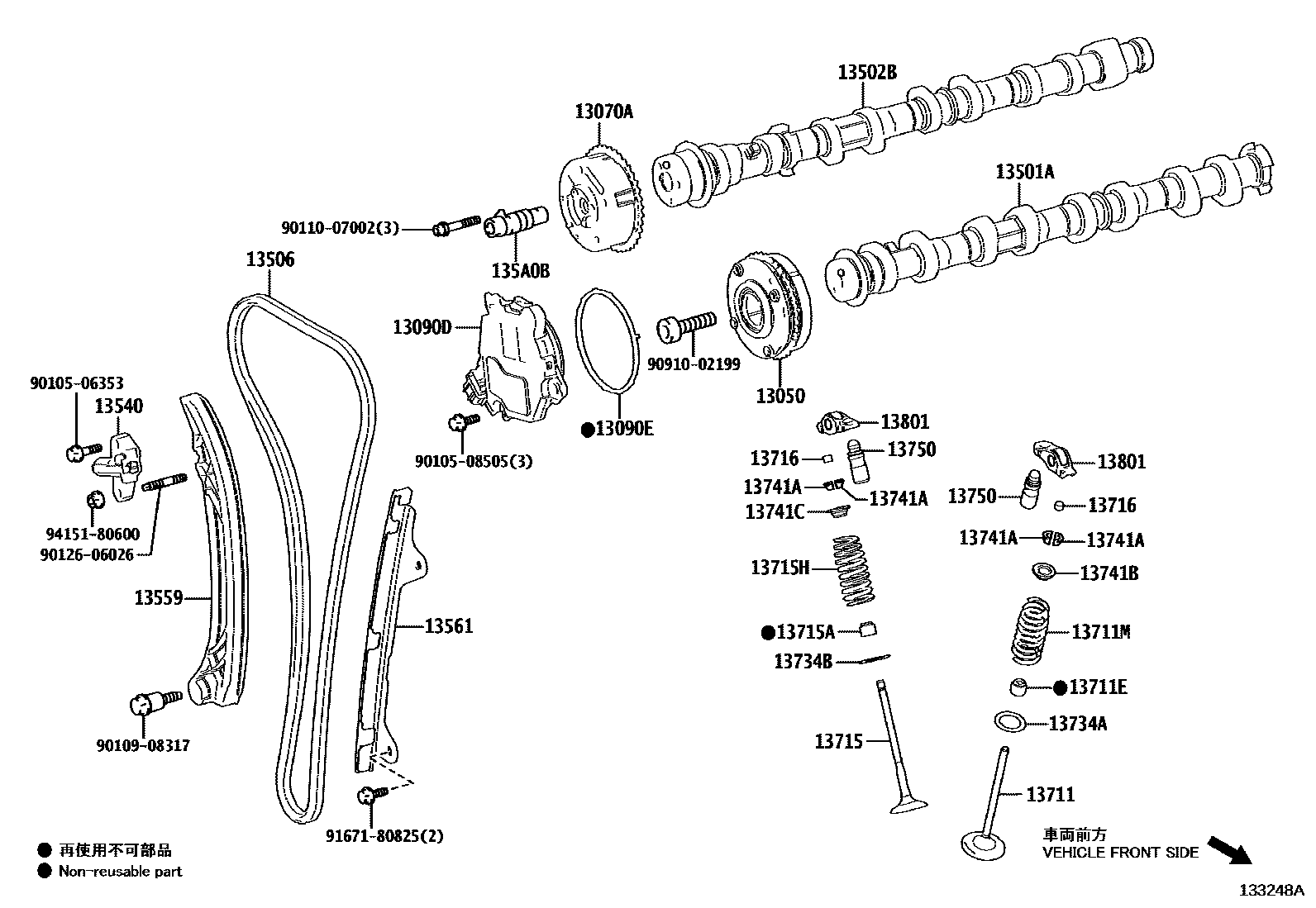

Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-0V010 · 11811-36010 |
| 11821 | No. 2 camshaft bearing | 11821-0V010 · 11821-36010 |
| 13050 | Camshaft timing gear assembly | 13050-0V090 · 13050-25010 · 13050-36030 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0V050 · 13070-25020 · 13070-25030 · 13070-36030 |
| 13090D | Cam timing control motor assembly with EDU | 13090-25010 |
| 13090E | O-ring (for cam timing control motor) | 90301-92005 |
| 13501A | Intake camshaft sub-assembly | 13501-24020 |
| 13502B | Exhaust camshaft sub-assembly | 13502-24010 |
| 13506 | Chain sub-assembly | 13506-0V030 · 13506-24020 · 13506-25020 · 13506-36030 |
| 13511 | camshaft | 13501-0V060 · 13501-25010 · 13501-25020 · 13501-36050 |
| 13512 | Camshaft No. 2 | 13502-0V060 · 13502-25010 · 13502-25020 · 13502-36030 |
| 13523F | Bolt (for camshaft timing gear) | 135A0-0V020 |
| 13540 | No. 1 chain tensioner assembly | 13540-0V050 · 13540-25020 · 13540-36041 |
| 13540C | Pad (for chain tensioner) | 13552-0V020 · 13552-36010 |
| 13559 | chain tensioner guide plate | 13559-0V050 · 13559-24010 · 13559-25010 · 13559-36040 |
| 13561 | No. 1 chain shock absorber | 13561-0V040 · 13561-15010 · 13561-25020 · 13561-25021 · 13561-36030 |
| 13566B | Timing chain guide plate | 13566-0V021 · 13566-36011 |
| 135A0B | Camshaft timing valve assembly | 135A0-25010 · 135A0-25020 |
| 13711 | intake valve | 13711-0V030 · 13711-24040 · 13711-25020 · 13711-25030 · 13711-36060 |
| 13711E | Intake valve stem oil seal | 90913-02101 · 90913-T2001 |
| 13711M | Compression spring (for intake valve) | 90501-31031 · 90501-33034 · 90501-34022 · 90501-C0044 |
| 13715 | exhaust valve | 13715-0V040 · 13715-24040 · 13715-25020 · 13715-36020 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 · 90913-T2003 |
| 13715H | Compression spring (for exhaust valve) | 90501-32075 · 90501-33035 · 90501-34022 · 90501-C0044 |
| 13716 | valve stem cover | 13716-0Y010 · 13716-25010 · 13716-75020 |
| 13734A | Intake valve spring seat | 13734-0P020 · 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-0P020 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-C3002 |
| 13741B | Intake valve spring seat ring | 13741-0V020 · 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-0V020 · 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-0V030 · 13750-25010 · 13750-36020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0V020 · 13801-25010 · 13801-36020 |
