Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 5 images and 11 PNC and OE references.

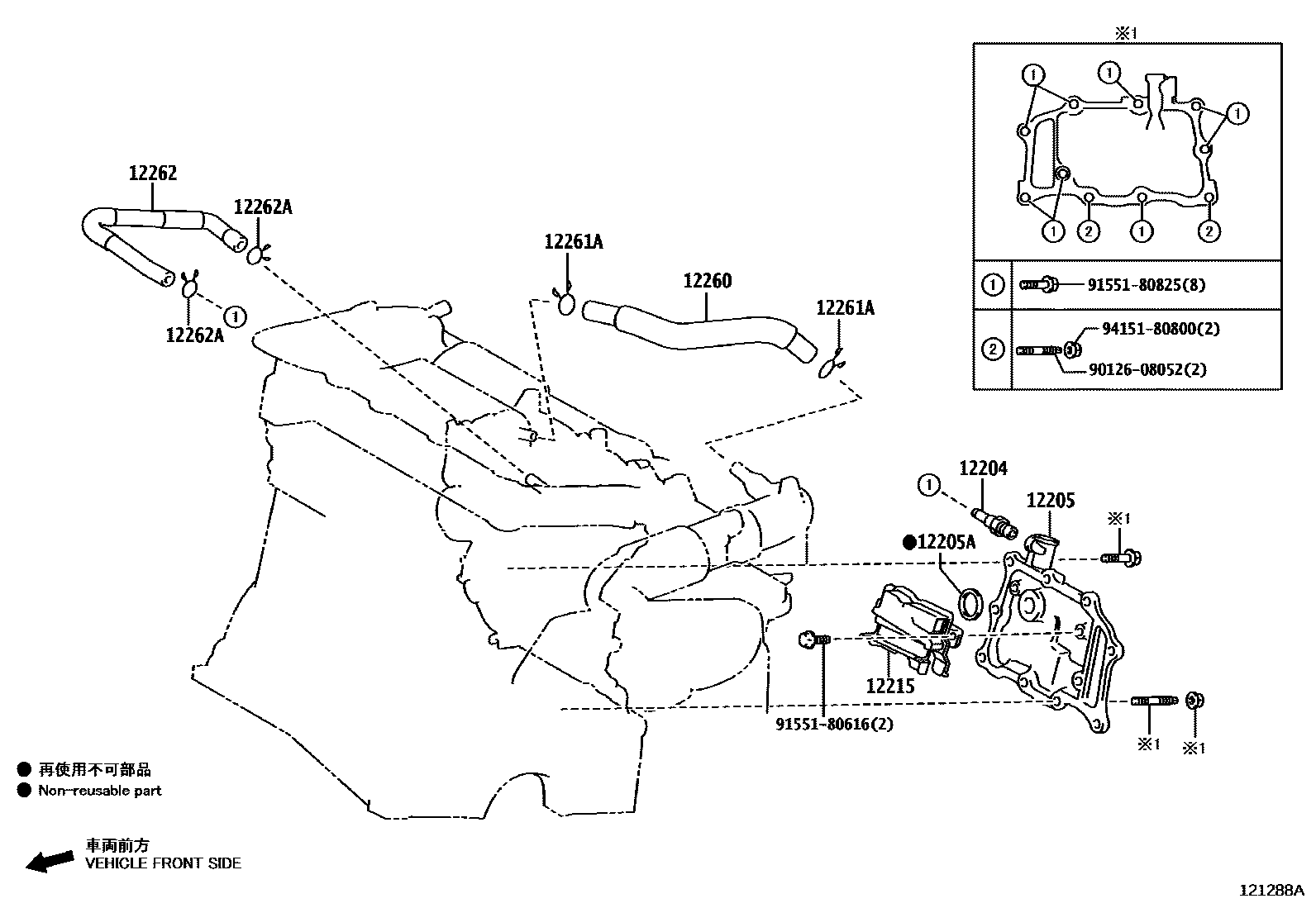

Toyota CAMRY Ventilation Hose EPC diagram — 121288A
Ventilation Hose — 121288A (201810 – 999999)

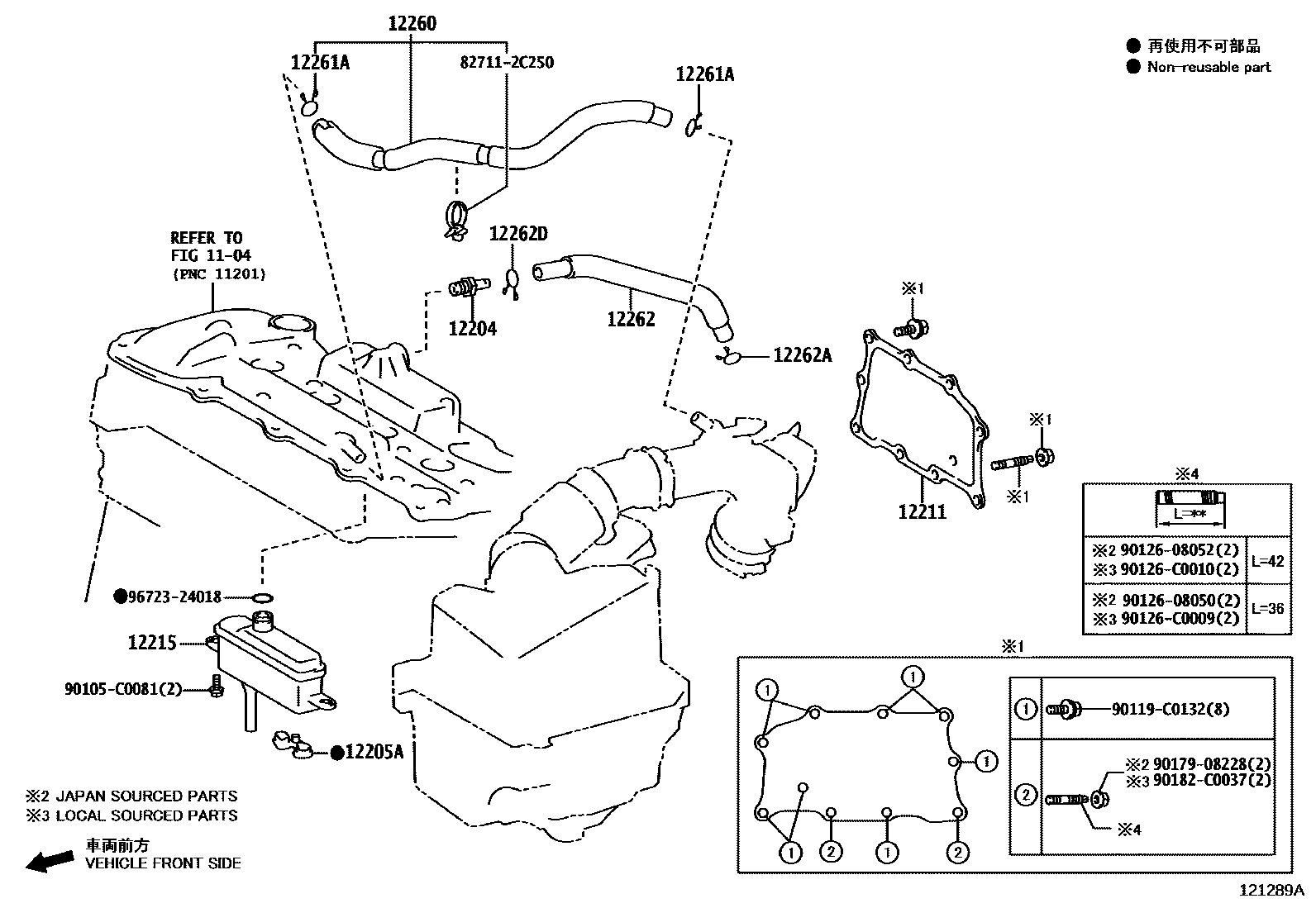

Toyota CAMRY Ventilation Hose EPC diagram — 121289A
Ventilation Hose — 121289A (201810 – 999999)

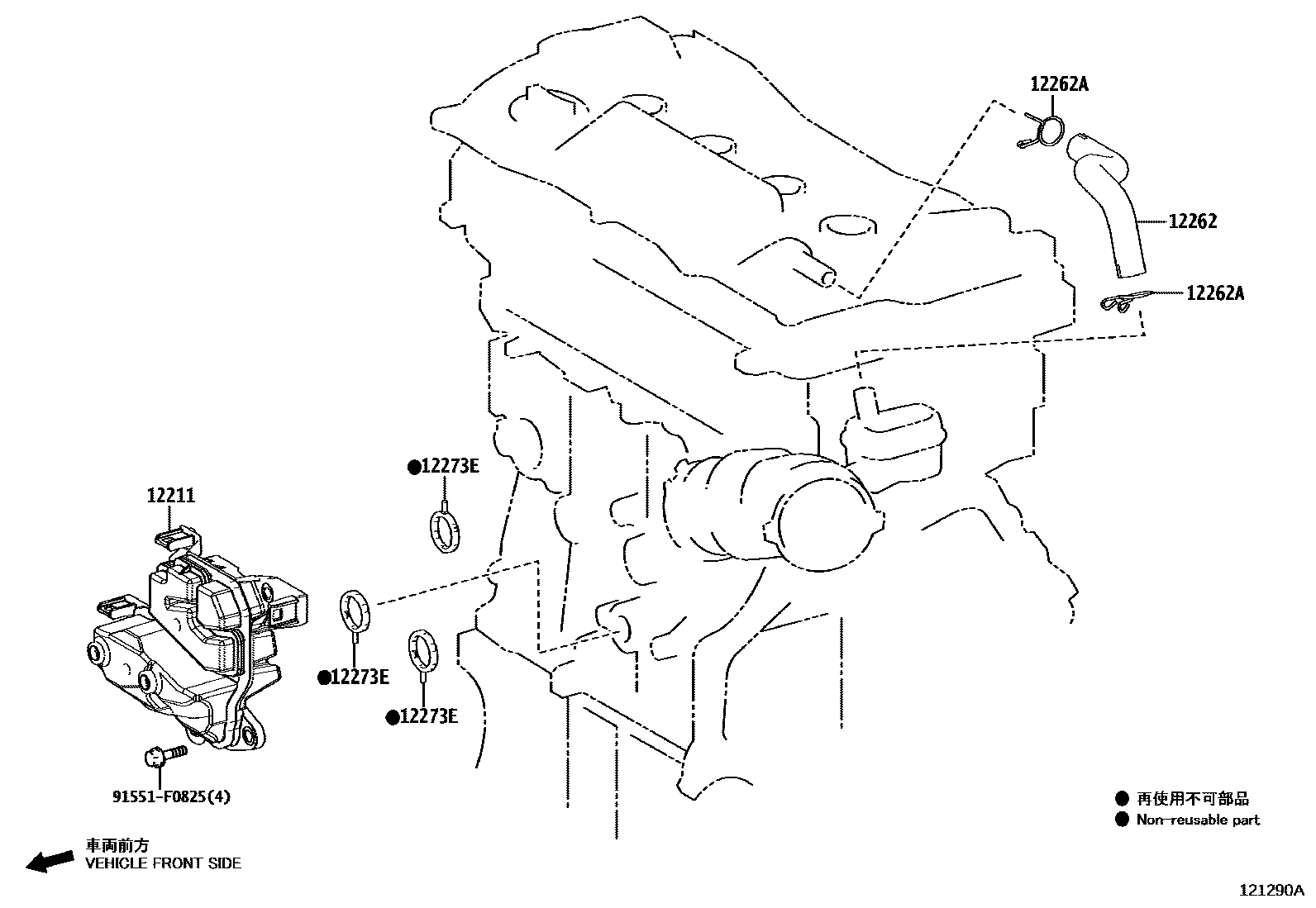

Toyota CAMRY Ventilation Hose EPC diagram — 121290A
Ventilation Hose — 121290A (201810 – 999999)

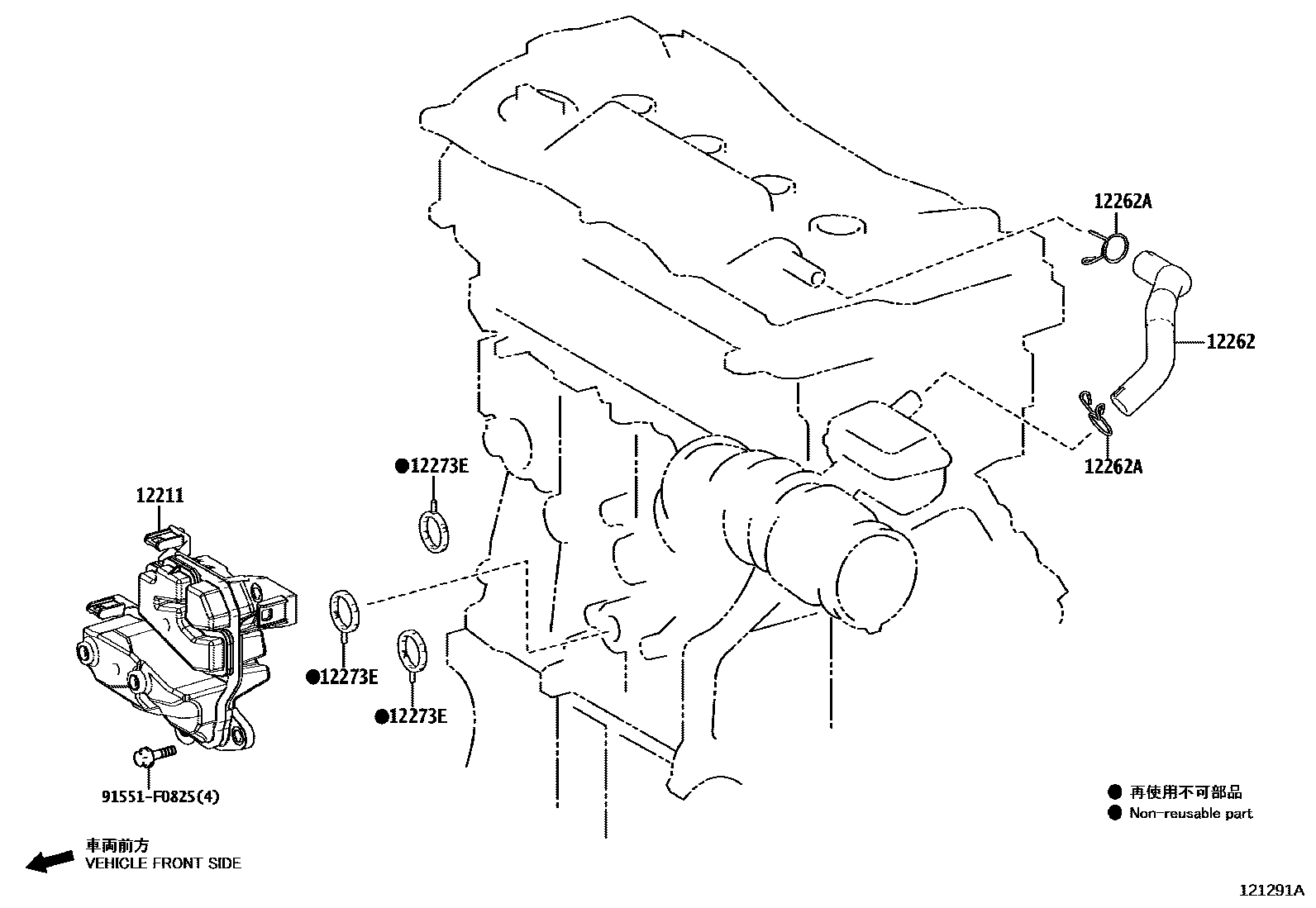

Toyota CAMRY Ventilation Hose EPC diagram — 121291A
Ventilation Hose — 121291A (201810 – 999999)

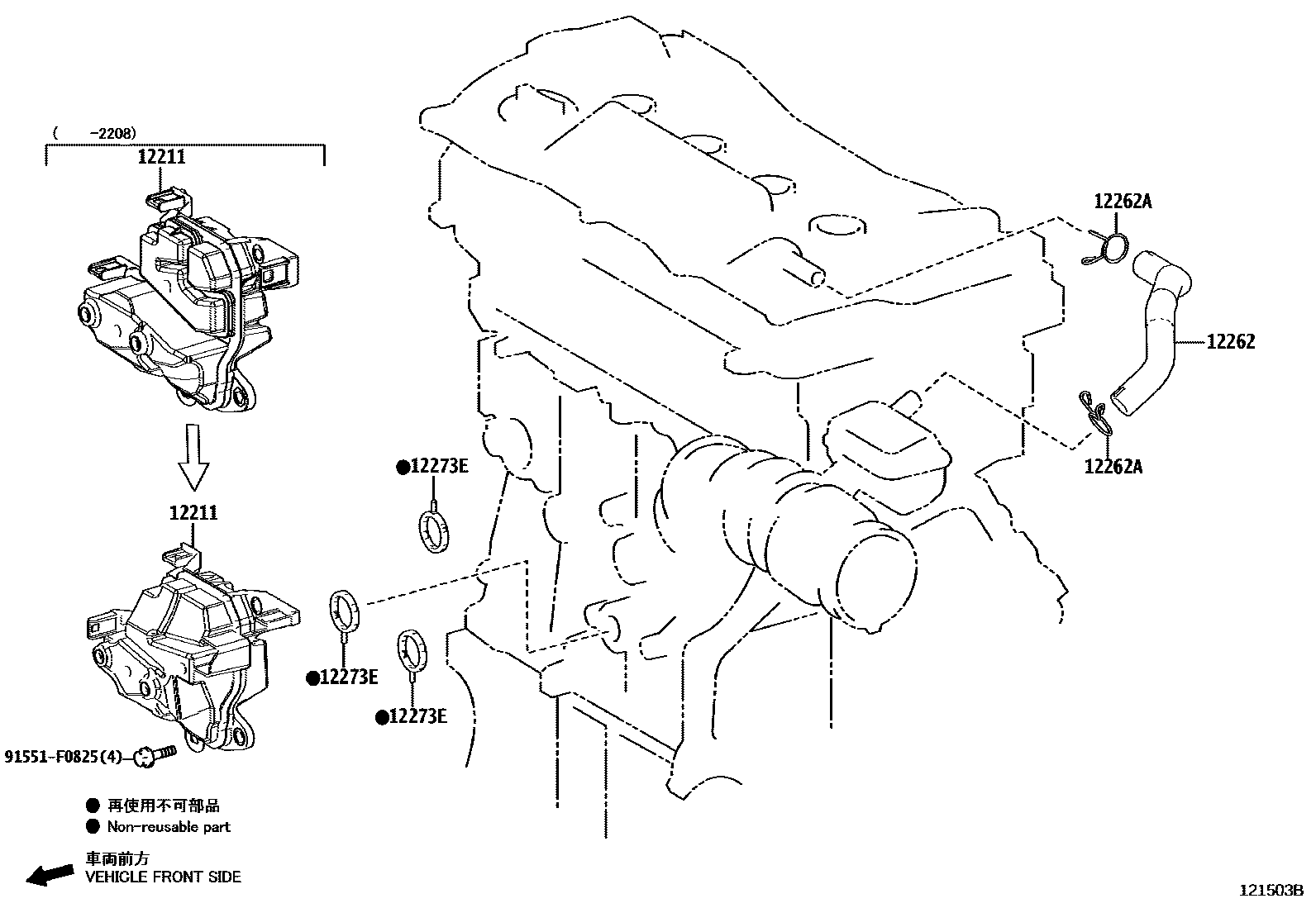

Toyota CAMRY Ventilation Hose EPC diagram — 121503B
Ventilation Hose — 121503B (202111 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0V030 · 12204-36030 · 12204-36070
12205Ventilation box sub-assembly12205-36010
12205AO-ring (for ventilation box)12273-0V030 · 12273-36010
12211Ventilation box No. 112211-0V030 · 12211-24010 · 12211-24020 · 12211-25010 · 12211-25011
12215Ventilation box isolation device12215-0V030 · 12215-36010
12260Ventilation hose assembly12260-36090 · 12260-36100
12261AClip or clip (for vent hose)90467-21004
12262Ventilation hose No. 212262-24060 · 12262-25030 · 12262-25040 · 12262-36040 · 12262-36100
12262AClamp (for vent hose No. 2)90467-16035 · 90467-17126 · 90467-21004
12262DClamp (for vent hose No. 2)90467-15120
12273EPads (for ventilation boxes)12273-24010
